MODEL NUMBERS
NAT. GAS L.R GAS
BBT53 BBT54
BBT103 BBT104
INSTALLER MUST LEAVE THESE INSTRUCTIONS
WITH THE CONSUMER, HAVE THEM COMPLETE,
AND RETURN THE WARRANTY CARD.
WARNING: If the information in these instructions are
not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
Do not store or use gasoline or other flalrunable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
hnmediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the
fire department.
INSTALLATION AND SERVICE MUST BE PER-
FORMED BY A QUALIFIED INSTALLER,
SERVICE AGENCY OR THE GAS SUPPLIER.
This appliance must be connected to an
electrical ground.
WARNING:
CONNECT TO 115V ELECTRICAL
POWER SUPPLY.
DO NOT CONNECT TO 220V
POWER SUPPLY.
U.S. PATENT #
5253635
WARNING: Operation of this furnace without the properly installed, factory furnished vent system could
result in Carbon Monoxide (CO) poisoning and possible death. For your safety, this furnace and the vent
system should be inspected at least annually by a qualified service person.
May be installed in an aftermarket, permanently located, manufactured home (mobile home) where not
prohibited by local codes. See owner's manual for details. This appliance is not convertible for use with other
gases, unless a certified kit is used.
hiS unit is not approved for installation in greenhouses, or environments involving dusty, wet,
rrosive, or explosive conditions. Such conditions will invalidate the warranty and may create unsafe
nditions.
OTE: Obstruction in the vent exhaust tube or air intake tube due to insects, small animals, debris,
c. will prevent the heater from operating but DOES NOT constitute a warranty issue.
The State of Massachusetts requires that installation and service of agas
appliance be performed by a plumber or gas fitter licensed in the
Commonwealth of Massachusetts.
CONTENTS
Introduction ...................................... 2
Specifications and Dimensions ................. 2
Safety Rules................................... 3
Clearances ..................................... 4, 5
Location ....................................... 5
Installation ..................................... 6- 10
Lighting Instructions........................... 11
Gas Conversion ......................................... 12
Burner Orifice ................................... 13
Wiring Diagram ................................. 14
Removing Main Burner ......................... 13
Proper Burner Flame ........................... 13
Sequence of Operation ......................... 15
Optional Kits ................................... 16 - 20
Trouble Shooting ............................. 21 - 22
Parts Drawing ................................... 23
Parts List......................................... 24
Warranty ......................................... 26
INTRODUCTION
THIS IS A GAS-FIRED, DRAFT INDUCED, POWER DEPENDENT, DIRECT VENT WALL FURNACE;
THAT WILL OPERATE SAFELY AND PROVIDE AN EFFICIENT SOURCE OF HEAT WHEN
INSTALLED, OPERATED AND MAINTAINED AS RECOMMENDED IN THESE INSTALLATION AND
OPERATING INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING,
SERVICING, OR USING THE APPLIANCE. IF YOU DO NOT UNDERSTAND ANY PART OF THESE
INSTRUCTIONS CONSULT LOCAL AUTHORITIES, OTHER QUALIFIED INSTALLERS, SERVICE
AGENCIES, THE GAS SUPPLIER OR THE MANUFACTURER.
SPECIFICATIONS AND DIMENSIONS
YourDirect VentWall Furnace isshipped complete inone carton. This carton contains the furnace, vent
exhaust tube, air inlet tube, template with rough-in dimensions, installation and operating instructions, power
cord (consult electrical codes), ball-valve w/flex connector, and wall thermostat.
MODEL
NO.
BBT53
BBT54
BBT103
BBT104
INPUT
BTU'HR.
5,000 BTU
1.45KW
5,000 BTU
1.45KW
9,000 BTU
2.61 KW
9,000 BTU
2.61 KW
WIDTH DEPTH HEIGHT
48" 5.375" 9.375"
122cln 13.65cln 23.8cln
48" 5.375" 9.375"
122cln 13.65cln 23.8cm
72" 5.375" 9.375"
183cln 13.65cln 23.8cm
72" 5.375" 9.375"
183cln 13.65cln 23.8cln
GAS TYPE
CO_. GAS
3/8" NAT.
3/8" L.P
3/8" NAT.
3/8" L.P
MAX. WALL
Thickness
16"
41 cm
16"
41 cm
16"
41 cm
16"
41 cm
MIN. WALL
Thickness
4 _
10cm
4 ,7
10cm
4"
10cm
4"
10cm
Page 2

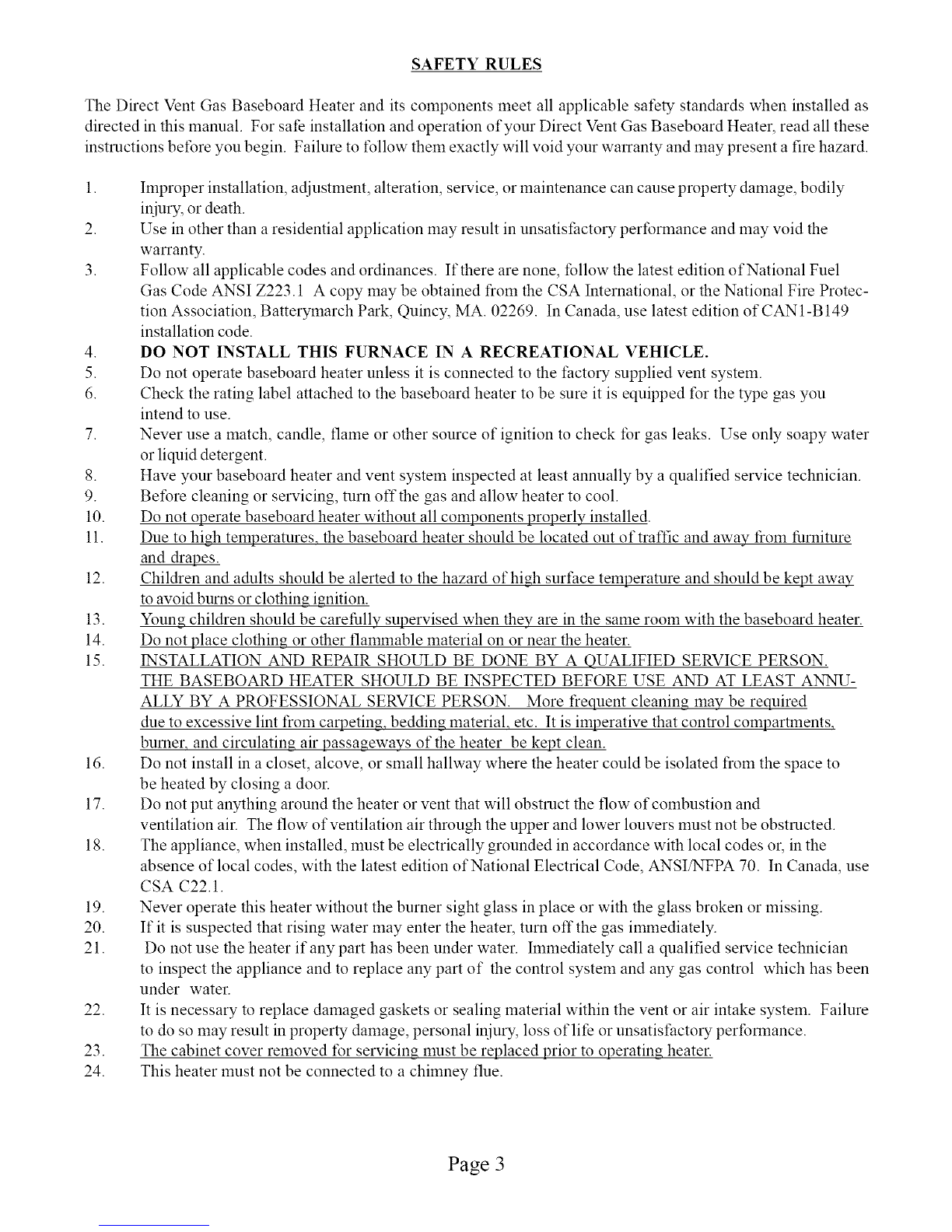

SAFETY RULES
The Direct Vent Gas Baseboard Heater and its components meet all applicable safety standards when installed as
directed in this manual. For sate installation and operation of your Direct Vent Gas Baseboard Heater, read all these
instructions before you begin. Failure to follow them exactly will void your warranty and may present a fire hazard.
,
,
,
5.
6.
,
.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
Improper installation, adjustment, alteration, service, or maintenance can cause property damage, bodily
iniury, or death.
Use in other than a residential application may result in unsatisfactory performance and may void the
warranty.
Follow all applicable codes and ordinances. If there are none, follow the latest edition of National Fuel
Gas Code ANSI Z223.1 A copy may be obtained from the CSA International, or the National Fire Protec-
tion Association, Batterymarch Park, Quincy, MA. 02269. In Canada, use latest edition of CAN1-B149
installation code.
DO NOT INSTALL THIS FURNACE IN ARECREATIONAL VEHICLE.
Do not operate baseboard heater unless it is connected to the factory supplied vent system.
Check the rating label attached to the baseboard heater to be sure it is equipped for the type gas you
intend to use.
Never use a match, candle, flame or other source of ignition to check for gas leaks. Use only soapy water
or liquid detergent.
Have your baseboard heater and vent system inspected at least annually by a qualified service technician.
Before cleaning or servicing, turn off the gas and allow heater to cool.
Do not operate baseboard heater without all components properly installed.
Due to high temperatures, the baseboard heater should be located out of traffic and away from furniture
and drapes.
Children and adults should be alerted to the hazard of high surface temperature and should be kept away
to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room with the baseboard heater.
Do not place clothing or other flammable material on or near the heater.
INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE PERSON.
THE BASEBOARD HEATER SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNU-
ALLY BY A PROFESSIONAL SERVICE PERSON. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,
burner, and circulating air passageways of the heater be kept clean.
Do not install in a closet, alcove, or small hallway where the heater could be isolated from the space to
be heated by closing a door.
Do not put anything around the heater or vent that will obstruct the flow of combustion and
ventilation air. The flow of ventilation air through the upper and lower louvers must not be obstructed.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the latest edition of National Electrical Code, ANSI/NFPA 70. In Canada, use
CSA C22.1.
Never operate this heater without the burner sight glass in place or with the glass broken or missing.
If it is suspected that rising water may enter the heater, turn off the gas immediately.
Do not use the heater if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
It is necessary to replace damaged gaskets or sealing material within the vent or air intake system. Failure
to do so may result in property damage, personal iniury, loss of life or unsatisfactory performance.
The cabinet cover removed for servicing must be replaced prior to operating heater.
This heater must not be connected to a chimney flue.
Page 3
CLEARANCES
CLEARANCES TO COMBUSTIBLES
COMBUSTIBLE
Floor ......................................
Right Side ..............................
Left Side ................................
Back ......................................
CLEARANCE
0 Inches (0 cm)
0 Inches (0 cm)
0 Inches (0 cm)
0 Inches (0 cln)
Front ...................................... 16 Inches (41 cm)
Ceiling .................................... 36 Inches (91 cm)
Draperies ................................ 4 Inches (10 cm)
Vent ........................................ 2.5 Inches (6.35 cm)
If the heater is installed directly
on carpeting, tile or other com-
bustible material other than
wood flooring, the heater shall
be installed on a metal or wood
panel extending the full width
and depth of the heater.
VENT CAP CLEARANCES
FIG. 1
OUTSIDE LOCATION FOR VENT OUTLET TERMINAL
A Clearance above grade, veranda, porch, deck or balcony
(* 12inches [30cm] minilnuln)
B Clearance to window or door that may be opened
(*6 inches [15cm] minimum)
C Clearance to permanently closed window (minilnum 12
inches [30 cm] recommended to prevent condensation
on window)
D Vertical clearance to ventilated soffit located above the
terminal within a horizontal distance of 2 feet [60 cm]
fiom the center-line of the terminal (18 inches [46 cm]
minimum)
E Clearance to unventilated soffit (12 inches [30 cm]
minimum)
F Clearance to outside corner(12 inches [30 cm]
minimum)
G Clearance to inside corner (24 inches [60 cm]
minimum)
H *Not to be installed above a meter /regulator assembly
within 3feet [90 cm] horizontally from the center-line
of the regulator
I Clearance to selaTiceregulator vent outlet (*6 feet [1.8 m]
minimum)
Page 4
J Clearance to non-mechanical air supply inlet to building
or the combustion air inlet to any other appliance (*12
inches [30 cm] minimum)
K Clearance to a mechanical air supply inlet (*6 feet
[1.8 m] minimum)
L _"Clearance above paved side-walk or a paved driveway
located on public property (*7 feet [2.1 m] minimum)
M Clearance under a veranda, porch, deck or balcony
(*12 inches [30 cm] minilnuln_)
"?A vent shall not terminate directly above a sidewalk or
paved driveway which is located between two single
family dwellings and selaes both dwellings*.
Only permitted if veranda, porch, deck or batcony is
tully open on a minimum of 2 sides beneath the floor.
* As specified in CGA B 149 installation codes, NOTE:
local codes or regulations may require different
clearances.
CLEARANCES-CONT'D.
RESIDENTIAL GARAGE INSTALLATION: Gas utilization equipment in residential garages shall be in-
stalled so that all burners and burner ignition devices are located not less than 18 inches [46 cm] above the floor.
Unit should be located or protected so it is not subject to damage by a moving vehicle. Use care in selecting a
good location within the garage. DO NOT locate the heater where heated air will be directed onto a nearby
parked vehicle. Paint may discolor or rubber may harden and crack. DO NOT allow open or closed containers
of paint, gasoline or other liquids having flammable vapors to be stored or used in the same area as the heater.
.
2.
3.
.
5.
6.
7.
.
.
LOCATION
This heater must be installed on an outside wall.
For efficient performance, locate heater as centrally as possible in the area to be heated.
Check outside wall where vent will exit, for proper clearances (See Figure 1), compliance with local
codes and clearances above grade. Also, consider exterior appearance, walkways, plantings, etc.
Check that a gas supply line is accessible.
Check that a 115 V. power supply circuit is accessible. (Do not use 220 volt current).
Installation must provide clearance for servicing heater.
If heater is installed in a basement, a 12" [30 cm] clearance must be maintained between ground level and
the vent intake pipe. Do not install heater where the vent will terminate in a window well or any opening
below ground level. Do not allow snow accumulation to build up within 12" [30 cm] of the vent air
intake pipe.
Clearances must be maintained providing adequate air circulation around the heater. Aminimum of 16
inches [41 cm] must be maintained from the front of the heater to furniture, doors, etc.
Up to three baseboard heaters may be controlled by one thermostat (provided all three heaters are in
the same room with the thermostat).
THERMOSTAT LOCATION
.
.
3.
4.
Locate thermostat on an inside wall about 5 feet offthe floor and 6 feet from the baseboard heater,
accessible to wiring, service and adjustment, in a frequently used room such as a living room, rec room,
etc.
Do not locate thermostat in unusual heating conditions such as in sunlight, close to lamps, TV sets,
radiators, registers, or other heat producing appliances.
Do not locate thermostat in unusual cooling conditions such as on an outside wall, or one separating an
unheated room, or in drafts from stairwells, doors, windows, etc.
Do not locate thermostat where air circulation is poor such as in a corner, alcove, over furniture or the
wall behind an open door.
Page 5
OPTIONAL KITS
For special installation applications and modifications, the following kits areavailable from your local dealer. To
ensure safe, efficient operation ofyour Direct VentGas Baseboard be sure to use only authorized kits.
Table 1: S)ecial adaptation and modification kits available for use with the Direct VentBaseboard Heaters.
MODEL # DES(.RIPTION CONTENTS
VWSK5/10 Vent Weather Seal Kit 2" diameter PVC pipe, external wall seat, O-ring, 2 PVC straps,
PVC glue, instructions.
VRK5/10 Vent Riser Kit Wall mount plate, 21-1/2" stainless steel vent riser, instructions
SVCKS/10 Side Valve Concealer Kit 4" cabinet extension, wall plate, screws, instructions
BVCKS/10 Bottom _atve Concealer Kit 4" cover, wall plate, screws, instructions
WARNING:
STEP 1.
a)
b)
c)
d)
e)
INSTALLATION
Failure to follow these instructions carefully could result in poor performance, property_ dmnage,
personal injury, or loss of life.
LOCATE VENT OPENING (Requires a 2-1/2" hole when not using vent weather seal kit).
Select area on wall where heater will be installed.
Check outside vent termination forproper clearances. See Figure 1.
Locate studs behind heater location.
Using template supplied, mark location for 2-1/2" hole between studs. See Figure 2.
Cut ventopenings through both the inside and outside walls, being sure to maintain level
across both openings.
VENT HOLE LOCATION FOR THE AIR
INTAKE AND EXHAUST TUBES FOR
STANDARD INSTALLATION 2-I 2" DIA.
HOLE. NOTE: 3" DIA. HOLE REQUIRED
FOR WEATHER SEAL KIT.
11-3/8"
FLOOR
Page 6 FIGURE 2
STEP 2.
a)
b)
c)
d)
e)
f)
INSTALLATION -Cont'd.
ROUGH INGAS SUPPLY- (See Figure 3)
Select the bottom, rear or right side to bring the t:actory supplied flexible gas line assembly out of
the heater.
The valve must be connected only by means of a pipe union of the ground joint type.
Mr. Installer, hold gas valve when connecting gas supply line.
Install at least a 3/8" gas line. Contact local gas supplier if any questions.
Install a drip leg in gas supply line immediately upstream from the gas connection to heater, (see
local codes), and provide a 1/8" N.P.T. plugged tapping, accessible for test gauge connection and a
individual manual shut off valve accessible within room where heater is installed. The heater and
its individual shut off valve must be disconnected t}om the gas supply piping system during any
pressure testing of that system at test pressures in excess of ½ psig (3.5Pa). The heater must be
isolated from the gas supply piping system by closing its individual manual shut off valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½ psig
(3.SPa).
Test all connections for leaks using a soapy solution. NEVER USE AN OPEN FLAME TO TEST
FOR LEAKS.
The maximum inlet gas supply pressure for natural and L.P./Propane gas is V:p.s.i, or 14" w.c.
The minimum inlet as supply pressure for the purpose of adjustment is 4.5" w.c. for natural gas
and 11.0" w.c. for L.R/Propane gas.
STEP 3.
a)
b)
c)
PREPARING TO INSTALL THE
BASEBOARD HEATER
Open the carton and carefully remove the Direct
Vent Baseboard Heater.
Remove the cover of the baseboard heater's
cabinet by removing the screws at the bottom
front of the cover. (See Figure 4.)
Make sure that all of the components illustrated
have been included.
YOU SHOULD HAVE:
,, 1 Baseboard Heater
,, 1 Exhaust Tube
• 1 Air Intake Tube
• 1 4" [10 cm] Stainless steel flexible
connector with a manual shut-off valve
• 1 Template to locate venting and
mounting positions (in package with
manual)
• 1 Vent Sealing Gasket
• 1 Manual
• 1 Weather Seal
• 1- Wall thermostat w/wire & staples
[72" :09_0,0 I
| 2 FROM END OF CABINE ?FLEX LINEBALL VALVEMUST BE
..| ABOVEFLOOR
MANUALStRJTOFFVALVEWITH 1/8 NPTPLUGGEDTAP "GAS SUPPLY
DRIPLEG-I 1/2"BLACKIRONPIPE
FIGURE 3
_v _ Exhaust Tube
Indoor Intake Gasket
Weather
Seat /_ Air Intake Tube
p Screws
FIGURE4: COMPONENTS OF THE
DIRECT VENT GAS BASEBOARD
HEATER
/_ Flex Line Ball Valve
Gas Baseboard Heater /_ Screws
Cover
48 - BBT5_ & BBT54
_s 72"-BBT103 &BBT104 FIGURE 4
Page 7
CUT THEAIR INTAKE 1-1/2"LONGER
THAN THE WALL THICKNESS (Do not
END END, USE THE CUT-OFF
SECTION FROM THE AIR
INTAKE TUBE AS AGUIDE
(Do not cut to less than 7-1/2")
FIGURE 5
BASEBOARD
HEATER
EXHAUST
AIR INTAKE
TUBE
EXTERIOR WALL
FIGURE 6
HEATERMUST BELEVEL
L/SETHEMOUNTING HOLES PROVIDED
INTHE CASING BACK TO MOUNT
BASEBOARD TO WALL. AT LEAST
ONE MOUNTING HOLE IVRYSTALIGN
WITH A WALL STUD.
BASEBOARD
HEATER
WEATHER
SEAL
FIGURE 7 FIGURE 8
Vv_ireNuts
Green Wire
(Ground Wire) "=
Black Wire
(Electric
--_ C°nnecti°n)_
_nction Box Cover
Electric Power Supply
Black wire
to L2 on
control
on control
module
White Wire
(Electric
Connection)
FIGURE 9
Page 8
INSTALLATION - Cont'd.
STEP 4.
a)
b)
c)
d)
e)
f_
g)
h)
INSTALLING THE BASEBOARD HEATER
Use only factory supplied parts. Do not modify in any way.
Using a measuring tape, measure the thickness of the wall. See Figure 5.
Using a tube cutter, cut the air intake pipe 1.5" [3.8 cm] longer than the wall thickness (no less than 5-1/2").
Measuring from the threaded end, cut the vent exhaust pipe 3.0" [7.62 cm] longer than the wall thickness (no
less than 7.5" [19.05 cm}). After cutting, check the inside of both pipes for burrs. Both pipes must be
smooth and clean without any reduction to the inside diameter. NOTE: Correct pipe length is critical to
proper operation.
Attach vent exhaust tube to heater by screwing threaded end into inducer outlet. See Figure 5.
Attach air intake pipe to back of heater using six #8 screws provided. See Figure 6.
Slide the indoor intake gasket over the air intake pipe and against the back of the heater.
Place the vent tubes into center of the hole cut through wall and slide the entire heater towards the wall,
feeding the 115 V. line and thermostat wires through the appropriate holes in the rear, bottom, or right side of
the heater.
Level and secure heater to wall with screws (not provided) through mounting holes in back of heater. Anchors
(not provided) may be required. See Figure 7.
NOTE: Mounting the heater on a wall that is not plumb or over tightening mounting screws may cause undue
stress which may result in excessive noise during warm-up and cool-down.
From outside the house, slide weather seal over air intake pipe and against outside wall. See Figure 8.
STEP 5. ELECTRICAL CONNECTIONS
If this heater is replacing a 220 volt electric baseboard heater, the circuit must be converted to 115 volt by a licensed
electrician. This appliance must only be connected to a properly grounded 115 V. electrical circuit. DO NOT
CONNECT TO 220 VOLT SUPPLY CIRCUIT.
a) USING FACTORY INSTALLED POWER CORD
Unwrap power cord and plug directly into nearest 115 volt electrical outlet. Do not use extension cord.
a)
b)
c)
d)
e)
f)
HARD WIRING HEATER
Remove junction box cover. See Figure 9.
Disconnect factory wired power cord, remove power cord from junction box and discard.
Install electrical wiring into junction box through appropriate knockout. Secure with strain relief fitting supplied.
Connect wires to factory installed wires injunction box. Secure with wire nuts provided.
Secure ground wire under screw holding junction box to heater back. See Figure 9.
Replace and secure junction box cover.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors could cause improper or
dangerous operation. Verify proper operation after servicing.
STEP 6. THERMOSTAT CONNECTION
a) This heater is designed to operate on a 24 V. thermostat (supplied). Do not connect to existing line voltage
thermostat.
b) Connect thermostat wire to purple and white wire in control compartment (labeled thermostat wire). Secure
connection with wire nuts.
c)
d)
CONTROLLING MORE THAN ONE HEATER WITH A SINGLE THERMOSTAT
Up to a maximum of three baseboard heaters may be controlled by a single thermostat, provided all heaters
are in the same room with the wall thermostat.
If more than one baseboard heater is being controlled from a single thermostat, the 115 V. supply must be
supplied from the same circuit. When wiring more than one baseboard heater to a single 24 V. thermostat,
the baseboard heaters must be hard wired in parallel. Do not use individual cord sets. See Figure 10.
Cont'd. next page...
Page 9
INSTALLATION - Cont'd.
24 V.
Thennostat
When wiring more than one baseboard heater to a single thermostat, the baseboard heaters must be wired in
PARALLEL. When wiring more than one baseboard heater to a single 24 VAC thermostat, the baseboard
heaters must be hard wired in parallel. Do not use cord sets. Do not cross thermostat connections between
heaters. Purple thermostat connection from first heater to purple thermostat on second and third heater. Do the
same with white thermostat connection.
FIGURE 10
The anticipator setting on the thermostat should be equivalent to the current draw of the total number of
valves being controlled.
NUMBER OF BASEBOARD HEATERS ANTICIPATOR SETTING
1 .1 AMP
2 .2 AMP
3 .3 AMP
STEP 7. COMPLETING INSTALLATION
a) Connect gas supply line to flex gas line/shut-offvalve from heater.
b) Turn gas supply on. Check connections with soapy solution.
c) Plug power cord into grounded 115 V. outlet or turn power on if hard wired.
d) Replace cabinet cover and secure with three screws at bottom.
Heater is now installed, follow lighting instructions to put heater in operation.
During initial warm-up the heater may smoke slightly. Provide adequate ventilation should this occur.
Page l0
