Craftex CX series User manual

1
MODEL CX425
3 SPEED AIR CLEANER WITH REMOTE CONTROL
USER MANUAL
Version 1.0

2
TABLE OF CONTENTS
Electrical Safety ..................................................................................................... 3
Tool Use and Care ................................................................................................. 4
Grounding .............................................................................................................. 5
Extension Cords .................................................................................................... 6
Manual Control Operation ...................................................................................... 7
Trouble Shooting ................................................................................................... 9

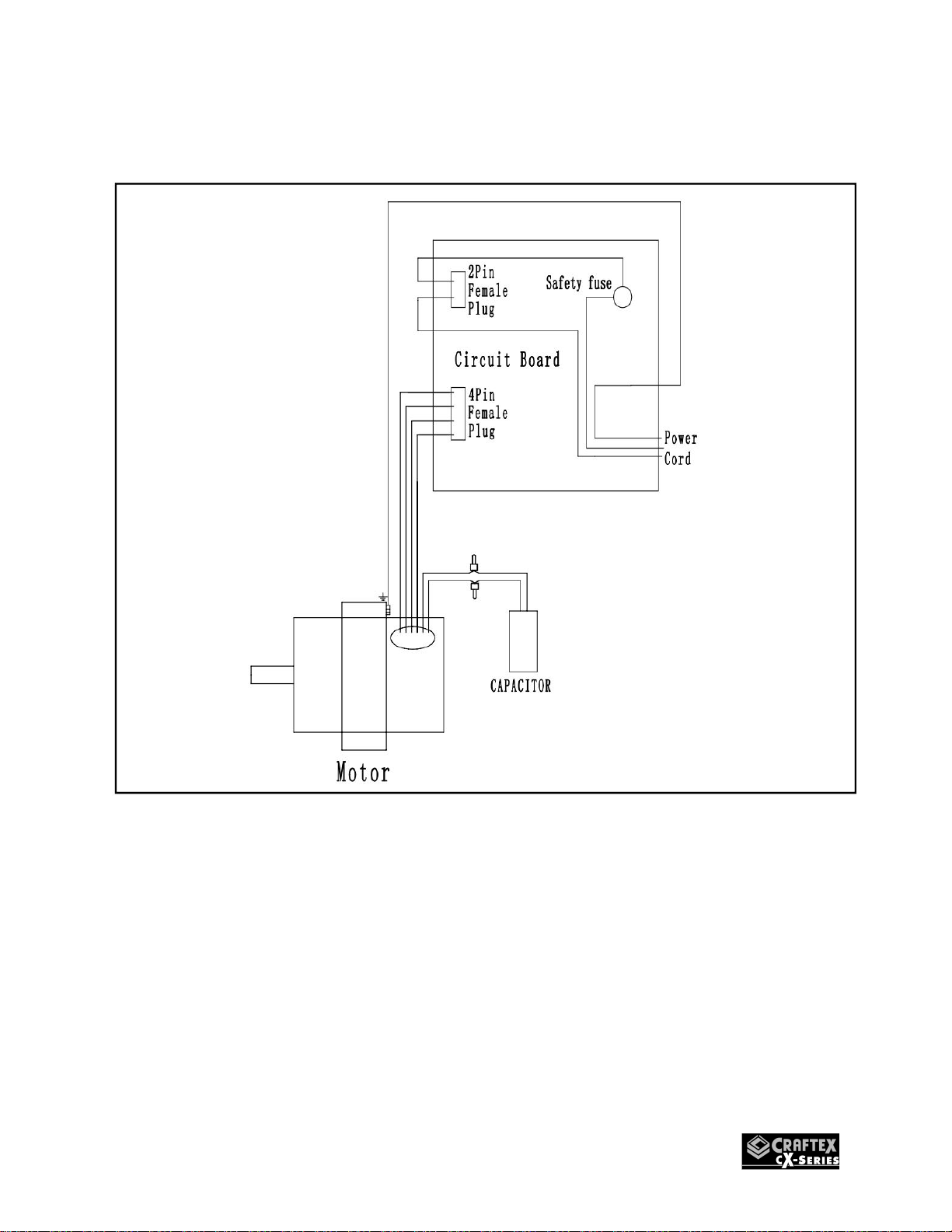

Wiring Diagram ...................................................................................................... 10
Part List ................................................................................................................. 11
Warranty ................................................................................................................ 13

3
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below
may result in electric shock, fire, and/or serious
injury. SAVE THESE INSTRUCTIONS IN THE
WORK AREA
1. Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
2. Do not operate electric products in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust.
3. Keep bystanders, children, and visitors away
while mounting or maintaining the air cleaner.
ELECTRICAL SAFETY
1. Grounded products must be plugged into an
outlet properly installed and grounded in
accordance with all codes and ordinances.
Never remove the grounding prong or modify
the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you
are in doubt as to whether the outlet is properly
grounded. If the product should be electrically
malfunction the grounding provides a low
resistance path to carry electricity away from
the user.
2. Double insulated products are equipped with
a polarized plug (one blade is wider than the
other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a
polarized outlet. Do not change the plug in any
way. Double insulation eliminates the need for
the three wire grounded power cord and
grounded power supply system.
3. Avoid body contact with grounded surfaces
such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
4. Do not expose this product to rain or wet
conditions. Water entering an electric product
will increase the risk of electric shock.
5. Do not abuse the Power Cord. Never use the
Power Cord to carry the product or pull the Plug
from an outlet. Keep the Power Cord away from
heat, oil, sharp edges, or moving parts. Replace
damaged Power Cords immediately. Damaged
Power Cords increase the risk of electric shock.
6. Stay alert. Watch what you are doing, and
use common sense when operating a power
product. Do not use a power product while
tired or under the influence of drugs, alcohol, or
medication.
7. Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can get
caught in moving parts.
8. Avoid accidental starting. Be sure the Power
Switch is off before plugging in.
9. Use safety equipment. Always wear eye
protection. During installation use non-skid
safety shoes and ANSI approved safety goggles.

4
TOOL USE AND CARE
1. Use the correct product for your application.
The correct product will do the job better and
safer at the rate for which it is designed.
2. Do not use the power product if the Power
Switch does not turn it on or off. Any product
that cannot be controlled with the Power
Switch is dangerous and the switch must be
replaced.
3. Disconnect the Power Cord Plug from the
power source before storing the tool.
4. Store idle products out of reach of children
and other untrained persons. Products are
dangerous in the hands of untrained users.
5. Maintain products with care. Keep products
clean. Do not use a damaged product.
6. Check for misalignment or binding of moving
parts, breakage of parts, and any other
condition that may affect the operation. If
damaged, have it serviced before using. Many
accidents are caused by poorly maintained
products.
TOOL USE AND CARE
1. Product service must be performed only by
qualified repair personnel. Service or
maintenance performed by unqualified
personnel could result in a risk of injury and
void the warranty.
2. When servicing a product, use only identical
replacement parts. Follow instructions in the
“Inspection, Maintenance, And Cleaning”
section of this manual. Use of unauthorized
parts or failure to follow maintenance
instructions may create a risk of electric shock
or injury.
SPECIFIC SAFETY RULES
1. Maintain labels and nameplates on the Air
Cleaner System. These carry important
information. If unreadable or missing, contact
the seller for a replacement.
2. Always wear safety impact eye goggles when
mounting or performing maintenance on the Air
Cleaner System. Using personal safety devices
reduce the risk for injury.
3. Maintain a safe working environment. Keep
the work area well lit. Make sure there is
adequate surrounding workspace. Always keep
the work area free of obstructions, grease, oil,
trash, and other debris. Do not use in areas
near flammable chemicals, dust, and vapors. Do
not use in a damp or wet location.
4. If placing this AIR CLEANER on a table or
shelf, make sure that the machine is placed
securely on a flat, level surface, capable of
supporting the weight of the machine.
5. If attaching the Air Filtration System to a
ceiling, make sure the machine is attached
securely to joists capable of supporting the
weight of the machine.
6. Make sure the Switch is in the “Off” position
before plugging in the power cord.

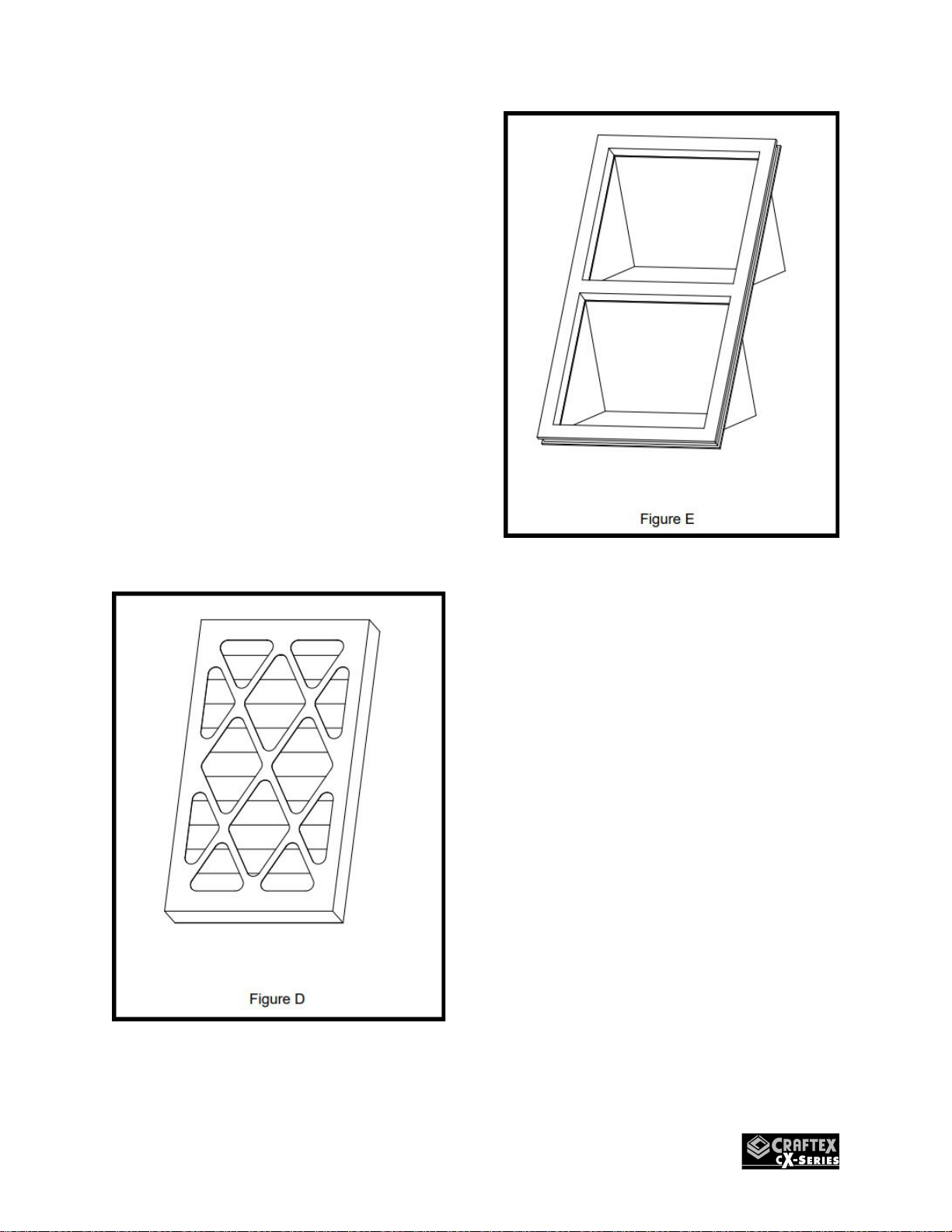

7. Keep the Pre Filter (Part 1) and the Filter Bag
(Part 2) clean, in place, and in good working
order.

5
8. Always unplug the AIR CLEANER from its
electrical outlet before performing any
inspection, maintenance, or cleaning
procedures.
9. WARNING! People with pacemakers should
consult their physician(s) before using this
product. Operation of electrical equipment in
close proximity to a heart pacemaker could
cause interference or failure of the pacemaker.
SPECIFICATIONS
Motor:
Motor Power Input………………………………… 1/6HP
Voltage...…………………………………….….. 120V 60HZ
Motor Speed…………………. 1200/1400/1700 RPM
Remote Control……………Infrared remote control
Timer Setting……………………………………………… Yes
Performance:
Filter Efficiency……………………………………….G4+F6
Pre Filter…………………………………..…G4 (5-micron)
Filter Bag……………………………………..F6 (1-micron)
Air Flow……………………………..…400/450/500 CFM
Dimensions:
Overall Dimensions……………………..525x435x275
Carton Dimensions……………………..575x495x320
GROUNDING
WARNING!
Improperly connecting the grounding wire can
result in the risk of electric shock. Check with a
qualified electrician if you are in doubt as to
whether the outlet is properly grounded. Do
not modify the power cord plug provided with
the product. Never remove the grounding
prong from the plug. Do not use the product if
the power cord or plug is damaged. If damaged,
have it repaired by a service facility before use.
If the plug will not fit the outlet, have a proper
outlet installed by a qualified electrician.
GROUNDED PRODUCT: PRODUCTS WITH
THREE PRONG PLUGS
1. Products marked with “Grounding as
required” have a three wire cord and three
prong grounding plug. The plug must be
connected to a properly grounded outlet. If the
product should electrically malfunction or break
down, grounding provides a path of least
resistance to carry electricity away from the
user, reducing the risk of electric shock. (See
Figure A.)
2. The grounding prong in the plug is connected
through the green wire inside the cord to the
grounding system in the tool. The green wire in
the cord must be the only wire connected to
the product’s grounding system and must never

6
be attached to an electrically “live” terminal.
3. Your product must be plugged into an
appropriate outlet, properly installed and
grounded in accordance with all codes and
ordinances. The plug and outlet should look like
those in the following illustration. (See Figure A.
above)
EXTENSION CORDS
1. Grounded tools require a three wire
extension cord. Double Insulated tools can use
either a two or three wire extension cord.
2. As the distance from the supply outlet
increases, you must use a heavier gauge
extension cord. Using extension cords with
inadequately sized wire causes a serious drop in
voltage, resulting in loss of power and possible
damage to the machine motor.
3. The smaller the gauge of wire, the greater
the capacity of the cord. For example, a 14
gauge cord can carry a higher current than a 16
gauge cord.
4. If you are using one extension cord for more
than one product, add the name plate amperes
and use the sum to determine the required
minimum cord size.
5. If you are using an extension cord outdoors,
make sure it is acceptable for outdoor use.
6. Make sure your extension cord is properly
wired and in good electrical condition. Always
replace a damaged extension cord.
7. Protect your extension cords from sharp
objects, excessive heat, and damp or wet areas.
UNPAKCING
When unpacking. Check to make sure all the
parts shown on the Parts List are included.
ASSEMBLY AND OPERATING INSTRUCTIONS
CAUTION:
Always make sure the Power Cord of the AIR
CLEANER is unplugged from its electrical outlet
prior to making any adjustments to the product.
1. Locate the desired ceiling location and ceiling
joists, upon which to attach the 3-SPEED AIR
CLEANER.
2. With assistance or lifting equipment (not
included), raise the unit to the desired location.
Caution: Make sure other people or pets are
well clear of the area during this procedure.
3. Align the four Eye Bolts (30) with the ceiling
joists and measure for eyelet bolt location.
Insert four eyelet bolts (28) through the ceiling
into the underside of the ceiling joists.

7
MANUAL CONTROL OPERATION
Note: The fuse is housed on the Switch Plate
(20). If the unit suffers a fuse failure, unscrew
the fuse cover, remove and replace the fuse
(with same type and rating), and screw the
cover back in place.
1. Plug the Power Cord (23) into an outlet.

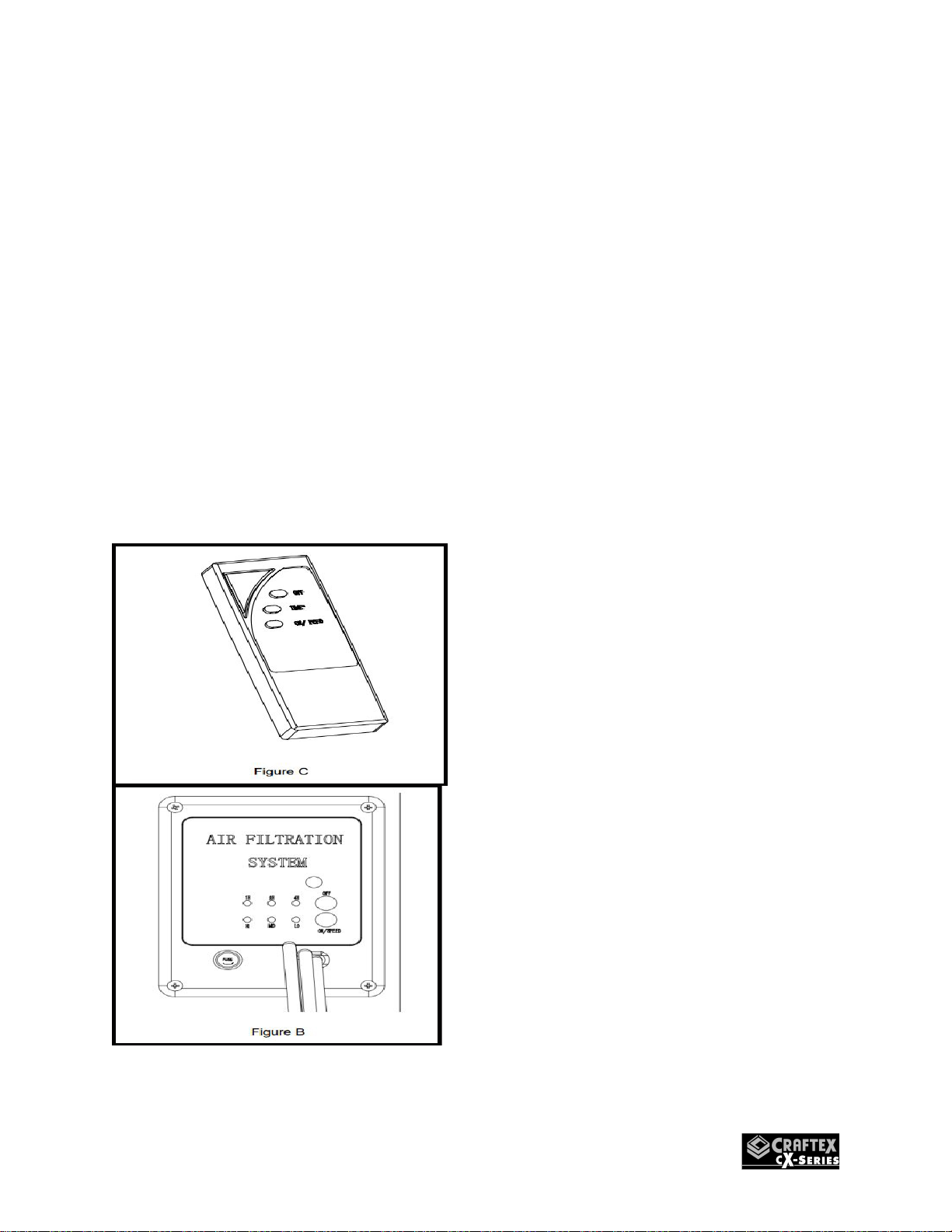

2. Press the “On/Speed” button once for high
power, twice for medium, and three times for
low power. The corresponding LED will light to
show the unit’s speed.
3. When you are finished using the unit, press
the off button. (See Figure B)
REMOTE CONTROL
1. Press the “On/Speed” button once for low
speed, twice for medium, and three times for
high speed.
2. Press the Time button once for 1 hour
automatic shut off, twice for 2 hour automatic
shut off, or three times for 4 hour automatic
shut off.
3. To turn off the unit manually, press the OFF
button. (Figure C)
Note:
To change batteries in the Remote Control;
remove the back panel, replace the two “AAA”
batteries, and then replace the back panel.
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Make sure the Switch Plate (20)
of the 3-SPEED AIR CLEANER is in its “OFF”
position and that the product is unplugged from
its electrical outlet before performing any
inspection, maintenance, or cleaning
procedures.
2. BEFORE EACH USE, inspect the general
condition of the 3-SPEED AIR CLEANER. Check
for loose screws, misalignment or binding of
moving parts, cracked or broken parts,
damaged electrical wiring, and any other
condition that may affect its safe operation. If
abnormal noise or vibration occurs, have the
problem corrected before further use. Do not
use damaged equipment.
3. Periodically, inspect the Pre Filter (1) for dirt
and debris, and if necessary, remove and
change the Filter Net (1). On the rear of the
unit, unlatch the two metal clasps to release the
Pre Filter (1). Remove the Filter Net (1) and
inspect it to see whether it needs a simple

8
cleaning, or it needs replacement. Reinsert a
Filter Net (1) (old or new) and lock it in place
with the two clasps. (See Figure D).
Note:
During this procedure, wear ANSI approved
safety goggles and dust protection.
4. Periodically, inspect the Bag Filter (2) for dirt
and debris, and if necessary, remove and
change the Bag Filter (2). On the rear of the
unit, unlatch the two metal clasps to release the
Pre Filter (1). Remove the Pre Filter (1). Then,
remove the Bag Filter (2) and inspect it. If
necessary, use compressed air to blow dirt and
debris from the Bag Filter (2) Replace the Bag
Filter (2) and the Pre Filter (1) in the rear of the
unit and lock them in place with the two clasps.
(See Figure E).

9
Trouble Shooting
TROUBLE
PROBABLE CAUSE
SOLUTION
Motor does not run when power
is switched on
1.
Blown fuse
2. Switch is burned out
3. Wire connection is loose
or damaged
1.
Replace Fuse
2. Replace switch
3. Tighten or replace wire
Motor does not run at full speed
1.
Power voltage is too
low
2. Motor is damaged
1.
Test Voltage
2. Check and replace motor
Motor overheats
1.
Using wrong voltage
2. Motor is damaged
1.
Check Voltage and
voltage label
2. Check and replace motor
Insufficient Suction
1.
Inlet port is blocked
2. Filter bag is full
3. Outlet port blocked
1.
Clean inlet port
2. Empty filter bag
3. Clean the outlet port or
adjust the direction of
the outlet
Motor will not reach full power
1.
Incorrect power wiring
2. Overload tripped
1.
Replace or correct
power wiring
2. Reduce load by cleaning
filters as necessary
Unit is
shaking
1.
Unit is not proper
anchored or secured
2. Unit is not level
3. Worn or damaged motor
1.
Mount unit securely in
place
2. Adjust unit so that it
hangs level
3. Check and replace motor
if necessary

10
Wiring Diagram

11
Parts Diagram

12
Parts List
Key Item Description QTY
1 PCX42501 PRE FILTER 421 X 241 X 45MM 1
2 PCX42502 BAG FILTER 6 1/2 X 9 1/2" 1
3 PCX42503 PLATE 1
4 PCX42504 SCREW - PH. HD M5-0.8 X 8 14
5 PCX42505 HANDLE 1
6 PCX42506 MAIN BODY 1
7 PCX42507 RUBBER FOOT 4
8 PCX42508 SCREW - HEX SOC HD M5-0.8 X 25 4
9 PCX42509 SCREW - PH HD M4-0.7 X 8 8
10 PCX42510 FLANGE 1
11 PCX42511 FAN 1
12 PCX42512 SCREW - HEX SOC HD M4-0.7 X 8 8
13 PCX42513 FAN HOUSING 1
14 PCX42514 RUBBER SHOCK ABSORBER PAD 4
15 PCX42515 WASHER - FLAT 5MM 4
16 PCX42516 NUT - HEX M5-0.8 4
17 PCX42517 MOTOR 1
18 PCX42518 COVER PLATE 1
19 PCX42519 PC BOARD 1
20 PCX42520 SWITCH PLATE 1
21 PCX42521 SCREW - PH HD M4-0.7 X 20 3
22 PCX42522 SWITCH PLATE LABEL 1
23 PCX42523 POWER CORD 1
24 PCX42524 FUSE 4A 250V 1 1/4" 1
25 PCX42525 STRAIN RELEIF 1
26 PCX42526 HEX WRENCH 3MM 1
27 PCX42527 REMOTE CONTROL 1
28 PCX42528 EYEBOLT M4-0.7 X 40 4
29 PCX42529 STEEL CHAIN 4
30 PCX42530 EYEBOLT M6-1.0 X 40 4
31 PCX42531 CAPACITOR 8MFD 250VAC 1
32 PCX42532 Protective Mesh Screen 1

13
Craftex Machinery Warranty
Busy Bee Tools warrants every Craftex machine to be free from defects in materials and agrees to correct
such defects where applicable. This warranty covers two years for Craftex machines and three years for
Craftex CX-Series Machines and 90 days for labour (unless specified otherwise), to the original purchaser
from the date of purchase but does not apply to malfunctions arising directly or indirectly from misuse,
abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of maintenance.
Proof of purchase is necessary.
All warranty claims are subject to inspection of such products or part thereof and Busy Bee Tools reserves the
right to inspect and and all items before a refund or replacement may be issued. A Machinery Return Form
must be filled out by the original purchaser requesting a return. Authorization may take up to 72 hours for
inspection and approval.
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches
etc…
Busy Bee Tools shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to
property or for incidental contingent, special or consequential damages arising from the use of our products.
RETURNS, REPAIRS AND REPLACEMENTS
To return, repair, or replace a Craftex Machine, a Machinery Return Form must be filled out by the original
purchaser requesting a return. Visit the appropriate Busy Bee Tools showroom or call 1-800-461-BUSY.
Craftex is a brand of equipment that is exclusive to Busy Bee Tools.
For replacement parts directly from Busy Bee Tools, for this machine, please call 1-800-461-BUSY (2879), and
have your credit card and part number handy. You can find the part number in the back of your owner’s
manual under the parts list & exploded diagram.
 All returned merchandise will be subject to a minimum charge of 15% for re-stocking and handling
 A Machinery Return Form must be filled out by the original purchaser requesting a return and it must be
approved by Busy Bee Tools in writing before accepting a return
 We do not accept collect shipments.
 Items returned for warranty purposes must be insured and shipped pre-paid to the nearest warehouse
 Returns must be accompanied with a copy of your original invoice as proof of purchase. Incurred
shipping and handling charges are not refundable.
 Busy Bee Tools will repair or replace the item at our discretion and subject to our inspection.
 Repaired or replaced items will be returned to you pre-paid by our choice of carriers.
 Busy Bee Tools reserves the right to refuse reimbursement or repairs or replacement if a third party
without our prior authorization has carried out repairs to the item.
 Repairs made by Busy Bee Tools are warranted for 30 days on parts and labour.
 Any unforeseen repair charges will be reported to you for acceptance prior to making the repairs.
 Replacement motors purchased from Busy Bee Tools carry a 90 manufactures defect warranty
 The Busy Bee Tools Parts & Service Departments are fully equipped to do repairs on all products purchased
from us with the exception of some products that require the return to their authorized repair depots. A Busy
Bee Tools representative will provide you with the necessary information to have this done.
