Craftex CX800 User manual

CX800
43” X 20” HEAVY DUTY WOOD LATHE
with VARIABLE SPEED
User Manual

2
TABLE OF CONTENTS
General Safety Instructions for Machines............................................................... 3
Specific Safety Instructions..................................................................................... 4
CX800 Features...................................................................................................... 5
Physical Features ................................................................................................... 6
Proper Grounding ................................................................................................... 7
Un-Packing............................................................................................................. 8
Setup ...................................................................................................................... 8
Installing / Removing Headstock Center................................................................. 9
Installing / Removing Tailstock Center.................................................................... 9
Installing / Removing Faceplate..............................................................................10
Control Panel..........................................................................................................11
Test Run.................................................................................................................12
Tailstock..................................................................................................................13
Inboard Tool Rest ...................................................................................................13
Outboard Tool Rest.................................................................................................14
Spindle Speeds.......................................................................................................14
Work-piece Inspection ............................................................................................15
Spindle Turning.......................................................................................................16
Faceplate Turning...................................................................................................16
Outboard Turning....................................................................................................17
Maintenance ...........................................................................................................17
Belt Replacement....................................................................................................18
Troubleshooting......................................................................................................21
Parts Breakdown................................................................................................22 & 23
Parts List............................................................................................................24 & 25
Warranty.................................................................................................................26

3
GENERAL SAFETY INSTRUCTIONS
FOR MACHINES
Extreme caution should be used when operating all power tools. Know your power
tool, be familiar with its operation, read through the owner’s manual, and practice safe
usage procedures at all times.
ALWAYS read and understand the
user manual before operating the
machine.
CONNECT your machine ONLY to the
matched and specific power source.
ALWAYS wear safety glasses
respirators, hearing protection and
safety shoes, when operating your
machine.
DO NOT wears loose clothing or
jewelry when operating your machine.
Wear protective hair covering.
A SAFE ENVIRONMENT is
important. Keep the area free of dust,
dirt and other debris in the immediate
vicinity of your machine.
BE ALERT! DO NOT use prescription
or other drugs that may affect your
ability or judgment to safely use your
machine.
DISCONNECT the power source when
changing drill bits, hollow chisels,
router bits, shaper heads, blades,
knives or making other adjustments or
repairs.
NEVER leave a tool unattended while it
is in operation.
NEVER allow unsupervised or untrained
personnel to operate the machine
NEVER reach over the table when the
tool is in operation.
ALWAYS keep blades, knives and bits
sharpened and properly aligned.
ALL OPERATIONS MUST BE
performed with the guards in place to
ensure safety.
ALWAYS use push sticks and feather
boards to safely feed your work through
the machine.
ALWAYS make sure that any tools used
for adjustments are removed before
operating the machine.
ALWAYS keep bystanders safely away
while the machine is in operation.
NEVER attempt to remove jammed
cutoff pieces until the blade has come to
a full stop.

4
Like all power tools and machinery, proper safety and attention must be adhered to.
There is danger associated with using any tool or machine so pay careful attention
each and every time you use your tool. If you are not familiar with the operations of a
lathe, you should obtain the advice and/or instructions from a qualified professional.
Read this operation manual carefully
and understand it before operating the
lathe.
Do not over-reach. Keep proper footing
and balance at all times.
Maintain machine in top condition.
Keep machine clean for best and safest
performance. Follow instructions for
lubrication and changing accessories.
Disconnect the machine from power
source before servicing, changing
accessories, and making any
adjustments.
To avoid accidental starting, make
sure the switch is in the OFF position
before plugging in the power cord.
Never leave the lathe running and
unattended. Turn the power OFF. Do
not leave the machine until it comes to a
complete stop.
Start and stop the machine yourself.
To avoid accidental injuries make sure
not to have anybody help you do this.
Always wear dust mask operation
creates a lot of sawdust and/or chips.
Always operate the tools in a well-
ventilated area and make sure to use a
proper dust collection system for
optimum dust removal.
Turn OFF then machine before making
any adjustments or servicing.
Do not attempt to measure the work-
piece size while the machine is running.
Make sure the work-piece is clamped
securely between the centers before
starting the machine.
Only use correct size centers.
After adjusting or servicing the
machine, remember to remove all
wrenches and other tools from the
machine.
Make sure you have read and
understood the instructions given in
this manual and you are familiar with
your lathe before operating it. If you fail
to do so, serious injury could occur.
CX800 – WOOD LATHE WITH VARIABLE SPEED
SPECIFIC SAFETY INSTRUCTIONS
WARNING
The safety instructions given above can not be complete because the environment in
every shop is different. Always consider safety first as it applies to your individual
working conditions.

5
MODEL CX800 – HEAVY DUTY WOOD LATHE WITH VARIABLE SPEED
As part of the growing line of Craftex CX-Series woodworking equipment, we are proud to offer
the CX800, a Heavy Duty Wood Lathe with Variable Speed. The Craftex name guarantees
Craft Excellence. By following the instructions and procedures laid out in this user manual, you
will receive years of excellent service and satisfaction. The CX800 is a professional tool and
like all power tools, proper care and safety procedures should be adhered to.
Motor..............................................3-HP, 220-V, 60-Hz, 3-Phase
Amp................................................9-Amp
Number of Speeds..........................Variable Speed, 50 – 3000 RPM
Spindle Taper.................................MT2
Spindle Size....................................1-1/4” x 8 TPI RH
Swing Over Bed..............................20”
Swing Over Tool Rest.....................16-3/4”
Swing Over Gap.............................24-7/8”
Distance Between Centers.............43”
Spindle Speed Ranges...................Variable, 50-100RPM, 100-2000RPM, 150-3000RPM
Tailstock Taper...............................MT2
Bed Construction............................Precision Ground Cast Iron
Stand Construction.........................Pre-Formed Sheet Steel Metal
Headstock Construction..................Cast Iron
Tailstock Construction ....................Cast Iron
Overall Dimensions ........................Length 104” x Width 25” x Height 50”
Approx. Shipping Weight................855 lbs
Warranty.........................................3 Years
CX800 – HEAVY DUTY WOOD LATHE
FEATURES

6
CX800 – HEAVY DUTY WOOD LATHE
PHYSICAL FEATURES

7
PROPER GROUNDING
Grounding provides a path of least
resistance for electric current to reduce the
risk of electric shock.
CX800 is equipped with a 220-V single
phase motor and is provided with a power
supply cord that is to be connected directly
to the source. Connection must be done by
a qualified electrician in accordance with
electrical code and local electrical codes.
This machine is for use on a normal 220
volt circuit. Make sure that the machine is
connected to an outlet having the same
configuration as the plug. If an adaptor
plug is used, it must be attached to the
metal screw of the receptacle.
To prevent electrical hazards, have a
qualified electrician ensure that the line is
properly wired.
Figure-1 220-Volts outlet for CX800
It is strongly recommended not to use
extension cords with your CX800. Always
try to position your machine close to the
power source so that you do not need to
use extension cords.
When it is necessary to use an extension
cord, make sure the extension cord does
not exceed 50-feet in length and the cord is
12-gauge to prevent motor damage.
Your CX800 should be wired with a plug
having 3-prongs to fit a 3 prong grounded
receptacle as shown in figure-3.
Do not remove the grounding prong to fit it
into a 2-pronged outlet. Always check with
a qualified electrician if you are in doubt.
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician if you are in doubt as to
whether the outlet is properly grounded.

8
UNPACKING
The machine is properly packaged and
shipped complete in a crate for safe
transportation. When unpacking, carefully
inspect the crate to ensure that nothing has
been damaged during transit. Open the
crate and check that the lathe and the parts
are in good condition.
While doing inventory, if you can not find
any part, check if the part is already
installed on the machine. Some of the parts
come pre-assembled.

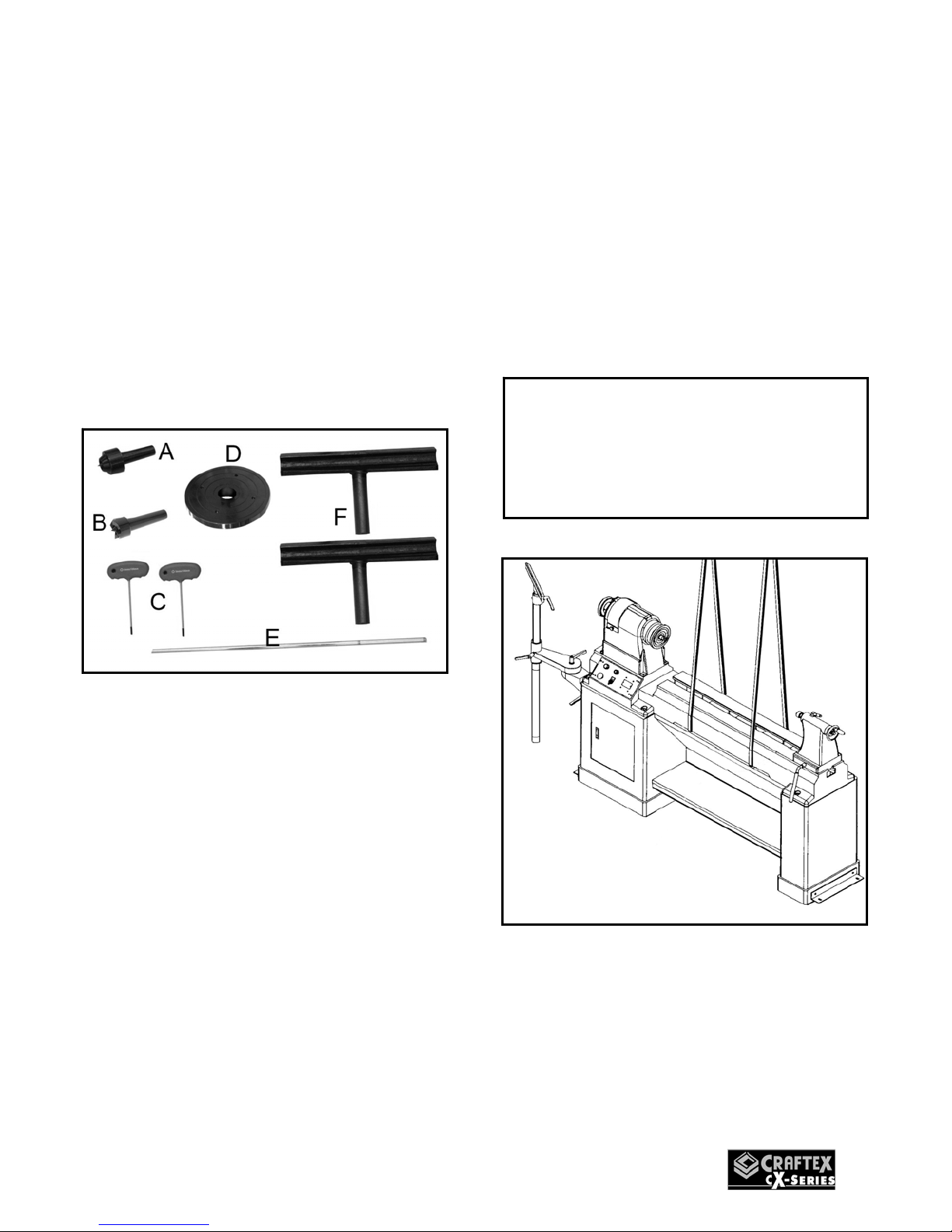

Figure-2 Inventory
LIST OF CONTENTS QTY
A. Tailstock Center ..................................1
B. Headstock Center................................1
C. T-Handle Wrenches ............................2
D. Faceplate ............................................1
E. Knockout Rod......................................1
F. Tool Rests...........................................2
G. Lathe (No Shown) ...............................1
SETUP
Before setting up your machine, you should
read and understand the instructions given
in this manual.
The unpainted surfaces of this lathe are
coated with rust preventive waxy oil and
you will want to remove this before you
begin assembly. Use a solvent cleaner that
will not damage the painted surfaces.
Figure-3 Lifting straps positioned to lift the
lathe
Figure-3 shows where to position the straps
to lift the lathe safely. Make sure when
lifting, the lathe is balance on both sides.
WARNING
CX800 is a very heavy machine. Do not
over-exert yourself. Use a fork truck or
other mechanical devices for safe
moving.

9
INSTALLING/REMOVING
HEAD STOCK CENTER
The headstock is provided with an MT2
tapered center.
TO INSTALL THE CENTER:
Make sure the switch is in the OFF position
the cord is disconnected from the power
outlet.
Clean the center and the spindle and make
sure they are free of debris.
Insert the tapered end of the center into the
spindle and push it in so that it securely fit
into the spindle. See figure-4.

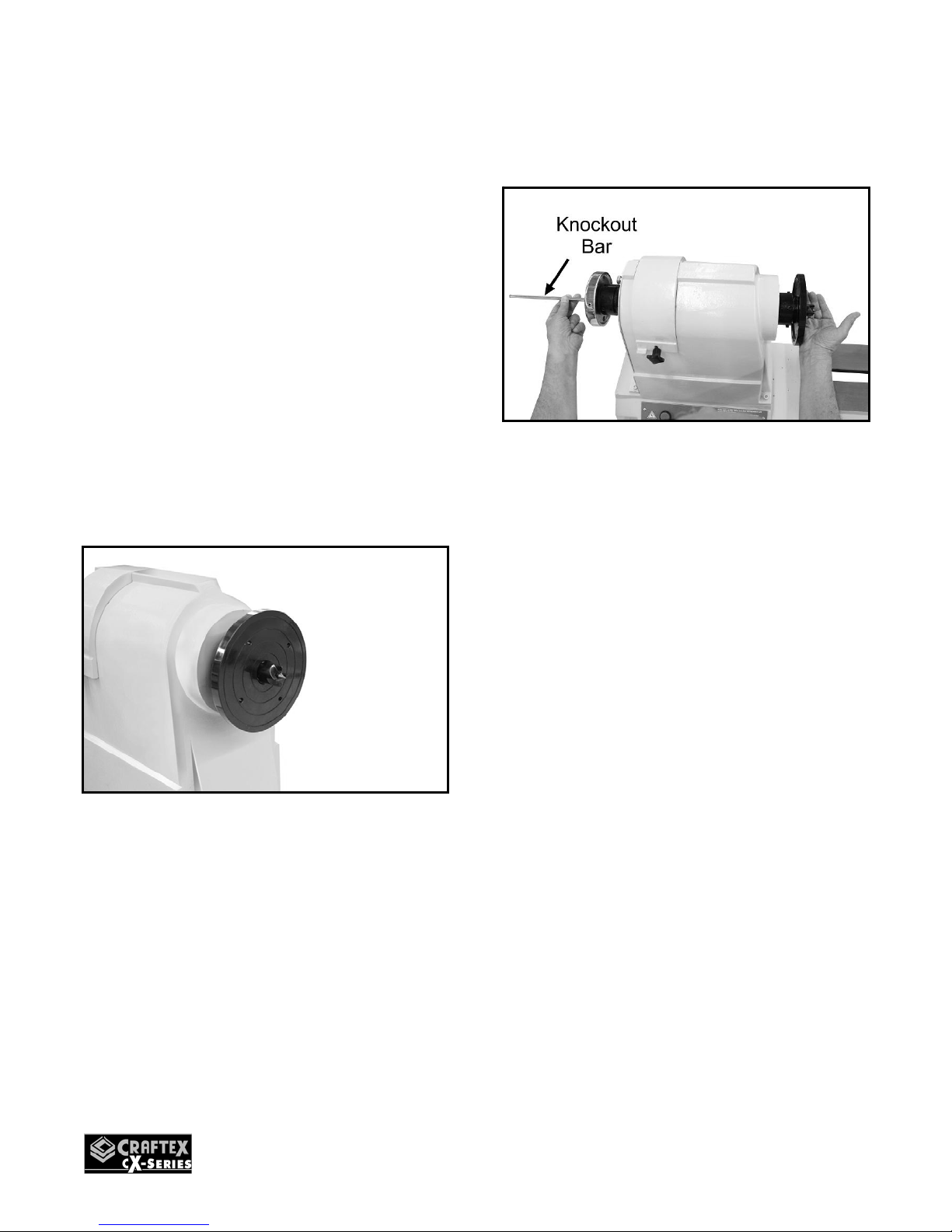

Figure-4 Installing headstock center
TO REMOVE THE CENTER:
Make sure the switch is in the OFF position
the cord is disconnected from the power
outlet.
Hold the center with one hand so that it
does not fall on the lathe bed when it is
knocked out. See figure-5.
Insert the knockout rod through the
opposite end of the headstock and tap the
center to remove it. See figure-5.
Figure-5 Removing headstock center
INSTALLING/REMOVING
TAILSTOCK CENTER
The CX800 comes with an MT2 tapered
center for the tailstock.
TO INSTALL THE CENTER:
Loosen the quill lock lever and rotate the
tailstock quill hand wheel until the quill
comes out about 1” from the tailstock.
Clean the center and the quill and make
sure there is no dust or debris on the
mating surfaces of both.
Insert the tapered end of the center into the
quill and push it in, making sure that it is
installed securely into the quill. See figure-
6.
Secure the quill in place by re-tightening the
quill lock lever.

10
Figure-6 Installing tailstock center
TO REMOVE THE CENTER:
Loosen the quill lock lever.
Hold the center with a piece of cloth so that
it does not fall on the lathe bed when came
out from the quill.
Rotate the tailstock hand wheel counter-
clockwise. This will cause the quill to retract
into the tailstock and the center will come
out from the quill.
INSTALLING/REMOVING
FACEPLATE
The faceplate can be installed on the other
side of the headstock allowing turning work-
piece more than 20” in diameter.
TO INSTALL THE FACEPLATE:
Make sure the switch is in the OFF position
the cord is disconnected from the power
outlet.
Pull the spindle lock pin out and rotate it
from nine o’clock (unlocked) position to
twelve o’ clock (locked) position. See figure-
7.
Figure-7 Spindle lock pin
Rotate the spindle by hand until the lock pin
engages and locks the rotation of the
spindle.
Thread the faceplate onto the spindle until it
is snug and tighten the four set screws on
the faceplate to secure it to the spindle. See
figure-8.
Figure-8 Installing faceplate
