Craftex CX801 User manual

CX801
HEAVY DUTY BENCH
TOP LATHE
User Manual

2
TABLE OF CONTENT
General Safety Instructions....................................................................... 3
Specific Safety Instructions ...................................................................... 4
Heavy Duty Bench Top Lathe Features..................................................... 5
Physical Features...................................................................................... 6
Un-packing ............................................................................................... 7
Setup......................................................................................................... 7
Mounting to a workbench .......................................................................... 8
Leveling the lathe ...................................................................................... 8
Installing the Tool Rest...............................................................................8
Installing the Bed Extension (optional) .......................................................9
Installing/Removing Tailstock Center .........................................................9
Installing/Removing Faceplate .................................................................. 10
Installing/Removing Headstock Center...................................................... 10
Test Run.................................................................................................... 11
ON/OFF Switch......................................................................................... 11
Changing Spindle Speed........................................................................... 12
Tool Rest & Base ...................................................................................... 13
Tailstock Quill............................................................................................ 13
Tailstock.................................................................................................... 13
Faceplate................................................................................................... 13
Alignment Between Centers...................................................................... 14
Maintenance.............................................................................................. 14
Trouble Shooting....................................................................................... 15
Parts Breakdown....................................................................................... 16
Pars List .................................................................................................... 17
Warranty.....................................................................................................19

3
GENERAL SAFETY INSTRUCTIONS
Do not attempt to operate the machine until you have read thoroughly and have understood
completely all instructions, rules and conditions contained in this manual. Failure to comply
can result in accidents involving fire, electric shock, or serious personal injury.
Know your machine. For your safety,
read the owner’s manual carefully.
Learn its applications and limitations,
as well as specific potential hazards
pertinent to this machine.
Make sure all tools are properly
grounded. If the tool electrical plug
has three prongs, it should be used in
a three hole electrical socket. If three
prongs or two prongs adapter is used,
the adapter plug must be properly
grounded. Do not remove or disable
the third prong.
Keep all the guards in place and in
good working order. If a guard must be
removed for maintenance or cleaning,
make sure it is properly attached
before using the machine again.
Remove adjusting keys and
wrenches. Form a habit of checking
to see that the keys and adjusting
wrenches are removed from the
machine.
Keep your work area clean.
Cluttered areas and workbenches
increase the chance if an accident.
Do not use the machine in dangerous
environments.
Do not use power tools in damp or
wet locations or expose them to rain.
Keep work areas well illuminated.
Keep children away. All visitors
should keep a safe distance from the
work area.
Do not force the machine. It will do
the job better and be safe at the
operating rate for which it is designed.
Do not force the machine or
attachments to do a job for which they
are not designed.
Wear proper apparel. Avoid loose
clothing, gloves, neckties, rings,
bracelets and jewelry which could get
caught in moving parts. Non-slip
footwear is recommended. Wear
protective hair covering to contain long
hair.
Always use safety glasses. Also,
wear a face or dust mask if the
operation area is dusty. Everyday
eyeglasses only have impact resistant
lenses. They are not safety glasses.

4
CX801 HEAVY DUTY BENCHTOP LATHE
SPECIFIC SAFETY INSTRUCTIONS
Like all power tools and machinery, proper safety and attention must be adhered to. There
is danger associated with using any tool or machine so pay careful attention each and
every time you use your tool. If you are not familiar with the operations of a lathe, you
should obtain the advice and/or instructions from a qualified professional.
Read this operation manual carefully
and understand it before operating the
lathe.
Do not over-reach. Keep proper
footing and balance at all times.
Maintain machine in top condition.
Keep machine clean for best and
safest performance. Follow
instructions for lubrication and
changing accessories.
Disconnect the machine from power
source before servicing, when
changing accessories and when
mounting or remounting motor.
To avoid accidental starting, make
sure the switch is in the OFF position
before plugging in the power cord.
Never leave the machine running
and unattended. Turn the power OFF.
Do not leave the machine until it
comes to a complete stop.
Start and stop the machine
yourself. Do not have anybody help
you do this.
Always wear a face dust mask if
operation creates a lot of sawdust
and/or chips.
Always operate the tools in a well-
ventilated area and provide for proper
dust removal. Use a dust collection
system whenever possible.
Turn OFF then machine before
making any adjustments or servicing.
Do not attempt to measure the work-
piece size while the machine is
running.
Make sure the work-piece is clamped
securely between the centers before
starting the machine.
Only use correct size centers.
After adjusting or servicing the
machine, remember to remove all
wrenches or other tools from the
machine.
Do not use any power tools while
under the effects of drugs, alcohol or
any medication.
WARNING!
The safety instructions given above can not be complete because the environment in every
shop is different. Always consider safety first as it applies to your individual working conditions.

5
MODEL CX801 HEAVY DUTY BENCH TOP LATHE
As part of the growing line of Craftex woodworking equipment, we are proud to offer CX801
a Heavy Duty Bench Top Lathe. By following the instructions and procedures laid out in this
owner’s manual, you will receive years of excellent service and satisfaction. The CX801 is
a professional tool and like all power tools, proper care and safety procedures should be
adhered to.
Main Motor..........................................Single Phase 1/2 HP, 110V, 60 HZ, 6Amps
Speed..................................................1725 RPM
Swing Over Bed..................................10”(254mm)
Swing Over Tool Rest (Base)..............7-1/2”(190mm)
Distance Between Center....................15 ½” (394mm)
Tailstock Travel....................................3 ¼” (83mm)
Spindle Size.........................................7-51/64” x 1-7/8”
Spindle TPI..........................................1” x 8 TPI
Spindle Taper.......................................MT2
Spindle Center......................................5”(127mm)
Tailstock Taper.....................................MT2
Tailstock Center....................................5”(127mm)
Number of Spindle Speeds...................6
Spindle Speed Ranges.........................480, 1270, 1960, 2730, 3327, 4023 RPM
Bed Width..............................................8-3/16”(208mm)
Faceplate Size.......................................3” (76mm)
Bed Construction...................................Cast Iron
Headstock Construction Cast................Cast Iron & Steel
Tailstock Construction Cast...................Cast Iron & Steel
Bearings.................................................Shielded and Lubricated
Approx. Weight......................................105 lbs. (45 Kg)
CX801 BENCHTOP
LATHE
FEATURES

6
PHYSICAL FEATURES

7
UNPACKING
The machine is properly packaged in a
carton for safe transportation. When
unpacking, carefully inspect the crate and
ensure that nothing has been damaged
during transit. Open the crate and check
that the machine is in a good condition.
There is a bag which contains some loose
parts of the machine. After the machine
has been un-packed, check that all loose
parts shown in Figure-1 are present.

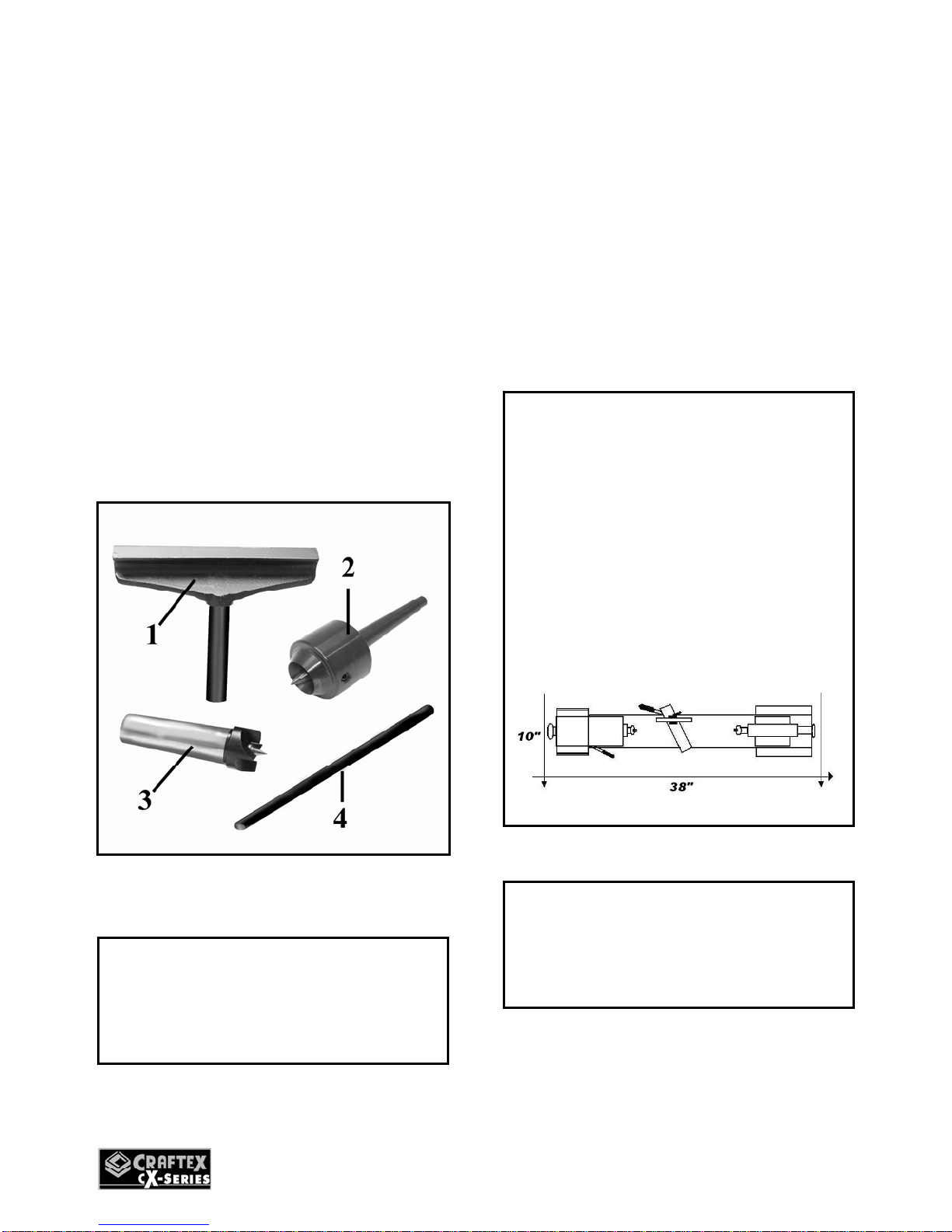

1. Tool Rest
2. Tailstock Center (Live Center) MT2
3. Headstock Center (Dead Center) MT2
4. Center Knock-Out Bar
Figure-1 Loose parts
SETUP
Before starting setting up the machine
you need to read and understand this
user manual completely. For the
protection of your eyes you need to have
safety glasses. The unpainted surfaces or
parts of the lathe are coated with rust
prevention waxy oil and you will want to
remove this before you begin assembly.
Use a solvent cleaner that will not
damage painted surfaces.
IMPORTANT
When setting up your machine, you will
want to find an ideal spot where your
machine will most likely be positioned
most of the time. Consider your
complete work environment as well as
working comfortable with the lathe
before placing your machine in the
ideal spot. The figure below shows
minimum workplace for the lathe.
WARNING
CX801 weighs approximately 105 lbs.
Do not over-exert yourself. Get the
help of an assistant for safe moving.
IMPORTANT
While doing inventory, if you can not
find any part, check if the part is
already installed on the machine.

8
MOUNTING ON A
WORKBENCH INSTALLING THE TOOL REST
The lathe should be mounted on a
workbench of proper height. The
workbench must be rigid and flat enough
to support the weight of the lathe. Make
sure the lathe is mounted firmly on the
workbench, otherwise chatter problems
will occur while operation.
Before you start assembling the machine
you need to level the machine using the
four leveling feet.
LEVELING THE LATHE
Always note that if the lathe is not leveled
properly it may cause bed twisting. A
slight bed twisting will cause centers to be
out of alignment and also inaccurate
turning.

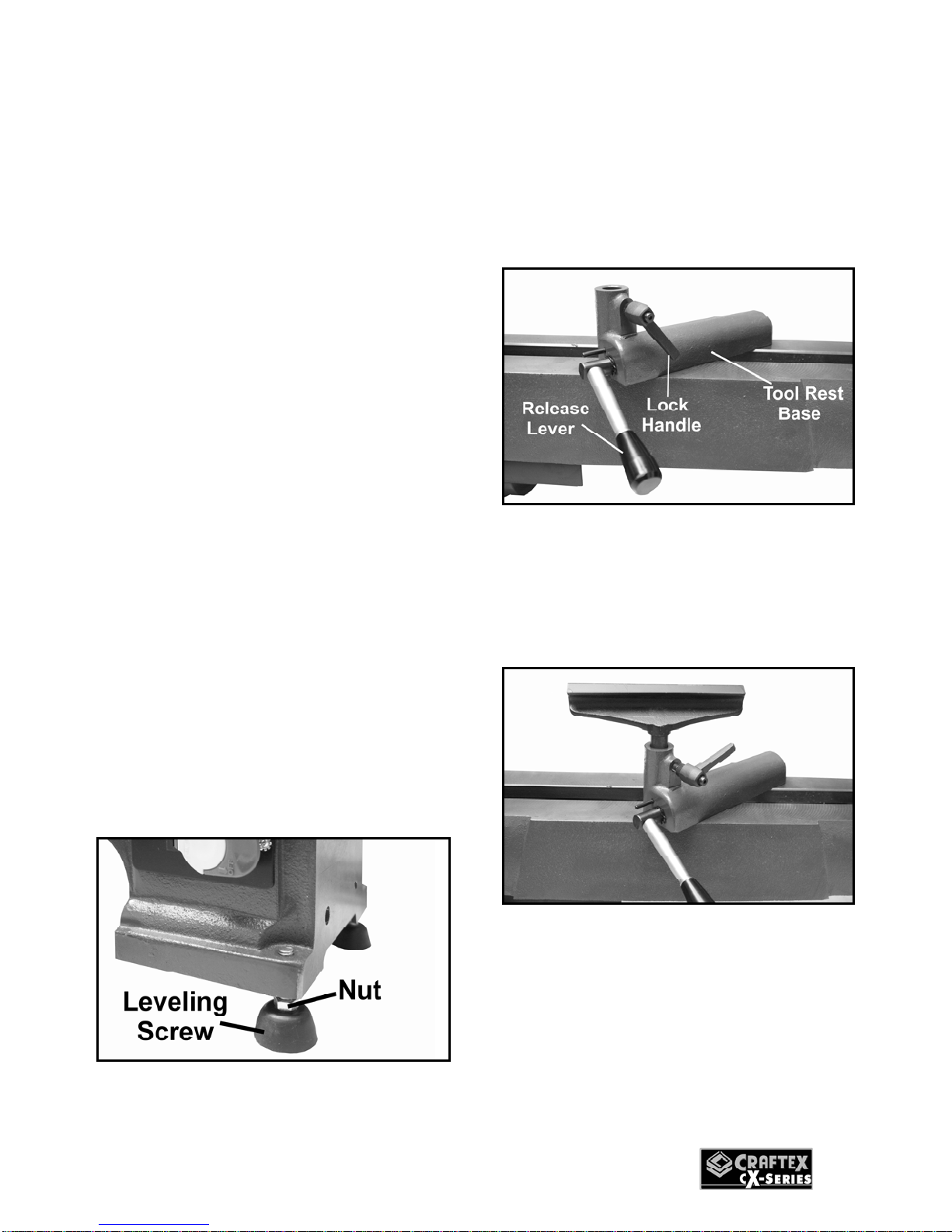

Level the machine by turning the four
leveling screws, located at the four
corners, at the base of the bed. Loosen
the nut by using a wrench before
adjusting leveling screw, turn the leveling
screw manually until the correct level is
achieved. Tighten the nut to lock the
leveler in place.
Figure-2 Leveling screw and nut
Locate the hole on the tool rest base and
thread the lock handle into the hole. See
Figure-3.
Figure-3 Tool rest lock handle installed
Now, insert the tool rest and turn the lock
handle to secure the tool rest in position.
See Figure-4.
Figure-4 Tool rest Installed
Whenever you want to move the tool rest
base, simply untighten the release lever
and slide tool rest base on the bed and
re-tighten the release lever.

9
BED EXTENSION (Optional)
The bed extension is available as an
optional component (MODEL#
CX801EXT). The bench top lathe has
been factory drilled with two holes at the
end of the bed for installing the bed
extension. See Figure-5
Figure-5 Bed Installing Extension Holes
To install the bed extension, align the two
holes on the bed extension with the two
holes on the bed end. Tighten the bed
extension with two M8 screws.
It is necessary to make leveling
adjustments between the lathe bed and
the bed extension by using a straight
edge guide.
INSTALLING / REMOVING
TAILSTOCK CENTER
Clean the tailstock center shank and the
tailstock quill and insert the center firmly
by hand into the tailstock quill.
To remove the tailstock center from the
tailstock quill, simply turn the quill
movement hand-wheel until the quill end
is nearly inside the tailstock. Then loosen
the quill fix lever and you can move the
quill in or out. See Figure-6.
Figure-6 Installing / Removing tailstock
WARNING
Disconnect the machine from the
power source before mounting and
removing headstock center.

10
INSTALLING / REMOVING
FACEPLATE
Make sure the switch is in OFF position
and the cord is disconnected from the
power source.
Attach the faceplate to the headstock by
threading it on the spindle.
Now, use knock-out bar and tighten the
faceplate as shown in the in Figure-7.
Figure-7 Installing the faceplate
When you want to remove the faceplate,
simply do the above procedure in reverse.
INSTALLING / REMOVING
HEADSTOCK CENTER
The headstock spindle is designed with
an MT2 taper.
Clean the spindle bore and center's taper
and insert the center into the spindle bore
firmly by hand.
Removing the drive center is done by
simply knocking it out, using the supplied
knock-out bar. When knocking out the
center, hold it by hand to prevent it
dropping down. See Figure-8.
Figure-8 Knocking out the drive center
with the help of knock-out bar
WARNING
Disconnect the machine from the
power source before mounting and
removing parts.

11
TEST RUN
Once you have assembled your machine
completely, it is time for a test run to make
sure that the machine works properly and
is ready for operation.
Carefully look around your machine
before turning it on to ensure no tools are
left on the machine, all screws and knobs
are securely fastened, and all controls are
working properly.
Connect your machine to the correct
power source and turn the power switch
ON.
During the test run the machine should
run smoothly and create very little noise
or vibration. If there is an unusual noise
coming from the machine or the machine
vibrates excessively, turn the machine
OFF and investigate the problem.
ON /OFF SWITCH
This lathe is equipped with a rocker type
paddle switch to start and stop the lathe,
located at the front side of the bed. The
switch has a removable locking key to
prevent unauthorized operation. If the
lathe is not in use for long time, remove
the locking key by pulling it out and
storing it in a safe place.
To start the lathe, insert the locking key
and turn it ON. To stop the lathe, shift the
switch to the right. See Figure-9.
Figure-9 ON / OFF switch with safety key
IMPORTANT
Before a test run make sure that you
have read and understood the user
manual and you are familiar with the
functions and safety features on this
machine.
Before turning the machine on, make
sure you are wearing your safety
glasses and anyone around you is also
wearing safety glasses.
WARNING
Do not make any adjustments when
the machine is running. Failure to
follow this warning can cause a serious
personal injury.

12
CHANGING THE SPINDLE
SPEED
The CX801 Heavy Duty Bench Top Lathe
features 6 spindle speed changes: 480,
1270, 1960, 2730, 3327 and 4023 RPM.
The turning speed of the lathe is varied
with the work-piece diameter to be turned.
When turning a smaller diameter of work-
piece, a higher spindle speed is
recommended. However, proper selection
of spindle speed for the work-piece is
made by the operator’s experience.
TO CHANGE THE SPINDLE SPEED:
Make sure the switch is in the OFF
position and the cord is disconnected from
the power source.
Open the V-belt guard located on the
headstock. Loosen the guard lock lever.
Figure-10 Releasing belt tension
Loosen the belt tension lock knob before
shifting the belt tension lever and tighten it
securely after adjustment.
Release the V-belt tension by shifting the
belt tension lever, located under the bed
shown in Figure-10.
Position the V-belt on both pulleys as
shown in figure-11 to achieve the desired
speed. At the same time, turn the
headstock fly wheel to facilitate changing
of the belt position.
Figure-11 Spindle speed
Tension the V-belt by shifting the V-belt
tension lever and then tighten belt tension
fixed knob.
Re-install the belt guard.

13
TOOL REST & BASE
The tool rest base can be moved along
the bed slide-ways. Loosen the tool rest
base lock lever before adjusting the
carriage position. Tighten the lever
securely after position is achieved.
The tool rest should be adjusted so that
its top is 3/16” (suggested) below, above
the centers. Loosen the tool rest lock
lever before adjusting tool rest position.
Tighten the lock lever securely after
adjustment.
Figure-12 Adjusting Carriage & Tool Rest
on the Bed
TAILSTOCK QUILL
The tailstock quill can be moved in and
out of the tailstock by turning the quill
hand-wheel.
Loosen the quill lock lever before turning
the hand-wheel. Tighten it securely after
the quill has been moved to the proper
position.
TAILSTOCK
The tailstock is used to support the other
end of the work-piece to be turned on the
lathe. The tailstock can be moved along
the bed slide ways. Before moving the
tailstock, loosen the tailstock lock lever.
Move the tailstock by hand to the desired
position, and then tighten the tailstock
lock lever securely.
Figure-13 Tailstock and its components
FACEPLATE
This lathe is furnished with a face plate in
case the work-piece to be turned and can
not be clamped between the headstock
center and the tailstock center.
The faceplate has been drilled with four
holes for screwing the work-piece.
Figure-14 Showing faceplate attached to
the lathe

14
ALIGNMENT BETWEEN
CENTERS
The center alignment has been adjusted
properly at the factory before the machine
is shipped to you. However, after lengthy
operation, the centers may be out of
alignment. At this time center alignment
needs to be done.
TO ALIGN THE CENTERS:
Make sure the cord is disconnected from
the power source.
Remove tool rest base and the tool rest
and slide the tailstock with the center
towards the headstock.
Loosen the four screws securing the
headstock to the bed. Slightly adjust the
headstock position so that the centers are
aligned with each other.
Figure-15 Headstock and tailstock centers
aligned
MAINTENANCE
During the life of your machine, you will
need to practice some regular
maintenance to keep your lathe in peak
performance condition,
Check your lathe daily for loose mounting
bolts, damaged cord, worn switch and any
other unsafe condition.
CLEANING
1. Everyday after use, remove chips from
the machine and clean it. Apply oil on
the sliding surfaces.
2. Everyday after use, turn OFF the
power switch and remove the switch
key.
3. A build up of dust in the motor can
cause motor damage. Periodic
cleaning of the motor is not only
recommended, but mandatory for
normal wood lathe performance.
WARNING
Make sure the machine is turned OFF
the cord is disconnected from the
power source before servicing and
removing/replacing any components of
the machine.

15
PROBLEMS CAUSES CORRECTION
CUTTING TOOL
VIBRATION
1. Work-piece is not
clamped firmly.
1. Clamp it firmly.
POOR
MACHINE ACCURACY
1. Work-piece is clamped
incorrectly.
2. Tailstock center and
headstock center is out of
alignment.
3. Machine leveling loss.
1. Check balance.
2. Adjust center
Alignment.
3. Check machine
leveling periodically.
MOTOR DOES NOT RUN
WHEN POWER WITCH IS
TURNED ON
1. Switch is burnt out.
2. Connection wire is loose
or damaged.
1.Replace the switch.
2.Tighten or replace wire.
MOTOR DOES NOT RUN
AT A FULL SPEED
1. Power voltage is too low.
2. Motor is damaged.
1. Test voltage.
2. Check and repair
motor.
MOTOR DOES NOT
REACH FULL SPEED
1. Incorrect power wiring.
2. Overloaded.
1. Replace with correctly
sized power wiring.
2. Reduce load.
MOTOR OVERHEATING
1. Motor is dirty.
2. Motor is damaged.
1. Clean motor.
2. Check and repair
motor.
TROUBLESHOOTING

16

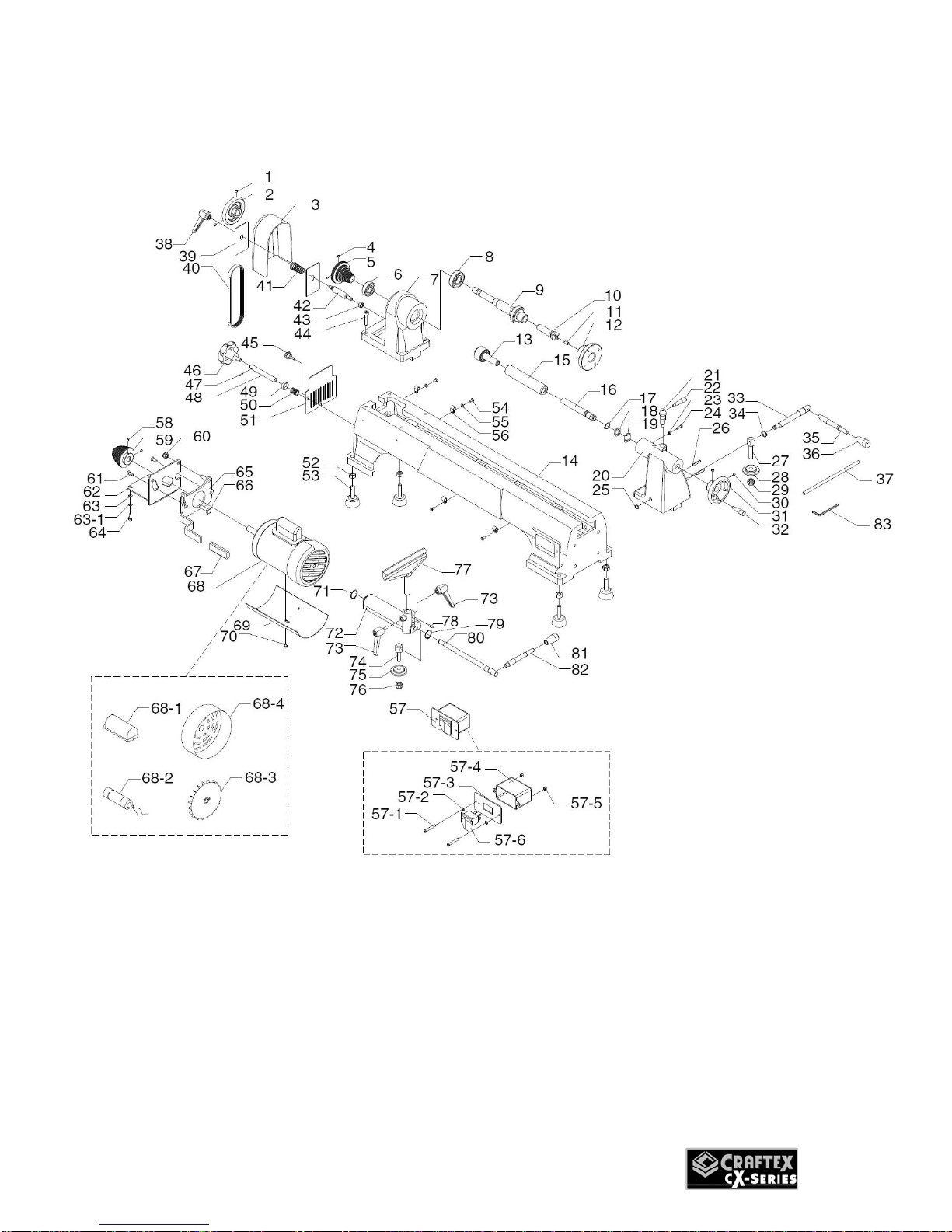

CX801 PARTS BREAKDOWN

17
CX801 PARTS LIST
INDEX DESCRIPTION IVM
1 SCREW - SET M6-1.0 X 6 PSS02M
2 HEADSTOCK HANDWHEEL P0624002
3 PULLEY SAFETY COVER P0624003
4 SCREW - SET M4-0.7 X 6 PSS79M
5 SPINDLE PULLEY P0624005
6 BEARING 6004Z P6004
7 HEADSTOCK CASTING P0624007
8 BEARING 6005ZZ P6005
9 SPINDLE P0624009
10 SPUR CENTER MT2 P0624010
11 INDEXED SPINDLE P0624011
12 FACEPLATE 3" P0624012
13 LIVE CENTER MT2 P0624013
14 BEDWAY P0624014
15 TAILSTOCK QUILL P0624015
16 TAILSTOCK LEAD SCREW P0624016
17 C-RING EXTERNAL M15 PR05M
18 WASHER - FLAT M15 PW14M
19 RUBBER COLLAR P0624019
20 TAILSTOCK CASTING P0624020
21 ECCENTRIC SHAFT P0624021
22 QUILL LOCK HANDLE P0624022
23 NUT - HEX M4-0.7 PN04M
24 SCREW - CAP M4-0.7 X 16 PSB16M
25 C-RING M30 PR01M
26 PIN - ROLL M5 X 30 PRP05M
27 ADJUST SHAFT P0624027
28 SLIDE COLLAR P0624028
29 NUT - LOCK M10-1.5 PLN05M
30 SCREW - SET M6-1.0 X 6 PSS02M
31 TAILSTOCK HANDWHEEL P0624031
32 QUILL HANDWHEEL HANDLE P0624032
33 ECCENTRIC SHAFT P0624033
34 C-RING M16 PR06M
35 TAILSTOCK RELEASE LEVER P0624035
36 LEVER KNOB P0624036
37 KNOCK OUT BAR P0624037
38 LOCK HANDLE P0624038
39 GUARD PLATE P0624039
40 ULTRA FLEX BELT 7 X 3.4 X 600 P0624040
41 COMPRESSION SPRING P0624041
42 THREADED SHAFT P0624042
43 NUT - HEX M8-1.25 PN03M
44 SCREW - CAP M8-1.25 X 35 PSB40M
45 SCREW - THUMB M5-0.8 X 15 P0624045

18
46 BELT TENSION LOCK KNOB P0624046
47 PIN - ROLL 3 X 12 PRP61M
48 SHAFT P0624048
49 SPACER M18 P0624049
50 COMPRESSION SPRING P0624050
51 LOWER PULLEY ACCESS PLATE P0624051
52 NUT - HEX 3/8-16 PN08
53 RUBBER FOOT P0624053
54 SCREW - PAN HD PHILLIPS M5-0.8 X 10 PS09M
55 WASHER - FLAT M5 PW02M
56 STRAIN RELIEF P0624056
57 SWITCH - ASSEMBLY P0624057
57-1 SCREW - PAN HD PHILLIPS 10-24 X 1 1/2 PS10
57-2 WASHER - TOOTHED EXT M5 PTLW02M
57-3 SWITCH PLATE P0624057-3
57-4 SWITCH BOX P0624057-4
57-5 NUT - HEX 10-24 PN07
57-6 SWITCH W/ SAFETY KEY P0624057-6
58 SCREW - SET M4-0.7 X 6 PSS79M
59 MOTOR PULLEY P0624059
60 NUT - LOCK M8-1.25 PLN04M
61 SCREW - PAN HD PHILLIPS M6-1.0 X 16 PS11M
62 MOTOR PLATE P0624062
63 WASHER - FLAT M5 PW02M
63-1 WASHER - LOCK M5 PLW01M
64 SCREW - CAP SOC HD M5-0.8 X 15 PSB10M
65 TENSION BRACKET P0624065
66 BOLT - SQUARE HD P0624066
67 RUBBER SLEEVE P0624067
OT MOTOR P0624068
68-1 CAPACITOR COVER P0624068-1
68-2 CAPACITOR 25MFD 250VAC P0624068-2
68-3 FAN P0624068-3
68-4 FAN COVER P0624068-4
69 DUST GUARD P0624069
70 LOCTITE SCREW 10-24 X 6 P0624070
71 C-RING EXT M10 PR01M
72 TOOL POST BASE P0624072
73 TOOL REST LOCK HANDLE M6-1.0 P0624073
74 ADJUST SHAFT P0624074
75 SLIDE COLLAR P0624075
76 NUT - LOCK M10-1.5 PLN05M
77 TOOL REST P0624077
78 PIN - ROLL M4 X 20 PRP39M
79 C-RING EXT M14 PR02M
80 ECCENTRIC SHAFT P0624080
81 LEVER KNOB P0624081
82 TOOL REST RELEASE LEVER P0624082
83 WRENCH - HEX M2.5 PAW02.5M

19
WARRANTY
Craftex warrants every product to be free from defects in materials and agrees to correct such defects where
applicable. This warranty covers Three Years for parts and 90 days for labour (unless specified otherwise),
to the original purchaser from the date of purchase but does not apply to malfunctions arising directly or
indirectly from misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations
or lack of maintenance. Proof of purchase is necessary.
All warranty claims are subject to inspection of such products or part thereof and Craftex reserves the right to
inspect any returned item before a refund or replacement may be issued.
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches
etceteras.
Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property
or for incidental contingent, special or consequential damages arising from the use of our products.
RETURNS, REPAIRS AND REPLACEMENTS
To return, repair, or replace a Craftex product, you must visit the appropriate Busy Bee Tools showroom or
call 1-800-461-BUSY. Craftex is a brand of equipment that is exclusive to Busy Bee Tools.
For replacement parts directly from Busy Bee Tools, for this machine, please call 1-800-461-BUSY (2879),
and have your credit card and part number handy.
All returned merchandise will be subject to a minimum charge of 15% for re-stocking and handling with
the following qualifications.
Returns must be pre-authorized by us in writing.
We do not accept collect shipments.
Items returned for warranty purposes must be insured and shipped pre-paid to the nearest warehouse
Returns must be accompanied with a copy of your original invoice as proof of purchase. Returns must be
in an un-used condition and shipped in their original packaging a letter explaining your reason for the
return. Incurred shipping and handling charges are not refundable.
Busy Bee will repair or replace the item at our discretion and subject to our inspection.
Repaired or replaced items will be returned to you pre-paid by our choice of carriers.
Busy Bee reserves the right to refuse reimbursement or repairs or replacement if a third party without our
prior authorization has carried out repairs to the item.
Repairs made by Busy Bee are warranted for 30 days on parts and labour.
Any unforeseen repair charges will be reported to you for acceptance prior to making the repairs.
The Busy Bee Parts & Service Departments are fully equipped to do repairs on all products purchased
from us with the exception of some products that require the return to their authorized repair depots. A
Busy Bee representative will provide you with the necessary information to have this done.
For faster service it is advisable to contact the nearest Busy Bee location for parts availability
prior to bringing your product in for repair.
CRAFTEX 3 YEA
R
S LIMITED WARRANTY
