Owner's Manual
lC.. TSM
AiR COMPRESSOR
lO-gallon
1 HP
Off Lubricated
Model No. 16923
CAUTION:
Before using this product, read this
manual and follow all its Safety
Rules and Operating Instructions.
,Safety Instructions
,installation &Operation
,Maintenance & Storage
°Troubleshooting Guide
, Parts List
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
11/19/2012
Part No E106443

TABLE OF CONTENTS
Page
Warranty ................................................................ see below
Safety Symbols ................................................................... 1
important Safety Instructions & Guidelines .............................................. 1
Specifications .................................................................... 2
Glossary ........................................................................ 2
Duty Cycle ....................................................................... 2
Parts & Features .................................................................. 3
installation & Assembly ............................................................. 4
Operating Procedures .............................................................. 6
Maintenance ..................................................................... 7
Storage ......................................................................... 7

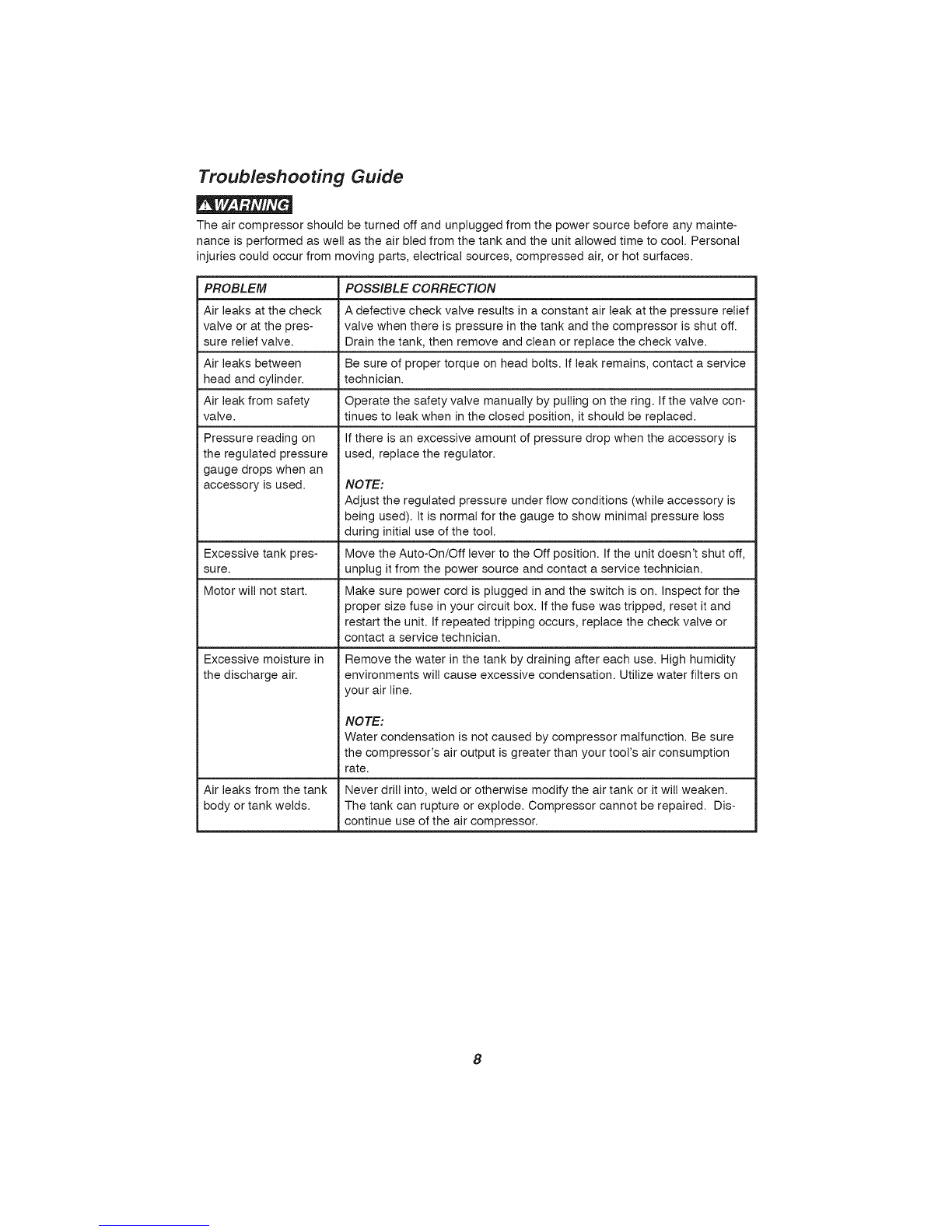

Troubleshooting Guide ............................................................. 8
Exploded View ................................................................... 9

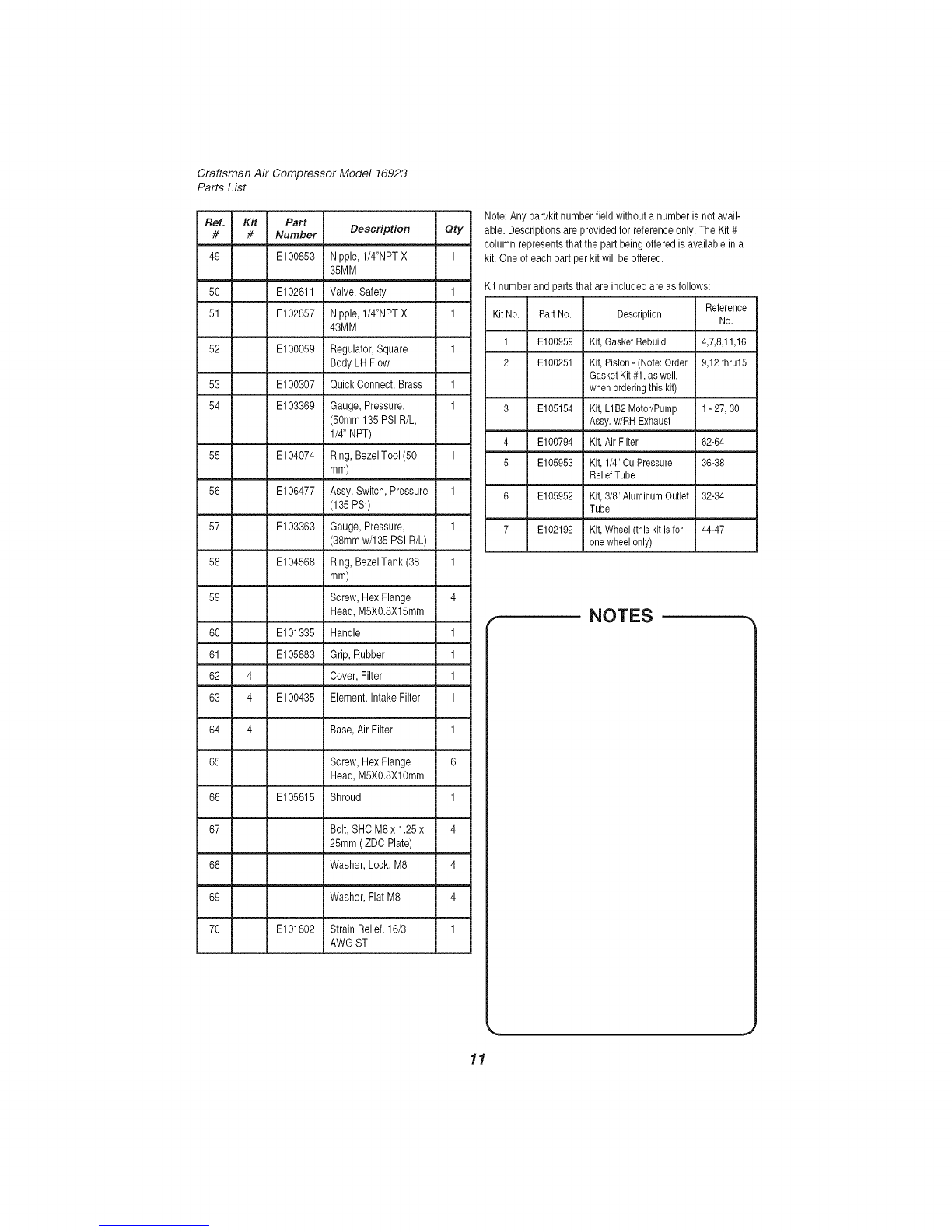

Parts List ...................................................................... 10
Service Number ........................................................... back cover
CRAFTSMAN ONE YEAR FULL WARRANTY
FOR ONE YEAR from the date of purchase, this product is warranted against any defects in material
or workmanship. A defective product will receive free repair or replacement if repair is unavailable.
For warranty coverage details to receive free repair or replacement, visit the web site: www.craftsman.com
This warranty is void if this product is ever used while providing commercial services or if rented to
another person.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

Safety Instructions
The information listed below should be read and
understood by the operator. This information is
given to protect the user while operating and stor-
ing the air compressor. We utilize the symbols
below to allow the reader to recognize important
information about their safety.
Indicates an imminently hazardous situation
which, if not avoided, will result in death or seri-
ous injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
When used without the safety alert symbol indi-
cates a potentially hazardous situation which, if
not avoided, may result in property damage.
Important Safety Instructions and Guidelines
* Save all instructions
Improper operation or maintenance of this product could result in serious injury and/or property
damage. Read and understand all of the warnings and safety instructions provided before using this
equipment.
Risk of Moving Parts
Risk of Burns
Risk of Falling
Risk from Fl_Objects
The air compressor should be operated on a dedicated 15 amp circuit. If
the circuit does not have 15 free amps available, a larger circuit must be
used. Always use more air hose before utilizing extension cords. All exten-
sion cords used must be 12 gauge with a maximum length of 25 ft. The
circuit fuse type must be a time delay. Low voltage could cause damage to
the motor.
If the air compressor is in operation, all guards and covers should be
attached or installed correctly. If any guard or cover has been damaged,
do not operate the equipment until the proper personnel has correctly re-
paired the equipment. The power cord should be free of any moving parts,
twisting and/or crimping while in use and while instorage.
There are surfaces on your air compressor that while in operation and
thereafter can cause serious burns if touched. The equipment should be
allowed time to cool before any maintenance is attempted. Items such as
the compressor pump and the outlet tube are normally hot during and after
operation.
Operation of the air compressor should always be in a position that is
stable. Never use the air compressor on a rooftop or elevated position that
could allow the unit to fall or be tipped over. Use additional air hose for
elevated jobs.
Always wear ANSI Z87.1 approved safety glasses with side shields when
the air compressor is in use. Turn off the air compressor and drain the air
tank before performing any type of maintenance or disassembly of the
hoses or fittings. Never point any nozzle or sprayer toward any part of the
body or at other people or animals.

Important Safety Instructions & Guidelines
Risk to Breathing
Risk of Electrical Shock
Risk of
Explosion or Fire
Risk of Bursting
Avoid using the air compressor in confined areas. Always have adequate
space (12 inches) on all sides of the air compressor. Also keep children,
pets, and others out of the area of operation. This air compressor does
not provide breathable air for anyone or any auxiliary breathing device.
Spraying material will always need to be in another area away from the air
compressor to not allow intake air to damage the air compressor filter.
Never utilize the air compressor in the rain or wet conditions. Any electrical
issues or repairs should be performed by authorized personnel such as an
electrician and should comply with all national and local electrical codes.
The air compressor should also have the proper three prong grounding
plug, correct voltage, and adequate fuse protection.
Never operate the compressor near combustible materials, gasoline or
solvent vapors. If spraying flammable materials, locate the air compressor
at least 20 feet away from the spray area. Never operate the air compres-
sor indoors or in a confined area.
Always drain the air compressor tank daily or after each use. If the tank
develops a leak, then replace the air compressor. Never use the air com-
pressor after a leak has been found or try to make any modifications to the
tank. Never modify the air compressor's factory settings which control the
tank pressure or any other function.
Specifications
Pump .................. Oil-lube direct drive
Motor ................... 1.0 HP (Induction)
Bore ............................... 1.65"
Stroke .............................. 1.26"
Voltage Single Phase ............... 120 VAC
Minimum Circuit Requirement ........ 15 Amps
Glossary
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of
measure for air delivery,
PSIG: Pounds per square inch gauge; a unit of
measure for pressure.
ASME: American Society of Mechanical Engineers,
Cafifornia Code: Unit may comply with California
Code 462 (I) (2)/(M) (2).
Cut-In Pressure: The air compressor will
automatically start to refill the tank when
the pressure drops below the prescribed
minimum.
Air Tank Capacity ................ 10 Gallons
Cut-in Pressure ................... 105 PSI
Cut-out Pressure .................. 135 PSI
SCFM @ 90 PSI ....................... 2.4
Oil Capacity ................. 90 mL or 3 oz.
Oil Type .... SAE 30 Non-detergent Semi-Synthetic
Cut-Out Pressure: The point at which the motor
stops when the tank has reached maximum
air pressure.
Code Certification: Products that bear one or more
of the following marks: UL, CUL, ETL, CSA,
have been evaluated by OSHA-certified
independent safety laboratories and meet
the applicable Underwriters Laboratories
Standards for Safety.
Duty Cycle
This is a 50% duty cycle air compressor. Do not run the air compressor more than 30 minutes of
one hour. Doing so could damage the air compressor.
2

Parts &Features
See figures below for reference
ITank Pressure Gauge
Indicates the reserve air pressure in the tank.
Indicates the outgoing air pressure to
the tool and is controlled by the regulator.
IQuick Connect -1
Offers a quick release feature for attaching
and removing the air hose.
The air pressure coming from
the air tank is controlled by the
regulator. To increase the
pressure, turn the knob
clockwise, and to decrease the
pressure, turn the knob counter-
clockwise.
fAir Intake Filter
Provides clean air to the pump
and must always be kept free of
debris. Check on a daily basis or
before each use.
Oil Fill Cap
ITank Safety Valve
Used to allow excess tank
pressure to escape into the
atmosphere. This valve should
only open when the tank
pressure is above the maximum
rated pressure.
IPressure Switch
This controls the power to the
motor and also the cut-in/cut-
out pressure settings. This
switch serves as the Auto-On/Off
positions for the unit.
Sight
Gauge
Outlet
Tube
Pressure Relief Valve
The pressure relief valve located
on the side of the pressure
switch, is designed to automatically
release compressed air when the
air compressor reaches cut=out
pressure. The released air should
only escape momentarily and the
valve should then close. Preseute
Relief Tube
Check Valve
When the pump is not in operation the valve
closes to retain air pressure inside the tank. An
internal com
Tank Drain Valve
Used to drain condensation from the air tank.
Located at bottom of tank.

installation & Assembly
The air compressor should be turned off, unplugged from the power source, the air bled from the
tank and the unit allowed time to cool before any maintenance is performed. Personal injuries could
occur from moving parts, electrical sources, compressed air or hot surfaces. The quick connect as-
sembly must be attached before use. Failure to assemble correctly could result in leaks and possible
injury. If unsure of assembly instructions or you experience difficulty in the assembly please call our
toll free number for assistance.
Assembly
1. Remove air compressor, manual, air filter
assembly, and accessories from packaging.
2. Remove the plastic plug from the compressor
intake port. (see diagram below)
3. Install the filter in the compressor intake port.
(see diagram below)
4. Remove the oil fill cap from the crankcase and
fill until the oil reaches the top of the red dot in
the sight glass. Oil capacity is 3 oz. (see below)
Use SAE-30 non-detergent semi-synthetic oil
(API CG/CD heavy duty motor oil). Under
extreme cold weather conditions use SAE-10
weight oil.
5. Replace the oil cap.
Estimated Assembly Time:
Approximately 5 minutes
Grounding Instructions
This product should be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for the electric current. This product is equipped
with a cord having a grounding wire with an ap-
propriate grounding plug. (See the figure below.)
The plug must be plugged into an outlet that is
properly installed and grounded in accordance
with all local codes and ordinances. Check with
a qualified electrician or service personnel if
these instructions are not completely understood
or if in doubt as to whether the tool is properly
grounded.
Plug Grounded
..... Outlet
Grounding Pin
Getting Started -
Location of the Air Compressor
The air compressor should always be located
in a clean, dry and well ventilated environment.
The unit should have at minimum, 12 inches of
space on each side. The air filter intake should
be free of any debris or obstructions. Check the
air filter on a daily basis to make sure it is clean
and in working order.
NOTES
4

Installation & Assembly
Improper installation of the grounding plug will result in a risk of electric shock. If repair or replace-
ment of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal.
The wire with insulation having an outer surface that is green with or without yellow stripes is the
grounding wire. Check with a qualified electrician or serviceman if the grounding instructions are not
completely understood, or if in doubt as to whether the product is properly grounded. Do not modify
the plug provided; if it will not fit the outlet, have the proper outlet installed by a qualified electrician.
This product is for use on a circuit having a nominal rating of 120 volts and is factory-equipped with
a specific electric cord and plug to permit connection to a proper electric circuit. Make sure that the
product is connected to an outlet having the same configuration as the plug. No adapter should be
used with this product. If the product must be reconnected for use on a different type of electric circuit,
qualified service personnel should make the reconnection.
Extension Cords
Use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will
accept the plug on the product. Make sure your extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry the current your product will draw. Cords
must not exceed 25 feet and No. 12 AWG size must be used. An undersized cord will cause a drop in
line voltage resulting in loss of power and overheating.
Break In Procedures
No break in procedure is required by the user. This product is factory tested to ensure proper opera-
tion and performance.
NOTES
J
5

Operating Procedures
Daily Start-Up Procedures
1. Set the Auto-On/Off lever to the Off position.
2. Inspect the air compressor, air hose, and any
accessories/tools being used for damage or
obstruction. If any of these mentioned items
are in need of repair/replacement, contact
your local authorized service dealer before
use.
3. Close the drain valve.
4. Check the oil level of the pump.
5. Connect the air hose to the quick connect
socket on the regulator assembly by inserting
the quick connect plug on the air hose into
the quick connect socket. The quick connect
socket collar will snap forward and lock
the plug into place providing an air tight seal
between the socket and plug. To release the
air hose push the collar back on the quick
connect socket.
i
6. Plug the power cord into the proper receptacle.
7. Turn the Auto-On/Off lever to the On-Auto
position and the compressor will start and
build air pressure in the tank to cut-out pressure
and then shut off automatically.
8. Adjust the regulator to a PSI setting that is
needed for your application and be sure it is
within the safety standards required to
perform the task. If using a pneumatic tool,
the manufacturer should have recommendations
in the manual for that particular tool on
operating PSI settings.
9. The air compressor is now ready for use.
Daily Shut-Down Procedures
1. Set the Auto-On/Off lever to the Off position.
2. Unplug the power cord from the receptacle.
3. Set the outlet pressure to zero on the regulator.
4. Remove any air tools or accessories. When
draining the tank, always use ear and eye
protection. Drain the tank in a suitable location;
condensation will be present in most cases of
draining.
5. Open the drain valve allowing air to bleed from
the tank. After all of the air has bled from
the tank, close the drain valve to prevent
debris buildup in the valve.
When draining the tank, always use ear and eye
protection. Drain the tank in a suitable location;
condensation will be present in most cases of
draining.
Water that remains in the tank during storage
will corrode and weaken the air tank which could
cause the tank to rupture. To avoid serious injury,
be sure to drain the tank Nter each use or daily.
6

Maintenance
NOTE: Any service procedure not covered in the maintenance schedule should be performed
by qualified service personnel
The air compressor should be turned off,
unplugged from the power source, air bled from
the tank and allowed time to cool before any
maintenance is performed.
To ensure efficient operation and longer life of
the air compressor unit, a routine maintenance
schedule should be followed. The following
schedule is geared toward a consumer whose
compressor is used in a normal working environ-
ment on a daily basis.
Items to Check/Change
Check TankSafety Valve
Overall Unit Visual Check
Check Air Filter
DrainTank
Check PowerCord for Damage
Change Oil
Before each use
or daily
X
X
X
X
X
afterfirst50hours
afterevery100hours
Check 0il Level X
Storage
For storing the air compressor, be sure to do the following:
1. Turn the unit off and unplug the power cord 4. Open the drain valve to bleed all air from the tank.
from the receptacle. 5. Close the drain valve.
2. Remove all air hoses, accessories, and air tools 6. Store the air compressor in a clean and dry
from the air compressor, location.
3. Perform the daily maintenance schedule.
NOTES
7

Troubleshooting Guide
The air compressor should be turned off and unplugged from the power source before any mainte-
nance is performed as well as the air bled from the tank and the unit allowed time to cool. Personal
injuries could occur from moving parts, electrical sources, compressed air, or hot surfaces.
PROBLEM POSSIBLE CORRECTION
Air leaks at the check A defective check valve results in a constant air leak at the pressure relief
valve or at the pres- valve when there is pressure in the tank and the compressor is shut off.
sure relief valve. Drain the tank, then remove and clean or replace the check valve.
Air leaks between Be sure of proper torque on head bolts, if leak remains, contact a service
head and cylinder, technician.
Air leak from safety Operate the safety valve manually by pulling on the ring. If the valve con-
valve, tinues to leak when in the closed position, it should be replaced.
Pressure reading on If there is an excessive amount of pressure drop when the accessory is
the regulated pressure used, replace the regulator.
gauge drops when an
accessory is used. NOTE:
Adjust the regulated pressure under flow conditions (while accessory is
being used). It is normal for the gauge to show minimal pressure loss
during initial use of the tool.
Excessive tank pres- Move the Auto-On/Off lever to the Off position. If the unit doesn't shut off,
sure. unplug it from the power source and contact a service technician.
Motor will not start. Make sure power cord is plugged in and the switch is on. Inspect for the
proper size fuse in your circuit box. If the fuse was tripped, reset it and
restart the unit. If repeated tripping occurs, replace the check valve or
contact a service technician.
Excessive moisture in Remove the water in the tank by draining after each use. High humidity
the discharge air. environments will cause excessive condensation. Utilize water filters on
your air line.
NOTE:
Water condensation is not caused by compressor malfunction. Be sure
the compressor's air output is greater than your tool's air consumption
rate.
Air leaks from the tank Never drill into, weld or otherwise modify the air tank or it will weaken.
body or tank welds. The tank can rupture or explode. Compressor cannot be repaired. Dis-
continue use of the air compressor.

Craftsman Air Compressor Model 16923
Exploded View
3-- 2 __"_
/
65 --\ \\
........ 39

Craftsman Air Compressor Model 16923
Parts List
Ref. Kit Part Ref. Kit Part
# # Number Description Qty # # Number Description Qty
1 3 Screw, M6 X 1.0ram 4 25 3 E100248 Capacitor, Starting 1
X 30ram 26 3 Washer, Tooth Lock, 2
2 3 Washer, Lock M6 8 8ram
3 3 E100227 Head,Cylinder 1 27 3 Nut, M8x1.25, ZDC 6
6.5MM TALL
4 1 & 3 Gasket, Head to Valve 1
Plate 28 N/A
5 3 E100228 Plate, Valve 2 29 N/A
6 3 E100229 Valve Reed 2 30 3 Assembly, Motor/Pump, 1
L1B2w/RHExhaust
7 1 & 3 Gasket, Valve Plate 1 31 E100809 Fitting, EIbow, 3/8NPT 1
8 1 & 3 Gasket, Cylinder to 1 x 3/8 Comp
Valve Plate 32 6 Ferrule, 3/8" 2
9 2&3 E101113 Cylinder 1
10 3 Screw, SHC M6 x 1.0 4 33 6 Nut, Comp, 3/8" 2
x 20MM 34 6 Tube, Outlet 3/8" 1
Aluminum Finned
11 1 & 3 Gasket, Cylinder, 1
Lower 38 E101362 Valve, Check LH 1
12 2 & 3 Eccentric for L1 1 36 5 Ferrule, 1/4" 2
13 2 & 3 Nut, Hex, M6x1.0 3 37 5 Nut, Comp, 1/4" 2
14 2 & 3 Screw, SHC M6 x 1.0 1 38 5 Tube, Relief 1/4" 1
x 20MM Aluminum
18 2&3 L1 Piston/Connecting 1 39 Tank/Frame Assy, 10 1
RodAssembly Gallon, L110VWS
16 1 & 3 Bafflefor L1 1 40 Washer, Flat M6 2
17 3 E100087 Cap, Oil Fillw/o-ring 1 41 E101037 Isolator, Rubber 2
18 3 E100566 Cover, Crankcase 1 42 Screw, SHC, M6 x 1.0 2
for L1 x 25mm
19 3 E100078 Plug, oil sightw/seal 1 43 E100098 Valve, Drain Multi-Turn 1
20 3 Screw, HFH M5 x 0.8 4 44 7 Nut, Hex MlOx1.28 2
x 18MM (Yellow Zinc
Dich Plate) 48 7 Washer, Flat MIO 2
46 7 Wheel, Black Hub 2
21 3 Motor Assembly/Pump 1
Housing, L1B2 47 7 Bolt,Shoulder, 2
22 3 E100860 Fan, Motor F1 125mm 1 M10x1.25x45rnrn
23 3 Ring,Snap,Outer, 15mm 1 48 E101340 Cord, Power16/3 AWG 1
type ST 6' long
24 3 E100247 Capacitor,Running 1
i NOTES 1
10

Craftsman Air Compressor Model 16923
Parts List
Ref. Kit Pert
# # Number Description Qty
49 E100853 Nipple, 1/4"NPT X 1
35MM
50 E102611 Valve, Safety 1
51 E102857 Nipple, 1/4"NPT X 1
43MM
52 E100059 Regulator, Square 1
Body LH Flow
53 E100307 Quick Connect, Brass 1
54 E103369 Gauge, Pressure, 1
(50mm 135 PSI R/L,
1/4' NPT)
55 E104074 Ring, BezelTool(50 1
mm)
56 E106477 Assy, Switch, Pressure 1
(135 PSI)
57 E103363 Gauge, Pressure, 1
(38mm w/135 PSI R/L)
58 E104568 Ring, BezelTank(38 1
mm)
59 Screw, Hex Flange 4
Head, MSX0.8X15mm
60 E101335 Handle 1
61 E105883 Grip, Rubber 1
62 4 Cover, Filter 1
63 4 E100435 Element, Intake Filter 1
64 4 Base, Air Filter 1
65 Screw, Hex Flange 6
Head, MSX0.8Xl0mm
66 E105615 Shroud 1
67 Bolt, SHC M8 x 1.25 x 4
25mm (ZDC Plate)
68 Washer, Lock, M8 4
69 Washer, Flat M8 4
70 E101802 Strain Relief, 16/3 1
AWG ST
Note: Any part/kit number field without a number is not avail-
able. Descriptions are provided for reference only. The Kit #
column represents that the part beingoffered is available in a
kit. One of each part per kit will be offered.
Kit number and parts that are included are as follows:
Reference
Kit No. PartNo. Description No.
1 E100959 Kit, Gasket Rebuild 4,7,8,11,16
2 E100251 Kit, Piston- (Note:Order 9,12thru15
GasketKit#1, aswell,
when orderingthis kit)
3 E105154 Kit, L1B2 Motor/Pump 1- 27,30
Assy. w/RH Exhaust
4 E100794 Kit, Air Filter 62-64
5 E105953 Kit, 1/4"Cu Pressure 36-38
ReliefTube
6 E105952 Kit, 3/8" AluminumOutlet 32-34
Tube
7 E102192 Kit, Wheel (this kit isfor 44-47
onewheel only)
NOTES
11

Manual de
i
COMPRESOR DE AIRE
37.9 iitros
1 HP
Lubricada con aceite
# de Modelo 16923
PRECAUCION:
Antes de usar el producto, lea este
manual y siga sus reglas e instruc-
clones de seguridad.
* Instrucciones ypautas de
seguridad importantes
* Instalaci6n y ensamblaje
* Procedimientos de operaci6n
* MantenimientoyAImacenamiento
* Diagn6stico y correcci6n de fa#as
* Lista de las piezas
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
11/19/2012
Part No. E106443

CONTENIDO
P&gina
Garanfia ................................................................ esta p&gina
Simbolos de seguridad ............................................................ 15
Instrucciones y pautas de seguridad importantes ........................................ 15
Especificaciones ................................................................. 16
GIosario ........................................................................ 16
Ciclo de trabajo .................................................................. 16
Partes y caracteristicas ............................................................ 17
Instalaci6n y ensamblaje ........................................................... 18
Procedimientos de operaci6n ....................................................... 20
Mantenimiento ................................................................... 21
AImacenamiento ................................................................. 22
Diagn6stico y correcci6n de fallas .................................................... 22
Vista esquem_.tica ............................................................... 23
Lista de las piezas ............................................................... 24
NOmero de servicio ........................................................ Contratapa
UN AKIO DE GARANTiA DE CRAFTSMAN
DURANTE UN AIqO desde la fecha de compra, este producto tiene garantia contra defectos en los
materiales o en la fabricaci6n. Los productos defectuosos se reparar_.n gratuitamente o se reempla-
zar&n sin coste si la reparaci6n no es possible.
Para conocer los detalles de cobertura de la garanfia con el fin de obtener una reparaci6n o un reem-
plazo, visite el sitio web www.craftsman.com
Esta garanfia no es v_.lida si el producto se utiliza para proporcionar servicios comerciales o si se
alquila a un tercero.
Esta garanfia le proporciona derechos legales especificos yes posible que adem&s tenga otros
derechos, dependiendo del pais o el estado.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 EE. UU.

Instrucciones de seguridad
El operador debe leer y entender la informaci6n si-
guiente. Esta informaci6n se ofrece para proteger
al usuario durante la operaci6n y el almacenaje
Indica una situaci6n de riesgo inminente que,
de no evitarse, provocaria lesiones graves o la
muerte.
Indica una situaciOn potencialmente peligrosa
que, de no evitarse, podria provocar lesiones
graves o la muerte.
del compresor. Los simbolos siguientes son los
que se utilizan para indicar al lector informaciOn
que es importante para su seguridad.
Indica una situaci6n potencialmente peligrosa
que, de no evitarse, podria provocar lesiones
menores o moderadas.
AI aparecer sin el simbolo de alerta de se-
guridad, indica una situaciOn potencialmente
peligrosa que, de no evitarse, podria causar
dafios materiales.
Instrucciones y pautas de seguridad importantes
* Guarde todas las instrucciones
La operaciOn y el mantenimiento inadecuados de este producto pueden provocar lesiones graves y
dafios materiales. Antes de utilizar este equipo, lea y entienda las advertencias einstrucciones de
seguridad aqui contenidas.
Riesgo por partes en
movimiento
Ries_ o de guemaduras
Rico de caida
Riesgo de lanzamiento
de objetos
El compresor de aire se debe operar desde un circuito dedicado de 15
amperes. Si el circuito no dispone de una capacidad de 15 amperes,
se debe usar un circuito de mayor capacidad. Si es necesario, antes de
emplear una extension electrica, aflada una manguera de aire mas larga.
Las extensiones electricas deben ser de calibre 12 y tener una Iongitud
maxima de 7.6 metros. El fusible del circuito debe ser de acci6n
retardada. Un voltaje demasiado bajo puede dafiar el motor.
Antes de operar el compresor, todos los protectores y cubiertas deben
estar instalados correctamente. Si alguno de los protectores o cubiertas
esta dafiado, no opere el equipo sino hasta que personal calificado repare
el problema. El cable de corriente se debe mantener alejado de las partes
moviles del equipo y no debe torcerse ni prensarse durante su empleo ni
al ser almacenado.
En su compresor hay superficies que, de ser tocadas durante y despues
de su operaci6n, pueden causar quemaduras graves. Antes de darle
mantenimiento al equipo, se le debe dejar enfriar. Por Io normal, durante y
despues de su operaci6n, ciertas partes como la bomba del compresor y
el tubo de salida estaran calientes.
El compresor siempre se debe operar en una posici6n estable. Nunca
utilice el compresor sobre un techo o en una posici6n elevada desde
donde podr[a caer o volcarse. AI trabajar en posiciones elevadas, utilice
una manguera de aire mas larga.
AI emplear el compresor, siempre utilice anteojos de seguridad con
protectores laterales que cumplan con la norma ANSI Z87.1. Antes de
Ilevar a cabo cualquier clase de mantenimiento y antes de desconectar las
mangueras y acopladores, apague el compresor y drene el tanque de aire.
Nunca apunte la boquilla o rociador hacia ninguna parte de su cuerpo ni
del de otros seres.
15

Instrucciones y pautas de seguridad importantes
Riesgo para la
res_iraci6n
Riesgo de descargas
el_ctricas
Riesgo de explosi&n
Rie_llido
Evite utilizar el compresor de aire en areas encerradas. Siempre tenga
un espacio libre adecuado (30 cm.) en todos los lados del compresor.
Tambien mantenga fuera del area de operaci6n a mascotas, niflos y otras
personas. Este compresor de aire no provee aire que pueda ser respirado
ni empleado con un dispositivo respiratorio auxiliar. El material de rociado
siempre debera estar en otra zona, alejado del compresor de aire, para
evitar que el aire aspirado dafle el filtro del compresor.
Nunca utilice el compresor de aire bajo Iluvia o en lugares mojados. Los
problemas electricos deben ser reparados por personal autorizado, tal
como seria un electricista, y deben cumplir con las normas el6ctricas
nacionales y locales. El compresor tambien debe tener la clavija apropiada
de tres terminales y contar con un suministro el6ctrico que sea del voltaje
correcto y con un fusible de protecci6n adecuado.
Nunca opere el compresor cerca de materiales combustibles, gasolina ni
vapores de solventes. Si est& rociando materiales inflamables, coloque el
compresor a una distancia de cuando menos 6 metros del &rea de rocia-
do. Nunca opere el compresor de aire en interiores o en lugares cerrados.
Drene el compresor diariamente o despues de cada utilizaci6n. Si el
tanque tiene una fuga, reemplace el compresor. No utilice el compresor si
se ha detectado una fuga, nitrate de modificar el tanque. Nunca modifique
los ajustes de fabrica del compresor que controlan la presi6n del tanque y
demas funciones.
Especificaciones
Bomba ...................... De impulsJ6n
................ directa, lubricada con aceite
Motor ................... 1.0 HP (Inducci6n)
Di&metro .......................... 42 mm
Carrera ........................... 32 mm
Voltaje monof&sJco ................. 120 VAC
Glosario
Capacidad de tanque de aire ... 37,8 litros /10
galones US
PresJ6n de conexJ6n ............... 105 PSI
PresJ6n de desconexi6n ............ 135 PSI
Presi6n de parada ....... 861.8 KPa /125 PSI
Pies cQbJcos por mJnuto (SCFM) a 90 LPPC. 2.4
Capacidad del aceite ........ 90 ml o 3 onzas.
Tipo de aceite .................. SAE 30 /no
detergente - semi-sintetico
CFM: Pies cQbicos por minuto.
SCFM: Pies cQbicos est&ndar por minuto; unidad
de medici6n de suministro de aire.
PSIG: Libras por pulgada cuadrada sobre la
presi6n atmosf@ica; unidad de medici6n de
presi6n.
ASME: Sociedad estadounidense de ingenieros
mecanicos.
Cddigo de California: La unidad puede cumplir
con el c6digo de Oalifornia 462 (I) (2)/(M) (2).
Ciclo de trabajo
Presidn de arranque: El compresor arranca
automaticamente cuando la presi6n baja a menos
del minimo prescrito.
Presion de parada: Presi6n de aire que tiene que
alcanzarse en el tanque para que se detenga el
motor.
CertificaciSn de codigo: Los productos que tienen
alguna o varias de las siguientes marcas han sido
evaluados por laboratorios de seguridad indepen-
dientes certificados por OSHA, y cumplen con las
normas de seguridad de Underwriters Laboratories:
UL, CUL, ETL, CSA.
Este compresor tiene un cJclo de trabajo de 50%. Nunca opere el compresor por m&s de 30 minutos
cada hora. De hacerlo, podrJa dafiarlo. 16

Partes y caracteristicas
Como referencia, vea las figuras abajo.
IManometro de presion de! tanque
Indica la presi6n de la reserva de aire del tanque.
SMan6metro para herramientas
I Indica la presi6n de salida del aire que
I entra en la herramienta, la cual que es
Lcontrolada por el regulador.
Ionector de acoplamiento rapido
Permite conectar y desconectar
ra.pidamente la manguera del aire.
Regulador
La presi6n del aire que sale del
tanque es controlada por el
regulador. Para aumentar la
resi6n, gire la perilla en direcci6n
de las manecillas; para disminuirla,
gire la perilla en direcci6n
contraria alas manecillas.
Valvula de seguridad del tanque
Permite que el exceso de presi6n
en el tanque escape hacia el
medio ambiente. Esta valvula
s61o se abrir_, cuando la presi6n
en el tanque este por encima de
la presi6n mb.xima nominal del
modelo.
Interruptor de presion
Controla el suministro electrico
en el motor y tambien los ajustes
de presi6n de arranque y presi6n
de parada. Este interruptor sirve
como posici6n de autoencendido
y apagado (Auto-On/Off) de la
unidad.
rFiltro del aire
Suministra aire limpio a la
bomba. Siempre debe conser
ratio limpio. Reviselo diari
amente o antes de cada uso.
\
Tap6n de
lienado de
aceite
Visor de
aceite
Tubo de
salida
rValvula de alivio de presidn
Esta valvula, que se encuentra en el
costado del interruptor de presi6n, esta.
diseSada para liberar aire comprimido de
manera automatica cuando el compresor
Ilegue a la presi6n de parada. El aire s61o
deber_, escapar durante un instante,
cerr&ndose la valvula se cerrar& en seguida. Tubo de alivio
de presi6n
Valvula de retencion
Cuando la bomba no esta en operaci6n, esta v&lvula
se cierra para retener la presi6n de aire dentro del
tanque. Es un componente intemo. 17
Valvula de drenaje
Suministra aire limpio a la bomba. Siempre
debe conservarlo limpio. Reviselo diari
amente o antes de cada uso.

Ensamblaje
Antes de realizar cualquier instalaci6n y ensamblaje al compresor de aire, se Io debe apagar y
desconectar del generador, adem&s de purgar el aire del tanque y darle suficiente tiempo para enffi-
arse. Existe el riesgo de que las partes mdviles, la fuente electrica, el aire comprimido y las superfi-
cies calientes provoquen lesiones. El ensamble del regulador debe estar instalado antes de usar el
compresor. Un ensamblaje inadecuado puede ser causa de fugas y posiblemente de lesiones. Si
no esta seguro de entender las instrucciones de ensamblaje o tiene dificultad para Ilevar a cabo el
armado, por favor Ilame a su departamento local de servicio.
Ensamblaje
1. Remueva el compresor de aire, manual,
ensamblaje del filtro de aire y accesorios de
la empaquetadura.
2. Remueva el tap6n de pl&stico de la salida de
aire del compresor. (ver abajo)
3. Instalar el filtro dentro de la entrada de aire
del compresor. (ver abajo)
4. Quite el tap6n de relleno de aceite del c_.rter
y Ilenelo hasta que el aceite alcance la
parte superior del punto rojo en el visor. La
capacidad del aceite es de 88 ml (3 oz
US) (Vea abajo). Utilice el aceite no deter
gente /semi-sintetico SAE 30 (aceite de
uso pesado para motor API CG/CD). Durante
condiciones clim&ticas de fr[o extremo, utilice
aceite de tipo SAE-10.5. Coloque nueva
mente la tapa del tanque de aceite.
5. Coloque nuevamente la tapa del tanque de
aceite
Tiempo estimado de ensamblaje:
Aproximadamente 5 minutos
Instrucciones de conexiSn a tierra
Este producto se debe conectar a tierra. En caso
de cortocircuito, la conexi6n a tierra reduce el
riesgo de descargas electricas al ofrecer una
ruta de escape para la cordente electrica. Este
producto cuenta con un cable que tiene un
alambre de tierra y una clavija con terminal de
tierra (ver la figura a continuaci6n). La clavija
debe enchufarse en un tomacorriente instalado y
puesto a tierra segQn las normas locales. Hable
con un electricista o agente de servicio calificado
si no entiende completamente estas instruc-
clones, o si tiene dudas sobre la correcta puesta
a tierra de la herramienta.
Terminal de ....
tierra ....
Tomacorrientes
con conexidn a
tierra
Primer paso:
Ubicaci6n del compresor de aire
El compresor de aire siempre debe estar en un
medio ambiente limpio, seco y bien ventilado.
La unidad debe tener pot Io menos 30 cm de
espacio libre en cada lado. La toma del filtro
de aire debe estar limpia y sin ningQn tipo de
obstrucciones. Por favor revise diariamente el
filtro de aire para comprobar que este limpio yen
correcto estado de funcionamiento.
18

Instalacidn y ensamblaje
Una conexi6n a tierra inadecuada puede provocar una descarga electrica. Si necesita reparar o
cambiar el cable o la clavija, no conecte el alambre de tierra a ninguna de las terminales planas. El
alambre de tierra es el de color verde, con o sin franjas amarillas. Si no entiende completamente
las instrucciones de conexi6n a tierra, o si tiene dudas sobre la correcta puesta a tierra de la her-
ramienta, hable con un electricista o agente de servicio calificado. No modifique la clavija que viene
con el equipo; si no puede enchufarla en el tomacorriente, Ilame a un electricista calificado para que
le instale el tomacorriente adecuado.
Este producto est& disefiado para trabajar en un circuito con un voltaje nominal de 120 voltios y
est& equipado con un cable y clavija que permiten su conexi6n a un circuito electrico apropiado.
AsegQrese de que el producto este conectado a un tomacorriente con la misma configuraci6n que la
clavija. No se debe usar un adaptador con este equipo. Si se debe conectar el equipo a un circuito
electrico de diferente tipo, consiga la ayuda de personal calificado para realizar la reconexi6n.
Cables de extensi6n
S61o utilice un cable de extensi6n de tres alambres con una clavija con extensi6n a tierra de tres
terminales que pueda enchufarse en un tomacorriente de tres orificios. AsegQrese de que su cable
de extensi6n este en buenas condiciones. Si utiliza un cable de extensi6n, compruebe que sea de la
capacidad de corriente que requiere su equipo. Las extensiones no deben ser de m&s de 25 pies (7.6
m) de largo y deben tener cable de calibre 12 AWG. Un cable m&s delgado provocar_, una caida en
el voltaje de linea, Io que provocaria una perdida de potencia y sobrecalentamiento.
Procedimiento initial de preparaci6n
No se requiere un procedimiento inicial de preparaci6n. Este producto ha sido probado en la f&brica
para asegurar su operaci6n y desempefio adecuados.
NOTAS
J
19
