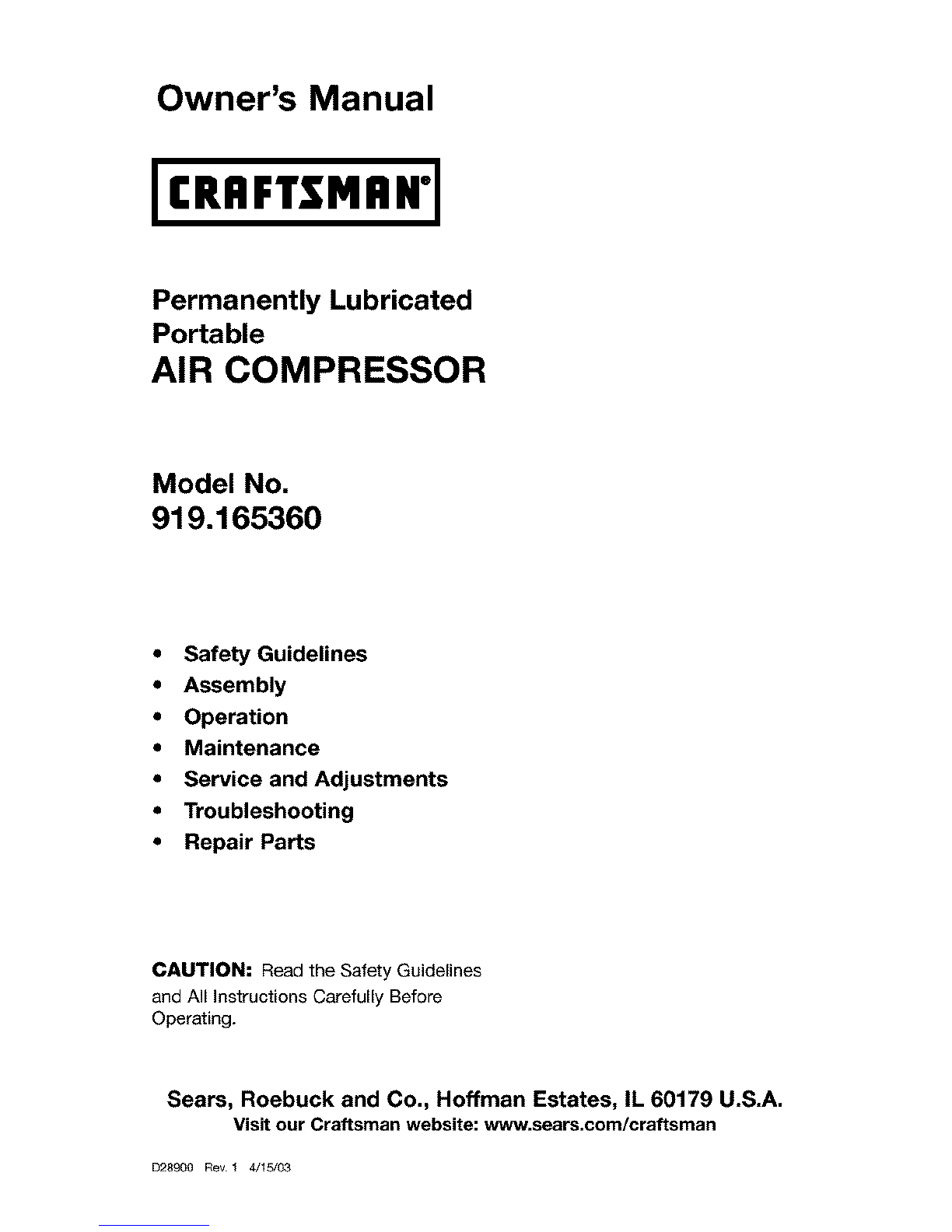

Owner's Manual
JCRRFTSMRN1
Permanently Lubricated
Portable
AIR COMPRESSOR
Model No.
919.165360
• Safety Guidelines
• Assembly
• Operation
• Maintenance
• Service and Adjustments
• Troubleshooting
•Repair Parts
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.eears.com/craftsman
D28900 Revl 4/15/03

hq:_:] !:1EoJ_,_[_o] _hi _h I_-_

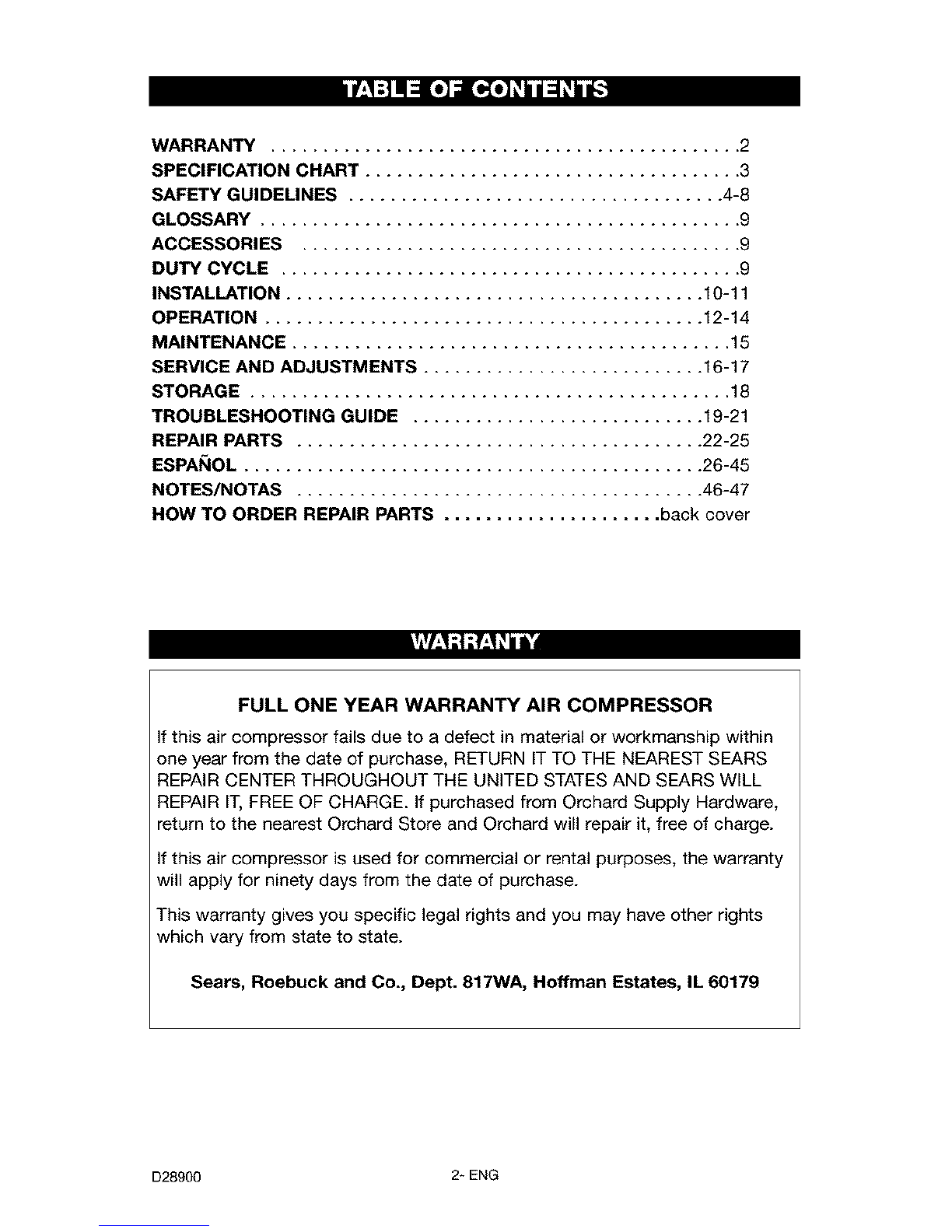

WARRANTY ............................................. 2
SPECIFICATION CHART .................................... 3
SAFETY GUIDELINES .................................... 4-8
GLOSSARY .............................................. 9
ACCESSORIES .......................................... 9
DUTY CYCLE ............................................ 9
INSTALLATION ........................................ f0-11
OPERATION .......................................... f2-14
MAINTENANCE .......................................... 15
SERVICE AND ADJUSTMENTS ........................... f6-17
STORAGE .............................................. 18
TROUBLESHOOTING GUIDE ............................ 19-21
REPAIR PARTS ....................................... 22-25
ESPAI_IOL ............................................ 26-45
NOTES/NOTAS ....................................... 46-47
HOW TO ORDER REPAIR PARTS ..................... back cover
FULL ONE YEAR WARRANTY AIR COMPRESSOR
If this air compressor fails due to a defect in material or workmanship within
one year from the date of purchase, RETURN IT TO THE NEAREST SEARS
REPAIR CENTER THROUGHOUT THE UNITED STATES AND SEARS WILL
REPAIR IT, FREE OF CHARGE. If purchased from Orchard Supply Hardware,
return to the nearest Orchard Store and Orchard will repair it, free of charge.
If this air compressor is used for commercial or rental purposes, the warranty
will apply for ninety days from the date of purchase.
This warranty gives you specific legal rights and you may have other rights
which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
D28900 2*ENG

-_]_ _e] I=[e_,3111[o]_I[e]-"F,__-'I
Model No. 919-165360
Max. Developed BP 2
Bore 2.875"
Stroke 1.25"
Voltage-Single Phase 120V
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 6
Approx. Cut-In 120
Approx. Cut-out 150
SCFM @40 psig 3.7
SCFM @ 90 psig 2.6
[-.%1=_I_'d[€-lJ]Im]=1IqI_I::_'_.,Im]=1=I_1iII[e_]_._
This manual contains information that iS important for you to know and understand. This information
relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you
recognize this information_ we use the Symbols below. Please read the manual and pay attention to
these sections.
_lndicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious injury.
_t_lndicates a potentially
hazardous situation
which, if not avoided, could result in
death or serious injury.
_l_'_lndicates a potentially
hazardous situation
which, if not avoided, _ result in
minor or moderate injury.
_Used without the
safety alert symbol
indicatesa potentially hazardous
situation which, if not avoided, may
result in property damaoe.
IhSl_o]-'IL,1+hd b"Y.'_l_*'d _[IP,[-._l_o].l[o _]P,[-.+
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN
SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL
WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known (to the State of California) to
cause cancer, birth defects or other reproductive harm. Some example of these chemicals are:
lead from lead-based paints
crystalline silica from bricks and cement and other masonry products
arsenic and chromium from chemically*treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, always wear MSHA/NIOSH approved, properly fitting face mask or respirator when using
such tools.
When using air tools, basic safety precautions should always be followed to reduce the risk of of
personal injury.
3* ENG D28g00

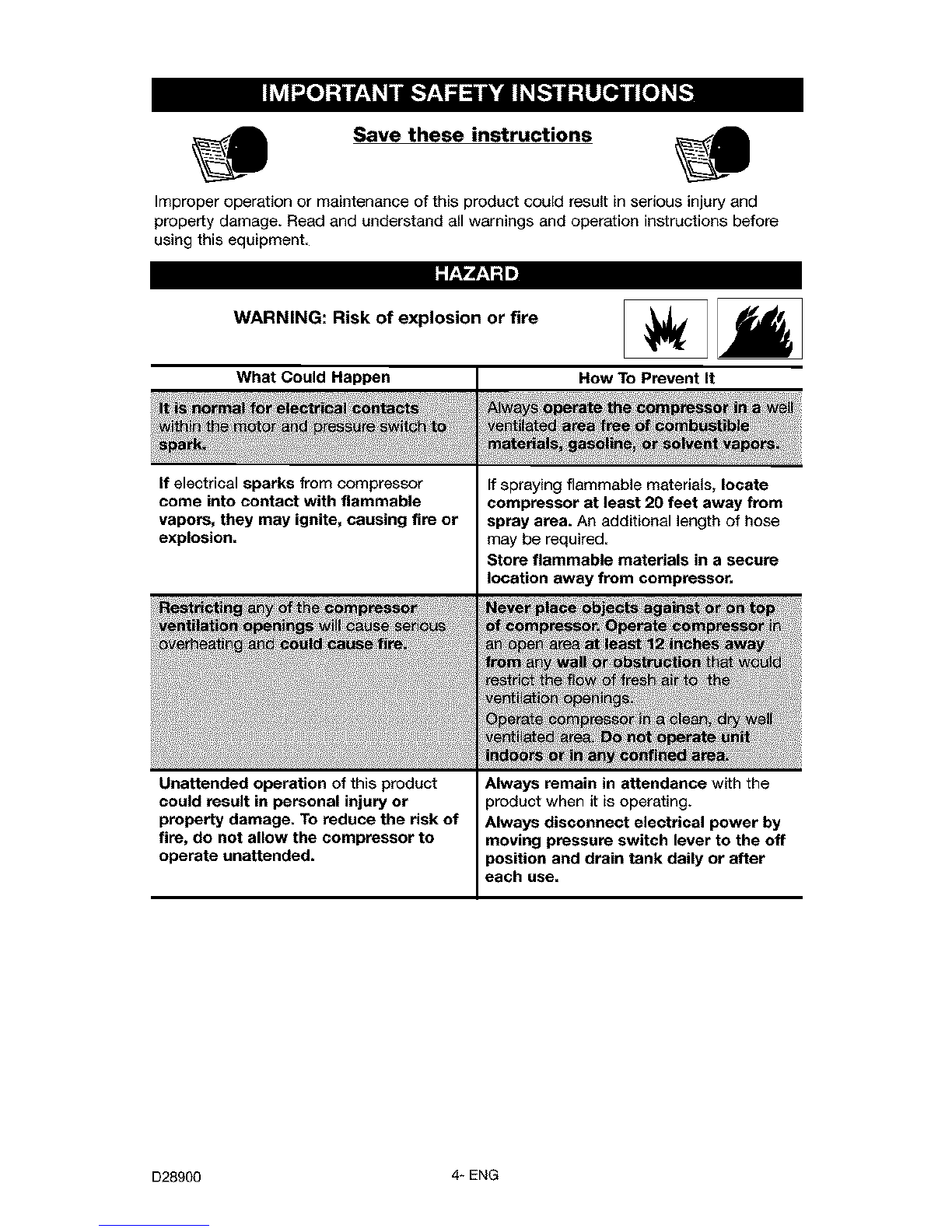

Save these instructions
Improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
WARNING: Risk of explosion or fire
What Could Happen How To Prevent It
If electrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire or
explosion.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the dsk of
fire, do not allow the compressor to
operate unattended.
If spraying flammable materials, locate
compressor at least 20 feet away from
spray area. An additional length of hose
may be required.
Store flammable materials in a secure
location away from compressor.
Always remain in attendance with the
product when it is operating.
Always disconnect electrical power by
moving pressure switch lever to the off
position and drain tank daily or after
each use.
D28900 4* ENG

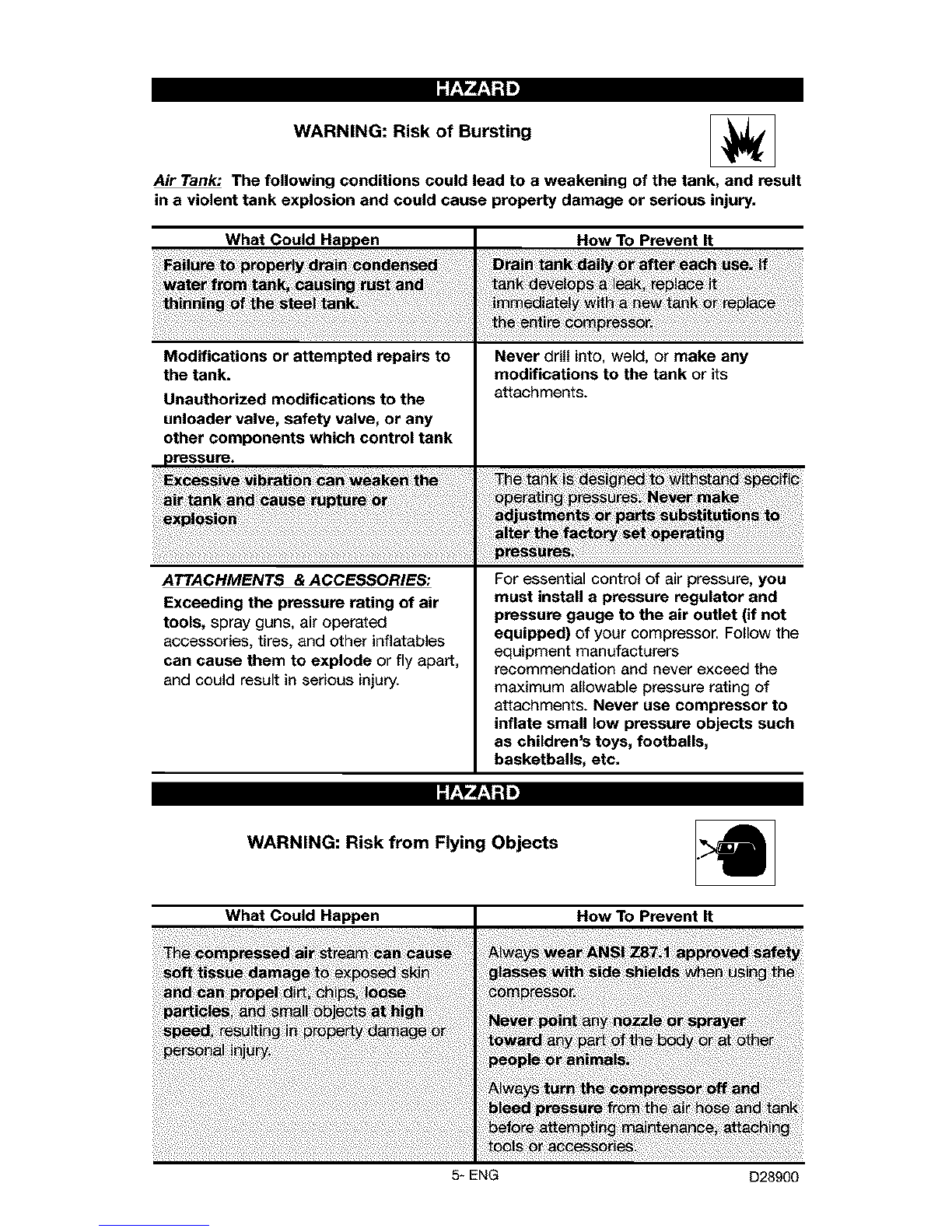

WARNING: Risk of Bursting
Air Tank: The following conditions could lead to a weakening of the tank, and result
in e violent tank explosion and could cause property damage or serious injury,
What Could Happen
th_ing _f _he_i _n
Modifications or attempted repairs to
the tank.
Unauthorized modifications to the
unloader valve, safety valve, or any
other components which control tank
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of air
tools, spray guns, air operated
accessories, tires, and other inflatables
can cause them to explode or fly apart,
and could result in serious injury.
How To Prevent It
Never drill into, weld, or make any
modifications to the tank or its
attachments.
For essential control of air pressure, you
must install a pressure regulator end
pressure gauge to the air outlet (if not
equipped) of your compressor, Follow the
equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments. Never use compressor to
inflate small low pressure objects such
as children's toys, footballs,
basketballs, etc,
WARNING: Risk from Flying Objects
What Could Happen
5* ENG
How To Prevent It
D28900

-"f:1"J:_;!l

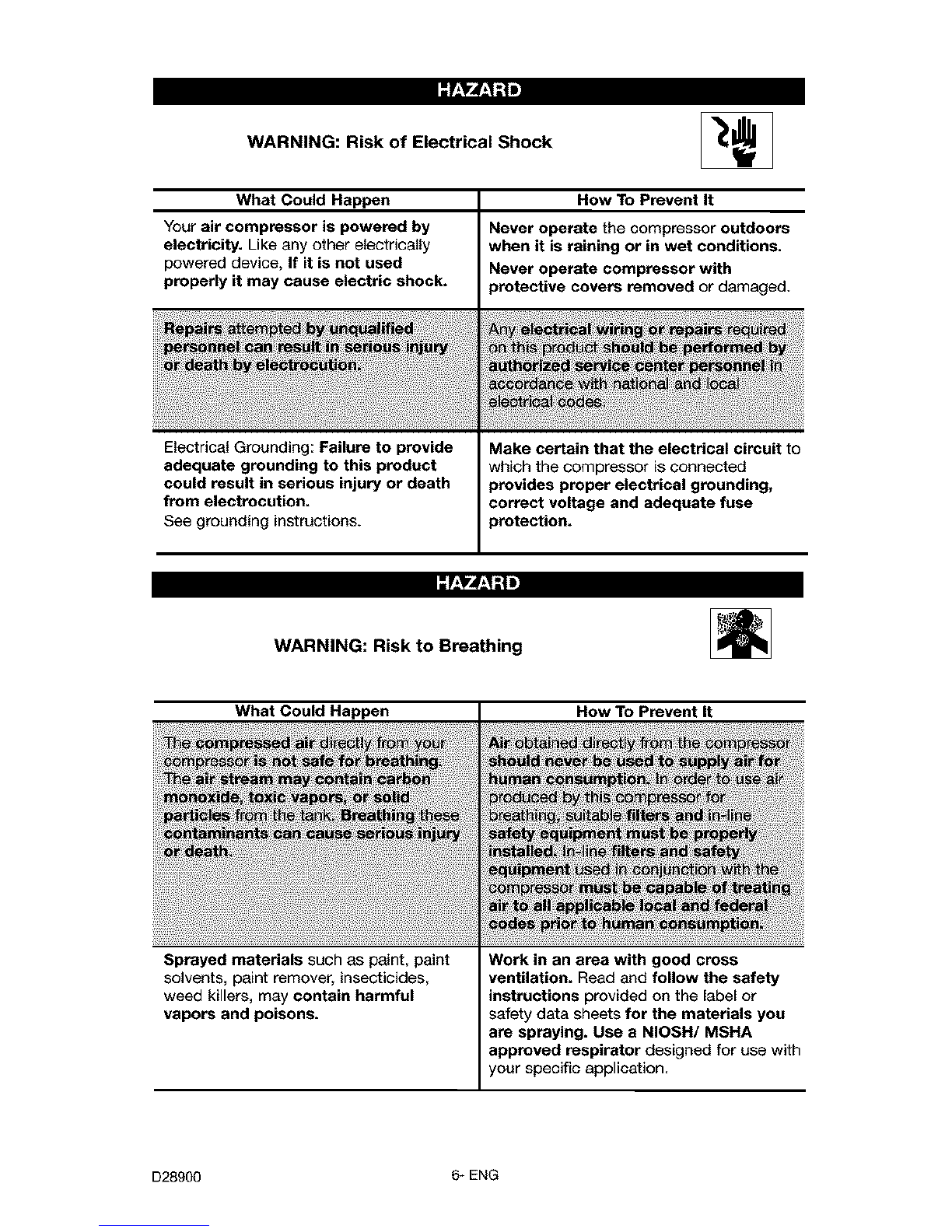

WARNING: Risk of Electrical Shock
What Could Happen How To Prevent It
Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used
properly it may cause electric shock.
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with
)rotective covers removed or damaged.
Electrical Grounding: Failure to provide Make certain that the electrical circuit to
adequate grounding to this product which the compressor is connected
could result in serious injury or death provides proper electrical grounding,
from electrocution, correct voltage and adequate fuse
See grounding instructions. )rotection.
WARNING: Risk to Breathing
What Could Happen How To Prevent It
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons.
Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials you
are spraying. Use a NIOSH/MSHA
approved respirator designed for use with
your specific application
D28900 6*ENG

:f:1",J:!-']I
WARNING: Risk of Burns
How To Prevent It
:f:_rj:_;!=
WARNING: Risk from Moving Parts
What Could Happen How To Prevent It
Moving parts such as the pulley, flywheel,
and belt can cause serious injury if they
come into contact with you or your
clothing.
Never operate the compressor with
guards or covers which are damaged or
removed.
:f:_rj:_;!=
WARNING: Risk of Failing
What Could Happen How To Prevent It
Aportable compressor can fall from aAlways operate compressor in a stable
table, workbench, or roof causing secure position to prevent accidental
damage to the compressor and could movement of the unit. Never operate
result in serious injury or death to the compressor on a roof or other elevated
operator, position, Use additional air hose to
reach high locations,
7÷ ENG D28900

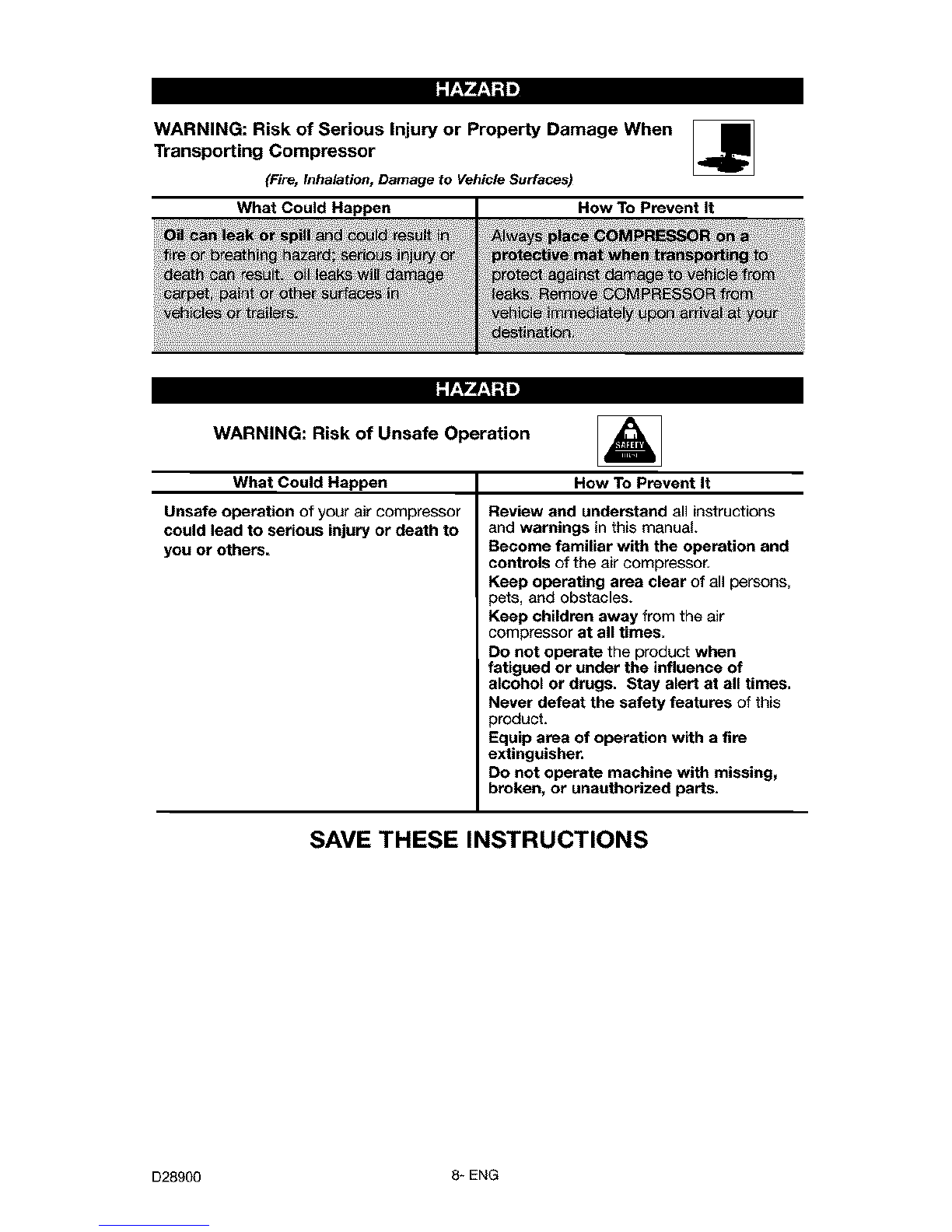

WARNING: Risk of Serious Injury or Property Damage When
Transporting Compressor
(Fire, Inhalation, Damage to VehicleSurfaces)
What Could Happen How To Prevent It
WARNING: Risk of Unsafe Operation
What Could Happen
Unsafe operation of your air compressor
could lead to serious injury or death to
you or others.
How To Prevent It
Review end understand all instructions
and warnings in this manual.
Become familiar with the operation and
controls of the air compressor.
Keep operating area clear of all persons,
pets, and obstacles.
Keep children away from the air
compressor at all times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
DO not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE INSTRUCTIONS
D28900 8*ENG

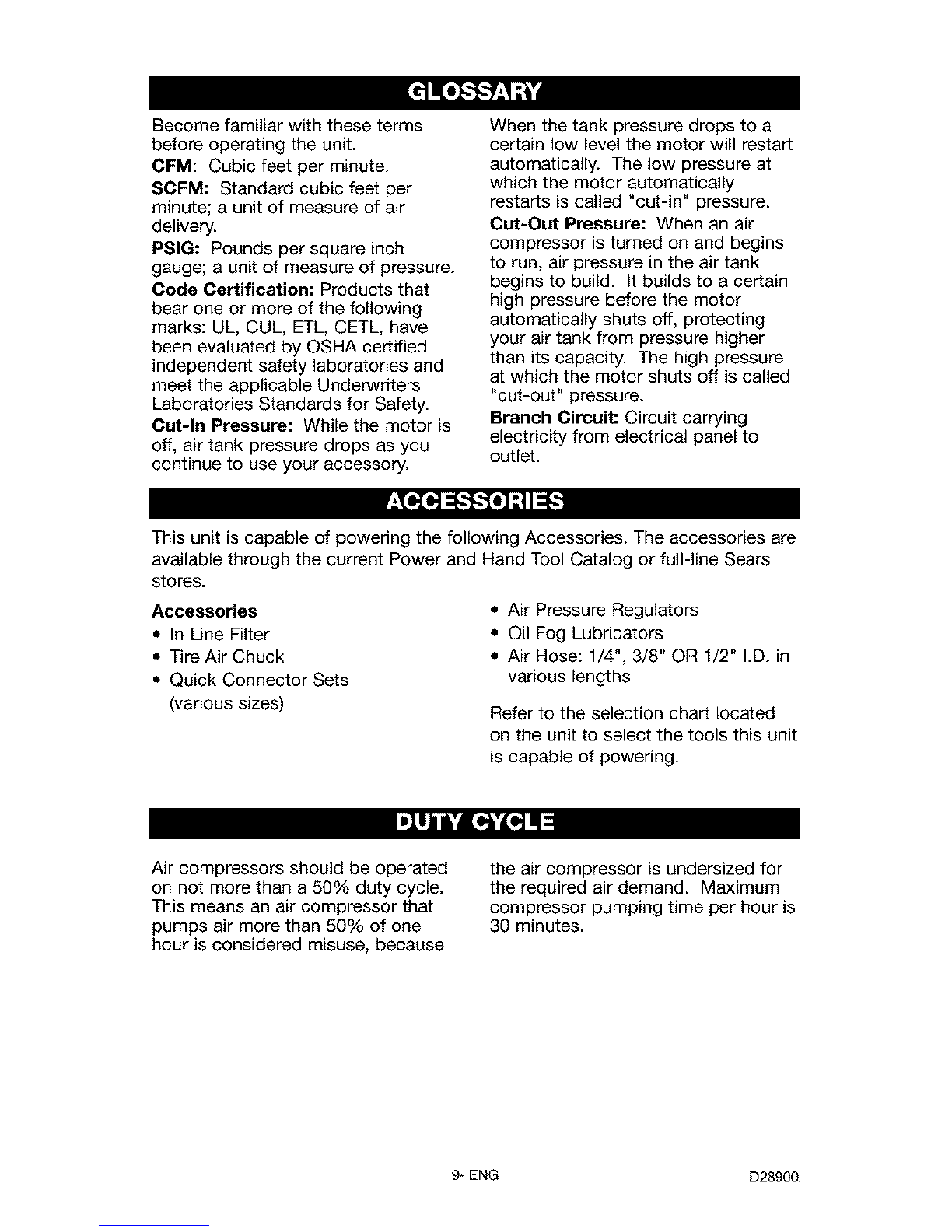

Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per
minute; a unit of measure of air
delivery.
PSlG: Pounds per square inch
gauge; a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UL, CUL, ETL, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Underwriters
Laboratories Standards for Safety.
Cut-In Pressure: While the motor is
off, air tank pressure drops as you
continue to use your accessory.
When the tank pressure drops to a
certain low level the motor will restart
automatically. The low pressure at
which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: When an air
compressor is turned on and begins
to run, air pressure in the air tank
begins to build. It builds to a certain
high pressure before the motor
automatically shuts off, protecting
your air tank from pressure higher
than its capacity. The high pressure
at which the motor shuts off is called
"cut-out" pressure.
Branch Circuit: Circuit carrying
electricity from electrical panel to
outlet.
This unit is capable of powering the following Accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
MOreS.
Accessories
=In Line Filter
= Tire Air Chuck
•Quick Connector Sets
(various sizes)
*Air Pressure Regulators
*Oil Fog Lubricators
*Air Hose: 1/4", 3/8" OR 1/2" I.D. in
various lengths
Refer to the selection chart located
on the unit to select the tools this unit
is capable of powering.
ml_Tujnj_[e,_ q:4
Air compressors should be operated
on not more than a 50% duty cycle.
This means an air compressor that
pumps air more than 50% of one
hour is considered misuse, because
the air compressor is undersized for
the required air demand. Maximum
compressor pumping time per hour is
30 minutes.
9- ENG D28900

HOW TO SET UP YOUR
UNIT
Location of the Air Compressor
Locate the air compressor in a clean,
dry and well ventilated area. The air
compressor should be located at
least 12" away from the wall or other
obstructions that will interfere with
the flow of air. The air compressor
pump and shroud are designed to
allow for proper cooling. The
ventilation openings on the
compressor are necessary to
maintain proper operating
temperature. Do not place rags or
other containers on or near these
openings.
GROUNDING INSTRUCTIONS
RISK OF
ELECTRICAL
SHOCK. In the event of a short
circuit, grounding reduces the risk
of shock by providing an escape
wire for the electric current. This
air compressor must be properly
grounded.
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding plug (see following
illustrations). The plug must be used
with an outlet that has been installed
and grounded in accordance with all
local codes and ordinances.
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be installed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration as
the grounded plug. DO NOT
USE AN ADAPTER. See
illustration.
I1_lu_j _Grounded
_ _Outlets
Grou_d_ing Pin
3. Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
4. If these grounding instructions
are not completely understood,
or if in doubt as to whether the
compressor is properly
grounded, have the installation
checked by a qualified
electrician.
_IMPROPER
GROUNDING CAN
RESULT IN ELECTRICAL SHOCK.
Do not modify the plug provided. If
it does not fit the available outlet, a
correct outlet should be installed
by a qualified electrician.
Repairs to the cord set or plug
MUST be made by a qualified
electrician.
D28900 10-ENG
