Craftsman 919.167631 User manual
Owner’s Manual
Permanently Lubricated
Single Stage
Portable
AIR COMPRESSOR
Model No.
919.167631
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Rev. 0 08/11/09
2- ENG
................................................2
......................................3
...................................... 3-9
................................................9
ACCESSORIES ............................................10
..............................................10
............................................ 10-11
......................................... 11-12
............................................ 13-14
......................................... 15-16
............................ 17-18
................................................18
.............................. 19-21
......................................... 22-25
ESPAÑOL.............................................. 26-45
............................................46
.........................47
......................back cover
If this Craftsman product fails due to a defect in material or workmanship within
one year from the date of purchase, return it to any Sears store, Sears Parts &
Repair Service Center, or other Craftsman outlet in the United States for free
replacement.
This warranty applies for only 90 days from the date of purchase if this product
is ever used for commercial or rental purposes.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
3- ENG
Model No. 919.167631
Running HP 1.6 *
Bore 2.875" (73.0 mm)
Stroke 1.45" (36.8 mm)
Voltage-Single Phase 120V/60HZ
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 33 gallons (124.9 liters)
Approx. Cut-In 120 psi
Approx. Cut-out 150 psi
SCFM @ 40 psig 6.3 *
SCFM @ 90 psig 4.9 *
* Tested per ISO 1217
Refer to Glossary for abbreviations.
This manual contains information that is important for you to know and under-
stand. This information relates to protecting and
. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an
imminently hazardous
situation which, if not avoided, will
result in .
Indicates a potentially
hazardous situation
which, if not avoided, may result in
Indicates a potentially
hazardous situation
which, if not avoided, could result in
Indicates a practice not
which, if not avoided, may result
in p
This product contains chemicals known to the State of
California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
Some dust contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm such
as asbestos and lead in lead based paint.
To reduce the risk of injury, read the instruction manual.
4- ENG
RISK OF EXPLOSION OR FIRE
• Itisnormalforelectricalcontacts
within the motor and pressure
switch to spark.
• Alwaysoperatethecompressorina
well ventilated area free of combus-
tible materials, gasoline, or solvent
vapors.
• Ifelectricalsparksfromcompressor
come into contact with flammable
vapors, they may ignite, causing fire
or explosion.
• Ifsprayingflammablematerials,
locate compressor at least 20 feet
(6.1 m) away from spray area. An
additional length of air hose may be
required.
• Storeflammablematerialsina
secure location away from com-
pressor.
• Restrictinganyofthecompressor
ventilation openings will cause seri-
ous overheating and could cause
fire.
• Neverplaceobjectsagainstoron
top of compressor.
• Operatecompressorinanopen
area at least 12" (30.5 cm) away
from any wall or obstruction that
would restrict the flow of fresh air to
the ventilation openings.
• Operatecompressorinaclean,dry
well ventilated area. Do not operate
unit indoors or in any confined area.
• Unattendedoperationofthisprod-
uct could result in personal injury
or property damage. To reduce the
risk of fire, do not allow the com-
pressor to operate unattended.
• Alwaysremaininattendancewith
the product when it is operating.
• Alwaysturnoffandunplugunit
when not in use.
• Thecompressedairdirectlyfrom
your compressor is not safe for
breathing. The air stream may
contain carbon monoxide, toxic
vapors, or solid particles from
the air tank. Breathing these
contaminants can cause serious
injury or death.
• Neveruseairobtaineddirectly
from the compressor to supply
air for human consumption. The
compressor is not equipped
with suitable filters and in-line
safety equipment for human
consumption.
5- ENG
• Exposuretochemicalsindust
created by power sanding, sawing,
grinding, drilling, and other
construction activities may be
harmful.
• Sprayedmaterialssuchaspaint,
paint solvents, paint remover,
insecticides, weed killers, may
contain harmful vapors and
poisons.
• Workinanareawithgoodcross
ventilation. Read and follow the
safety instructions provided on the
label or safety data sheets for the
materials you are spraying. Always
use certified safety equipment:
NIOSH/OSHA respiratory
protection or properly fitting face
mask designed for use with your
specific application.
On February 26, 2002, the U.S. Consumer Product Safety Commission
published Release # 02-108 concerning air compressor tank safety:
Air compressor receiver tanks do not have an infinite life. Tank life is dependent
upon several factors, some of which include operating conditions, ambient con-
ditions, proper installations, field modifications, and the level of maintenance.
The exact effect of these factors on air receiver life is difficult to predict.
If proper maintenance procedures are not followed, internal corrosion to the
inner wall of the air receiver tank can cause the air tank to unexpectedly rupture
allowing pressurized air to suddenly and forcefully escape, posing risk of injury
to consumers.
Your compressor air tank must be removed from service by the end of the year
shown on your tank warning label.
The following conditions could lead to a weakening of the air tank, and result in
a violent air tank explosion:
• Failuretoproperlydraincondensed
water from air tank, causing rust
and thinning of the steel air tank.
• Drainairtankdailyoraftereach
use. If air tank develops a leak,
replace it immediately with a
new air tank or replace the entire
compressor.
• Modificationsorattemptedrepairs
to the air tank.
• Neverdrillinto,weld,ormakeany
modifications to the air tank or its
attachments. Never attempt to
repair a damaged or leaking air
tank. Replace with a new air tank.
• Unauthorizedmodificationsto
the safety valve or any other
components which control air tank
pressure.
• Theairtankisdesignedto
withstand specific operating
pressures. Never make adjustments
or parts substitutions to alter the
factory set operating pressures.
6- ENG
• Exceedingthepressureratingof
air tools, spray guns, air operated
accessories, tires, and other
inflatables can cause them to
explode or fly apart, and could
result in serious injury.
• Followtheequipment
manufacturers recommendation
and never exceed the maximum
allowable pressure rating of
attachments. Never use compressor
to inflate small low pressure objects
such as children’s toys, footballs,
basketballs, etc.
• Over inflation of tires could result in
serious injury and property damage. • Useatirepressuregaugetocheck
the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
Air tanks, compressors and
similar equipment used to inflate tires
can fill small tires very rapidly. Adjust
pressure regulator on air supply to
no more than the rating of the tire
pressure. Add air in small increments
and frequently use the tire gauge to
prevent over inflation.
• Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used
properly it may cause electric
shock.
• Never operate the compressor
outdoors when it is raining or in wet
conditions.
• Never operate compressor with
protective covers removed or
damaged.
• Repairs attempted by unqualified
personnel can result in serious
injury or death by electrocution.
• Any electrical wiring or repairs
required on this product should be
performed by authorized service
center personnel in accordance with
national and local electrical codes.
• Failure to
provide adequate grounding to
this product could result in serious
injury or death from electrocution.
Refer to
paragraph in the Installation
section.
• Make certain that the electrical
circuit to which the compressor
is connected provides proper
electrical grounding, correct voltage
and adequate fuse protection.
7- ENG
• Thecompressedairstreamcan
cause soft tissue damage to
exposed skin and can propel dirt,
chips, loose particles, and small
objects at high speed, resulting in
property damage or personal injury.
• Alwayswearcertifiedsafetyequip-
ment: ANSI Z87.1 eye protection
(CAN/CSA Z94.3) with side shields
when using the compressor.
• Neverpointanynozzleorsprayer
toward any part of the body or at
other people or animals.
• Alwaysturnthecompressoroff
and bleed pressure from the air
hose and air tank before attempt-
ing maintenance, attaching tools or
accessories.
• Touchingexposedmetalsuchas
the compressor head, engine head,
engine exhaust or outlet tubes, can
result in serious burns.
• Nevertouchanyexposedmetal
parts on compressor during or
immediately after operation.
Compressor will remain hot for
several minutes after operation.
• Donotreacharoundprotective
shrouds or attempt maintenance
until unit has been allowed to cool.
• Movingpartssuchasthepulley,fly-
wheel, and belt can cause serious
injury if they come into contact with
you or your clothing.
• Neveroperatethecompressorwith
guards or covers which are dam-
aged or removed.
• Keepyourhair,clothing,andgloves
away from moving parts. Loose
clothes, jewelry, or long hair can be
caught in moving parts.
• Airventsmaycovermovingparts
and should be avoided as well.
• Attemptingtooperatecompressor
with damaged or missing parts or
attempting to repair compressor
with protective shrouds removed
can expose you to moving parts
and can result in serious injury.
• Anyrepairsrequiredonthisproduct
should be performed by authorized
service center personnel.
8- ENG
• Unsafeoperationofyouraircom-
pressor could lead to serious injury
or death to you or others.
• Reviewandunderstandallinstruc-
tions and warnings in this manual.
• Becomefamiliarwiththeoperation
and controls of the air compressor.
• Keepoperatingareaclearofallper-
sons, pets, and obstacles.
• Keepchildrenawayfromtheair
compressor at all times.
• Donotoperatetheproductwhen
fatigued or under the influence of
alcohol or drugs. Stay alert at all
times.
• Neverdefeatthesafetyfeaturesof
this product.
• Equipareaofoperationwithafire
extinguisher.
• Donotoperatemachinewithmiss-
ing, broken, or unauthorized parts.
• Aportablecompressorcanfall
from a table, workbench, or roof
causing damage to the compres-
sor and could result in serious
injury or death to the operator.
• Alwaysoperatecompressorina
stable secure position to prevent
accidental movement of the unit.
Never operate compressor on a
roof or other elevated position.
Use additional air hose to reach
high locations.
• Seriousinjurycanresultfrom
attempting to lift too heavy an
object.
• Thecompressoristooheavyto
be lifted by one person. Obtain
assistance from others before lifting.
9- ENG
Become familiar with these terms
before operating the unit.
Cubic feet per minute.
Standard cubic feet per min-
ute; a unit of measure of air delivery.
PSI Pounds per square inch gauge;
a unit of measure of pressure.
Products that
bear one or more of the following
marks: UL®*, CUL, ETL®*, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Standards for
Safety.
*UL®is a registered trademark of
Underwriters Laboratories and ETL®
is a registered trademark of Electrical
Testing Laboratories.
Whilethemotor
is off, air tank pressure drops as you
continuetouseyouraccessory.When
the tank pressure drops to a certain
low level the motor will restart auto-
matically. The low pressure at which
the motor automatically restarts is
called "cut-in" pressure.
Whenanaircom-
pressor is turned on and begins to
run, air pressure in the air tank begins
to build. It builds to a certain high
pressure before the motor automati-
cally shuts off, protecting your air tank
from pressure higher than its capacity.
The high pressure at which the motor
shuts off is called "cut-out" pressure.
Circuit carrying elec-
tricity from electrical panel to outlet.
RISK FROM NOISE
• Undersomeconditionsanddura-
tion of use, noise from this product
may contribute to hearing loss.
• Alwayswearcertifiedsafetyequip-
ment: ANSI S12.6 (S3.19) hearing
protection.
10- ENG
This air compressor pump is capable
of running continuously. However, to
prolong the life of your air compressor,
it is recommended that a 50%-75%
average duty cycle be maintained; that
is, the air compressor pump should
not run more than 30-45 minutes in
any given hour.
ACCESSORIES
This unit is capable of powering the following Accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
stores.
Accessories
• InLineFilter
• TireAirChuck
• QuickConnectorSets(various
sizes)
• AirPressureRegulators
• OilFogLubricators
• AirHose:1/4"(6.4mm),3/8"
(9.5 mm) or 1/2" (12.7 mm) I.D. in
various lengths
Refer to the selection chart located on
the unit to select the tools this unit is
capable of powering.
only accessories rated equal to
1 - Air Compressor
1 - Handle
1 - Grip Handle
4 - Self Tapping Screw
2- Wheels
2 - Shoulder Bolts, 3/8-16
2 - Hex Nuts, 3/8-16
1 - Rubber Strip
2 - 9/16" open end wrenches
1 - 3/8" socket
Remove unit from carton and discard
all packaging. Save all parts
bags.
1. To make installation easier, sub-
merge handle grip into warm
soapy water. Remove handle grip
from soapy water and slide onto
handle.
2. Insert the handle inside the com-
pressor saddle and line up the
two bolt holes on each side.
Screw
Nut
Bolt
Handle
Handle
3. Install the four screws, two on
each side.
4. Tighten securely.
ASSEMBLE WHEELS
It will be necessary
1. Attach wheels with shoulder bolts
and nuts as shown.
11- ENG
2. Tighten securely.The unit
will sit level if the wheels are prop-
erly installed.
1. Clean and dry underside of air
tank leg opposite wheels.
2. Remove the protective paper strip
from the adhesive backed rubber
foot strip.
3. Attach the rubber foot strip to the
bottom of leg. Press firmly into
place.
• Locatetheaircompressorina
clean, dry and well ventilated
area.
• Theaircompressorshouldbe
located at least 12" (
30.5 cm)
away from the wall or other
obstructions that will interfere
with the flow of air.
• Placetheaircompressoronaflat
level surface resting on the rub-
ber strip and wheels
• Theaircompressorpumpand
shroud are designed to allow for
proper cooling. The ventilation
openings on the compressor are
necessary to maintain proper
operating temperature. Do not
place rags or other containers on
or near these openings.

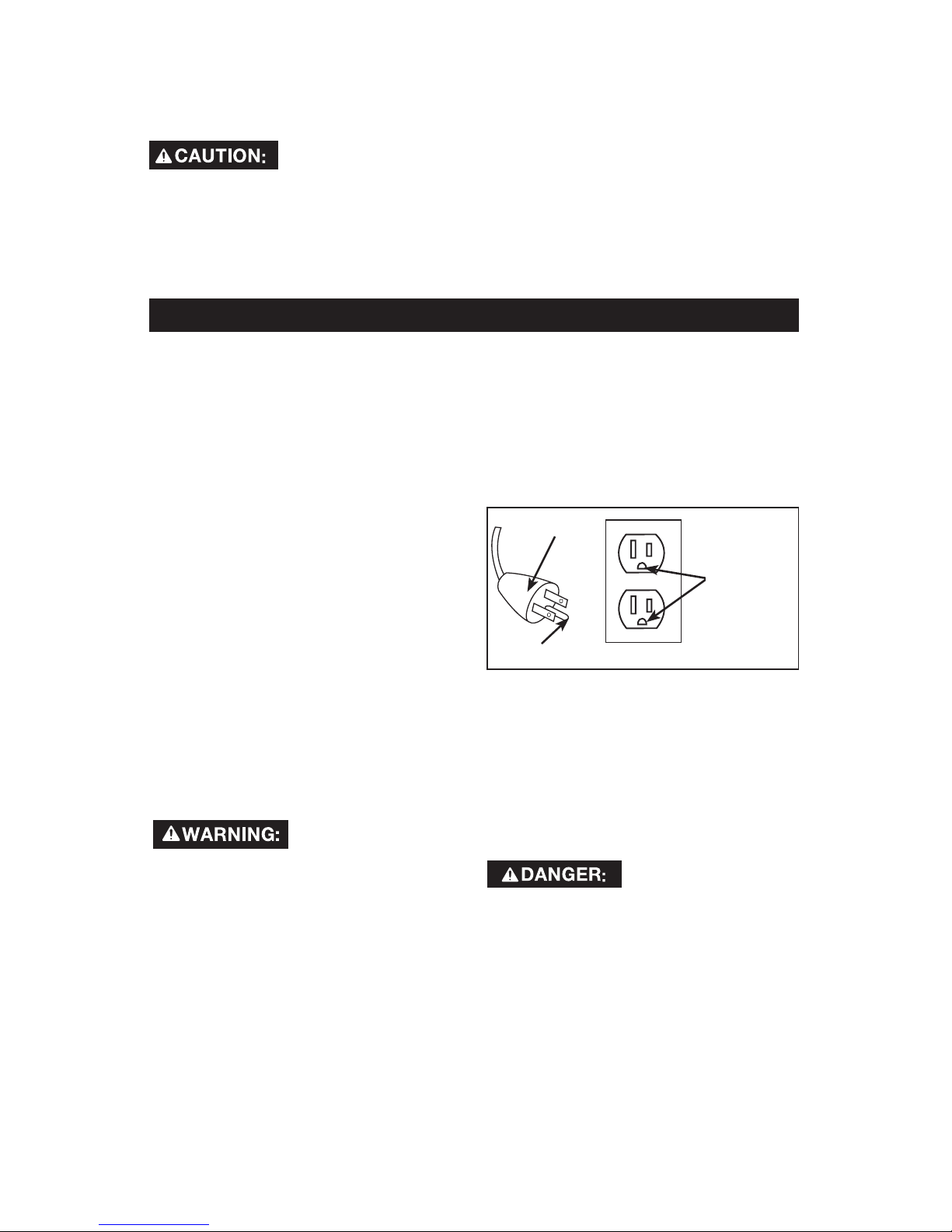

RISK OF
SHOCK.
grounded.
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding plug (see following illustra-
tions).
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
The outlet being used
must be installed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration as the
grounded plug.
See illustration.
Outlets
Plug
3. Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
4. If these grounding instructions are
not completely understood, or if in
doubt as to whether the compres-
sor is properly grounded, have the
installation checked by a qualified
electrician.
RISK OF
SHOCK.
electrician.
12- ENG
If any of the above conditions cannot
be met, or if operation of the com-
pressor repeatedly causes interruption
of the power, it may be necessary to
operate it from a 20 amp circuit. It is
not necessary to change the cord set.
Whentransportingthecompressorin
a vehicle, trailer, etc., make sure the
tank is drained and the unit is secured
with straps to prevent tipping. Use
care when driving to prevent tipping
the unit over in the vehicle. Damage
can occur to the compressor or
surrounding items if the compressor
is tipped.

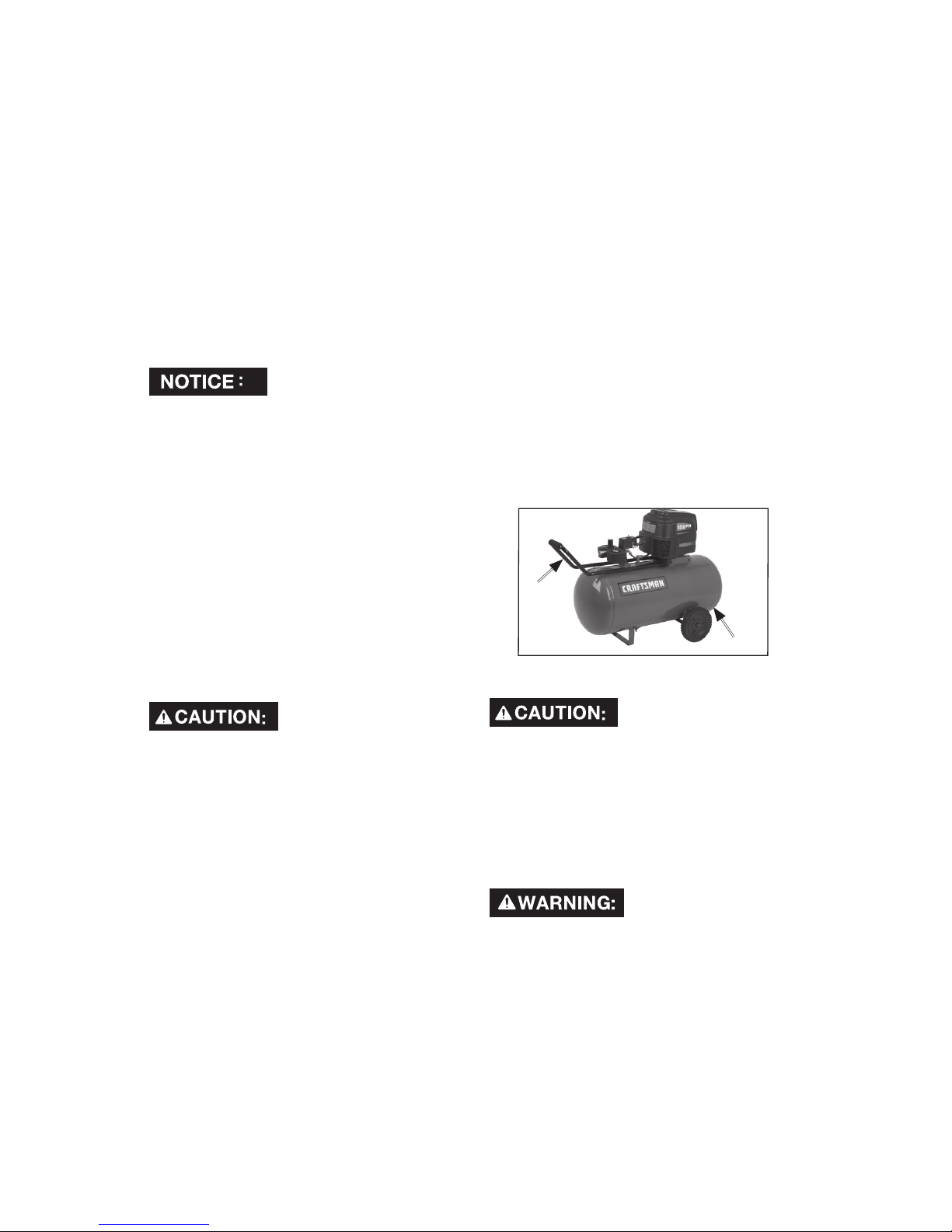

Always use two people when lift-
ing and lift from the recommended
lift points. DO NOT lift by wheels or
shroud.
The wheels and
handle do not
provide adequate clearance, stability,
or support for pulling the unit up and
down stairs or steps. The unit must be
lifted or pushed up a ramp.
1. Grasp handle of compressor and
tilt compressor back to rest on
wheels.
balance.
2. Whenlocationisreachedslowly
lower compressor to ground.
Always store compressor in a
horizontal position resting on the
rubber bumpers and wheels.
If an extension cord must be used, be
sure it is:
• a3-wireextensioncordthathas
a 3-blade grounding plug, and a
3-slot receptacle that will accept
the plug on the product
• ingoodcondition
• nolongerthan50feet(15.2m)
• 12gauge(AWG)orlarger.(Wire
size increases as gauge number
decreases.10AWGand8AWG
may also be used. DO NOT USE
14OR16AWG.)
Risk of property
damage. The use of an
undersized extension cord will cause
voltage to drop resulting in power loss
to the motor and overheating. Instead
of using an extension cord, increase
the working reach of the air hose by
attaching another length of hose to its
end. Attach additional lengths of hose
as needed. Always use an air hose
rated 300 psi or greater.
Refer to the Specification Chart for the
voltage and minimum branch circuit
requirements.
Risk of unsafe
operation. Certain air
compressors can be operated on a 15
amp circuit if the following conditions
are met.
1. Voltage supply to circuit must
comply with the National Electrical
Code.
2. Circuit is not used to supply any
other electrical needs.
3. Extension cords comply with
specifications.
4. Circuit is equipped with a 15 amp
circuit breaker or 15 amp time
delay fuse. If compressor
is connected to a circuit protected
by fuses, use only time delay
fuses. Time delay fuses should be
marked "D" in Canada and "T" in
the US.
13- ENG
The tank pres-
sure gauge indicates the reserve air
pressure in the tank.
Controls the air pressure
shown on the outlet pressure gauge.
Pull the knob out and turn clockwise
to increase pressure and counterclock-
wisetodecreasepressure.Whenthe
desired pressure is reached push knob
in to lock in place.
The
universal quick-connect body accepts
the three most popular styles of quick-
connect plugs: Industrial, automotive
(Tru-flate), and ARO. One hand push-
to-connect operation makes connec-
tions simple and easy.
The drain valve
is located at
the base of the
air tank and is
used to drain
condensation
at the end of each use.
This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. It is perfectly normal for this fan to
blow air through the vent holes in large
amounts. You know that the cooling
system is working when air is being
expelled.
Compresses air into the air tank.
Workingairisnotavailableuntilthe
compressor has raised the air tank
pressure above that required at the air
outlet.

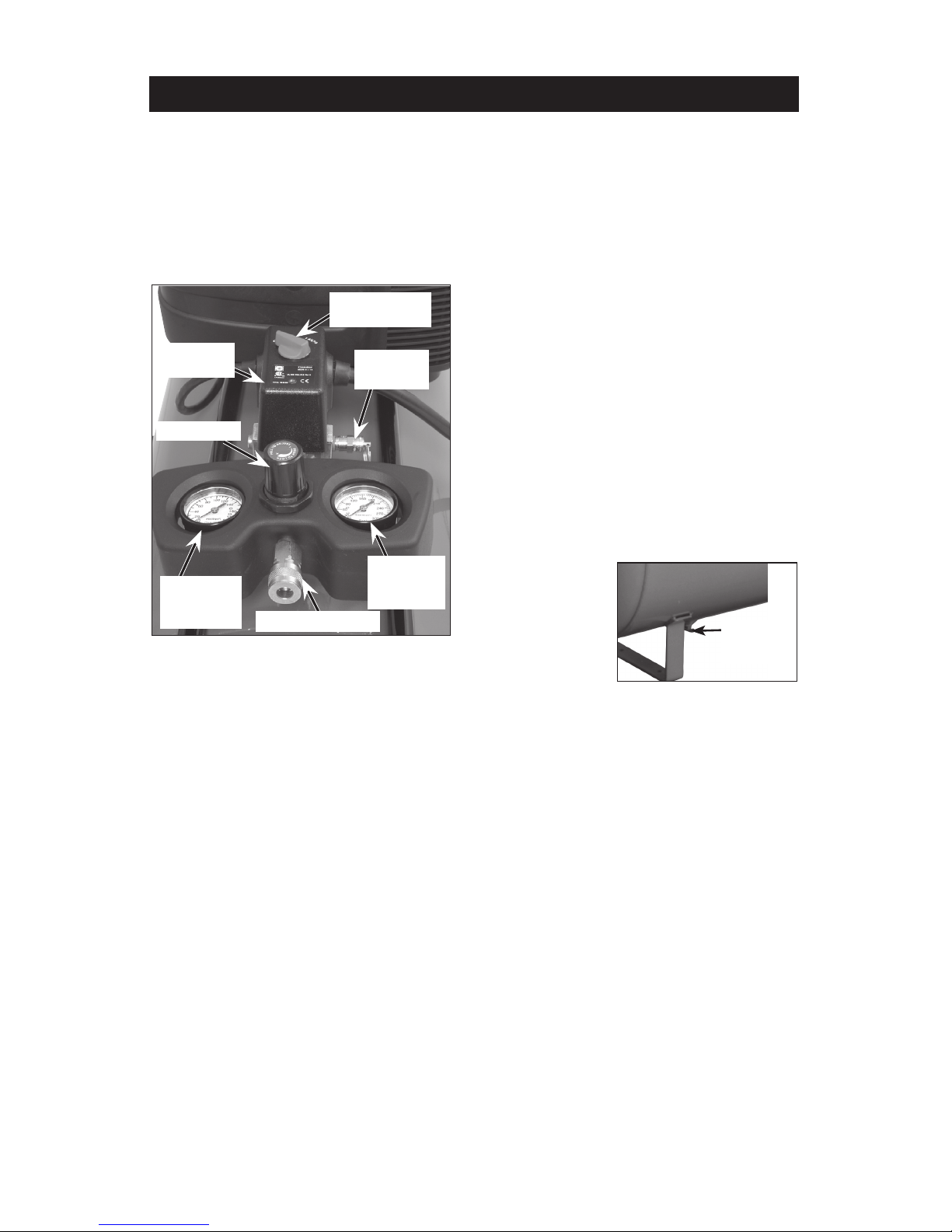

READTHISOWNER’SMANUALANDSAFETYRULESBEFOREOPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Become familiar with these controls
before operating the unit.
Outlet
Pressure
Pressure
Pressure
Regulator
Quick Connect
Turn this
switch "Auto (I)" to provide automatic
power to the pressure switch and
"Off (O)" to remove power at the end
of each use.
The pressure switch
automatically starts the motor when
the air tank pressure drops below the
factory set "cut-in" pressure. It stops
the motor when the air tank pressure
reaches the factory set "cut-out" pres-
sure.
If the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety valve will protect against high
pressure by "popping out" at its fac-
tory set pressure (slightly higher than
the pressure switch "cut-out" setting).
The outlet
pressure gauge indicates the air pres-
sure available at the outlet side of the
regulator. This pressure is controlled
by the regulator and is always less
than or equal to the tank pressure.
14- ENG
Whentheair
compressor is
operating, the
check valve is
"open",
allowing
compressed air
to enter the air
tank.Whenthe
air compressor
reaches "cut-
out" pressure, the check valve
"closes", allowing air pressure to
remain inside the air tank.
This
filter is designed to clean air coming
into the pump. This filter must always
be clean and ventilation openings free
from obstructions. See Maintenance.
: The motor
has a thermal overload protector. If
the motor overheats for any reason,
the overload protector will shut off the
motor. The motor must be allowed to
cool down before restarting. To restart:
1. Set the Auto/Off switch to "Off"
and unplug unit.
2. Allow the motor to cool.
3.
Plug the power cord into the
correct branch circuit receptacle.
4. Set the Auto/Off lever to "Auto"
position.
Set the Auto/Off switch to "Off".
unit until you read
maintenance instructions.
1. Place Auto/Off switch to "Off".
2.
Plug the power cord into the
correct branch circuit receptacle.
(Refer to Voltage and Circuit
Protection paragraph in the
Installation section of this
manual.)
3. Pull regulator knob out, turn coun-
terclockwise until it stops. Push
knob in to lock in place.
4. Attach hose and accessories.
The hose or accessory will
require a quick connect plug if the
air outlet is equipped with a quick
connect.
Firmly
installing or disconnecting to
use damaged or worn accessories.
Risk of unsafe
operation.
Compressed air from the unit may
contain water condensation and
oil mist. Do not spray unfiltered air
at an item that could be damaged
by moisture. Some air tools and
accessories may require filtered air.
Read the instructions for the air tools
and accessories.
How to Start
1. Turn the Auto/Off switch to "Auto"
and allow tank pressure to build.
Motor will stop when tank pres-
sure reaches "cut-out" pressure.
2. Pull the regulator knob out and
turn clockwise to increase
pressure.Whenthedesired
pressure is reached push knob in
to lock in place. The compressor
is ready for use.
The compressor is ready for use.
15- ENG
Procedure
Weekly See tank
warning
label
Check safety valve X
Inspect air filter X1
Drain air tank X
Check for unusual noise/vibration X
Check for air leaks X*
Clean compressor exterior X
Remove tank from service X2
* Tocheckforairleaksapplyasolutionofsoapywateraroundjoints.While
compressor is pumping to pressure and after pressure cuts out, look for
air bubbles to form.
1 - more frequent in dusty or humid conditions
2 - For more information, contact a Trained Service Technician.
To ensure efficient operation and lon-
ger life of the air compressor, a routine
maintenance schedule should be pre-
pared and followed. The above routine
maintenance schedule is geared to an
air compressor in a normal working
environment operating on a daily basis.
If necessary, the schedule should be
modified to suit the conditions under
which your air compressor is used.
The modifications will depend upon
the hours of operation and the work-
ing environment. Compressors in an
extremely dirty and/or hostile environ-
ment will require a greater frequency of
all maintenance checks.
See Operation section for the
location of controls.
Before starting compressor, pull the
ring on the safety valve to make sure
that the safety valve operates freely. If
the valve is stuck or does not operate
smoothly, it must be replaced with the
same type of valve.
16- ENG
All compressed air systems
generate condensate that accumulates
in any drain point (e.g., tanks, filter, after-
coolers, dryers). This condensate con-
tains lubricating oil and/or substances
which may be regulated and must be
disposed of in accordance with local,
state, and federal laws and regulations.
1. Set the Auto/Off lever to "Off" and
unplug unit.
2. Pull the regulator knob out and
turn counterclockwise to set the
outlet pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately 20
psi. Release safety valve ring.
5. Drain water from air tank by open-
ing drain valve (counter-clockwise)
on bottom of tank.
Water will condense
Risk of property
damage. Drain water
from air tank may contain oil and rust
which can cause stains.
6. After the water has been drained,
close the drain valve (clockwise).
The air compressor can now be
stored.
If drain valve is plugged,
release all air pressure. The valve can
then be removed, cleaned, the rein-
stalled.
1. Place Auto/Off switch to "Off".
2. Allow unit to cool.
3. Remove filter cover from base.
4. Remove element from filter base.
5. Place new element back in filter
base. Purchase replacement parts
from your local dealer or autho-
rized service center. Always use
identical replacement parts.
6. Snap filter cover to filter base.
Risk of property
damage. Do not
operate without air inlet filter
17- ENG

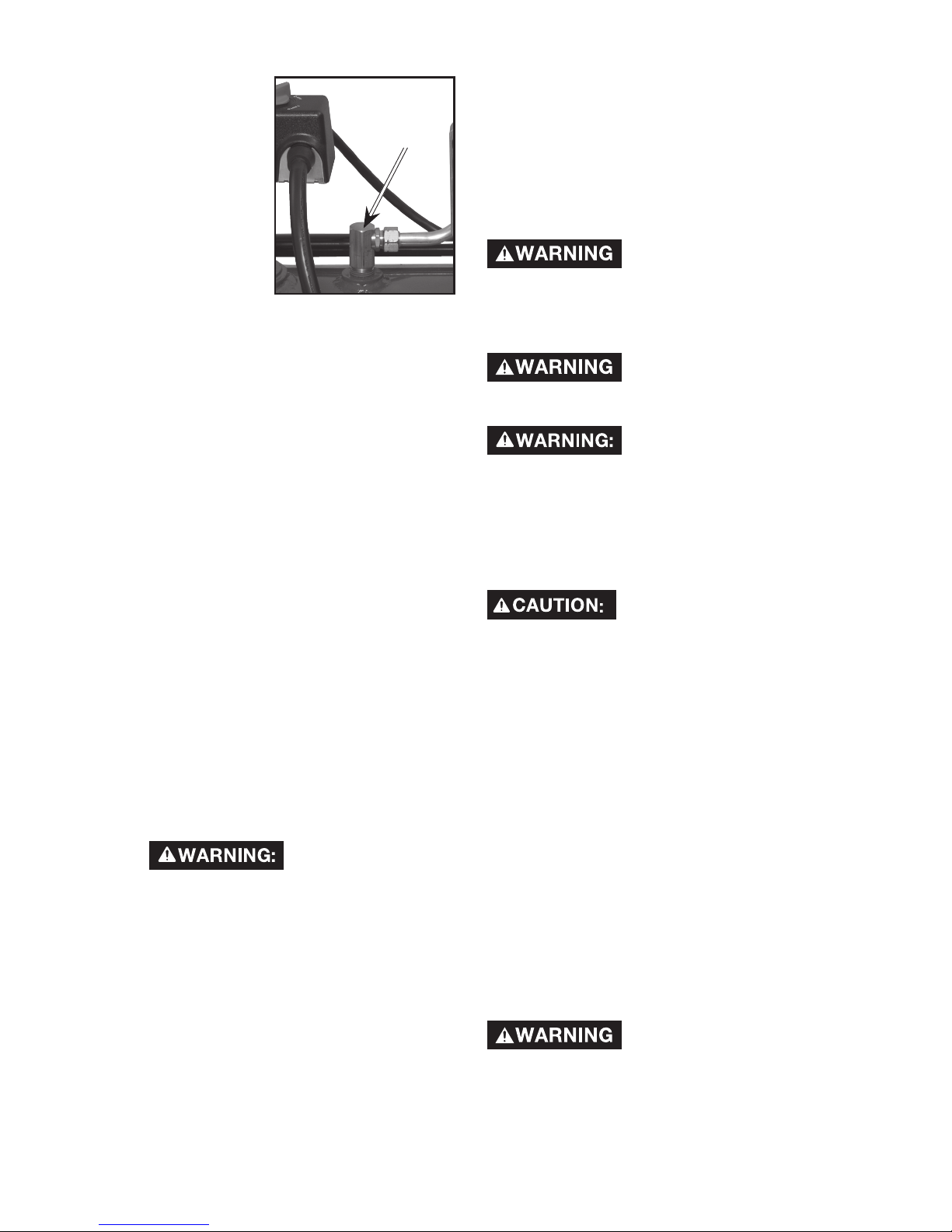

4. Using an adjustable wrench, loos-
en outlet tube nut at air tank and
pump head. Carefully move outlet
tube away from check valve.
Nuts
Outlet
5. Unscrew the check valve (turn
counterclockwise) using a 7/8"
open end wrench.
6. Install the new check valve (turn
clockwise).
7. Replace the outlet tube and
tighten nuts.
8. Replace the shroud.
1. Release all air pressure from air
tank. See in the
Maintenance section.
2. Unplug outfit.
3. Remove the shroud on the outlet
tube side. Remove screw
with T-20 Torx screwdriver and
loosen all the tabs on the shroud
with a flat screwdriver before
removing.
18- ENG
1. Release all air pressure from air
tank. See in the
Maintenance section
2. Unplug compressor.
3. Remove the regulator ring and
remove the console cover.
Regulator
Ring
4. Remove the gauges and quick
connect from the regulator.
Regulator
Quick
Connect
5. Remove the regulator.
6. Apply pipe sealant tape to the
nipple.
7. Assemble the regulator.
Arrow indicates flow of
air. Make sure it is pointing in the
direction of air flow.
Regulator
Arrow Quick
Connect
Nipple
8. Reapply pipe sealant to gauges
and quick connect.
9. Reassemble gauges and quick
connect. Orient gauges to read
correctly.
10. Replace console cover.
Before you store the air compressor,
make sure you do the following:
1. Review the Maintenance section
on the preceding pages and per-
form scheduled maintenance as
necessary.
2. Drain water from air tank. See
under Maintenance.
Water will
3. Protect the electrical cord and
air hose from damage (such as
being stepped on or run over).
Windthemlooselyaroundthe
compressor handle.
4. Store the air compressor in a
clean and dry location.
19- ENG
Risk of Unsafe Operation. Unit cycles automatically when power
ison.Whenservicing,youmaybeexposedtovoltagesources,
compressed air, or moving parts. Before servicing unit unplug or disconnect
electrical supply to the air compressor, bleed tank of pressure, and allow the air
compressor to cool.
PROBLEM
Excessive
tank pressure
- safety valve
pops off.
Pressure switch does not
shut off motor when
compressor reaches
"cut-out" pressure.
Move Auto/Off lever to the
"Off" position, if the outfit
does not shut off contact a
Trained Service Technician.
Pressure switch "cut-out"
too high.
Contact a Trained Service
Technician.
Air leaks at fit-
tings.
Tube fittings are not tight
enough.
Tighten fittings where air can
be heard escaping. Check
fittings with soapy water solu-
tion. .
Air leaks at or
inside check
valve.
Check valve seat damaged. Replace check valve. Refer to
the
in the Service and Adjustment
section.
Air leaks in air
tank or at air
tank welds.
Defective air tank. Air tank must be replaced. Do
not repair the leak.
Bursting
Air leaks
between head
and valve plate.
Leaking seal. Contact a Trained Service
Technician.
Pressure read-
ing on the regu-
lated pressure
gauge drops
when an acces-
sory is used.
It is normal for "some"
pressure drop to occur.
If there is an excessive
amount of pressure drop when
the accessory is used, adjust
the regulator following the
instructions in the
paragraph in the
Operation section.
Adjust the regulated
pressure under flow condi-
tions (while accessory is being
used).
20- ENG
PROBLEM
KnockingNoise. Possible defect in safety
valve.
Operate safety valve manually
by pulling on ring. If valve still
leaks, it should be replaced.
Defective check valve. Replace check valve.
Compressor is
not supplying
enough air
to operate
accessories.
Prolonged excessive use of
air.
Decrease amount of air usage.
Compressor is not large
enough for air requirement.
Check the accessory air
requirement. If it is higher
than the SCFM or pressure
supplied by your air
compressor, you need a larger
compressor.
Hole in hose. Check and replace if required.
Check valve restricted. Replace check valve.
Air leaks. Tighten fittings.
Restricted air intake filter. Clean or replace air intake
filter. Do not operate the
air compressor with the fil-
ter removed. Refer to the
Air Filter paragraph in the
Maintenance section.
Regulator knob
has continuous
air leak.
Damaged regulator. Replace.
Regulator will
not shut off air
outlet.
Damaged regulator. Replace.
Motor will not
run.
Motor overload protection
switch has tripped.
Refer to
Protection under Operation.
If motor overload protection
trips frequently, contact a
Trained Service Technician.
Tank pressure exceeds
pressure switch "cut-in"
pressure.
Motor will start automatically
when tank pressure drops
below "cut-in" pressure of
pressure switch.
This manual suits for next models
1
Table of contents
Languages:
Other Craftsman Air Compressor manuals
Craftsman
Craftsman 919.724321 User manual
Craftsman
Craftsman 919.195400 User manual
Craftsman
Craftsman 919.167342 User manual
Craftsman
Craftsman 919.195414 User manual
Craftsman
Craftsman 919.167260 User manual
Craftsman
Craftsman 919.176841 User manual
Craftsman
Craftsman 919.162080 User manual
Craftsman
Craftsman 919.176120 User manual
Craftsman
Craftsman 919.167243 User manual
Craftsman
Craftsman 919.167463 User manual
Craftsman
Craftsman 919.167243 User manual
Craftsman
Craftsman 919.167241 User manual
Craftsman
Craftsman 919.156830 User manual
Craftsman
Craftsman AIR COMPRESSOR 919.724701 User manual
Craftsman
Craftsman 921.165720 User manual
Craftsman
Craftsman 919.167462 User manual
Craftsman
Craftsman 919.167312 User manual
Craftsman
Craftsman 919.727130 User manual
Craftsman
Craftsman 919.167800 User manual
Craftsman
Craftsman 919.727360 User manual
Popular Air Compressor manuals by other brands
King Industrial
King Industrial KC-6510g1 instruction manual
Clarke
Clarke Pioneer 205 Operating and maintenance instructions
ELGi
ELGi TRC 1000 MN UG owner's manual
Zionair
Zionair CP22S8 Installation and operating instructions
Ryobi
Ryobi R18I-0 Original instructions
Clarke
Clarke BRONCO 2 OIL FREE Operation and maintenance instructions
Clarke
Clarke SHHH2 Operating & maintenance instructions
Bitzer
Bitzer F400 operating instructions
American Fab
American Fab AC2T Operator's manual
GreenWorks Tools
GreenWorks Tools G40AC user manual
Mangar Health
Mangar Health Airflo 24 manual
Air Techniques
Air Techniques AirStar AS10 Installation and operation manual
