Owner’s Manual
AIR COMPRESSOR
5-gallon
1HP
Oil Lubricated
Model No. 921.166360
®
CAUTION:
Before using this product,
read this manual and follow
all its Safety Rules and
Operating Instructions.
• Safety Instructions
• Installation & Operation
• Maintenance & Storage
• Troubleshooting Guide
• Parts List
• Español, p. 13
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
11/10/2006
Part No. E102348

Table of Contents
Page
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
See Below
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Instructions & Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts & Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Detaching Unit from Dolly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ONE YEAR FULL WARRANTY ON CRAFTSMAN AIR COMPRESSOR
If this Craftsman Air Compressor fails due to manufacturer’s defects in material or workmanship
within one year of the date of purchase, RETURN IT TO THE NEAREST SEARS STORE OR
SERVICE CENTER IN THE UNITED STATES and it will be replaced or repaired (at our option),
free of charge.
If this Air Compressor is used for commercial or rental purposes, this warranty applies for only 90
days from the date of purchase. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179

1
Risk of Moving Parts If the air compressor is in operation, all guards and covers should be attached or
installed correctly. If any guard or cover has been damaged, do not operate the
equipment until the proper personnel has correctly repaired the equipment. The power
cord should be free of any moving parts, twisting and/or crimping while in use and while
in storage.
Risk of Burns There are surfaces on your air compressor that while in operation and thereafter can
cause serious burns if touched. The equipment should be allowed time to cool before
any maintenance is attempted. Items such as the compressor pump and the outlet tube
are normally hot during and after operation.
Important Safety Instructions and Guidelines
• Save all instructions
The air compressor should be operated on a dedicated 15 amp circuit. If the circuit does
not have 15 free amps available, a larger circuit must be used. Always use more air
hose before utilizing extension cords. All extension cords used must be 12 gauge with a
maximum length of 25 ft. The circuit fuse type must be a time delay. Low voltage could
cause damage to the motor.
CAUTION
Improper operation or maintenance of this product could result in serious injury and/or property damage. Read and
understand all of the warnings and safety instructions provided before using this equipment.
WARNING
Risk of Falling Operation of the air compressor should always be in a position that is stable. Never use
the air compressor on a rooftop or elevated position that could allow the unit to fall or
be tipped over. Use additional air hose for elevated jobs.
Risk from Flying Objects
Always wear ANSI Z87.1 approved safety glasses with side shields when the air
compressor is in use. Turn off the air compressor and drain the air tank before
performing any type of maintenance or disassembly of the hoses or fittings. Never point
any nozzle or sprayer toward any part of the body or at other people or animals.
The information listed below should be read and understood by the operator. This information is given to protect the
user while operating and storing the air compressor. We utilize the symbols below to allow the reader to recognize important
information about their safety.
When used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
DANGER CAUTION
WARNING
Safety Symbols
CAUTION
WARNING: This product contains one or more chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.

2
Risk of
Explosion or Fire
Never operate the compressor near combustible materials, gasoline or solvent vapors.
If spraying flammable materials, locate the air compressor at least 20 feet away from the
spray area. Never operate the air compressor indoors or in a confined area.
Risk of Bursting Always drain the air compressor tank daily or after each use. If the tank develops a leak,
then replace the air compressor. Never use the air compressor after a leak has been
found or try to make any modifications to the tank. Never modify the air compressor’s
factory settings which control the tank pressure or any other function.
Important Safety Instructions & Guidelines
Glossary
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure
for air delivery.
PSIG: Pounds per square inch gauge; a unit of measure
for pressure.
ASME: American Society of Mechanical Engineers.
California Code: Unit may comply with California Code
462 (l) (2)/ (M) (2).
Cut-In Pressure: The air compressor will automatically
start to refill the tank when the pressure drops
below the prescribed minimum.
Cut-Out Pressure: The point at which the motor stops
when the tank has reached maximum air
pressure.
Code Certification: Products that bear one or more of
the following marks: UL, ULc, ETL, CSA, have
been evaluated by OSHA-certified independent
safety laboratories and meet the applicable
Underwriters Laboratories Standards for Safety.
This is a 50% duty cycle air compressor. Do not run the air compressor more than 30 minutes of one hour. Doing so
could damage the air compressor.
Duty Cycle
Specifications
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . Oil-lube direct drive
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.0 HP (Induction)
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.65”
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26”
Voltage Single Phase . . . . . . . . . . . . . . . . . . . . . . . 120 VAC
Minimum Circuit Requirement . . . . . . . . . . . . . . . . 15 Amps
Air Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . 5 Gallons
Cut-in Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95 PSI
Cut-out Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . .125 PSI
SCFM @ 90 PSI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.4
Oil Capacity . . . . . . . . . . . . . . . . . . . . . . . . . 90 mL or 3 oz.
Oil Type . . . . . . . . . . . . . . . . . . . . . . . . SAE 30 Non-detergent
Risk of Breathing Avoid using the air compressor in confined areas. Always have adequate space
(12 inches) on all sides of the air compressor. Also keep children, pets, and others out of
the area of operation. This air compressor does not provide breathable air for anyone or
any auxiliary breathing device. Spraying material will always need to be in another area
away from the air compressor to not allow intake air to damage the air compressor filter.
Risk of
Electrical Shock
Never utilize the air compressor in the rain or wet conditions. Any electrical issues or
repairs should be performed by authorized personnel such as an electrician and should
comply with all national and local electrical codes. The air compressor should also have
the proper three prong grounding plug, correct voltage, and adequate fuse protection.

Parts & Features
See figures below for reference.
Pressure Relief Tube
Outlet Tube
Oil Sight Gauge
Oil Fill Cap
Pressure Switch
This controls the power to the motor and also the
cut-in/cut-out pressure settings. This switch serves as
the Auto-On/Off positions for the unit.
Regulator
The air pressure coming from the air tank is controlled
by the regulator. To increase the pressure turn the
knob clockwise and to decrease the pressure turn the
knob counterclockwise.
Air Intake Filter
Provides clean air to the pump and must always be
kept free of debris. Check on a daily basis or before
each use.
Quick Connect
Offers a quick release feature for
attaching and removing the air hose.
Tank Drain Valve
Used to drain condensation from the air tank.
Located at bottom of tank.
Check Valve
When the pump is not in operation the valve closes to
retain air pressure inside the tank. An internal
component.
Tank Safety Valve
Used to allow excess tank pressure to escape into
the atmosphere. This valve should only open when
the tank pressure is above the maximum rated
pressure.
Tank Pressure Gauge
Indicates the reserve air pressure
in the tank.
Regulator Gauge
Indicates the outgoing air pressure to the tool and is
controlled by the regulator.
Pressure Relief Valve
The pressure relief valve located on the side of the
pressure switch, is designed to automatically
release compressed air when the air compressor
reaches cut-out pressure. The released air should
only escape momentarily and the valve should then
close.
3

The air compressor should be turned off, unplugged from
the power source, the air bled from the tank and the unit
allowed time to cool before any maintenance is performed.
Personal injuries could occur from moving parts, electrical
sources, compressed air or hot surfaces. The quick
connect assembly must be attached before use. Failure
to assemble correctly could result in leaks and possible
injury. If unsure of assembly instructions or you experience
difficulty in the assembly please call your local service
department for further instruction.
Assembly

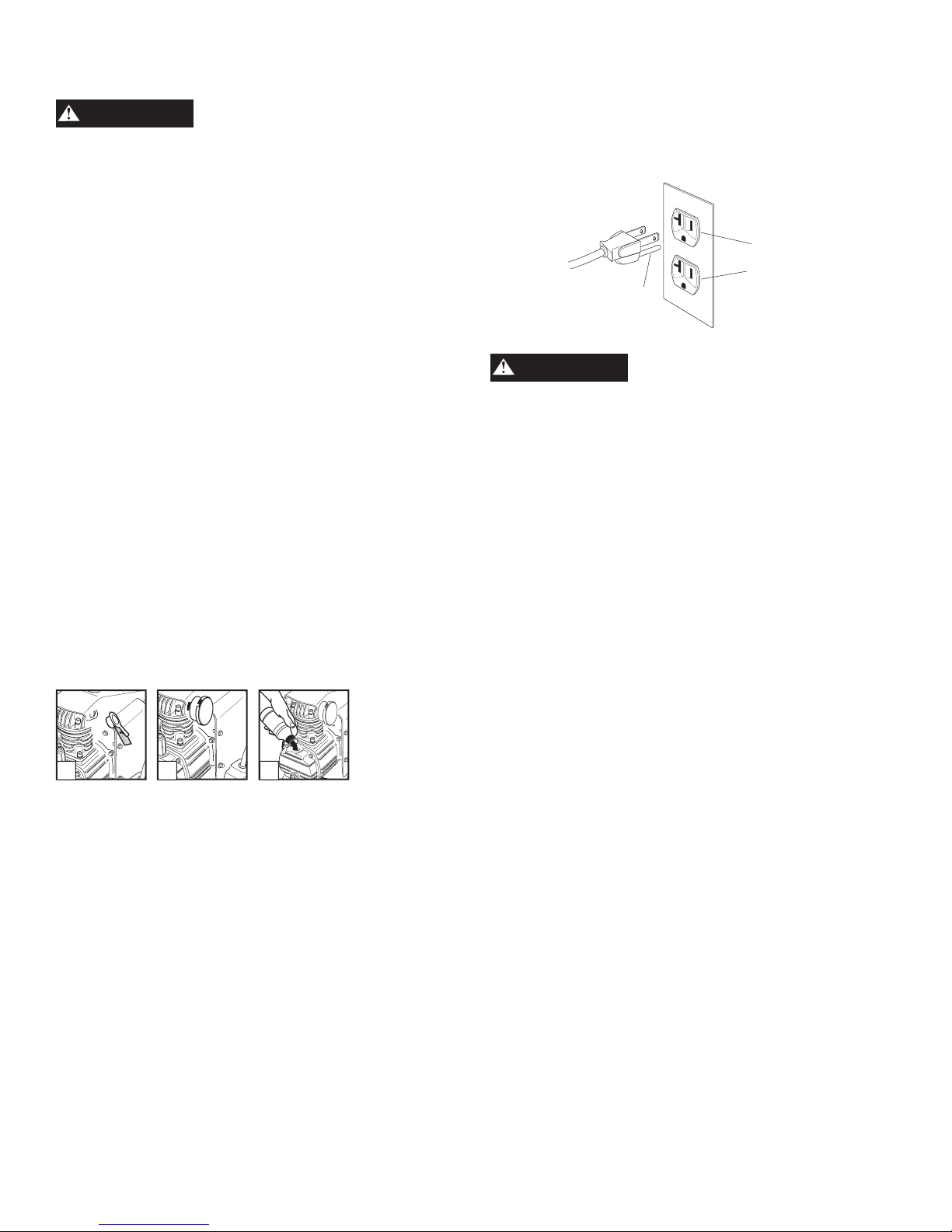

1. Remove air compressor, oil bottle, intake filter, manual
and accessories from the styrofoam.
2. Remove the plastic plug from the compressor intake
port. (see diagram below)
3. Install the filter in the compressor intake port.
(see diagram below)
4. Remove the oil fill cap from the crankcase and fill until
the oil reaches the top of the red dot in the sight glass.
Oil capacity is 3 oz. (see below) Use SAE-30 non-deter
gent (API CG/CD heavy duty motor oil). Under extreme
cold weather conditions, 32° F (0°C) or below, use
SAE-10 weight oil.
5. Replace the oil cap.
6. Check to ensure that unit is mounted securely to the
dolly before transporting.
Estimated Assembly Time: Approximately 5 minutes
Getting Started - Location of the Air Compressor
The air compressor should always be located in a clean,
dry and well ventilated environment. The unit should have
at minimum, 12 inches of space on each side. The air filter
intake should be free of any debris or obstructions.
Check the air filter on a daily basis to make sure it is clean
and in working order.
Grounding Instructions
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current.
This product is equipped with a cord having a grounding
wire with an appropriate grounding plug. (See the figure at
top right corner.) The plug must be plugged into an outlet
that is properly installed and grounded in accordance with
all local codes and ordinances. Check with a qualified
electrician or service personnel if these instructions are not
completely understood or if in doubt as to whether the tool
is properly grounded.
Improper installation of the grounding plug will result in a
risk of electric shock. If repair or replacement of the cord
or plug is necessary, do not connect the grounding wire to
either flat blade terminal. The wire with insulation having an
outer surface that is green with or without yellow stripes is
the grounding wire. Check with a qualified electrician or
serviceman if the grounding instructions are not completely
understood, or if in doubt as to whether the product is
properly grounded. Do not modify the plug provided.
If it will not fit the outlet, have the proper outlet installed
by a qualified electrician.
This product is for use on a circuit having a nominal rating
of 120 volts and is factory-equipped with a specific electric
cord and plug to permit connection to a proper electric
circuit. Make sure the product is connected to an outlet
having the same configuration as the plug. An adapter
should not be used with this product. If the product must
be reconnected for use on a different type of electric circuit,
qualified service personnel should make the reconnection.
Extension Cords
Use only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the
plug on the product. Make sure your extension cord is in
good condition. When using an extension cord, be sure to
use one heavy enough to carry the current your product will
draw. Cords must not exceed 25 feet and No. 12 AWG size
must be used. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
Break In Procedures
No break in procedure is required by the user.
This product is factory tested to ensure proper operation and
performance.
4
Installation & Assembly
WARNING
WARNING
Grounded
Outlet
Grounding Pin
Plug
1
1
3
1
0
1
E
AN
O
I
T
N
E
T
T
L
I
O
H
T
I
W
L
L
I
F
E
S
U
E
R
O
F
E
B
t
n
e
g
r
e
t
e
D
-
n
o
N
0
3
E
A
S
2 3 4

5

1



7
3
8
6
4
5
Operating Procedures
Daily Shut-Down Procedures
1. Set the Auto-On/Off lever to the Off position.
2. Unplug the power cord from the receptacle.
3. Set the outlet pressure to zero on the regulator.
4. Remove any air tools or accessories. When draining
the tank, always use ear and eye protection. Drain the
tank in a suitable location; condensation will be present
in most cases of draining.
5. Open the drain valve allowing air to bleed from the
tank. After all of the air has bled from the tank, close
the drain valve to prevent debris buildup in the valve.
When draining the tank, always use ear and eye protection.
Drain the tank in a suitable location; condensation will be
present in most cases of draining.
Water that remains in the tank during storage will corrode
and weaken the air tank which could cause the tank to
rupture. To avoid serious injury, be sure to drain the tank
after each use or daily.
WARNING
CAUTION
Daily Start-Up Procedures
1. Set the Auto-On/Off lever to the Off position.
2. I nspect the air compressor, air hose, and any
accessories/tools being used for damage or obstruction.
If any of these mentioned items are in need of repair/
replacement, contact your local authorized service dealer
before use.
3. Close the drain valve.
4. Check the oil level of the pump.
5. Connect the air hose to the quick connect socket on
the regulator assembly by inserting the quick connect
plug on the air hose into the quick connect socket. The
quick connect socket collar will snap forward and lock
the plug into place providing an air tight seal between
the socket and plug. To release the air hose push the
collar back on the quick connect socket.
6. Plug the power cord into the proper receptacle.
7. Turn the Auto-On/Off lever to the On-Auto position and
the compressor will start and build air pressure in the
tank to cut-out pressure and then shut off automatically.
8. Adjust the regulator to a PSI setting that is needed for
your application and be sure it is within the safety
standards required to perform the task. If using a
pneumatic tool, the manufacturer should have
recommendations in the manual for that particular
tool on operating PSI settings.
9. The air compressor is now ready for use. The following
inflation and cleaning accessories packaged with this
unit should only be operated at maximum pressure
of 90PSI: blow gun, rubber-tapered nozzle, inflation
needles, adapter, and blow gun adapter.

Reattaching the air compressor to the dolly:
1. The air compressor should be turned off and
unplugged from the power source.
2. Align the compressor’s rubber isolators with the
depressions in the dolly frame.
3. Insert knob bolt into the air compressor and rotate
clock-wise until tight. (If the compressor is not properly
aligned onto the frame the knob will not tighten.
Reposition compressor and try again.)
NOTE: Any service procedure not covered in the
maintenance schedule should be performed by
qualified service personnel.
The air compressor should be turned off, unplugged
from the power source, air bled from the tank and
allowed time to cool before any maintenance is
performed.
To ensure efficient operation and longer life of the
air compressor unit, a routine maintenance schedule
should be followed. The following schedule is geared
toward a consumer whose compressor is used in a
normal working environment on a daily basis.
Detaching unit from dolly
For removing, read steps below first before attempting to remove or replace the air compressor to the dolly:
Removing the air compressor from the dolly:
1. The air compressor should be turned off and
unplugged from the power source.
2. Turn the knob on the bottom of the dolly counter-
clockwise until the knob releases from the air
compressor. (This should be 1-2 revolutions)
3. While holding the dolly cart handle with one hand,
lift up on the air compressor handle to remove the
compressor.
6
Storage
For storing the air compressor, be sure to do the following:
1. Turn the unit off and unplug the power cord from the
receptacle.
2. Remove all air hoses, accessories, and air tools from
the air compressor.
3. Perform the daily maintenance schedule.
4. Open the drain valve to bleed all air from the tank.
5. Close the drain valve.
6. Store the air compressor in a clean and dry location.
Maintenance
WARNING
CAUTION
Check Tank Safety Valve X
Overall Unit Visual Check X
Check Air Filter X
Drain Tank X
Check Power Cord for Damage X
Change Oil after first 50 hours
after every 100 hours
Check Oil Level X
Items to Check/Change Before each use
or daily
Do not use the dolly for any other means other than transporting this air compressor.
Do not move air compressor/dolly combo without tightening the knob that safely secures the compressor to the dolly.
WARNING

123
3

13

77
Troubleshooting Guide
PROBLEM POSSIBLE CORRECTION
Air leaks at the check valve A defective check valve results in a constant air leak at the pressure relief valve
or at the pressure relief valve. when there is pressure in the tank and the compressor is shut off. Drain the tank,
then remove and clean or replace the check valve.
Air leaks between head and Be sure of proper torque on head bolts. If leak remains, contact a service technician.
cylinder.
Air leak from safety valve. Operate the safety valve manually by pulling on the ring. If the valve continues to
leak when in the closed position, it should be replaced.
Pressure reading on the If there is an excessive amount of pressure drop when the accessory is used,
regulated pressure gauge replace the regulator.
drops when an accessory is
used.
Adjust the regulated pressure under flow conditions (while accessory is being used).
It is normal for the gauge to show minimal pressure loss during initial use of the
tool.
Excessive tank pressure. Move the Auto-On/Off lever to the Off position. If the unit doesn’t shut off, unplug it
from the power source and contact a service technician.
Motor will not start. Make sure power cord is plugged in and the switch is on. Inspect for the proper size
fuse in your circuit box. If the fuse was tripped, reset it and restart the unit. If
repeated tripping occurs, replace the check valve or contact a service technician.
Excessive moisture in the Remove the water in the tank by draining after each use. High humidity
discharge air. environments will cause excessive condensation. Utilize water filters on your air
line.
Water condensation is not caused by compressor malfunction. Be sure the
compressor’s air output is greater than your tool’s air consumption rate.
Air leaks from the tank body Never drill into, weld or otherwise modify the air tank or it will weaken. The tank can
or tank welds. rupture or explode. Compressor cannot be repaired. Discontinue use of the air
compressor.
The air compressor should be turned off and unplugged from the power source before any maintenance
is performed as well as the air bled from the tank and the unit allowed time to cool. Personal injuries
could occur from moving parts, electrical sources, compressed air, or hot surfaces.
WARNING
NOTE
NOTE

8
Air Compressor Model 166360
Exploded View

9
Air Compressor Model 166360
Exploded View

1 1 E101207 Intake, Filter Housing,1/2 NPT (Kunsan) 1
2 1 E100435 Filter Element (Kunsan) 1
3 Head Bolt M6 x 1.0 x 30 4
4 Lock Washer 6 mm 8
5 E100227 Cylinder Head 1
6 2 Gasket Head 1
7 E100228 Valve Plate 2
8 E100229 Valve Reed 2
9 2 Gasket Valve Plate 1
10 Gasket Cylinder Upper 1
11 Cylinder, ID42 mm x H65 mm 1
12
Screw, Socket Head, M6 x 1.0 x 20 mm 5
13 2 Gasket, Cylinder Lower 1
14 3 Ring, Compression 2
15 3 Ring, Scraper 1
16 3 Piston 1
17 3 Piston Pin 1
18 3 Snap Ring, 12 mm 2
19 3 Rod, Connecting 1
20 3 Nut, M6 x 1.0 1
21 3 Eccentric 1
22 4 Oil fill cap 1
23 4 O ring, OD17 mm x 2 mm 1
24 E101000 Screw, Hex Flange Head, 4
M5 x 0.8 x 15 mm
25 5 Seal, Oil Sight Gauge 1
26 5 Gauge, Oil Sight 1
27 Cover, Crankcase 1
28 2 Baffle, Rubber 1
29 6 Nut, M8 x 1.25 10
30 Washer, Tooth Lock, 5/16” 2
31 Screw M3 x 0.5 x 6 mm 4
32 Washer, Lock, 3 mm 4
33 E100248 Capacitor, Starting (200uF) 1
34 E100247 Capacitor, Running (40uF) 1
35 Motor 1
36 E100955 Shroud 1
37 Bolt M5 x 5.8 x 10 6
38 Motor Braket 1
39 Flatwasher 8 mm 6
40 Lock Washer 8 mm 6
41 Bolt, M8 x 1.25 x 16 mm 4
42 E100101 Power Cord 1
43 E100957
Pressure Switch 1
44 E100094 Safety Valve 1
45 E100309 Nipple 1/4” NPT x 32 mm 1
46 E102370 Pressure Gauge 1.5” 200 PSI 1
47 E100594 Strain Relief 2
48 E101968 Manifold Tube Male/ Male 1
49 E102125 Pressure Tube Assy 1
50 E100898 Check Valve 1
Reference Kit Part Description Quantity
Number Number Number
Reference Kit Part Description Quantity
Number Number Number
10
Air Compressor Model 166360
Parts List

51 E102197 Outlet Tube Male/Female 1
52 M8 x 1.2 x 40 mm 1
53 Frame And Tank 1
54 6 Flat Washer M8 x 25 mm 4
55 6 Rubber Isolator 4
56 6 Bolt M8 x 1.25 mm x 16 mm 4
57 E101717 Drain Valve 1
58 1/4 NPT Elbow Male/Female 1
59 E100307 Quick Connect 2
60 E100311 Pressure Gauge 2” 200 PSI 1
61 E101952 Manifold 1
62 Screw M3 x 15 mm 4
63 Manifold Plate 1
64 Screw M4 x 10 mm 2
65 E102344 Handle 1
66 Screw M6 x 1 x 20 6
67 E101671 Telecopic Tube 2
68 7 E102343 Tube Seal 4
69 7 E102342 Slide Handle 4
70 Frame Tube 1
71 8 E101895 Wheel 2
72 Jam Nut M12 2
73 8 E101896 Hub Cap 2
74 M6 x 1 2
75 E102360 Clip Pin 2
76 E101670 Craftsman Plate 1
77 E101377 Rubber Isolator 2
78 Flat Washer 2
79 Screw M5 x 0.8 x 15 2
80 Screw M6 x 1 x 20 2
81 E101360 Lock Handle 1
82 E100914 Lockring 1
83 E101367 Locking Cup 1
Note: Any part/kit number field without a number is not available. Descriptions
are provided for reference only. The Kit # column represents that the part being
offered is available in a kit. One of each part per kit will be offered.
Air Compressor Model 166360
Parts List
Reference Kit Part Description Quantity
Number Number Number
Reference Kit Part Description Quantity
Number Number Number
11
Kit number and parts that are included are as follows:
Kit No. Part No. Description Reference No.
1 E100794 Filter Kit 1, 2
2 E100959 Gasket Kit 6, 9-10, 13, 28
3 E100251 Piston Kit 12, 14-21
4 E100087 Oil Fill Cap w/ O-Ring 22, 23
5 E100088 Oil Sight Gauge w/ O-Ring 26, 27
6 E100102 Isolator Kit 54-56
7 E102372 Slide Bracket Kit 68-69
8 E102369 Wheel Kit 71, 73

Get it fixed, at your home or ours!
Your Home
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGARSM
(1-888-784-6427)
1-800-361-6665 (Canada)
Au Canada pour service en français:
1-800-LE-FOYERMC
(1-800-553-6937)
www.sears.ca
Get it fixed, at your home or ours!
Your Home
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGARSM
(1-888-784-6427)
1-800-361-6665 (Canada)
Au Canada pour service en français:
1-800-LE-FOYERMC
(1-800-553-6937)
www.sears.ca
® Registered Trademark/ ™ Trademark/ SMService Mark of Sears, Roebuck and Co.
® Marca Registrada/ ™ Marca de Fábrica/ SMMarca de Servicio de Sears, Roebuck and Co.
MC Marque de commerce/ MDMarque déposée de Sears, Roebuck and Co.
© Sears, Roebuck and Co., Sears Canada Inc.
