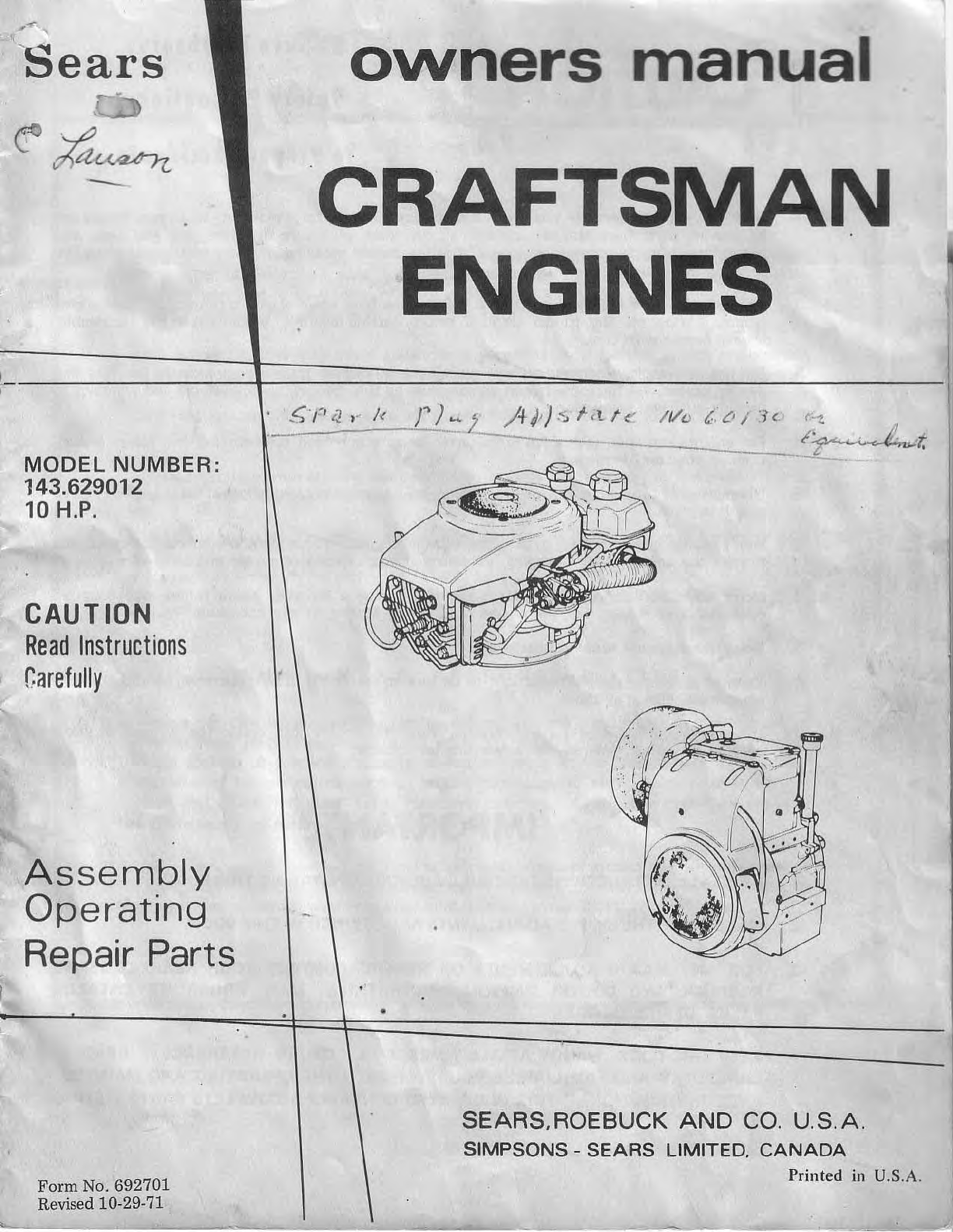

Craftsman 143.629012 User manual

!...
,
- Sears
--
MODEL NUMBER:
143.629012
10 H. P.
CAUTION
Read Instructions
C arefully
Assembly
Operating
Repair Parts
Form No. 692701
Revised 10-29-71
owners manual
'CRAFTSMAN
ENGINES
•
SEARS.ROEBUCK AND CO. U.S.A.
SIMPSONS - SEARS LIMITED. CANADA
Printed in U.S.A.
another free manual from www.searstractormanuals.com

Be Su re To Observe "-.....-
CAUTION Safety Precautions
To Prevent Accidents
1. Stop the engine whenever you leave the equipment, even for a moment. Make sure blades and
all moving parts have stopped, disconnect the spark plug wire from the plug and keep wire
away from plug to prevent accidental starting before cleaning, making any adjustments, in--
specting or repairing.
2. Check fuel before each using. Do not fill gasol i ne tank when engine is running or wh ile eng ine
is hot. Wipe off any sp ill ed gasoline before starting engine· . gasoline is high ly flamm able·
always handle with care.
3, Do not run engine indoors, exhaust gases contain carbon monoxide which is odorless and
d ead ly poison. If for some r eason engine must be run indoors, open all doors and windows to
provide sufficient ventilation.
4. For eng ines equipped with a No Pull Starter, be sure and read the handling an d safety pr ecau-
tions in your engine manual.
5. Disengage self propelling unit or drive clutch on units so equ ipp ed before sta rting engine _. Keep
guards in place.
6. Don't change governor settings or overspeed the eng ine . The governor controls the speed and
protect the engine from damaging,
excessive speeds. Excessive speeds are dangerous.
7. Don 't store equipme nt with fuel in the tank inside a buildi ng where fumes may r each an
open flame or spark. Let the engine cool before storing in any enclosure.
S. Never leave engine running unattended.
9. Keep all screws, nuts and bolts tight to be sure equipment is in safe operat ing condition. Keep
equipment clean at all times.
10. If your equipment should start vibrating, stop the engine and check for damage or loo se
parts. Vibration generally is a warning of trouble.
IMPORTANT
1. READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING THIS ENGINE.
2. MAKE ONLY THE SIMPLE ADJUSTMENTS AS OUTLINED IN THIS BOOK.
3. FOR ANY MAJOR ADJUSTMENTS OR REPAIRS CONTACT YOUR NEAREST SEARS,
ROEBUCK AND CO. OR SIMPSON-SEARS RETAIL, MAIL ORDER OR CATALOG
SALES OFFICE STORE.
4. KEEP THIS BOOK HANDY AT ALL TIMES FOR FUTURE REFERENCE. READ IT
CAREFULLY AND FAMILIARIZE YOURSELF WITH THE OPERATING AND MAINTEN -
ANCE INSTRUCTIONS. THIS BOOK ALSO CONTAINS A COMPLETE PARTS LISTING.
2
•
.
another free manual from www.searstractormanuals.com

- --- - -

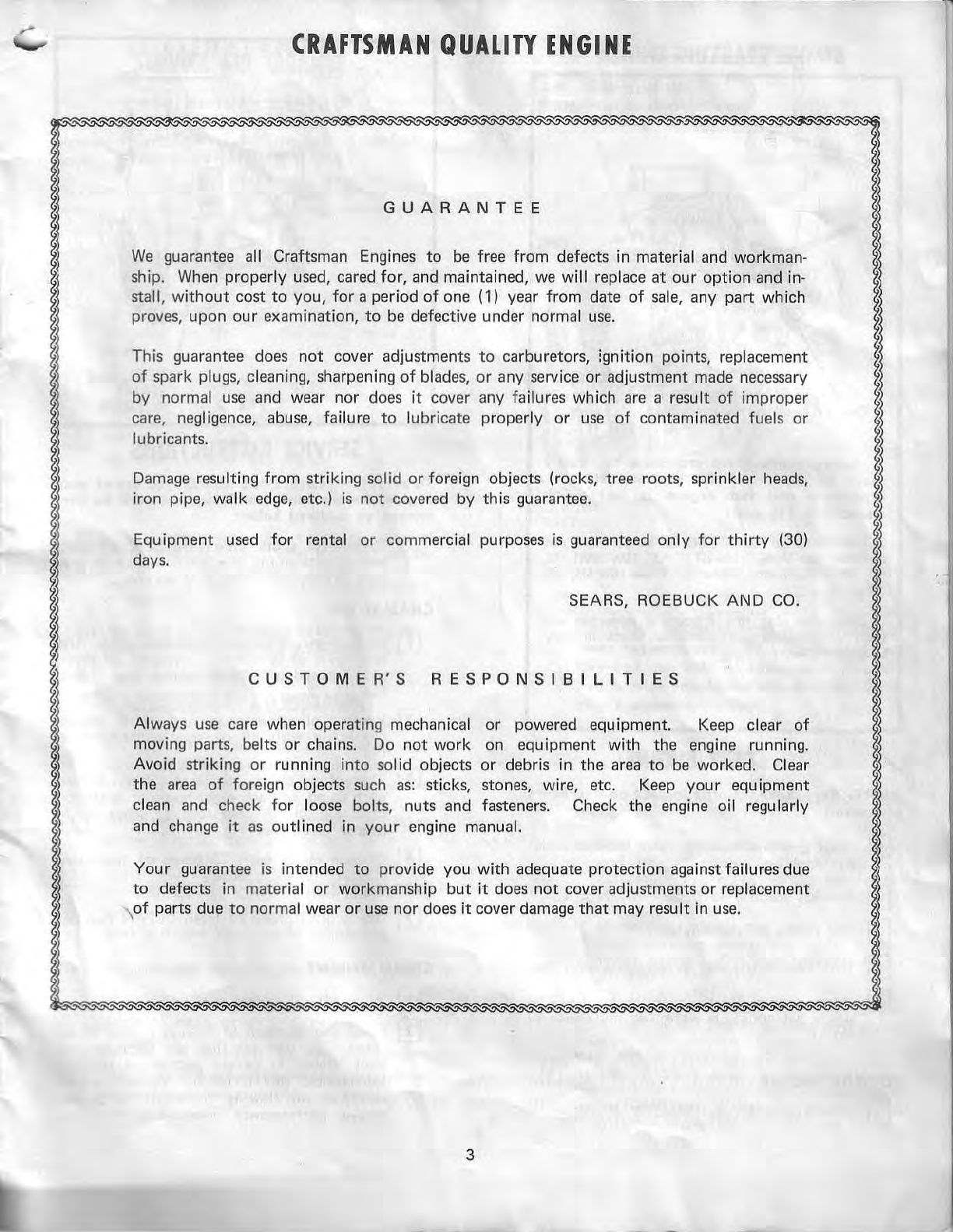

CRAFTSMAN QUALITY ENGINE
GUARANTEE
We guarantee all Craftsman Engines to be free from defects in material and workman-
ship. When properly used, cared for, and maintained, we w ill replace at our option and in -
stall, wi thout cost to you, for a period of one (1) year from date of sa le, any part which
proves,
upon our examination, to be defective under normal use.
This guar
antee does not cover adju stments to carburetors, ignition points , replacement
of spark plugs, cleaning, sharpening of blades, or any service or adjustment made necessa ry
by normal use and wear nor does it cover any failures which are a result of improper
care, negligence, abuse, failure to lubricate properly or use of contaminated fuels or
lubricants.
Damage resulting from strik ing solid or foreign objects (rocks, tree roots, sprinkler heads,
ir on pipe, walk edge, etc,) is not covered by th is guarantee.
Equipment used for rental or comm ercial p urp oses is guaranteed on ly for thirty (30)
days.
SEARS, ROEBUCK AND CO.
C U S TOM E R' S RES P 0 N SIB I LIT I E S
Al ways use care when operating mechanical or powered equipment. Keep clear of
moving parts, belts or chains. Do not work on equipment with the engine running.
Avoid striking
or running into solid objects or debris in the area to be worked. Clear
the area of foreign objects such as: st ick s, stones, wire, etc. Keep your equipment
clean and check for loose bolts, nuts and fasteners. Check the engine oil regularly
and change it as ou tlined in your engine manual.
Your guarante e is intended to provide you with adequate protection against failures due
to defects in material or workmanship but it does not cover adjustments or replaceme nt
,,\ of parts due to normal wear or use nor does it cover damage that may result in use,
3
-~
another free manual from www.searstractormanuals.com

lI~FORE STARTING ENGINE
OIL FI LL PLUG
Fill here with
fresh reg ul ar
of gasoline
OIL
FIG . 1
grad e
I. Before storti ng, fi ll crankcase to "Full"
mark on dip st ick. Be sure dip stick is
screwed in and that engi ne is level. Oil
copacity is 2 V:! pints .
2. U se S.A.E. No . 30 MS, SC, SD or SE oi l. If not
avai labl e, use Mu lti-Grade oil (S.A.E. 10W - 3OW) MS,
SC, SD or SE. (Note: Be low 3:zO F use 10W MS. SC,
SD or SE.
3. Change ojl after f ir st 2 hours of oper ation and
every 25 operating hours thereafter. Check oi l every
aoperati ng ho u rs.
TO START ENGINE
(NOTE: Key, chok e, t hrottl e located on dashboar d
of tract or)
Open g0501 ine shut-off valve loco ted under
gas tonk .
o Position throttle to about holf-throttle.
o Pull choke all the way out.
Turn key all the way in clockwise direction.
After engine Si or t s, push choke lever in
sl owly. (If engine is worm, do not choke to
start .)
TO STOP ENGINE
ITl Turn key in counterclockwise direction.
4
CLEANER
MC )D EL ond
FIG. 2
SERVICE INSTRUCTIONS
To obtain long e st life and troubl e fr ee use of y our
engin e, certain normal maint e nanc e must be p er-
formed as outlin ed belo w:
Di s conn e ct s por k plug wire at spark pl ug
bef ore perfo r ming any ma i ntenance to pre-
vent occidental sta r ting of engine.
CHANGE OIL
Change oil in engine crankcase after first
two hours of operation. Unscrew oil drain
plug located on end of engine bose. (See
F;g . II.
Replace o il drain plug and refill engine
c rankcase with oil as per instructions in
Fig. 1.
Thereafter check oi I level often, before
each u si ng, at each eight hours of opera tion
a nd add o il if necessary to bring up to
proper level. (See Fig. 1)
Change oil at each 25 hours of opera ti on .
PROPER FUEL
OJ Use a good grade of fresh CLEAN Regular
gasoline.
CL EAN ENGINE
Wipe off all sp ill ed fuel and oil.
Keep engine clean of foreign matter at all
times . Be sure air fins on Cylinder ar~
kept clean to permit proper ventilation.
Remember, this is on air coaled engine
and free air fl ow is important for proper
engine performance and li fe.
another free manual from www.searstractormanuals.com

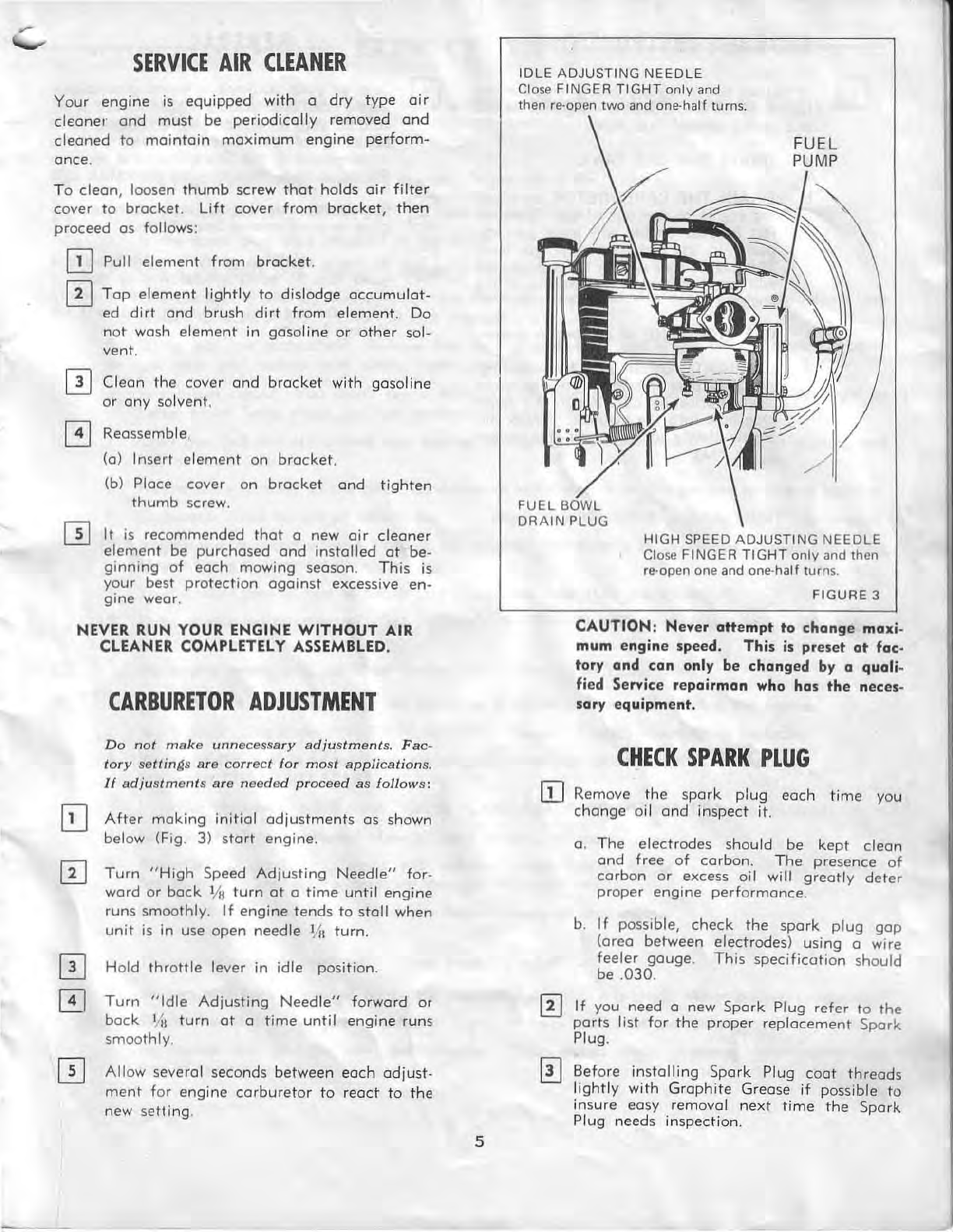

SERVICE AIR CLEANER
Your engine is equipped with a dry type air
cleoner and must be pe ri odically r em oved and
cleaned to maintain maximum engin e pe rform-
ance.
To clean, loosen thumb screw thot holds ai r filter
cover to bracket. Lift cover from brac ke t, t he n
proceed as follows:
Pull element from brocket.
T op element l ightly to dislodge accumulat-
ed dirt and brush dirt from el eme nt . Do
not wash element in gasoline or other sol·
vent,
Cl ean the cover and br ocket wi th gasoline
or any solvent.
Reassemble.
(0) Insert element on bracket.
(b) Place cover on bracket and t ighten
thumb screw.
It is recommended that a new air cleaner
element be purchased and installed at be-
ginning of each mowing season. This is
your best pro t ection agains t excessive en-
gine wear .
NEVER RUN YOUR ENGINE WITHOUT AIR
CLEANER COMPLETELY ASSEMBLED .
CARBURETOR ADJUSTMENT
Do not make unnecessary adjus tments. Fac-
tory settinAs are correc t for most appl i cat i ons .
If lIdjustments are needed pr oceed as follows:
After making initial adjustments as shown
below (Fig. 3) star t engine.
Turn "High Speed Adjusting Needle" for-
ward or bock Va turn at a time un t il engine
runs smoothly. If engine tends to stoll when
unit is in use open needle % turn.
Hold throttle l ever in idle position.
Turn " I dle Adjusting Need l e" forward or
bock ~u turn at a time until e ngine runs
smoothly.
Allow several seconds between each adjus t·
ment for engine carburetor to r eact to t he
new setling.
5
IDLE ADJUSTING NEEDLE
Close FINGER TIGHT only and
then re'open
two and one-half turns.
FUEL
DRAIN PLUG
[iJ
HIGH SPEED ADJUSTING NEEDLE
Close FINGER TIGHT only and then
re·open one and one-half turn s.
FIGURE 3
CAUTION: Never attempt to change maxi -
mum engine s peed . Thi s is preset at fac -
tory and can only be changed by a qual i-
fied Se rv ice re pairman who has the neces -
sar y e quipment.
CHECK SPARK PLUG
Remove t he spark plug eac h ti me you
change oi l and inspect it.
a. The electrodes should be kept dean
and free of corba n. The presence of
carbon or excess oil will great ly deter
proper engine performance.
b. If possible, check the spark plug gop
(area betwee n electrodes) using a wire
feeler gouge. This specification should
be .030 .
If you need a new Spark Plug refer to the
por ts list for the proper replacement Spark
Plug.
Before installing Spark Plug coot threads
lightly with Graphi te Gre ase if possible to
i nsu re easy removal n ext time t he Spa rk
Plug n eeds in spec tion.
another free manual from www.searstractormanuals.com

STORAGE INSTRUCTIONS
If you are going to store your engine for any
length of time (30 days or longer or at the
end
of the season) you must:
a DRAIN THE GAS TANK.
b.
c.
DRAIN THE CARBURETOR byallow·
ing engine to run out of gas. Gasoline
left in your engine will leave gum de -
posits in the carburetor and gas tank.
This makes fuel system inoperative and
will result in hard or non-starting of the
engine.
CLEAN ENGINE of all foreign maner .
d. LUBRICATE CYLINDER by removing
the spark plug and pouring one ounce of
clean lubricating oil through the spark
pl ug hole into the cylinder. Crank the
engine slowly
to spread oil and replace
Spark Plug.
6
GENERAL
Just as your automobile needs professional
mechanical maintenance from time to time,
so does your air cooled engine. Cleaning and
adjusting of
the Carburetor and periodic
replacement of the Spark Plug and Ignition
Points is made necessary by NORMAL use.
Professional Air Cooled Engine Service is as
close as
your nearest Sears Store.
A yearly check·up or tune-up by Sears is a
good idea
to avoid breakdowns or delay....
do it
at the end of the season, then you're
ready for the next. We even prepare it for
storage for you.
,
•
another free manual from www.searstractormanuals.com

0
A
0
A
0
A
SERVICE TIPS
ItEFERENCE TO THIS SECTION MAY HELP AYOID A DELAY I .. YOUIt WORK OR SAYE THE
EXPENSE OF A SEItYICE CALL
I.
2.
3.
4.
5.
6.
7.
8.
9.
10.
II .
12 .
I.
2.
3.
4.
5.
6.
7.
I.
2
3.
The engine won't start or is hard to stort. What con I do?
You're not out of gas are you? It happens sometimes.
Is the spark plug wire attached to the plug?
Check the spark plug porceloin, maybe it is crocked.
The spark plug may be fouled; cleon the electrodes and reset the plug gop; instructions or.
under "CHECK SPARK PLUG" in th is manual.
Is the gas line obstructed? Remove fuel line at carburetor and check 'or obstruction. Drain
gos
tank and replace with cleon, fresh gasoline.
Is the fuel cleon? You didn't use a dirty or rusty gas can did you? If you did, It might be
better to let Sears check the fuel system and carburetor.
Stole gas thot has set oround and lost its strength Is a trouble maker ... hard start i ng and
loss of power results.
Maybe there is woter in the gos. Condensation in the tonk or in your gos con sometimes hoppens.
Carburetor could be out of adjustment .. . check "CARBURETOR ADJUSTMENT" in manua l.
Maybe you over-choked and flooded 'ttle engine. Put throttle in run or fast position and cronk
several times
to cleor out the excess gos.
Your throttle control may be set so that it does not fully close the choke.
Dirty or plugged oir cleoner? See "SERVICE INSTRUCTIONS" in this manual.
My engine misses or locks. power under load. Whot might couse this'
Your throttle control could be set too close to choke position and flooding the engine.
Spark plug? See under "HARD TO START ". Maybe it needs cleaning or replacing.
Water in the fuel does not help the engine to run very good and robs It of power.
Se. under "HARD TO START".
Improper carburetor adjustment . Check "CARBURETOR ADJUSTMENT" in this manuot
Got enough 011 in crankcase? Low oil level or dirty oil makes trouble.
A partially plugged ajr cleoner will restrict the air flow to the corburetor and reduce power.
See manual. The et'lQine breathes through the oir cleaner.
Don't
put oil in the gas . It reduces the efficiency of the engine.
The engine seems to overheat. Whot should I do?
Be sure you hove plenty of oil in the eranke ase and that it is cleon. When did you change lost?
Check the 011 level in your crankcase . Low oil level will couse overheating.
Sometimes the muffler
can get plugged. This caU5e$ bock pressure, over-heating ond
loss of power.
7
another free manual from www.searstractormanuals.com

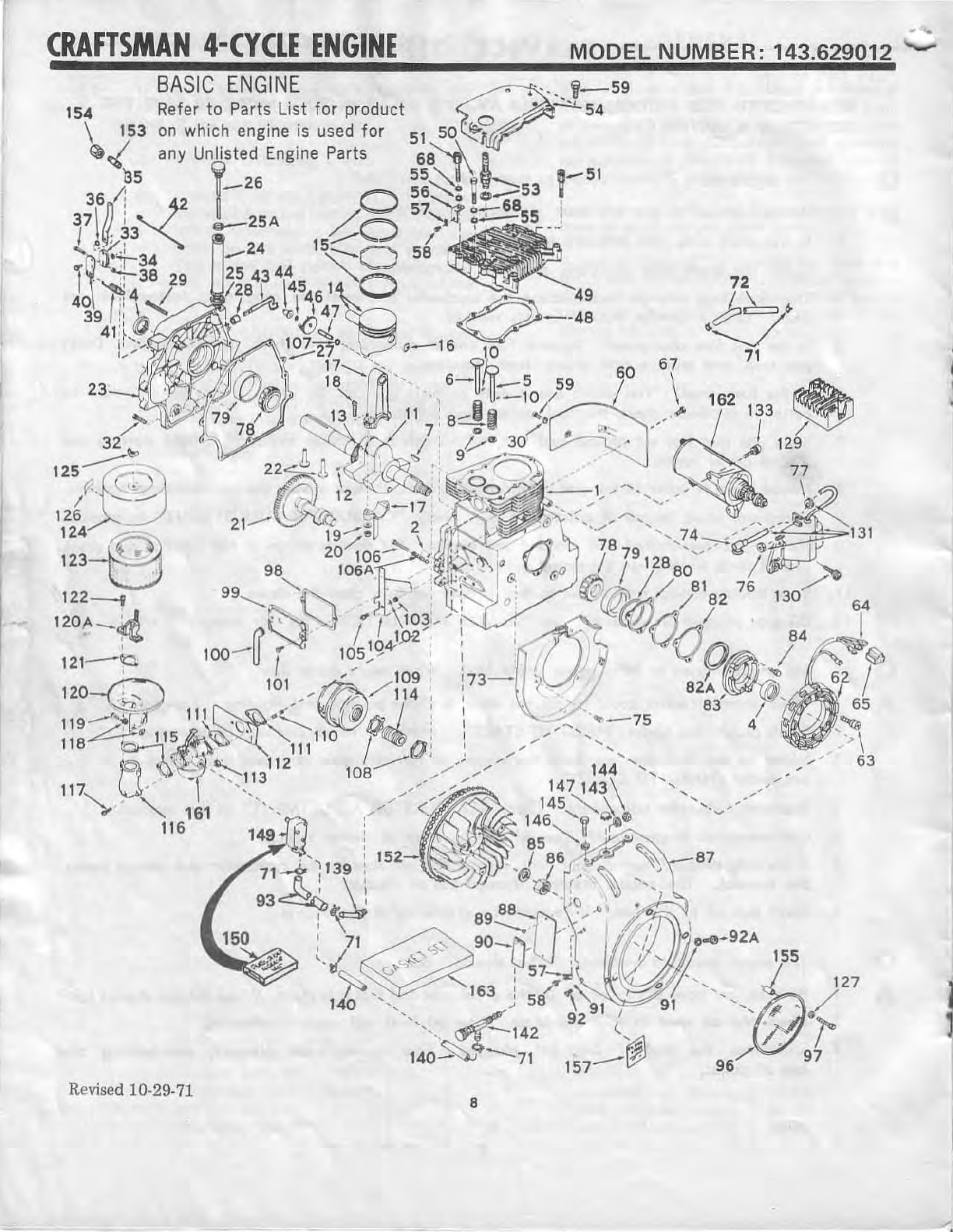

CRAFTSMAN 4-CYCLE ENGINE
BASIC ENGINE
Refer to Parts List for product
on which engine is used for
any Eng in e Parts
Revised 10·29·71 8
MODEL NUMBER: 143.629012 '-
59
:.?l.;.:.-'L 54
V-
51
72
):,'6.
-CJ
71
•
I
)
another free manual from www.searstractormanuals.com

[
I
i
I
PARTS LIST
CRAFTSMAN 4-CYCLE ENGINE 'MODEL NUMBER: 143.629012
Ref.
No.
Part
No.
1 33039
2 27652
4 31950
5 31940
5 31941
6 31942
6 31943
7
650692
8 31944
9 31945
9 31946
10 20810
11 33391
12 29783
13 31931
14 32001A
14 32002
14 32003
14 32619
14 32620
15 32004
15 32005
15 32006
15 32623
16 32624
16 31919
17 33093A
18 32077
19 26073
20 28264
21 32160
22 31939
23 32685
24 32908
25 *29673
25A 29985
26 33055
27 *31956
28 32426
29
650588
Part Name
Cylinder Assy. (lncl. Nos. 2, 4,
47 & 110)
Pin, Dowel
Seal, Oil
Valve, Intake (Standard)
Valve, Intake (1
/32" oversize)
(Incl. No.9)
Valve, Exhaust (Standard)
Valve,
Exhaust (1/32"
oversize)(lncl. No.9)
Key, Flywheel
Spring, Valve
Cap, Lower valve spring (Std.)
Cap, Lower valve spring (1/32"
oversize)
Pin, Valve spring retaining
Crankshaft Assy. (Incl. Nos.
12, 13, 78 & 79)
Pin, Crankshaft gear
Gear, Crankshaft
Piston & Pin Assy. (IncI. 2 of
No . 16) (Standard)
Piston & Pin Assy. (Incl. 2 of
No. 16) (.010 oversize)
Piston & Pin Assy. (Incl. 2 of
No. 16) (.020 oversize)
Piston & Pin Assy. (Incl. 2 of
No. 16) (.030 oversize)
Piston & Pin Assy. (Incl. 2 of
No. 16) (.040 oversize)
Ring Set, Piston (Standard)
Ring Set, Piston (.010
oversize)
Ring Set, Piston (.020
oversize)
Ring Set, Piston (.030
oversize)
Ring Set, Piston (.040
oversize)
Ring, Piston pin retaining
Rod Assy., Connecting (Incl.
Nos.
18, 19 & 20)
Bolt, Connecting rod
Washer, Connecting rod
Nut, Lock
Camshaft (Mech. Compo
Release)
Lifter, Valve
Cover, Cylinder (Incl. Nos. 4,
25, 28, 34 & 43)
Tube, Oil filler
Gasket, Oil
fill tube
"0" Ring
Dipstick, Oil (Incl. No. 25A)
Gasket, Cylinder cover
Spacer, Governor rod
Screw, Hex hd. Sems, 1/4-20 x
2 9
Ref.
No.
30
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
53
54
55
56
57
58
59
60
62
63
64
65
67
S8
71
72
73
74
75
76
77
78
79
Part
No.
28537
30564
31964
29193
31963
650518
650428
7975
31965
30312
31967
31968
32425
31948
29193
31947
31930
*32000A
33034
650711
650714
21943
33035
650691
31990
27793
28942
650128
31976
610747
650416
610820
610819
30688
650690
26460
32342
32579
610118
650561
650124
610750
31932
31928
Part Name
Washer
Screw & Lockwasher, Hex hd
cap, 1/4-20 x I
Clamp, Governor lever
Ring, Retaining
Lever, Governor adjusting
Lockwasher, No.IO E.T.
Screw, Fit. flex hd.
self-locking., 10-24 x 7/8
Nut, Square, 10-24
Plate, Governor spring
Screw, Hex slotted washer hd.
Sems, 10 - 32 x 1/2
Spring, Governor
Link, Governor
Rod Assy., Governor
Spool, Governor
Ring, Retaining
Gear Assy., Governor
S haft , Mech. Governor
Gasket, Cylinder head
H
ea d, Cylinder
Screw, Hex hd. cap, 5/16-18 x
1-5/8
Screw, Special hex hd. cap,
5/16·18 x 1· 5/8
Plug, Spark(AlIstate NO.601aOor
equivalent)
Cover, Cylinder head
Washer,
Flat
Brac ket, Choke contro l
Clip, Conduit
Screw, Hex hd. slotted Sems,
10·32 x 3/8
Screw, Fil. slotted hd. Sems,
10·24 x 1/2
Extension, Blower housing
Coil Assy., Alternator
Screw, Rd. hd. Sems, 10-32 x
1
Terminal
Connector, Pyramid
Screw, Hex hd. cap Sems,
1/4·20 x 1/2
Washer, Belleville
Clamp, Fuel line
Line, Fuel
Baffle, Blower
hou sing
Spark Plug Cover
Screw Phil. Hex hd. Sems,
1/4·20 x 5/8
Nut, Hex, 10-32
Grommet, Lead wire
Bearing, Tapered roller
Cup, Bearing
*Indicates Parts Included
in
Gasket Set, Ref. No. 163.
another free manual from www.searstractormanuals.com

CRAFTSMAN 4-CYCLE ENGINE
Ref.
No.
80
81
82
82,
83
84
85
86
87
88
89
90
91
92
92)
93
96
97
98
99
100
101
102
103
104
105
106
1061>1
107
108
109
110
111
112
113
Part
No.
*31970
*31971
*31972
32031
32577
650512
650666
650594
33044
31345
29309
30592
8274
650624
650595
29774
31991
650670
*31958
31957
27627
650128
28558
31966
31984A
650597
650591
33099
30590A
650590
32043A
650587
*31960
31959
29752
Part Name
Gasket, Shim (.003 /. 004 thick,
see note 1)
Gasket, Shim (.0035 thick, see
note 1)
Gasket, Shim (.005 /. 007 thick,
see note I)
Spacer, Steel (.010 thick, see
note 1)
Cover, Cylinder
Screw, Hex hd. Sems, 5/16-18
x 7/8
Washer, Lock
Nut, Fl ywhee l, 3/4-16
Housing, Blower
Plate, Identification
Stud, Drive
Decal, Name &Instruction
Lockwasher, Split,
5/16"
Screw, H ex hd. cap. 5/16 · 24 x
9/16
Screw, Hex hd. cap, 5/16·24 x
3/8
Line, Fuel
Screen, Starter pulley
Screw, Truss hd. ma ch. 1/4-20
x 3/4
Gasket, Breather
Breather Assembly
Tube, Breather
Screw, Fil. slotted hd. Sems,
10-24 x 1/2
Washer, Wave
Bushing, Governor lever
Lever, Control
Screw, H ex washer hd. mach.,
10-24 x 5/8
Screw, sl otted Fil. hd. mach.,
10·24 x 2
Spring
Washer, Flat
Nut, Conduit
Muffler
Stud, Carburetor
Gasket, Carburetor
(2 req.)
Baffle, Air
Nut, Hex, 1/4-28
10
Ref.
No.
114
115
116
117
118
119
120
120A
121
122
123
124
125
126
127
128
129
130
131
133
139
140
142
143
144
145
146
147
149
150
152
153
154
155
157
161
162
163
MODEL NUMBER: 143.629012
Part
No.
32042
*27272
32920
650416
30771
28788
32919
32377
30767
650399
31925
31926
650513
31752
8345
32599
610749
650661
610748
650660
32958
32341
32961
32960
8140
650713
26073
33038
32959
33010
610746
32673
32154
32426
32730
631304A
32817
33237
692701
Part Name
Nipple, Pipe
Gasket, Air cleaner (2 req.)
Elbow, Air cleaner
Screw, Rd. hd. Sems,
10-32 x
1
Washer, Flat
Screw, Fil. hd. self-tap,
8-32 x
1/2
Bracket, Air cleaner
Bracket, Air cleaner
Spacer, Cleaner
Screw, Fil. hd. Sems, 10 -32 x
5/8
Element, Air cleaner
Cover, Air cleaner
Nut,
Wing, 1/4-20
Decal, Air cleaner
Washer, Flat
"0" Ring
Rectifier, Regulator
Screw, Phil. Fil. hd. Sems,
1/4-20 x 3/4
Magneto, Solid state (Incl.
Nos. 74 , 76 & 77)
Screw, Hex hd. cap, Sems,
w/flatwasher, 5/16-18 x
13 / 16
Fitting, Fuel
Line, Fuel
Va lve, Shutoff
Washer, Lock
N ut
Screw, H ex hd. cap, 5/16·18 x
5/8
Washer
Plug, Button
Pump, Fuel
Fuel Pump Repair Kit
Fl
ywheel
Nipple, Pipe (oil drain)
Cap, Nipple
Spacer, Screen
Decal, Composite
Carburetor
Motor, Electric
st arter
Gasket
Set (lncl. items
marked*)
Owners Manual
*Indicates Parts Included in
Gasket Set, Ref.
No. 163.
Note 1: Use of gaskets must be
limited to a comb ined total
maximum
of .010 thick. Steel
spacers must be --iJ.sed as
required
to allow maximum
crankshaft end play tolerance
of .002 to .003 to be
maintained.
---
•
another free manual from www.searstractormanuals.com

)

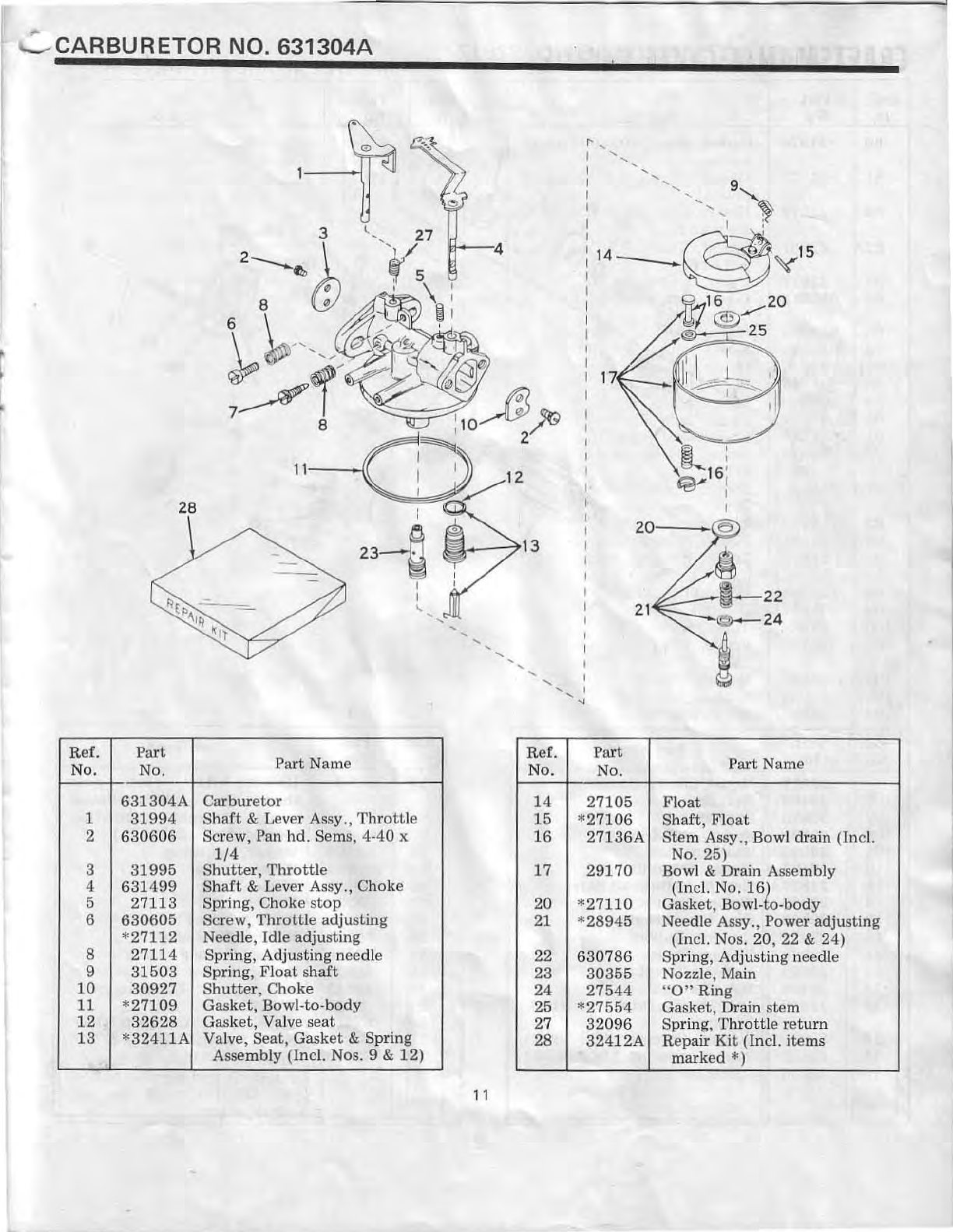

.;- CARBURETOR NO. 631304A
1'1- -4
28
20>-_. (,!e>~
Ref. Part Part Name
No. No.
Ref. Part Part Name
No. No.
631304A Carburetor
14 27105 Float
1 31994 Shaft & Lever Assy., Throttle
15 *27106 Shaft, Fl
oal
2 630606 Screw, Pan hd. Sems, 4-40 x 16 27136A
Stem Assy., Bowl drain (Incl.
1/4 No. 25)
3 31995
Shutter, Thr ottle
17 29170 Bowl & Drain Assembly
4 631499
Shaft & Lever Assy., Choke
5 27113 Spring, Choke stop
(Incl. No. 16)
20
*27110 Gasket, Bowl-ta-body
6 630605 Screw,
Throttle adjusting
21
*28945 Needle Assy" Power adjusting
*27112
Needle, Idle adjusting
8 27114 Spring, Adjusting needle
9 31503 Spring, Float s haft
10 30927 Shutter, Choke
11 *27109
Gasket, Bowl.to-body
12 32628 Gasket, Valve
seat
13
*32411A
Valve, Seat, Gasket & Spring
Assembly (Incl. Nos. 9 & 12)
(Incl. Nos. 20, 22 & 24)
22
630786 Spring, Adjusting needle
23
30355 Nozzle, Main
24 27544 " 0" Ring
25
*27554
Gasket, Drain stem
27
32096 Spring,
Throttle return
28 32412A Repair Kit (Incl. items
marked *)
11
-
another free manual from www.searstractormanuals.com

ELECTRIC STARTER MOTOR NO. 32817
,
1d ~-22
28
6
Ref. Part. Part Name
No.
No.
Ref. Part Part Name
No. No.
32817 Mot or, Electric Starter
1 32483 Nut, Hex
2 32820
Stop , Pinion
3 32821 Spring, Ant i-drift
4 32822 Washer, Pini
on
5 32487 Sleeve, Anti·drifL
6 32823A Gear & Screw S haft Assy.
8 32825
Was her. Thrust
9 32826 CuP. Cushion
10 32827 Cushion,
Rubber
11 32828 Washer,
Thrust
12 32829 Bushing,
Thrust
13 32499 Bolt, Terminal
14
32830 Cap Assy., Drive end
(lncl.
bearing)
15 32831 Washer,
Spacing
(.039 thick)
15 32832 Washer,
Spaci ng
(.008 thick)
16 32833
Armature
17 32834 Housing
Assy. (Incl . pole
shoes, field co il s, termina l
post, st raight mounting
bracket , Nos. 18 thTU 21)
18 32500 Washer, Insul at ing
19 650168 Washer, Plain
20 6501 31 Washer, Lock
21
28710 Nu t, Hex
22 32838 Brush & Spring Kit
23
32501 Bushin g, In sulating
24 32509 Washer, S
pa cing
25
32837 Spring, Brush
26 32835 End cap Assy",
Commutator
27 32836 Bol
t, Thru
28 32819 Dr ive Assy., Complete
(Inc l.
Nos. 1 t
hTU 12 & 29)
29 32896
Stopper. Scr ew
12
another free manual from www.searstractormanuals.com

Sears
HOW TO ORDER
REPAIR PARTS
SEARS
SE RVICE
IS AT YOUR SERVICE
WHEREVER YOU LIVE
OR MOVE IN
THE USA
owners manual
C':RAFTSMAN
ENGINES
The Model Number shown on the cover page will be
found on a plate attached to the cylinder. Always men·
tion the model number in all correspondence regarding
the Craftsman eng i ne.
All parts li sted he re in may be order ed through SEARS,
ROEBUCK AND CO. or SIMPSONS·SEARS LIMIT ED .
When o rd e ring parts by mail, selling pr ices will be furn-
is hed on request or parts will be shi pped at prevailing
prices a nd you wi ll be bill ed accordingly.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE
TH E FOLLOWI NG INFORMATION AS SH OWN IN THIS
LIST:
1. T he PART NUMBER.
2. T he PART NAME.
3. The MODEL NUMBER
OF THE ENG INE.
4. The NAME OF ITEM-
Engine
Your Sea rs Merchandise takes an ad ded value when you
discover that
Sears has ove r 2,000 Serv ice Units thr ough -
out t he co untry. Each is staffed by Se ars -t ra ined, pro-
fe ss ional technicians us in g Sea rs appro ved pa r ts and
methods.
SEARS, ROEBUCK AND CO. U.S.A
SIMPSONS-SEARS LIMITED, CANAOA
another free manual from www.searstractormanuals.com
