Craftsman 139.18054 User manual

®
KGKG
123
1/3 HP
1/2 HP
GARAGE DOOR OPENER
For Residential Use Only
Models:
139.1 054 • 139.1 056 • 139.1 654 • 139.1 656
139.1 673 • 139.1 674 • 139.1 973 • 139.1 974
MD
Sears Canada, Inc., Toronto, Ontario M5B 2B
www.sears.com/craftsman
CAUTION:
Read and follow all safety rules
and operating instructions before
first use of this product.
Fasten the manual near the garage
door after installation.
Owner’s Manual
ENGLISH
■Safety Precautions
■Assembly
■Installation
■Adjustment
■Maintenance
■Operation
■Troubleshooting
■Parts List

2
Introduction 2-7
Safety symbol and signal word review ........................2
Preparing your garage door ........................................3
Tools needed ...............................................................3
Planning .................................................................. -5

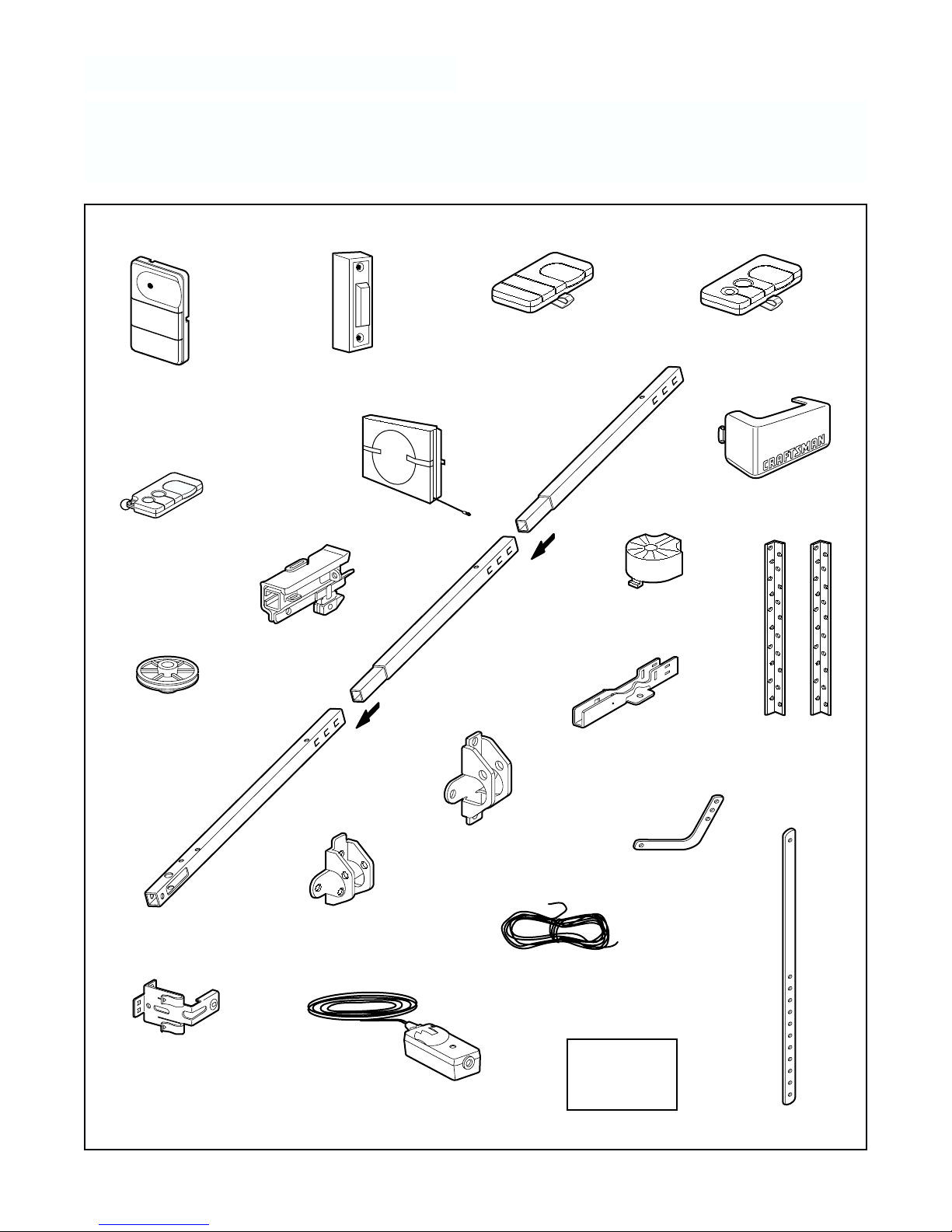

Carton inventory..........................................................6
Hardware inventory .....................................................7
Assembly 8-11
Assemble the rail and install trolley.............................8
Fasten rail to motor unit and install idler pulley...........9
Install chain/cable and attach sprocket cover ...........10
Tighten the chain.......................................................11
Installation 11-27
Installation safety instructions ...................................11
Determine the header bracket location................12-13
Install the header bracket ..........................................1
Attach the rail to the header bracket .........................15
Position the opener ...................................................16
Hang the opener .......................................................17
Install the door control...............................................18
Install the lights and lens...........................................19
Attach the emergency release rope and handle .......19
Electrical requirements..............................................20
Install the safety reversing sensor........................21-23
Fasten the door bracket .......................................2 -25
Connect the door arm to the trolley .....................26-27
Adjustment 28-30
Adjust the travel limits ...............................................28
Adjust the force .........................................................29
Test the safety reversal system .................................30
Test the safety reversing sensor................................30
Operation 31-34
Operation safety instructions.....................................31
Using your garage door opener ................................31
Using the wall-mounted Door Control .......................32
To open the door manually........................................32
Care of your garage door opener..............................33
Having a problem? ....................................................3
Programming 35-36
To add a hand-held remote control ...........................35
To erase all codes .....................................................35
3-Function Remotes..................................................35
To add or change a Keyless Entry PIN .....................36
Repair Parts 37-38
Rail assembly parts...................................................37
Installation parts ........................................................37
Motor unit assembly parts.........................................38
Accessories 39
Warranty 39
Service Numbers 40
TABLE OF CONTENTS
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical or
from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.
Mechanical
Electrical
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.

3
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver
Adjustable End WrenchLocking pliers
1/2", 7/16" and 1/ " Sockets
and Wrench
Drill
Tape Measure
2
1
Stepladder
Pencil
3/16", 5/16" and
5/32" Drill Bits
Carpenter's
Level
Preparing your garage door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
•Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
Sectional Door
One-Piece Door
To prevent damage to garage door and opener:
• ALWAYS disable locks before installing and operating
the opener.
• ONLY operate garage door opener at 120V, 60 Hz to
avoid malfunction and damage.
To prevent possible SERIOUS INJURY OR DEATH:
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door may not reverse when
required.
• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all
of which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage
door opener to avoid entanglement.
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING

Safety Reversing Sensor
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door
with glass panels, etc.).
See page 2 for details.
FINISHED CEILING
Support bracket &
fastening hardware
is required.
See page 17.
Door
Center
Gap between floor and
bottom of door must not
exceed 1/ " (6 mm)
Header Wall
Access Door
Extension
Spring
Torsion
Spring
OR
— — — — — — — —
Safety
Reversing
Sensor
SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 – Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 5 – Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
• Installation Step 10 – Depending upon garage
construction, extension brackets or wood blocks
may be needed to install sensors.
• Installation Step 10 – Alternate floor mounting of
the safety reversing sensor will require hardware
not provided.
• Do you have an access door in addition to the
garage door? If not, Model 18752 Emergency Key
Release is required. See Accessories page.
• Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 1/ " (6 mm). Otherwise, the
safety reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforce-
ment is required (Installation Step 11).
• The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within feet (1.22 m) to the left or
right of the door center. See Installation Steps 1
and 11.
• If your door is more than 7 feet (2.13 m) high, see
rail extension kits listed on Accessories page.
Trolley
Header
Wall
Garage
Door
Header
Bracket
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door
Bracket
Curved
Door
Arm
Garage
Door
Spring Chain
Trolley
Stop Bolt
CLOSED POSITION

5
Access
Door
Safety
Reversing Sensor
Safety
Reversing
Sensor
Gap between floor
and bottom of door
must not exceed
1/4" (6 mm)
Planning (continued)
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 11.
• Depending on your door’s construction, you may
need additional mounting hardware for the door
bracket (Step 11).
Safety Reversing Sensor
Safety Reversing Sensor
Gap between floor and bottom
of door must not exceed 1/4" (6 mm)
Access Door
ONE-PIECE DOOR WITHOUT TRACK
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door Bracket
Curved
Door
Arm
Header
Wall
Cable
Rail
Garage Door
Trolley Stop Bolt
CLOSED POSITION
ONE-PIECE DOOR WITH TRACK
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing
garage door.
• The gap between the bottom of the garage door and
the floor MUST NOT exceed 1/4" (6 mm). Otherwise,
the safety reversal system may not work properly.
• The floor or the garage door MUST be repaired to
eliminate the gap.
WARNING
CAUTION WARNING
WARNING
Door
Bracket Straight
Door
Arm
Garage
Door
CLOSED POSITION
Header
Bracket
Curved
Door Arm
Chain
Emergency
Release
Rope &
Handle
Cable
Header
Wall
Rail
Trolley Stop Bolt

6
Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
2-Conductor Bell Wire
White & White/Red
Chain and Cable
Sprocket Cover
Hanging Brackets
Light Lens
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Door Bracket
Trolley
Safety Sensor
Bracket (2)
U Bracket
Cable
Idler Pulley
Header Bracket
Three-Function Remote Control
with Visor Clip
Standard Control Console
Models 1805 , 18056 (2), 1865 ,
18656 (2), 1897
Single-Function Remote Control
with Visor Clip
Compact 3-Function
Remote Control
Models 1805 , 1865
Models 18673, 1867 , 18973
Door Control Button
Models 1805 , 18056, 1865 ,
18656, 1867 , 1897
Models 18673, 18973
Rail
Center/Back
Sections
Rail
Front (header)
Section
Your garage door opener is packaged in two cartons which contains the motor unit and the parts illustrated
below. Note that accessories will depend on the model purchased. If anything is missing, carefully check the
packing material. Parts may be stuck in the foam. Hardware for assembly and installation is shown on the next
page. Save the carton and packing material until installation and adjustment is complete.
Carton Inventory

Master
Link (2)
Idler Bolt (1)
Nut
3/8" (1)
Trolley Threaded Shaft (1)
Bolt 1/ "-20 x 1-3/ " (2)
Lock Washer
3/8" (1)
Chain Spreader (2)
Lock Nut
1/ "-20 (2)
Clevis Pin
5/16" x 1-1/2" (1)
NOTICE
Handle
Insulated
Staples (30)
Dry Wall
Anchors (2)
Clevis Pin
5/16" x 1" (1)
Rope
Ring
Fastener (3)
Screw
6AB x 1-1/ " (2)
Lock Washer
5/16" (7)
Lag Screw
5/16"-9 x1-5/8" (2)
Hex Bolt
5/16"-18 x 7/8" ( )
Lag Screw
5/16"-18 x 1-7/8" (2)
Clevis Pin
5/16" x 1-1/ " (1)
SAFETY REVERSING SENSOR
Wing Nut
1/ "-20 (2)
Spacer (2) Nut
5/16"-18 (8)
Carriage Bolt
1/ "-20 x 1/2" (2)
Carriage Bolt
5/16"-18 x 2-1/2" (2)
Screw
6-32 x 1" (2)
Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
7
ASSEMBLY HARDWARE
INSTALLATION HARDWARE

8
ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
Front Rail
(TO DOOR)
Window
Cut-Out
Locking Pliers
Idler
Pulley
Hole
8" (20 cm) Distance from
Idler Pulley Hole
Tabs
Back Rails
(TO MOTOR UNIT)
Trolley
Tapered
End
Tapered
End
Inner Trolley
Wear Pads
Outer Trolley
The front rail has a cut out “window” at the door end
(see illustration). The hole above this window is
larger on the top of the rail than on the bottom. A
smaller hole 3-1/2" ( .9 cm) away is close to the rail
edge. Rotate the back rail so it has a similar hole
close to the opposite edge, about 4-3/4" (12 cm)
from the far end. A 3-piece rail uses two back rails.
1. Remove the straight door arm and clevis pin
packaged inside the front rail and set aside for
Installation Step 12.
2. Align the rail sections on a flat surface exactly as
shown and slide the tapered ends into the larger
ones. Tabs along the side will lock into place.
3. Place the motor unit on packing material to protect
the cover, and rest the back end of the rail on top.
For convenience, put a support under the front end
of the rail.
. As a temporary trolley stop, clamp a locking pliers
onto the rail, 8" (20 cm) from the center of the idler
pulley hole, as shown.
5. Check to be sure there are black plastic wear
pads inside the inner trolley. If they became loose
during shipping, check all packing material. Snap
them back into position as shown.
6. Connect the inner and outer trolleys as shown.
7. Slide the trolley assembly along the rail from the
back end to the locked pliers.
KEEP LARGER
HOLE ON TOP
FRONT RAIL
(TOP)
KEEP SMALL HOLES
ALONG OPPOSITE EDGE
OF RAILS
BACK RAIL
(TOP)

9
Lock Nut
1/ "-20
Bolt 1/ "-20 x 1-3/
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 2

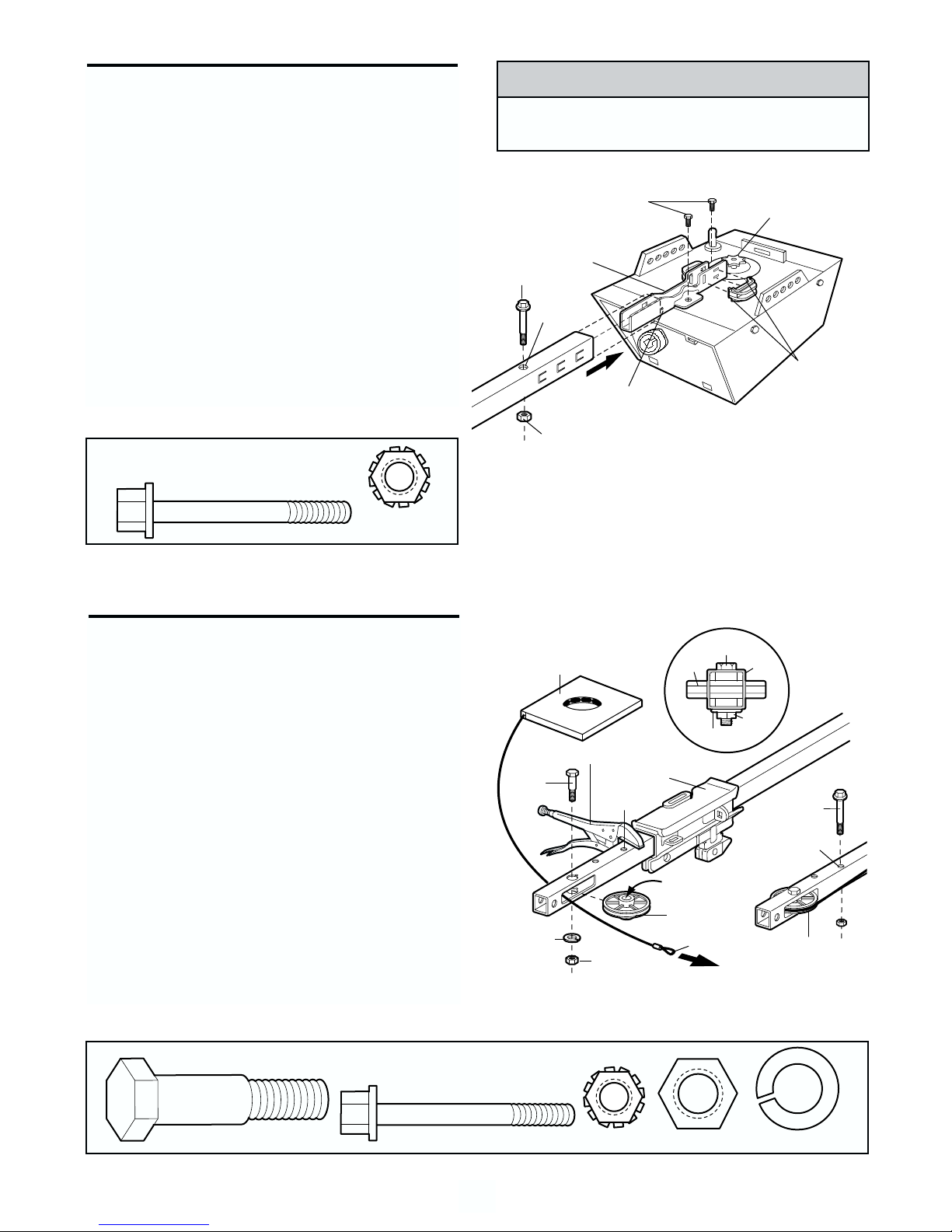

Fasten the Rail to the Motor Unit
• Insert a 1/ "-20 x 1-3/ bolt into the cover
protection bolt hole on the back end of the rail as
shown. Tighten securely with a 1/ "-20 lock nut.
• Remove the two bolts from the top of the motor unit.
• Attach spreaders to the U bracket by snapping
them into place.
• Place the U bracket, flat side down, on the motor
unit and align the bracket holes with the screw
holes. Fasten with the previously removed screws.
• Align the rail assembly with the top of the motor
unit. Slide the rail end onto the U-bracket, all the
way to the stops that protrude on the top and sides
of the bracket.
Cover
Protection
Bolt Hole
Motor Unit
Sprocket
"U" Bracket
Bolts
Lock Nut
Bolt
Hook Spreader
into Back Slots,
then Snap Tab
Into Front Slot
SLIDE RAIL TO STOPS
ON TOP AND SIDES
OF BRACKET
To avoid serious damage to garage door opener, use
only those bolts mounted in the top of the opener.
WARNING
CAUTION
WARNING
WARNING
Nut 3/8" Lock Washer 3/8"
Idler Bolt Lock Nut 1/ "-20
Bolt 1/ "-20 x 1-3/
Idler
Pulley
Grease
Inside Pulley
3/8" Lock
Washer
3/8" Nut
Cable Loop
Idler
Bolt
Locking Pliers
Trolley
Stop Hole
Chain and
Cable Pulley Rail
Bolt
Nut
Washer
Trolley
Idler Pulley
Trolley
Stop Hole
Bolt
ASSEMBLY STEP 3
Install the Idler Pulley

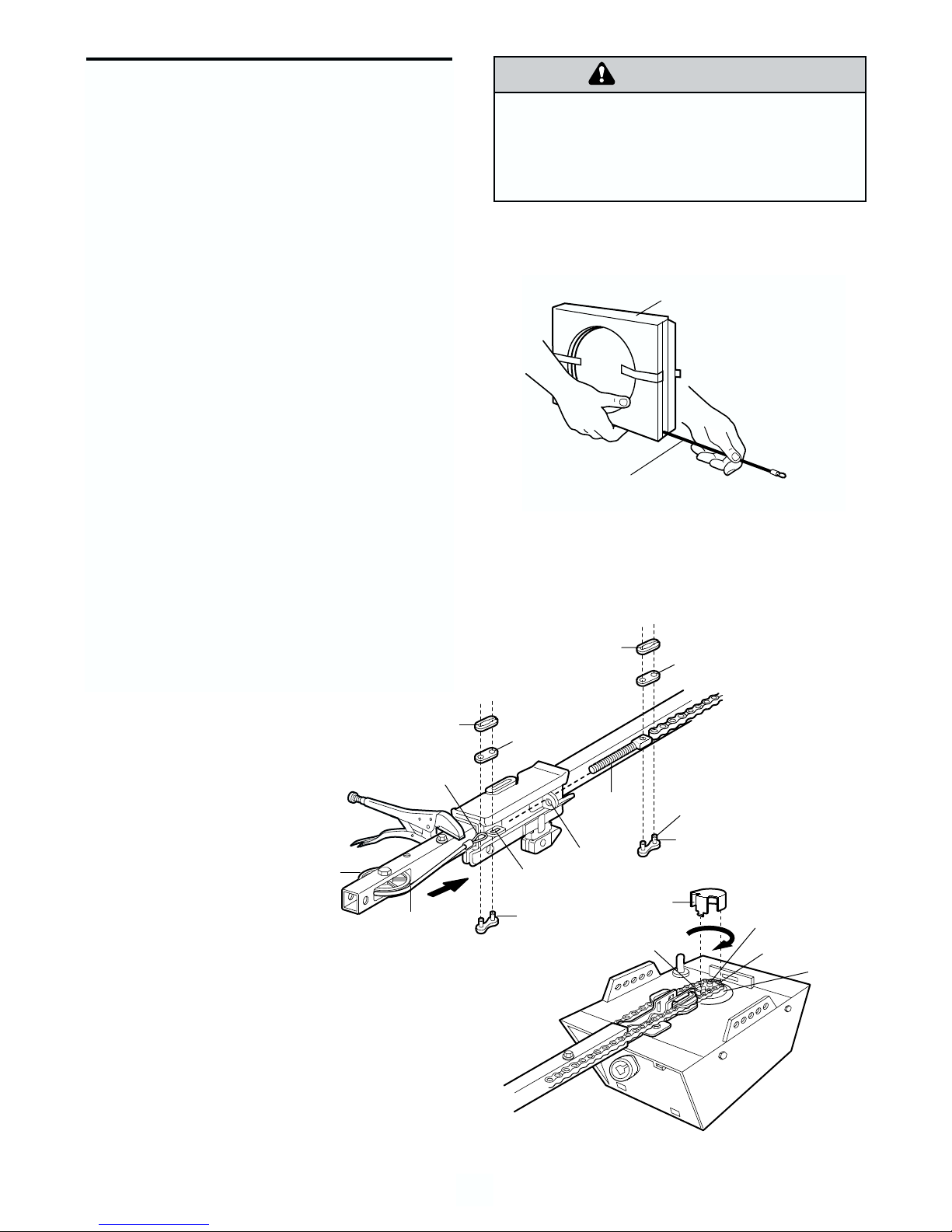

• Lay the chain/cable beside the rail, as shown.
Grasp the end with the cable loop and pass
approximately 12" (30 cm) of cable through the
window. Allow it to hang until Assembly Step 5.
• Remove the tape from the idler pulley. The inside
center should be pre-greased. If dry, regrease to
ensure proper operation.
• Place the idler pulley into the window as shown.
• Insert the idler bolt from the top through the rail
and pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is
compressed.
• Rotate the pulley to be sure it spins freely.
• Insert a 1/ "-20 x 1-3/ bolt into the trolley stop
hole in the front of the rail as shown. Tighten
securely with a 1/ "-20 lock nut.
HARDWARE SHOWN ACTUAL SIZE

ASSEMBLY STEP 4
Install the Chain/Cable
and Attach the Sprocket Cover
1. Pull the cable around the idler pulley and toward
the trolley.
2. Connect the cable loop to the retaining slot on the
trolley, as shown:
• From below, push pins of master link bar up
through cable loop and trolley slot.
• Push master link cap over pins and past pin
notches.
• Slide clip-on spring over cap and onto pin
notches until both pins are securely locked
in place.
3. With the trolley against the pliers, dispense the
remainder of the cable/chain along the rail toward
the motor unit and around the sprocket. The
sprocket teeth must engage the chain.
. Check to make sure the chain is not twisted, then
connect it to the threaded shaft with the
remaining master link.
5. Thread the inner nut and lock washer onto the the
trolley shaft.
6. Insert the trolley threaded shaft through the hole
in the trolley. Be sure the chain is not twisted.
7. Loosely thread the outer nut onto the trolley shaft.
8. Remove the locking pliers.
9. Align the tabs on the sprocket cover with the slots
in the mounting plate. Squeeze cover and insert
tabs in slots.
10
Idler
Pulley Slotted
Hole
Round
Hole
Master Link
Clip-On Spring
Master
Link Cap
Trolley
Threaded
Shaft Master
Link Bar
Cable
Loop
Cable
Pin
otch
Master Link
Clip-On Spring Master
Link Cap
Master
Link Bar
Motor Unit
Sprocket
Sprocket
Cover
Front
Tab Slot
Mounting
Plate
Back
Tab Slot
Leave Chain and Cable
Inside Dispensing
Carton to Prevent Kinking.
Dispensing Carton
Keep Chain and Cable
Taut When Dispensing
To avoid possible serious injury to fingers from moving
garage door opener:
•ALWAYS keep hand clear of sprocket while operating
opener.
•Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION WARNING
WARNING

ASSEMBLY STEP 5
Tighten the Chain
• Spin the inner nut and lock washer down the
threaded shaft, away from the trolley.
• To tighten the chain, turn outer nut in the direction
shown in Figure 1.
• When the chain is approximately 1/ " (1 mm)
above the base of the rail at its midpoint, re-tighten
the inner nut to secure the adjustment.
Sprocket noise can result if chain is too loose.
When installation is complete, you may notice some
chain droop with the door closed. This is normal. If
the chain returns to the position shown in Figure
when the door is open, do not re-adjust the chain.
NOTE:During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley
before adjusting chain.
NOTE: You may notice loosening of chain after
Adjustment Step 3 Test the Safety Reversal
System). Check for proper tension and readjust
chain if necessary. Then repeat Adjustment Step 3.
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section.
11
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of severe injury or death:
ARNING
CAUTION ARNING
ARNING
Chain
Base of Rail
1/ " (1 mm)
To Tighten
Inner Nut
To Tighten Outer Nut
Mid length of Rail
Outer
Nut
Lock
Washer
Trolley
Shaft
Inner Nut
Figure 1
Figure 2
1. READ AND FOLLOW ALL INSTALLATION WARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door may not reverse when required and could result in
severe injury or death.
3. All repairs to cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician before installing opener.
4. Disable all locks and remove all ropes connected to
garage door before installing opener to avoid
entanglement.
5. Install garage door opener 7 feet (2.13 m) or more
above floor.
6. Mount emergency release handle 6 feet (1.83 m)
above floor.
7. NEVER connect garage door opener to power source
until instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door
• out of reach of children at minimum height of 5
feet (1.5 m).
• away from all moving parts of the door.
10. Place entrapment warning label on wall next to garage
door control.
11. Place manual release/safety reverse test label in plain
view on inside of garage door.
12. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a one-
inch high (2.5 cm) high object (or a 2 x 4 laid flat) on
the floor.

1
One-piece
door with
horizontal
track
Header Wall
Ceiling
Track
Highest Point
of Travel
Door
" (5 cm)
Sectional door
with curved
track
Door
Track
Header Wall
Highest Point
of Travel
" (5 cm)
Vertical
Centerline
Finished
Ceiling
Vertical
Centerline
Header
Wall x4 Structural
Supports
INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation procedures vary according to garage
door types. Follow the instructions which apply to
your door.
SECTIONAL DOOR
AND ONE-PIECE DOOR ITH TRACK
1. Close the door and mark the inside vertical
centerline of the garage door.
. Extend the line onto the header wall above
the door.
You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center
only if a torsion spring or center bearing plate
is in the way; or you can attach it to the ceiling
(see page 14) when clearance is minimal.
(It may be mounted on the wall upside down if
necessary, to gain approximately 2" [5 cm].)
If you need to install the header bracket on a x 4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the x 4 to structural supports
as shown here and on page 13.
3. Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall " (5 cm) above the high point. This
height will provide travel clearance for the top edge
of the door.
NOTE: Door clearance brackets are available for
sectional doors when headroom clearance is less
than 2" 5 cm). See accessory page 39.
Proceed to Step , page 14.
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to
structural support on header wall or ceiling, otherwise
garage door might not reverse when required. DO NOT
install header bracket over drywall.
• Concrete anchors MUST be used if mounting header
bracket or 2 x 4 into masonry.
• NEVER try to loosen, move or adjust garage door,
springs, cables, pulleys, brackets, or their hardware, all
of which are under EXTREME tension.
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door might not reverse when
required.
ARNING
CAUTION ARNING
ARNING

13
Header Wall Vertical
Centerline
Vertical
Centerline
of Garage
Door
x 4
Unfinished
Ceiling
x 4
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
Structural
Supports
Door
Highest Point
of Travel
Header Wall
Pivot
Distance
Floor
One-piece door without track:
pivot hardware
Header Wall
Highest Point
of Travel
Door
Floor
Distance
Jamb
Hardware
One-piece door without track:
jamb hardware
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ...... 9 " ( .3 m)
Actual height of door.......................... -88" ( . m)
Remainder.......................................... 4" (10 cm)
Add..................................................... +8" ( 0 cm)
Bracket height on header wall............ =1 " (30 cm)
(Measure UP from top of CLOSED door.)
Proceed to Step , page 14.
ONE-PIECE DOOR ITHOUT TRACK
1. Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 14.
If you need to install the header bracket on a x 4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the x 4 to structural supports
as shown.
. Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 8" ( 0 cm) to the remainder. (See
Example).
3. Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 14 for ceiling
installation.

Lag Screws
5/16" x 9 x 1-5/8"
Vertical Centerline
– Finished Ceiling –
Door
Spring
Header Wall
P
Ceiling Mounting Holes
6" (15 cm) Maximum
Header
Bracket
Vertical
Centerline
Garage Door
14
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided .
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
• Mark the vertical set of bracket holes. Drill 3/16"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling
as shown.
• Center the bracket on the vertical mark, no more
than 6" (15 cm) from the wall. Make sure the arrow
is pointing away from the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.
Lag Screw
5/16"-9 x 1-5/8"
HARDWARE SHOWN ACTUAL SIZE
Mounting
Holes
Lag Screws
5/16" x 9 x 1-5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline
Header
Wall
Garage
Door
Door Spring
2 x 4
Structural
Support
Vertical
Centerline
Header
Bracket
P
Wall Mount
Optional
Mounting Holes

OPTION WITH
EXISTING CRAFTSMAN
INSTALLATION
Header Bracket
Idler Pulley
Header Wall
Header
Bracket
Mounting
Hole
Existing
Header Bracket
Spacer Mounting
Hole
Existing
Clevis Pin
Clevis Pin 5/16" x 1-1/ " Ring fastener
HARD ARE SHO N ACTUAL SIZE
15

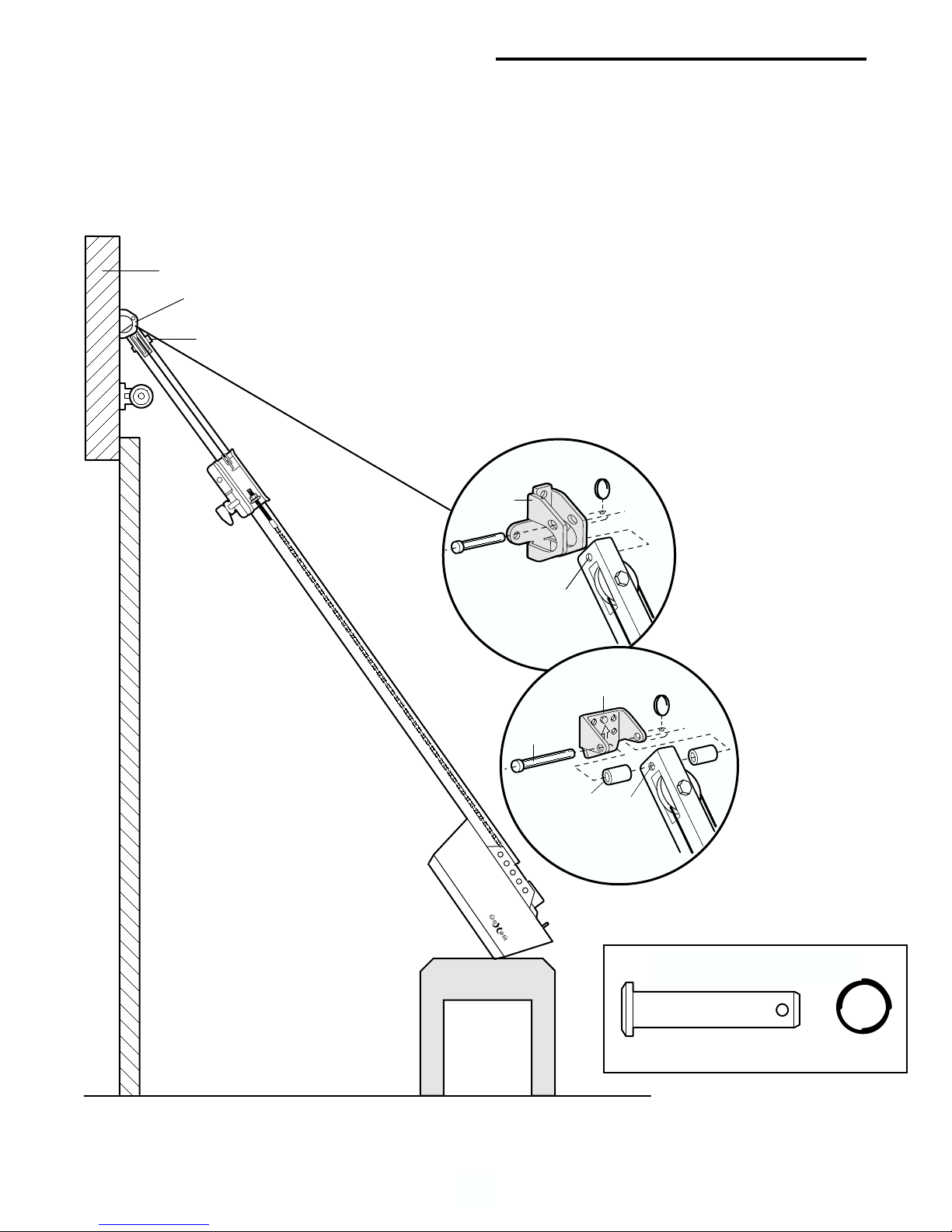

INSTALLATION STEP 3
Attach the Rail to the Header
Bracket
NOTE: Optional) With an existing Craftsman
installation, you may re-use the old header bracket
with the two plastic spacers included in the hardware
bag. Place the spacers inside the bracket on each
side of the rail, as illustrated.
• Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way you’ll need
help. Have someone hold the opener securely on a
temporary support to allow the rail to clear the spring.
• Position the front rail end within the header bracket
and join with a 5/16" x 1-1/ " clevis pin as shown.
• Insert a ring fastener to secure.

16
ONE-PIECE DOOR ITHOUT TRACK
• With the door fully open and parallel to the floor,
measure the distance from the floor to the top of
the door.
• Using a stepladder as a support, raise the top of
the opener to this height.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than " (5 cm) above this point.
INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR ITH
TRACK
A x 4 laid flat is convenient for setting an ideal
door-to-rail distance.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a x 4 laid
flat on the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Step 1
is completed.
x 4
Door
Outer Trolley Inner Trolley
Ladder
Ladder
Header
Bracket
Top of Door
Top of Motor Unit
ENGAGED RELEASED
Trolley
Release Arm
To prevent damage to garage door, rest garage door
opener rail on 2 x 4 placed on top section of door.
ARNING
CAUTION
ARNING
ARNING

Bracket
(Not Provided)
ag Screws
5/16"-18x1-7/8"
(Not Provided)
5/16"-18 x 7/8" Bolt
5/16" ock Washer
5/16"-18 Nut
— FINISHED CEILING —
5/16"-18 x 7/8" Bolt
5/16" ock Washer
5/16"-18 Nut
Hidden
Support
Measure
Distance
ag Screws
5/16"-18 x 1-7/8"
Structural
Supports
5/16"-18 x 7/8" Bolt
5/16" ock Washer
5/16"-18 Nut
17
INSTALLATION STEP 5
Hang the Opener
Two representative installations are shown. Yours
may be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2), attach a sturdy metal bracket to
structural supports before installing the opener. The
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor
unit to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18 x 1-7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18 x 7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2 x 4. Operate the door manually. If
the door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this
time.
To avoid possible SERIOUS INJURY from a falling
garage door opener, fasten it SECURELY to structural
supports of the garage. Concrete anchors MUST be used
if installing any brackets into masonry.
Hex Bolt
5/16"- 18 x 7/8" Nut 5/16"-18 ock Washer 5/16"
ag Screw
5/16"-18 x 1-7/8"
HARDWARE SHOWN ACTUAL SIZE
Figure
Figure 2
WARNING
CAUTION WARNING
WARNING

Antenna
Opener
Terminal Screws
2-Conductor Bell Wire
ighted
Push Button
STANDARD CONTRO CONSO E
BACK PANE
KG KG
3
9
7
5
3
9
7
5
23
WHITE
2RED
1
DOOR
CONTRO
BUTTON Terminal
Screws
STANDARD CONTRO
(BACK VIEW)
Terminal Screws
Bell
Wire
DOOR CONTRO
BUTTON (BACK)
WHT
2
1
RED
Top
Mounting
Hole
Bottom
Mounting
Hole
Bell
Wire
18

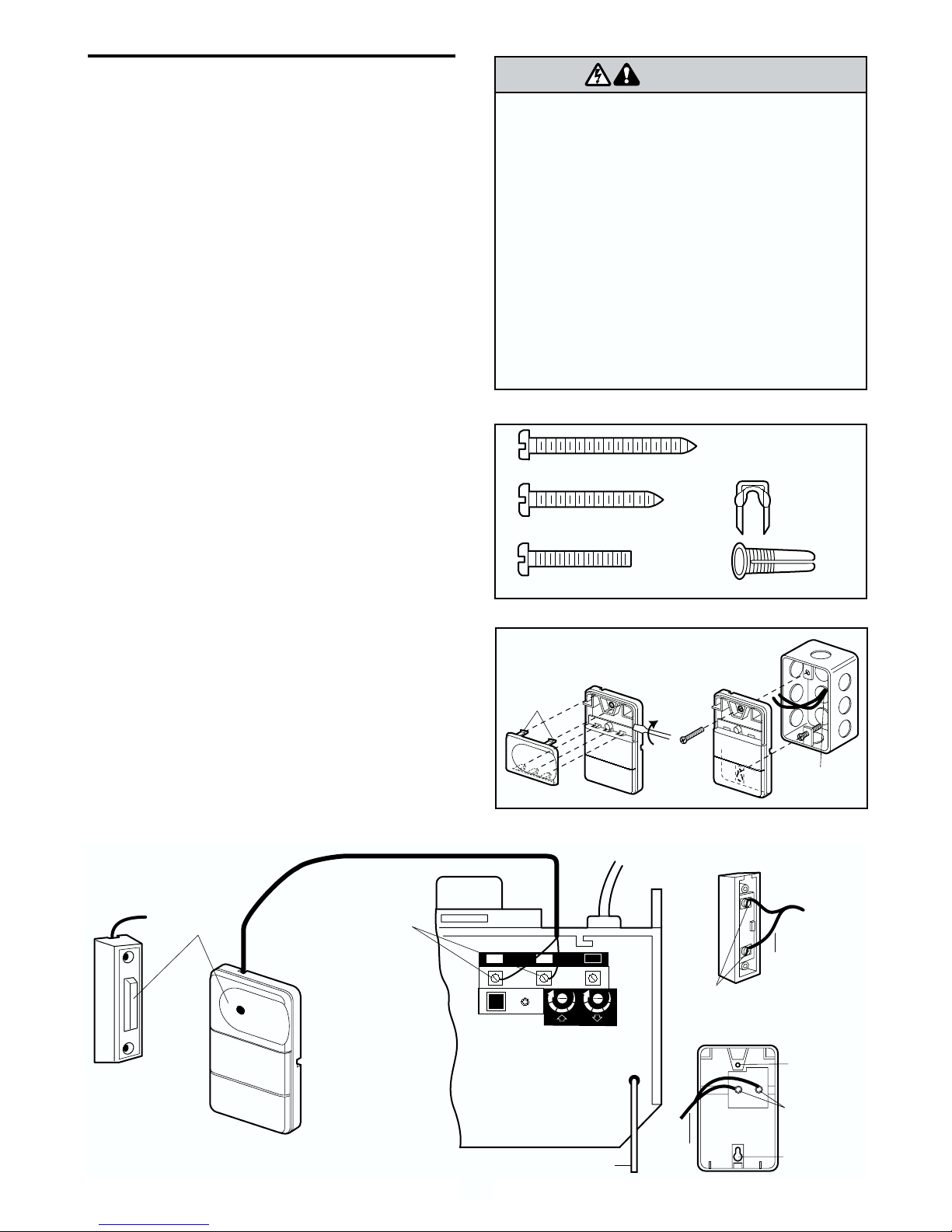

INSTALLATION STEP 6
Install the Door Control
ocate door control within sight of door, at a minimum
height of 5 feet (1.5 m) where small children cannot
reach, away from moving parts of door and door
hardware. If installing into drywall, drill 5/32" holes and
use the anchors provided. For pre-wired installations
(as in new home construction), it may be mounted to a
single gang box (Figure 2).
1. Strip 1/4" (6 mm) of insulation from one end of the
bell wire and connect it to the two screw terminals on
the back of the door control: white to 2, and white/red
to 1.
2. Door Control Button: Fasten securely with
6AB x 1-1/2" screws.
Console Model: Pry off cover along one side with a
screwdriver blade (Figure 1). Fasten with
6AB x 1-1/4" self-tapping screws (standard
installation) or 6-32 x 1" machine screws (pre-wired
installation) as follows:
• Install bottom screw, allowing 1/8" (3 mm) to
protrude above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Drill and install top screw with care to avoid
cracking plastic housing. Do not overtighten.
• Insert top tabs and snap on cover.
3. (For standard installation only) Run bell wire up
wall and across ceiling to motor unit. Use insulated
staples to secure wire in several places. Do not
pierce wire with a staple, creating a short or open
circuit.
4. Connect the bell wire to the terminal screws on the
opener panel: white to 2; white/red to 1.
5. Position the antenna wire as shown.
6. Use tacks or staples to permanently attach
entrapment warning label to wall near door control,
and manual release/safety reverse test label in a
prominent location on inside of garage door.
NOTE: DO NOT connect power and operate opener at
this time. The trolley will travel to the full open position
but will not return to the close position until the sensor
beam is connected and properly aligned.
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing door
control.
• Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a
closing garage door:
• Install door control within sight of garage door, out of
reach of children at a minimum height of 5 feet (1.5 m),
and away from all moving parts of door.
• NEVER permit children to operate or play with door control
push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed.
NEVER permit anyone to cross path of closing garage door.
WARNING
CAUTION
WARNING
WARNING
Dry Wall Anchors
Insulated
Staples
6AB x 1-1/4" Screw
Control Console (std installation)
6-32 x 1" Screw
Control Console (pre-wired)
6AB x 1-1/2" Screw
Door Control Button
HARDWARE SHOWN
ACTUAL SIZE
To Replace,
Insert
Top Tabs
First
To Remove,
Twist
Here
PRE-WIRED
INSTA ATION
REMOVE & REP ACE COVER
Figure Figure 2
24 Volt
2-Conductor
Bell Wire

19

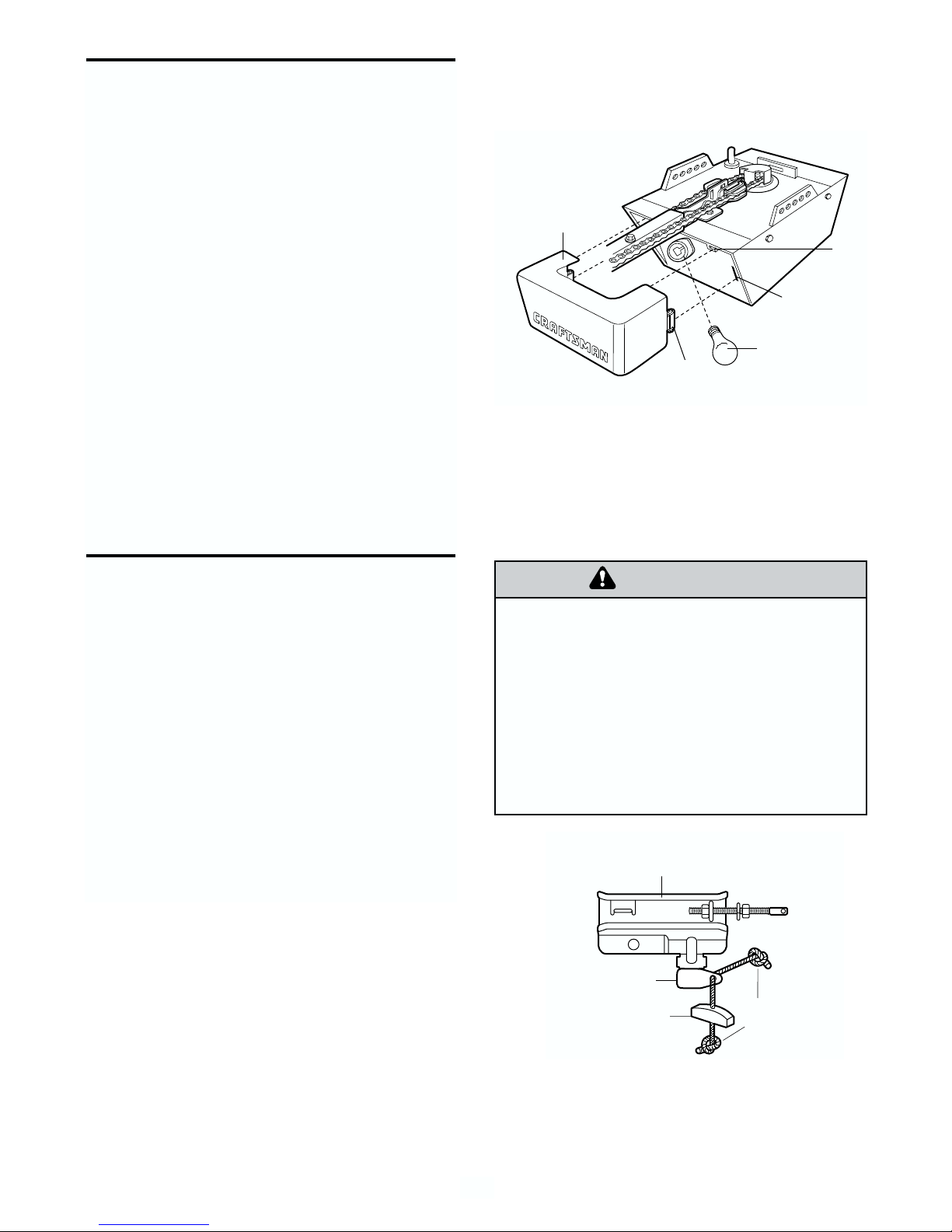

INSTALLATION STEP 7
Install the Light
• Install a 75 watt maximum light bulb in the socket.
The light will turn ON and remain lit for
approximately 4-1/2 minutes when power is
connected. Then the light will turn OFF.
• Use standard neck Garage Door Opener bulbs for
replacement.
Install the Lens
• Apply slight pressure on the sides of the lens and
slide the tabs into the slots in the end panels.
• For convenience, the lenses may be installed after
Adjustment Step 4.
• Reverse the procedure to remove the lenses.
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
• Thread one end of the rope through the hole in the
top of the red handle so "NOTICE" reads right side
up as shown. Secure with an overhand knot at
least 1" (2.5 cm) from the end of the rope to
prevent slipping.
• Thread the other end of the rope through the hole
in the release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.83 m)
above the floor. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal the
cut end with a match or lighter to prevent unraveling.
ens
Guide
ens
Slot
75 Watt Max.
ight Bulb
ens
Tab
ight
ens
Trolley
Release arm
NOTICE
Emergency
Release Handle
Overhand
Knot
Trolley
• To prevent possible SERIOUS INJURY or DEATH from
a falling garage door:
– If possible, use emergency release handle to
disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced
door could result in an open door falling rapidly
and/or unexpectedly.
– NEVER use emergency release handle unless garage
doorway is clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope
knot becomes untied, you could fall.
WARNING
CAUTION WARNING
WARNING

0
To prevent possible SERIOUS INJURY or DEATH from
electrocution or fire:
• Be sure power is not connected to the opener, and
disconnect power to circuit BEFORE removing cover to
establish permanent wiring connection.
• Garage door installation and wiring MUST be in
compliance with all local electrical and building codes.
• NEVER use an extension cord, 2-wire adapter, or
change plug in any way to make it fit outlet. Be sure
the opener is grounded.
ARNING
CAUTION ARNING
ARNING
INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding
type outlet. If the plug doesn't fit into the outlet you
have, contact a qualified electrician to install the
proper outlet.
If permanent wiring is required by your local
code, refer to the following procedure.
To make a permanent connection through the 7/8"
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the
cover aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the
brass terminal; the white (neutral) wire to the screw
on the silver terminal; and the ground wire to the
green ground screw. The opener must be
grounded.
• Reinstall the cover.
To avoid installation difficulties, do not run the
opener at this time.
RIGHT RONG
Ground Tab
Green
Ground Screw
Ground Wire
Black Wire
PERMANENT IRING
CONNECTION
White Wire
Black
Wire
