Craftsman 200.57933 User manual

Owner’s Manual/Manual Del Propietario
Read and follow all safety rules and operating
instructions before first use of this product.
Fasten the manual near the garage door after
installation.
Periodic checks of the opener are required to
ensure safe operation.
DO NOT install on a one-piece door.
SEOMU01A-1
Write down the Craftsman®serial number located on the garage door opener:
Anote en el recuadro el número de seria de Craftsman ubicado en el abre-puerta:
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A
www.craftsman.com
Leer y seguir todas las reglas de seguridad y
las instrucciones de operación antes de usar
este producto por primera vez.
Guardar este manual cerca de la puerta de la
cochera.
Se deben realizar revisiones periódicas del
abridor de puertas para asegurar su
operación segura.
Los dispositivos y funciones automáticas
deben usarse ÚNICAMENTE con puertas
seccionales.
Spanish Section Begins Page: 29
Manual en Español empieza en la pagina: 29
For Residential Use Only
Sólo para uso residencial
GARAGE DOOR OPENER
Abridor de puerta de cochera
MODEL/MODELO 200.57933

2
Table of Contents
Courtesy light turns on/flashes with audible ‘click’.
(If light bulb is not installed, ‘click’ represents the light)
DO NOT connect power Please connect power
Introduction
Symbols and Icons 2
Inventory 3
Preparation / Tools Required 4
Assembly
Rail and Trolley Assembly 5
Installing the Cable and Chain 6
Important Installation Instructions 7
Mounting Header Bracket 8
Installation

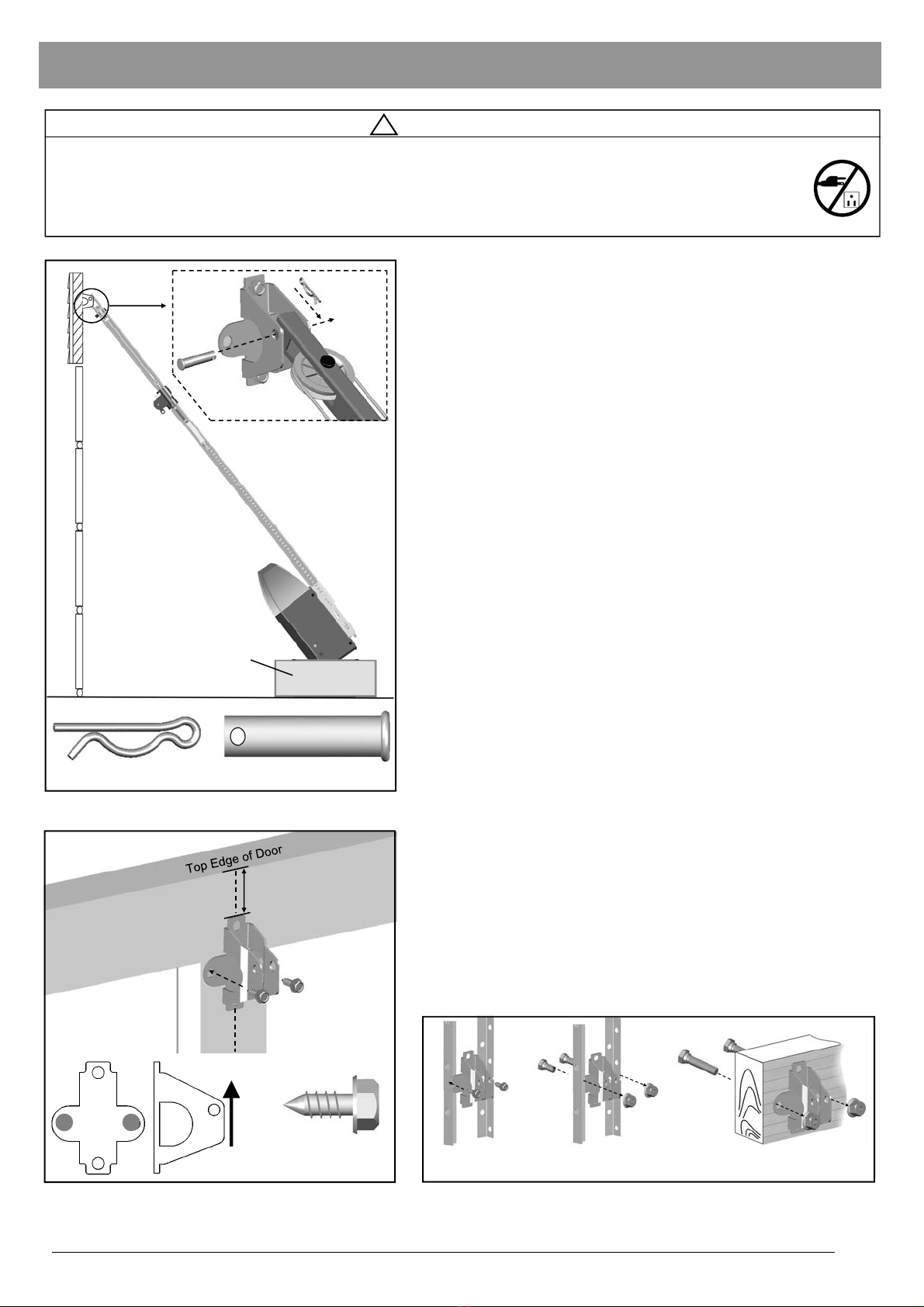

Attaching Rail to Header Bracket and Mounting Door Bracket 9
Mounting Opener to Ceiling 10
Attaching Door Arms 11
Installing Light and Emergency Release Handle 12
Wiring

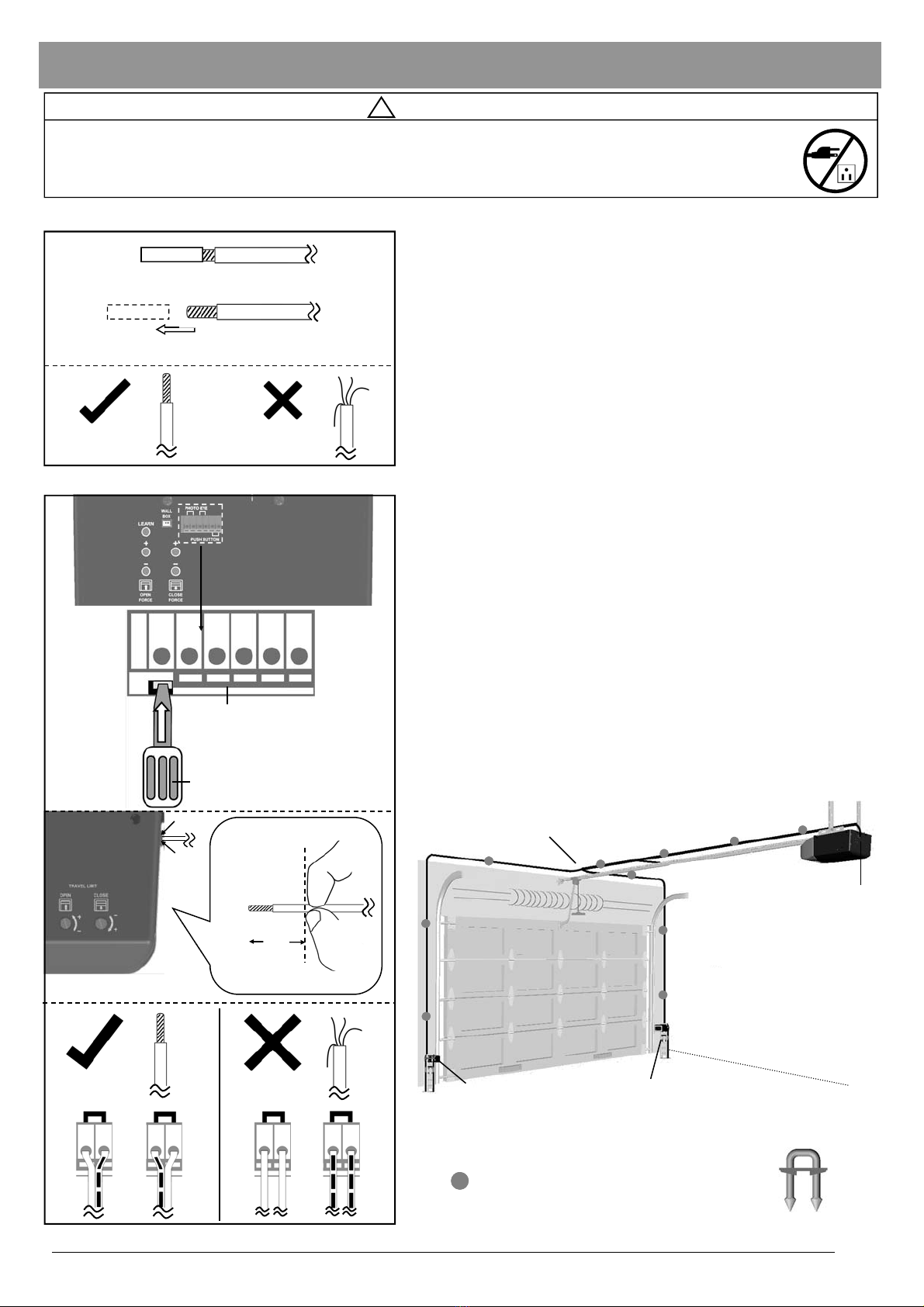

Wiring Instructions 13
Connecting Photo Eye Safety System 14

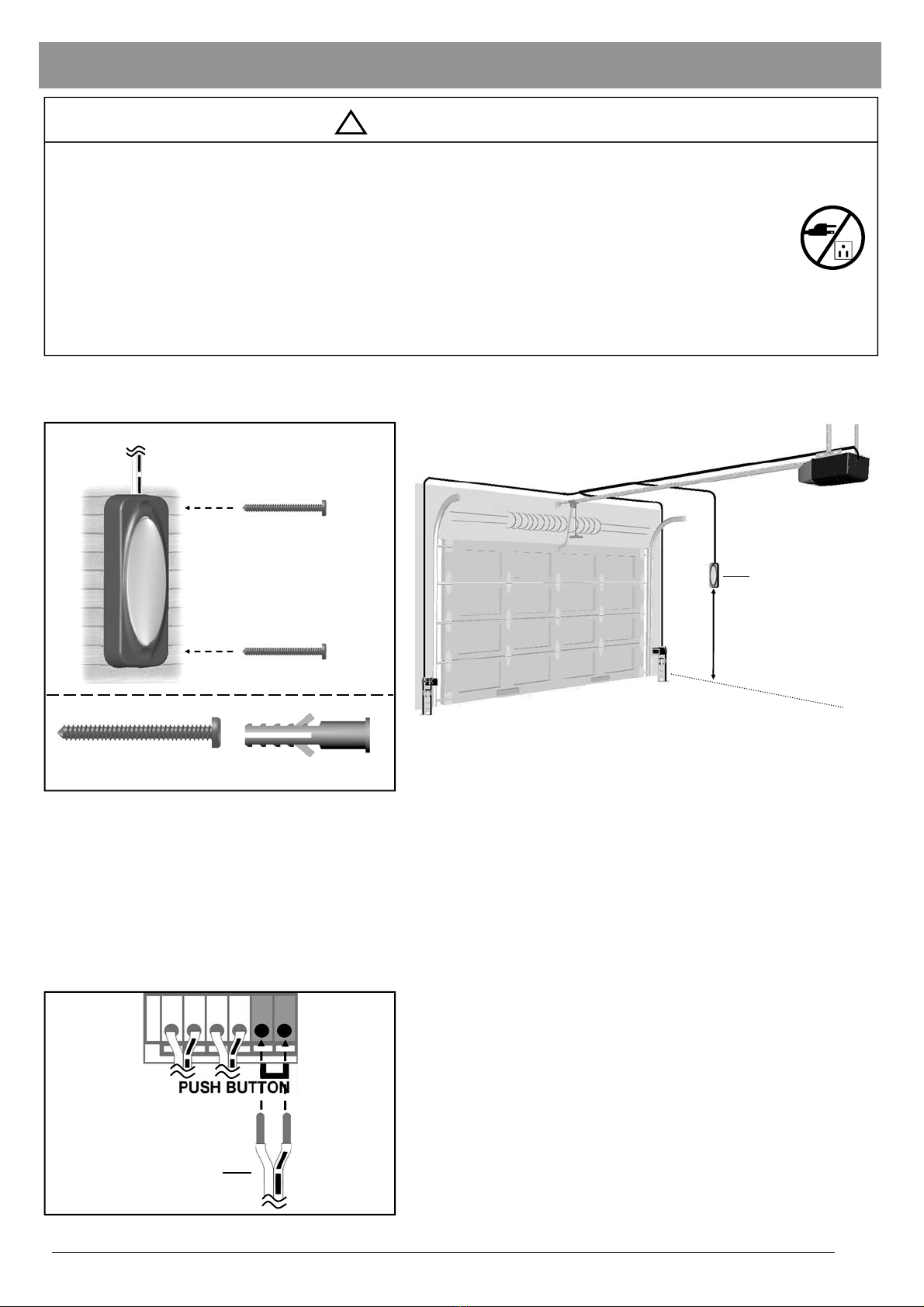

Connecting Push Button 15
ConnectingPower 16
Adjustment
Aligning the Photo Eye Safety System 16

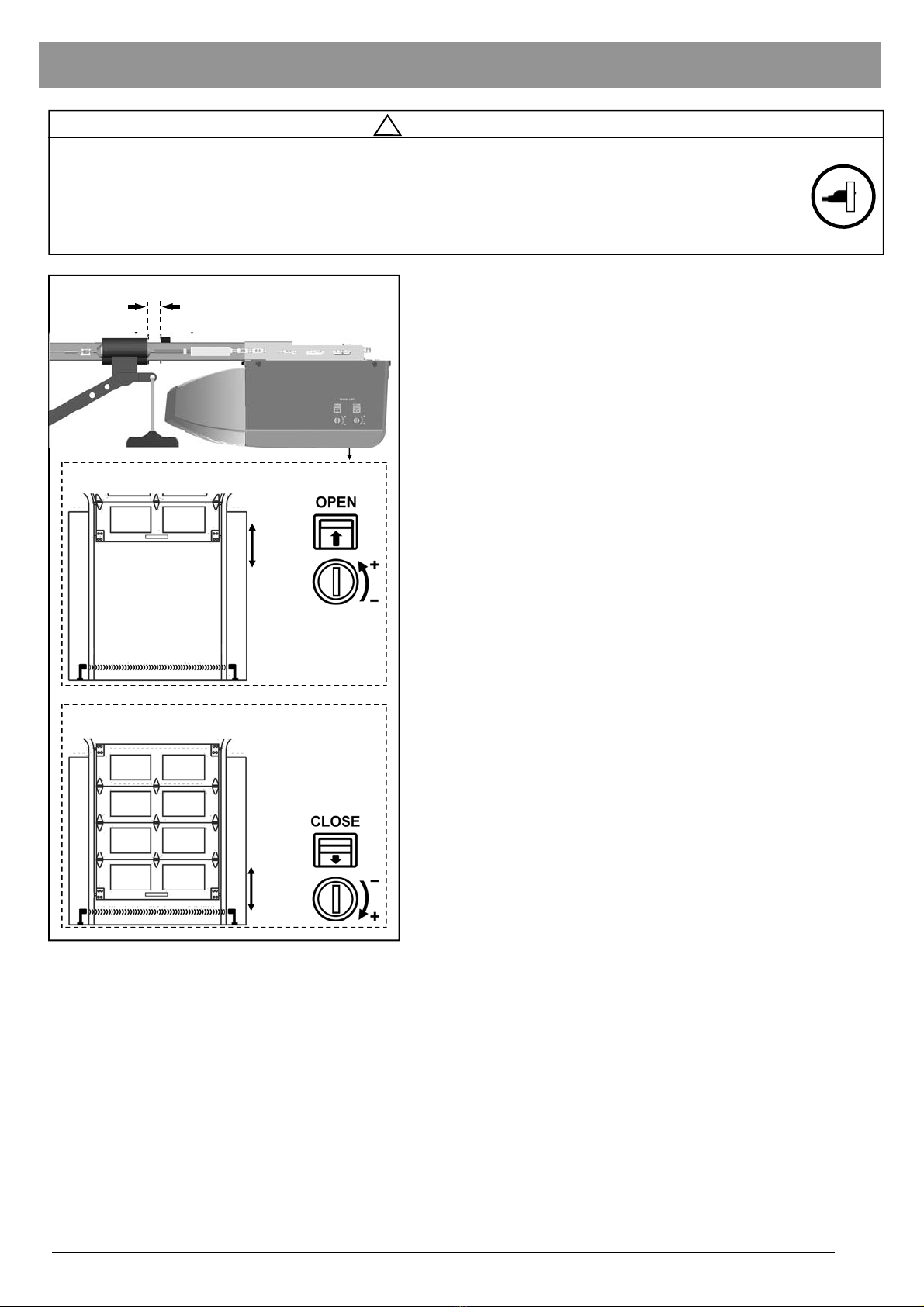

Travel Limit Adjustment 17
Force Adjustment 18
Final Adjustment and Testing 19
Operation
Programming 1 Button Remote 20
Programming Keyless Entry Pad* 21
Important Safety Instructions 22
Operating the Opener 23-24
Maintenance 25
Troubleshooting 25
Repair Parts and Service
Rail Assembly Parts / Installation Parts / Accessories 26
Opener Assembly parts 27
Warranty 28
Symbols and Icons
! WARNING READ WARNINGS CAREFULLY to prevent SERIOUS INJURY or DEATH caused by
electrocution or mechanical hazard.
Installation hardware
*See Accessories in Repair Parts section of this manual for purchase information.

3
— Door arms / Mounting Opener
Inventory
x 2
Clevis Pin — Pulley
3/8” x 1-3/4”
Hitch Pin — Locking Clevis Pins
x 4
Lag Screw #12 x 1”— Photo Eye System
Lag Screw 5/16” x 1-1/2”
— Header Bracket / Mounting Opener
Bolt 5/16” x 1”
Drywall Anchor
- Push Button
x 2
x 2
Screw #6 x 1-1/4”
- Push Button
x 30
5/16” Flange Nut
x 4 x 4
x 4
x 4
x 1
x 1
Emergency Release Handle + Rope
Literature + Safety Labels
Chain
Photo Eye Safety System
Opener Unit + Light Lens Cover
Sprocket Cover
Header
Bracket
Door Bracket
Trolley
Door Arms
Pulley
Rail — Header Segment
Rail — Middle Segments x3
INSTALLATION HARDWARE, LOCATED IN HARDWARE BAG (SHOWN IN ACTUAL SIZE)
Hanging
Brackets
Insulated Staples
— Securing wires
x 2
Self-Threading Screw 1/4” x 5/8”
Door Bracket
Trolley Shaft
and Cable
Master Link Set
—Trolley Shaft
x 1
Rail — End Segment with Trolley Stop Bolt
Clevis Pin — Door arms
5/16” x 1”
Clevis Pin — Header Bracket
5/16” x 1-1/2”
1-Button
Remote Push Button
OPTIONAL
3-Button Mini
Remote*
Wireless Keyless Entry Keypad*
Drywall Anchor
x 2
x 2
Screw #6 x 1”
OPTIONAL
*See Accessories in Repair Parts section of this manual for purchase information.

4
Preparation
Level
Tape Measure
Hack Saw
Pencil
Drill, 3/16” and 5/16” Drill Bits
Tools Required
Step Ladder
Screwdriver
Hammer
Sectional Garage Door BEFORE beginning Installation:
1. Disable locks and remove all ropes connected to the
garage door.
2. Perform the following door test to ensure your door is
balanced and in good working condition.
To Test Your Garage Door
1. Raise and lower the door to check if there is any sticking or
binding.
2. Check for loose hinges, damaged rollers, frayed cables and
damaged or broken springs.
3. Lift the door approximately halfway and release. The door
should stay at the point under proper spring tension.
Call a qualified garage door service technician if your door binds,
sticks or is unbalanced.
! WARNING
To prevent SERIOUS INJURY or DEATH:
- Before beginning installation of the opener please complete the following test to ensure that your door is
balanced and in good working condition.
- A poorly balanced door can cause serious injury and damage to the opener.
- Always have a qualified garage door service technician make any required adjustments and/or repairs to
your door before proceeding with installation.
- DISABLE ALL LOCKS and REMOVE ALL ROPES connected to the garage door BEFORE installing
and/or operating the opener.
To prevent damage to the door and opener:
- DO NOT connect power until instructed.
- Operate this opener with AC 120V/60Hz power supply ONLY.
Pliers
Adjustable Wrench Ratchet with
5/16”, 7/16” and 1/2” sockets
DO NOT REUSE PARTS FROM ANOTHER BRAND OF OPENER!!!

5
Rail and Trolley Assembly
Opener
Trolley direction (Top View)
Clevis Pin
Pulley
Hitch Pin
Clevis Pin — 3/8” x 1-3/4”
Hitch Pin
Connect shaft to Trolley with “click”
To Assemble Rail and Opener
1. Prepare the rails as shown in Fig.1.
2. Connect the rails starting with the header segment. Insert
the tapered ends into open ends, apply any additional force
necessary by tapping the rail on padded flooring. Ensure
the end segment has trolley stop bolt facing up. Make sure
the rails are securely joined together as shown.
3. Slide the trolley onto the rail from the header segment.
Make sure the arrow is pointing towards the door as shown
in Fig.1.
4. Connect the rail assembly to the rail bracket on the opener.
To Assemble the Header Section of Rail
Follow steps shown in Fig.2:
1. Remove the “trolley shaft and cable” from the chain carton
and lay it beside the rail assembly. Hold cable eyelet on the
end of cable and thread about 20” (50cm) through the slot
on the Header Segment of the rail.
2. Insert the pulley into the opening while the cable is hanging.
3. Secure the pulley by inserting the 3/8” x 1-3/4” clevis pin
through the top of the rail.
4. Lock the clevis pin with a hitch pin. Rotate the pulley to
ensure it spins smoothly.
Refer to Fig.3 to connect the trolley shaft to the trolley. Slide both
the trolley shaft and trolley towards each other. A “click” will be
heard when they are connected.
To Link Cable with Chain
Refer to Fig.4. Place the chain carton beside the rail, hold the
“chain to cable connector” and pull about 8” (20cm) of chain from
the box. Thread the chain to cable connector onto the trolley
shaft so that they are loosely linked together.
Fig.1
Fig.2
Fig.4
Fig.3
! CAUTION
- DO NOT connect power until instructed.
- To prevent INJURY, keep hands and fingers
away from joints and possible sharp edges.
- Wear gloves when installing chain and cable.
Rail Bracket
1
3
4
2
Trolley Shaft
Trolley Shaft Trolley
Cable Eyelet
Loosely link together
Trolley Shaft Chain-to-Cable Connector
Chain
When connecting the rails ensure they are securely connected as shown above.
To apply additional force tap gently on the end of the rail with a rubber mallet*.
*Only use a soft rubber mallet to tap on the end of the rails as other tools may damage your rail.
Rail — Header Segment
Rail — Middle Segments
(tapered) x 3
Rail — End Segment (tapered)
with Trolley Stop Bolt
DOOR
If the supplied chain and rails are not long enough for your installation, you may purchase an 8-foot or 10-foot Chain Drive
Extension Kit. To purchase a kit, visit a Craftsman outlet ,call 1-888-331-4569,or go online to www.craftsman.com

6
To Install Chain
1. Pull the remaining chain along the rail toward the opener.
2. A segment of chain marked in RED will be seen. Place this
segment in the approximate location on the sprocket as
shown in Fig.1.
3. When the chain is aligned properly around the sprocket, pull
the chain-to-cable connector towards the trolley shaft.
Follow steps shown in Fig.2 to connect & tighten the chain:
1. Align the open end of the chain to the cable eyelet and
connect together using the master link set.
2. Turn the chain-to-cable connector on the trolley shaft until
the chain is about 1/4” (6mm) above the base of the rail.
Compare with the illustration below.
3. Tighten the flange nut on trolley shaft against the chain-to-
cable connector.
When the chain and cable are tightened around the rail and
sprocket on the opener, check and make sure the chain is
properly aligned and not twisted. Attach the sprocket cover to the
opener as shown in Fig.3.
Notice
During operation, it is normal for the chain to appear loose when
the door is closed. If the chain returns to the position as shown
below when the door is opened, the chain is adjusted properly.
DO NOT re-tighten the chain.
When performing maintenance, always PULL the emergency
release to DISCONNECT the door from opener before adjusting
the chain.
Installing Cable and Chain
! WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- Keep hands and fingers clear from sprocket during operation.
- Wear gloves when installing chain and cable.
- Keep hands and fingers away from joints and possible sharp edges.
Cable
Chain
Fig.1
Fig.2 Fig.3
Sprocket
Sprocket
Cover
2
Tighten until... 1/4” (6mm)
Base of Rail
Mid-point of rail assembly
3
Tighten nut
Flange Nut
Master Link
Link Cap
Spring Clip
Cable Eyelet
1
Open end of chain
Chain to Cable Connector
To Connect and Tighten the Chain:
Sprocket
Rail Bracket
Rail Bracket
Chain
Top of Rail
Chain in RED
Actual Size
Hitch Pin
Clevis Pin

7

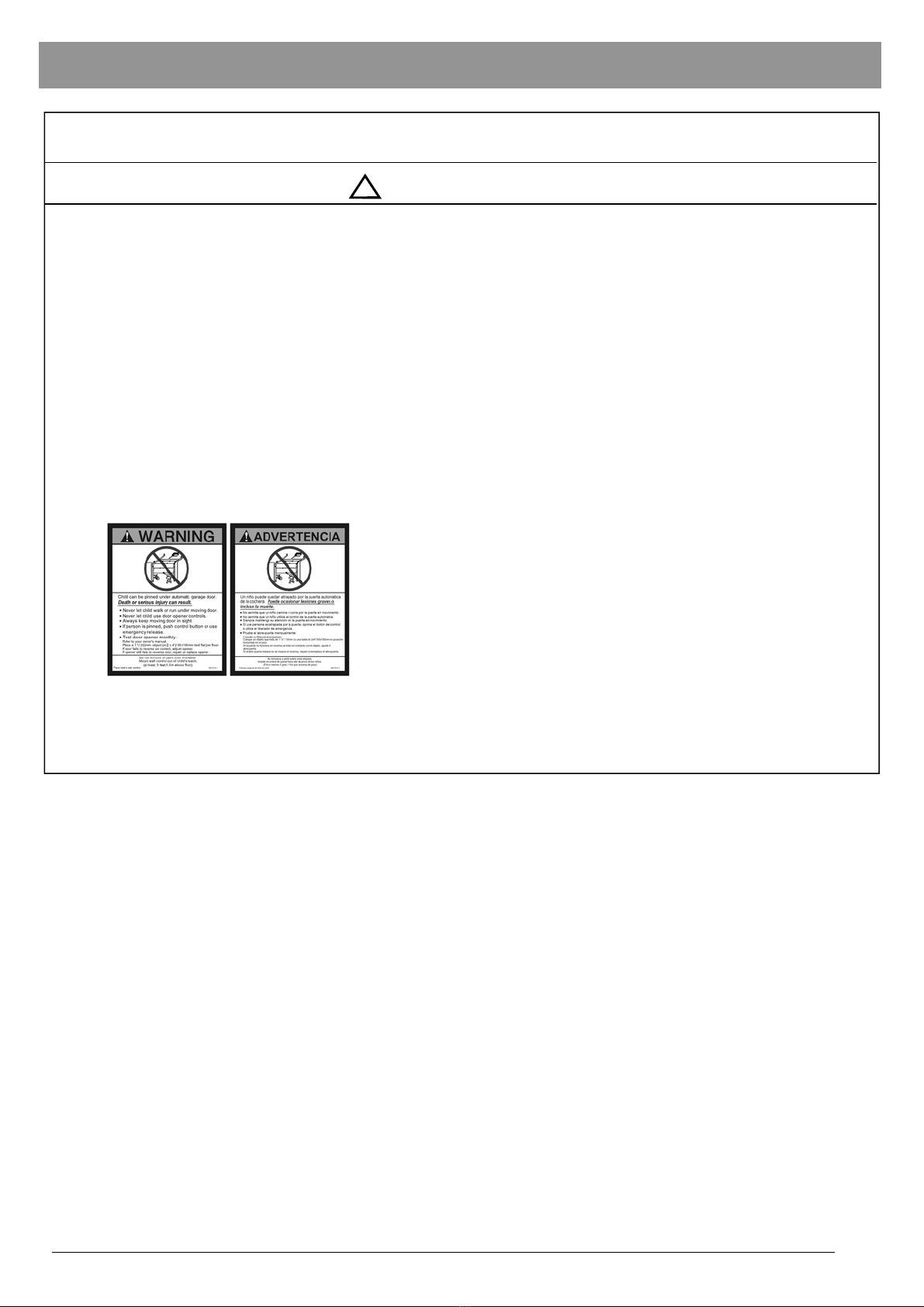

To reduce the risk of severe injury or death:
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Install only on a properly balanced garage door. An improperly balanced door has the potential to inflict severe
injury. Have a qualified service person make repairs to cables, spring assemblies, and other hardware before
installing the opener.
3. Remove all ropes and remove or make inoperative all locks connected to the garage door before installing
opener.
4. Where possible, install the door opener 7 feet or more above the floor. For products having an emergency
release, mount the emergency release within reach, but at least 6 feet above the floor and avoiding contact
with vehicles to avoid accidental release.
5. Do not connect the opener to source of power until instructed to do so.
6. Locate the push button: (a) within sight of door, (b) at a minimum height of 5 feet so small children are not able
to reach it, and (c) away from all moving parts of the door.
7. Install the Entrapment Warning Label next to the wall-mount push button in a prominent location. In case the
adhesive does not adhere on the surface, the label should be attached to the surface by mechanical means.
8. After installing the opener, the door must reverse when it contacts a 1-1/2-inch high object (or a 2 by 4 board
laid flat) on the floor.
Important Installation Instructions
Place entrapment warning label on wall next to garage door control.
! WARNING
IMPORTANT INSTALLATION INSTRUCTIONS

8

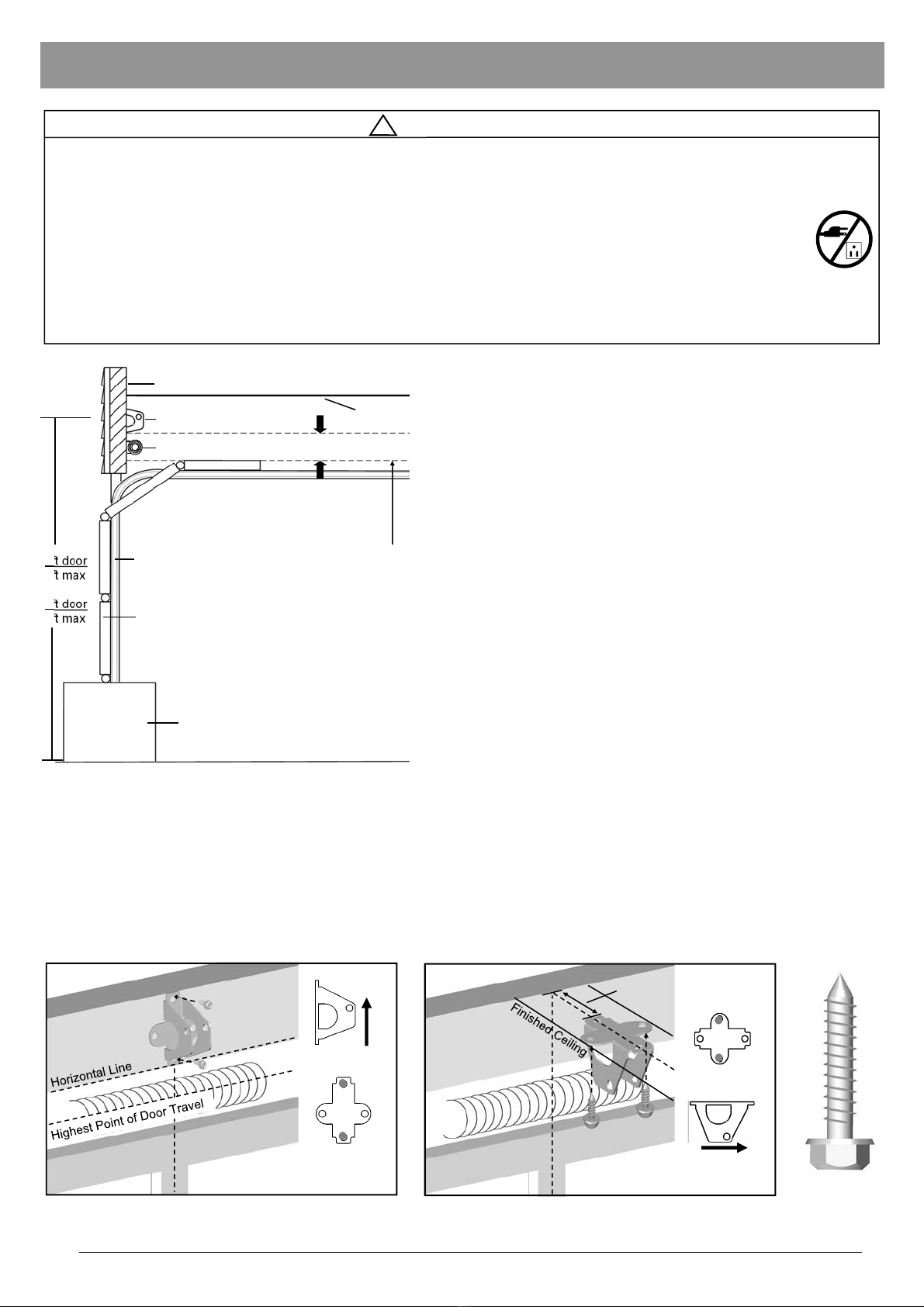

To Install Header Bracket
Note: Installation procedures may vary according to door
type.
1. While inside your garage, close the door and mark the
vertical centerline of the garage door. Extend the line onto
the header wall above the door spring.
2. Open the door to the highest point of travel. Mark a line on
the header wall 2“ (5cm) above the highest point of travel.
Note: DO NOT install the header bracket over drywall. In some
installations, it may be necessary to install a 2x4 across two wall
studs to create a suitable location for the header bracket.
If installing into masonry, use concrete anchors (not provided).
Wall-Mounting
As shown in Fig.2, place the header bracket on the vertical
centerline in direction shown.
Mark and drill two 3/16” holes. Fasten the header bracket
securely to a structural support using two 5/16” x 1-1/2” lag
screws.
Alternative Ceiling-Mounting
Ceiling-mounting is suggested ONLY when clearance is minimal.
Extend the vertical centerline onto the ceiling as shown in Fig.3.
Center the header bracket on the vertical mark, no more than
6” (15cm) from the header wall. Mark and drill holes to fasten the
header bracket securely to a structural support.
Mounting Header Bracket
UP
OPENER
MAX. 6” (15cm)
Vertical Centerline Lag Screw
5/16” x 1-1/2”
! WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- The header bracket MUST be SECURELY fastened to the structural support on the mounting wall or
ceiling, otherwise the door may not reverse when required. DO NOT install the header bracket over drywall.
- Concrete anchors MUST be used when mounting the header bracket into masonry.
- NEVER try to loosen, move or adjust garage door springs, cables, pulleys, brackets, or hardware.
- Contact a qualified garage door service technician if your door binds, sticks or is unbalanced. An unbal-
anced door might not reverse when required.
Vertical Centerline
Fig.2 (Wall-Mounting) Fig.3 (Ceiling-Mounting)
7ft door
8ft max
8ft door
9ft max
Fig.1
Ceiling
Header Bracket
Header Wall
2” (5cm) clearance
Door Track
Door
Highest Point of Door Travel
Support block on floor
Door Spring
* VERY IMPORTANT! *
Max recommended rail height from floor
 7ft door = 8ft max height
 8ft door = 9ft max height
MAX RAIL HEIGHT
Floor

9
Attaching Rail to Header Bracket and Mounting Door Bracket
! CAUTION
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- REINFORCEMENT is recommended for fiberglass, aluminum or lightweight steel garage doors BEFORE
installing the door bracket. Contact your door manufacturer for reinforcement options.
Fig.1
Fig.2 Fig.3
Carton
Clevis Pin - 5/16” x 1-1/2”
Hitch Pin
Self-Threading
Screw - 1/4” x 5/8”
UP
Vertical Centerline of Door
(a) (b) (c)
2-4” (5-10cm)
To Attach the Opener to the Header Bracket
1. As shown in Fig.1, use the packaging carton as temporary
support for the opener. Place the opener on carton to
prevent damage.
2. Align the mounting hole on the header rail to the mounting
hole on the Header Bracket.
3. Connect the header rail and the door bracket together with
a 5/16” x 1-1/2” clevis pin and lock it in place with a hitch
pin.
To mount the Door Bracket
Note: Some door reinforcement kits may provide direct
attachment of the door arm to the reinforcement bracket. If you
have a door reinforcement bracket with this option, skip this step
and proceed with the next step “mounting opener to ceiling”.
1. Position the door bracket on the centerline of the door
approximately 2” - 4” (5-10cm) below the top edge of the
door, as shown in Fig.2.
2. Depending on the construction of your door, install using
one of the steps shown if Fig. 3 below:
For steel / lightweight doors with vertical steel
reinforcements / factory reinforced.
(a) Mark and drill two 3/16” holes. Make sure not to drill
through the garage door. Secure the door bracket with two
1/4” x 5/8” self-threading screws (provided) as shown in
Fig.3(a).
(b) Alternative installation: Drill two 5/16” holes through the
door. Secure the door bracket using two 5/16” bolts, lock
washers and nuts (not provided) as shown in Fig.3(b). The
length of bolts will depend on the thickness of your door.
Wood door
(c) Mark and drill two 5/16” holes through the garage door.
Secure the door bracket using two 5/16” carriage bolts,
washers and nuts (not provided) as shown in Fig.3(c). The
length of bolts will depend on the thickness of your door.
Note: DO NOT use Self-Threading Screws on a wood door.

10
To Mount the Opener to Ceiling
The three most common installation options are shown in
Fig.1-3.
Fig.1 shows mounting the opener directly to structural
support on the ceiling. Fig.2 and 3 show mounting on a
finished ceiling, with heavy duty angle iron*.
*(angle iron not included)
Determine the mounting option that works best for your
application and follow installation steps below:
1. Raise the opener and rail assembly and temporarily place it
on a stepladder.
2. Position the opener and rail assembly so that it is aligned to
the center line of the garage door. If the header bracket was
mounted off center, align the opener with the header
bracket.
3. Measure the distance from each side of the opener to the
structural supports.
4. Cut both hanging brackets to appropriate length.
5. Drill 3/16” holes in the structural supports.
6. Secure one end of each of the hanging brackets to the
structural supports using 5/16” x1-1/2” lag screws
(provided).
7. Secure the opener to the hanging brackets and secure each
side with a 5/16” x 1” bolt and flange nut (provided).
8. Move the door manually to check clearance between
highest point of travel of the door and rail. If the door hits the
rail, raise the header bracket or adjust the mounting of
opener.
9. Remove the ladder ONLY when the opener is securely
Mounting Opener to Ceiling
! WARNING
To prevent SERIOUS INJURY or DEATH:
- DO NOT connect power until instructed.
- Install the opener at least 7 feet (2.13m) above the floor.
- Fasten the opener SECURELY to STRUCTURAL SUPPORTS of the garage to prevent falling.
- If installing brackets to masonry, concrete anchors (not provided) MUST be used.
Fig.1
Fig.2
Fig.3
Lag Screw 5/16” x 1-1/2”
Bolt 5/16” x 1”
Flange Nut
Finished ceiling
Finished ceiling
Fastening Hanging Brackets to structural supports
Securing Opener to Hanging Brackets
Bolt / Lock Washer / Nut
not provided
Bolt / Lock Washer / Nut
not provided
Angle Iron not provided
Angle Iron not provided

11
Attaching Door Arms
! WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- Keep hands and fingers away from the sprocket during operation.
- Wear gloves when installing chain and cable.
- Keep hands and fingers away from joints and possible sharp edges.
Clevis Pin - 5/16” x 1”
Hitch Pin
Bolt - 5/16” x 1”
Flange Nut
Curved Door Arm
Straight Door Arm
1
1 2
2
Fig.1
3
Min. 8” (20cm) NOTE: The trolley must be a minimum of 8” (20cm) away
from the pulley.
To Connect Door Arm
Follow the steps shown in Fig. 1
1. Fasten the straight door arm to the trolley with a
5/16” x 1” clevis pin and lock it with a hitch pin.
2. Fasten the curved door arm to the door bracket with
5/16” x 1”clevis pin and lock it with a hitch pin.
3. To connect the door arms together, choose two pairs of
holes which are as far apart as possible. Fasten the arms
using two 5/16” x 1” bolts and flange nuts.
2” or less 2” or more
Rail of Opener
Door Panel
Rail of Opener
Door Panel
Correct Spacing Incorrect Spacing

12
Installing Light and Emergency Release Handle
To install the light:
1. Insert screw driver between lens and the cover at the
detents, pry and pull the light lens cover from the top and
detach it from the opener.
2. Install a standard A19 (E26) 100 watt maximum light bulb.
3. Re-attach the light lens cover.
Notice
When replacing the light bulb, make sure the bulb on the opener
has cooled down to prevent injury.
! WARNING
To prevent SERIOUS INJURY or DEATH from electrocution:
- Disconnect power cord before installing/replacing light bulb.
To prevent possible OVERHEATING or damage to opener:
- Use ONLY A19 (E26) incandescent bulbs* (100W max.).
- DO NOT use short neck or specialty light bulbs.
- DO NOT use halogen bulbs.
* CFL or LED light bulbs will work but may interfere with hand-held remotes.
6 feet (1.83m) above floor
To attach the Emergency Release Handle:
1. Thread one end of the rope through the hole of the
emergency release handle and secure with an overhand
knot.
2. Thread the other end of the rope through the hole in the
trolley lever.
3. Measure the rope length so that the handle is 6 feet
(183cm) above the floor and is clear from the top of your
vehicle. Secure with an overhand knot.
Fig. 1
Fig. 2
! WARNING
To prevent SERIOUS INJURY or DEATH from a falling garage door:
- In case of power failure or door obstruction, PULL EMERGENCY HANDLE to release door from opener.
- When emergency release is in the released position, the door can be operated manually.
- To reconnect, flip the lever on the trolley towards opener, back to connect position, it will reconnect
automatically upon pressing push button or remote control.
- DO NOT use emergency handle to pull the door open or closed.
Lever
Emergency Release Handle
Light Lens Cover
* VERY IMPORTANT! *
Emergency release handle must clear all vehicles. An
emergency release handle set too low may get caught by
the vehicle and cause damage to the door and opener.
Measure from the floor to the top of your vehicle and set
the emergency release handle above this measurement.

13
Wiring Instructions
Photo Eye Safety System
Wires to the terminals on the opener
Terminals
In the following section, the photo eye safety system and
push button will be connected to the opener. Please read
and understand the wiring instructions before connecting
wires.
1. Remove the pre-cut skin on the open end of wire from
accessories. Wires MUST NOT be frayed. Wires must be
connected as shown in Fig.1.
2. To connect a wire to an assigned terminal, use a small “flat
head” screwdriver to push in the orange tab on the Wire
terminal as shown in Fig.2.
3. Insert approximately 1/2” (13mm) of the wire into the
terminal while pushing in the tab as shown in Fig.2.
4. Each accessory requires a pair of terminals. Each pair of
terminals MUST be connected with one white wire and one
striped wire (non-polarized) from the SAME accessory as
shown in Fig.2.
5. Check for proper connection by gently pulling on the wire.
The wire should not come out of the terminal. NO exposed
part of the wire should be visible outside of the terminal.
6. Use the insulated staples provided to secure the wires to
the wall and/or ceiling. Be careful not to damage the wires
while securing the staples.
! WARNING
To prevent SERIOUS INJURY or DEATH from electrocution:
- Power MUST NOT be connected until instructed.
- NO exposed part of the wire should be visible outside of the terminal for proper connection.
Fig. 2
Fig. 1
Wire from accessories
Remove and discard pre-cut skin
Right Wrong
* VERY IMPORTANT! *
Screwdriver or similar tool
Wire Terminals
Open
Insert into unit Outside
Wire shown in actual size
1/2”
Push In
Suggested placement of insulated staples

14
Connecting Photo Eye Safety System
About the Photo Eye Safety System
The photo eye safety system provides protection against
entrapment while the door is closing. When properly connected
and aligned, the emitter photo eye emits an invisible infrared
light beam while the sensor photo eye monitors that beam.
If the beam is obstructed during door-closing, the entrapment
protection will be triggered and the door will stop and reverse to
the open position. The courtesy light will flash for 30 seconds
indicating an obstruction.
Installing The Photo Eye Safety System
Wall-mounting
1. Place the photo eyes facing each other on each side of
the garage door. Position the sensors so they are no
higher than 6” (15cm) above the floor, as shown in Fig.1.
2. Drill 3/16” holes using the mounting holes on the bracket
as a template. Secure with #12 x 1” lag screws
(provided).
3. Be sure brackets, when mounted, are NOT in contact with
the door track.
4. If necessary use the optional wall-mount position (Fig.1)
to better fit your door-track and improve obstacle
avoidance. To adjust the position, loosen the wing nut,
disassemble the bracket and move the photo eye to the
lower position on the holder.
5. If necessary, align the photo eyes by loosening the wing
nut . (This step may be further required in Aligning the
Photo Eye Safety System on page 16.)
Alternative Floor-mounting
1. Place the photo eyes facing each other on each side of the
garage door, as shown in Fig.2.
2. If attaching to concrete, secure the photo eyes using
concrete anchors and bolts (not provided).
3. Be sure brackets, when mounted, are NOT in contact with
the door track.
4. If necessary, align the photo eyes by loosening the wing
nut. (This step may be further required in Aligning the Pho-
to Eye Safety System on page 16.)
To Connect Photo Eye Safety System
1. Connect a pair of wires from either one of the photo eyes
to a pair of “PHOTO EYE” terminals on the rear of the
opener as shown in Fig. 3. Refer to Wiring Instructions on
page 13 for proper connections.
2. Repeat above step to connect the other photo eye.
3. Refer to Wiring Instructions on page 13 to ensure wires are
connected properly.
! WARNING
To prevent SERIOUS INJURY or DEATH from electrocution:
- Power MUST NOT be connected BEFORE photo eye safety system is connected and aligned.
- The opener will not operate until the photo eye safety system is properly connected and aligned.
- Install the photo eyes NO higher than 6” (15cm) above the floor.
No part of garage door or other objects should obstruct the photo eye safety system during door-closing.
Fig. 1 (Wall Mount)
Fig. 3
6” max.
Optional
wall mount
position
Inside
Garage
From one of
the Photo Eye From the
other one
#12 x 1”
Lag Screw
Loosen
Inside
Garage
Door Track
6” max. above floor
Alignment
Alignment
Inside
Garage
Door Track

15
To Connect the Push Button to the Opener
Connect the pair of wires from the push button to the pair of
“PUSH BUTTON” terminals on the rear of the opener. Refer to
Wiring Instructions on page 13 to ensurewires are properly
connected.
The push button is a wired, illuminated door control placed
inside your garage.
To install the Push Button:
1. Inside your garage, install push button within sight of the
door at a minimum height of 5 feet (1.5m) off the ground.
Ensure it is installed out of the reach of children and free
from the moving parts of the door and hardware.
2. Securely fasten it to a solid surface with 1” screws. If
attaching to drywall or other hollow surface, drill 3/16”
holes and use the provided drywall anchors.
To prevent SERIOUS INJURY or DEATH from electrocution:
- Power MUST NOT be connected until instructed.
To prevent SERIOUS INJURY or DEATH from using the push button and a closing door:
- Install the push button within sight of the door at a minimum height of 5 feet (1.5m) above the floor.
Make sure it is out of the reach of children and moving parts of door and hardware.
- NEVER permit children to access the push button or remote controls.
- Operate the door ONLY when it is adjusted properly with no obstructions present and is in clear sight.
- ALWAYS keep a moving door in sight until it’s completely closed.
- NEVER cross the path of a moving door.
Push Button
Min. 5 feet (1.5m)
above floor
From Push Button
Connecting Push Button
! WARNING
Drywall Anchor
Screw #6 x1-1/4
NOTICE: Only use the Push Button included with this GDO model or identical replacement part. See
Accessories in Repair Parts section of this manual.

16
Connecting Power
Aligning the Photo Eye Safety System:
1. When power is supplied, the green photo eye (Emitter) will flash
until it is aligned with the red photo eye (sensor). The red photo
eye will not light until it is aligned with the green eye.
2. When the photo eye system is properly aligned the green photo
eye (emitter) will emit a steady green light and the red photo eye
(sensor) will emit a steady red light.
3. If either of the photo eye lights are unsteady, flash or dim, check
for an obstruction and carefully adjust the position of the photo
eyes until they give a steady green light and steady red light.
Note: The path of the invisible light beam MUST NOT be
obstructed. No part of the garage door or any hardware
should interfere or block either sensor.
!
Aligning the Photo Eye Safety System
! WARNING
To prevent SERIOUS INJURY or DEATH from electrocution or fire:
- Power MUST be DISCONNECTED BEFORE proceeding with permanent wiring procedures.
- Garage door opener installation and wiring MUST be in compliance with all local electrical and building
codes. Make sure the opener is ALWAYS grounded.
- NEVER use an extension cord, 2-wire adapter or modify the power plug in any way to make it fit the outlet.
Ordinary Power Connection
WARNING
To prevent SERIOUS INJURY or DEATH from a closing garage door:
- The photo eye safety system MUST be installed BEFORE connecting power.
- The photo eye safety system MUST be properly connected and aligned BEFORE operating the opener.
NOTICE: The opener will not close until the photo eyes are installed. Photo eyes are required by federal law to
be installed on all openers.
Invisible Light Beam
The emitter
generates the
invisible light
beam
The sensor
receives the
invisible light
beam
Steady Red &
Green light
For Permanent Wiring ONLY
Conduit with wire
Yellow (from Motor)
White (from Light)
Neutral (White)
Wire nut (Not provided)
White
(from Logic Board)
Line (Black ) Ground (Green/Yellow)
Black (from Logic Board)
Ground Screw (Green)
DO NOT OPERATE OPENER AT THIS TIME.
To Connect Power
Plug the opener into a grounded outlet ONLY. If there is no
grounded outlet present, call a qualified electrician to replace the
outlet. Use of a surge protector is highly recommended.
Permanent Wiring (If Required by Local Code)
1. Remove the enclosure by removing the 6 screws located
on the sides and rear of the opener.
2. Cut the two cable pressure connectors connecting line
(black) and neutral (white) wire from the power cord.
3. Remove the grounding screw connecting the green wire.
4. Remove the power cord.
5. Group neutral (white) wires from power source with 2 white
wires from light cable, and logic board, and yellow wire
from motor, inside the opener. Connect them with a wire
nut.
6. Group line (black) wires from power source with another
black wires from logic board inside the opener. Connect
them with a wire nut.
7. Secure the ground (green or bare) wire from the power
source with a grounding screw.
8. Reinstall the enclosure.
9. Turn on power supply. If the wiring is properly connected, a
“click” should be heard and the light will illuminate (if a bulb
is installed). If there is no response from the opener, check
power source and wiring.

17
About Travel Limits
Limit adjustments regulate the position at which the door will
stop when opening and closing.
BEFORE making any adjustments, operate the door by using
the push button or remote. Run the opener through a complete
cycle.
If the door opens and closes completely without unintended
reversing upon closing — NO adjustment is necessary.
If the door does not open or close at desired positions, proceed
with the instructions below to adjust the travel limits.
Adjusting Travel Limits
Open and close limits can be increased (+) or decreased (-) by
turning the corresponding screws on the opener. Use a “flat
head” screwdriver to make adjustments. One full turn of the
screw is about 2” (5cm) of actual travel.
NOTE: The opener motor includes an automatic thermal
protection system which will shut down the motor in an overheat
situation. The thermal protector will reset itself once the motor
cools down. Opening and closing the opener multiple times (in a
short period of time) may cause the motor to overheat and shut
down. If this happens, wait about 15 minutes for the motor to
cool and retry operation.
Setting OPEN (UP) Travel Limit
1. CLOSE the garage door by using either the remote or
push button .
2. Adjust the OPEN limit screw.
3. OPEN garage door and check for proper adjustment.
4. Repeat steps 1-3 until the door opens to the desired
position. When the door is in the open position, make sure
there is enough clearance for your vehicle(s), and there is
a minimum 2“ (5cm) gap between trolley and stop bolt.
5. Perform Safety Reverse Test on page 19.
If the door does not open past 5 feet (1.5m), follow Force
Adjustment on page 18 to adjust theopen force.
Setting CLOSE (DOWN) Travel Limit
1. OPEN the garage door by using either the remote or large
push button .
2. Adjust the CLOSE limit screw.
3. CLOSE the garage door and check for proper adjustment.
4. Repeat steps 1-3 until door closes to the desired position.
5. Perform Safety Reverse Test on page 19.
Travel Limit Adjustment
! WARNING
To prevent SERIOUS INJURY or DEATH from improper force adjustment:
- Improper adjustment of travel limits will cause operation of safety reversal mechanism.
- If travel limit adjustment is made, force adjustment may also needed.
- After ANY adjustments, the safety reverse test MUST be performed to ensure the door reverses on
contact with a 1-1/2” thick object (2x4 laid flat).

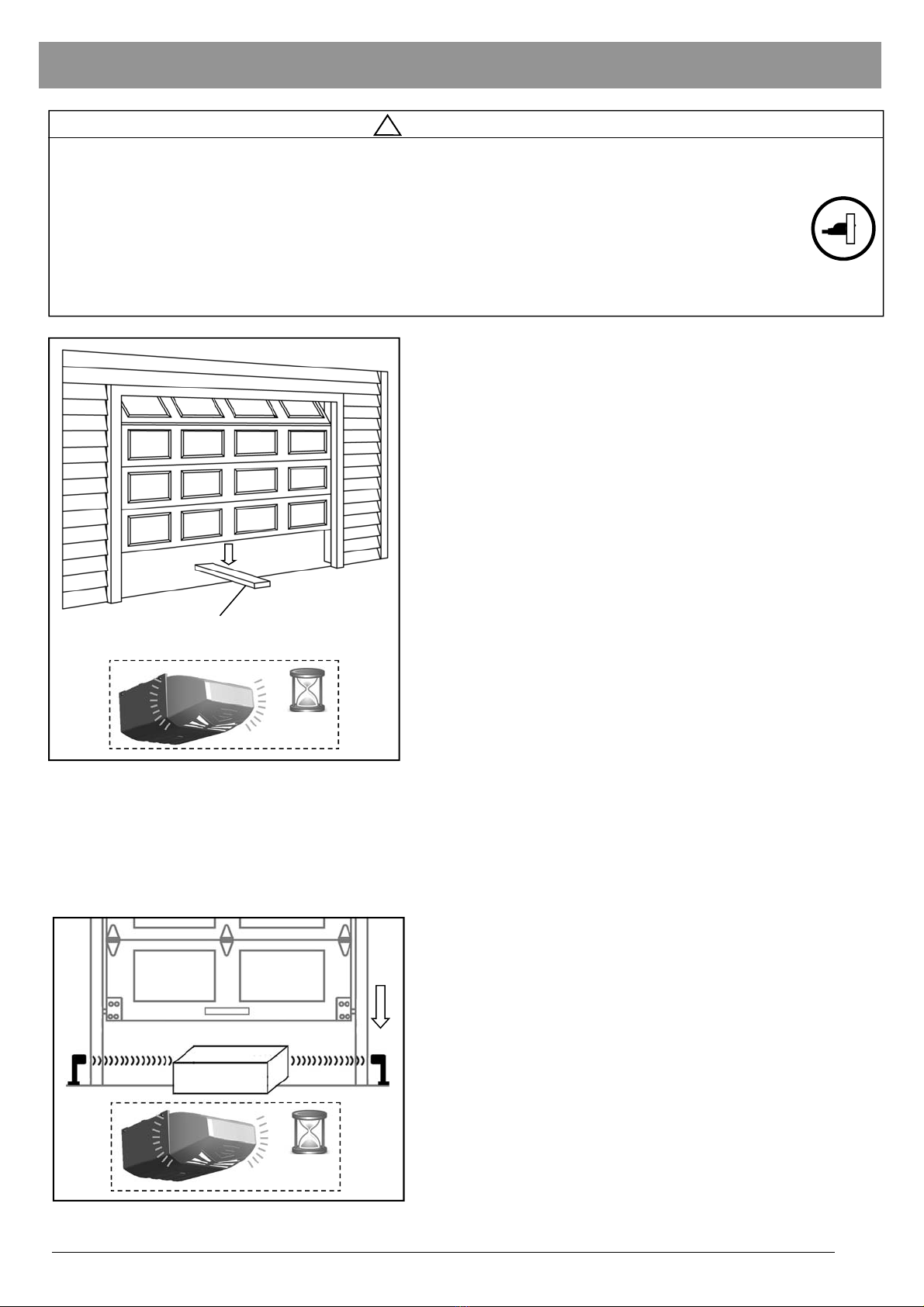

If the door reverses unintentionally during
closing, check below symptoms:
1. The photo eye system may be improperly
connected, misaligned or obstructed The
courtesy light will flash continuously for 30
seconds. Refer to Troubleshooting on Page 25.
2. Binding door — disconnect the door from the
opener by using the emergency release
handle. Open and close the door manually and
check the following steps.
2.1 If the door is balanced, refer to Force
Adjustment on Page 18 to adjust Close
force.
2.2 If the door is unbalanced, binding or
jammed, call a trained service person to
adjust the door.
Adjusting Open (Up) Travel Limit
Adjusting Close (Down) Travel Limit
Stop Bolt
Trolley
Minimum 2” (5cm) clearance
Open
+
-
Close
-
+

18
Adjusting Force
1. Force adjustment controls are located on the rear panel of
the opener. The force adjustments regulate the amount of
force required to open or close the door.
2. Force adjustment is applied only to compensate for the minor
resistance caused by weather or other conditions.
 Note: Force is preset at level 6 for both open and close
adjustments. The size and operating conditions of the
garage door will determine the correct level of force/
sensitivity. Weather conditions may also affect the operation
of the door requiring further adjustments as needed.
 Note: If the close force is set too light the opener will reverse
the door during closing. If the open force is set too light the
opener will stop the door during opening.
 Note: There are 12 levels for open and close force settings.
When either the maximum or minimum level is reached, the
light will flash 6 times.
 Never adjust the force setting by more than 1 level (1 press)
at a time.
Setting Force
Setting Close Force
1. If the door completes a full close cycle without reversing,
decrease (-) the close force by 1 level at a time until the door
reverses. If the door reverses during closing, increase (+)
close force by 1 level. The close force is now properly
adjusted.
2. During the ”door-close” cycle, the opener will reverse if the
force required to close the door is exceeded.
Setting Open Force
1. If the door completes a full open cycle without stopping,
decrease (-) the amount of force by 1 level until the door
stops during the opening. Once the door stops during
opening, increase (+) open force by 1 level. The close force
is now properly adjusted.
2. During the “door-open” cycle the opener will stop if the force
required to open the door is exceeded.
Force Adjustment
! WARNING
To prevent SERIOUS INJURY or DEATH from improper force adjustment:
- DO NOT adjust force to compensate for binding or sticking of the garage door. Call a qualified garage
door service technician to make necessary adjustments in case of binding.
- DO NOT increase the force beyond minimum force required for closing the door. Too much force will cause
improper operation of safety reversal mechanism.
- If either the force or travel limit adjustment is made, the other adjustment may also needed.
- After ANY adjustments, the safety reverse test MUST be performed to ensure the door reverses on
contact with a 1-1/2” thick object (2x4 laid flat) .
For safe operation, the force setting should
always be set at the MINIMUM FORCE
required to run the door.

19
Testing the Safety Reverse System
The Safety Reverse System prevents the door from closing
when an obstruction is present.
1. Open the door by using the large push button or remote
2. Place a 1-1/2” (3.8cm) thick solid object (or 2x4 laid flat)
on floor under the center of garage door.
3. Keeping the door in sight, use the push button or remote
to close the door.
4. The door MUST REVERSE upon striking the object within
1.5 seconds, and stop at the fully opened position.
5. The courtesy light will start flashing for 30 seconds upon
triggering the Safety Reverse System.
If the door just stops on the object, adjust the opener as follows:
The close travel maybe inadequate, Increase close travel limit
by 1/4 turn (See Limit Adjustment on page 17)
Conduct the test again. If the door reverses on contact, remove
the object and run at least 3 COMPLETE travel cycles to ensure
proper adjustment.
If the door still does not reverse on the object, decrease the
close force (see Force Adjustment on page 18) and repeat the
test.
If the opener still fails the safety reverse test, call a qualified
technician for door adjustment.
Testing the Photo Eye Safety System
1. Open the door by using the large push button or remote
2. Make sure both photo eyes steadily emit the green and
red indicator lights. (If not, check alignment)
3. Place an object under the door about 8” (20cm) high by
12” (30cm) wide (the opener carton can be used),
4. The red indicator light on the sensor eye should be
dimmed.
5. Keep the door in sight and use the push button or remote
to try to close the door.
6. The door should NOT move more than 1” (2.5cm) and the
courtesy light should flash for 30 seconds.
Final Adjustments and Testing
! WARNING
To prevent SERIOUS INJURY or DEATH from a closing garage door:
- The Safety Reversal Test MUST be conducted ONCE A MONTH.
- NO ONE should cross the path of moving door during operation and/or testing.
- If either force or travel limit adjustment is made, the other adjustment may also needed.
- After ANY adjustments to the door system, the Safety Reverse Test MUST be performed to ensure the
door reverses on contact with a 1-1/2” thick (2x4 laid flat) object.
- The photo eye safety system MUST be properly aligned, and tested regularly.
1-1/2” (3.8cm) thick solid object (or 2x4 laid flat)
30
seconds
30
seconds

20
Programming 1– Button Remote
! WARNING
To prevent SERIOUS INJURY or DEATH:
- Keep remote and battery out of reach of children.
- NEVER permit children to access the wall panel nor remotes.
- Operate the door ONLY when it is properly adjusted, and there are no obstructions present.
- ALWAYS keep a moving door in sight until completely closed. NEVER cross the path of a moving door.
To reduce risk of fire, explosion or electric shock:
- DO NOT short circuit, recharge, dissemble or heat the battery, batteries may explode or leak.
- NEVER allow small children near batteries.
- Replace with 23AE 12 volt batteries ONLY. Dispose of batteries properly.
Visor Clip
Holster
Signal and
Battery Indicator
23AE 12 Volt
Alkaline Battery
To Program Remote(s):
1. See Fig.2 to add a remote. Press the “LEARN” button on
the rear control panel of the opener. The courtesy light will
illuminate with an audible click*. The unit is now ready to
learn a remote.
2. Within 30 seconds, press the button on the remote.
3. The courtesy light will flash twice indicating remote has
been stored successfully**.
Up to 20 remotes (including keyless entry pad codes) can be
added to the unit by repeating the above procedures.
If more than 20 remotes are stored, the first stored remote will
be replaced. (i.e. the 21st remote replaces the 1st stored
remote.)
* If the courtesy light is already on, it will flash once and stay
illuminated for 30 seconds.
** If a remote is not accepted, the courtesy light will stay on for
30 seconds, flash 4 times and then stay on for 2-1/2
minutes. Retry programming the remote by repeating the steps
above.
Removing all Remotes:
To remove all remotes from memory, press and hold the
“LEARN” button for 5 seconds. The courtesy light will flash 7
times indicating all remotes have been removed from memory.
Replacing Remote Battery:
When the battery of the hand held remote is low, the indicator
light will become dim and/or the range of the remote will
diminish. To replace the battery, remove the battery cover from
the remote as shown in Fig 4. Replace with a 23AE 12 volt
alkaline battery with polarity shown in Fig.4.
Fig.1
Fig.2
Fig.4
x2
Fig.3
LEARN
30
seconds
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
