TABLE OF CONTENTS
Introduction 2.5
Safety symbol and signal word review ........................ 2
Preparing your garage door ........................................ 3
Tools needed ............................................................... 3
Planning .................................................................. 4-5
Carton inventory .......................................................... 6
Hardware inventory ..................................................... 7
Assembly 8.11
Assemble the rail and attach the pulley bracket ......... 8
Install the trolley .......................................................... 9
Attach the rail to the motor unit ................................... 9
Install the chain/cable and the sprocket cover .......... 10
Tighten the chain and cable ...................................... 11
Installation 11-26
Installation safety instructions .................................... 11
Determine the header bracket location ..................... 12
Install the header bracket .......................................... 13
Attach the rail to the header bracket ......................... 14
Position the opener ................................................... 15
Hang the opener ....................................................... 16
Install the door control ............................................... 17
Install the light ........................................................... 18
Attach the emergency release rope and handle ....... 18
Electrical requirements .............................................. 19
Install the Protector System ®................................ 20-22
Fasten the door bracket ....................................... 23-24
Connect the door arm to the trolley ..................... 25-26
Adjustment 27.29
Adjust the travel limits ............................................... 27
Adjust the force ......................................................... 28
Test the safety reversal system ................................. 29
Test the Protector System ®........................................ 29
Operation 30.34
Operation safety instructions ..................................... 30
Using your garage door opener ................................ 30
Using the wall-mounted door control ........................ 31
To open the door manually ........................................ 31
Care of your garage door opener .............................. 32
Having a problem? .................................................... 33
Diagnostic chart ......................................................... 34
Programming 35.36
To add or reprogram a hand-held remote control .....35
To erase all codes ..................................................... 35
3-function remotes ..................................................... 35
To add, reprogram or change a Keyless Entry PIN ..36
Repair Parts 37.38
Rail assembly parts ................................................... 37
Installation parts ........................................................ 37
Motor unit assembly parts ......................................... 38
Accessories 39
Warranty 39
Repair Parts
and Service Back Cover
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.

Preparing your garage door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place,
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
To prevent possible SERIOUSINJURYORDEATH:
•ALWAYScalla trained door systems technician if
garagedoor binds, sticks, or is out of balance An
unbalancedgarage door may not reversewhen
required
•NEVERtry to loosen, move or adjust garage door,
door springs, cables, pulleys, brackets or their
hardware,all of which are under EXTREMEtension
•DisableALL locks and remove ALL ropesconnectedto
garagedoor BEFOREinstalling and operatinggarage
door openerto avoid entanglement
To prevent damageto garage door and opener:
•ALWAYSdisablelocks BEFOREinstalling and
operatingthe opener.
•ONLYoperategarage door opener at 120V,60 Hzto
avoid malfunction and damage.
Sectional Door
One-Piece Door Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
Stepladder
Level(optional)
Drill
Tape Measure
3/16', 5/16"
and 5/32"
and 1/4"
Pencil
Wire Cutters
Screwdriver
Hack Saw
Adjustable End Wrench

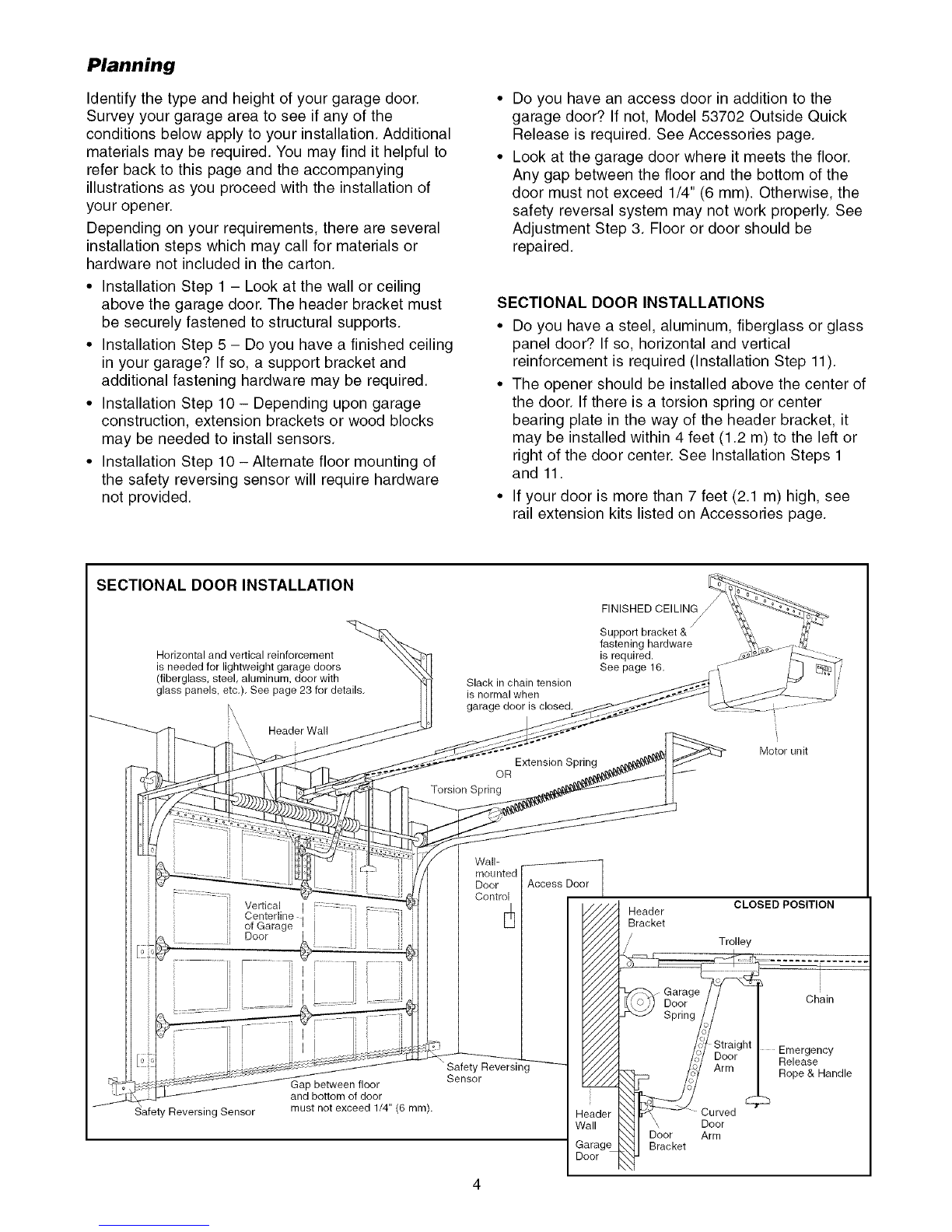

Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 - Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 5 - Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
• Installation Step 10- Depending upon garage
construction, extension brackets or wood blocks
may be needed to install sensors.
• Installation Step 10 -Alternate floor mounting of
the safety reversing sensor will require hardware
not provided.
Do you have an access door in addition to the
garage door? If not, Model 53702 Outside Quick
Release is required. See Accessories page.
Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 1/4" (6 mm). Otherwise, the
safety reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical
reinforcement is required (Installation Step 11).
• The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 4 feet (1.2 m) to the left or
right of the door center. See Installation Steps 1
and 11.
• If your door is more than 7 feet (2.1 m) high, see
rail extension kits listed on Accessories page.
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 23 for details.
Header Wall
\
Slack in chain tension
is normal when
garage door is closed.
Extension Spring
OR
Torsion Spring
FINISHED CEILING
Support bracket &
fastening hardware
is required.
See page 16.
Motor unit
Vertical I :........!
Centerline
of Garage
Door
Reversing Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 ram).
Wall-
mounted
Door
Control
Safety Reversing
Sensor
CLOSED POSITION
Header
Bracket
// Trolley,
o ....... -.......
K////J _,_F_ Garage / /
V///A DoorO/ / Chain
_ I-"cJ Spring/i S
Sprin
traight Emergency
V///_ /_7/ Door Release
/_._ Arrn Rope&Handle
d_
Header _ Curved _
Wall [_ I '\ Door
_] I Door Arm
Garage_ I Bracket
Door _

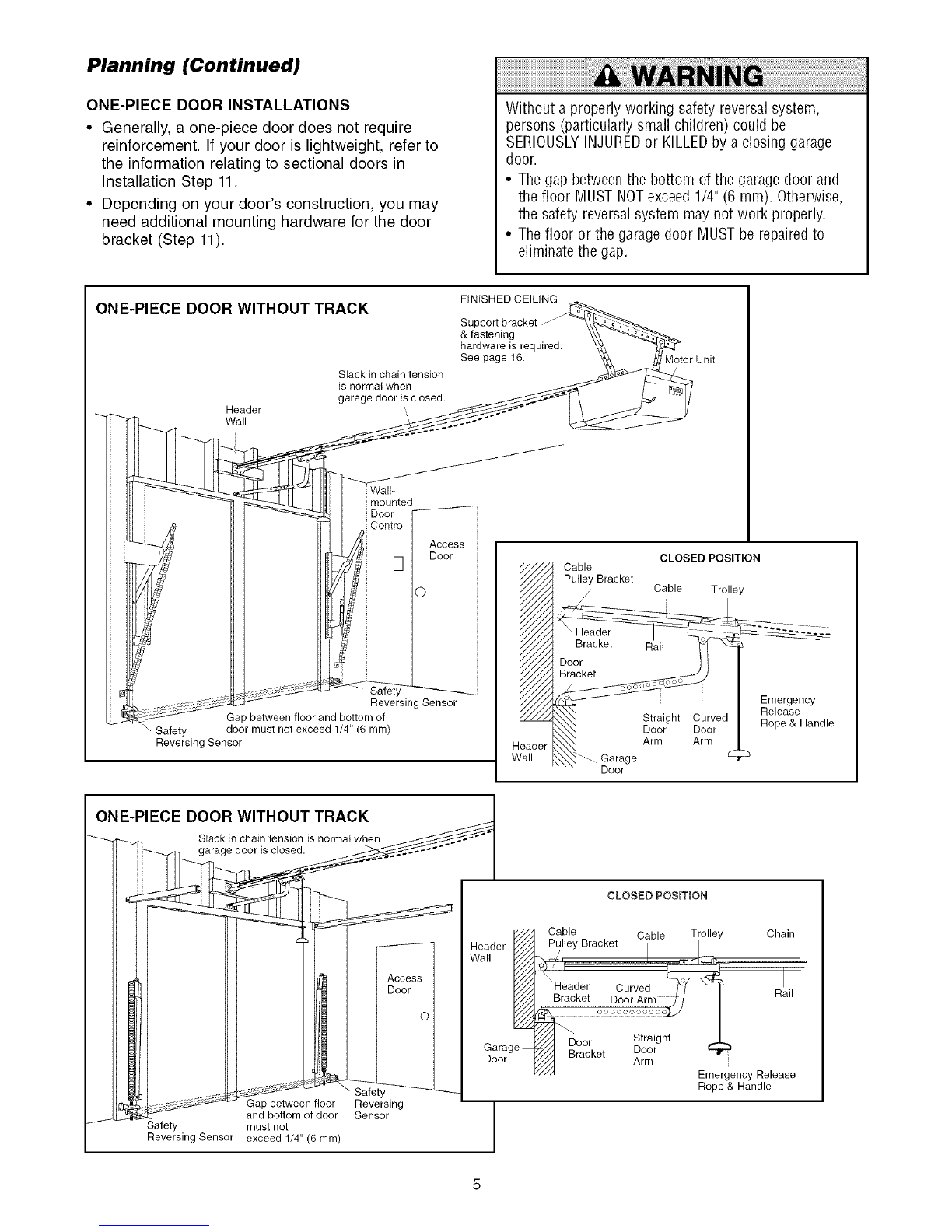

Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 11.
• Depending on your door's construction, you may
need additional mounting hardware for the door
bracket (Step 11).
Without a properly working safety reversalsystem,
persons (particularly small children) could be
SERIOUSLYINJUREDor KILLEDby a closing garage
door.
• The gap betweenthe bottom of the garagedoor and
the floor MUSTNOTexceed1/4" (6 mm). Otherwise,
the safety reversalsystem may not work properly.
• The floor or the garage door MUSTbe repairedto
eliminate the gap.
ONE-PIECE DOOR WITHOUT TRACK
Header
Wall
Slack in chain tension
is normal when
garage door is closed,
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 16.
Door
Control
Safet
Access
Door
O
Reversing Sensor
Gap between floor and bottom of
Safety door must not exceed 1/4" (6 ram)
Reversing Sensor
Motor Unit
CLOSED POSITION
Cable
Pulley Bracket Cable Trolley
o i
Door J l
Em,ergency
. Release
Straight Curved BH_,o- .,
Door_ Door Hope & Manale
__F_ _F_
arage ........... _ _
Door
ONE-PIECE DOOR WITHOUT TRACK
Slack in chain tension is normal when
garage door is closed.
Safety
Gap between floor Reversing
and bottom of door Sensor
Safety must not
Reversing Sensor exceed 1/4" (6 turn)
vea_lder _
Garage
Door
CLOSED POSITION
Cable Cable Trolley
Pulley Bracket I
Header Curved _
Bracket o,_)DoorArmc, o j/I
oor Siraig
_//_ Bracket Door
- Arm Emergency Release
Rope & Handle
Chain
I
Rail

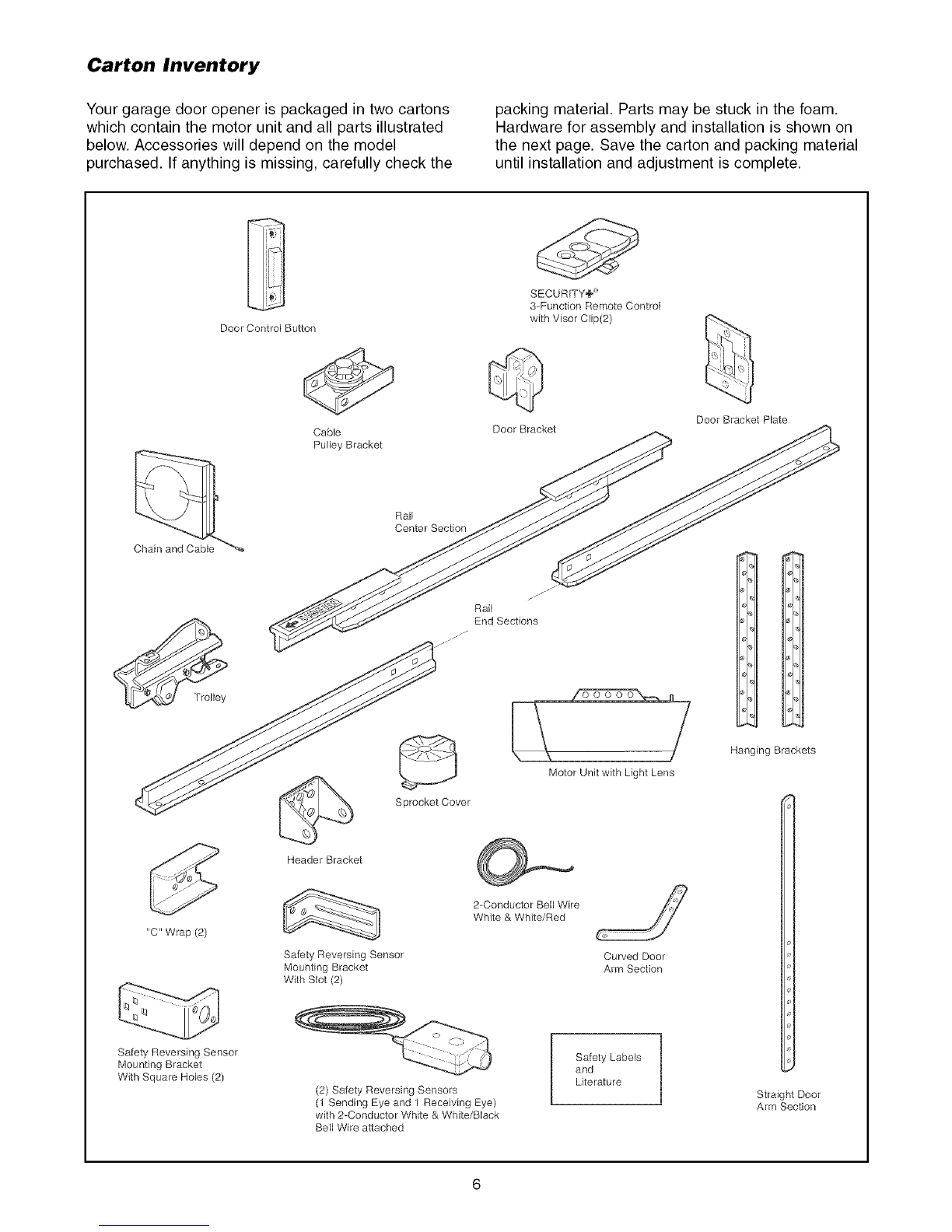

Carton Inventory
Your garage door opener is packaged in two cartons
which contain the motor unit and all parts illustrated
below. Accessories will depend on the model
purchased. If anything is missing, carefully check the
packing material. Parts may be stuck in the foam.
Hardware for assembly and installation is shown on
the next page. Save the carton and packing material
until installation and adjustment is complete.
Door Control Button
SECURITY+"
3-Function Remote Control
with Visor Clip(2)
"C" Wrap (2)
Safety Reversing Sensor
Mounting Bracket
With Square Holes (2)
Cable Door Bracket
Pulley Bracket vv,_
Rail J_ _J
Header Bracket
Sprocket Cover
Safety Reversing Sensor
Mounting Bracket
With Slot (2)
Motor Unit with Light Lens
2-Conductor Bell Wire
White & White/Red
Curved Door
Arm Section
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Safety Labels
and
Literature
Door Bracket Plate
Hanging Brackets
Straight Door
Arm Section

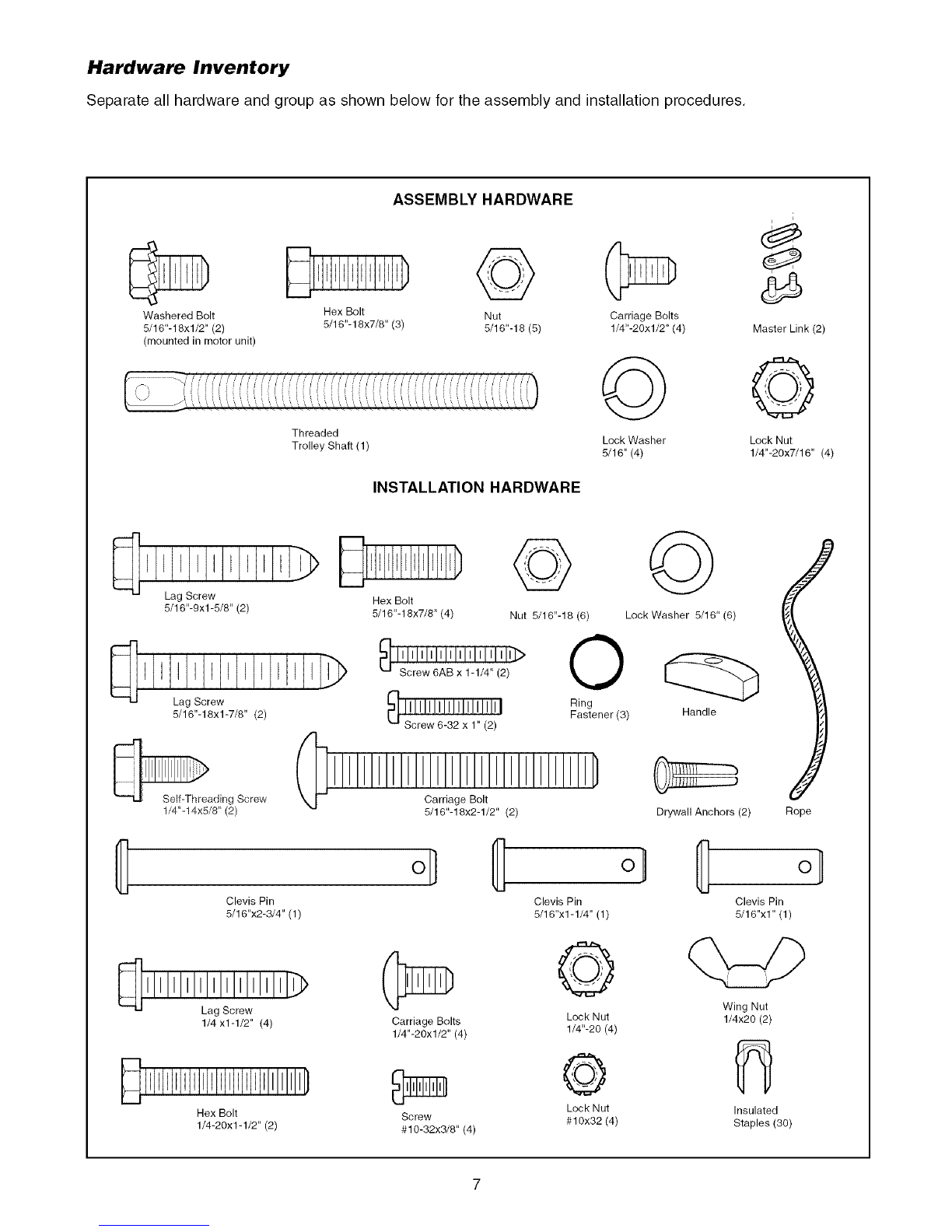

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
Washered Bolt Hex Bolt Nut Carriage Bolts
5/16"-18xl/2" (2) 5/16"-18x7/8" (3) 5/16"-18 (5) 1/4"-20xl/2" (4)
(mounted in motor unit)
Threaded
Trolley Shaft(l)
INSTALLATION HARDWARE
©
Lock Washer
5/16" (4)
i
Master Link (2)
©
Lock Nut
1/4"-20x7/16" (4)
Lag Screw Hex Bolt
5/16"-9xl-5/8" (2) 5/16"-18x7/8" (4) Nut 5/16"-18 (6) Lock Washer 5/16" (6)
5/16"-18xl-7/8" (2)
_ading Screw
1/4"-14x5/8" (2)
0
Ring
Fastener (3) Handle
Carriage Bolt
5/16"-18x2-1/2" (2) Drywall Anchors (2) Rope
Clevis Pin
5/16"x2-3/4" (1)
o] Clevis Pin
5/16"x1-1/4" (1) Clevis Pin 5/16"x1" (1)
1/4 x1-1/2" (4)
Hex Bolt
1/4-20x1-1/2" (2)
Carriage Bolts
1/4"-20xl/2" (4)
Screw
#10-32x3/8" (4)
©
Lock Nut
1/4"-20 (4)
@
Lock Nut
#10x32 (4)
Wing Nut
1/4x20 (2)
Insulated
Staples (30)

ASSEMBLY STEP 1
Assemble the Rail and
Attach the Cable Pulley Bracket
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
1.Align the three rail sections on a flat surface
exactly as shown. Front and back sections are
interchangeable for ease of assembly.
2. Insert the carriage bolts so the
square bolt necks seat in the square
holes in the rail sections and pass
through the round holes in the center
section rail. Make sure bolt necks
are seated in the square holes and
rails are aligned before you tighten
lock nuts. Improper assembly can
cause jerky trolley operation, noise
and/or nuisance door reversals.
3. Assemble lock nuts, ensure
alignment and tighten.
NOTE: If rail is not assembled exactly as shown,
trolley will not travel smoothly along length of rail
or it will hit against nuts.
4. Position the cable pulley bracket on the front end
of the rail as shown. Fasten securely with the
hardware shown.
NOTE: When tightening the bolts, be sure to keep
bracket parallel to the rail. Otherwise, the rail may
bow when the opener is operated.
Rail
(Center Section)
HARDWARE SHOWN ACTUAL SIZE
©
Lock Nut Carriage Bolts
1/4" - 20 x 7/16" 1/4" - 20 x 1/2"
Hex Screw Nut Lock Washer
5/16"- 18 x 7/8" 5/16"- 18 5/16"
RAIL RACK
(TO OPENER)
Brace
1/4" Lock Nut
,@
Rail
(End Section)
,\\\\
Rail
(End Section)
Cable pufley bracket
attaches to FRONT
END of Rail
%
Brace
Square Carriage
Bolt Holes
Cable Pulley
Bracket
Hex Bolts
5/16'-18x7/8'
RAIL FRONT
(TODOOR)

ASSEMBLY STEP 2
Install the Trolley
•Attach the trolley threaded shaft to the trolley with
the lock washer and nuts as shown.
• As a temporary stop, insert a screwdriver into the
hole in the front end of the rail.
• Slide the trolley assembly along the rail to the
screwdriver stop.
NOTE: If trolley hits against any nuts on the rail,
the bolts and nuts were attached from the wrong
side and must be repositioned.
Review Assembly Step 1.
Trolley \
Outer Nut
5/16"
Lock Inner Nut
Washer 5/16"f
5/16" i _"'.
Trolley
Threaded
Shaft
HARDWARE SHOWN ACTUAL SIZE
Temporary Stop Lock Washer
5/16" ©
Nut
5/16"- 18
ASSEMBLY STEP 3
Attach the Rail to the Motor Unit
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
• Place the opener on packing material to protect
the cover. For convenience, put a support under
the cable pulley bracket.
• Remove the two washered bolts mounted in top of
motor unit.
• Align the holes in the back section of the rail with
the holes in the motor unit.
• Fasten the rail with the two washered bolts
previously removed. Tighten securely.
Use only these bolts! Use of any other bolts will
cause serious damage to door opener.
• Insert a 5/16"-18x7/8" hex bolt into the cover
protection bolt hole in the rail as shown. Tighten
securely with a 5/16" lock washer and nut.
NOTE: This bolt prevents trolley over-traveL Keep a
2" (5 mm) minimum between the trolley and this bolt
when adjusting travel limits (see page 27).
Toavoid SERIOUSdamageto opener,ONLYuse
bolts/fasteners mounted in top of motor unit.
Washered Screw
5/16"-18xl/2"
Hex Bolt
5/16"-18x7/8'
Cover
Protection
Bolt Hole \
Rail
(Back Section
5/16"
Nut
5/16"-18
HARDWARE SHOWN ACTUAL SIZE
©©
Hex Bolt Nut Lock Washer
5/16"-18x7/8" 5/16"-18 5/16"

ASSEMBLY STEP 4
Install the Chain/Cable
and Attach the Sprocket Cover
INSTALLING THE CHAIN/CABLE
1.Pull the cable loop from the
carton and fasten it to the
trolley with a master link from
the hardware bag (Figure 1). ""X
•Push pins of master link bar j
through cable loop and hole KeepChainandCable
in front end of trolley. Taut When Dispensing
• Push master link cap over
pins and past pin notches.
• Slide clip-on spring over cap and onto pin
notches until both pins are securely locked in
place.
2. With the trolley against the screwdriver, dispense
the cable around the pulley.
3. Continue along the rail and around the motor unit
sprocket (Figure 2). The sprocket teeth must
engage the chain. Continue forward to the trolley
threaded shaft.
4. Use the second master link to connect the chain to
the flat end of the shaft (Figure 1). Check to make
sure the chain is not twisted.
5. Remove the screwdriver.
Leave Chain &
Cable Inside
Dispensing
Carton to
Prevent Kinking
ATTACHING THE SPROCKET COVER
Insert the back tab in the slot on the back of the
mounting plate. Squeeze the cover slightly and insert
the front tab (Figure 3).
To avoid possible SERIOUSINJURYto fingers from
moving garage door opener:
• ALWAYSkeephand clear of sprocket while operating
opener.
• Securelyattach sprocket cover BEFOREoperating.
Figure 1Master Link
Clip-On Sp[ing
Master_
Link Cap I
Master Link Flat end
Clip-On Spring of Trolley
\ , ,
Master _-._ Threaded Shaft
Link Cap _h-
Cable
Loop
Pulley
INSTALL CHAIN & CABLE
IN THIS DIRECTION
_'- Trolley
_'_ Master
Link Bar
Rail
.Pin Notch
Pin
Figure 2Motor Unit
Sprocket
Figure 3 Sprocket
Cover
Front Tab Slot Mounting
Plate
Back Tab Slot
10

ASSEMBLY STEP 5
Tighten the Chain and Cable
•Spin the inner nut and lock washer down the
threaded shaft, away from the trolley.
• To tighten the chain, turn outer nut in the direction
shown. As you turn the nut, keep the chain
from twisting,
• When the chain is approximately 1/2" (13 mm)
above the base of the rail at its midpoint, re-tighten
the inner nut to secure the adjustment.
Sprocket noise can result if chain is either too
loose or too tight.
When installation is complete, you may notice some
chain droop with the door closed. This is normal. If
the chain returns to the position shown when the
door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley
before adjusting chain.
Lock
Outer Nut Washer Inner Nut
//
To Tight _ /
|_ Inner Nut
J Q
Chain
1/2" (13 mm)
Base of Rail
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section.
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READAND FOLLOWALL INSTALLATIONWARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door.An improperly balanced
door may not reversewhen required and could result in
SEVEREINJURYor DEATH.
3. All repairs to cables,spring assemblies and other
hardwareMUSTbe madebya trained door systems
technician BEFOREinstalling opener.
4. Disableall locks and removeall ropes connectedto
garage door BEFOREinstalling openerto avoid
entanglement.
5. Install garage door opener 7 feet (2.1 m) or more
abovefloor.
6. Mount emergency releasehandle 6 feet (1.8 m) above
floor.
7. NEVERconnect garagedoor opener to power source
until instructed to do so.
8. NEVERwearwatches, rings or looseclothing while
installing or servicing opener.They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garagedoor
• out of reachof children at minimum height of 5 feet
(1.5m)
• awayfrom all moving parts ofthe door.
10. Placeentrapment warning label on wall nextto garage
door control.
11. Placemanualrelease/safetyreversetest label in plain
view on inside of garage door.
12. Uponcompletion of installation, test safety reversal
system. Door MUSTreverseon contact with a
1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the
floor.
11

INSTALLATION STEP 1
Determine the Header Bracket
Location
Toprevent possible SERIOUSINJURYor DEATH:
•HeaderbracketMUSTbe RIGIDLYfastenedto
structural support on headerwall or ceiling, otherwise
garage door might not reversewhen required DONOT
install headerbracket over drywall
•Concreteanchors MUSTbe usedif mounting header
bracket or 2x4 into masonry
•NEVERtry to loosen, move or adjust garagedoor,
springs, cables, pulleys, brackets,or their hardware,
all of which are under EXTREMEtension
•ALWAYScall a trained door systems technician if
garage door binds, sticks, or is out of balance.An
unbalancedgarage door might not reversewhen
required.
Installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
1,Close the door and mark the inside vertical
centerline of the garage door,
2. Extend the line onto the header wall above the
door,
You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center
only if a torsion spring or center bearing plate
is in the way; or you can attach it to the ceiling
(see page 13) when clearance is minimal. (It
may be mounted on the wall upside down if
necessary, to gain approximately 1/2" (13 mm).
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13,
3, Open your door to the highest point of travel as
shown, Draw an intersecting horizontal line on the
header wall above the high point:
• 2" (5 cm) above the high point for sectional door
and one-piece door with track,
• 8" (20 cm) above the high point for one-piece
door without track.
This height will provide travel clearance for the top
edge of the door,
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 13 for ceiling
installation,
Header Wall Un[iini;h_ 2x_
Vertical Centerline
of Garage Door 2x4
/
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Structural
Supports
F
i Header Wall
t_, 2" (5 cm)Track
of Travel
Door
Sectional door with curved track
Header Wall Track
,_" (5 crn)
_nt
V
One-piece door with horizontal track
_Wall
Door _I_ Hightst
One-piece door without track:
jamb hardware
Header Wall
crn)
Highest
Point
of Travel
/O t
One=piece door without track:
pivot hardware
12

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
•Mark the vertical set of bracket holes (do not use
the holes designated for ceiling mount). Drill 3/16"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
HARDWARE SHOWN ACTUAL SIZE
I EI I I I I
Lag Screw
5/16"-9xl -5/8"
Wall Mounting Holes
Optional
Wall Mounting Holes
Header
- Wall
2x4
Structural
Support i
Horizontal
Line --_-- /
/
t"
/
/ Garage
_" I -- Door --
Highest Point of Vertical
Garage Door Travel Centerline
of Garage Door
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracke
Vertical
Centerline
of Garage Door
Lag Screws
5/16"-9xl -5/8"
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 6" (15 cm) from the wall. Make sure the arrow
is pointing toward the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.
Ceiling Mounting Holes
6" (15 cm)
Door Lag Screws
5/16"-9xl -5/8"
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket,
of Garage Door
Header Wall
13

Header Wall
/ Header
zj Bracket
-- Cable
Pulley
Bracket
INSTALLATION STEP 3
Attach the Rail to the Header
Bracket
•Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base. NOTE: If the door spring is in the
way you'll need help. Have someone hold the
opener securely on a temporary support to allow
the rail to clear the spring.
• Position the rail bracket against the header
bracket.
• Align the bracket holes and join with a clevis pin
as shown.
• Insert a ring fastener to secure.
Ring Fastener
Header
Bracket 0
i
\
"_ ..I
Clevis Pin
5/16"x2-3/4"
Pulley
Bracket
Rail
Garage
Door
° o
Opener carton or
_ Temporary Support
HARDWARE SHOWN ACTUAL SIZE
°1
Clevis Pin
5/16"x2-3/4" 0
Ring Fastener
14

INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat
on the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Step 12
is completed.
_ __ Tr°llleYse
ENGAGED
Arm--
RELEASED
To prevent damageto garagedoor, rest garagedoor
opener rail on 2x4 placed on top section of door.
ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 on its
side on the top section of the door beneath the rail.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 4" (10 cm) above this point.
2x4 is used to determine
the correct mounting height
from ceiling.
15

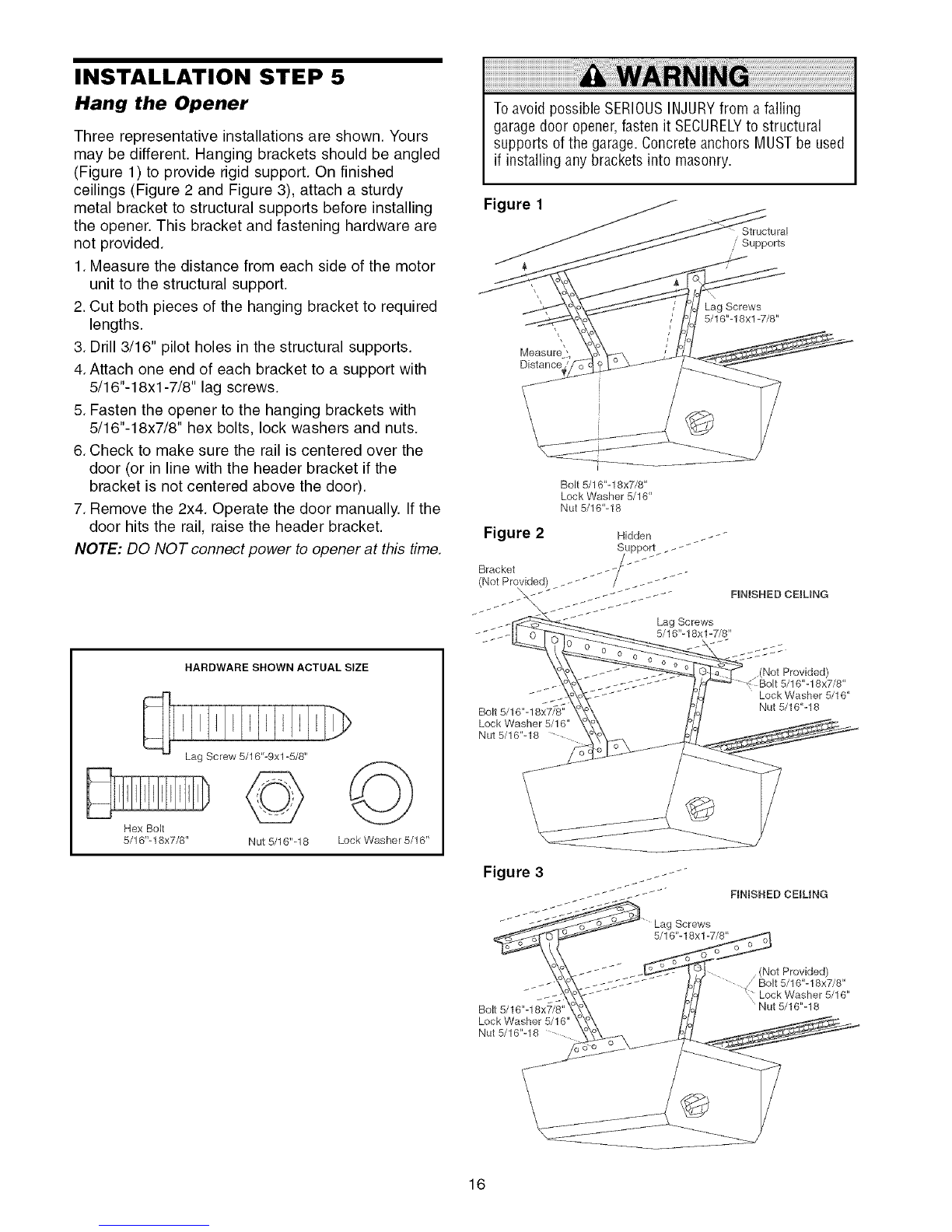

INSTALLATION STEP 5
Hang the Opener
Three representative installations are shown. Yours
may be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2 and Figure 3), attach a sturdy
metal bracket to structural supports before installing
the opener. This bracket and fastening hardware are
not provided.
1. Measure the distance from each side of the motor
unit to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl -7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually. If the
door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
HARDWARE SHOWN ACTUAL SIZE
Lag Screw 5/16"-9xl -5/8"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16'
Toavoid possible SERIOUSINJURYfrom a failing
garage door opener,fasten it SECURELYto structural
supports of the garage.Concreteanchors MUSTbe used
if installing any brackets into masonry.
Figure 1
Measure",
Distance
Structural
,' Supports
Lag Screws
5/16"-18xl -7/8"
i
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
_ .(Not Provided)
_ _'%_J_ _ " _ Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/18"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
16

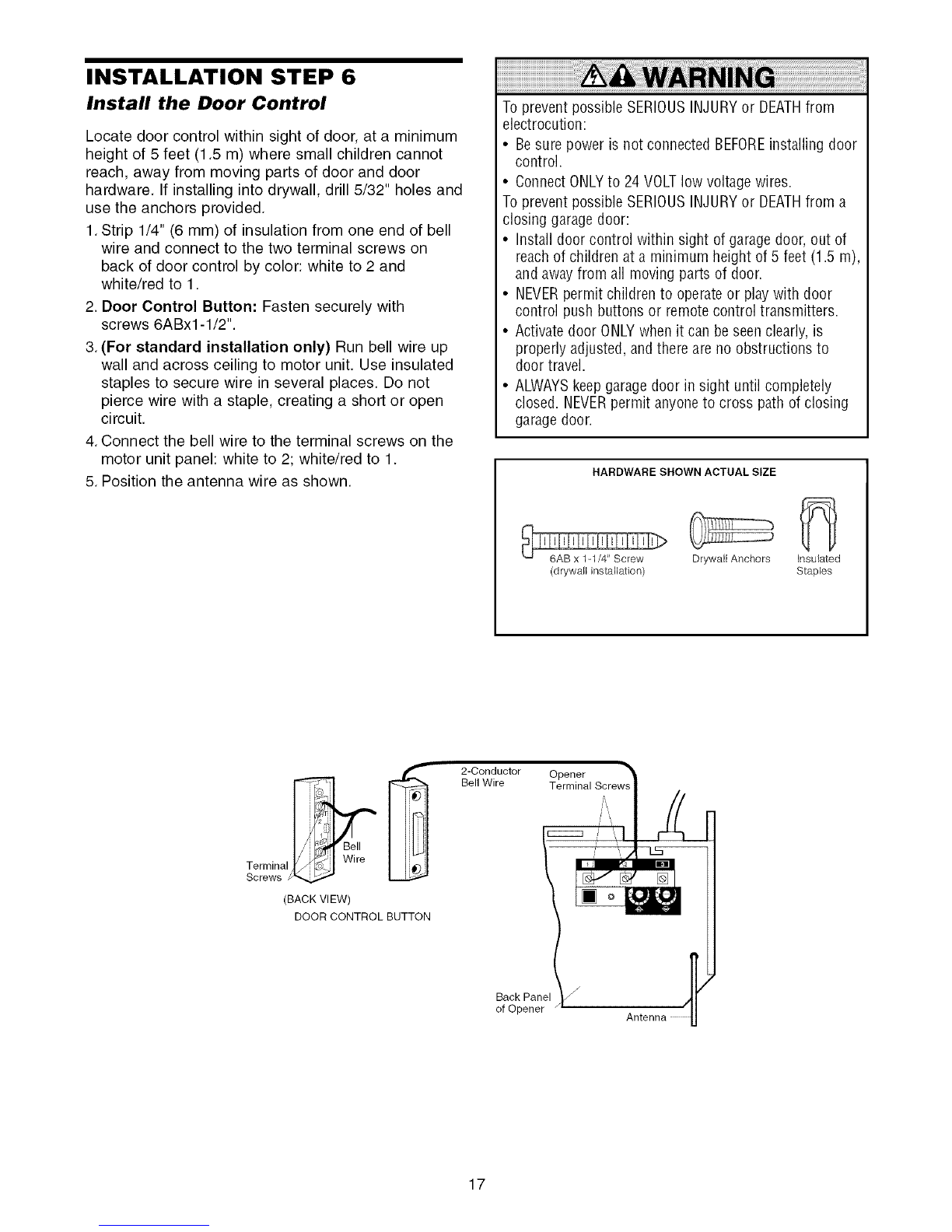

INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of door, at a minimum
height of 5 feet (1.5 m) where small children cannot
reach, away from moving parts of door and door
hardware. If installing into drywall, drill 5/32" holes and
use the anchors provided.
1. Strip 1/4" (6 mm) of insulation from one end of bell
wire and connect to the two terminal screws on
back of door control by color: white to 2 and
white/red to 1.
2. Door Control Button: Fasten securely with
screws 6ABx1-1/2".
3. (For standard installation only) Run bell wire up
wall and across ceiling to motor unit. Use insulated
staples to secure wire in several places. Do not
pierce wire with a staple, creating a short or open
circuit.
4. Connect the bell wire to the terminal screws on the
motor unit panel: white to 2; white/red to 1.
5. Position the antenna wire as shown.
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• Besure power is not connected BEFOREinstalling door
control.
• ConnectONLYto 24 VOLTlow voltage wires.
To prevent possible SERIOUSINJURYor DEATHfrom a
closing garagedoor:
• Install door control within sight of garage door,out of
reachof children at a minimum height of 5 feet (1.5 m),
and awayfrom all moving parts of door.
• NEVERpermit children to operateor playwith door
control push buttons or remote control transmitters.
• Activate door ONLYwhen it can beseenclearly, is
properly adjusted, andthere are no obstructions to
door travel.
• ALWAYSkeepgaragedoor in sight until completely
closed. NEVERpermit anyoneto cross pathof closing
garagedoor.
HARDWARE SHOWN ACTUAL SIZE
(drywall installation) Drywall Anchors fl
Insulated
Staples
(BACK VIEW)
DOORCONTROLBUTTON
2-Conductor
Bell Wire Opener
Terminal Screw._
Back Panel
of Opener
17

INSTALLATION STEP 7
Install the Light
•Install a 75 watt maximum light bulb in the socket.
The light will turn ON and remain lit for
approximately 4-1/2 minutes when power is
connected. Then the light will turn OFR
• Apply slight pressure on the sides of the lens and
slide the tabs into the slots in the end panel (See
illustration).
• To remove, reverse the procedure. Use care to
avoid snapping off lens tabs.
• If the bulb burns out prematurely due to vibration,
replace with a Garage Door Opener bulb.
NOTE: Use only a standard light bulb. The use of a
short neck or speciality light bulb may overheat the
endpanel or light socket.
To prevent possible OVERHEATINGof the endpanel or
light socket,
• DONOTuseshort neck or specialty light bulbs.
• DONOTusehalogen bulbs. Use ONLYincandescent.
Lens Guide
Light
"75Watt Max.
Light Bulb
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
• Thread one end of the rope through the hole in the
top of the red handle so "NOTICE" reads right side
up as shown. Secure with an overhand knot at
least 1" (25 mm) from the end of the rope to
prevent slipping.
• Thread the other end of the rope through the hole
in the release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.8 m)
above the floor. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal
the cut end with a match or lighter to prevent
unraveling.
To prevent possible SERIOUSINJURYor DEATHfrom a
falling garage door:
• If possible, useemergency releasehandleto
disengagetrolley ONLYwhen garagedoor is CLOSED.
Weak or broken springs or unbalanceddoor could
result in an open door falling rapidlyand/or
unexpectedly.
• NEVERuseemergency releasehandle unless garage
doorway is clearof persons and obstructions.
• NEVERuse handleto pull door open or closed. If rope
knot becomesuntied, you could fall.
Tro,,
Release Arm
Rope
£ _ Emergency
Overhand v Release Handle
Knot _ ,_
18

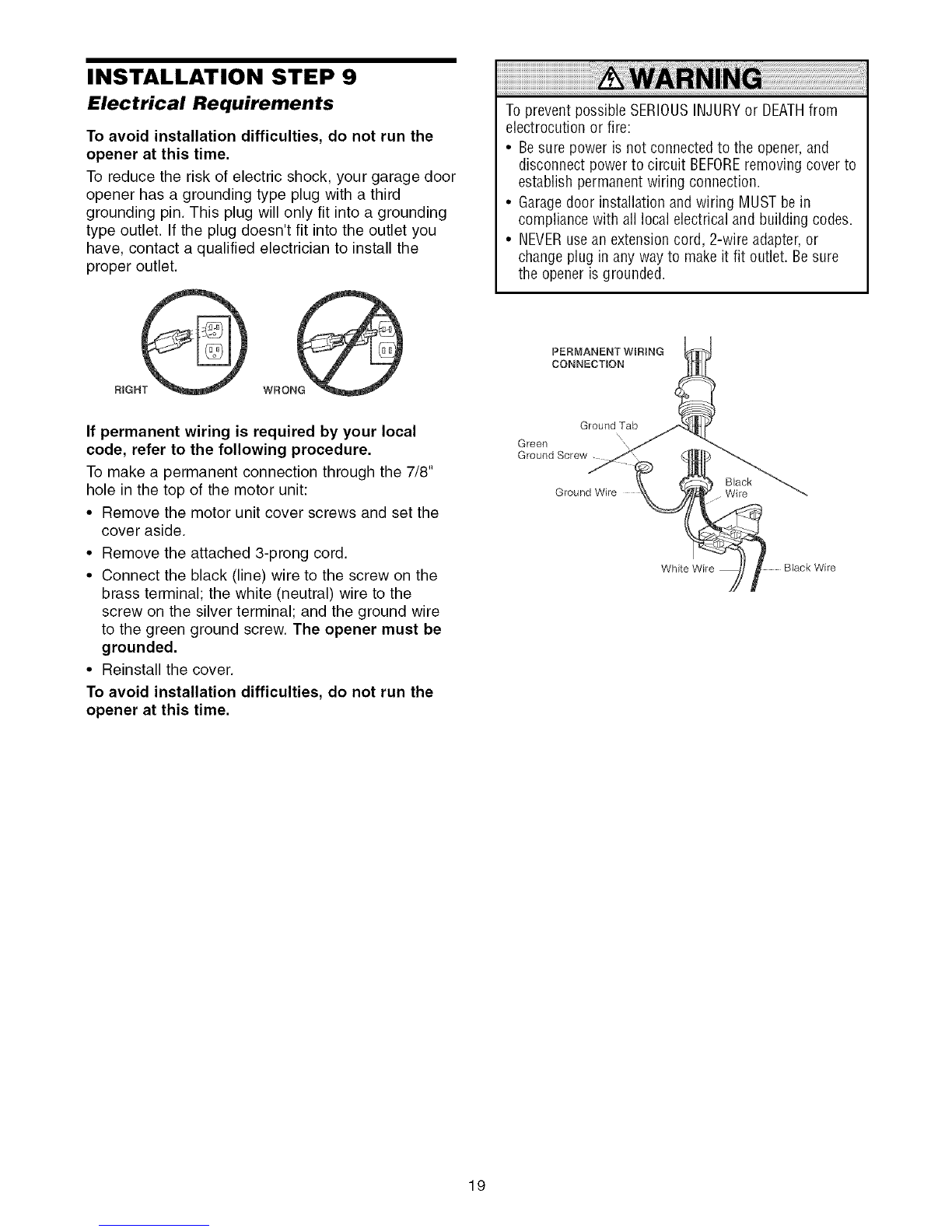

INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding
type outlet. If the plug doesn't fit into the outlet you
have, contact a qualified electrician to install the
proper outlet.
If permanent wiring is required by your local
code, refer to the following procedure.
To make a permanent connection through the 7/8"
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the
cover aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the
brass terminal; the white (neutral) wire to the
screw on the silver terminal; and the ground wire
to the green ground screw. The opener must be
grounded.
• Reinstall the cover.
To avoid installation difficulties, do not run the
opener at this time.
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• Besure power is not connectedto the opener,and
disconnect powerto circuit BEFOREremoving cover to
establish permanentwiring connection.
• Garagedoor installation and wiring MUSTbe in
compliancewith all localelectrical and building codes.
• NEVERusean extensioncord, 2-wire adapter,or
changeplug in any way to makeit fit outlet. Besure
the opener is grounded.
PERMANENT WiRiNG
CONNECTION
Ground Tab
Green
Ground Screw
Ground Wire
White Wire Wire
19

INSTALLATION STEP 10
Install The Protector System ®
The safety reversing sensor must be
connected and aligned correctly before the
garage door opener will move in the down
direction.
IMPORTANT INFORMATION ABOUT
THE SAFETY REVERSING SENSOR
When properly connected and aligned, the sensor
will detect an obstacle in the path of its electronic
beam. The sending eye (with an green indicator
light) transmits an invisible light beam to the
receiving eye (with a green indicator light). If an
obstruction breaks the light beam while the door is
closing, the door will stop and reverse to full open
position, and the opener lights will flash 10 times.
The units must be installed inside the garage so
that the sending and receiving eyes face each
other across the door, no more than 6" (15 cm)
above the floor. Either can be installed on the left
or right of the door as long as the sun never
shines directly into the receiving eye lens.
The mounting brackets are designed to clip onto
the track of sectional garage doors without
additional hardware.
Be sure power is not connectedto the garage door
opener BEFOREinstalling the safety reversingsensor.
To prevent SERIOUSINJURYor DEATHfrom a closing
garagedoor:
• Correctly connect and align the safety reversing
sensor.This required safety device MUSTNOTbe
disabled.
• Install the safety reversing sensor so beam is NO
HIGHERthan 6" (15 cm) abovegarage floor.
If it is necessary to mount the units on the wall, the
brackets must be securely fastened to a solid
surface such as the wall framing. Extension brackets
(see accessories) are available if needed. If
installing in masonry construction, add a piece of
wood at each location to avoid drilling extra holes in
masonry if repositioning is necessary.
The invisible light beam path must be unobstructed.
No part of the garage door (or door tracks, springs,
hinges, rollers or other hardware) may interrupt the
beam while the door is closing.
6" (15 cm) max, Protection Area
above floor
Sensor Beam
6" (15 cm) max,
above floor
Facing the door from inside the garage
2O
