Craftsman 139.53992 User manual

Owner's Manual/Manual Del Propietario
CRRFTSMI:IN
1/2 HP
GARAGE DOOR OPENER
ABRIDOR DE PUERTA DE COCHERA
For Residential Use Only/Sblo para uso residencial
Model/Modelo 139.53992
\
-r"
Zz
O
Read and follow all safety rules
and operating instructions before
first use of this product.
Lea y siga todas las reglas de
seguridad y las instrucciones de
operacibn antes de usar este
producto por primera vez.
Fasten the manual near the garage
door after installation. Guarde este manual cerca de la
puerta de la cochera.
Periodic checks of the opener are
required to ensure safe operation. Se deben realizar revisiones peribdicas del abridor de puertas
para asegurar su operacibn
segura.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
www.sears.com/craftsman

TABLE OF CONTENTS
Introduction 2. 7
Safety symbol and signal word review ........................ 2
Preparing your garage door ........................................ 3
Tools needed ............................................................... 3
Planning .................................................................. 4-5
Carton inventory .......................................................... 6
Hardware inventory ..................................................... 7
Assembly 8-11
Assemble the rail ..................................................... 8-9
Fasten rail to motor unit and install trolley ................ 10
Attach rail brackets .................................................... 11
Installation 11.27
Installation safety instructions .................................... 11
Determine the header bracket location ................ 12-13
Install the header bracket .......................................... 14
Attach the rail to the header bracket ......................... 15
Install the safety reversing sensor ....................... 16-18
Position the opener ................................................... 19
Hang the opener ....................................................... 20
Install the door control and connect wiring ............... 21
Electrical requirements .............................................. 22
Complete the sensor installation ............................... 22
Install the lights and lens ........................................... 23
Attach the emergency release rope and handle .......23
Fasten the door bracket ....................................... 24-25
Connect door arm to trolley ................................. 26-27
Adjustment Section 28.30
Adjust the travel limits ............................................... 28
Adjust the force ......................................................... 29
Test the safety reversing sensor ............................... 30
Test the safety reverse system ................................. 30
Operation 31.34
Operation safety instructions ..................................... 31
Using your garage door opener ................................ 31
Using the walt-mounted Door Control ....................... 32
To open the door manually ........................................ 32
Care of your garage door opener .............................. 33
Having a problem? .................................................... 34
Programming 35-36
To add a hand-held remote control ........................... 35
To erase all codes ..................................................... 35
Multi-Function Remotes ............................................ 35
To add or change a Keyless Entry PIN ..................... 36
Repair Parts 37.38
Rail assembly parts ................................................... 37
Installation parts ........................................................ 37
Motor unit assembly parts ......................................... 38
Accessories 39
Warranty
Service Numbers
39
Back cover
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibilityof serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.
2

Preparing your garage door
Before you begin:
•Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown Release
the door If balanced, it should stay in place,
supported entirely by its springs
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call
a trained door systems technician
Toprevent possible SERIOUSINJURYORDEATH:
•ALWAYScall a trained door systems technician if
garagedoor binds, sticks, or is out of balance.An
unbalancedgaragedoor may not reversewhen
required.
• NEVERtry to loosen, move or adjust garagedoor, door
springs, cables, pulleys, brackets or their hardware,all
of which are under EXTREMEtension
• DisableALL locks andremove ALL ropes connectedto
garagedoor BEFOREinstalling and operating garage
door openerto avoid entanglement.
Toprevent damageto garage door and opener:
• ALWAYSdisablelocks BEFOREinstalling and operating
the opener.
• ONLYoperategaragedoor opener at 120V,60 Hzto
avoid malfunction and damage
Sectional Door
One-Piece Door
Level
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below
Pencil
TapeMeasure
WireCutters
HackSaw
Stepladder
DrillBits
3/16",5/16"and5/32" Pliers
Sockets and Wrench Screwddver
1/2",5/8",7/16",9/16"& 1/4"
ClawHammer
BoxWrench1/2x 7/16"
3

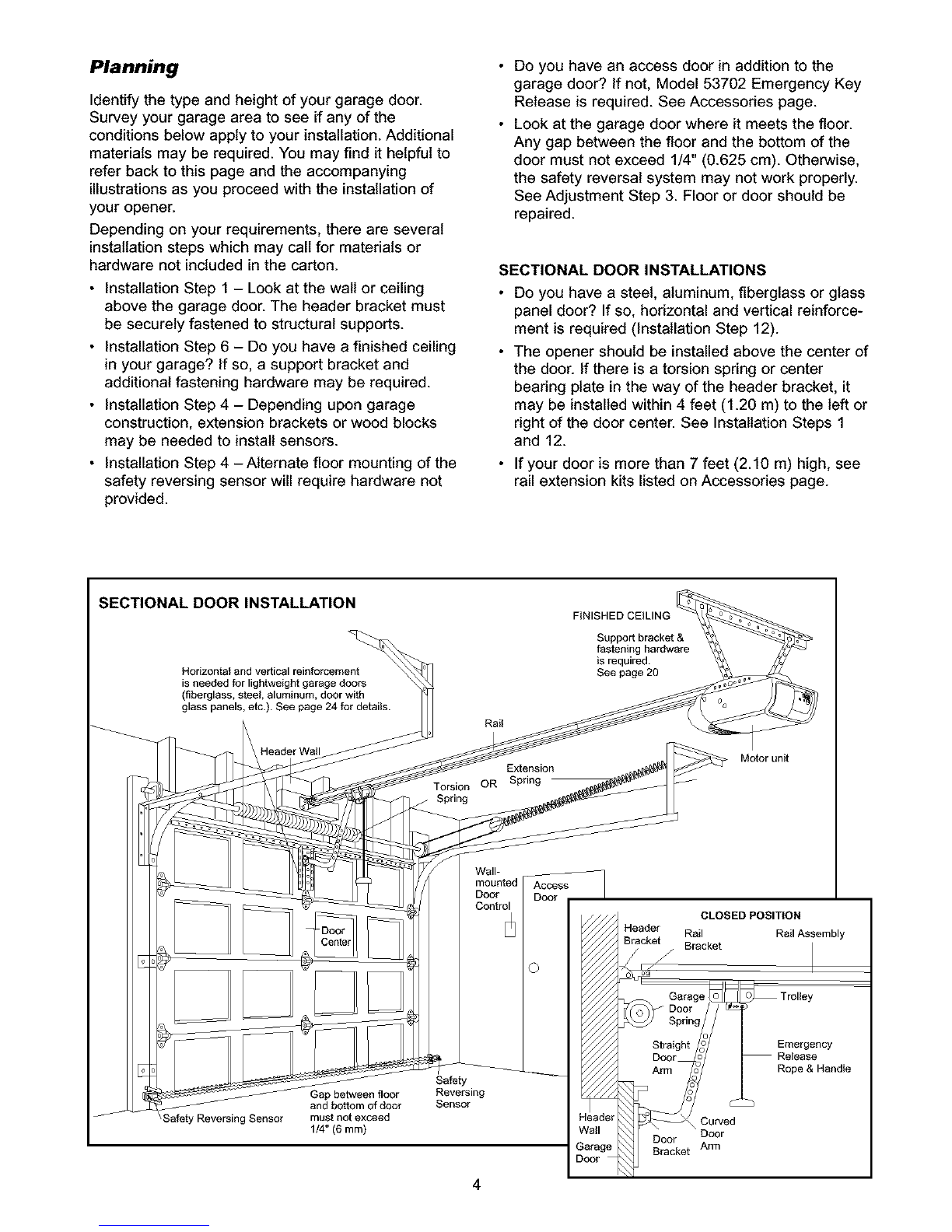

Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
•Installation Step 1 - Look at the walt or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 6 - Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
• Installation Step 4 - Depending upon garage
construction, extension brackets or wood blocks
may be needed to install sensors.
• Installation Step 4 - Alternate floor mounting of the
safety reversing sensor will require hardware not
provided.
Do you have an access door in addition to the
garage door? If not, Model 53702 Emergency Key
Release is required. See Accessories page.
Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 1/4" (0.625 cm). Otherwise,
the safety reversal system may not work properly.
See Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforce-
ment is required (Installation Step 12).
The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 4 feet (1.20 m) to the left or
right of the door center. See Installation Steps 1
and 12.
• If your door is more than 7 feet (2.10 m) high, see
rail extension kits listed on Accessories page.
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
isneeded for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 24 for details.
Header Wall
Rail
Extension
Torsion OR Spring
Spring
FINIt
Support bracket &
fastening hardware
is required.
See page 20
Motor unit
Wall- Access
Door Door
Control
y Reversing Sensor
Gap between floor
and bottom of door
must not exceed
1/4" (6 mm)
Safety
Reversing
Sensor
4
©
4eader
Vail
arage
oor
CLOSED POSITION
Header Rail Rail Assembly
Bracket Bracket
/
/
DGoarcarge Trolley
Spring o
Str oip'
i_Rope & Handle
Curved
Door Door

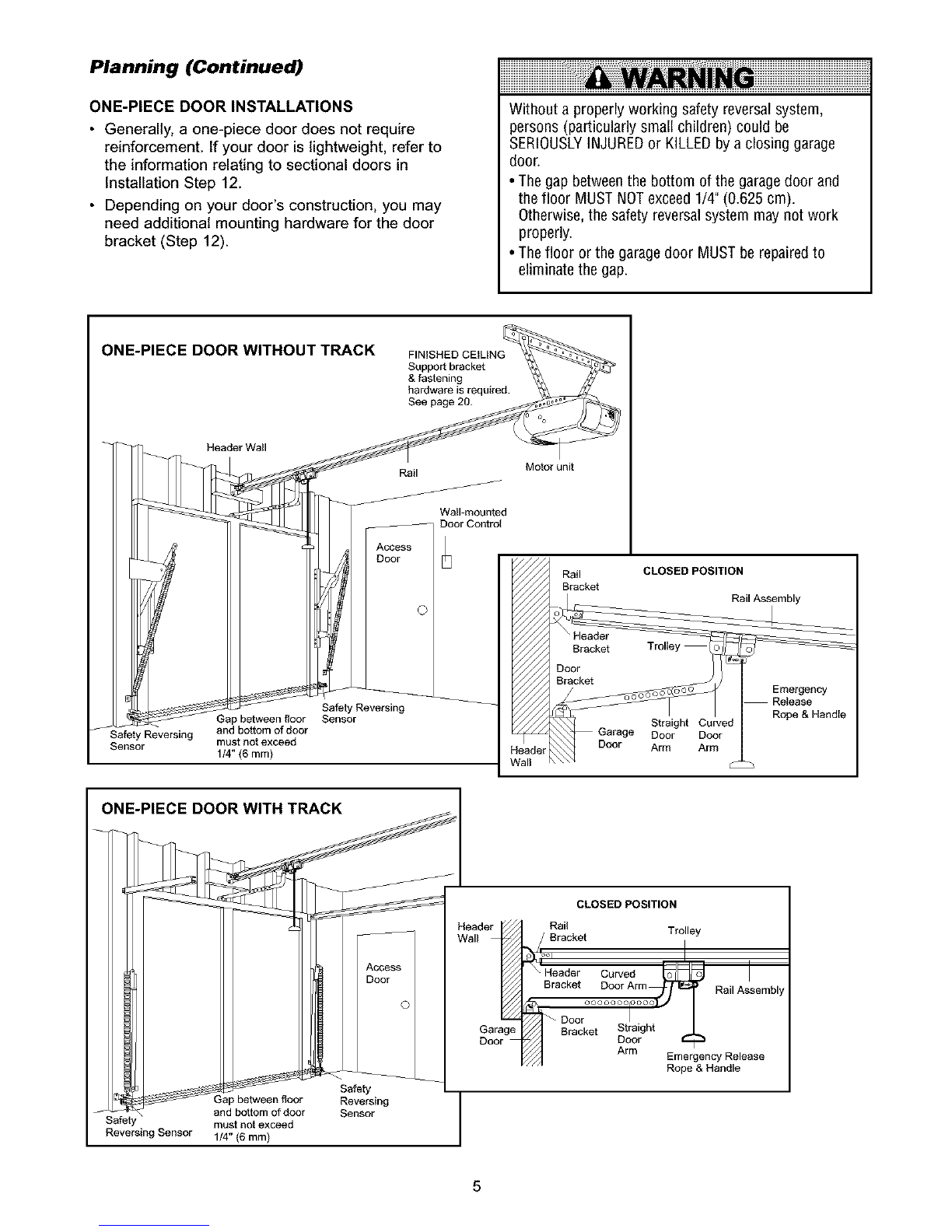

Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 12.
• Depending on your door's construction, you may
need additional mounting hardware for the door
bracket (Step 12).
Without a properlyworking safety reversal system,
persons (particularly small children) could be
SERIOUSLYINJUREDor KILLED bya closing garage
door.
• Thegap betweenthe bottom of the garage door and
thefloor MUSTNOTexceed1/4" (0.625 cm).
Otherwise, the safety reversal system may not work
properly.
• Thefloor or the garagedoor MUSTbe repaired to
eliminate the gap.
ONE-PIECE DOOR WITHOUT TRACK FINISHED CEILING
Support bracket
&fastening
hardware is required.
See page 20.
Header Wall
Rail Motor unit
Access
Door
Safety Reversing
Gap between f_oor Sensor
Safety Reversing and bottom of door
Sensor must not exceed
1/4" (6 mm)
Wail-mounted
Door Control
©
leader
Vail
Rail
Bracket
CLOSED POSITION
Rail Assembly
Header
Bracket
Door
Bracket
Door
Straight Curved
Door Door
Arm Arm
Emergency
Rope & Handle
ONE-PIECE DOOR WITH TRACK
Reversing Sensor
Safety
p between floor Reversing
and bottom of door Sensor
must not exceed
1/4" (6 mm)
Garage
Door
CLOSED POSITION
Rail Trolley
,,Bracket
_/o, I
"_ Hga_dert Curved _j_ I
e Door Arm Rail Assembl,
Door ....... ioooO]_T_ T
_Bracket _:r(maoirghtEmer_gency Releas e
Rope & Handle
5

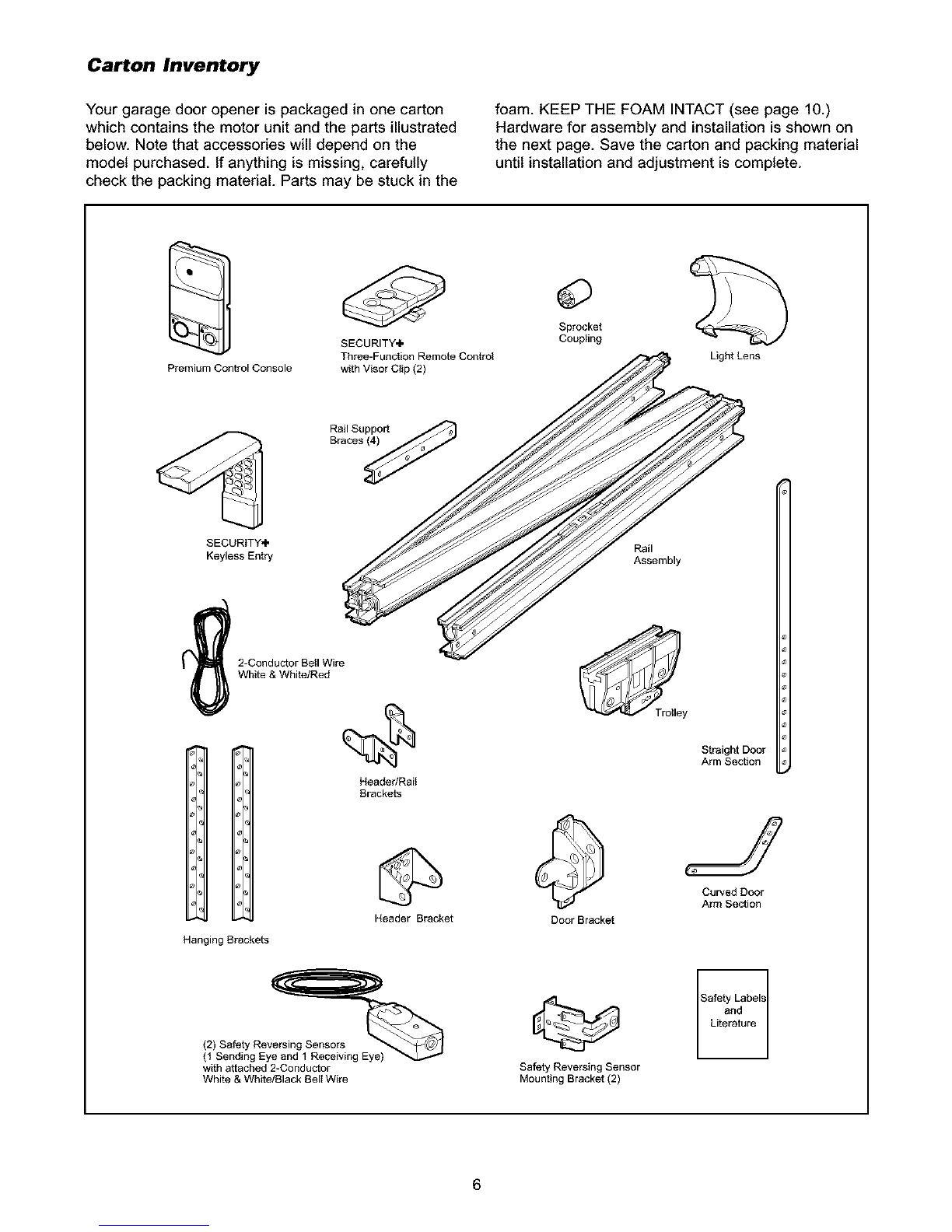

Carton Inventory
Your garage door opener is packaged in one carton
which contains the motor unit and the parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material. Parts may be stuck in the
foam. KEEP THE FOAM INTACT (see page 10.)
Hardware for assembly and installation is shown on
the next page. Save the carton and packing material
until installation and adjustment is complete.
Premium Control Console
SECURITY.I.
Three-Function Remote Control
with Visor Clip (2)
O
Sprocket
Coupling
SECURITY÷
Keyless Entry Rail
Assembly
2-Conductor Bell Wire
White & White/Red
HH
Hanging Brackets
Header/Rail
Brackets
Header Bracket
with attached 2-Conductor
White & White/Black Bell Wire
Door Bracket
Safety Reversing Sensor
Mounting Bracket (2)
Light Lens
Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
6

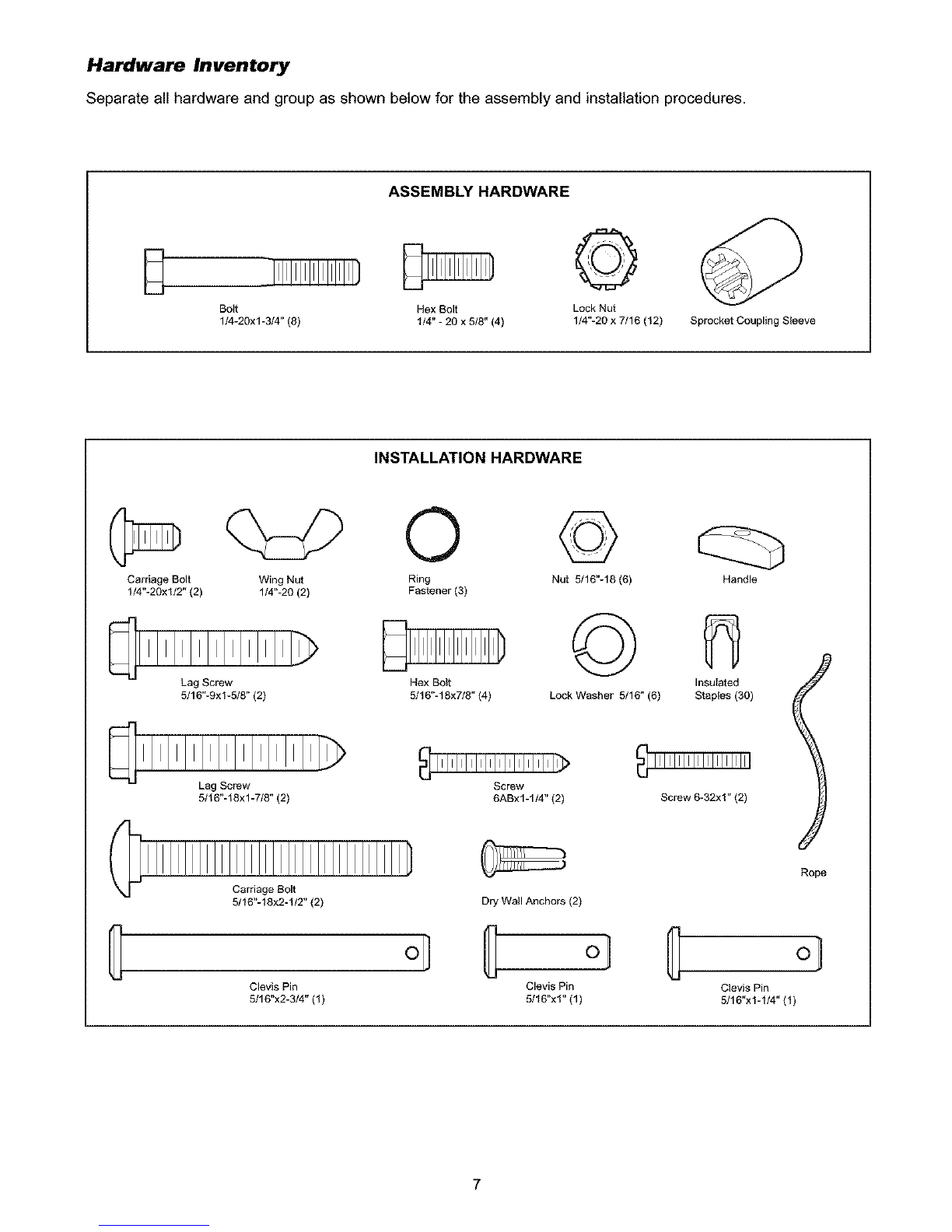

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
E ©
Bolt Rex Bolt Lock Nut
1/4-20xl-3/4" (8) 1/4" -20 x 5/8" (4) 1/4"-20 x 7/16 (12) Sprocket Coupling Sleeve
INSTALLATION HARDWARE
Carriage Bolt Wing Nut Ring
1/4"-20xl/2" (2) 1/4"-20 (2) Fastener (3)
Lag Screw Hex Bolt
5/16"-9xl-5/8" (2) 5/16"-18x7/8" (4)
©
Nut 5/16"-18 (6)
©
Lock Washer 5/16" (6)
Handle
Insulated
Staples (30)
Lag Screw
5/16"-18xl-7/8"(2) Screw
6ABx1-1/4" (2) Screw 6-32x1"(2)
Carriage Bolt
5/16"-18x2-1/2"(2)
o,]
Clevis Pin
5/16"x2-3/4"(1)
Rope
Dry Wall Anchors (2)
Clevis Pin Clevis Pin
5/16"x1" (1) 5/16"x1-1/4" (1)
7

ASSEMBLY STEP 1
Assemble the Rail
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
1. Turn the opened rail carton upside down and
empty its contents onto a level work surface.
2. Unfold the rails, taking care to avoid kinking the
screw rod joints.
3. Rotate the rail sections so that the flat side is down
and the screw side is up for all three lengths. Keep
it clean and free of debris while you are working.
Rail
Support
Braces
Straight
Door Arm
Extend Remove
End Rails Cardboard Packing
Outward /Center
Rail
Trolley Rack
Rail Assembly
Carton
Cardboard
Packing
Extend
End Rails
Outward
Rail Assembly
Hardware Bag Chassis Assembly Hardware Bag
Sprocket End Rail
NOTE: During assembly, avoid pulling the rail section
housing the trolley rack away from the screw rod.
The rack is factory set about 9" (23 cm) from the end
of the screw rod to the center of the rack.
If the plastic liner slides part way out during
assembly, simply push it back in.
Rotate
Rail
Sprocket
Center Rail
Trolley Rack
Door End Rail
8

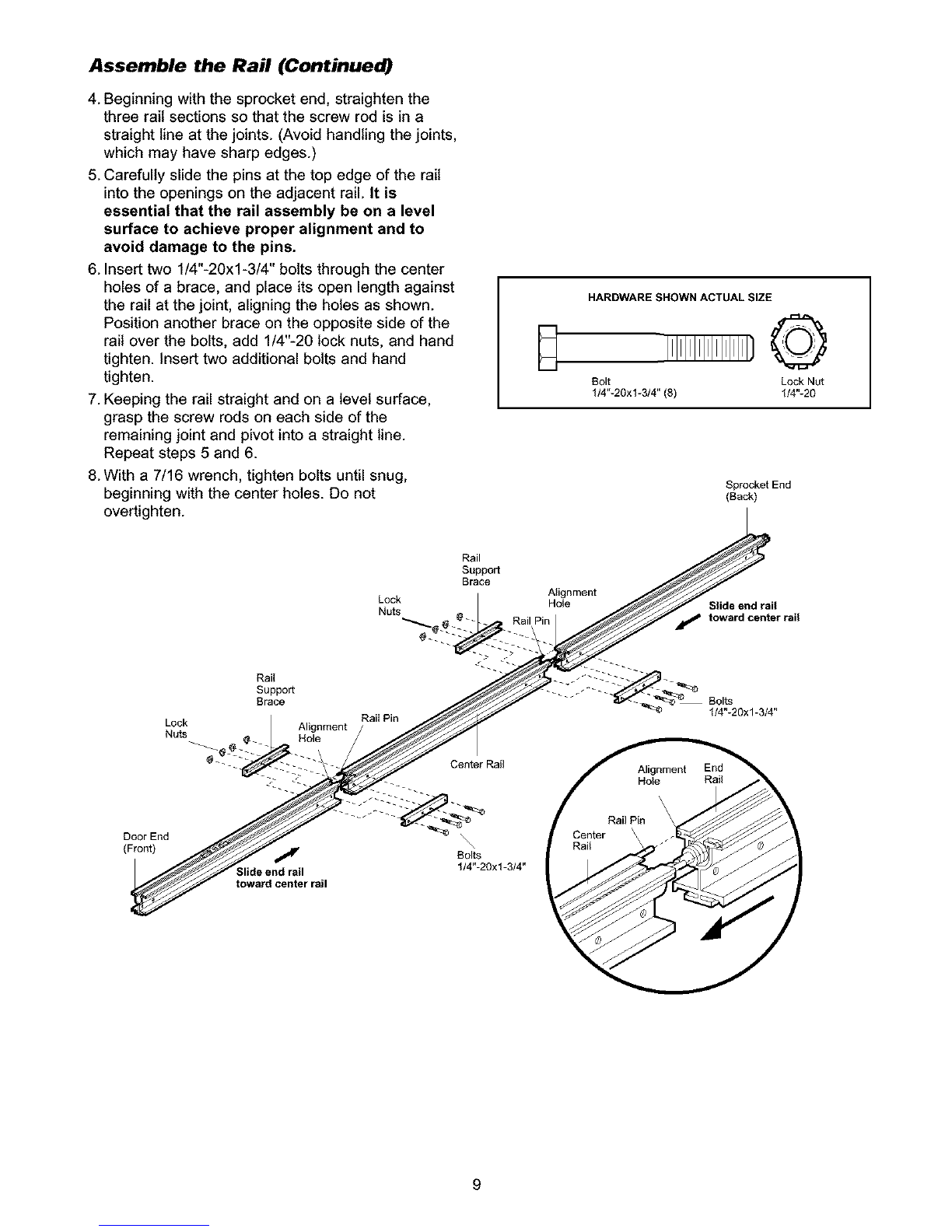

Assemble the Rail (Continued)
4. Beginning with the sprocket end, straighten the
three rail sections so that the screw rod is in a
straight line at the joints. (Avoid handling the joints,
which may have sharp edges.)
5. Carefully slide the pins at the top edge of the rail
into the openings on the adjacent rail. It is
essential that the rail assembly be on alevel
surface to achieve proper alignment and to
avoid damage to the pins.
6. Insert two 1/4"-20xl-3/4" bolts through the center
holes of a brace, and place its open length against
the rail at the joint, aligning the holes as shown.
Position another brace on the opposite side of the
rail over the bolts, add 1/4"-20 lock nuts, and hand
tighten. Insert two additional bolts and hand
tighten.
7. Keeping the rail straight and on a level surface,
grasp the screw rods on each side of the
remaining joint and pivot into a straight line.
Repeat steps 5 and 6.
8. With a 7/16 wrench, tighten bolts until snug,
beginning with the center holes. Do not
overtighten.
EHARDWARE SHOWN ACTUAL SIZE
I=1=1=1=1=1=1=1=1=1)@
Bolt Lock Nut
1/4"-20xl-3/4" (8) 114"-20
Sprocket End
(Back)
Rail
Support
Brace
Door End
(Front)
Lock Alignment
Nuts Hole
Slide end rail
toward center rail
Rail
Support
Brace
Rail Pin
Center Rail
Alignment
Hole Slide end rail
toward center rail
Bolts
I/4"-20xl-3/4"
9

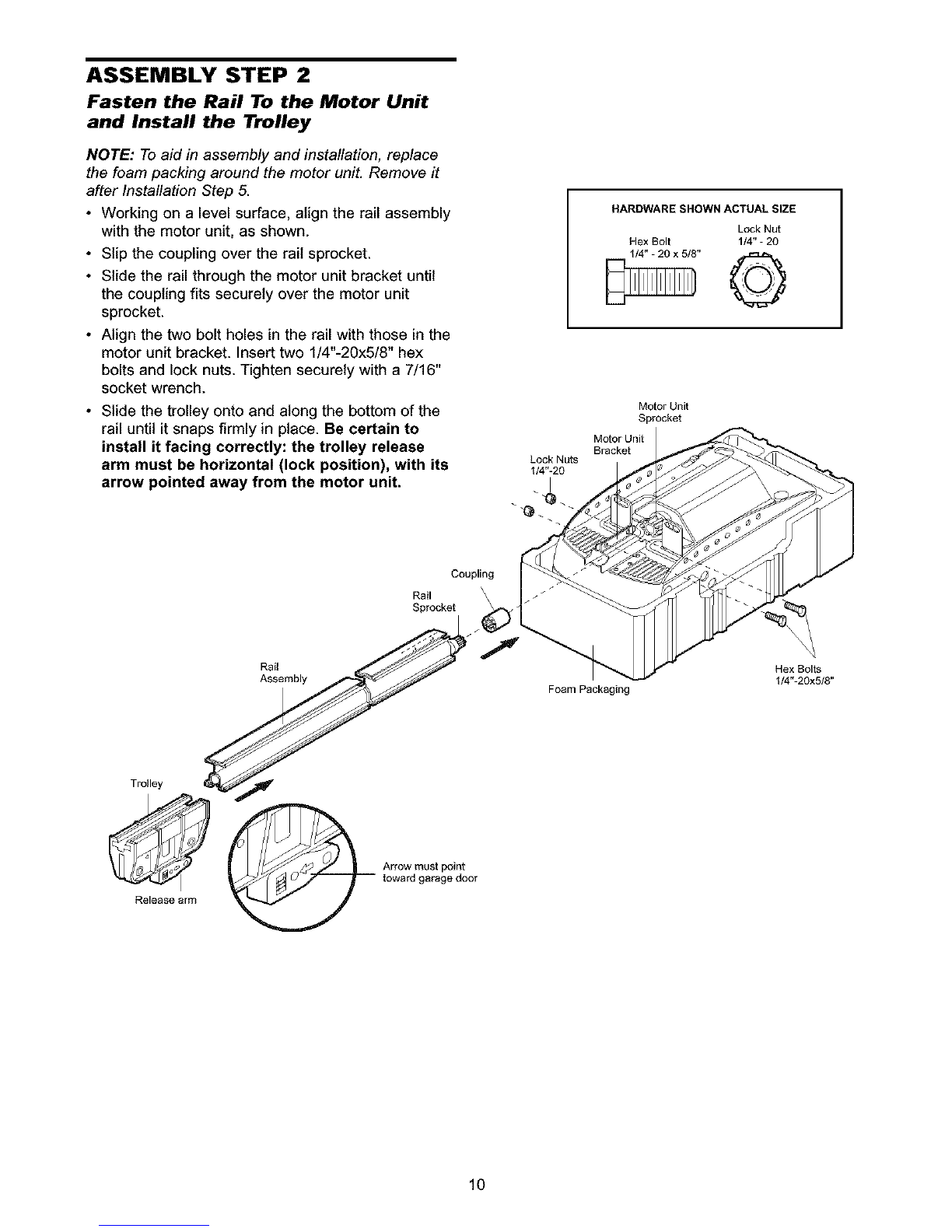

ASSEMBLY STEP 2
Fasten the Rail To the Motor Unit
and Install the Trolley
NOTE: To aid in assembly and installation, replace
the foam packing around the motor unit. Remove it
after Installation Step 5.
• Working on a level surface, align the rail assembly
with the motor unit, as shown.
• Slip the coupling over the rail sprocket.
• Slide the rail through the motor unit bracket until
the coupling fits securely over the motor unit
sprocket.
• Align the two bolt holes in the rail with those in the
motor unit bracket. Insert two 1/4"-20x5/8" hex
bolts and lock nuts. Tighten securely with a 7/16"
socket wrench.
• Slide the trolley onto and along the bottom of the
rail until it snaps firmly in place. Be certain to
install it facing correctly: the trolley release
arm must be horizontal (lock position), with its
arrow pointed away from the motor unit.
Lock Nuts
1/4"-20
HARDWARE SHOWN ACTUAL SIZE
Lock Nut
Hex Bolt 1/4" - 20
1/4" - 20 x 5/8" ©
Motor Unit
Sprocket
Motor Unit
Bracket
Rail
Assembly
Coupling
Rail
Sprocket
Foam Packaging
Hex Bolts
1/4"-20x5/8"
Trolley
Release arm
Arrow must point
toward garage door
10

ASSEMBLY STEP 3 LookNots
1/4"-20
Attach the Rail Brackets
•Align rail brackets to end of rail assembly, as
shown.
• Insert two 1/4"-20 x 5/8" hex bolts and lock nuts.
Tighten securely with a 7/16" socket.
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section,
Rail
j Brackets
Rex
Bolts Rail
1/4"-20x5/8
HARDWARESHOWNACTUALSIZE
Lock Nut
Hex Bolt 1/4" - 20
I/4" - 20 x 5/8" ©
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of severe injury or death:
1. READAND FOLLOWALL INSTALLATIONWARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garagedoor. An improperlybalanced
door may not reversewhen required and could result in
SEVEREINJURYor DEATH.
3. All repairs to cables,spring assembliesand other
hardware MUSTbe madeby a trained door systems
technician BEFOREinstalling opener.
4. Disableall locksand remove all ropesconnected to
garagedoor BEFOREinstallingopenerto avoid
entanglement.
5. Install garage door opener 7 feet or more abovefloor.
6. Mount emergency releasehandle 6 feet abovefloor.
7. NEVERconnect garage door openerto power source
until instructedto do so.
8. NEVERwear watches, rings or looseclothing while
installing or servicing opener.They could be caught in
garagedoor or opener mechanisms.
9. Install wall-mounted garagedoor control:
• within sight of the garage door
• out of reachof children at minimum height of 5 feet
• awayfrom all moving parts of the door.
10. Placeentrapment warning labelon wall next to garage
door control.
11. Placemanualrelease/safetyreversetest label in plain
view on inside of garagedoor.
12. Uponcompletion of installation,test safety reversal
system. Door MUSTreverseon contact with a one-
inchhigh object (ora 2x4 laidflat) on thefloor.
11

INSTALLATION STEP 1
Determine the Header Bracket
Location
Toprevent possible SERIOUSINJURYor DEATH:
•HeaderbracketMUSTbe RIGIDLYfastenedto
structural support on headerwall or ceiling, otherwise
garagedoor might not reversewhen required. DONOT
install header bracketover drywall.
• Concreteanchors MUST be usedif mounting header
bracket or 2x4 into masonry.
• NEVERtry to loosen, move or adjust garagedoor,
springs, cables, pulleys, brackets,or their hardware,all
of which are under EXTREMEtension.
• ALWAYScalla trained door systems technician if
garagedoor binds, sticks, or is out of balance.An
unbalancedgarage door might not reversewhen
required.
Vertical Finished
Centedine Ceiling
J
J
f
installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
SECTIONAL DOOR
AND ONE-PIECE DOOR WITH TRACK
1.Close the door and mark the inside vertical
centerline of the garage door.
2. Extend the line onto the header wall above the
door.
You can fasten the header bracket within 4 feet
(1.20 m) of the left or right of the door center
only if a torsion spring or center bearing plate
is in the way; or you can attach it to the ceiling
(see page 14) when clearance is minimal. (It
may be mounted on the wall upside down if
necessary, to gain approximately (1 cm) 1/2".)
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header walt 3" (7.5 cm) above the high point. This
height will provide travel clearance for the top edge
of the door.
NOTE: Door clearance brackets are available for
sectional doors when headroom clearance is less
than 2" (5 cm). See accessory page 39.
Proceed to Step 2, page 14.
Ceiling
Header Wall
:3" (7.5 cm) Track
Highest Point
of Travel
Door
Sectional door
with curved
track
One-piece
door with
horizontal
track
Header Wall Track
Highest Point
[y
12

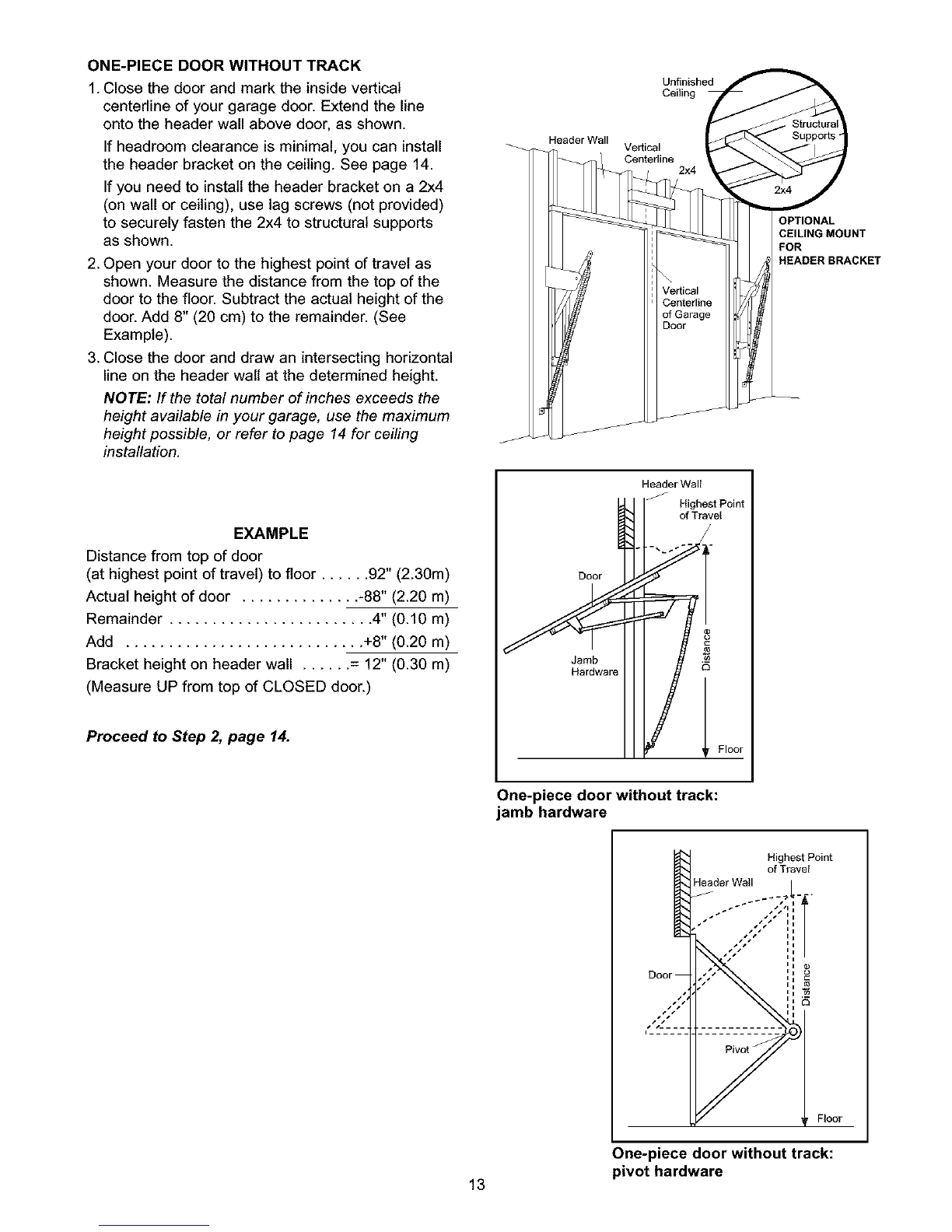

ONE-PIECE DOOR WITHOUT TRACK
1. Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 14.
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports
as shown.
2. Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 8" (20 cm) to the remainder. (See
Example).
3. Close the door and draw an intersecting horizontal
line on the header walt at the determined height.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 14 for ceiling
installation.
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ...... 92" (2.30m)
Actual height of door .............. -88" (2.20 m)
Remainder ........................ 4" (0.10 m)
Add ............................ +8" (0.20 m)
Bracket height on header wall ...... = 12" (0.30 m)
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 14.
Unfinished
Ceiling
Header Wall Vertical
Centerline 2x4
Door 1
JHa_m_bare
Header Wall
/Highest Point
of Trav
i5
Floor
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
One-piece door without track:
jamb hardware
One-piece door without track:
pivot hardware
13

INSTALLATION STEP 2
Install the Header Bracket

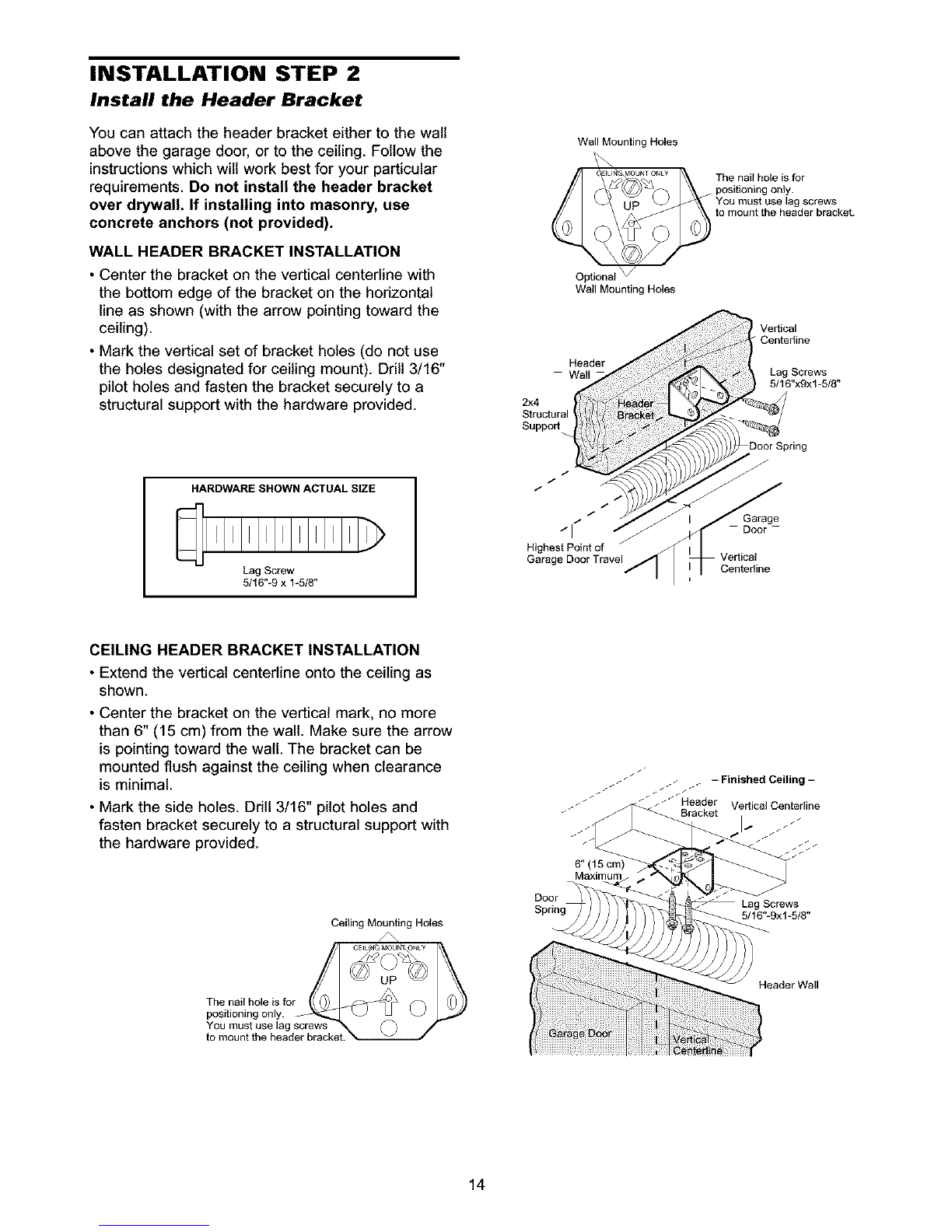

You can attach the header bracket either to the walt
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
• Mark the vertical set of bracket holes (do not use
the holes designated for ceiling mount). Drill 3/16"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
HARDWARE SHOWN ACTUAL SIZE
Lag Screw
5/16"-9 x 1-5/8"
Wall Mounting Holes
Optional
Wall Mounting Holes
HiagrhagSet DP°ionrtT°rfave, ,_
The naiI hole is for
positioning oMy.
You must use lag screws
to mount the header bracket.
Door
Vertical
Centegine
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centertine onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 6" (15 cm) from the wall. Make sure the arrow
is pointing toward the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.
Ceiling Mounting Holes
/
/ _ _ - Finished Ceiling -
/_//_Header Vertical Centerline
Bracket
Maximum
Door J
Lag Screws
5/16"-9xl-5/8"
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
Header Wall
14

f Header Bracket
Rail Bracket

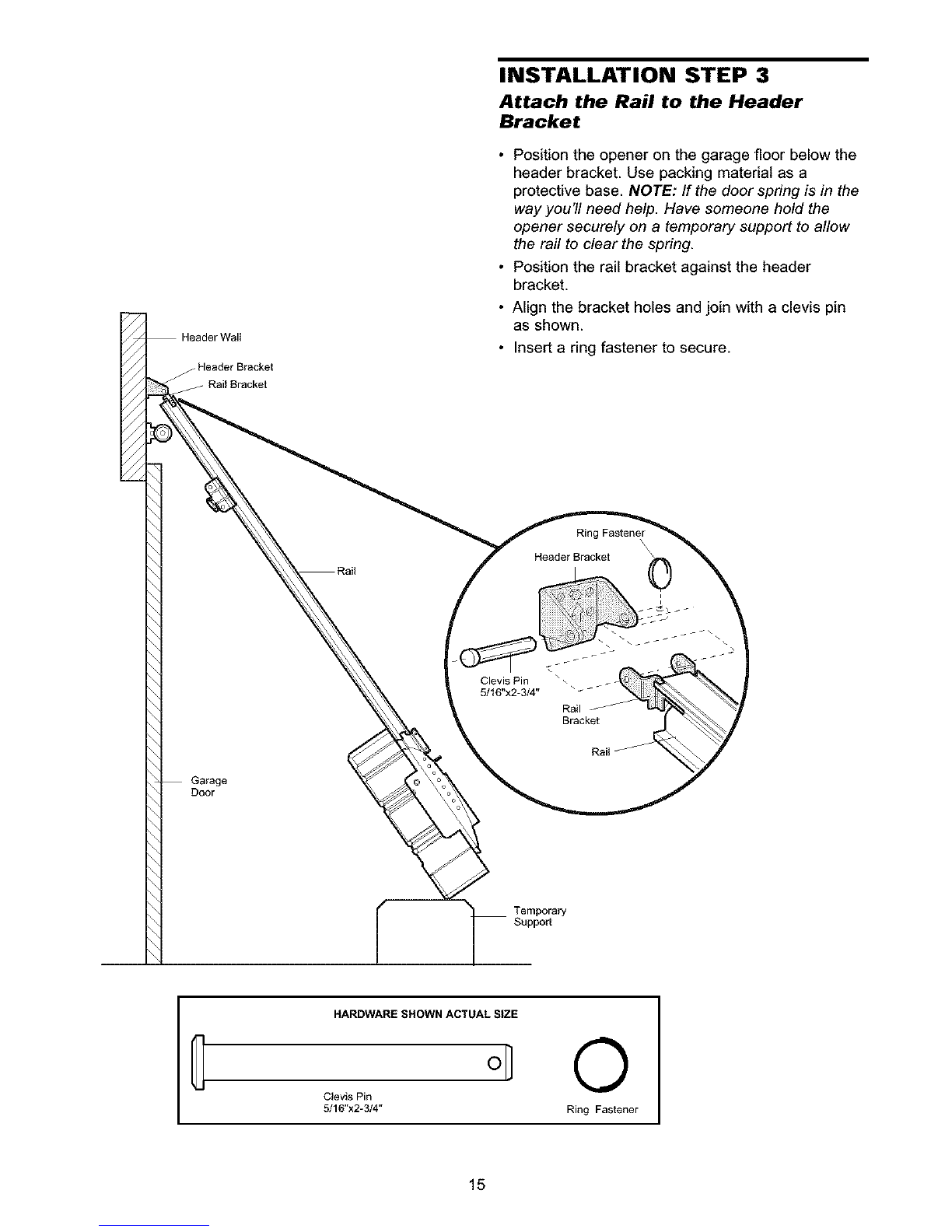

INSTALLATION STEP 3
Attach the Rail to the Header
Bracket
Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base. NOTE: ff the door spring is in the
way you'll need help. Have someone hold the
opener securely on a temporary support to allow
the rail to clear the spring.
Position the rail bracket against the header
bracket.
Align the bracket holes and join with a clevis pin
as shown.
Insert a ring fastener to secure.
Ring Fastener
Header Bracket
Garage
Door
i
i
Rail
Bracket
Rail
I-- Temporary
Support
HARDWARE SHOWN ACTUAL SIZE
°1
Clevis Pin
5/16"x2-3/4" ©
Ring Fastener
15

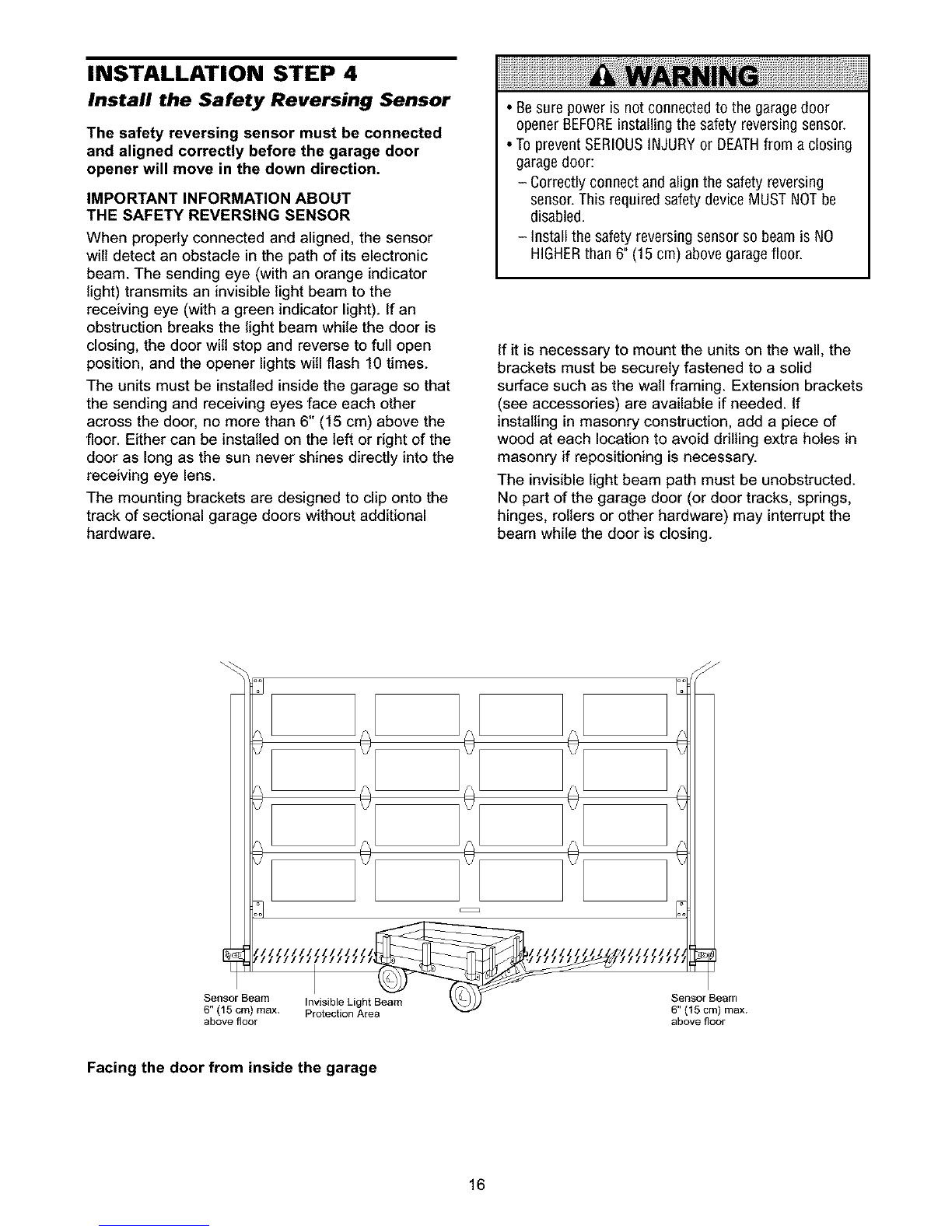

INSTALLATION STEP 4
Install the Safety Reversing Sensor
The safety reversing sensor must be connected
and aligned correctly before the garage door
opener will move in the down direction.
IMPORTANT INFORMATION ABOUT
THE SAFETY REVERSING SENSOR
When properly connected and aligned, the sensor
will detect an obstacle in the path of its electronic
beam. The sending eye (with an orange indicator
light) transmits an invisible light beam to the
receiving eye (with a green indicator light). If an
obstruction breaks the light beam while the door is
closing, the door wilt stop and reverse to full open
position, and the opener lights will flash 10 times.
The units must be installed inside the garage so that
the sending and receiving eyes face each other
across the door, no more than 6" (15 cm) above the
floor. Either can be installed on the left or right of the
door as long as the sun never shines directly into the
receiving eye lens.
The mounting brackets are designed to clip onto the
track of sectional garage doors without additional
hardware.
•Be sure poweris not connectedto the garagedoor
opener BEFOREinstalling the safety reversing sensor.
• To preventSERIOUSINJURYor DEATHfrom a closing
garage door:
- Correctly connectand align the safety reversing
sensor.This required safety device MUST NOTbe
disabled.
- Install the safety reversing sensor so beam is NO
HIGHERthan 6" (15 cm) abovegaragefloor.
if it is necessary to mount the units on the wall, the
brackets must be securely fastened to a solid
surface such as the wall framing. Extension brackets
(see accessories) are available if needed, if
installing in masonry construction, add a piece of
wood at each location to avoid drilling extra holes in
masonry if repositioning is necessary.
The invisible light beam path must be unobstructed.
No part of the garage door (or door tracks, springs,
hinges, rollers or other hardware) may interrupt the
beam while the door is closing.
6" (15 cm) max. Protection Area
above floor
SensorBeam
6" (15 cm) max.
above floor
Facing the door from inside the garage
16

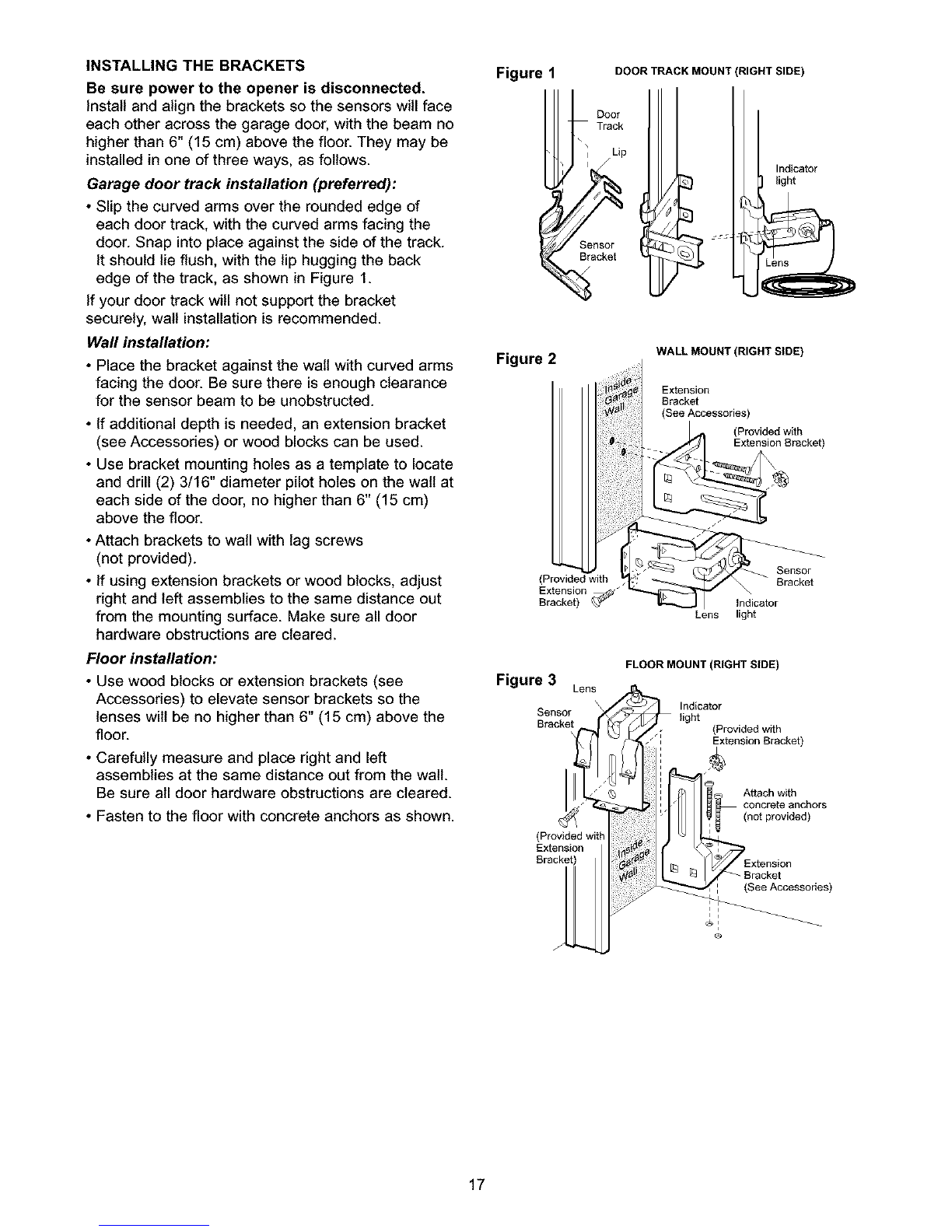

INSTALLING THE BRACKETS
Be sure power to the opener is disconnected.
install and align the brackets so the sensors will face
each other across the garage door, with the beam no
higher than 6" (15 cm) above the floor. They may be
installed in one of three ways, as follows.
Garage door track installation (preferred):
• Slip the curved arms over the rounded edge of
each door track, with the curved arms facing the
door. Snap into place against the side of the track.
It should lie flush, with the lip hugging the back
edge of the track, as shown in Figure 1.
If your door track will not support the bracket
securely, walt installation is recommended.
Wall installation:
• Place the bracket against the walt with curved arms
facing the door. Be sure there is enough clearance
for the sensor beam to be unobstructed.
• If additional depth is needed, an extension bracket
(see Accessories) or wood blocks can be used.
• Use bracket mounting holes as a template to locate
and drill (2) 3/16" diameter pilot holes on the walt at
each side of the door, no higher than 6" (15 cm)
above the floor.
• Attach brackets to wall with lag screws
(not provided).
• If using extension brackets or wood blocks, adjust
fight and left assemblies to the same distance out
from the mounting surface. Make sure all door
hardware obstructions are cleared.
Floor installation:
• Use wood blocks or extension brackets (see
Accessories) to elevate sensor brackets so the
lenses wilt be no higher than 6" (15 cm) above the
floor.
• Carefully measure and place right and left
assemblies at the same distance out from the walt.
Be sure all door hardware obstructions are cleared.
• Fasten to the floor with concrete anchors as shown.
Figure 1 DOOR TRACK MOUNT (RIGHT SIDE)
Door
Track
\iLip
Sensor
Bracket
Indicator
light
Figure 2 WALL MOUNT (RIGHT SIDE)
Extension
Bracket
(See Accessories)
(Provided with
Extension Bracket)
(Provided with
Extension
Bracket) _ ¢_ Indicator
Lens light
Sensor
Bracket
Figure 3 Lens
Sensor
Bracket
(Provided with
Extension
Bracket)
FLOOR MOUNT (RIGHT SIDE)
Indicator
light (Provided with
' Extension Bracket)
concrete anchors
not provided)
Extension
Bracket
See Accessories)
ii
i i
17

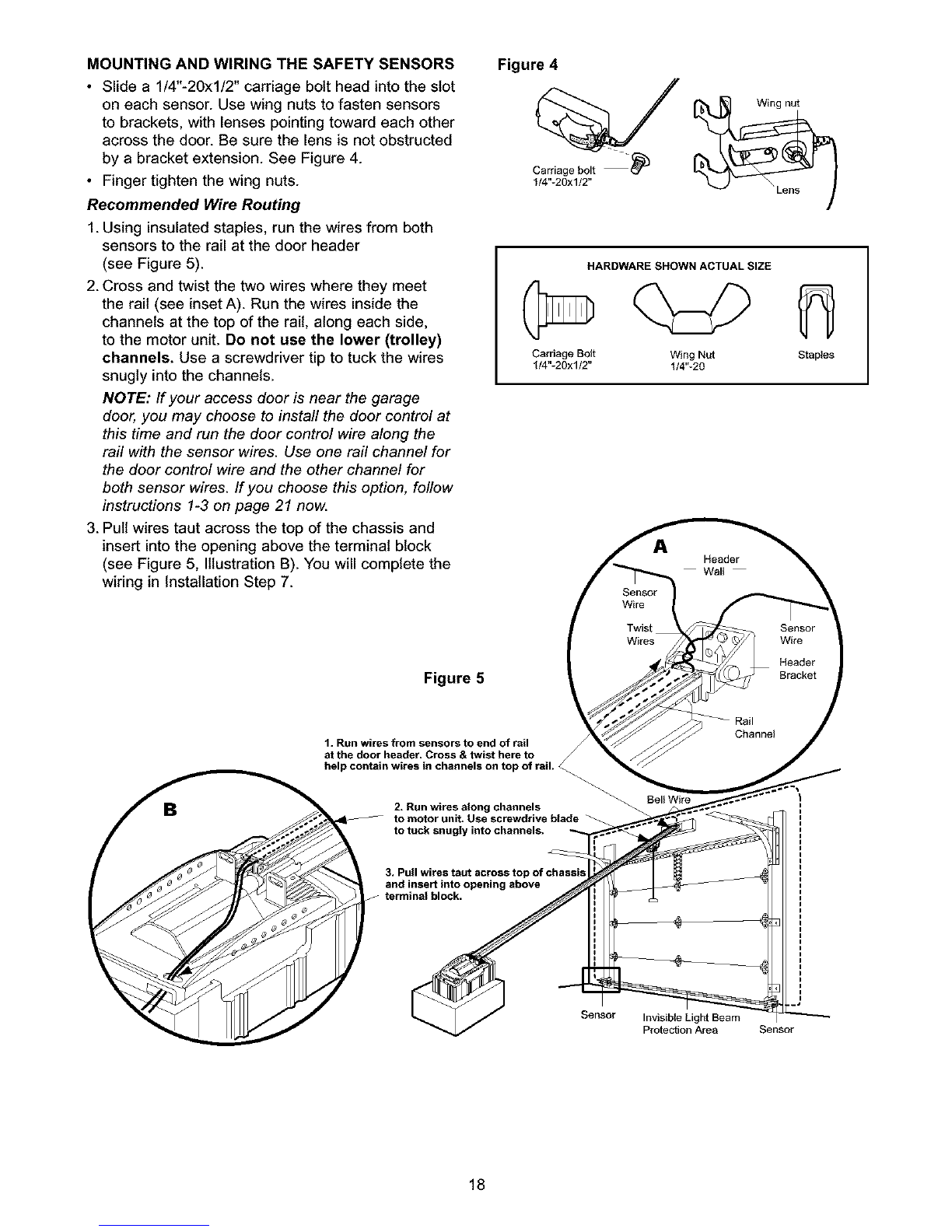

MOUNTING AND WIRING THE SAFETY SENSORS
• Slide a 1/4"-20xl/2" carriage bolt head into the slot
on each sensor. Use wing nuts to fasten sensors
to brackets, with lenses pointing toward each other
across the door. Be sure the lens is not obstructed
by a bracket extension. See Figure 4.
• Finger tighten the wing nuts.
Recommended Wire Routing
1. Using insulated staples, run the wires from both
sensors to the rail at the door header
(see Figure 5).
2. Cross and twist the two wires where they meet
the rail (see inset A). Run the wires inside the
channels at the top of the rail, along each side,
to the motor unit. De not use the lower (trolley)
channels. Use a screwdriver tip to tuck the wires
snugly into the channels.
NOTE: If your access door is near the garage
door, you may choose to install the door control at
this time and run the door control wire along the
raft with the sensor wires. Use one raft channel for
the door control wire and the other channel for
both sensor wires. If you choose this option, follow
instructions 1-3 on page 21 now.
3. Pull wires taut across the top of the chassis and
insert into the opening above the terminal block
(see Figure 5, Illustration B). You will complete the
wiring in installation Step 7.
Figure 5
Figure 4
Carriage bolt -'_
I/4"-20xl/2" Wing nut
HARDWARE SHOWN ACTUAL SIZE
Carriage Bolt Wing Nut Staples
I/4"-20xl/2" 1/4'L20
Header
Wall
Sensor
Wire
Twist Sensor
Wires Wire
Header
Bracket
B
1. Run wires from sensors to end of rail
at the door header. Cross & twist here to
help contain wires in channels on top of rail. <_
2. Run wires along channels
to motor unit. Use screwdrive blade
to tuck snugly into channels.
Bell Wire
Rail
Channel
3. Pull wires taut across top of chassis
and insert into opening above
Jterminal block.
Sensor Invisible Light Beam
Protection Area Sensor
18

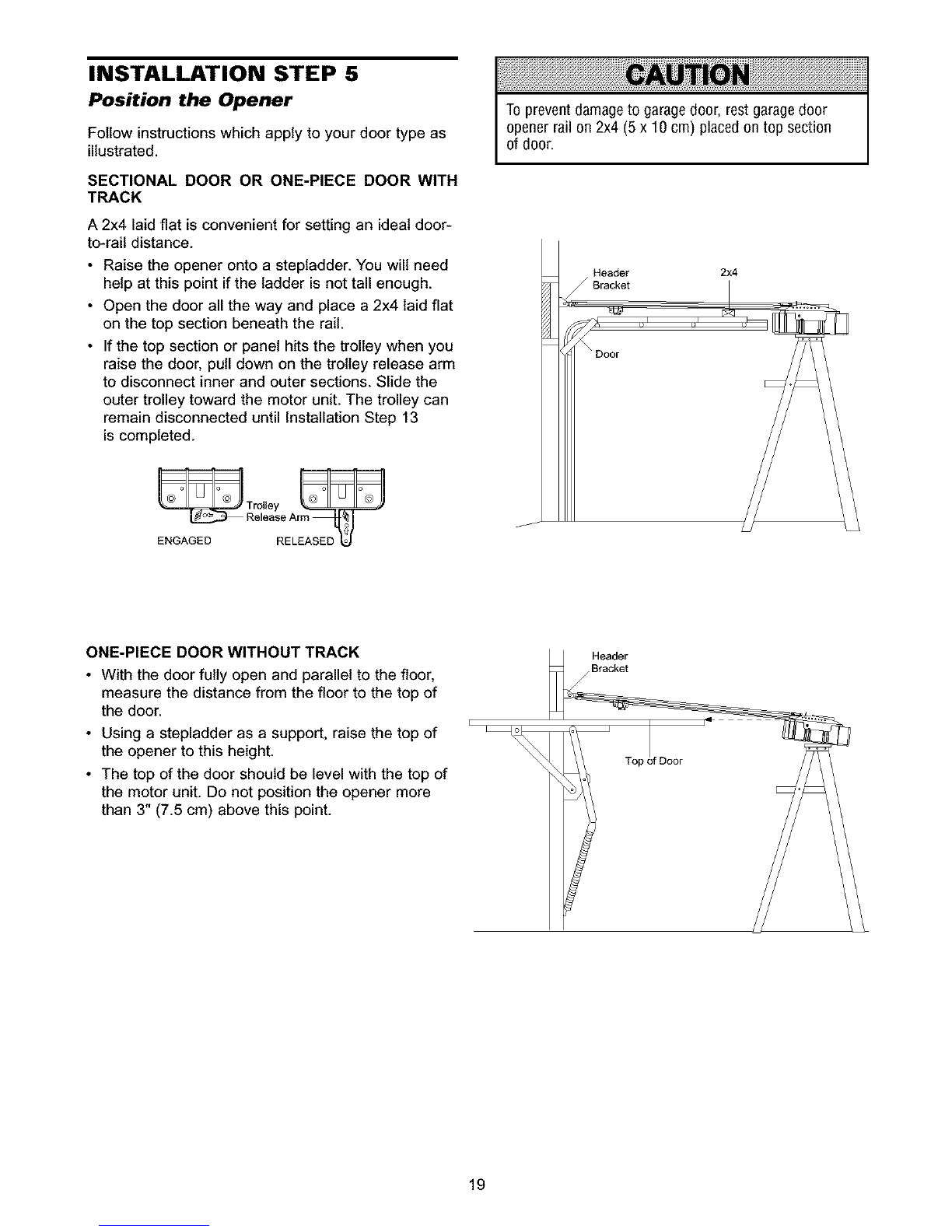

INSTALLATION STEP 5
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal door-
to-rail distance.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat
on the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Step 13
is completed.
_ Trotley m_Release Ar
ENGAGED RELEASED L,_
Toprevent damageto garage door, rest garage door
opener rail on 2x4 (5 x 10 cm) placedon top section
of door.
Header 2x4
_8racket
ONE-PIECE DOOR WITHOUT TRACK
• With the door fully open and parallel to the floor,
measure the distance from the floor to the top of
the door.
• Using a stepladder as a support, raise the top of
the opener to this height.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 3" (7.5 cm) above this point.
Header
j Bracket
I
\
\
Top !f Door 14
19

INSTALLATION STEP 6
Hang the Opener
Three representative installations are shown. Yours
may be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided
(see accessories).
Existing brackets from a previous installation may be
fastened to the sides of the motor unit as in
Figures 1 and 2, or to the mounting tabs as shown in
Figure 3. Then continue with step 5 below.
1. Remove foam packaging. Measure the distance
from each side of the motor unit to the structural
support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl-7/8" Jagscrews.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
If you wish to utilize the two center mounting tabs,
you must triangulate the vertical brackets for
additional stability. See Figure 3.
6. Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually. If
the door hits the rail, raise the header bracket.
Toavoid possible SERIOUSINJURYfrom a falling
garage door opener,fasten it SECURELYto structural
supports of the garage.Concreteanchors MUSTbe used
if installing any brackets into masonry.
Figure 1 'Structural
Measure _
Distance
Lag Screws
5/16"- 18xl-7/8"
Hex Bolt
5/16"-18x7/8"
Nuts 5/16"-18
Preferred range of
bracket placement
Bracket
(Not Provided)
BoIt 5/16"- 18x7/8"
Lock Washer 5/16"\
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
HARDWARESHOWNACTUALSIZE
Hex Bolt
5/16"-18x7/8" ©©
Nut 5/16"-18 Lock Washer 5/16"
Preferred range of
bracket placement
Figure 3
Existin,B_ rackets Top Mounting Tabs
Bracket i 0_
Utilizing existing top mount installation
2O
