Introduction
Symbols and Icons 2
Inventory 3
Preparation / Tools Required 4
Assembly
Rail and Trolley Assembly 5
Installing the Belt 6-7
Important Installation Instructions 8
Mounting Header Bracket 9
Installation
Attaching Rail to Header Bracket and Mounting Door Bracket 10
Mounting Opener to Ceiling 11
Attaching Door Arms 12
Installing Light and Emergency Release Handle 13
Wiring
Wiring Instructions 14
Connecting Photo Eye Safety System 15
Connecting Door Control Console 16

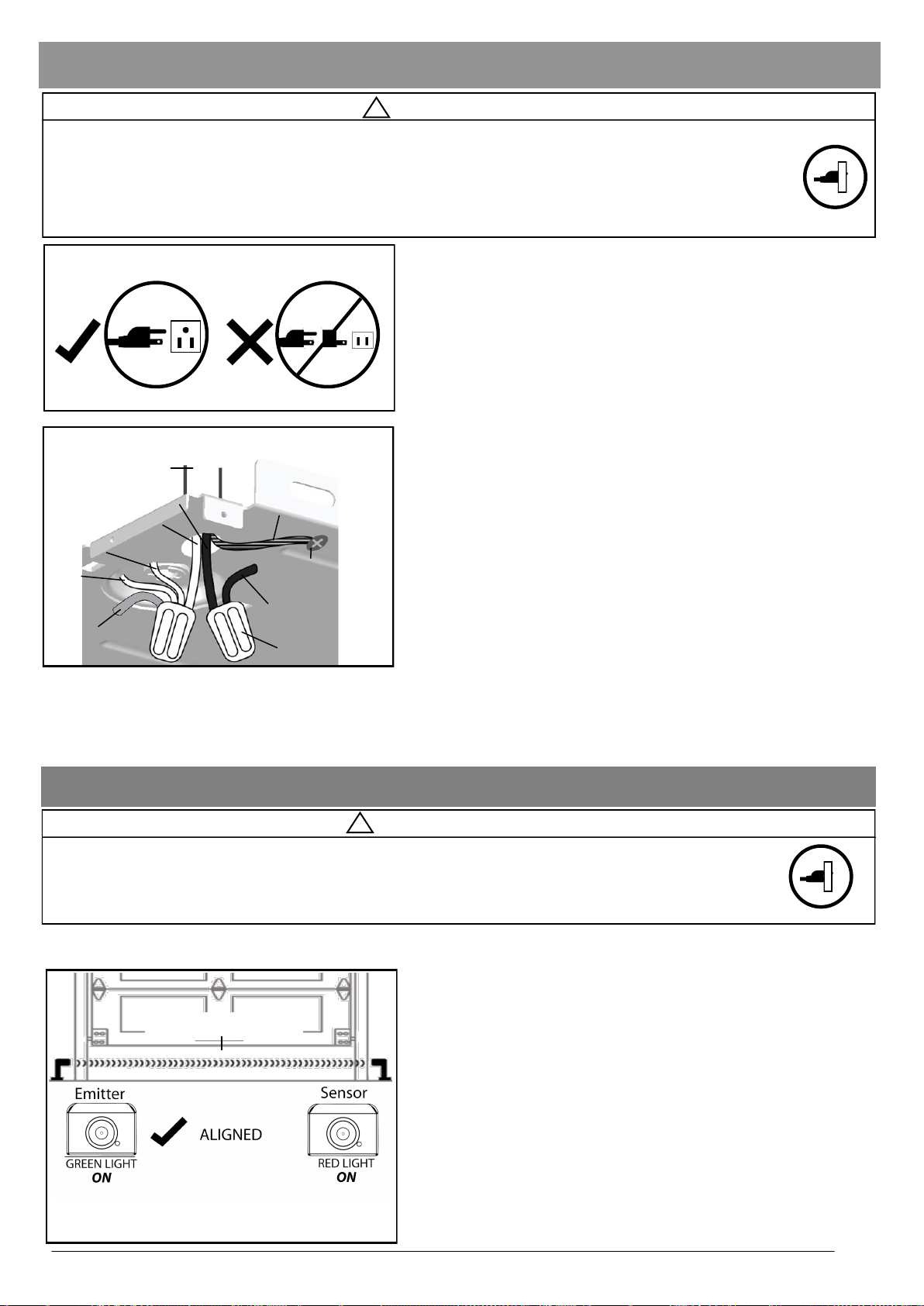

Connecting Power 17
Adjustment
Aligning the Photo Eye Safety System 17
Travel Limit Adjustment– I. UP Limit 18
Travel Limit Adjustment– II. DOWN Limit 19
Auto Force Adjustment 20
Final Adjustment and Testing 21
Operation
Programming 3-Button Remote 22
Programming Keyless Entry Pad 23
Important Safety Instructions 24
Operating the Opener 25
Door Status vs. Activation 26
Backup Battery Installation / Battery and Status Indicator 27
Backup Battery Features / Motion-Sensing Light 28
Maintenance 29
Troubleshooting 29-30
Repair Parts and Service
Rail Assembly Parts / Installation Parts / Accessories 31
Opener Assembly parts 32
Warranty 33
DO NOT connect power Please connect power
Symbols and Icons
!WARNING READ WARNINGS CAREFULLY to prevent SERIOUS INJURY or DEATH caused by
electrocution or mechanical hazard.
Installation hardware are
shown in actual size
*See Accessories in Repair Parts section of this manual for purchase information.
Beeps from built-in buzzer of the opener

3
— Door arms / Mounting Opener
Inventory
x 2
Clevis Pin — Pulley
3/8” x 1-3/4”
Hitch Pin — Locking Clevis Pins
x 5
Lag Screw #12 x 1”— Photo Eye System
Lag Screw 5/16” x 1-1/2”
— Header Bracket / Mounting Opener
Bolt 5/16” x 1”
Drywall Anchor
- Push Button
x 2
x 2
Screw #6 x 1-1/4”
- Push Button
5/16” Flange Nut
x 4 x 4
x 4
x 4
x 1
x 1
Emergency Release Handle + Rope
Literature + Safety Labels
Photo Eye Safety System
Opener Unit + Light Lens Cover
Header
Bracket
Door Bracket
Trolley Pulley
Rail — Header Segment
Rail — Middle Segments x3
INSTALLATION HARDWARE, LOCATED IN HARDWARE BAG (SHOWN IN ACTUAL SIZE)
Hanging
Brackets
Insulated Staples
— Securing wires
x 2
Self-Threading Screw 1/4” x 5/8”
Door Bracket
Trolley Shaft
Master Link Set
—Trolley Shaft
x 1
Rail — End Segment with Trolley Stop Bolt
Clevis Pin — Door arms
5/16” x 1”
Clevis Pin — Header Bracket
5/16” x 1-1/2”
Two 3-Button
Mini Remotes Door Control Console Wireless Keyless Entry Keypad
Drywall Anchor
x 2
x 2
Screw #6 x 1”
Drywall Anchor
Screw #6 x 1”
Sprocket Cover
x 1
x 1
Door Arms
Belt

4
Preparation
Level
Tape Measure
Hack Saw
Pencil
Drill, 3/16” and 5/16” Drill Bits
Tools Required
Step Ladder
Screwdriver
Hammer
Sectional Garage Door BEFORE beginning Installation:
1. Disable locks and remove all ropes connected to the
garage door.
2. Perform the following door test to ensure your door is
balanced and in good working condition.
To Test Your Garage Door
1. Raise and lower the door to check if there is any sticking or
binding.
2. Check for loose hinges, damaged rollers, frayed cables and
damaged or broken springs.
3. Lift the door approximately halfway and release. The door
should stay at the point under proper spring tension.
Call a qualified garage door service technician if your door binds,
sticks or is unbalanced.
!WARNING
To prevent SERIOUS INJURY or DEATH:
- Before beginning installation of the opener please complete the following test to ensure that your door is
balanced and in good working condition.
- A poorly balanced door can cause serious injury and damage to the opener.
- Always have a qualified garage door service technician make any required adjustments and/or repairs to
your door before proceeding with installation.
- DISABLE ALL LOCKS and REMOVE ALL ROPES connected to the garage door BEFORE installing
and/or operating the opener.
To prevent damage to the door and opener:
- DO NOT connect power until instructed.
- Operate this opener with AC 120V/60Hz power supply ONLY.
Pliers
Adjustable Wrench Ratchet with
5/16”, 7/16” and 1/2” sockets
DO NOT REUSE PARTS FROM ANOTHER BRAND OF OPENER!!!

5
Rail and Trolley Assembly
!WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- Keep hands and fingers clear from sprocket during operation.
- Wear gloves when installing belt.
- Keep hands and fingers away from joints and possible sharp edges.
Trolley direction (Top View)
!CAUTION
- DO NOT connect power until instructed.
- To prevent INJURY, keep hands and fingers
away from joints and possible sharp edges.
- Wear gloves when installing chain/belt and cable.
When connecting the rails ensure they are securely connected as shown
above. To apply additional force tap gently on the end of the rail with a
rubber mallet*.
*Only use a soft rubber mallet to tap on the end of the rails as other tools
may damage the rail.
Rail — Header Segment
Rail — Middle Segments
(tapered) x 3
Rail — End Segment (tapered)
with Trolley Stop Bolt
Fig.1
Loosely connected
Securely connected by applying force
To Assemble Rail and Opener
1. Prepare the rails as shown in Fig.1.
2. Connect the rails starting with the Header Segment. Insert the tapered ends into open ends, apply any additional
force necessary by tapping the Rail on padded flooring. Ensure the End Segment has Trolley Stop Bolt facing up.
Make sure the rails are securely joined together as shown.
3. Slide the Trolley onto the rail from the Header Segment. Make sure the arrow is pointing towards the door as shown .
4. Insert the Rail - End Segment into the Rail Bracket on the Opener. Secure End Segment to Bracket as described on
next page.
* VERY IMPORTANT! *
Right
Wrong
Rail Bracket

6
Installing the Belt
!WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- Keep hands and fingers clear from sprocket during operation.
- Wear gloves when installing the belt.
- Keep hands and fingers away from joints and possible sharp edges.
To Secure the Rail on the Opener
With the End Segment of the rail fully inserted into the Rail
Bracket, insert a 5/16” x 1-1/2” Clevis Pin through the hole and
lock it into position with a Hitch Pin as shown in Fig.1.
To Assemble the Header Section of Rail
See Figure 2 for steps 1 through 7.
1. Place the belt beside the rail as shown
2. Insert a screwdriver into the hole approximately 10-1/4” from
the end of the Rail - Header Segment. Slide the trolley
against this screw driver. The trolley must stay in this posi-
tion for proper alignment of the belt.
3. Pass the belt end with Trolley Shaft Connector through the
slot on the Rail - Header Segment.
4. Insert the Pulley into the slot to the right of the belt.
5. Secure the Pulley by inserting the 3/8” x 1-3/4” Clevis Pin
through the top of the rail.
6. Lock the Clevis Pin with a Hitch Pin. Rotate the Pulley to
ensure it spins smoothly.
7. Connect the Trolley Shaft to the Trolley Shaft Connector on
the belt, using the Master Link Set.
8. Slide the Trolley Shaft into the Trolley until you hear a "click"
when they lock together. See Fig. 3.
Clevis Pin - 5/16” x 1-1/2”
Hitch Pin
Fig.1
Hitch Pin
Clevis Pin
Rail Bracket
Clevis Pin — 3/8” x 1-3/4”
Hitch Pin
Hitch Pin
1
2
Trolley Shaft
Clevis Pin
Pulley
3
4
6
5
7
Fig.2
2
Trolley Shaft
Fig.3
Trolley Shaft Connector
Screwdriver
Opener Unit
Garage Door Trolley
Slide trolley shaft into trolley to lock
10-1/4” Trolley

7
To Connect and Tension the Belt
1. With the trolley positioned against the screwdriver, pull the
remaining belt straight along the rail and engage belt teeth
around the sprocket. (Make sure the belt is not twisted
around the rail.) See Fig. 1.
2. After the belt is connected, attach the Sprocket Cover to the
opener with the screw and nut provided. See Fig. 2.
!WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- Keep hands and fingers clear from sprocket during operation.
- Wear gloves when installing chain/belt and cable.
- Keep hands and fingers away from joints and possible sharp edges.
Belt Connector
Tighten until...
Tighten nut
Flange Nut
1
4
Installing the Belt
1/4” (6mm)
Base of Rail
Mid-point of rail assembly
Belt
Top of Rail
Actual Size
3
2
THE SPROCKET COVER MUST BE SECURELY INSTALLED!!
3. Rotate the Belt Connector towards the Trolley Shaft until the
belt is slightly loose about 1/4” (6mm) above the base of the
rail. Refer to the actual-sized illustration below for proper belt
tension. See Fig. 3.
4. Tighten the Flange Nut on Trolley Shaft against the Belt
Connector. See Fig. 4.
Remove the screwdriver holding the trolley in position on the Rail -
Header Segment.
* VERY IMPORTANT! *
For heavier doors an additional half turn to the belt
connector may be required to eliminate belt slippage.
NOTE: FOR HEAVY DOORS
Sprocket Cover

8
To reduce the risk of severe injury or death:
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Install only on a properly balanced garage door. An improperly balanced door has the potential to inflict severe
injury. Have a qualified service person make repairs to cables, spring assemblies, and other hardware before
installing the opener.
3. Remove all ropes and remove or make inoperative all locks connected to the garage door before installing
opener.
4. Where possible, install the door opener 7 feet or more above the floor. For products having an emergency
release, mount the emergency release within reach, but at least 6 feet above the floor and avoiding contact
with vehicles to avoid accidental release.
5. Do not connect the opener to source of power until instructed to do so.
6. Locate the push button: (a) within sight of door, (b) at a minimum height of 5 feet so small children are not able
to reach it, and (c) away from all moving parts of the door.
7. Install the Entrapment Warning Label next to the wall-mount push button in a prominent location. In case the
adhesive does not adhere on the surface, the label should be attached to the surface by mechanical means.
8. After installing the opener, the door must reverse when it contacts a 1-1/2-inch high object (or a 2 by 4 board
laid flat) on the floor.
Important Installation Instructions
Place entrapment warning label on wall next to garage door control.
!WARNING
IMPORTANT INSTALLATION INSTRUCTIONS

9
To Install Header Bracket
Note: Installation procedures may vary according to door
type.
1. While inside your garage, close the door and mark the
vertical centerline of the garage door. Extend the line onto
the header wall above the door spring.
2. Open the door to the highest point of travel. Mark a line on
the header wall 2“ (5cm) above the highest point of travel.
Note: DO NOT install the header bracket over drywall. In some
installations, it may be necessary to install a 2x4 across two wall
studs to create a suitable location for the header bracket.
If installing into masonry, use concrete anchors (not provided).
Wall-Mounting
As shown in Fig.2, place the header bracket on the vertical
centerline in direction shown.
Mark and drill two 3/16” holes. Fasten the header bracket
securely to a structural support using two 5/16” x 1-1/2” lag
screws.
Alternative Ceiling-Mounting
Ceiling-mounting is suggested ONLY when clearance is minimal.
Extend the vertical centerline onto the ceiling as shown in Fig.3.
Center the header bracket on the vertical mark, no more than
6” (15cm) from the header wall. Mark and drill holes to fasten the
header bracket securely to a structural support.
Mounting Header Bracket
UP
OPENER
MAX. 6” (15cm)
Highest Point of Door Travel
Vertical Centerline
Horizontal Line
Finished Ceiling
Lag Screw
5/16” x 1-1/2”
!WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- The header bracket MUST be SECURELY fastened to the structural support on the mounting wall or
ceiling, otherwise the door may not reverse when required. DO NOT install the header bracket over drywall.
- Concrete anchors MUST be used when mounting the header bracket into masonry.
- NEVER try to loosen, move or adjust garage door springs, cables, pulleys, brackets, or hardware.
- Contact a qualified garage door service technician if your door binds, sticks or is unbalanced. An unbal-
anced door might not reverse when required.
Vertical Centerline
Fig.2 (Wall-Mounting) Fig.3 (Ceiling-Mounting)
7ft door
8ft max
8ft door
9ft max
Fig.1
Ceiling
Header Bracket
Header Wall
2” (5cm) clearance
Door Track
Door
Highest Point of Door Travel
Support block on floor
Door Spring
* VERY IMPORTANT! *
Max recommended rail height from floor
 7ft door = 8ft max height
 8ft door = 9ft max height
MAX RAIL HEIGHT
Floor

10
Attaching Rail to Header Bracket and Mounting Door Bracket
!CAUTION
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- Horizontal and vertical REINFORCEMENT is needed for fiberglass, aluminum or lightweight steel garage
doors BEFORE installing the door bracket. Contact your door manufacturer for reinforcement options.
Fig.1
Fig.2 Fig.3
Self-Threading
Screw - 1/4” x 5/8”
UP
Vertical Centerline of Door
(a) (b) (c)
2-4” (5-10cm)
Top Edge of Door
To Attach the Opener to the Header Bracket
1. As shown in Fig.1, use the packaging carton as temporary
support for the opener. Place the opener on carton to
prevent damage.
2. Align the mounting hole on the header rail to the mounting
hole on the Header Bracket.
3. Connect the header rail and the door bracket together with
a 5/16” x 1-1/2” clevis pin and lock it in place with a hitch
pin.
To mount the Door Bracket
Note: Some door reinforcement kits may provide direct
attachment of the door arm to the reinforcement bracket. If you
have a door reinforcement bracket with this option, skip this step
and proceed with the next step “mounting opener to ceiling”.
1. Position the door bracket on the centerline of the door
approximately 2” - 4” (5-10cm) below the top edge of the
door, as shown in Fig.2.
2. Depending on the construction of your door, install using
one of the steps shown if Fig. 3 below:
For lightweight steel doors, with factory equipped
vertical steel reinforcement and horizontal strut.
(a) Mark and drill two 3/16” holes. Make sure not to drill
through the garage door. Secure the door bracket with two
1/4” x 5/8” self-threading screws (provided) as shown in
Fig.3(a).
(b) Alternative installation: Drill two 5/16” holes through the
door. Secure the door bracket using two 5/16” bolts, lock
washers and nuts (not provided) as shown in Fig.3(b). The
length of bolts will depend on the thickness of your door.
Wood door
(c) Mark and drill two 5/16” holes through the garage door.
Secure the door bracket using two 5/16” carriage bolts,
washers and nuts (not provided) as shown in Fig.3(c). The
length of bolts will depend on the thickness of your door.
Note: DO NOT use Self-Threading Screws on a wood door.
Carton
Hitch Pin Clevis Pin - 5/16” x 1-1/2”

11
To Mount the Opener to Ceiling
The three most common installation options are shown in
Fig.1-3.
Fig.1 shows mounting the opener directly to structural
support on the ceiling. Fig.2 and 3 show mounting on a
finished ceiling, with heavy duty angle iron*.
*(angle iron not included)
Determine the mounting option that works best for your
application and follow installation steps below:
1. Raise the opener and rail assembly and temporarily place it
on a stepladder.
2. Position the opener and rail assembly so that it is aligned to
the center line of the garage door. If the header bracket was
mounted off center, align the opener with the header
bracket.
3. Measure the distance from each side of the opener to the
structural supports.
4. Cut both hanging brackets to appropriate length.
5. Drill 3/16” holes in the structural supports.
6. Secure one end of each of the hanging brackets to the
structural supports using 5/16” x1-1/2” lag screws
(provided).
7. Secure the opener to the hanging brackets and secure each
side with a 5/16” x 1” bolt and flange nut (provided).
8. Move the door manually to check clearance between
highest point of travel of the door and rail. If the door hits the
rail, raise the header bracket or adjust the mounting of
opener.
9. Remove the ladder ONLY when the opener is securely
mounted to the structural supports.
Mounting Opener to Ceiling
!WARNING
To prevent SERIOUS INJURY or DEATH:
- DO NOT connect power until instructed.
- Install the opener at least 7 feet (2.13m) above the floor.
- Fasten the opener SECURELY to STRUCTURAL SUPPORTS of the garage to prevent falling.
- If installing brackets to masonry, concrete anchors (not provided) MUST be used.
Lag Screw 5/16” x 1-1/2”
Bolt 5/16” x 1”Flange Nut
Fastening Hanging Brackets to structural supports
Securing Opener to Hanging Brackets
Angle Iron not provided
Fig.1
Fig.2
Fig.3
Structural support
Finished ceiling
Angle Iron not provided
Finished ceiling
Bolt / Lock Washer / Nut
not provided
Bolt / Lock Washer / Nut
not provided

12
Attaching Door Arms
!WARNING
To prevent SERIOUS INJURY:
- DO NOT connect power until instructed.
- Keep hands and fingers away from the sprocket during operation.
- Wear gloves when installing chain and cable.
- Keep hands and fingers away from joints and possible sharp edges.
Clevis Pin - 5/16” x 1”
Hitch Pin
Bolt - 5/16” x 1”
Flange Nut
Curved Door Arm
Straight Door Arm
1
12
2
Fig.1
3
Min. 8” (20cm) NOTE: The trolley must be a minimum of 8” (20cm) away
from the pulley.
To Connect Door Arm
Follow the steps shown in Fig. 1
1. Fasten the straight door arm to the trolley with a
5/16” x 1” clevis pin and lock it with a hitch pin.
2. Fasten the curved door arm to the door bracket with
5/16” x 1”clevis pin and lock it with a hitch pin.
3. To connect the door arms together, choose two pairs of
holes which are as far apart as possible. Fasten the arms
using two 5/16” x 1” bolts and flange nuts.
2” or less 2” or more
Rail of Opener
Door Panel
Rail of Opener
Door Panel
Correct Spacing Incorrect Spacing

13
Installing Light and Emergency Release Handle
To install the light:
1. Insert screw driver between lens and the cover at the
detents, pry and pull the light lens cover from the top and
detach it from the opener.
2. Install a standard A19 (E26) 100 watt maximum light bulb.
3. Re-attach the light lens cover.
Notice
When replacing the light bulb, make sure the bulb on the opener
has cooled down to prevent injury.
!WARNING
To prevent SERIOUS INJURY or DEATH from electrocution:
- Disconnect power cord before installing/replacing light bulb.
To prevent possible OVERHEATING or damage to opener:
- Use ONLY A19 (E26) incandescent bulbs* (100W max.).
- DO NOT use short neck or specialty light bulbs.
- DO NOT use halogen bulbs.
* CFL or LED light bulbs will work but may interfere with hand-held remotes.
6 feet (1.83m) above floor
To attach the Emergency Release Handle:
1. Thread one end of the rope through the hole of the
emergency release handle and secure with an overhand
knot.
2. Thread the other end of the rope through the hole in the
trolley lever.
3. Measure the rope length so that the handle is 6 feet
(183cm) above the floor and is clear from the top of your
vehicle. Secure with an overhand knot.
Fig. 1
Fig. 2
!WARNING
To prevent SERIOUS INJURY or DEATH from a falling garage door:
- In case of power failure or door obstruction, PULL EMERGENCY HANDLE to release door from opener.
- When emergency release is in the released position, the door can be operated manually.
- To reconnect, flip the lever on the trolley towards opener, back to connect position, it will reconnect
automatically upon pressing push button or remote control.
- DO NOT use emergency handle to pull the door open or closed.
Lever
Emergency Release Handle
Light Lens Cover
* VERY IMPORTANT! *
Emergency release handle must clear all vehicles. An
emergency release handle set too low may get caught by
the vehicle and cause damage to the door and opener.
Measure from the floor to the top of your vehicle and set
the emergency release handle above this measurement.
100W MAX

14
Wiring Instructions
Photo Eye Safety System
Wires to the terminals on the opener
Terminals
In the following section, the photo eye safety system and
push button will be connected to the opener. Please read
and understand the wiring instructions before connecting
wires.
1. Remove the pre-cut skin on the open end of wire from
accessories. Wires MUST NOT be frayed. Wires must be
connected as shown in Fig.1.
2. To connect a wire to an assigned terminal, use a small “flat
head” screwdriver to push in the orange tab on the Wire
terminal as shown in Fig.2.
3. Insert approximately 1/2” (13mm) of the wire into the
terminal while pushing in the tab as shown in Fig.2.
4. Each accessory requires a pair of terminals. Each pair of
terminals MUST be connected with one white wire and one
striped wire (non-polarized) from the SAME accessory as
shown in Fig.2.
5. Check for proper connection by gently pulling on the wire.
The wire should not come out of the terminal. NO exposed
part of the wire should be visible outside of the terminal.
6. Use the insulated staples provided to secure the wires to
the wall and/or ceiling. Be careful not to damage the wires
while securing the staples.
!WARNING
To prevent SERIOUS INJURY or DEATH from electrocution:
- Power MUST NOT be connected until instructed.
- NO exposed part of the wire should be visible outside of the terminal for proper connection.
Fig. 2
Fig. 1
Wire from accessories
Remove and discard pre-cut skin
Right Wrong
* VERY IMPORTANT! *
Suggested placement of insulated staples
Wire shown in actual size
1/2”
Wire Terminals
2
1
PUSH BUTTON
PHOTO EYE
Screwdriver or similar tool
3

15
Connecting Photo Eye Safety System
About the Photo Eye Safety System
The photo eye safety system provides protection against
entrapment while the door is closing. When properly connected
and aligned, the emitter photo eye emits an invisible infrared
light beam while the sensor photo eye monitors that beam.
If the beam is obstructed during door-closing, the entrapment
protection will be triggered and the door will stop and reverse to
the open position. The courtesy light will flash for 30 seconds
indicating an obstruction.
Installing The Photo Eye Safety System
Wall-mounting
1. Place the photo eyes facing each other on each side of
the garage door. Position the sensors so they are no
higher than 6” (15cm) above the floor, as shown in Fig.1.
2. Drill 3/16” holes using the mounting holes on the bracket
as a template. Secure with #12 x 1” lag screws
(provided).
3. Be sure brackets, when mounted, are NOT in contact with
the door track.
4. If necessary use the optional wall-mount position (Fig.1)
to better fit your door-track and improve obstacle
avoidance. To adjust the position, loosen the wing nut,
disassemble the bracket and move the photo eye to the
lower position on the holder.
5. If necessary, align the photo eyes by loosening the wing
nut . (This step may be further required in Aligning the
Photo Eye Safety System on page 17.)
Alternative Floor-mounting
1. Place the photo eyes facing each other on each side of the
garage door, as shown in Fig.2.
2. If attaching to concrete, secure the photo eyes using
concrete anchors and bolts (not provided).
3. Be sure brackets, when mounted, are NOT in contact with
the door track.
4. If necessary, align the photo eyes by loosening the wing
nut. (This step may be further required in Aligning the
Photo Eye Safety System on page 17.)
To Connect Photo Eye Safety System
1. Connect a pair of wires from either one of the photo eyes
to a pair of “PHOTO EYE” terminals on the rear of the
opener as shown in Fig. 3. Refer to Wiring Instructions
on page 14 for proper connections.
2. Repeat above step to connect the other photo eye.
3. Refer to Wiring Instructions on page 14 to ensure wires
are connected properly.
!WARNING
To prevent SERIOUS INJURY or DEATH from electrocution:
- Power MUST NOT be connected BEFORE photo eye safety system is connected and aligned.
- The opener will not operate until the photo eye safety system is properly connected and aligned.
- Install the photo eyes NO higher than 6” (15cm) above the floor.
No part of garage door or other objects should obstruct the photo eye safety system during door-closing.
Fig. 1 (Wall Mount)
Fig. 3
6” max.
Optional
wall mount
position
Inside
Garage
From one of
the Photo Eye From the
other one
#12 x 1”
Lag Screw
Loosen
Inside
Garage
Door Track
6” max. above floor
Alignment
Alignment
Inside
Garage
Door Track
NOTICE: The opener will not close until the photo eyes are installed. Photo eyes are required by federal law to
be installed on all openers.

16
To prevent SERIOUS INJURY or DEATH from electrocution:
- Power MUST NOT be connected until instructed.
To prevent SERIOUS INJURY or DEATH from using the push button and a closing door:
- Install the push button within sight of the door at a minimum height of 5 feet (1.5m) above the floor.
Make sure it is out of the reach of children and moving parts of door and hardware.
- NEVER permit children to access the door control console or remote controls.
- Operate the door ONLY when it is adjusted properly with no obstructions present and is in clear sight.
- ALWAYS keep a moving door in sight until it’s completely closed.
- NEVER cross the path of a moving door.
Connecting Door Control Console
!WARNING
The Door Control Console is a wired, illuminated door
control placed inside your garage.
Door Control Console Installation
●Inside your garage, install the control console
within sight of the door at a minimum height of 5
feet (1.5 m) above the floor.
●Ensure that the console is installed out of reach of
children and is free from contact with moving
parts of the door.
●Install the console onto a solid mounting surface.
If mounting to drywall, drill 3/16" holes and use
provided drywall anchors.
1. Hold the console against the mounting surface
and mark the console bottom hole position on the
surface.
2. Remove the console from the surface. Drill a
5/32” pilot hole at the mark. Install the bottom
screw into the surface. Allow 1/8” of the screw to
protrude above the surface. Position bottom
hole on back of console over the screw and slide
console down into place.
3. Lift the console actuation cover to expose the top
screw hole. Mark the top screw hole position on
the mounting surface. Remove the console from
the surface and drill a 5/32” pilot hole at the mark.
4. Position bottom hole on back of console over the
bottom screw and slide console down into place.
Install the top screw through the top screw hole
and into the mounting surface.
Fig. 1
Drywall Anchor
Screw #6 x1-3/8”
To Connect the Door Control Console to the Opener
Connect the plug from the Door Control Console to the “Wall
Panel” outlet on the rear of the Opener, as shown in Fig.2.
Using the Door Control Console
(ONLY after installation is completed )
From Door Control Console
Wall
Panel
12
Check illumination after
connecting power
Door — Press and release to access the door
Vacation Lock
Unlock — Door can be accessed by either Door
button or controls
Lock — Prevent access of door by any controls
and Door button.
Light — Turns the courtesy light On/Off
Fig. 2
Min. 5 feet (1.5m)
above floor
Door Control Console

17
Connecting Power
Aligning the Photo Eye Safety System:
1. When power is supplied, the green photo eye (Emitter) will flash
until it is aligned with the red photo eye (sensor). The red photo
eye will not light until it is aligned with the green eye.
2. When the photo eye system is properly aligned the green photo
eye (emitter) will emit a steady green light and the red photo eye
(sensor) will emit a steady red light.
3. If either of the photo eye lights are unsteady, flash or dim, check
for an obstruction and carefully adjust the position of the photo
eyes until they give a steady green light and steady red light.
Note: The path of the invisible light beam MUST NOT be
obstructed. No part of the garage door or any hardware
should interfere or block either sensor.
!
Aligning the Photo Eye Safety System
!WARNING
To prevent SERIOUS INJURY or DEATH from electrocution or fire:
- Power MUST be DISCONNECTED BEFORE proceeding with permanent wiring procedures.
- Garage door opener installation and wiring MUST be in compliance with all local electrical and building
codes. Make sure the opener is ALWAYS grounded.
- NEVER use an extension cord, 2-wire adapter or modify the power plug in any way to make it fit the outlet.
Ordinary Power Connection
WARNING
To prevent SERIOUS INJURY or DEATH from a closing garage door:
- The photo eye safety system MUST be installed BEFORE connecting power.
- The photo eye safety system MUST be properly connected and aligned BEFORE operating the opener.
NOTICE: The opener will not close until the photo eyes are installed. Photo eyes are required by federal law to
be installed on all openers.
Invisible Light Beam
The emitter
generates the
invisible light
beam
The sensor
receives the
invisible light
beam
Steady Red &
Green light
For Permanent Wiring ONLY
Conduit with wire
Yellow (from Motor)
White (from Light)
Neutral (White)
Wire nut (Not provided)
White
(from Logic Board)
Line (Black ) Ground (Green/Yellow)
Black (from Logic Board)
Ground Screw (Green)
DO NOT OPERATE OPENER AT THIS TIME.
To Connect Power
Plug the opener into a grounded outlet ONLY. If there is no
grounded outlet present, call a qualified electrician to replace the
outlet. Use of a surge protector is highly recommended.
Permanent Wiring (If Required by Local Code)
1. Remove the enclosure by removing the 6 screws located
on the sides and rear of the opener.
2. Cut the two cable pressure connectors connecting line
(black) and neutral (white) wire from the power cord.
3. Remove the grounding screw connecting the green wire.
4. Remove the power cord.
5. Group neutral (white) wires from power source with 2 white
wires from light cable, and logic board, and yellow wire
from motor, inside the opener. Connect them with a wire
nut.
6. Group line (black) wires from power source with another
black wires from logic board inside the opener. Connect
them with a wire nut.
7. Secure the ground (green or bare) wire from the power
source with a grounding screw.
8. Reinstall the enclosure.
9. Turn on power supply. If the wiring is properly connected, a
“click” should be heard and the light will illuminate (if a bulb
is installed). If there is no response from the opener, check
power source and wiring.

18
!WARNING
To prevent SERIOUS INJURY or DEATH from improper Force Adjustment:
- YOU CANNOT adjust force manually to compensate for binding or sticking of the garage door. Call a
qualified garage door service person to make necessary adjustments in case of binding.
- YOU CANNOT manually increase the force required for closing the door.
- After ANY adjustments, Safety Reverse Test MUST be performed to ensure the door reverses on contact
with a 1.5” high object (2x4 laid flat).
Travel Limit Adjustment— I. UP Limit
x1
UP
DOWN
FORCE
LIMIT
UP
DOWN
UP
DOWN
FORCE
LIMIT
UP
Trolley
Minimum 2” (5cm) clearance
Desired UP limit
Flashes and off
I. Setting UP Limit
UP
DOWN
FORCE
LIMIT
UP
DOWN
OK
1
2
3
5
About Travel UP Limit Adjustment
Travel “UP” Limit Adjustment regulates the fully-open (UP limit)
position. This step will program how far the opener will open the
garage door.
Make sure the trolley is engaged, photo eyes are installed
P.15 and photo eyes are aligned P.17 before proceeding
with adjustments.
I. Setting Travel UP Limit
1. Press and Release “LIMIT” button ONCE to enter Travel
Limit Adjustment. “UP” indicator (green) will turn on*.
*NOTE: Once you have pressed and released the “Limit”
button, the “UP” light will stay on for 10 seconds. You
must press & hold the “UP” button within 10 seconds to
begin programming. If the “UP” light turns off before
pressing and holding the “UP” you will need to start over.
2. With green indicator on, press & hold the “UP” button,
the door will travel up. You may use both “UP” or
“DOWN” buttons to inch-adjust the door to the desired
UP limit position.
3. DO NOT HIT STOP BOLT! There is a minimum 2“ (5cm)
gap between Trolley and Stop Bolt.
4. Make sure there is enough clearance for your vehicle(s),
to enter and exit the garage door.
5. Once the door is at the desired UP limit position, press
and release “LIMIT” button once, “OK” indicator (orange)
flashes and goes off. The UP limit is set.
NOTICE: This opener will not work until you set the travel limits and the auto
force adjustment. You must follow all steps on pages 18,19,20.
Continue to page 19 for down limit
* DO NOT HIT STOP BOLT *
Press & Release
Press & Hold Up
x1
Press & Release
Stop Bolt

19
Travel Limit Adjustment— II. DOWN Limit
Desired DOWN limit
Flashes and off
II. Setting DOWN Limit
UP
DOWN
FORCE
LIMIT
UP
DOWN
UP
DOWN
FORCE
LIMIT
UP
DOWN
OK
x2
UP
DOWN
FORCE
LIMIT
UP
DOWN
x1
1
2
3
CAUTION: WHILE SETTING THE DOWN LIMIT, CAREFULLY
WATCH DOOR TRAVEL DISTANCE. RELEASE BUTTON
WHEN THE DOOR MAKES CONTACT WITH THE GROUND!
NOTICE: This opener will not work until you set the travel limits and the auto
force adjustment. You must follow all steps on pages 18,19,20
Continue to page 20 for force adjustment
Press & Release
Press & Hold Up
Both “UP” and “DOWN” (green and red) indicators are now
on, indicating that both UP and DOWN limits are set, and
the opener is ready for Auto Force Adjustment, see Page 20.
About Travel DOWN Limit Adjustment
Travel “DOWN” Limit Adjustment regulates the fully-closed
(DOWN limit) position. This step will program how far the
opener will close the garage door.
Make sure the trolley is engaged, photo eyes are installed
P.15 and photo eyes are aligned P.17 before proceeding
with adjustments.
I. Setting Travel DOWN Limit
1. Press and Release “LIMIT” button TWICE to enter Travel
Limit Adjustment. “DOWN” indicator (red) will turn on*.
*NOTE: Once you have pressed and released the “Limit”
button twice, the “DOWN” light will stay on for 10
seconds. You must press & hold the “DOWN” button
within 10 seconds to begin programming. If the “DOWN”
light turns off before pressing and holding the “DOWN”
you will need to start over.
2. With red indicator on, press & hold the “DOWN” button,
the door will travel down. You may use both “UP” or
“DOWN” buttons to inch-adjust the door to the desired
DOWN limit position.
3. Once the door is at the desired DOWN limit position, press
and release “LIMIT” button once, “OK” indicator (orange)
flashes and goes off. The DOWN limit is set.
Press & Release
!WARNING
To prevent SERIOUS INJURY or DEATH from improper Force Adjustment:
- YOU CANNOT adjust force manually to compensate for binding or sticking of the garage door. Call a
qualified garage door service person to make necessary adjustments in case of binding.
- YOU CANNOT manually increase the force required for closing the door.
- After ANY adjustments, Safety Reverse Test MUST be performed to ensure the door reverses on contact
with a 1.5” high object (2x4 laid flat).

20
Auto Force Adjustment
Following limit-setting, the unit is now ready to
automatically adjust the forces for opening and closing the
door. The door will automatically open and close. The
opener is measuring the weight of the door and the force
that is required to open and close the garage door.
Proceed with the following steps to complete adjustment.
Make sure the trolley is engaged, photo eyes are installed
P.15 and photo eyes are aligned P.17 before proceeding
with adjustments.
1. With both “UP” and “DOWN” indicators on after Travel
Limit Adjustment, press and release the “FORCE” button
once to enter Auto Force Adjustment.
2. The door will travel up automatically (I) and stop at UP
limit for 2 seconds (II). Door will then travel down
automatically (III) and stop at down limit (IV).
3. The “OK” indicator (orange) will flash with beeps, the Auto
Force Adjustment is completed.
2s
Stops at DOWN limit
Travels up
Stops at UP limit for
2 seconds
Travels down
III
III IV
x2
Flashes
OK
x1
UP
DOWN
FORCE
LIMIT
UP
DOWN
1
2
3
Auto Force Adjustment
Press & Release
!WARNING
To prevent SERIOUS INJURY or DEATH from improper Force Adjustment:
- YOU CANNOT adjust force manually to compensate for binding or sticking of the garage door. Call a
qualified garage door service person to make necessary adjustments in case of binding.
- YOU CANNOT manually increase the force required for closing the door.
- After ANY adjustments, Safety Reverse Test MUST be performed to ensure the door reverses on contact
with a 1.5” high object (2x4 laid flat).
NOTICE: This opener will not work until you set the travel limits and the auto
force adjustment. You must follow all steps on pages 18,19,20
