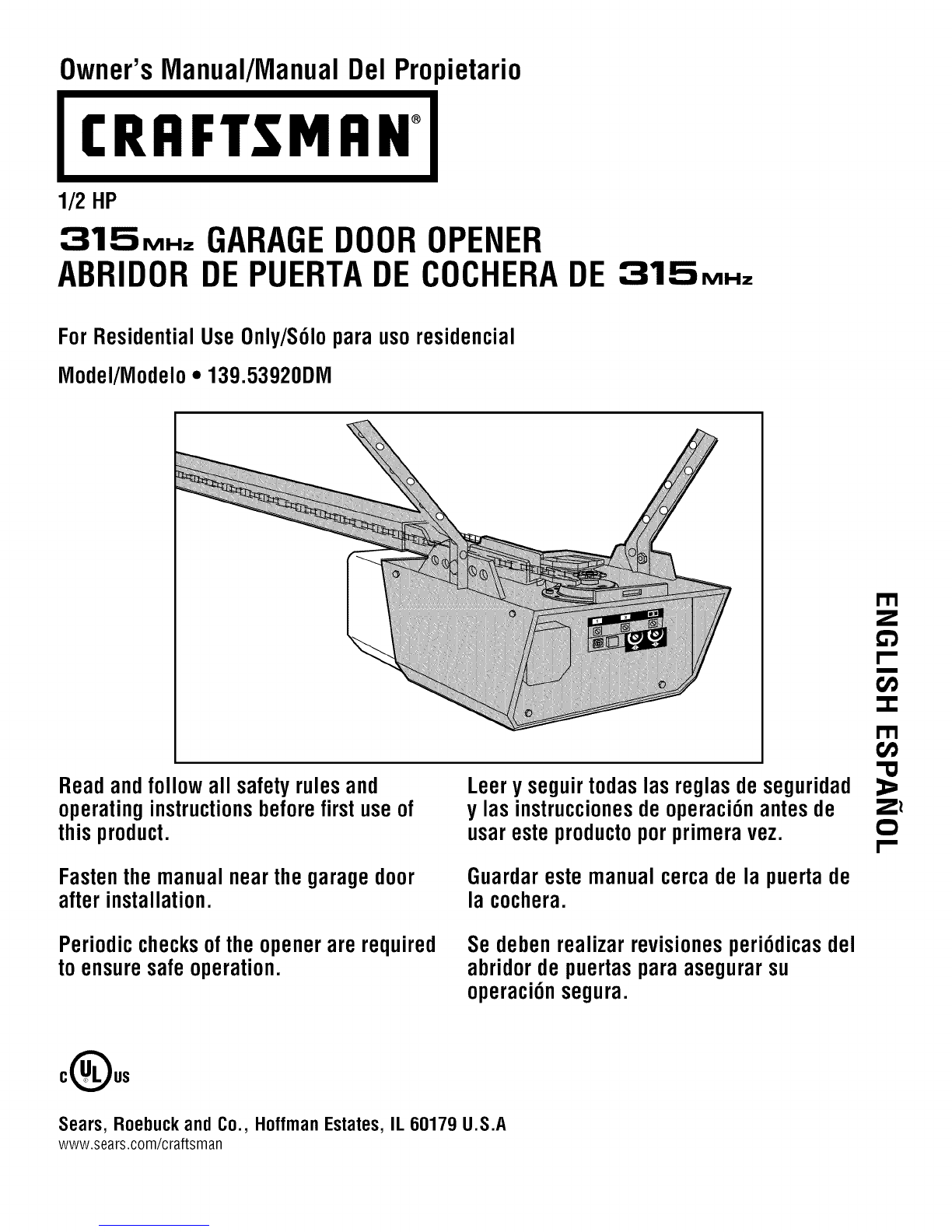

Craftsman 139.53920DM User manual

Owner's Manual/ManualDel Propietario
CRRFTSMRN°[
1/2 HP
315MHz GARAGEDOOROPENER
ABRIDORDEPUERTADECOCHERADE_315MHz
ForResidentialUseOnly/S61opara usoresidencial
Model/Modelo•139.53920DM
I"I'1
z
Readandfollowall safetyrulesand
operatinginstructionsbeforefirstuseof
thisproduct.
Fastenthe manualnearthe garagedoor
afterinstallation.
Leery seguirtodaslasreglasdeseguridad
y las instruccionesde operaci6n antesde
usaresteproductoporprimeravez.
Guardarestemanualcercade la puerta de
la cochera.
Periodic checksof the openerarerequired
to ensuresafeoperation. Se debenrealizarrevisionesperi6dicas del abridorde puertas para asegurarsu
operaci6n segura.
I'll
"o
z_
0
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
www.sears.com/craftsman

TABLE OF CONTENTS
Introduction 2-7
Safetysymbol and signal word review ..................... 2
Preparingyour garagedoor ............................. 3
Tools needed......................................... 3
Planning 4-5
Carton inventory ...................................... 6
Hardware inventory.................................... 7
Assembly 8-11

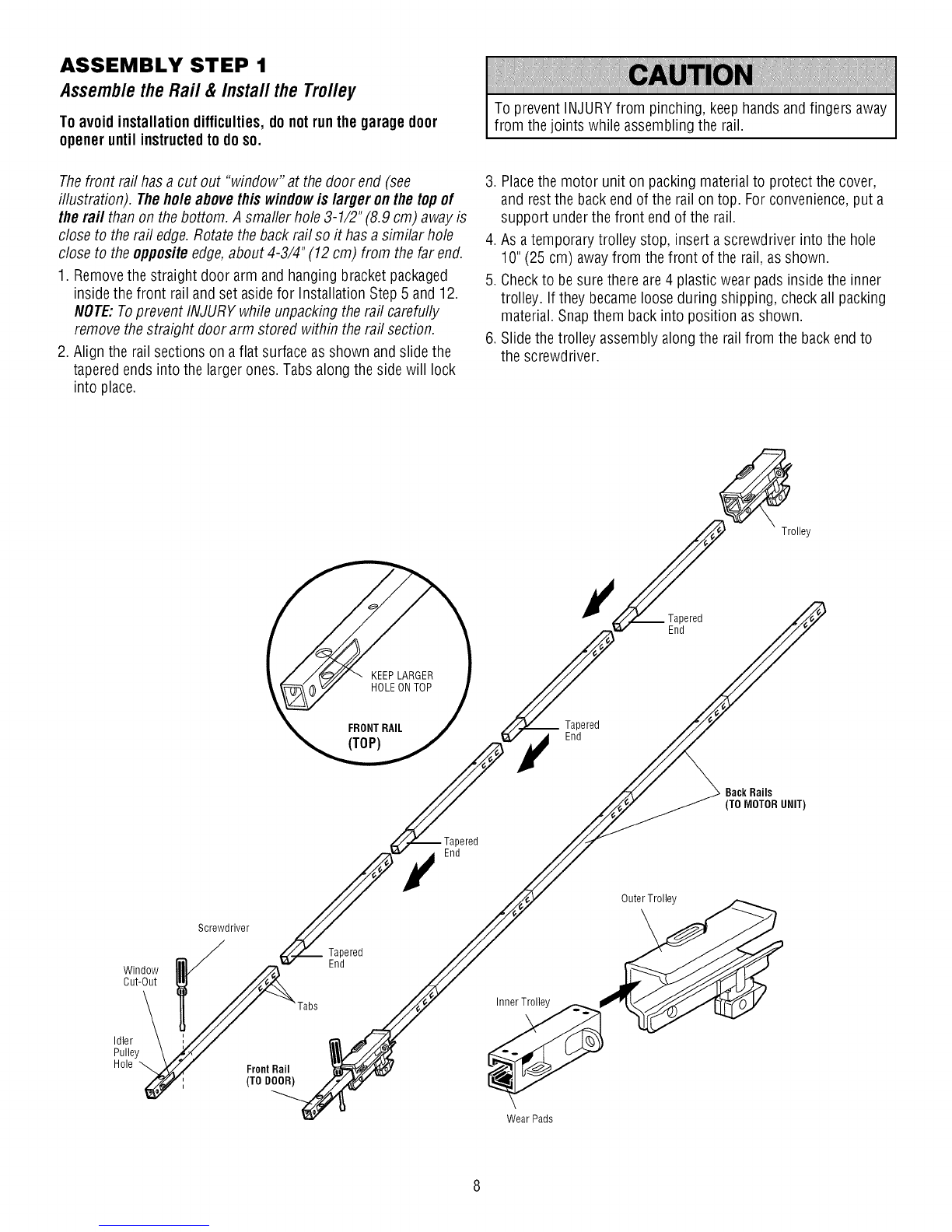

Assemblethe rail and install thetrolley ..................... 8
Fastenthe rail to the motor unit and
install the idler pulley .................................. 9

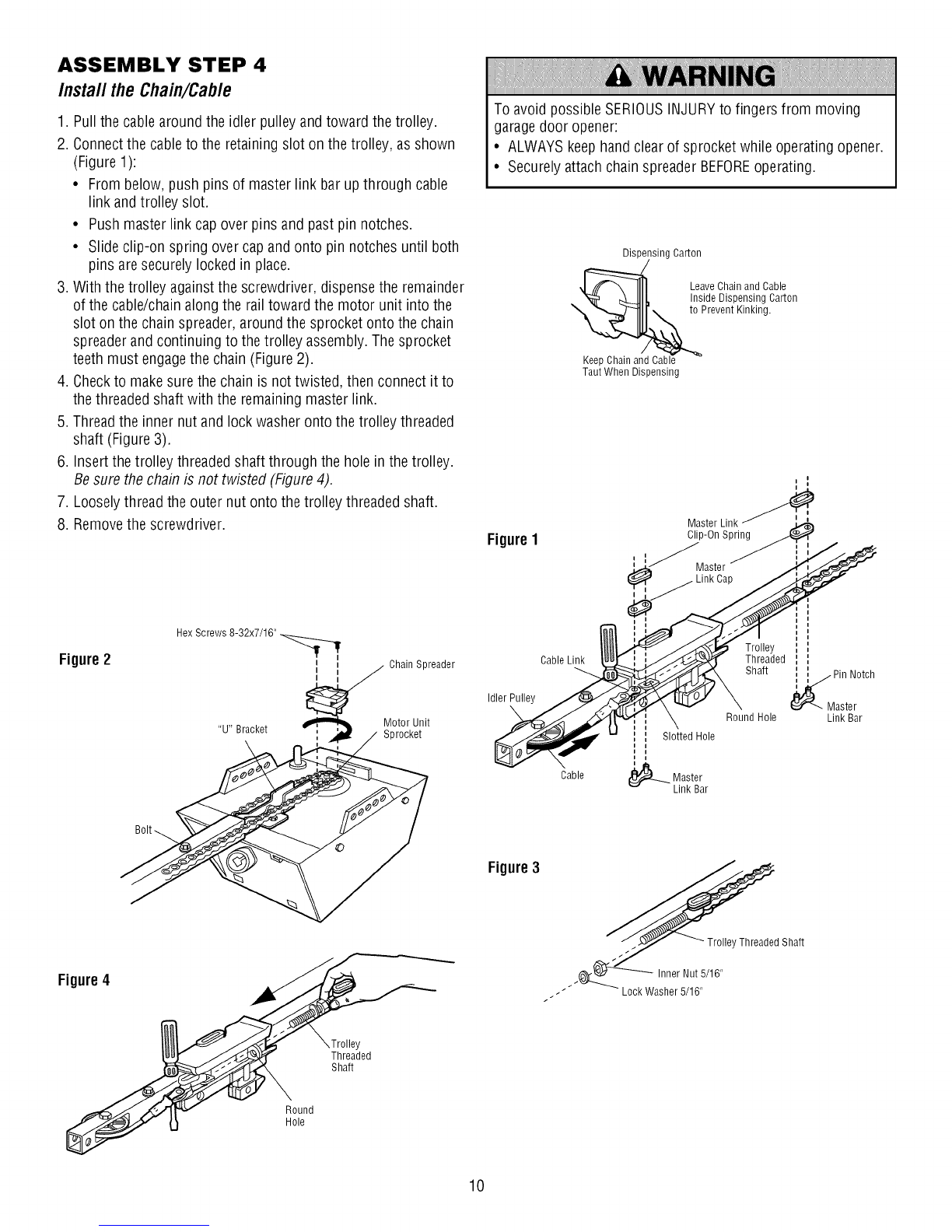

Install the chain/cable................................. 10
Tighten the chain .................................... 11
Installation 11-26
Installation safety instructions .......................... 11

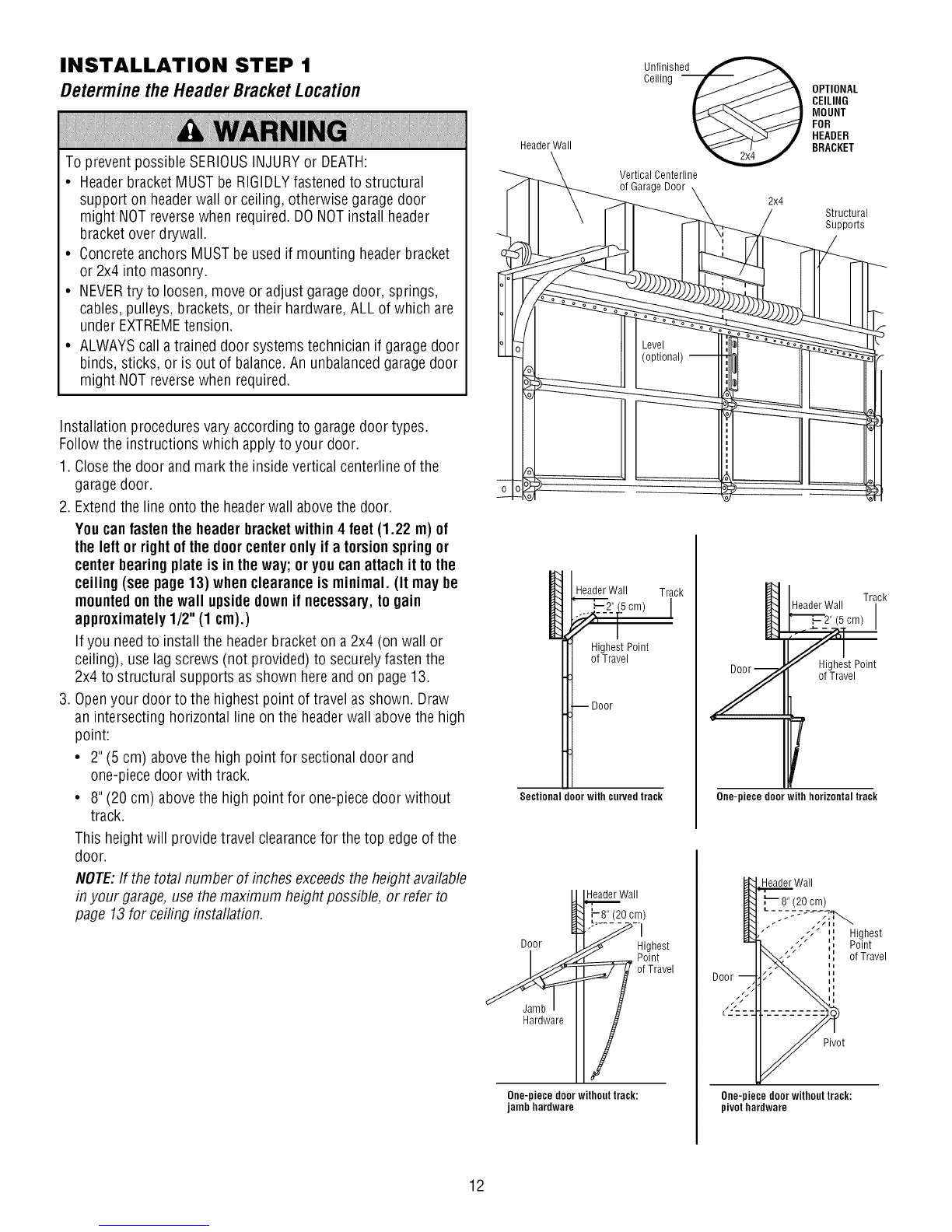

Determinethe headerbracket location .................... 12
Install the header bracket .............................. 13
Attachthe rail to the headerbracket ...................... 14

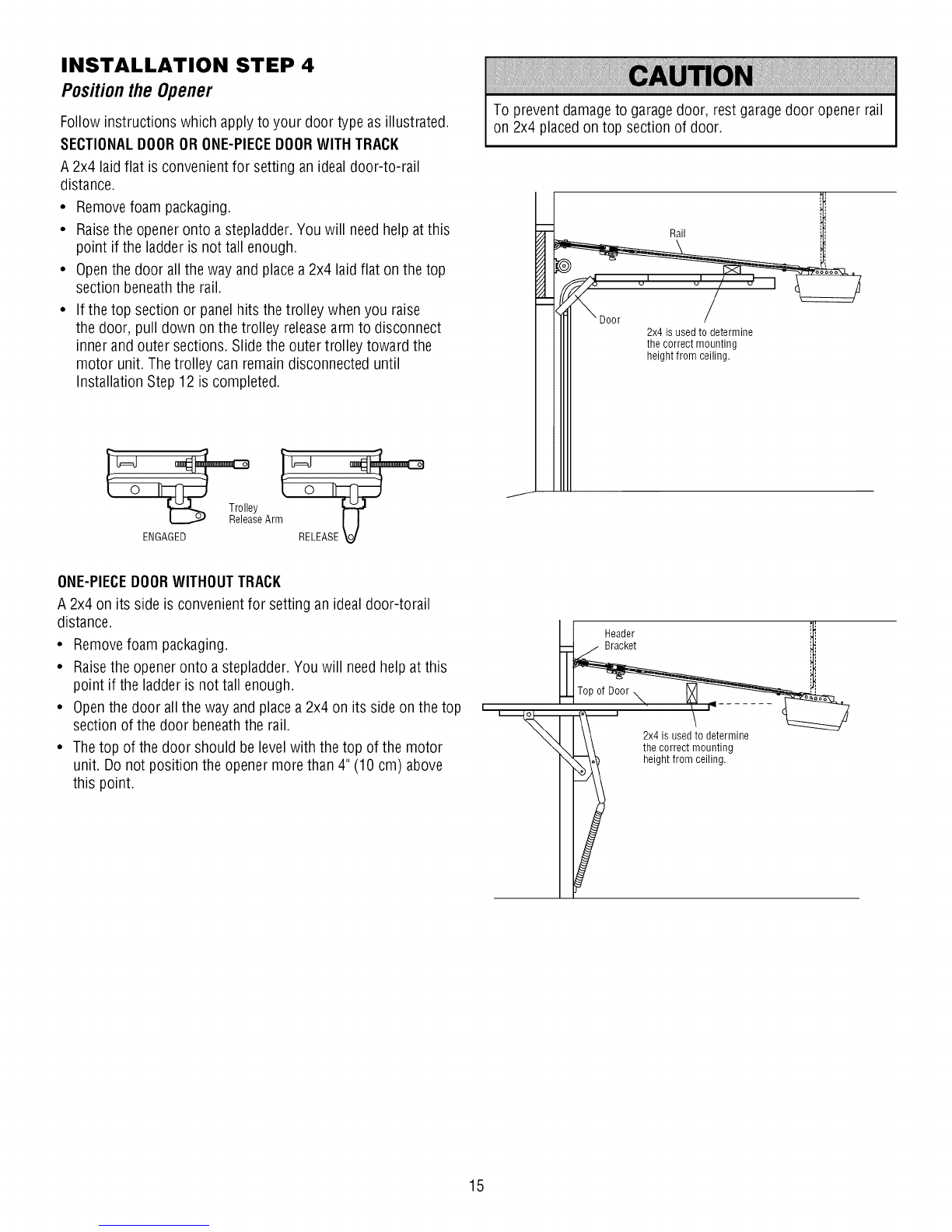

Position theopener................................... 15
Hangthe opener ..................................... 16
Install the door control ................................ 17
Install the lights ..................................... 18
Attachthe emergency releaseropeand handle.............. 18

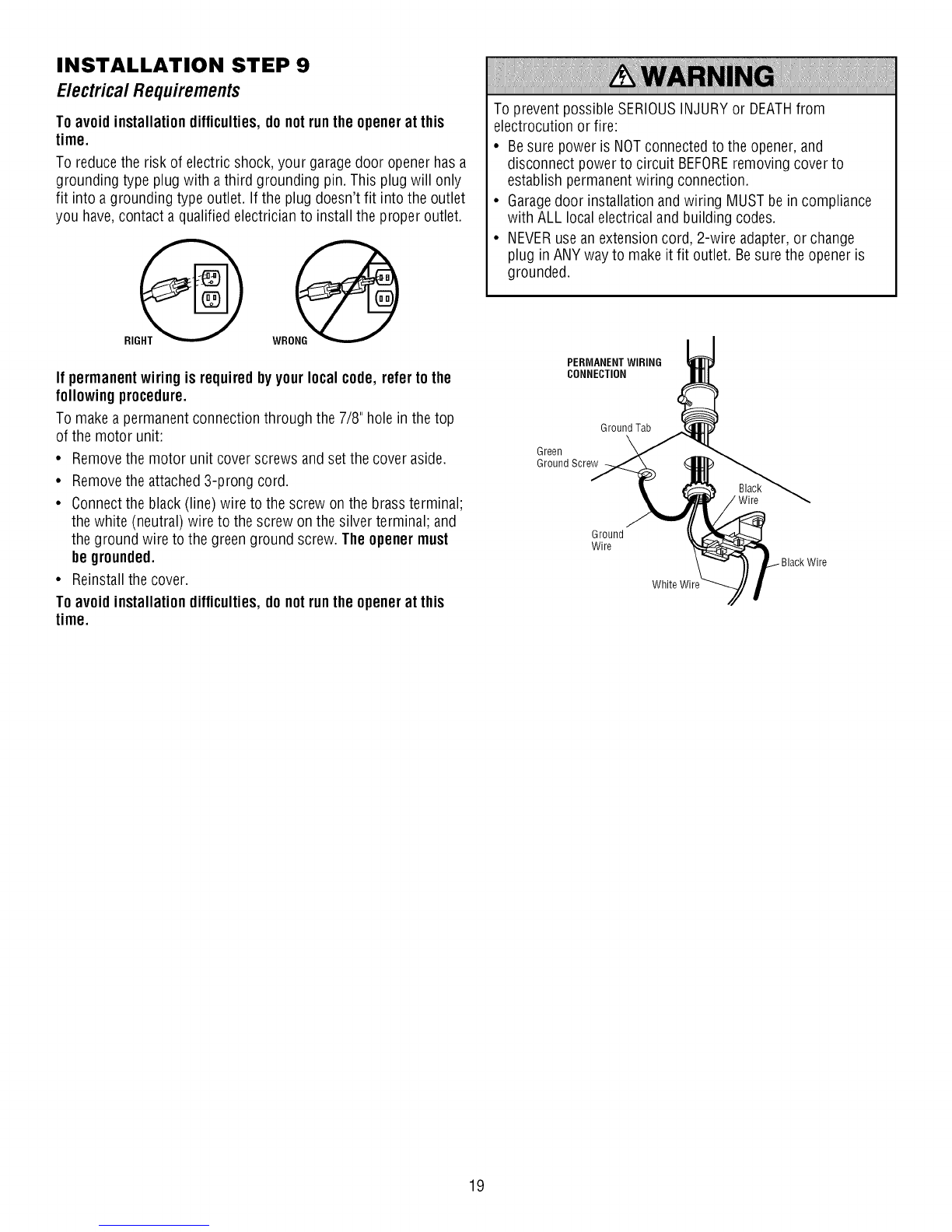

Electricalrequirements ................................ 19

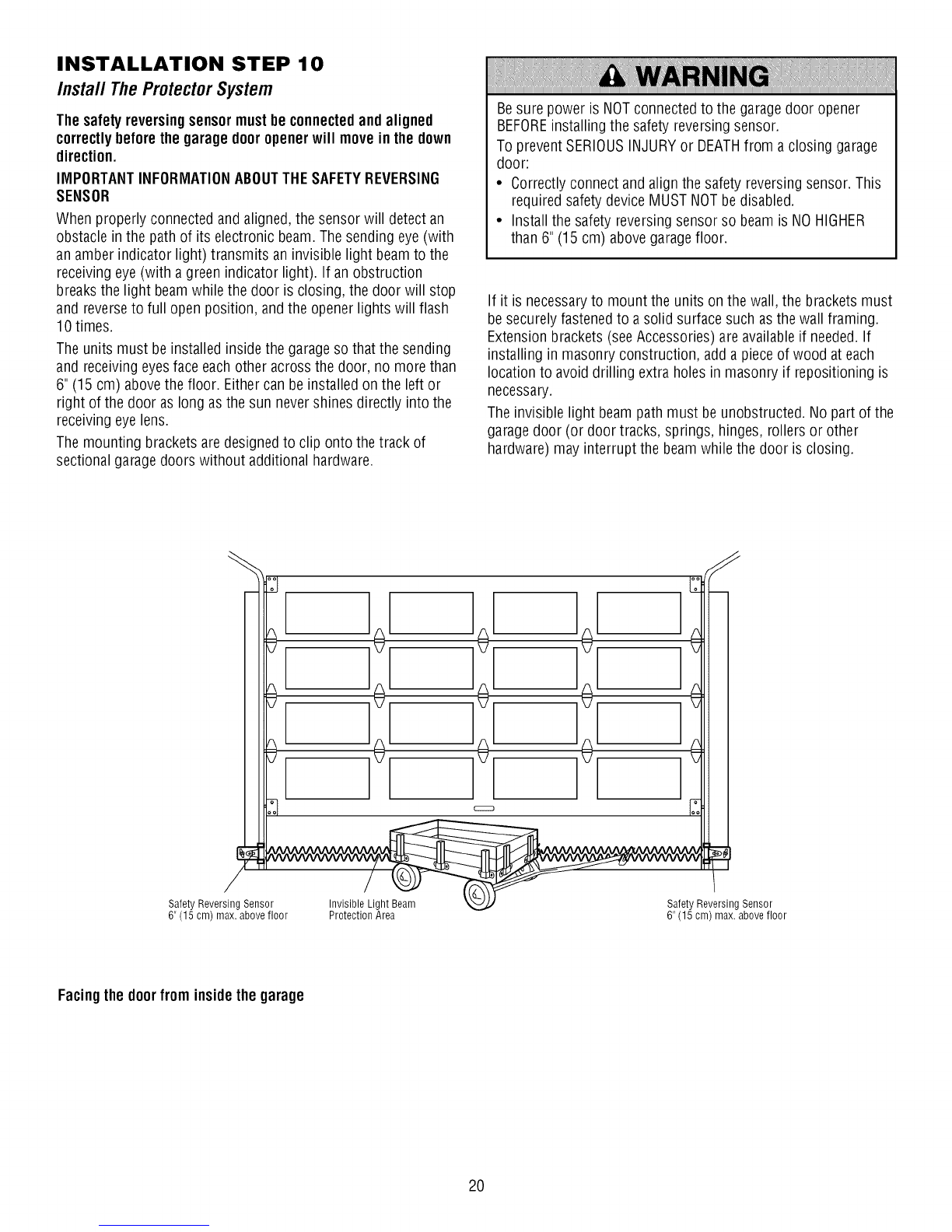

Install The Protector System®........................ 20-22
Fastenthe door bracket............................. 23-24
Connectthedoor arm to the trolley ................... 25-26
Adjustment 27-29
Adjust thetravel limits ................................ 27
Adjust theforce...................................... 28
Testthe safety reversalsystem.......................... 29
TestThe Protector System®............................ 29
Operation 30-34
Operationsafety instructions ........................... 30
Usingyour garagedoor opener ......................... 30
Usingthe wall-mounted door control ..................... 31
To open thedoor manually............................. 31
Careof your garagedoor opener ........................ 32
Havinga problem? ................................... 33
Diagnosticchart ..................................... 34
Programming 35-36
To add or reprogram a hand-held remote control ............ 35
To eraseall codes.................................... 35
3-Function Remotes.................................. 35
To add, reprogram or changea KeylessEntry PIN ........... 36
Repair Parts 37-38
Railassembly parts................................... 37
Installation parts ..................................... 37
Motor unit assembly parts ............................. 38
Accessories 39
Warranty
RepairPartsandService
39
Back cover
INTRODUCTION
SafetySymbolandSignal WordReview
This garage door opener has beendesignedand testedto offer safe serviceprovided it is installed,operated, maintained andtested in
strict accordancewith the instructions and warnings contained in this manual.
Mechanical
Electrical
Whenyou seethese SafetySymbols and Signal Words on the
following pages,they will alert you to the possibility of serious
injury or deathif you do not comply with the warningsthat
accompanythem. Thehazardmay come from something
mechanicalor from electric shock. Readthe warnings carefully.
Whenyou seethis SignalWord on the following pages,it will
alertyou to the possibility of damageto your garagedoor and/or
the garage door opener if you do not comply with the cautionary
statementsthat accompany it. Readthem carefully.

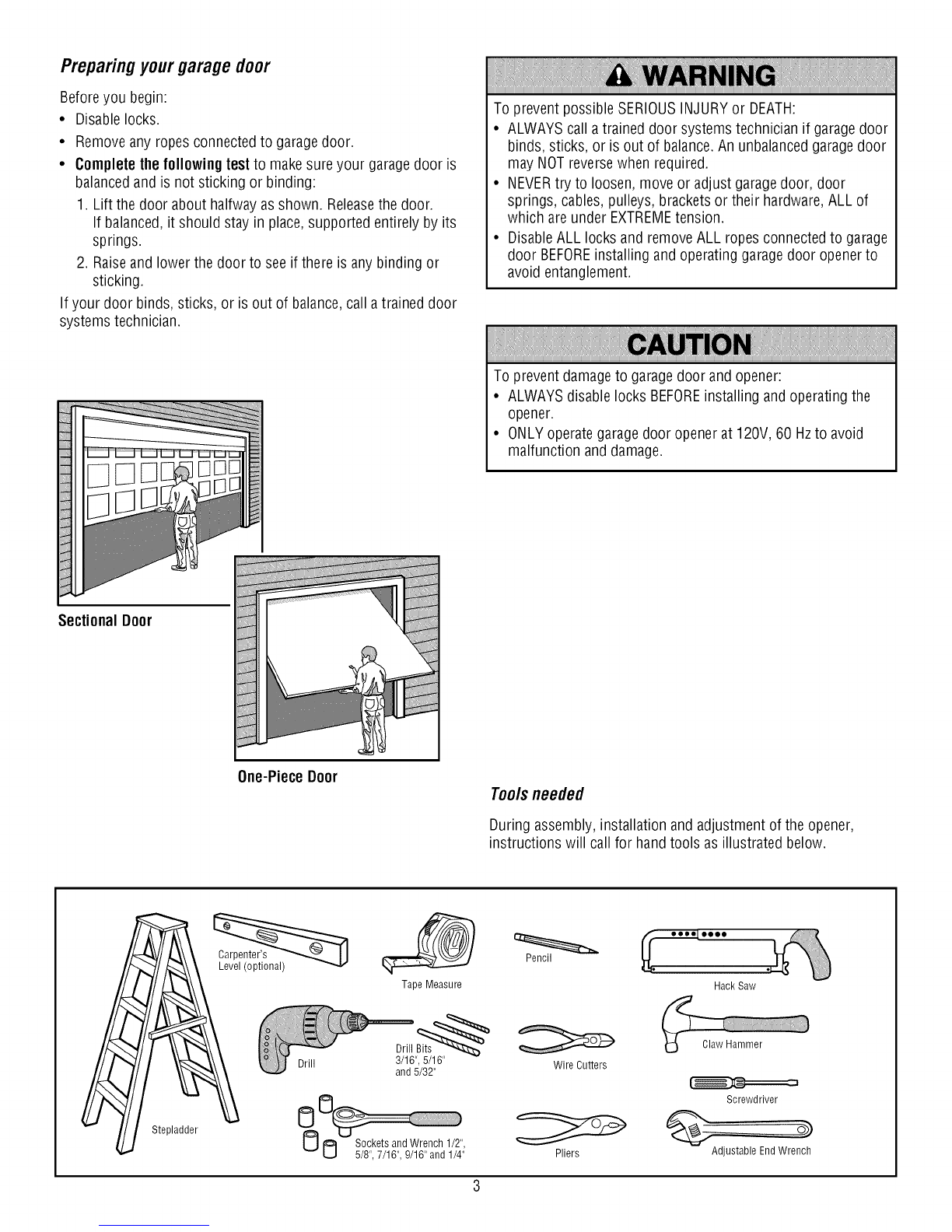

Preparingyourgaragedoor
Beforeyou begin:
• Disablelocks.
• Removeany ropesconnectedto garagedoor.
•Completethefollowingtestto make sureyour garagedoor is
balancedand is not sticking or binding:
1. Lift the door about halfwayas shown. Releasethe door.
If balanced, it should stay in place,supported entirely by its
springs.
2. Raiseand lowerthe door to seeif there is any binding or
sticking.
If your door binds, sticks, or is out of balance,call a trained door
systems technician.
To prevent possible SERIOUSINJURYor DEATH:
• ALWAYScall a trained door systems technician if garagedoor
binds, sticks, or is out of balance.An unbalancedgaragedoor
may NOTreversewhen required.
• NEVERtry to loosen, move or adjust garagedoor, door
springs, cables, pulleys,brackets or their hardware, ALL of
which are under EXTREMEtension.
• DisableALL locksand removeALL ropesconnectedto garage
door BEFOREinstalling andoperatinggaragedoor opener to
avoid entanglement.
To preventdamageto garage door and opener:
• ALWAYSdisable locks BEFOREinstalling and operating the
opener.
• ONLYoperategarage door opener at 120V,60 Hzto avoid
malfunction and damage.
SectionalDoor
One-Piece Door Toolsneeded
During assembly,installation and adjustment of the opener,
instructions will call for hand tools as illustrated below.
Stepladder
Tape Measure
Drill
Drill Bits_
3/16", 5/16"
and 5/32"
0
Pencil
Wire Cutters
Pliers
Hack Saw
Claw Hammer
Screwdriver
Adjustable EndWrench

P_nnmg
Identify the type and height of your garagedoor. Surveyyour
garageareato seeif any of the conditions below applyto your
installation. Additional materials may be required.You mayfind it
helpfulto refer backto this pageand the accompanying
illustrations asyou proceedwith the installation ofyour opener.
Dependingon your requirements, there areseveral installation
steps which may callfor materialsor hardwarenot includedin the
carton.
• Installation Step 1- Lookat the wall or ceiling abovethe garage
door. Theheaderbracketmust be securelyfastenedto
structural supports.
• Installation Step 5- Doyou haveafinished ceiling in your
garage? If so, a support bracketand additional fastening
hardwaremay be required.
• Installation Step 10- Dependingupon garageconstruction,
extension bracketsor wood blocks may be neededto install
sensors.
• Installation Step 10 - Alternate floor mounting of the safety
reversing sensorwill require hardwarenot provided.
Doyou havean accessdoor in addition to the garagedoor?
If not, Model 53702 EmergencyKeyReleaseis required.See
Accessoriespage.
Look atthe garagedoor where it meetsthe floor. Any gap
betweenthefloor andthe bottom of the door must not exceed
1/4" (6 mm). Otherwise,the safety reversalsystem may not
work properly. SeeAdjustment Step3. Floor or door should be
repaired.
SECTIONALDOORINSTALLATIONS
• Doyou havea steel,aluminum, fiberglass or glass paneldoor?
If so, horizontal andvertical reinforcement is required
(Installation Step11).
• Theopenershould be installed abovethe center of the door.
If there isa torsion spring or center bearing platein theway of
the headerbracket, it may be installed within 4 feet (1.22 m) to
the left or right of the door center.SeeInstallation Steps1
and 11.
• If your door is more than 7 feet (2.13 m) high,see rail extension
kits listed on Accessoriespage.
SECTIONALDOORINSTALLATION
Horizontal and vertical reinforcement is
neededfor lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 23for details.
HeaderWall
Slack in chain tension
is normal when garage
door is closed.
FINISHEDCEILING
Support bracket &
fastening hardware
is required.
See page16.
Extension Spring
OR
Torsion Spring
Motor Unit
Centerline
of Garage_
Door _z_ Wall-mounted
Door Control
Safety Reversing Sensor
Gapbetween floor and
bottom of door must not
exceed 1/4" (6 mm).
Safety
Reversing Sensor
Access
Door
O
i
CLOSEDPOSITION
Header
Bracket Trolle
Garage
Door- /_/ E_ unam
I
ht_
_J Arm |j Emergency
,_o°j/ _ .... _ ReleaSe..
__ Rope&Handle
\_1 P_ \ Curved
HI \ ' Door
__1 I_oor Arm
ij Bracket

Planning(Continued)
ONE-PIECEDOORINSTALLATIONS
•Generally,a one-piecedoor does not require reinforcement. If
your door is lightweight, refer to the information relatingto
sectional doors in Installation Step11.
• Dependingon your door's construction, you may need
additional mounting hardwarefor the door bracket(Step 11).
Without a properly working safetyreversalsystem, persons
(particularly small children) could be SERIOUSLYINJUREDor
KILLEDby a closing garagedoor.
• Thegap betweenthe bottom of the garagedoor and thefloor
MUSTNOTexceed1/4"(6 mm). Otherwise,the safety reversal
system may NOTwork properly.
• Thefloor or the garagedoor MUSTbe repairedto eliminate
the gap.
ONE-PIECEDOORWITHOUTTRACK EINIS,EDCEILINO '&__
Support bracket & _
fastening hardware _
is required. _
See page 16. _ _.,_,_,_r /_,
_ Header Wall //I \ _ II
II1Ill I _ is_i_l_i_e;si_; e X
_ _ [_ ............. Motorunit
IIII o I _11 I _ _Wo1';_°_tnrtold
_ I II_iII I _oor I_ CLOSEDPOS,T,O.
IIIdl_ I Ill'Ill I I V/./_I T_,,eystopBo,t
• I IIIII_l I I o I V/./ _ Cab,eTro,,oy
oii,m!!!!
Sensor le
I __ Safety. I
._J. _ 14_ GoatPtbetoWfe_nH f'^..oor°l_lru_dnot Reversing Sensor I
SaefveertYing exceed 1/4" (6 mnl). I
Sensor J5
Trolley
Stop Bolt
_,, Cab!e L
_eader Curved_ W_
Bracket D00rArm7 /i._
_ ooooooooooo_J
p_- Door \
//_.._ Bracket \ Straight
////_ Door
//".-! Arm
Y_'/-_-Garage Door
CLOSEDPOSITION
Chain
) Rail
EmergencyRelease
-- Rope & Handle

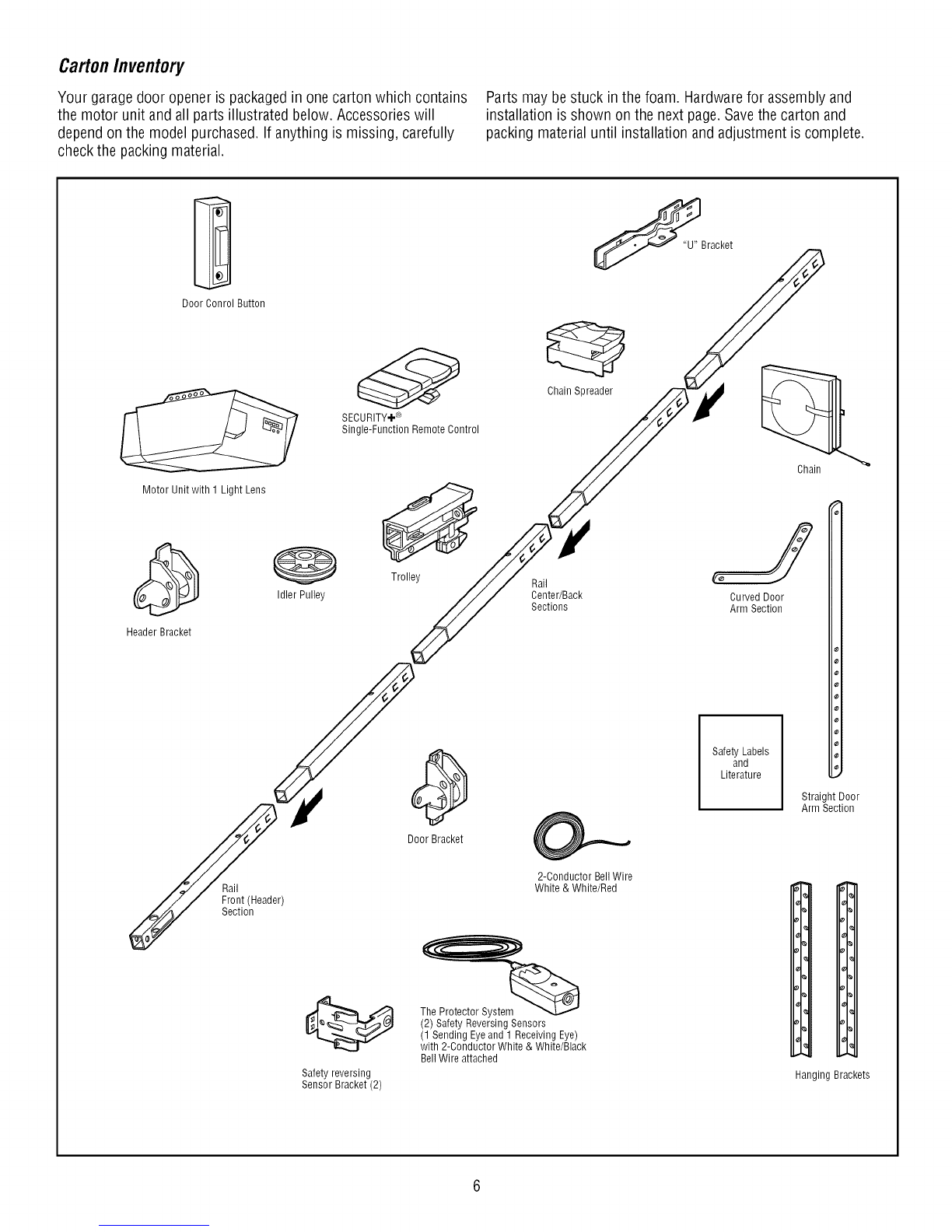

CartonInventory
Your garage door opener is packagedin onecarton which contains
the motor unit and all parts illustrated below. Accessorieswill
dependon the model purchased.If anything is missing, carefully
checkthe packing material.
Parts may be stuck in the foam. Hardwarefor assembly and
installation isshown onthe next page.Savethe carton and
packing material until installation and adjustment is complete.
Door Conrol Button
Motor Unit with 1 Light Lens
Header Bracket
Idler Pulley
Rail
Front (Header)
Section
SECURITY÷®
Single-Function Remote Control
Trolley
Door Bracket
Safety reversing
Sensor Bracket (2)
Chain Spreader
Rail
Center/Back
Sections
2-Conductor BellWire
White & White/Red
The Protector Systerr_ _
(2) Safety Reversing Sensors
(1 Sending Eyeand 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Chain
Curved Door
Arm Section
Safety Labels
and
Literature
_'1
J
Straight Door
Arm Section
I,
1,
%
I.
%
_1°
Hanging Brackets

HardwareInventory
Separateall hardwareand group asshown below for the assembly and installation procedures.
ASSEMBLYHARDWARE
Lock Nut Washer 5/8" (2) Lock Washer Nut
1/4"-20 (2) 3/8" (1) 3/8" (1)
0
[o
Bolt 1/4"-20xl-3/4" (1)
)lii;)l)))i!))l!_)
Bolt 1/4"-20x2-1/2 (1)
Trolley Threaded Shaft (1)
Spacer (2) 1i
Master
Link (2)
Idler Bolt(l)
Carriage Bolt
1/4"-20xl/2" (2) Wing Nut 1/4"-20 (2)
INSTALLATIONHARDWARE
© %
Ring Nut 5/16"-18 (6)
Fastener (3) Handle
Lag Screw
5/16"-9xl-5/8" (2)
111111111111_>
Lag Screw
5/16"-18xl-7/8" (2)
_ng Screw
1/4"-14x5/8" (2)
_llllllllll) _:_
Hex Bolt
5/16"-18x7/8" (4) Lock Washer 5/16" (5)
_lllllllllllllllllllllllll}
Screw
6ABx1-1/4" (2)
iiii_;i -h
III/HI
Drywall Anchors (2)
Insulated
Staples (30)
111111111111111111111
Screw 6-32xl" (2)
_ ifiii-fiiiiNfiiifii]iiiiii fiii';:>
Screw 6ABxl-1/2"
Lighted Door Control Button
ol
Clevis Pin Clevis Pin Clevis Pin
5/16"x1-1/2" (1) 5/16"x1" (1) 5/16"x1-1/4" (1)
Rope

ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoidinstallationdifficulties,donotrunthe garagedoor
openeruntil instructedtodo so.
To prevent INJURYfrom pinching, keephandsand fingers away
from thejoints while assemblingthe rail.
Thefront rafthasa cut out "window" at the door end (see
illustration). Theholeabovethis windowis larger onthe topof
the rail than on the bottom. A smaller hole 3-1/2" (8.9 cm) away is
close to therail edge.Rotatethe back rail so it hasa similar hole
close to theoppositeedge,about 4-3/4" (12 cm) from the far end.
1. Removethe straight door arm and hanging bracket packaged
insidethe front rail and set asidefor Installation Step 5 and 12.
NOTE:Toprevent INJURYwhile unpacking the rail carefully
removethe straight door arm stored within the rail section.
2. Align the rail sections on aflat surface asshown and slidethe
taperedends into the larger ones.Tabs along the sidewill lock
into place.
3. Placethe motor unit on packingmaterialto protect the cover,
and rest the back endof the rail on top. Forconvenience,put a
support underthe front endof the rail.
4.As a temporary trolley stop, insert a screwdriver into the hole
10"(25 cm) awayfrom the front of the rail, asshown.
5. Checkto besure there are4 plasticwear pads insidethe inner
trolley. If they became looseduring shipping, checkall packing
material.Snap them back into position asshown.
6. Slidethe trolley assembly along the rail from the backend to
the screwdriver.
Trolley
)ered
End
Screwdriver
Window
Cut-Out
Idler
Pulley
Hole FrontRail
(TO DOOR)
Tapered
End
)ered
End
Tapered
End
BackRails
(TO MOTORUNIT)
OuterTrolley
Inner Trolley __
Wear Pads

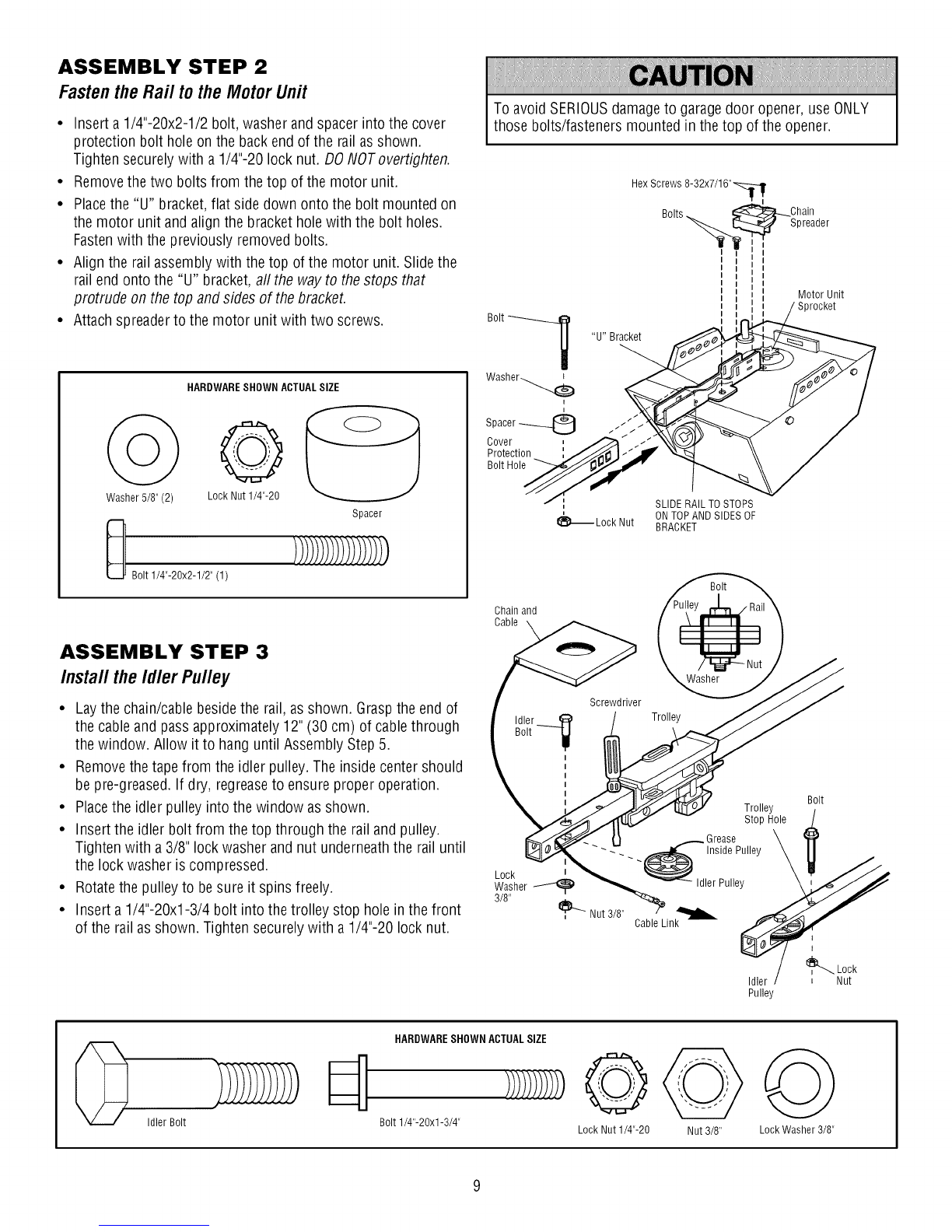

ASSEMBLY STEP 2
FastentheRail to theMotorUnit
•Inserta 1/4"-20x2-1/2 bolt, washer and spacer intothe cover
protection bolt holeon the backend of the railasshown.
Tighten securelywith a 1/4"-20 lock nut. DONOToverfighten.
• Removethe two bolts from the top of the motor unit.
• Placethe "U" bracket,flat side down onto the bolt mounted on
the motor unit and align the brackethole with the bolt holes.
Fastenwith the previously removed bolts.
• Align the rail assemblywith thetop of the motor unit. Slide the
rail end onto the "U" bracket, all the way to thestops that
protrude on the top and sides of thebracket.
• Attachspreaderto the motor unit with two screws.
Washer 5/8" (2)
HARDWARESHOWNACTUALSIZE
o@
LockNut1/4"-20
Spacer
Bolt 1/4"-20x2-1/2" (1)
ASSEMBLY STEP 3
Installthe IdlerPulley
• Laythe chain/cablebesidethe rail, as shown. Graspthe end of
the cableand pass approximately 12" (30 cm) of cablethrough
the window. Allow it to hang until Assembly Step5.
• Removethetape from the idler pulley. Theinside center should
be pre-greased. If dry, regreaseto ensureproper operation.
• Placethe idler pulleyinto the window as shown.
• Insertthe idler bolt from thetop through the railand pulley.
Tighten with a 3/8" lock washer and nut underneaththe rail until
the lock washer iscompressed.
• Rotatethe pulley to be sure it spins freely.
• Inserta 1/4"-20xl-3/4 bolt into thetrolley stop hole in the front
of the rail asshown. Tighten securelywith a 1/4"-20 lock nut.
To avoidSERIOUSdamageto garagedoor opener,use ONLY
those bolts/fastenersmounted in the top of the opener.
Hex Screws 8-32x7/16"_,
Bolts_ _ _L_Ohain
-____. [::_:._ Spreader
I
Bolt___
Washer_
i
Spacer_
Cover
Protection
Bolt Hole
"U" Bracket
Motor Unit
Sprocket
SLIDE RAIL TOSTOPS
ONTOPAND SIDESOF
1_ Lock Nut BRACKET
Chain and
Cable
Washer
Screwdriver Trolley
Trolley
Stop Hole
Grease
_ _ _ _ -Inside Pulley
WasherL°Ck_ _ Idler Pulley
3/8" _, Nut 3/8" Cable Link
Idler
Pulley
Bolt
Idler Bolt
HARDWARESHOWNACTUALSIZE
Bolt 1/4"-20xl-3/4" @
Lock Nut 1/4"-20 Nut 3/8" Lock Washer 3/8"

ASSEMBLY STEP 4
Install the Chain/Cable
1. Pull the cablearound the idler pulleyandtoward the trolley.
2. Connectthe cableto the retainingslot onthe trolley, asshown
(Figure1):
• From below, push pins of masterlink bar up through cable
link and trolley slot.
• Pushmaster link cap over pinsand past pin notches.
• Slide clip-on spring over capand onto pin notches until both
pins aresecurely locked in place.
3. With the trolley againstthe screwdriver, dispensethe remainder
of the cable/chainalong the rail toward the motor unit into the
slot onthe chainspreader, around the sprocket onto the chain
spreaderand continuing to thetrolley assembly.Thesprocket
teeth must engagethe chain (Figure2).
4. Checkto makesurethe chain is not twisted, then connect it to
thethreadedshaft with the remainingmaster link.
5. Threadthe inner nut andlock washer onto the trolley threaded
shaft (Figure3).
6. Insert thetrolley threadedshaft through the hole in thetrolley.
Be surethe chain is not twisted (Figure4).
7. Looselythread the outer nut onto the trolley threadedshaft.
8. Removethe screwdriver.
Figure2 Hex Screws 8-32x7/16" Chain Spreader
Motor Unit
Sprocket
To avoid possible SERIOUSINJURYto fingers from moving
garagedoor opener:
• ALWAYSkeephand clearof sprocket while operating opener.
• Securely attachchain spreaderBEFOREoperating.
Dispensing Carton
:_ Leave Chain and Cable
Inside Dispensing Carton
t_Cabl_e to Prevent Kinking.
Taut When Dispensing
FigureI
®
I
Cable Link__.
Cable
Master Link
Clip-On Spring
astor
II
/ II t
/_ Threaded :',
Shaft _ Pin Notch
•" \ _ \ Er'---- Master
\ Round Hole Link Bar
', Slotted Hole
i
(_)-_ Master
Link Bar
Figure4
Figure3 J
----- Lock Washer 5/16"
t
/
Y
Threaded
Shaft
Round
Hole
10

ASSEMBLY STEP 5
TightentheChain
•Spin the innernut and lockwasher down the trolley threaded
shaft, awayfrom the trolley.
• To tighten the chain,turn outer nut in the direction shown
(Figure 1).
• Whenthe chain is approximately 1/4" (6 mm) abovethe baseof
the rail at its midpoint, re-tighten the inner nut to secure the
adjustment.
Sprocket noise can result if chain is too loose.
When installation is complete, you may notice some chaindroop
with the door closed. This is normal. If the chain returns to the
position shown in Figure2 when the door is open,do not
re-adjust the chain.
NOTE:During future maintenance,ALWAYSpuff the emergency
releasehandle to disconnect trofley beforeadjusting chain. You
may notice loosening of chainafter Adjustment Step3 (Testthe
Safety ReversalSystem). Checkfor proper tension and readjust
chain if necessary. ThenrepeatAdjustment Step3.
Youhave nowfinishedassemblingyourgarage dooropener.
Please read thefollowingwarningsbeforeproceedingto the
installationsection.
Figure1
Figure2
Trolley
Outer Lock Threaded
Nut Washer Shaft
To Tighten Outer Nut
Inner Nut
To Tighten
Inner Nut
I
Chain
Base Rail
1/4" (6 mm)
Mid length of Rail
INSTALLATION
IMPORTANTINSTALLATIONINSTRUCTIONS
ToreducetheriskofSEVEREINJURYorDEATH:
1. READAND FOLLOWALL INSTALLATIONWARNINGSAND
INSTRUCTIONS.
2. Installgarage door openerONLYon properly balancedand
lubricated garage door. An improperly balanceddoor may
NOTreversewhen required and could result in SEVERE
INJURYor DEATH.
3. ALL repairsto cables,spring assembliesand other hardware
MUSTbe madeby a trained door systems technician BEFORE
installing opener.
4. DisableALL locks andremoveALL ropesconnectedto garage
door BEFOREinstalling openerto avoidentanglement.
5. Install garagedoor opener7 feet (2.13 m) or more above
floor.
6. Mount the emergencyreleasewithin reach,but at least 6 feet
(1.8 m) abovethefloor and avoiding contact with vehiclesto
avoid accidentalrelease.
7. NEVERconnect garagedoor openerto power source until
instructed to do so.
8. NEVERwear watches, rings or looseclothing while installing
or servicing opener.They could be caught in garagedoor or
opener mechanisms.
9. Installwall-mounted garagedoor control:
• within sight of the garage door.
• out of reachof children at minimum height of 5 feet
(1.5 m).
• awayfrom ALL moving parts of thedoor.
10. Placeentrapmentwarning labelon wall next to garage door
control.
11. Placemanual release/safetyreversetest label in plain view
on inside of garagedoor.
12. Uponcompletion of installation, test safety reversalsystem.
Door MUSTreverseon contact with a 1-1/2" (3.8 cm) high
object (or a 2x4 laid flat) on the floor.
11

INSTALLATION STEP 1
DeterminetheHeaderBracketLocation
To prevent possible SERIOUSINJURYor DEATH:
•HeaderbracketMUSTbe RIGIDLYfastenedto structural
support on headerwall or ceiling, otherwise garagedoor
might NOTreversewhen required. DONOTinstall header
bracketover drywall.
• Concreteanchors MUSTbe usedif mounting headerbracket
or 2x4 into masonry.
• NEVERtry to loosen, move or adjust garagedoor, springs,
cables,pulleys, brackets,or their hardware, ALL of which are
under EXTREMEtension.
• ALWAYScall a traineddoor systemstechnician if garage door
binds, sticks, or is out of balance.An unbalancedgarage door
might NOTreversewhen required.
Header Wall Unifliinnghe_
Vertical Centerline
of GarageDoor 2x4
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Structural
Suppo_s
Installation procedures vary according to garagedoor types.
Follow the instructions which applyto your door.
1. Closethe door and mark the insidevertical centerline of the
garagedoor.
2. Extendthe line onto the headerwall abovethe door.
Youcanfastenthe headerbracketwithin4 feet (1.22 m) of
the leftor rightofthe doorcenteronlyif a torsionspringor
centerbearingplate is inthe way;or youcanattachit tothe
ceiling(see page13) whenclearanceis minimal. (It may be
mountedonthe wall upsidedownif necessary,to gain
approximately1/2"(1 cm).)
If you needto install the headerbracket on a 2x4 (on wall or
ceiling), uselag screws (not provided)to securelyfastenthe
2x4 to structural supports asshown here and on page 13.
3. Openyour door to the highest point of travel as shown. Draw
an intersecting horizontal line on the headerwall abovethe high
point:
• 2" (5 cm) abovethe high point for sectional door and
one-piecedoor with track.
• 8" (20 cm) abovethe high point for one-piecedoor without
track.
This height will provide travel clearancefor the top edge of the
door.
NOTE:If the totalnumber of inches exceedsthe heightavailable
in your garage,usethe maximum height possible, or refer to
page 13for ceiling installation.
HeaderWall Track
_2_" (.5cm)
<,[ i
HighestPoint
ofTravel
--Door
Sectional door with curved track
Hardware
HeaderWall
-8" (20cm)
Highest
Point
of Travel
One-piecedoorwithouttrack:
jambhardware
Y
Track
HeaderWall
"_',_ 2" (5 cm)
_et Point
ofTravel
r
One-piece doorwith horizontal track
Header Wall
Pivot
One-piece doorwithout track:
pivot hardware
12

INSTALLATION STEP 2
Installthe HeaderBracket
You can attachthe headerbracketeither to the wall abovethe
garagedoor, or to theceiling. Follow the instructions which will
work best for your particular requirements. Do notinstall the
header bracketoverdrywall. If installingintomasonry,use
concreteanchors(not provided),
WALLHEADERBRACKETINSTALLATION
•Centerthe bracketon thevertical centerline with the bottom
edge of the bracketon the horizontal lineasshown (with the
arrow pointing toward the ceiling).
• Mark thevertical set of bracketholes. Drill 3/16" pilot holes and
fastenthe bracketsecurelyto a structural support with the
hardware provided.
HARDWARESHOWNACTUALSIZE
LagScrew 5/16"-9xl-5/8"
Wall Mount
Optional
MountingHoles
Horizontal
Line / /
-; S
HighestPoint of
Garage DoorTravel
Vertical
Centerline
of GarageDoor
Lag Screws
. 5/16"x9x1-5/8"
Door Spring
-- Garage Door--
Vertical
Centerline
of GarageDoor
CEILINGHEADERBRACKETINSTALLATION
• Extendthe vertical centerline onto the ceiling asshown.
• Centerthe bracketon thevertical mark, no more than
6" (15 cm) from the wall. Makesure the arrow is pointing away
from the wall. Thebracketcan bemounted flush against the
ceiling when clearanceis minimal.
• Mark theside holes. Drill 3/16" pilot holesand fastenbracket
securelyto a structural support with the hardwareprovided.
Ceiling Mounting Holes
Header
Bracket
_Finished Ceiling m
_../_::_ Vertical Centerline
_ of GarageDoor
6" (15 cm) Maximum
Door Spring Lag Screws
5/16"x9x1-5/8"
Header Wall --
13

INSTALLATION STEP 3
Attach the Raft to the Header Bracket
•Position the openeron the garagefloor below the header
bracket. Usepacking material asa protective base.
NOTE:If the door spring is in the wayyou'll need help. Have
someone hold the opener securely on a temporary support to
allow the rail to clear the spring.
• Position the rail bracket againstthe headerbracket.
• Align the bracket holesand join with a clevis pin 5/16"x1-1/2"
as shown.
• Insert a ring fastenerto secure.
Wall
-- Idler Pulley
0
Mounting
Hole
-- Garage
Door Opener Carton or
-- Temporary
Support
HARDWARESHOWN ACTUALSIZE
Clevis Pin 5/16" x 1-1/2" ©
Ring fastener
14

INSTALLATION STEP 4
Positionthe Opener
Follow instructions which applyto your door type asillustrated.
SECTIONALDOORORONE-PIECEDOORWITH TRACK
A 2x4 laid flat is convenientfor setting an ideal door-to-rail
distance.
• Removefoam packaging.
• Raisethe openeronto astepladder.You will needhelp atthis
point if the ladderis nottall enough.
• Openthedoor all the way and placea 2x4 laidflat onthe top
section beneaththe rail.
• If the top section or panelhits thetrolley when you raise
the door, pull down onthe trolley releasearm to disconnect
inner and outer sections. Slide the outertrolley toward the
motor unit. Thetrolley can remaindisconnected until
Installation Step 12 is completed.
To preventdamageto garagedoor, rest garagedoor opener rail
on 2x4 placedon top section of door.
Rail
2x4 is usedto determine
the correct mounting
height from ceiling.
y }-=€'
seArm [J
ENGAGED RELEASE V
ONE-PIECEDOORWITHOUTTRACK
A 2x4 on its side is convenientfor setting an ideal door-torail
distance.
• Removefoam packaging.
• Raisethe openeronto a stepladder.You will needhelp at this
point if the ladder is not tall enough.
• Openthedoor all the way andplacea 2x4 on its sideon thetop
section of thedoor beneaththe rail.
• Thetop of the door should belevelwith the top of the motor
unit. Do not position theopener more than 4"(10 cm) above
this point.
I 1 Header
; 4, used!o2rm, e
i _hegh_r_2,tlln___nnt;n,g
15

INSTALLATION STEP 5
Hangthe Opener
Threerepresentativeinstallations areshown. Yours may be
different. Hangingbracketsshould be angled (Figure1) to provide
rigid support. On finished ceilings (Figure2 and Figure3), attach
a sturdy metal bracketto structural supports before installing the
opener.This bracketand fastening hardwareare not provided.
1. Measurethe distancefrom eachsideof the motor unit to the
structural support.
2. Cut both piecesof the hanging bracketto required lengths.
3. Drill 3/16" pilot holesin the structural supports.
4. Attach one end of eachbracketto a support with
5/16"-18xl-7/8" lagscrews.
5. Fastenthe openerto the hanging brackets with 5/16"-18x7/8"
hex bolts, lock washersand nuts.
6. Checkto makesure the rail is centeredover the door (or inline
with the headerbracketif the bracket is not centeredabovethe
door).
7. Removethe 2x4. Operatethe door manually. Ifthe door hits the
rail, raisethe headerbracket.
NOTE:DONOTconnectpower to openerat this time.
To avoidpossible SERIOUSINJURYfrom a falling garage door
opener,fasten it SECURELYto structural supports of the
garage.Concreteanchors MUSTbe used if installing ANY
brackets into masonry.
FigureIStructural
Supports
Measure Lag Screws
Distance 5/16"-18xl -7/8"
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
\
HARDWARESHOWNACTUALSIZE
Lag Screw 5/16"-18xl -7/8"
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
Figure2
Hidden _ - _"""
Support _. - _"
_- Lag Screws
Bracket \o_o_ _- (Not Provided)
Not Provided/ _o_o_- _1-cc-J .... _/_ Bolt 5/16"-18x7/8"
-,_- __o_o_T-_ .... /oi,j Lock Washer 5/16"
J-=--_ Mo7 Nut 5/16"-18
Bolt 5/16'-18X7/8' _ o__/o/
Figure3
_'_- .-I Lag Screws FINISHEDCEILING
-_ _" _ 5116"-18xl-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
16

INSTALLATION STEP 6
Install the DoorControl
Locate door control within sight of door, ata minimum heightof
5 feet (1.52 m) where small children cannot reach,away from
moving parts of door anddoor hardware.
1. Strip 1/4"(6 mm) of insulation from one end of bell wire and
connectto thetwo screwterminals on backof door control by
color: white wire to 2 and white/red wire to the 1.
2. Fastenthe door control button securelywith 6ABx1-1/2"
screws. If installing into drywall, drill 5/32" holesand usethe
anchors provided.
3. Runbell wire up wall andacrossceiling to motor unit. Use
insulated staplesto securewire in several places.Donot pierce
wire with a staple,creating a short or opencircuit.
4. Strip 7/16" (11 mm) of insulation from end of bell wire. Connect
the bell wire to the terminal screwson the motor unit panel:
white to 2; white/red to 1.
5. Position theantennawire as shown.
6. Usetacks orstaplesto permanentlyattach entrapmentwarning
label to wall near door control, and manualrelease/safety
reversetest labelin a prominent location on inside of garage
door.
NOTE:DONOTconnect thepower and operatethe opener at this
time. Thetrolley will travel to thefurl open position but will not
return to the closeposition until thesensor beamis connected
and properly aligned.
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution: parts of door.
• Besure power is NOTconnected BEFOREinstalling door
control.
• ConnectONLYto 24 VOLTlow voltagewires.
To prevent possible SERIOUSINJURYor DEATHfrom a closing
garage door:
• Install door control within sight of garage door, out of reach
of children at a minimum height of 5 feet (1.5 m), and away
from ALL moving parts of door.
• NEVERpermit children to operateor playwith door control
pushbuttons or remote control transmitters.
• Activate door ONLYwhen it can be seenclearly, is properly
adjusted, andthere are no obstructions to door travel.
• ALWAYSkeepgaragedoor in sight until completely closed.
NEVERpermit anyoneto cross path of closing garagedoor.
HARDWARESHOWNACTUALSIZE
Screw 6ABx1-1/2" Drywall Insulated
Lighted Door Control Button Anchors Staples
Opener Terminal Screws
Terminal
Screws
(BACKVIEW)
DOORCONTROLBUTTON
BackPanel of Opener _ Antenna
17

INSTALLATION STEP 7
Install theLights
•Install a 75 watt maximum light bulb inthe socket. Light bulb
size should beA19, standard neck only. The lights will turn ON
and remainlit for approximately 4-1/2 minutes when power is
connected.Thenthe lights will turn OFF.
• Apply slight pressureon the sides of the lens and slidethe tabs
into the slots in the end panel (Seeillustration).
• To remove, reversethe procedure. Use careto avoid snapping
off lenstabs.
• UseA19, standard neck garagedoor opener bulbsfor
replacement.
NOTE:Use onlystandard light bulbs. Theuseof short neck or
speciality light bulbs may overheatthe endpanelor light socket.
To prevent possible OVERHEATINGof the endpanelor light
socket:
• DONOTuseshort neck or specialty light bulbs.
• DONOTusehalogen bulbs. UseONLYincandescent.
To preventdamageto the opener:
• DONOTusebulbs larger than 75W.
• ONLYuseA19 sizebulbs.
Light Lens
Lens
Guide
Lens Slot
75 Watt (Max)
Standard Light Bulb
Lens Tab
INSTALLATION STEP 8
Attachthe EmergencyRe/easeRopeand Hand/e
• Threadone end of the rope through the holein thetop of the red
handle so "NOTICE"readsright side up asshown. Securewith
an overhandknot at least 1" (2.5 cm) from the end of the rope to
prevent slipping.
• Threadthe other endof the ropethrough the hole in the release
arm of the outer trolley.
• Adjust rope length sothe handleis 6 feet (1.83 m) abovethe
floor. Ensurethat the ropeand handleclearthe tops of all
vehiclesto avoid entanglement.Securewith an overhand knot.
NOTE:If it is necessaryto cut therope, heatsealthe cut endwith a
match or lighter to prevent unraveling.
To prevent possible SERIOUSINJURYor DEATHfrom afalling
garagedoor:
• If possible, useemergencyreleasehandle to disengagetrolley
ONLYwhen garagedoor is CLOSED.Weak or brokensprings
or unbalanceddoor could result in an open door falling
rapidly and/or unexpectedly.
• NEVERuseemergencyreleasehandle unlessgaragedoorway
is clear of persons and obstructions.
• NEVERusehandleto pull door open or closed. If rope knot
becomesuntied, you could fall.
Trolley
Emergency _ _ Overhand
Release Handle Knot
18

INSTALLATION STEP 9
Electrica/ Requirements
Toavoidinstallationdifficulties,do notruntheopenerat this
time.
To reducethe risk of electricshock, your garagedoor opener hasa
grounding type plug with a third grounding pin. Thisplug will only
fit into a grounding type outlet. If the plug doesn't fit into the outlet
you have,contact a qualifiedelectricianto install the proper outlet.
If permanent wiring isrequiredbyyourlocalcode,refer tothe
followingprocedure.
Tomake a permanent connectionthrough the 7/8" hole in the top
of the motor unit:
• Removethe motor unit cover screws andset the cover aside.
• Removethe attached3-prong cord.
• Connectthe black (line) wire to the screwon the brass terminal;
thewhite (neutral) wire to the screw on the silver terminal; and
theground wire to the greenground screw. The openermust
begrounded.
• Reinstallthe cover.
Toavoidinstallationdifficulties,do notruntheopenerat this
time.
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• Besure poweris NOTconnectedto the opener,and
disconnect powerto circuit BEFOREremoving cover to
establish permanentwiring connection.
• Garagedoor installation and wiring MUSTbe in compliance
with ALL localelectricaland building codes.
• NEVERusean extensioncord, 2-wire adapter, or change
plug in ANYway to makeit fit outlet. Besurethe opener is
grounded.
PERMANENTWIRING
CONNECTION
Ground Tab
Green
Ground Screw
Ground
Wire
White Wire
Wire
19

INSTALLATION STEP 10
Install TheProtectorSystem
Thesafety reversingsensormustbeconnectedandaligned
correctlybeforethe garagedooropenerwill movein thedown
direction.
IMPORTANTINFORMATIONABOUTTHESAFETYREVERSING
SENSOR
Whenproperly connected andaligned, thesensor will detectan
obstacle in the pathof its electronic beam.Thesending eye(with
an amber indicator light) transmits an invisible light beamto the
receiving eye(with a green indicator light). If an obstruction
breaksthe light beamwhile the door is closing, the door will stop
and reverseto full open position, and the openerlights will flash
10 times.
Theunits must be installed insidethe garageso that the sending
and receivingeyesface eachother acrossthe door, no more than
6" (15 cm) abovethe floor. Eithercan be installed on the left or
right of the door aslong asthe sun nevershines directly into the
receiving eyelens.
Themounting brackets are designedto clip ontothe track of
sectionalgarage doors without additional hardware.
Besure power is NOTconnectedto the garagedoor opener
BEFOREinstalling the safety reversingsensor.
To preventSERIOUSINJURYor DEATHfrom a closing garage
door:
•Correctly connect and align the safety reversing sensor.This
requiredsafety device MUSTNOTbe disabled.
• Installthe safety reversingsensor so beam is NOHIGHER
than 6"(15 cm) abovegaragefloor.
If it is necessaryto mount the units on the wall, the brackets must
be securelyfastenedto a solid surfacesuch asthe wall framing.
Extensionbrackets (seeAccessories) are availableif needed.If
installing in masonry construction, adda pieceof wood ateach
location to avoiddrilling extra holes in masonry if repositioning is
necessary.
Theinvisible light beampathmust be unobstructed. No part of the
garagedoor (or door tracks, springs, hinges, rollers or other
hardware) may interrupt the beamwhile the door is closing.
]o[
]o[
]÷[
/
Safety Reversing Sensor Invisible Light Beam
6" (15 cm) max. above floor Protection Area Safety Reversing Sensor 6" (15 cm) max. above floor
Facingthe doorfrom insidethe garage
2O
