Owner's Manual/Manual Del Propietario
CRRFTSMI:I
1/2 HP
GARAGE DOOR OPENER
ABRIDOR DE PUERTA DE COCHERA
For Residential Use Only/Solo para uso residencial
Model/Modelo139.53989
m
Z
G3
m
"0
Z_
O
Read and follow all safety rules
and operating instructions before
first use of this product.
Fasten the manual near the garage
door after installation.
Periodic checks of the opener are
required to ensure safe operation.
Leer y seguir todas las reglas de
seguridad y las instrucciones de
operacion antes de usar este
producto por primera vez.
Guardar este manual cerca de la
puerta de la cochera.
Se deben realizar revisiones
periodicas del abridor de puertas
para asegurar su operacion
segura.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
www.sears.com/craftsman

TABLE OF CONTENTS
Introduction 2.7
Safety symbol and signal word review ........................ 2
Preparing your garage door ........................................ 3
Tools needed ............................................................... 3
Planning .................................................................. 4-5
Carton inventory .......................................................... 6

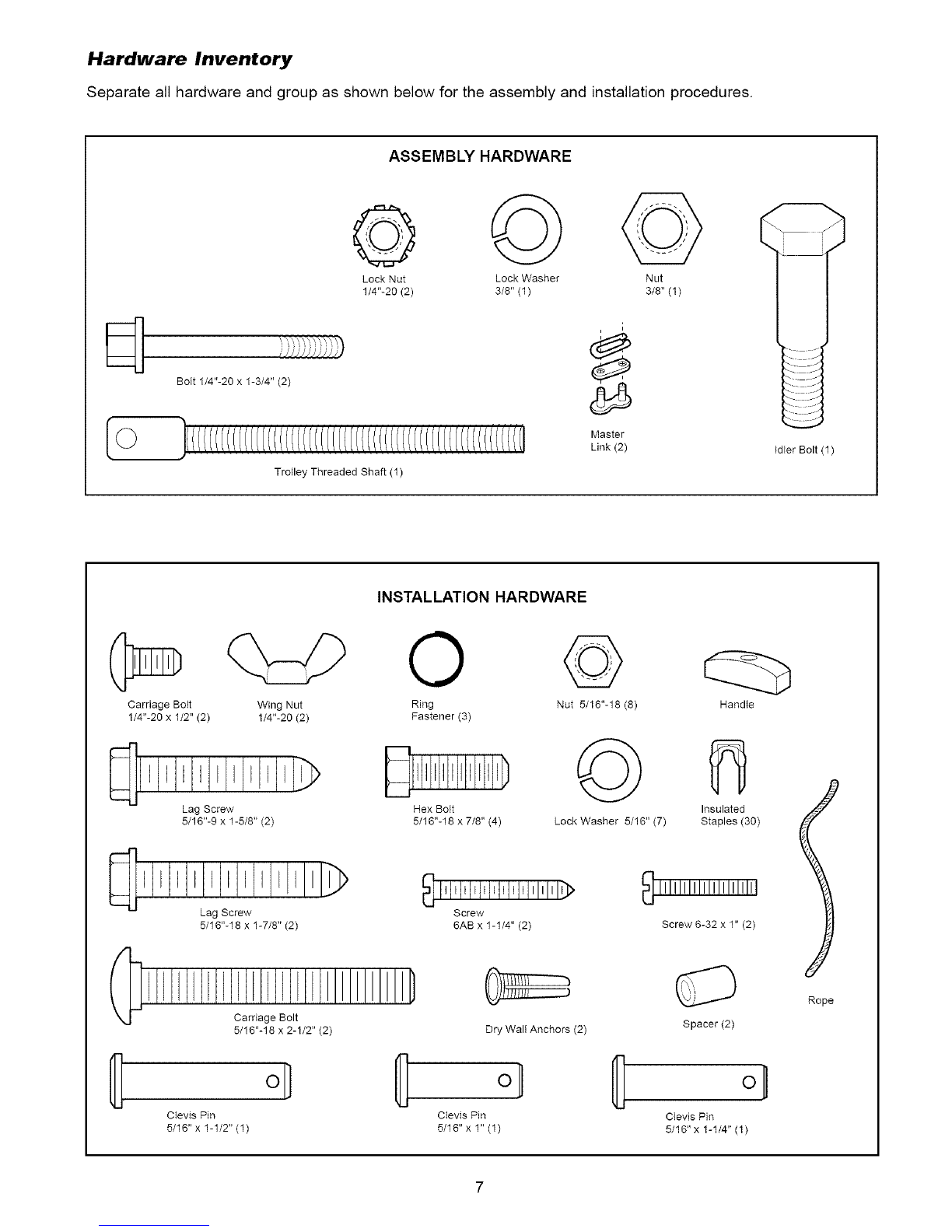

Hardware inventory ..................................................... 7
Assembly 8.11
Assemble the rail and install trolley ............................. 8
Fasten rail to motor unit and install idler pulley .......... 9

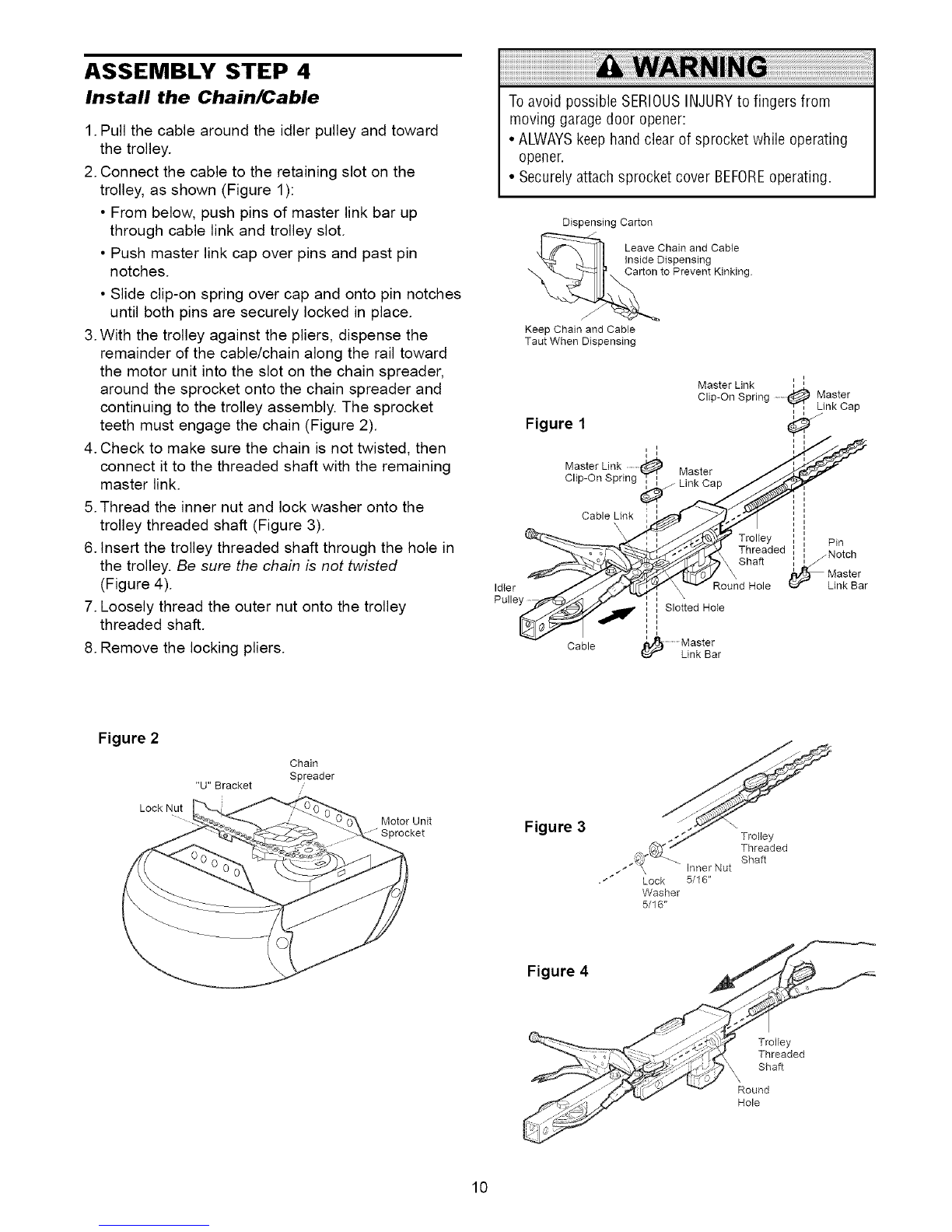

Install the chain/cable ................................................ 10

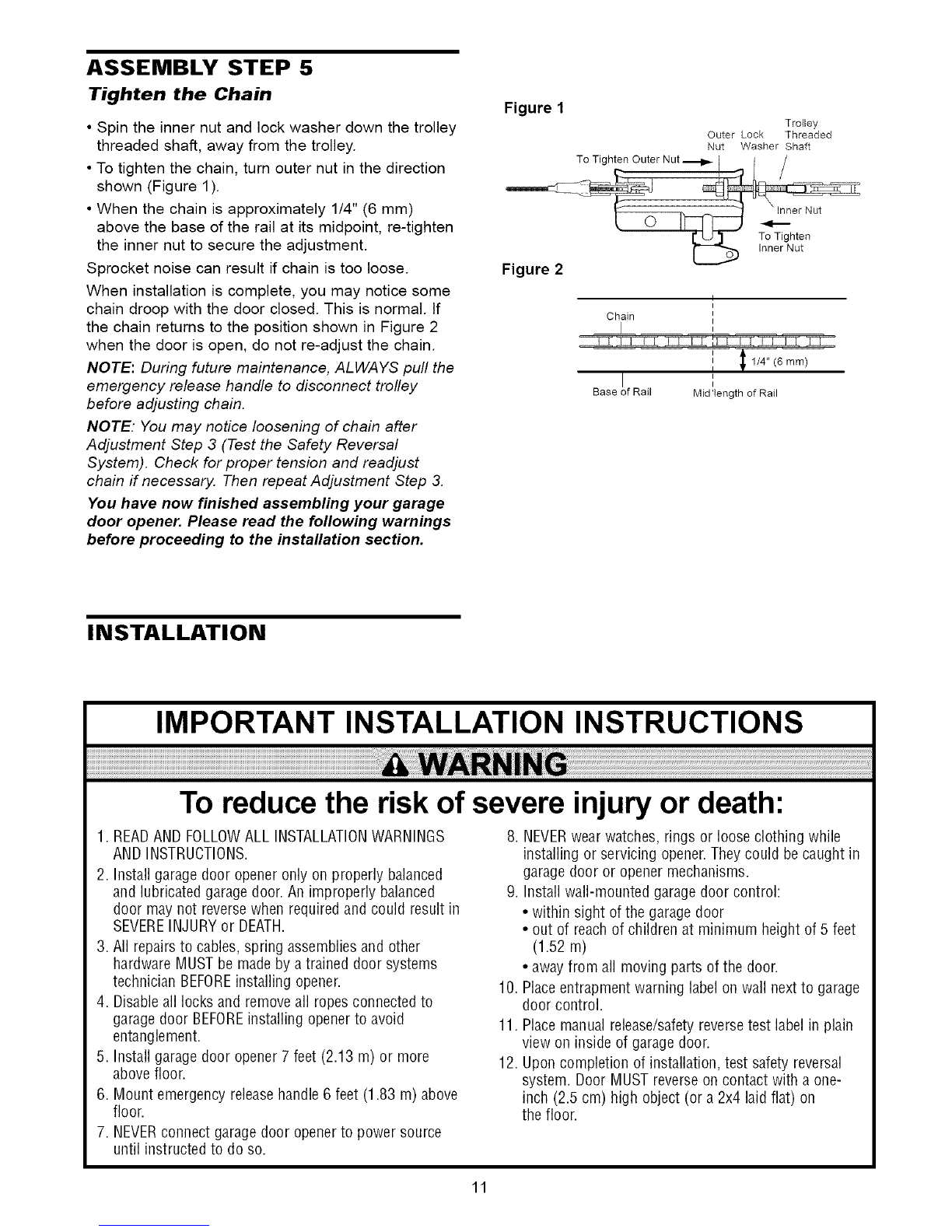

Tighten the chain ....................................................... 11
Installation 11.2 7
Installation safety instructions .................................... 11

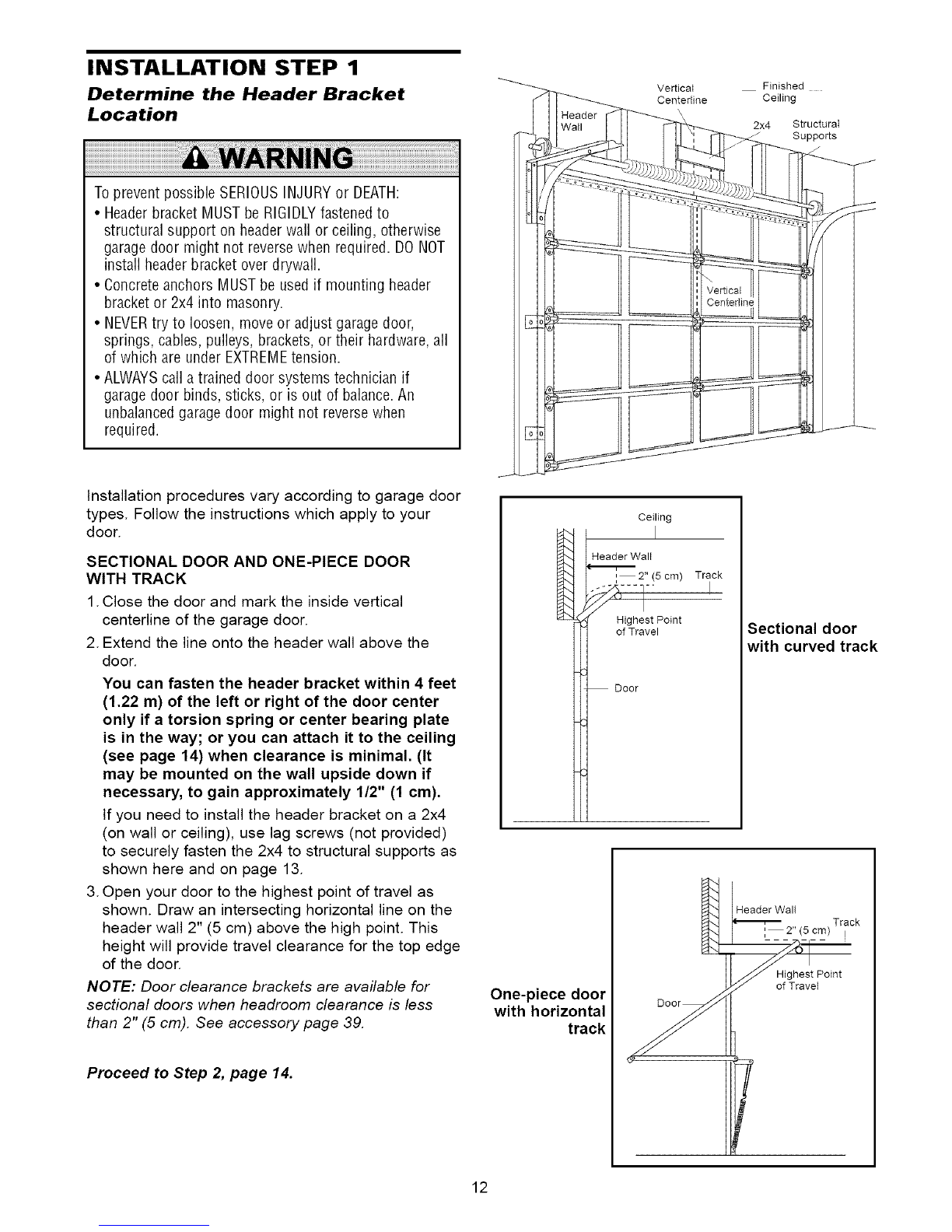

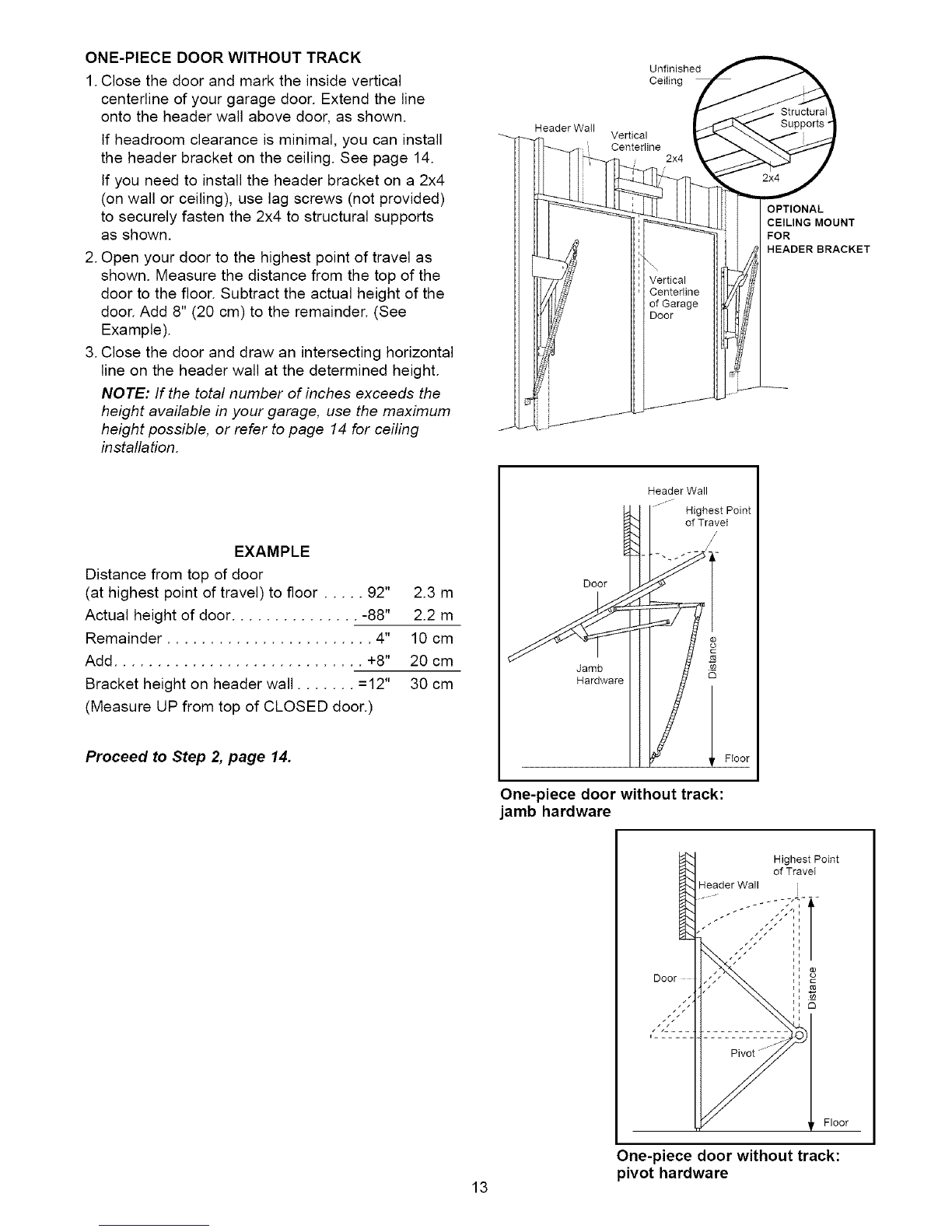

Determine the header bracket location ................ 12-13
Install the header bracket .......................................... 14
Attach the rail to the header bracket ......................... 15

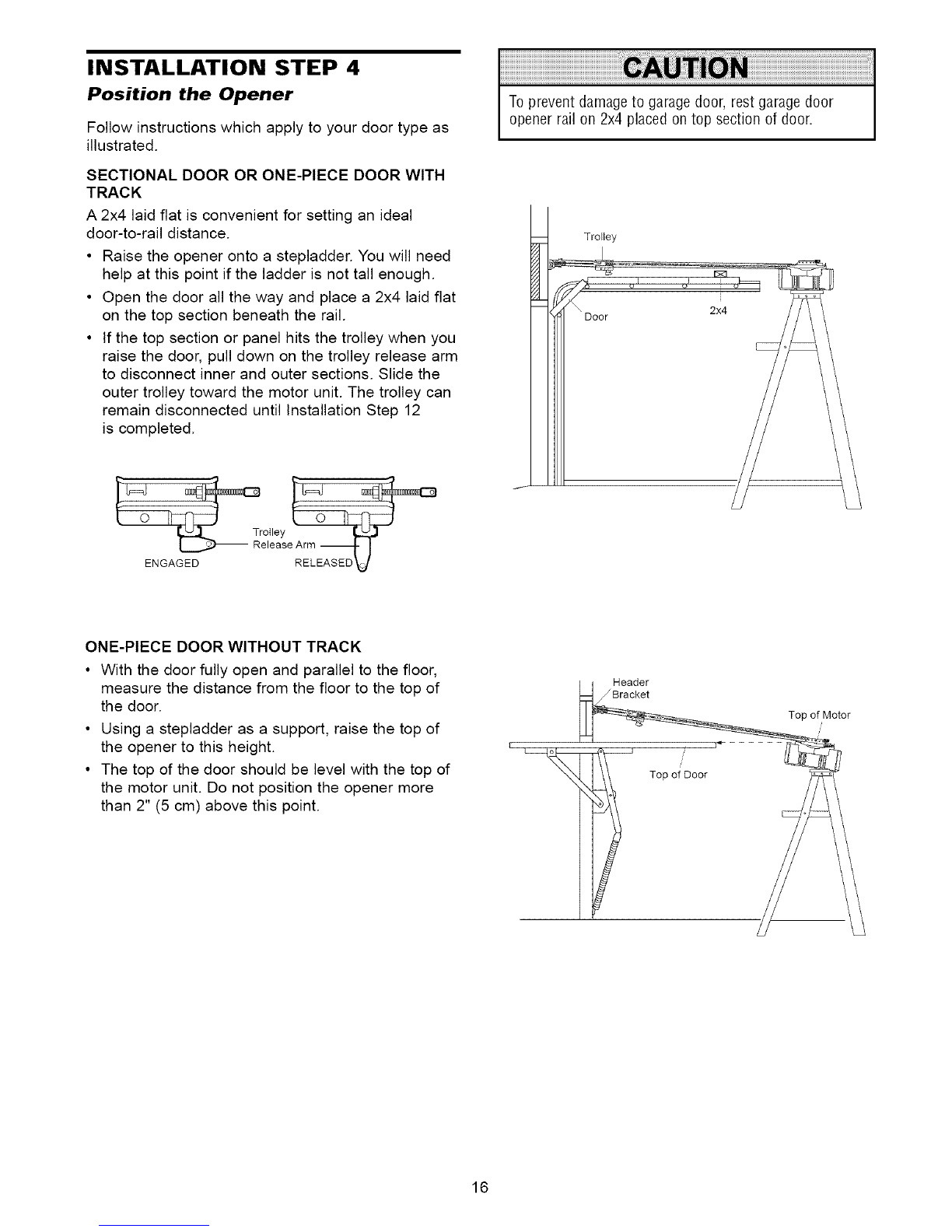

Position the opener ................................................... 16

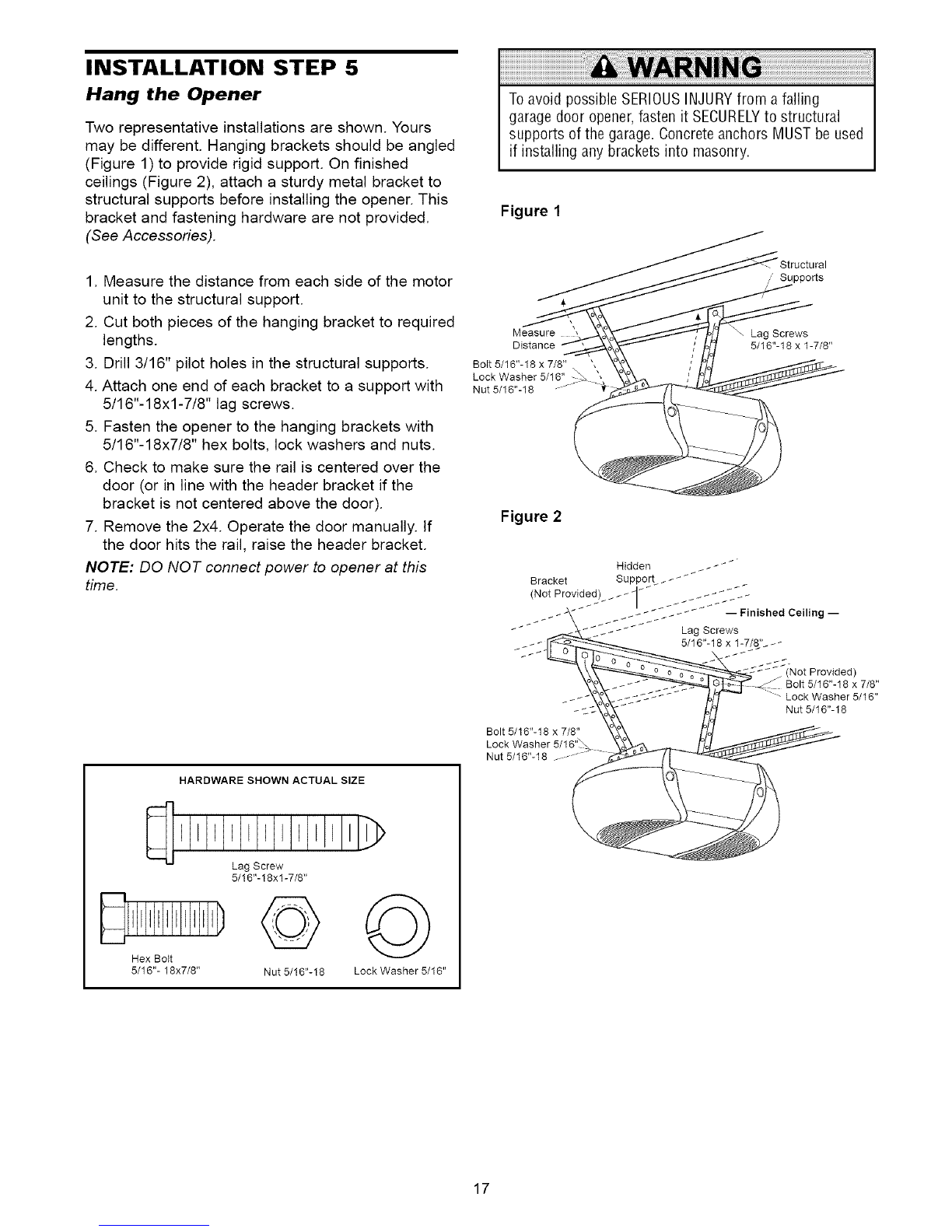

Hang the opener ....................................................... 17
Install the door control ............................................... 18

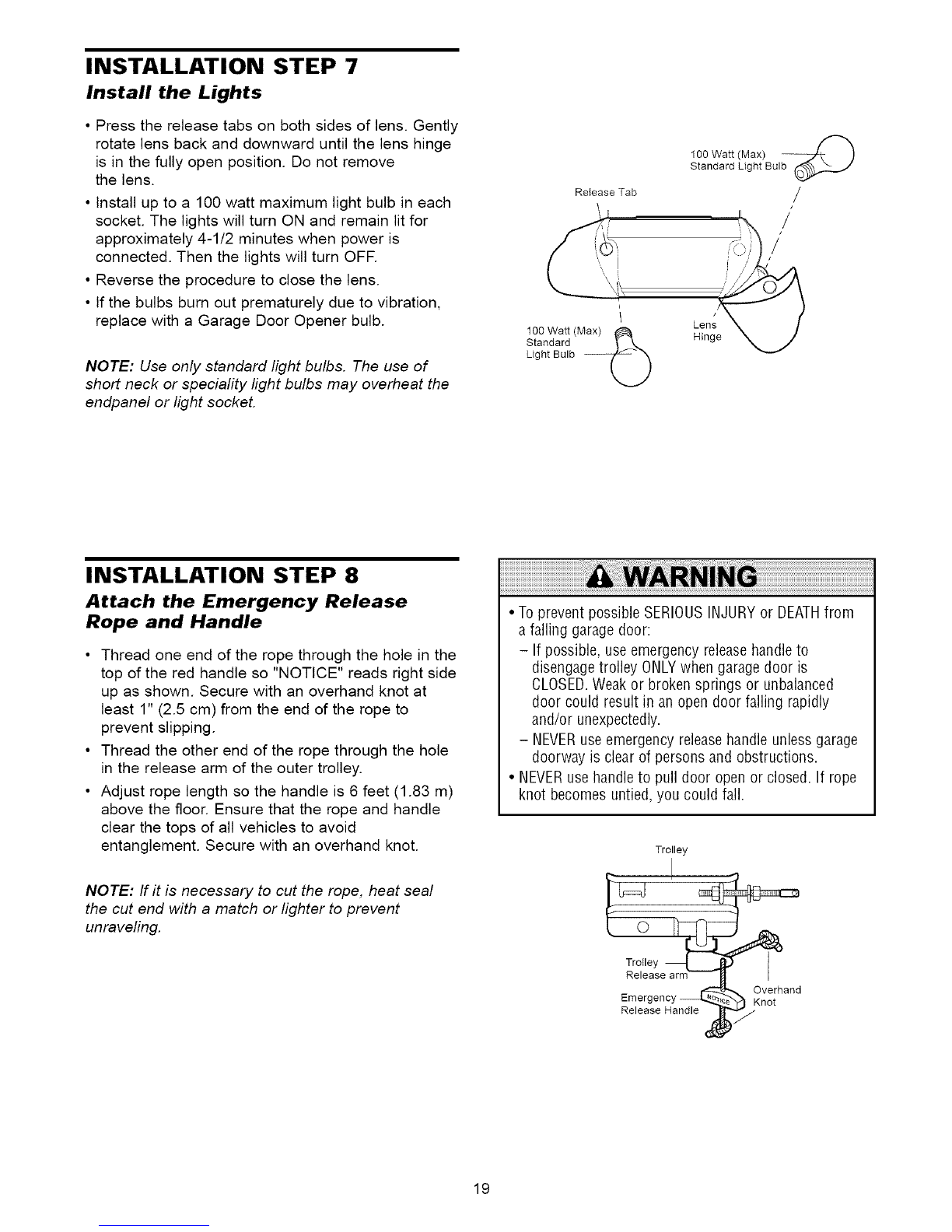

Install the lights ......................................................... 19
Attach the emergency release rope and handle ....... 19

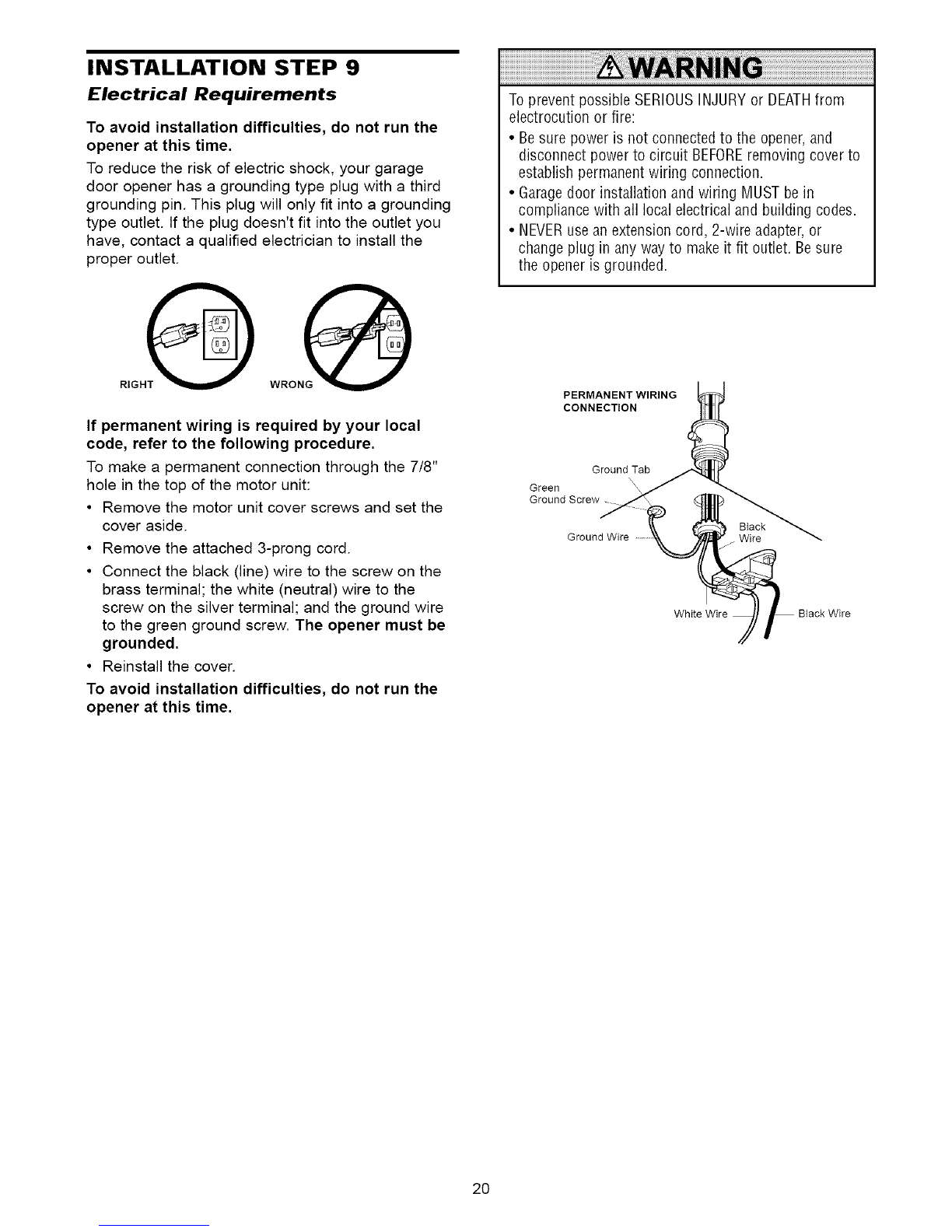

Electrical requirements .............................................. 20
Install the Protector System ®................................ 21-23
Fasten the door bracket ....................................... 24-25
Connect the door arm to the trolley ..................... 26-27
Adjustment 28.30
Adjust the travel limits ............................................... 28
Adjust the force ......................................................... 29
Test the safety reversal system ................................. 30
Test the Protector System '_........................................ 30
Operation 31.34
Operation safety instructions ..................................... 31
Using your garage door opener ................................ 31
Using the wall-mounted Door Control ....................... 32
To open the door manually ........................................ 32
Care of your garage door opener .............................. 33
Having a problem? .................................................... 34
Programming 35.36
To add a hand-held remote control ........................... 35
To erase all codes ..................................................... 35
3-Function Remotes Controls ................................... 35
To add or change a Keyless Entry PIN ..................... 36
Repair Parts 37.38
Rail assembly parts ................................................... 37
Installation parts ........................................................ 37
Motor unit assembly parts ......................................... 38
Accessories 38
Warranty 39
Service Numbers 40
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.

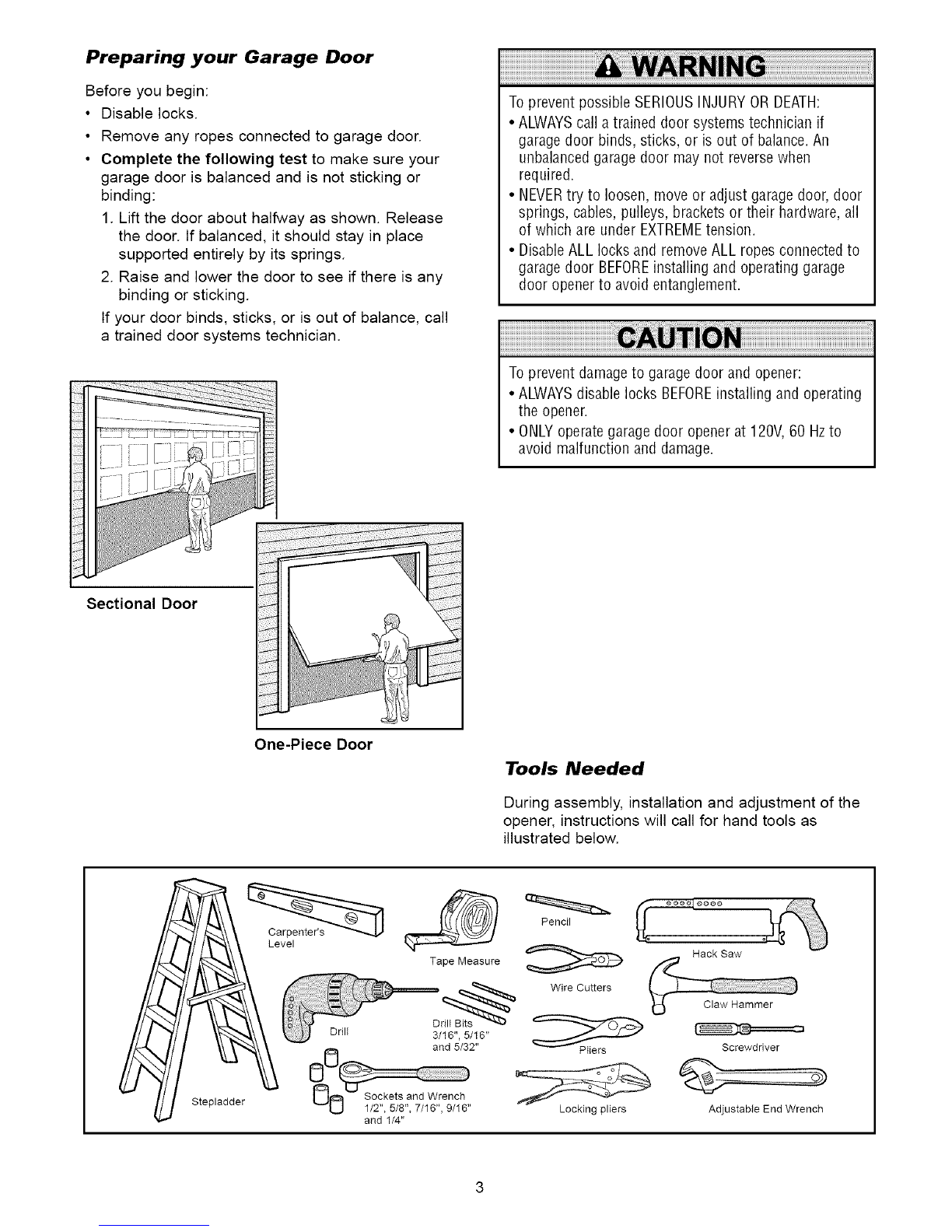

Preparing your Garage Door
Before you begin:
•Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call
a trained door systems technician.
To prevent possible SERIOUSINJURYORDEATH:
•ALWAYScall a trained door systems technician if
garagedoor binds, sticks, or is out of balance An
unbalancedgarage door may not reversewhen
required.
• NEVERtry to loosen, move or adjust garagedoor, door
springs, cables,pulleys, brackets or their hardware,all
of which are under EXTREMEtension.
• DisableALL locks and removeALL ropes connectedto
garagedoor BEFOREinstalling and operating garage
door openerto avoid entanglement.
To prevent damageto garage door and opener:
•ALWAYSdisablelocks BEFOREinstalling and operating
the opener
•ONLYoperategarage door opener at 120V,60 Hzto
avoid malfunction and damage
Sectional Door
One-Piece Door
Level
Tools Needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
Stepladder
Pencil
Tape Measure
Dr_ Wire Cutters
Drilt 3/16", 5/16"
and 5/32"
O_ lS_'c_;t/_"i'_I 16W'r,e9n/ih" Locking pliers
and 1/4"
Hack Saw
Screwdriver
Adjustable End Wrench

Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 - Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 5 - Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
• Installation Step 10 - Depending upon garage
construction, extension brackets or wood blocks
may be needed to install sensors.
• Installation Step 10 - Alternate floor mounting of
the safety reversing sensor will require hardware
not provided.
Do you have an access door in addition to the
garage door? If not, Model 53702 Emergency Key
Release is required. See Accessories page.
Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 1/4" (6 mm). Otherwise, the
safety reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical
reinforcement is required (Installation Step 11).
• The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 4 feet (1.22 m) to the left or
right of the door center. See Installation Steps 1
and 11.
• If your door is more than 7 feet high (2.13 m), see
rail extension kits listed on Accessories page.
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fibergIass, steel, aluminum, door with
glass panels, etc) See page 24 for detaiIs.
Header WalI
Slack in chain tension
is normal when
garage door is closed.
Extension Spring
OR
j Torsion Spring
FINISHED CEILING
Support bracket &
fastening hardware
is required
See page 17
Rail
Gap between floor
and bottom of door
Safety Reversing Sensor must not exceed 1/4" (6 mm)
WaIF
mounted
Door
Control
Safety Reversing
Sensor
Access Door
O

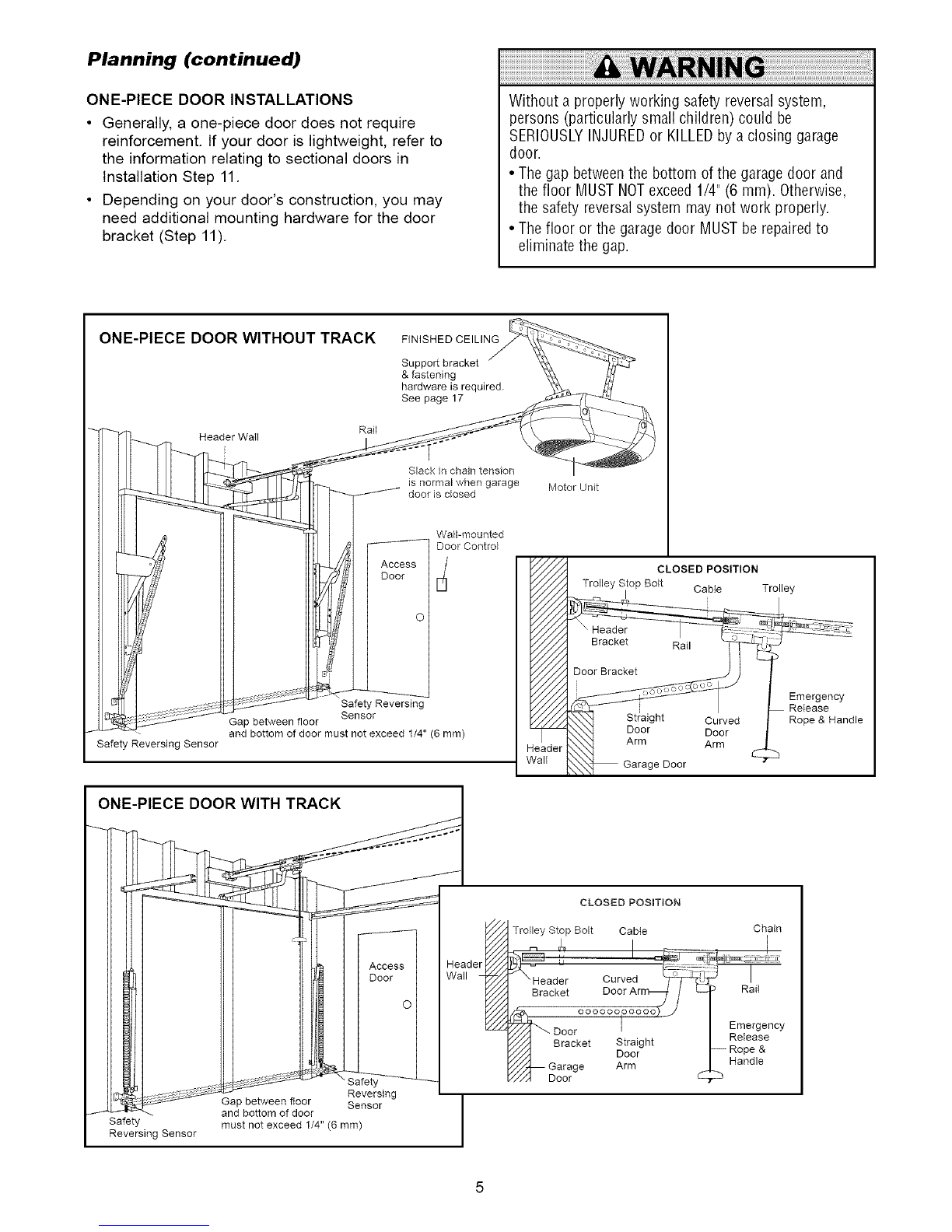

Planning (continued)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 11.
• Depending on your door's construction, you may
need additional mounting hardware for the door
bracket (Step 11).
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLYINJUREDor KILLEDby a closing garage
door.
• The gap betweenthe bottom of the garage door and
the floor MUSTNOTexceed1/4" (6 mm). Otherwise,
the safety reversal system may not work properly.
• The floor or the garage door MUSTbe repairedto
eliminate the gap.
ONE-PIECE DOOR WITHOUT TRACK FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 17
Header Wail Rail
Slack in chain tension
is normal when garage
door is dosed
Safety Reversing Sensor
J
Access
Door
Safety Reversing
Sensor
Gap between floor
and bottom of door must not exceed 1/4" (6 mm)
Wall-mounted
Door Control
ONE-PIECE DOOR WITH TRACK
Motor Unit
eader
/all
CLOSED POSITION
Trolley Stop Bolt Cabte Trolley
Bracket Rail
_{ Straight Curved
Door DrOOr
_ Garage Door ..... _ _
Emergency
Release
Rope & Handle
Reversing
Gap between floor Sensor
J and bottom of door
Safety must not exceed 1/4" (6 mm)
Reversing Sensor
CLOSED POSITION
Trolley Stop Bolt Cable
_. r_
Header Curved _:
Bracket DoorArrt_ /L--
_/_ Door°°°°°°_ °°°°°)J
/_ Bracket StraightDoor
/_/1_ Garage Arm
//./I Door
Chain
RaiI
Emergency
Release
-- Rope &
Handle

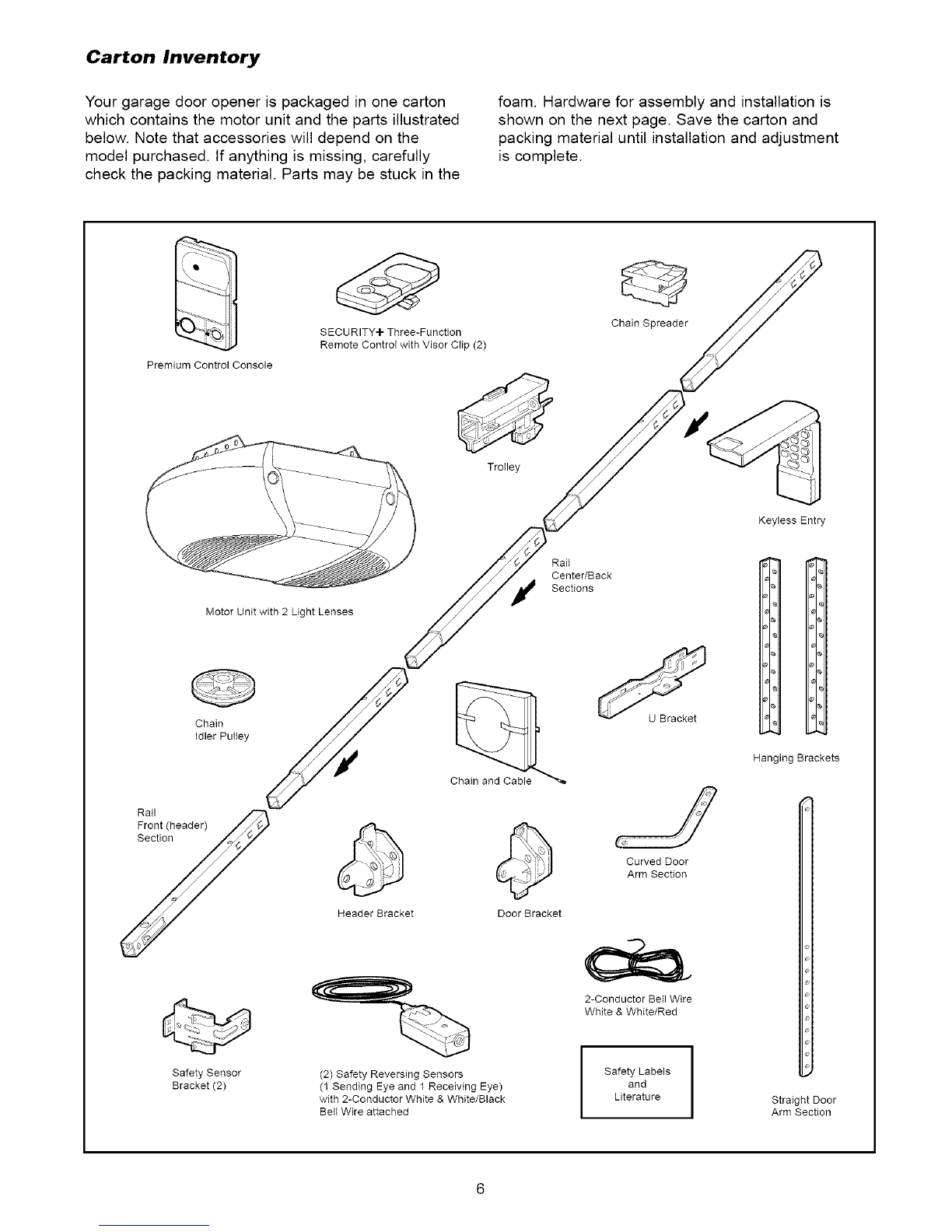

Carton Inventory
Your garage door opener is packaged in one carton
which contains the motor unit and the parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material. Parts may be stuck in the
foam. Hardware for assembly and installation is
shown on the next page. Save the carton and
packing material until installation and adjustment
is complete.
Premium Control Console
SECURITY+ Three-Function
Remote Control with Visor Clip (2)
Trotley
Chain Spreader
Keyless Entry
Motor Unit with 2 Light Lenses
Rail
Center/Back
Sections
Chain
idler Pulley
Rail
Fron! (header) /_/#,,2
Safety Sensor
Bracket (2)
Header Bracket Door Bracket
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
U Bracket
Curved Door
Arm Section
2-Conductor Bell Wire
White & White/Red
ISafety Labels
and
Literature
Hanging Brackets
Straight Door
Arm Section

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
F
© @ @
Lock Nut Lock Washer Nut
1/4"-20 (2) 3/8" (1) 3/8" (1)
Bott 1/4"-20 x 1-3/4" (2)
Trotley Threaded Shaft (1)
i
Master
Link (2) Idler Bolt (1)
INSTALLATION HARDWARE
Carriage Bolt
1/4"-20 x 1/2" (2) Wing Nut
1/4"-20 (2)
Lag Screw
5/16"-9 x 1-5/8" (2)
Lag Screw
5/16"-18 x 1-7/8" (2)
Carriage Bolt
5/16"-18 x 2-1/2" (2)
o]
CIevis Pin
5/16" x 1-1/2" (1)
O
Ring
Fastener (3)
IIIIIIIIII_
Hex BoIt
5/16"-18 x 7/8" (4)
©
Nut 5/16"-18 (8)
©
Lock Washer 5/16" (7)
I,J,I,I,F,F,I,I,J,I,I,I,I>
Screw
6AB x 1-1/4" (2)
Dry Walt Anchors (2)
CIevis Pin
5/16" x 1" (1)
Handle
Insulated
Staples (30)
_ IIIIIIIIIIIIIIIIIIIII
Screw 6-32 x 1" (2)
Spacer (2)
Clevis Pin
5/16" x 1-1/4" (1)
Rope

ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoid installation difficulties, do not run the
garage door opener until instructed to do so,
The front rail has a cut out "window" at the door end
(see illustration). The hole above this window is
larger on the top of the rail than on the bottom. A
smaller hole 3-1/2" (8.9 cm) away is close to the rail
edge. Rotate the back rail so it has a similar hole
close to the opposite edge, about 4-3/4" (12 cm)
from the far end. A 5-piece rail uses four back rails.
NOTE: Using the sequence above ,the clips will be
facing down.
1. Remove the straight door arm and hanging
brackets packaged inside the front rail and set
aside for Installation Step 5 and 12. NOTE: To
prevent INJURY while unpacking the rail carefully
remove the straight door arm stored within the rail
section.
2. Align the rail sections on a flat surface as shown
and slide the tapered ends into the larger ones.
Tabs along the side will lock into place.
To prevent INJURYfrom pinching, keephandsand
fingers awayfrom the joints while assemblingthe rail.
NOTE: Rail sections may be assembled with the
clips up or down (down is preferred) disassembly of
rail may damage clips.
3. Place the motor unit on packing material to protect
the cover, and rest the back end of the rail on top.
For convenience, put a support under the front
end of the rail.
4. As a temporary trolley stop, clamp a locking pliers
onto the rail, 8" (20 cm) from the center of the
idler pulley hole, as shown.
5. Check to be sure there are 4 plastic wear pads
inside the inner trolley, tf they became loose
during shipping, check all packing material. Snap
them back into position as shown.
6. Connect the inner and outer trolleys as shown.
7. Slide the trolley assembly along the rail from the
back end to the locked pliers.
KEEP LARGER
HOLE ON TOP
FRONT RAIL
(TOP)
8" (20 cm) Distance from
Idler Pulley Hole
Idler 1_/
Pulley
,,, _x_ Window
_ole _ Cut-Out
Tapered
End of
Rait
End
Front Rail
(TO DOOR)
End
End
inner Trolley
- Wear Pads
End
Trolley
;ack Rails
(TO MOTOR UNIT)

ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
•Insert a 1/4"-20 x 1-3/4 bolt into the cover
protection bolt hole on the back end of the rail as
shown. Tighten securely with a 1/4"-20 lock nut.
Do NOT over tighten.
• Remove the two bolts from the top of the motor
unit.
• Place the U bracket, flat side down onto the motor
unit and align the bracket hole with the bolt holes.
Fasten with the previously removed bolts.
• Align the rail assembly with the top of the motor
unit. Slide the rail end onto the U-bracket, all the
way to the stops that protrude on the top and sides
of the bracket.
• Attach spreader to the motor unit with two screws.
HARDWARE SHOWN ACTUAL SIZE
I_ Lock Nu@
Bott 1/4"-20 x 1-3/4 1/4"-20
To avoid SERIOUSdamageto garagedoor opener,
use ONLYthose b01ts/fastenersmounted in the top of
the opener.
Bolt
I
Cover
Protection
Bolt Hole \
Hex Screws _t-tl
8-32x7/16" 'rI]
E
_Chain
Bolt _ Spreader
I
I
i Motor Unit
i
SLIDE RAIL TO STOPS
ON TOPAND SIDES
i Lock Nut OF BRACKET
ASSEMBLY STEP 3
Install the Idler Pulley
• Lay the chain/cable beside the rail, as shown.
Grasp the end of the cable and pass
approximately 12" (30 cm) of cable through the
window. Allow it to hang until Assembly Step 5.
• Remove the tape from the idler pulley. The inside
center should be pre-greased. If dry, regrease to
ensure proper operation.
• Place the idler pulley into the window as shown.
• Insert the idler bolt from the top through the rail
and pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is
compressed.
• Rotate the pulley to be sure it spins freely.
• Insert a 1/4"-20xl-3/4 bolt into the trolley stop hole
in the front of the rail as shown. Tighten securely
with a 1/4"-20 lock nut.
Idler Bolt
HARDWARE SHOWN ACTUAL SIZE
,/i/i//jjl J11)
Bolt 1/4"-20 x 1-3/4 Lock Nut 1/4"-20 Nut 3/8" Lock Washer 3/8"

ASSEMBLY STEP 4
Install the Chain/Cable
1. Pull the cable around the idler pulley and toward
the trolley.
2. Connect the cable to the retaining slot on the
trolley, as shown (Figure 1):
• From below, push pins of master link bar up
through cable link and trolley slot.
• Push master link cap over pins and past pin
notches.
• Slide clip-on spring over cap and onto pin notches
until both pins are securely locked in place.
3. With the trolley against the pliers, dispense the
remainder of the cable/chain along the rail toward
the motor unit into the slot on the chain spreader,
around the sprocket onto the chain spreader and
continuing to the trolley assembly. The sprocket
teeth must engage the chain (Figure 2).
4. Check to make sure the chain is not twisted, then
connect it to the threaded shaft with the remaining
master link.
5. Thread the inner nut and lock washer onto the
trolley threaded shaft (Figure 3).
6. Insert the trolley threaded shaft through the hole in
the trolley. Be sure the chain is not twisted
(Figure 4).
7. Loosely thread the outer nut onto the trolley
threaded shaft.
8. Remove the locking pliers.
To avoid possible SERIOUSINJURYto fingers from
moving garage door opener:
• ALWAYSkeephand clear of sprocket while operating
opener.
• Securely attachsprocket cover BEFOREoperating.
Dispensing Carton Ch;':o n gCabte
to Prevent Kinking
Keep Chain and Cable
Taut When Dispensing
Master Link : :
Clip-On Spring Master
T_ink Cap
Y
i
Pin
/Notch
Link Bar
Figure 2
Lock Nut
"U" Bracket
Chain
Spreader
//
Motor Unit Figure 3
Lock
Washer
5/16"
Trolley
Threaded
Shaft
Inner Nut
5/16"
Figure 4
Trolley
Threaded
Shaft
Round
Hole
10

ASSEMBLY STEP 5
Tighten the Chain
•Spin the inner nut and lock washer down the trolley
threaded shaft, away from the trolley.
• To tighten the chain, turn outer nut in the direction
shown (Figure 1).
• When the chain is approximately 1/4" (6 mm)
above the base of the rail at its midpoint, re-tighten
the inner nut to secure the adjustment.
Sprocket noise can result if chain is too loose.
When installation is complete, you may notice some
chain droop with the door closed. This is normal. If
the chain returns to the position shown in Figure 2
when the door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley
before adjusting chain.
NOTE: You may notice loosening of chain after
Adjustment Step 3 (Test the Safety Reversal
System). Check for proper tension and readjust
chain if necessary. Then repeat Adjustment Step 3.
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section.
Figure 1
Figure 2
Trolley
Outer Lock Threaded
Nut Washer Shaft
Chain
i
Base of Rail Mid'Iength of Rail
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of severe injury or death:
1. READAND FOLLOWALL INSTALLATIONWARNINGS 8. NEVERwear watches, rings or loose clothing while
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door may not reversewhen required and could result in
SEVEREINJURYor DEATH.
3. All repairsto cables,spring assembliesand other
hardware MUSTbe madeby a trained door systems
technician BEFOREinstalling opener.
4. Disableall locks and removeall ropesconnectedto
garagedoor BEFOREinstalling openerto avoid
entanglement.
5. Install garage door opener 7 feet (2.13 m) or more
abovefloor.
6. Mount emergency releasehandle6 feet (1.83 m) above
floor.
7. NEVERconnect garage door openerto power source
until instructed to do so.
installing or servicing opener.They could be caught in
garagedoor or opener mechanisms.
9. Install wall-mounted garagedoor control:
•within sight ofthe garagedoor
•out of reachof children at minimum height of 5 feet
(1.52 m)
•away from all moving parts of the door.
10. Placeentrapmentwarning label on wall next to garage
door control.
11. Placemanual release/safetyreversetest label in plain
view on inside of garage door.
12. Uponcompletion of installation, test safety reversal
system. Door MUST reverseon contact with a one-
inch (2.5 cm) high object (or a 2x4 laid flat) on
the floor.
11

INSTALLATION STEP 1
Determine the Header Bracket
Location
Toprevent possible SERIOUSINJURYor DEATH:
•HeaderbracketMUSTbe RIGIDLYfastenedto
structural support on headerwall or ceiling, otherwise
garage door might not reversewhen required DONOT
install headerbracket over drywall
•Concreteanchors MUSTbe usedif mounting header
bracket or 2x4 into masonry
•NEVERtry to loosen, move or adjust garagedoor,
springs, cables, pulleys, brackets,or their hardware, all
of which are under EXTREMEtension
•ALWAYScall atrained door systems technician if
garage door binds, sticks, or is out of balance An
unbalancedgarage door might not reversewhen
required.
Vertical
Centedine
Finished
Ceiling
2x4 StructuraI
Supports
/
Installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
SECTIONAL DOOR AND ONE-PIECE DOOR
WITH TRACK
1.Close the door and mark the inside vertical
centerline of the garage door.
2. Extend the line onto the header wall above the
door.
You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center
only if a torsion spring or center bearing plate
is in the way; or you can attach it to the ceiling
(see page 14) when clearance is minimal. (It
may be mounted on the wall upside down if
necessary, to gain approximately 1/2" (1 cm).
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall 2" (5 cm) above the high point. This
height will provide travel clearance for the top edge
of the door.
NOTE: Door clearance brackets are available for
sectional doors when headroom clearance is less
than 2" (5 cm). See accessory page 39.
Proceed to Step 2, page 14.
Ceiling
I
Header Walt
,, 2" (5 cm) Track
Door
Sectional door
with curved track
One-piece door
with horizontal
track
_all Track
efTro etl I
go 5
12

ONE-PIECE DOOR WITHOUT TRACK
1.Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 14.
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports
as shown.
2. Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 8" (20 cm) to the remainder. (See
Example).
3. Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 14 for ceiling
installation.
Header Wail
Unfinished
Ceiling
Vertical
Centertine 2x4
CEILING MOUNT
FOR
HEADER BRACKET
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ..... 92" 2.3 m
Actual height of door ............... -88" 2.2 m
Remainder ........................ 4" 10 cm
Add ............................. +8" 20 cm
Bracket height on header wall ....... =12" 30 cm
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 14.
Door I
JHa_r_dbwar e
Header Wall
Highest Point
of Travet
FIoor
One-piece door without track:
jamb hardware
Highest Point
of Travet
Header Wall
iS' i
C
JC3
Pivot
One-piece door without track:
pivot hardware
13

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
• Mark the vertical set of bracket holes. Drill 3/16"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
Wall Mount
OptionaI
Mounting Holes
2x4
Structural
Support
Vertical
Centertine
Lag Screws
5/16"x9x1-5/8"
-Door Spring
HARDWARE SHOWN ACTUAL SiZE
11JlllJll
Lag Screw
5/16"-9xl-5/8"
/
/
/
i
Highest Point of
Garage Door Travet
Garage
-- Door --
Vertical
Centediee
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 6" (15 cm) from the wall. Make sure the arrow
is pointing away from the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.
Ceiting Mounting Holes
/
Header /
Bracket
6" (15 cm) Maximum
Door
Spring
Garage Do0r
-Finished Ceiling -
Vertical CenterIine
/ Lag Screws
5/16"x9x1-5/8"
-- Header Walt --
Centerline
14

//
//
//
//
//
//
//
//
//
//
//
Header Wail
Header Bracket
idler Pulley
Garage
Door
INSTALLATION STEP 3
Attach the Rail to the
Header Bracket
NOTE: (Optional) With an existing Craftsman
installation, you may re-use the old header bracket
with the two plastic spacers included in the hardware
bag. Place the spacers inside the bracket on each
side of the rail, as illustrated.
• Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base. NOTE: If the door spring is in the
way you'll need help. Have someone hold the
opener securely on a temporary support to aflow
the rail to clear the spring.
• Position the front rail end within the header bracket
and join with a 5/16"x1-1/2" clevis pin as shown.
• Insert a ring fastener to secure.
0
Mounting
Hole
Header Bracket0
Spacer /Mounting
Hole
)PTION WiTH
EXISTING CRAFTSMAN
INSTALLATION
Opener Carton or
-- Temporary
Support
HARDWARE SHOWN ACTUAL SIZE
O
Clevis Pin 5/1B"xl-1/2" Ring fastener
15

INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal
door-to-rail distance.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat
on the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Step 12
is completed.
To prevent damageto garage door, rest garage door
opener rail on 2x4 placedon top section of door.
Trolley
otley
elease Arm _ J
ENGAGED RELEASED V
ONE-PIECE DOOR WITHOUT TRACK
• With the door fully open and parallel to the floor,
measure the distance from the floor to the top of
the door.
• Using a stepladder as a support, raise the top of
the opener to this height.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 2" (5 cm) above this point.
Header
YBracket
Top of Door
Top of Motor
/
16

INSTALLATION STEP 5
Hang the Opener
Two representative installations are shown. Yours
may be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
(See Accessories).
To avoid possible SERIOUSINJURYfrom a falling
garage door opener,fasten it SECURELYto structural
supports of the garage.Concreteanchors MUSTbe used
if installing any brackets into masonry.
Figure 1
1. Measure the distance from each side of the motor
unit to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl-7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually, tf
the door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this
time.
HARDWARE SHOWN ACTUAL SIZE
/" Supports
Measure !,
Distance
Bolt 5/16"-18 x 7/8"
Lock Washer 5/16"
Nut 5/16"-18
Lag Screws
5/16"-18 x 1-7/8"
Figure 2
)
Bolt 5/16"-18 x 7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18 x 7/8"
Lock Washer 5/16"_
Nut 5/16"-18 .........
,1111111111
Hex Bolt
5/16"- 18x7/8"
Lag Screw
5/16"-18xl-7/8"
©
Nut 5/16"-18 © Lock Washer 5/16"
17

INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of door, at a
minimum height of 5 feet (1.52 m) where small
children cannot reach, away from moving parts of
door and door hardware. If installing into drywall, drill
5/32" holes and use the anchors provided. For
pre-wired installations (as in new home
construction), it may be mounted to a single gang
box (Figure 2).
1.Strip 7/16" (11 mm) of insulation from one end of
bell wire and connect to the two screw terminals
on back of door control by color: white wire to
2 and white/red wire to the 1.
2. Remove white cover by gently prying at slot in top
of the cover with a small flat head screwdriver.
Fasten with 6ABxl-1/4"self-tapping screws
(drywall installation) or 6-32xl" machine screws
(into gang box) as follows:
• Install bottom screw, allowing 1/8" (3 mm) to
protrude above wall surface.
• Position bottom of door control on screw head
and slide down to secure. Adjust screw
for snug fit.
• Drill and install top screw with care to avoid
cracking plastic housing. Do not over tighten.
• Insert top tabs and snap on cover.
3.(For standard installation only) Run bell wire up
wall and across ceiling to motor unit. Use
insulated staples to secure wire in several places.
Do not pierce wire with a staple, creating a short
or open circuit.
4. Strip 7/16" (11 mm) of insulation from end of bell
wire. Connect bell wire to the quick-connect
terminals as follows: white to white and white/red
to red.
NOTE: When connecting multiple door controls to
the opener, twist same color wires together. Insert
wires into quick-connect holes: white to white and
red/white to red.
5. Position the antenna wire as shown.
6. Use tacks or staples to permanently attach
entrapment warning label to wall near door
control, and manual release/safety reverse test
label in a prominent location on inside of garage
door.
NOTE: DO NOT connect power and operate
opener at this time. The trofley will travel to the
full open position but will not return to the close
position until the sensor beam is connected and
properly aligned.
Toprevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• Be sure power is not connectedBEFOREinstalling door
control.
• ConnectONLYto 24 VOLTlow voltage wires.
Toprevent possible SERIOUSINJURYor DEATHfrom a
closing garagedoor:
• Install door control within sight of garage door, out of
reachof children at a minimum height of 5 feet
(1.52 m), and away from all moving parts of door.
• NEVERpermit children to operateor play with door
control push buttons or remote control transmitters.
• Activate door ONLYwhen it can be seenclearly,is
properly adjusted, and there are no obstructions to door
travel.
• ALWAYSkeepgaragedoor in sight until completely
closed. NEVERpermit anyoneto cross path of closing
garagedoor.
Outside Keylock Accessory Connections
To opener quick-connect terminals: white to white;
white/red to red.
HARDWARE SHOWN ACTUAL SIZE
''>
Control Console (std installation)
Controt Console (pre-wired)
Insulated
Staples
Dry Wall Anchors
Figure 1
REMOVE & REPLACE COVER
To Replace, To Remove,
Insert Top Twist
Tabs First Here
Figure 2
PRE-WIRED
INSTALLATION
PREMIUM
CONTROL CONSOLE
Top
Mounting
Hole
Terminal
Screws
Bottom
Mounting
_Hole
(BACK VIEW)
Lighted
Push Button
\
Door Control
Connections
Strip wire 7/16" (11 mm)
_7f6" I
Bell Wire
To release wire, push in
tab with screwdriver tip
_ed WNte Grey
24 Volt
2-Condu_or
BelI Wi_ in
Gang Box
Quick-Connect
Antenna
18

INSTALLATION STEP 7
Install the Lights
•Press the release tabs on both sides of lens. Gently
rotate lens back and downward until the lens hinge
is in the fully open position. Do not remove
the lens.
• Install up to a 100 watt maximum light bulb in each
socket. The lights will turn ON and remain lit for
approximately 4-1/2 minutes when power is
connected. Then the lights will turn OFR
• Reverse the procedure to close the lens.
• If the bulbs burn out prematurely due to vibration,
replace with a Garage Door Opener bulb.
NOTE: Use only standard light bulbs. The use of
short neck or speciality light bulbs may overheat the
endpanel or light socket.
Re{ease Tab
100 Watt (Max)
Standard Light Bulb /
' jl
/
/
100 Watt (Max)
Standard ©
Light Bulb --
/
Lens
Hinge
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
• Thread one end of the rope through the hole in the
top of the red handle so "NOTICE" reads right side
up as shown. Secure with an overhand knot at
least 1" (2.5 cm) from the end of the rope to
prevent slipping.
• Thread the other end of the rope through the hole
in the release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.83 m)
above the floor. Ensure that the rope and handle
clear the tops of all vehicles to avoid
entanglement. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal
the cut end with a match or lighter to prevent
unraveling.
•To prevent possible SERIOUSINJURYor DEATHfrom
a falling garagedoor:
- If possible, useemergency releasehandleto
disengagetrolley ONLYwhen garage door is
CLOSED.Weakor broken springs or unbalanced
door could result in an open door falling rapidly
and/or unexpectedly.
- NEVERuseemergency releasehandle unless garage
doorway is clear of persons and obstructions.
• NEVERusehandleto pull door open or closed. If rope
knot becomes untied, you could fall.
Trolley
Tro{le
Emergency _ _. Overhand
Release Handle _/Kn°t
19

INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage
door opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding
type outlet. If the plug doesn't fit into the outlet you
have, contact a qualified electrician to install the
proper outlet.
RIGHO
WRONG
If permanent wiring is required by your local
code, refer to the following procedure.
To make a permanent connection through the 7/8"
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the
cover aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the
brass terminal; the white (neutral) wire to the
screw on the silver terminal; and the ground wire
to the green ground screw. The opener must be
grounded.
• Reinstall the cover.
To avoid installation difficulties, do not run the
opener at this time.
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• Besure power is not connectedto the opener,and
disconnect power to circuit BEFOREremoving cover to
establish permanentwiring connection.
• Garagedoor installation and wiring MUSTbe in
compliancewith all local electricaland building codes.
• NEVERusean extension cord, 2-wire adapter, or
changeplug in anyway to makeit fit outlet. Be sure
the opener is grounded.
PERMANENT WIRING
CONNECTION
Ground Tab
Green
Ground Screw
Black
Ground Wire Wire
Black Wire
20
