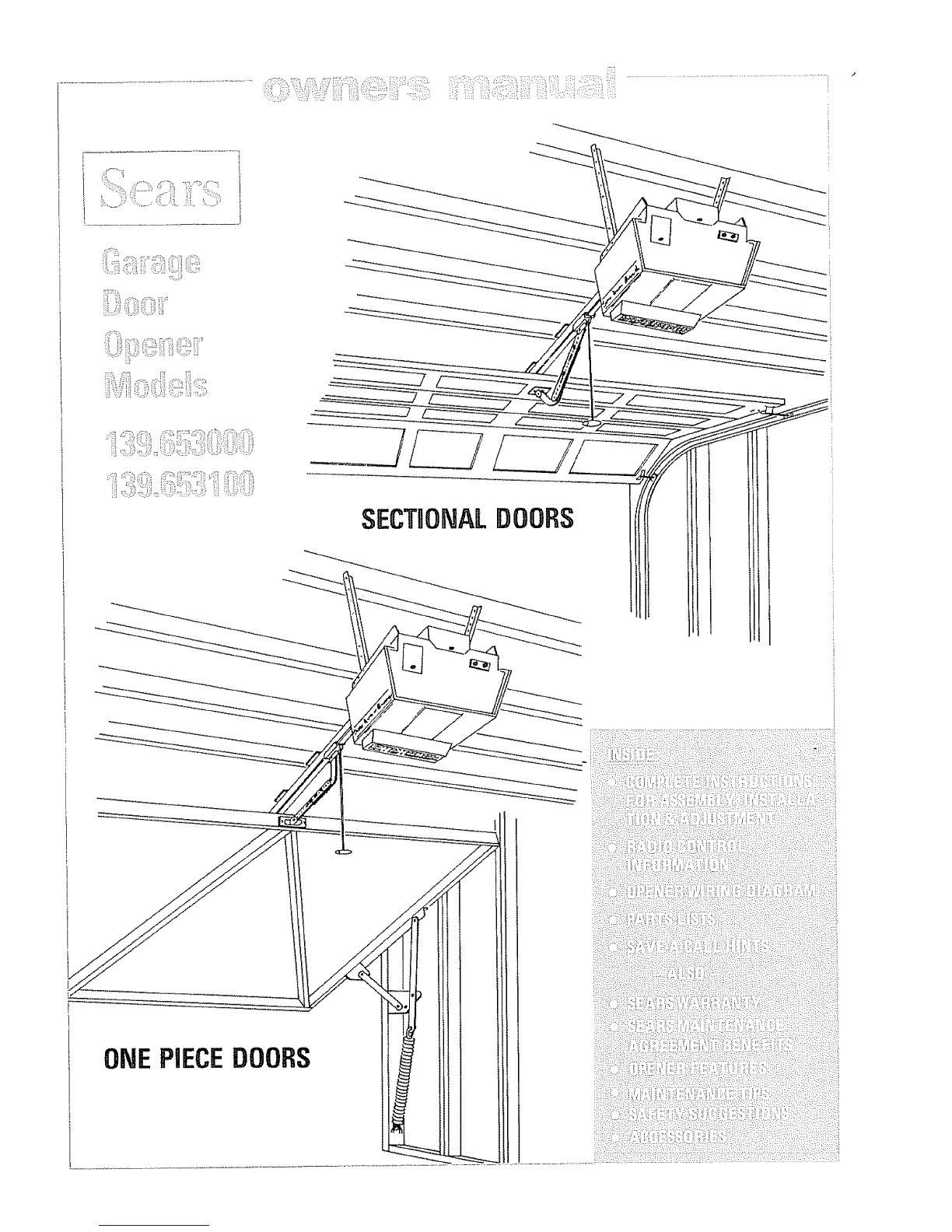

Craftsman 139.653100 User manual

S__kL_i
]
_!iii___i!_i_iiii_i!i_:_ii__:_!__:_'::_s:_'_i
SECTgOHALDOORS
ONEPIECEDOORS

BeforeYouStart.,.
identify your door
Sectional DDOt
With Curved Track
UX
gx
TRACK
DOOR
iNSTRUCTiON INDEX
Assembly ......... Pg_ 6
installation ...... Pg, 8
•follow specificindexfor assemblyand installation
One Piece Door. Jamb Hardware_
Horizontal Track°
DOOR
\\\
!
//
//
9
,,/_, ,,
/il
/TRACK
iNSTRUCTION INDEX
Assembly ......... pg. 6
installation ....... Pg., 14
One Piece Door, No Track. Jamb
Hardware,,
//
//
JAMB
HARDWARE
INSTRUCTION iNDEX
Assembly ........... pg, 6
Installation .......... Pg. 14
One Piece Door. No Track, Pivot
Hardware,
.f
/
DOOR
\
//
PIVOT
INSTRUCTION INDEX
Assembly .............. P_ 6
Installation ............ Pg 14
COMMON
INDEX :Warranty ............ 2 Safety Rules ........... 3 Wiring Diagram ....... 20
Maintenance ......... 3 Radio Controls ........ 17 Parts Lists ............. 21
CartonCheckList--
SEARS Has packaged your Garage Door Opener in 2 cartons with handles,,_
THE LARGE CARTON CONTAINS: "_J_!Ji_i!#_
1 Box of Radio Controls I Box of chain
1 Operator assembly (in foam end caps) 1 Curved door arm _,_ '
1 Plastic light lens 1 Straight door arm
1 Box of rail assembly hardware 1 Bag of installation hardware
1 Owners manual 1 Handy hints labeF
THE SMALL CARTON CONTAINS:
I Three-section Tee rai! 2 Sections of hanging strap
Sears Garage Door Opener Warranty
FULL 90 DAY WARRANTY ON GARAGE DOOR OPENER
When the Garage Door Opener is installed, adjusted and operated in accordance with our instructions, Sears
will, for a period of 90 days from the day of purchase, repair any defect in material or workmanship in
the Garage Door Opener, at no charge,.
LIMITED WARRANTY
From the 91st day until one year from the day of purchase, when the Garage Door Opener is instatled,
adjusted and operated in accordance with our instructions, Sears will furnish replacement parts fm any
defective parts in the Garage Door Opener, free of charge. You pay labor,
Warranty service is available by simply contacting the nearest Sears store or service center throughout
the United States., This warranty gives you specific tegal rights, and you may also have other rights
which vary from state to state. Sears Roebuck & Co., BSC 41-3, Sears Tower, Chicago, _L60684

Preparation
MAiNTAiN
\
THEVALUEOFYOURGARAGEDOOROPENER
MAINTENANCEAGREEMENT
.... AGREEMENT
,' l \ 1) Defective Parts W
90 Days
2) Service to replace Warranty
Sears Garage Door Openers are designed, manufactured and defective parts MA
Here is a comparative chart indicating the warranty and
Maintenance Agreement coverage for a Sears Maintenance
Agreement
..................Coverage Years of Ownership
1 2 3 4
MA MA MA
MA MA MA
tested for years of dependable operation Any Garage Door
Opener however, may require service from time to time, The
Sears warranty plus the Sears Maintenance Agreement pro m
vides coverage from unexpected repair bills from normal
use and assures you of obtaining the maximum use possible
from your purchase,,
The only exceptions to the coverage provided by the Sears'
Maintenance Agreement are repairs necessary because of
acts of abuse, fire, flood, wind, lightning and freezing.
3) Service, (technical
and non-technical)
and parts necessary
for proper operation
not covered by the
warranty
4) Preventive maintenance
check at customer's
request
MA MA MA MA
MA MAiMA MA
W = Warranty MA = Maintenance Agreement
CONTACT YOUR SEARS SALESPERSON OR LOCAL SEARS SERVICE CENTER AND PURCHASE ASEARS MAIN-
TENANCE AGREEMENT TODAY!
To obtain the best service from your Garage Door Opener and to avoid needless inconvenience or service expense, please use
"Save-A-Call" on Page 23 of this manual
RulesFor Safe Operation
WARNING-DOOR SPRINGS CAN CAUSE FATAL INJURIES°
DO NOT ATTEMPT ADJUSTMENTS UNLESS YOU ARE
PROFESSIONALLY TRAINED.
t, Installation and wiring must conform to local building and electrical codes.,
2, Keep door hinges and rollers well lubricated, A lubrication used every three months wilf insure minimum maintenance and
continuing quiet operation. Do not lubricate the tracks,
3,, The only part of your opener that requires lubrication is the rail on which the trolley rides., Clean the rail once a year with
solvent and a clean rag, then re-lubricate with rail grease included in hardware package.,
4, Your door must be in good balance for proper operation of the opener safety system. It should travel up and down freely
with normal manual impetus° If the door springs are weal{, have a serviceman replace them_
5o Your new opener will provide adequate locking for your door (Sectional track-type door), Existing locks should be made
inoperative° Pin the door latch open with a stout wood screw or other disabling device°
6, Remove all ropes connected to the garage door.
7,, Before making repairs, disconnect electric power to opener!
8,, Do not operate transmitter unless garage door is in sight.
g, Fasten Handy Hints label near walt button,,

You'll Need Toels
During assembly and installation of your opener, the instructions will call for use of various hand tools_
Have a stepladder handy, and those tools illustrated below: Hammer, electric drill (also 3/16" and 5/16"
drill bits), screwdriver', adjustable end wrench or socket wrench kit, wire cutters, pliers and hacksaw..
Stepladder
Adjustable End Wrench
Socket Wrench Wire Cutters
Pliers
Accessories
Sears stocks many useful accessories for your garage door' opener. They are illustrated below with Sears
stock numbers and descriptions:
6545
6528 j_,....
f4,_
J (_-.3) .......
6571
6785
6538
Extra transmitter for use with the following Sears stock nos, 6550, 65.30,
6551 and 6531., Black with wood grain trim° ORDER BY CODE LETTER°
Outdoor Key Switch., Included with best models 6550 and 6551.. Just a turn
of the key opens the door automatically from outside when transmitter' is
not handy..
Quick-Release Key Lock. In case of power failure on garages without service
entrances° Wood or metal doors only.
Quick Turn Brackets for Garage Door Opener installations with low headroom
clearance, Reduces headroom requirement to 2 inches.
Sectionalized T-Rail extension kit. ALlows opener to handle garage doors up
to 8 feet high,. Consists of replacement T-Rail section, chain and master link.,
For use on sectionalized rail models only.
.......J

Hardware
Open the hardware containers and check contents before startingF
Rail Assembly
Hardware Box
2 Lock Washers
3f8"
Items in this box are for assem- 2 Nuts
bly of the T.rail IHustrated 3/8--16
nuts, bolts, screws and washers
are actual size
2 Washered Screws
5116"'-18x9tt6""
4 Carriage Bolts
1!4'°-20x 1/2'"
t Lock Washer 5!16-
Chain
Retainer
Bracket
Trolley
2 Screws 3/8"'-16x7/8"
2 Nuts 5/t6--18
Master
Link
12)
Rait
Grease
@
4Lock Nuts
1/4--20
INSTALLATION
HARDWARE
BAG
2Lock
Washers
5/16"
2 Clevis Pins
318"xl -1/t6"
4 Nuts
3/8-- t 6 4Lack Washers 3!8"'
Items in this bag are for instalhng the opener Illustrated nuts. bolts, screws, pins and
washers are actual size
) _I_IiIi_w!_I_1_iiii]]]_
2 Nuts
51t6"
Insulated
Staples
4 Screws
3/8"-t6x7/8"
3 Cotter Pins Handle
3132"x3/4-
2 Ftat Washers 4 Lag Screws
5/t6"xl-7!8"
O
l
Clevis Pin
318'x3"
..5__ "-
'_' Header Door
Lead Wire Rope Bracket Bracket
-5-

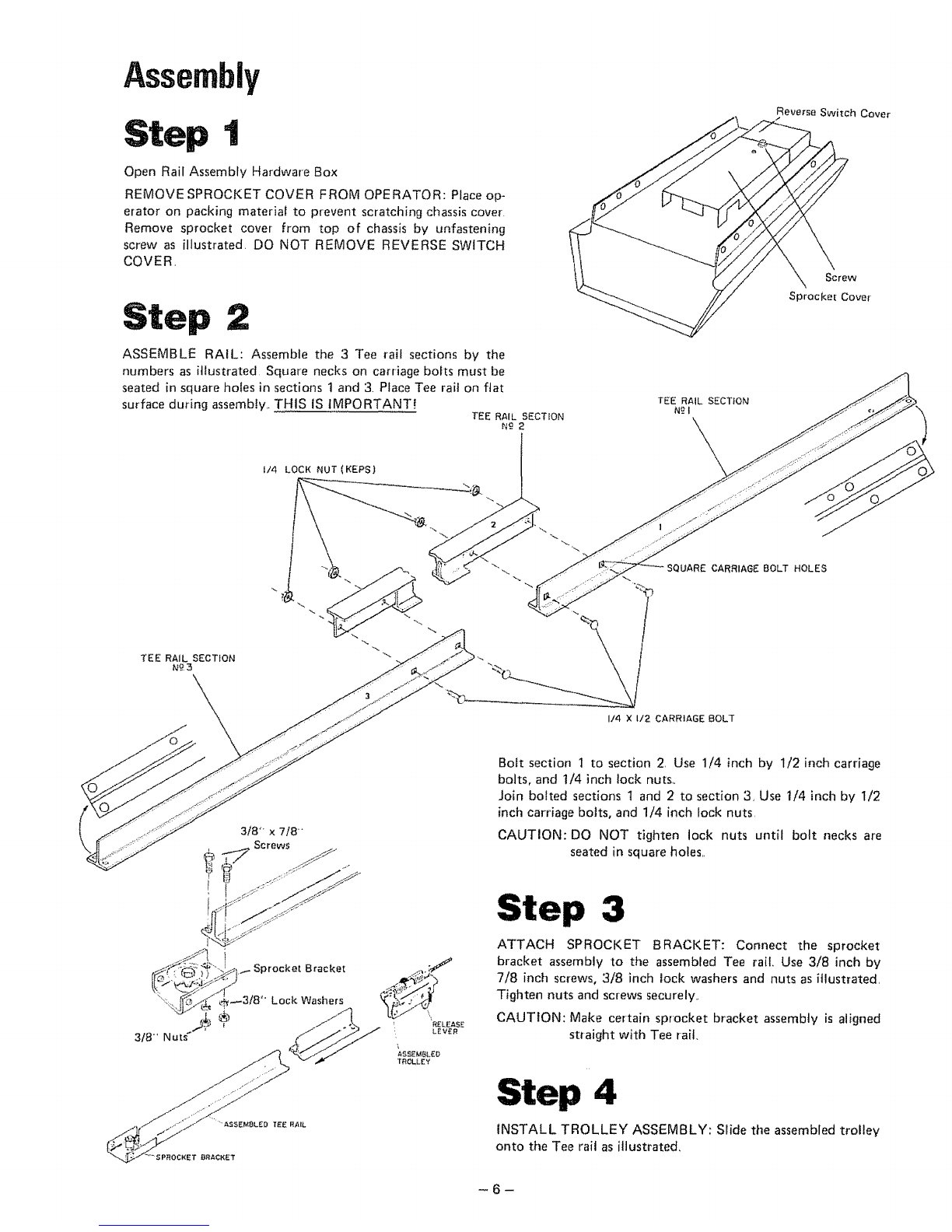

Assembly
Step 1
Open Rail Assembly Hardware Box
REMOVE SPROCKET COVER FROM OPERATOR: Place op-
erator on packing material to prevent scratching chassis cover.
Remove sprocket cover from top of chassis by unfastening
screw as illustrated. DO NOT REMOVE REVERSE SWITCH
COVER,
Reverse Switch Cover
Screw
Sprocket Cover
ASSEMBLE RAIL: Assemble the 3 Tee rail sections by the
numbers as illustrated. Square necks on carriage bolts must be
seated in square holes in sections t and 3. Place Tee rail on flat
surface during assembly,. THIS IS IMPORTANT! TEE RAILSECTION
N_-2
TEE RAIL SECTION
N£1
TEE RAIL SECTION
N£3
1/4 LOCK NUT (KEPS)
I/4 X I/2 CARRIAGE BOLT
SQUARE CARRIAGE BOLT HOLES
R_:LEASE
:LEVER
_SSEMBL_D
TROLLEY
Bolt section 1 to section 2, Use 1/4 inch by 1/2 inch carriage
bolts, and !/4 inch loci( nuts.
Join bolted sections 1 and 2 to section 3, Use 1/4 inch by 1/2
inch carriage bolts, and 1/4 inch lock nuts,
CAUTION: DO NOT tighten lock nuts until bolt necks are
seated in square holes,,
Step 3
ATTACH SPROCKET BRACKET: Connect the sprocket
bracket assembly to the assembFed Tee rail Use 3/8 inch by
7/8 inch screws, 3/8 inch lock washers and nuts as itlust[ated,
Tighten nuts and screws securely..
CAUTION: Make certain sprocket bracket assembly is aligned
straight with Tee rait,
Step 4
INSTALL TROLLEY ASSEMBLY: Slide the assembled trolley
onto the Tee rait as illustrated,
-6-

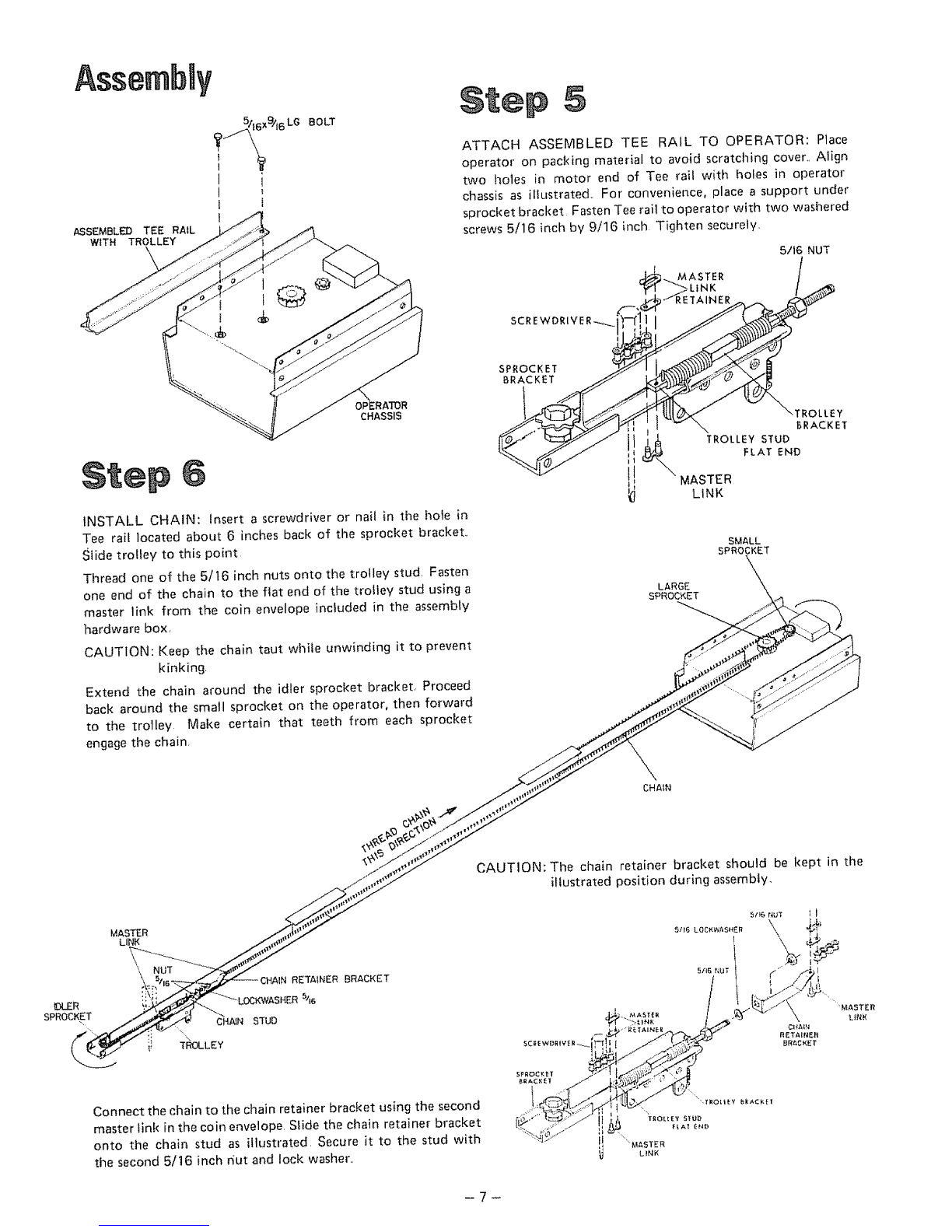

Assembty
ASSEMBLED TEE RAIL
WITH TROLLEY
'i6x_t6 LG BOLT
OPERATOR
CHASSIS
INSTALL CHAIN: Insert a screwdriver or nail in the hole in
Tee rai! located about 6 inches back of the sprocket bracket,,
Slide trolley to this point
Thread one of the 5/16 inch nuts onto the trolley stud Fasten
one end of the chain to the fiat end of the t_'olley stud using a
master link from the coin envelope included in the assembly
hardware box,
CAUTION: Keep the chain taut white unwinding it to prevent
kinking
Extend the chain around the idler sprocket bracket, Proceed
back around the small sprocket on the operator, then forward
to the trolley Make certain that teeth from each sprocket
engage the chain
5
ATTACH ASSEMBLED TEE RAIL TO OPERATOR: Place
operator on packing material to avoid scratching cover,, Align
two holes in motor end of Tee rail with holes in operator
chassis an illustrated, For convenience, place a support under
sprocket bracket Fasten Tee rail to operator with two washered
screws 5/16 inch by 9/16 inch Tighten securely,
5/I6 NUT
SCREWDRIV
SPROCKET
BRACKET
\TROLLEY
BRACKET
TROLLEY STUD
FLAT END
MASTER
LINK
LARGE
SPROCKET
SMALL
SPROCKET
CAUTION: Tile chain retainer bracket should be kept in the
illustrated position during assembiy_
DLER
SPROCKET
J
MASTER
LINK
RETAINER BRACKET
DC_WASHER_6
CHiN STUb
TROLLEY
Connect the chain to the chain retainer bracket using the second
master tink in the coin envelope Slide the chain retainer bracket
onto the chain stud as illustrated Secure it to the stud with
the second 5/16 inch nut and lock washer,,

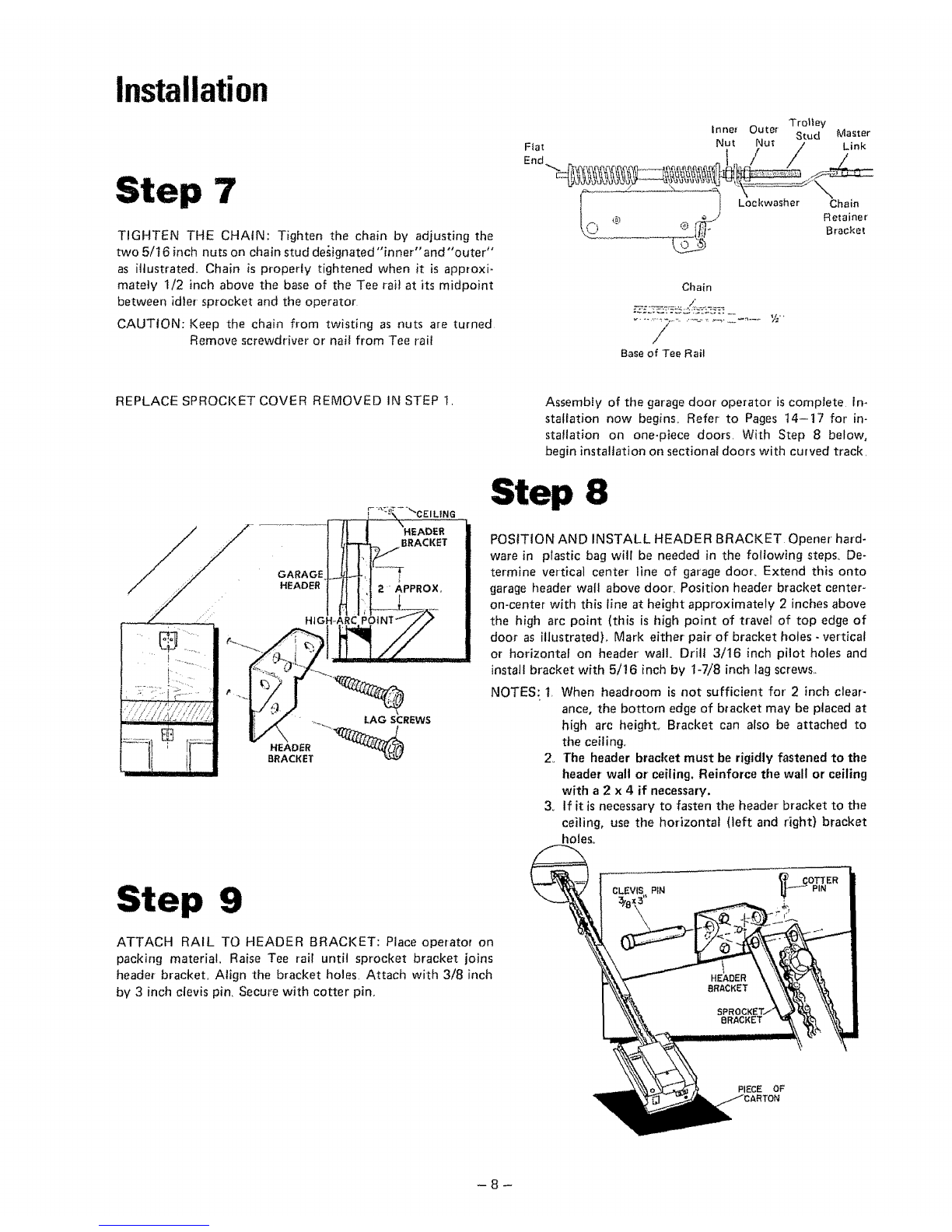

Installation
Step 7
TIGHTEN THE CHAIN: Tighten the chain by adjusting the
two 5/16 inch nuts on chain stud de_ignated"inner" and "outer"
as illustrated,, Chain is propmty tightened when it is approxi-
mately 1/2 inch above the base of the Tee rait at its midpoint
between idler sprocket and the operator
CAUTION: Keep the chain from twisting as nuts are turned
Remove screwdriver or nait from Tee rail
Chain
/
Base of Tee Rail
REPLACE SPROCKET COVER REMOVED IN STEP 1,
GARAGE
HEADER
"+._ LAG SCREWS
HEADER _"_
BRACKET
Assembly of the garage door operator is complete in-
statlation now begins+ Refer to Pages t4-17 for in-
stallation on one-piece doors, With Step 8 below,
begin installation on sectional doors with curved track,
Step 8
POSITION AND INSTALL HEADER BRACKET. Opener"hard-
ware in plastic bag will be needed in the following steps,, De-
termine vertical center" line of garage door+ Extend this onto
garage header wall above door+ Position header bracket center-
on-center with this line at height approximately 2 inches above
the high arc point (this is high point of travel of top edge of
door as illustratedL Mark either' pair of bracket holes - vertical
or horizontal on header" watlo Drill 3/16 inch pilot holes and
instatl bracket with 5/16 inch by 1-7/8 inch lag screws,.
NOTES: t, When headroom is not sufficient for 2 inch clear-
ance, the bottom edge of bracket may be placed at
high arc height. Bracket can also be attached to
the ceiling+
2,, The header bracket must be rigidly fastened to the
header' walt or ceiling. Reinforce the wall or ceiling
with a2x 4 if necessary.
&If it isnecessary to fasten the header bracket to the
ceiling, use the horizontal (left and right) bracket
holes°
Step 9
ATTACH RAIL TO HEADER BRACKET: Place operator on
packing material° Raise Tee rail until sprocket bracket joins
header bracket, Align the bracket holes, Attach with 3/8 inch
by 3 inch clevis pin, Secure with cotter pin+
PIN
PIECE OF'

Installation

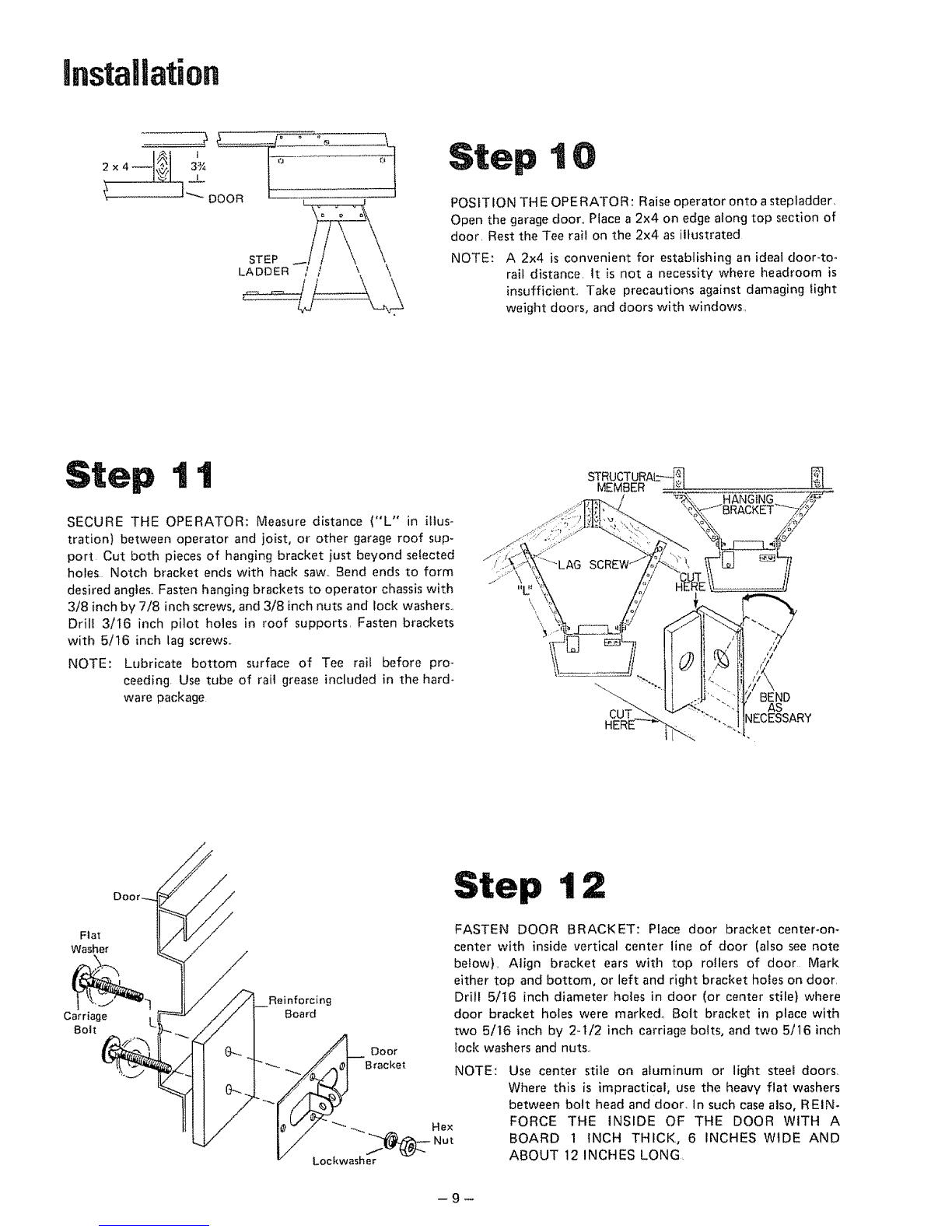

POSITION THE OPERATOR: Raise operator onto a stepladder,
Open the garage door,, Place a 2x4 on edge along top section of
door, Rest the Tee rail on the 2x4 as illustrated
NOTE: A 2x4 is convenient for establishing an ideal door-to-
rail distance, It is not a necessity where headroom is
insufficient,, Take precautions against damaging light
weight doors, and doors with windows,
SECURE THE OPERATOR: Measure distance ("L" in illus-
tration) between operator and joist, or other garage roof sup-
port Cut both pieces of hanging bracket just beyond selected
holes Notch bracket ends with hack saw.. Bend ends to form
desired angles,. Fasten hanging brackets to operator chassis with
3/8 inch by 7/8 inch screws, and 3/8 inch nuts and lock washers.,
Drill 3/t6 inch pilot holes in roof supports, Fasten brackets
with 5/16 inch lag screws.,
NOTE: Lubricate bottom surface of Tee rail before pro-
ceeding, Use tube of rail grease included in the hard-
ware package
_J
CUT BEND
AS
Flat
Washer
Carriage
Bolt
Reinforcing
Board
Step 12
Door
Bracket
FASTEN DOOR BRACKET: Place door bracket center-on-
center with inside vertical center line of door (also see note
below), Align bracket ears with top rollers of door Mark
either top and bottom, or left and right bracket holes on door,
Drill 5/16 inch diameter holes in door (or center stile} where
door bracket holes were marked_ Bolt bracket in place with
two 5/16 inch by 2_t/2 inch carriage bolts, and two 5/16 inch
loci< washers and nuts,,
NOTE : Use center stile on aluminum or light steel doors,
Where this is impractical; use the heavy flat washers
between bolt head and door, In such case also, REIN-
FORCE THE INSIDE OF THE DOOR WITH A
BOARD 1 INCH THICK, 6 INCHES WIDE AND
ABOUT 12 INCHES LONG,
-9-

installation
Step 1:3
DETERMINE DOOR ARM LENGTH: Thread one end of nylon
cord through red handle and secure with knot,_ Thread other
end through hole in release arm of trolley, Secure with a knot
Remove plastic carrying strap from straight door a_m,. Place
one end of straight door arm in slot in trolley and fasten with
3/8 inch clevis pin and cotter pin,. Fasten short end of curved
door arm to door bracket with 3/8 inch clevis pin and cotter
pin
-x Release Arm
/
Cotter _-%---- Clevis
Pin Pin
-- Straight
ti Door Arm
/Door
Curved Door
Arm
o Push the garage door to "closed tight"
o Bring the two door arm sections together If holes (in each
section) line up, join the sections with two 3/8 inch by 7/8
inch bolts, lock washers and nuts. PUT BOLT HEADS ON
STRAIGHT DOOR ARM SIDE Select bolt holes as far
apart as possible to increase door arm rigidity,, DO NOT
USE MORE THAN ONE SLOTTED HOLE,
318"" Nut
31a- \@_
Lockwasher
318"' x 7/8-' Bolt
If door arm holes do not line up when the two sections are
brought together, cross the door- arms in scissors fashion (see
illustration) until a pair of holes (one in each section) line up,
insert a 3/8 inch by 7/8 inch bolto Secure "finger tight" with
lock washer and nut,
• Pull the emergency release cord to disengage trolley,,
• Bring the door arm sections together and bolt securely with
both bolts,.
NOTE: Sears Keylock Release accessory No., 64-6571 provides
an outside emergency access for ga[ages without a
service entrance door',
-- Straight Door
Arm
_ Door Arm
-10-

instaJlation
t4K]UNTING
FLANGE
COD_o
LABEL
SIGNAL
CODE LABEL
OPENER TERMINAL BLOCK
ooi
BELL WIRE
SH BUTTON
ir
,k.... t
RECEIVER TERMINAL BLOCK
CAUTION: RECEIVER OR ADDITIONAL PUSH BUTTON
MUST BE MOUNTED OUT OF THE REACH OF
SMALL CHILDREN.
INSTALL RADIO RECEIVER: There are installation flanges
at both ends of the receiver, Attach the receiver to an interior
garage wall with the wood screw, s provided. A convenient lo-
cation is alongside the service door When installing more than
one receiver in a garage, place them as far apart as possible to
prevent interference (also keep wires from receivers to garage
door operator far apart)°
The receiver terminal strip is located just above the bottom
attachment flange Use bell wire in hardware bag to connect
receiver and operator.. Remove 1/2 inch of insulation from
wire ends.. Connect wires to terminals on back end of operaton.
Extend the wires across the ceiling and down the wall to the
receiver using insulated staples provided°
tf after connecting electric power, door opens or closes by
itself, or does not operate from the receiver push button on
the lower front face of the unit, check for a short in the
belt wire (under staples, for example).,
The garage door opener can be activated by a transmitter signal,
or from the receiver push button° Push button signals will
override those from a transmitter as a safety feature,
NOTE: A special security switch is provided on the side of
the receiver,. When the switch is in the LOCK position,
the door can not be opened by external radio signals°
The opener can be activated from a key switch or the
receiver push button,
CONNECT ELECTRICAL POWER: First, make certain all
locking devices on door have been removed or disabled. Then,
plug the attached 3-pronged electric cord into a 3-wire
receptacle,
If permanent wiring is necessary to meet local codes, proceed
as follows:
I, Remove electrical connection cover plate from back of
operator chassis°
2, Remove attached 3-pronged cord,
3,, Make the permanent connection through the hole pro-
vided in the top of the operator.
CAUTION; IT IS EXTREMELY IMPORTANT THAT THE
UN IT BE GROUNDED USING THE GROUNDING
LEAD PROVIDED IN THE WIRING COMPART-
MENT.. Install a shut-off switch in the line.
GR£EN
LEAD
o
-tl-

justment
Step 16
ADJUST OPENER LtMITS: Run the opener through a com-
ptete up and clown cycle. Adjustments are not needed when
door opens and closes completely.
if door does not close completely, lengthen door arm as
required,
A,. Run door in UP direction. If it does not open enough, limit
nut adjustments are necessary. Proceed as follows:
CAUTION: Disconnect power before cover is removed,.
Bo Remove 4 cover screws as illustrated and slide cover for-
ward from chassis.
C. Adjustments are made by turning large plastic limit nuts up
or' down a threaded shaft just behind the motor (see illustra-
tion),, The limit nut retaining bracket which holds the nuts
in place must be loosened before nuts can be turned.
CAUTION: Do not run opener before limit nut bracket is
secured in original positiom
1. The top nut controls closing limits_
2. The bottom nut controls opening limits..
3. One turn of the limit nut equals 3 inches of trolley travel.
4. All adjustments require complete turns.
D,. TO MAKE ADJUSTMENTS: Loosen limit nut bracket screw..
Slide bracket to the left
1. To increase UP limits-turn bottom nut upward.
2. To decrease UP limits-turn bottom nut downward
3. To increase DOWN limits-turn top nut downward°
4_ To decrease DOWN limits-turn top nut upward..
5. These procedures may require repetition before adjust-
ment is complete..
E. When adjustments are complete, slide bracket to its original
position and TIGHTEN SCREW SECURELY before apply-
ing power'.
F.. Replace cover and 4 cover screws. Reconnect power_
CAUTION: After an adjustment, the motor will run when
power is turned on.
If door reverses at end of downward travel, the door arm is
too long. Shorten it one set of holes _ a time until reversing
ceases.
During limit nut adjustment procedure, if door reverses before
completing travel cycle in either direction, also check:
1.. Excessive binding of door (check manually and correct)..
2. Force adjustments are too light_ Refer to Step 17..
/
_/TO REMOVE
COVER
SCREW_-20
TURN NUT ONE COMPLETE
REVOLUTION FOR 3_ OF
TROLLEY TRAVEL
LIMIT
NUT PLASTIC
_RETAINER NUT SHAFT
\ \ \ ! [_1_\ DOWN
LIMIT
-:;--
CAUTION: If the door opener is installed on adoor
with a height greater than 6 feet, the "UP'"
limit must be adjusted.
-12-

ustment
\
/
OPEN
FORCE
ADJUSTMENT
SCREW
CLOSE
FORCE
ADJUSTMENT
SCREW
\
ADJUST DOOR FORCE: Determine that door force is not ex-
cessive in down direction.. Grasp the door handle or the bottom
of the door as it is about halfway through downward travel.
Normally the door should reverse by this action.
If it is hard to hold, or doesn't reverse, loosen the clown force
screw one turn at a time until the door reverses normally. This
means it will not reverse at the end of a travel cycle, and will
reverse when moderately obstructed.
A. Adjustment screws are near center of upper chassis flanges
as illustrated. "Close" force screw is on the right sicle (fac-
ing door)° "Open" force screw is on left side. Refer to
labels next to screws. Turn clockwise by half turns until
door opens and closes without reversing
B Tighten adjustment screws an added half turn to allow for
climatic changes.
CAUTION: Door force is not to compensate for faulty door
hardware.
Step 18
INSTALL LIGHT AND LENS: Install a light bulb* in socket.
Light turns on automatically when opener starts. It will turn
off automatically about 90 seconds after the opener stops, if
available, "Rough Service" bulbs should be used.
*Use 100 watt bulbs in Model t39 653000
60 watt bulbs in Model 139.653100
LENS: Gently squeeze lens and insert tabs in slots in chassis.
Release pressure and lens will snap into place., To
remove lens, reverse this procedure
USE MODEL
IOOWATT BULB 139 65300
60 WATT BULB 13965310
_--'_-_ _'_""_ LENS
-13 -

One Piece Door Installations
One Piece Door° Jamb Hardware°
Horizonta| Track.
Highest Point
ofir_ave_
_,,,_. .........
DOO\\_\ /// TRACK
One Piece Door° No ]rack. Jamb
Hardwares,
Highest Point of
of Travel
//
//
DOOR
4
/i/
JAMB
HARDWARE
One Piece Boor,, No Track. Pivot
Hardware,
Highest Point
of Travel
//
/
DOOR
\,
//
Step 1
INSTALL DOOR BRACKET: (Hardware in plastic
bag will be needed in the following steps). Deter-
mine vertical center line of garage door, Position
door bracket center-on-center with this line at lead-
ing edge of top of door (see illustration), Mark outer
holes. Drill 5/16 inch holes through door top,
Fasten bracket with 5/16 inch carriage bolts, lock
washers and nuts,,
INSTALL HEADER BRACKET: Extend vertical
center line of door onto garage header wall above
door. Reinforce header wall if necessary for header
bracket support, A 2x4 or 2x6 will suffice,. Posi-
tion the header bracket according to door type and
its arc of travel (see illustrations at left edge of page)°
A_ One-Piece Door Without Track: Open door
to highest point of travel, Measure distance
from top of door to floor,, Subtract actual
height of door (top to bottom), Remainder
is door rise (see column 1 of adjoining chart),
Refer to chart for' setting height of header
bracket above door, Place bracket at refer-
enced height and center-on-center with ex-
tended vertical center line of door, Mark
bracket holes, Drill 3/16 inch pilot holes,
Fasten bracket with 5/16 by 1-7/8 inch Iag
screws.
B_ One-Piece Door With Track: Position header
bracket center-on-center with extended verti-
cal center line of door and approximately 2
inches above the horizontal tracks, Mark
bracket holes on wall Drill 3/!6 inch pilot
holes.. Fasten bracket with 5/16 by 1-7/8 inch
lag screws,
Step 3
ATTACH RAIL TO HEADER BRACKET: Place
operator on packing material.. Raise Tee rail until
sprocket bracket joins header b_acket. Align holes..
Attach with 3/8 inch by 3 inch clevis pin. Secure
with cotter pin..
5/16" LOCK
WASHER
LEADING
TOP OF DOOR
\
5/t6' CARRIAGE
BOLT
I
h
_LAG SCREWS
H_'AD_R _
BRACKET
Door' Rise Location of Header
In Inches Bracket Above Door'
in Iriches
Up to 4 10
4 to 8 15
8 to 12" 20
*if door rise isgreater than 12 inches, or
if low ceiling clearance doesn't allow
positioning header bracket as shown in
column 2 above, use the remote in-
stallation procedures on Page 17.
PIVOT
-14-

One Piece Door InstaHiations
POSITION THE OPERATOR:
A One-Piece Door Without Track: Raise motor end
of opener to a height equal to door bracket
with door open. Support opener with stepladder.
For maximum efficiency, do not secure the
operator more than 2 inches higher than this,.
B One-Piece Door With Track: Raise motor end of
opener to height above and paraflel to hori-
zontal tracks.. Support it with stepladder.
\\-\\, _ HEADER BRACKET
TRACK
SECURE THE OPERATOR: Measure distance ("L"
in iIfustration) between operator and joist, or other
garage roof support., Cut both pieces of hanging brack-
et just beyond selected holes,. Notch bracket ends with
hack saw. Bend ends to form desired angles. Fasten
hanging brackets to operator chassis with 3/8 inch by
7/8 inch screws, and 3/8 inch Iock washers and nuts
Drill 3/16 inch pilot holes in roof supports Fasten
brackets wlth 5/16 inch lag screws.
NOTE: Lubricate bottom surface of Tee rail before
proceeding. Use tube of rail grease included
in hardware box,
STR UCTURAL-_
MEMBER !;l
HANGING P
INSTALL RADIO RECEIVER: Refer to Step 14
Page 11,
\Step ?
BEND
AS
NECESSARY
CONNECT ELECTRICAL POWER: Refer to Step 15,
Page 11.,
-15-

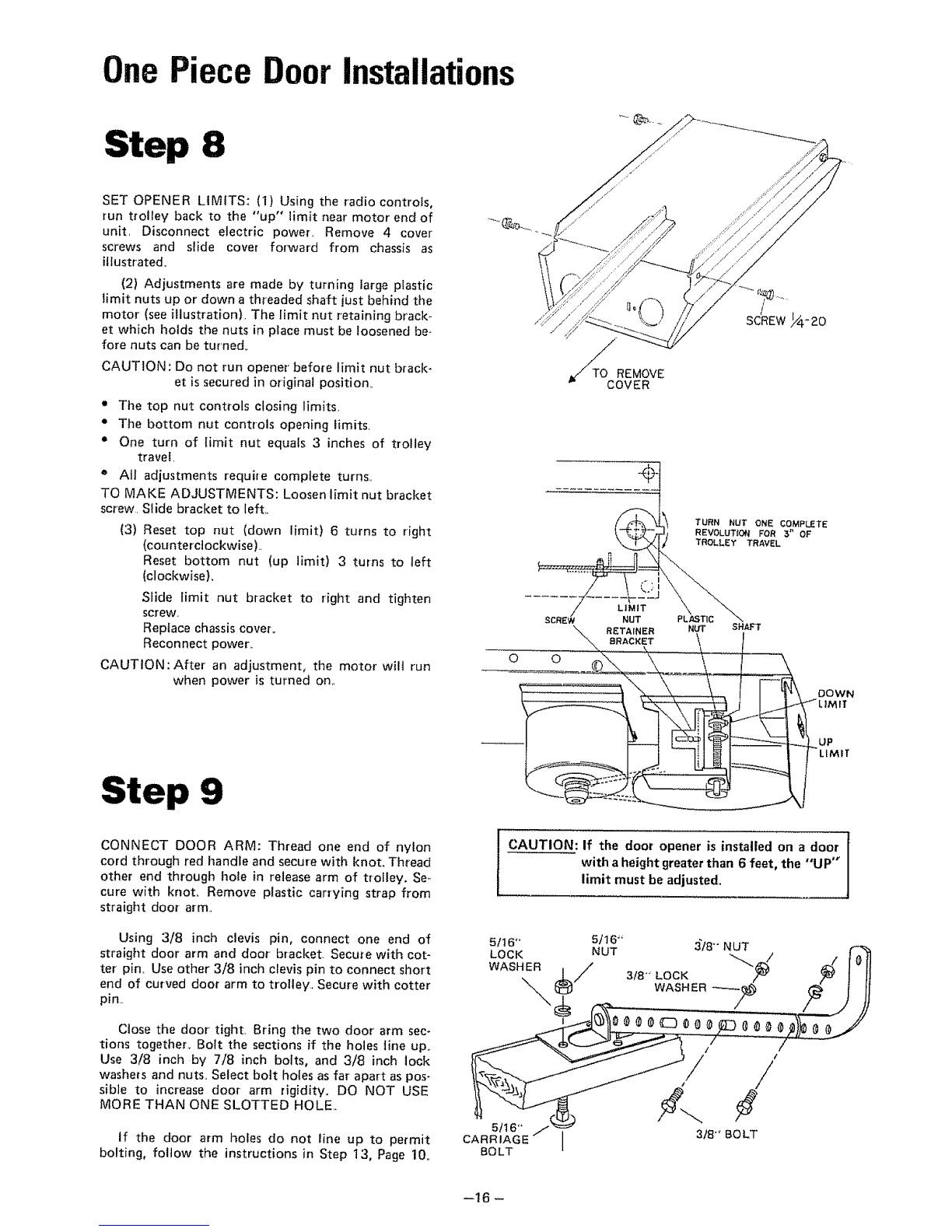

One Piece Door Installations
Step 8
SET OPENER LIMITS: (1) Using the radio controls,
run trolley back to the "up" limit near motor end of
unit, Disconnect electric power, Remove 4 cover
screws and slide cover forward from chassis as
illustrated_
(2) Adjustments are made by turning large plastic
limit nuts up or down a threaded shaft just behind the
motor (see illustration), The limit nut retaining brack-
et which holds the nuts in place must be loosened be-
fore nuts can be turned°
CAUTION: Do not run opener before limit nut brack-
et is secured in original position_
• The top nut controls closing limits,
• The bottom nut controls opening limits.
= One turn of limit nut equals 3 inches of trolley
travel,
• All adjustments require complete turns,,
TO MAKE ADJUSTMENTS: Loosen limit nut bracket
screw, Slide bracket to left,.
(3) Reset top nut (down limit) 6 turns to right
(counterclockwise)..
Reset bottom nut (up limit) 3 turns to left
(clockwise),
Slide limit nut bracket to right and tighten
screw,,
Replace chassis cover,,
Reconnect power.
CAUTION:After an adjustment, the motor wilt run
when power is turned on,.
Step 9
_TO'REMOVE
COVER
O
LIMIT
SCREW/ NUT
RETAINER
BRACKET
0
SCREW _-20
TURN NUT ONE COMPLETE
REVOLUTION FOR 3'* OF
TROLLEY TRAVEL
PLASTIC
NUT SHAFT
OOWN
L_MIT
CONNECT DOOR ARM: Thread one end of nylon
cord through red handle and secure with knot. Thread
other end through hole in release arm of trolley. Se-
cure with knot,, Remove plastic carrying strap from
straight door arm.,
Using 3/8 inch clevis pin, connect one end of
straight door arm and door bracket. Secure with cot-
ter pin, Use other 3/8 inch clevis pin to connect short
end of curved door arm to tro!ley,, Secure with cotter
pin..
Close the door tight, Bring the two door' arm sec-
tions together,. Bolt the sections if the holes line up,.
Use 3/8 inch by 7/8 inch bolts, and 3/8 inch lock
washers and nuts, Select bolt holes as far apart as pos-
sible to increase door arm rigidity, DO NOT USE
MORE THAN ONE SLOTTED HOLE
If the door arm holes do not line up to permit
bolting, follow the instructions in Step 13, Page 10.
CAUTION: If the door opener is installed on adoor
with a height greater than 6 feet, the "UP"
limit must be adjusted.
5/16"
LOCK
WASHER
5tl 6"
CARRIAGE
BOLT
5t16" ,318""NUT
NUT
WASHER _//_
/
/ /
3/8" BOLT
-16 -

One Piece oor Instal Otis
ADJUSTMENTS: If, after installation of opener, door does
not open or close satisfactorily, follow adjustment steps 16
and 17 on Pages 12 and 13,,
[_<
!
I
m
LJ
P
INSTALL LIGHT AND LENS: Refer to Step T8, Page 13,
IdIGH POINT
or- TRAVEL
REMOTE INSTALLATION PROCEDURES
CE I LING SUPPORT
HEADER BRACKET
tDIAMETER THIN WALLEO EMT
'\o o o o o o__...2jo o o o
_cuT AsREQ'D--J
REMOTE INSTALLATION PROCEDURES: (1) Fasten
header bracket to a suitable support on ceiling (a 2x4 or
2x6 reinforcing plank nailed to joists, for example), Tile
support location should be the most convenient in line with
the door bracket and further inside the garage than tile
highest point of door travel.
(2) Follow procedures of Steps 3,4,5,6, and 7 by which
garage door opener is fastened to header bracket and ceiling
Increased distance between trolley and door bracket is
joined by 1 inch thin walled electrical metallic tubing
(EMT) conduit available at most electrical supply or hard-
ware stores,
(3) Run trolley to "Down" limit,, Close door, Measure
distance between holes for door arm clevis pins in door
bracket and trolley Subtract 24 inches,,
Remainder is desired length of EMT,, Cut EMT to this
length. Insert long end of curved door arm, and one end of
straight door arm into ends of conduit at least 4 inches,,
Flatten EMT at each end where bolt hole is needed for at-
taching to door arms, Drill 3/8 inch holes, Fasten with 3/8
inch by 7/8 inch screws, and 3/8 inch lock washers and nuts,,
Radio Controls
1 The radio control has two basic components:
=' A portable transmitter which sends a coded signal from an
automobile
= A receiver which is attached to a garage wall. It receives the coded
signal, and activates the garage door opener..
TRANSMITTER RECEIVER
FOR SERVICE - DO NOT ATTEMPT REPAIR OF RADIO
CONTROLS, If service becomes necessary, see instructions on
page 23 of manual, CovBr
2THE TRANSMITTER
= The transmitter, including a battery and push button switch, is "_ I,'_
contained in an attractive, high4mpact plastic case, A metal clip ".L ..... Battery
is provided for attaching the unit to an auto sun visor, Separate
transmitters can be installed in each of the vehicles using the
garage
3THE BATTERY Clip
The battery should operate for a time equal to its normal shelf fife (approximately one year), This may be shortened by
weather conditions° To avoid unexpected battery failure, replace it at least once a year. There is Iess possibility of cold
oO
weather failure if a new battery is installed in autumn, In regionswhere temperature extremes are below 0 F, and above 90 F,
mercury batteries assure the most reliable operation.
TO CHANGE BATTERY-Remove cover as indicated in accompanying illustration Disconnect battery from connector. CEip
new battery to connector. Replace cover,
-17-

RadioControls
SEARS DiG|TAL RADIO CONTROL PATA PUEOFOR
The coded signal in Sears Digital Radio Controls can be changed easily without the aid of a serviceman,, The only tool needed
is a flat blade screwdriver Choose your own code by changing position of ON-OFF switches numbered 1 through 9 on the code
switch block., Changing the ON-OFF position of only one switch makes an entirely different code The 9 switches can be ar-
ranged into 5t2 code combinations,
OPENING THE RADIO CONTROLS
FIGURE 1 RECEIVER
STEP 1
Remove receiver cover by gripping top
lip of cover with ends of fingers and
pulling outward (Figure 1) Do not
move printed circuit board compo -
nents
STEP 2
Disconnect the two wire, 24 volt, AC
connector from the receiver (Figure 2)
TRANSMITTER
STEP 3
Remove visor clip from back of trans-
mitter by prying it away from the case.,
Remove the screw (Figure 3),
STEP 4
Carefully turn transmitter case over
(with pushbutton up} Remove top of
transmitter case (Figure 4), Be careful,
Do not move circuit board components
FIGURE 3
FIGURE 2
FIGURE 4
FIGURE 5 HOW TO CHANGE THE CODESWITCHES
_@_: _:;,::_i_ ,
STEP 5
Place the receiver cover with its printed
circuit board alongside that of the
transmitter (Figure 5),. Code switch
blocks should be at the bottom (right
side up for reading).,
STEP 6
Use a pencil or smewdriver to change
switch positions (Figure 6). To change
a code, press one or more switches
either ON orOFF, Changing at! switches
to OFF wil! constitute a code
FIGURE 6
IMPORTANT NOTE: The new code setting must be exactly the same in both the receiver and transmitter, also, in any addi-
tional transmitters used to operate the door, Reconnect the AC connector to the receiver and snap the receiver cover back
into piace,_ The lock switch on some receivers (built into side of case) must be unlocked (Down position),. Reassemble trans-
mitter,. Please keep this instruction sheet for future reference,,
-18-

TRANSMITTER
RECEIVER r CODE I
LABEL
SIGNAL
CODE LABEL
FLANGE
OPENER TERMINAL BLOCK
ooI
BELL WIRE i
PUSH BUTTON
RECEIVER TERMINAL BLOCK
Parts List
KEY PART
NO, NO, [JESCRIPTION
RECEIVER
1
2IB1436 Receiver case assy.
IA1385S Receiver circuit board
IAI385Y with cover (Specify S
IA1492 Receiver cover
J3 TRANSMITTER
4
5
6
7
IA1489
IAI138S
lAII38Y
2B126
57-6423
Case assembly
Printed circuit board
(specify S or Y)
Clip,visor
Battery, 9 volt
or
-19-

Wiring & Specifications
LINE
WIRING DIAGRAM
117 V AC 60Hz
IBUTTON
YEL
CRK. fiRK,
W/THERMAL
OVERLOAD
LAMP DELAY
SWITCH
PSC
MOTOR
CONVENIENCE
OUTLET(X)
_,,C_r
I
,'¢7
WHt
j DOWN
LIMIT
..=J
iMPULSE RELAY
OBSTRUC 0 I
SWITCH REVERSE I
DISABLE I
LSW_TCH jUF
CLASS
NEUT.
BLK
qt
I
24vAC I
270 .rz YEL L -J
BLK
NOTE :IPARTS(X)AND(Y)ffOT USED _N ALL MODELS
2 SOME VERSIONS OF MANUAL RESET SUTTON HAVE TERMINALS 2&3 REVERSED
Type .....
Speed .....
Volts
Cur_nt
MOTOR
t/3 HP capacitor run (Model 139.653000)
1/4 HP capacitor run (Model 139653100)
t,0OO rpm
t t7 VAC 50/60 Hz
45emps (Model 139653000)
26 amps (Model 139653100)
SAFETY
Personal ....... Pushbutton reverse in down direction Auto-
matic door reversal both directions on
obstruction
Mechanical ........ Independent up and down adjustment
Electrical ......... Motor' overload protector and low voltage
pushbutton wiring
Limit Device ......... Circuit actuated by limit nuts
Limit Adjustment .... Traveling nuts on sprocket shaft
StertCireuit ....... Low voltage pushbutton, key switch or
radio cent! el
DRIVE MECHANISM
Speed Reduction Belt and pulley 8, 1 :1
Drive Roller chain and two piece trolley on steel
Tee rail
Lubrication Motor self lubricated Drive shaft bronze
oifite bearings
Length of Travel 0 - 8 feet
Trave! Rate , , , 6 - 8 inches per second
Lamp ,, On when door starts in travel off approxio
mate]y 90 seconds after stop
Door Linkage Adjustable "'L" arm pull cord trolley
release
DIMENSIONS
Length (overall) 10½ feet
Headroom Required, 2inches
Weight ...... 60 pounds
- 20-
