OWNER'S
MANUAL
Model 53479
For Residential Use
Only
Caution:
Read and follow all
safety rules and
operating instructions
before first use of this
product.
Fasten the manual
near the garage door
after installation.
Complies with UL 325 /11 "_
regulations effective " L%2
January !, 1993
I:RRFTSMRN
1/2 HP
GARAGE DOOR OPENER
•Safety Precautions
•Assembly
•Installation
•Adjustment
•Care and Maintenance
•Operation
•Troubleshooting
•Parts List
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Contents
Safety alert symbol review ........................................... 2
Safety inforlnation, precautions, tools .......................... 3
Testing your garage door for binding & balance .......... 3
Carton inventory ........................................................... 4
Hardware inventory ...................................................... 5
Illustration of sectional door installation ..................... 6
Illustration of one-piece door installation ..................... 7
Assembly section - pages 8 - 11
Assemble the rail ........................................................ 8
Fasten rail to power unit ........................................... 10
Install the trolley ....................................................... 10
Attach the rail brackets ............................................. 1t
Installation section - pages 12 - 27
Installation safety instructions .................................. 1t
Determine the header bracket location
Sectional door ......................................................... 12
One-piece door ........................................................ 13
Install the header bracket .......................................... 14
Attach the rail to the header bracket ......................... 15
Safety reversing sensor inforlnation ......................... 16
Install the safety reversing sensor ............................. 17
Position the opener .................................................... 19
Hang the opener ........................................................ 20
Install the wall control and connect all wires ............ 21
Electrical requirelnents ............................................. 22
Complete the safety reversing sensor installation.....22
Install the lights and lens .......................................... 23
Attach the elnergency release rope and handle ......... 23
Fasten the door bracket (sectional door) ................... 24
Fasten the door bracket (one-piece door) .................. 25
Comaect door arm to trolley (sectional door) ............ 26
Comaect door arm to trolley (one-piece door) ........... 27
Adjustment section - pages 28 - 30
Travel limit adjustments ............................................ 28
Force adjustlnents ..................................................... 29
Test the safety reversing sensor ................................ 30
Test the safety reverse system .................................. 30
Operation safety instructions ...................................... 31
Care of your opener .................................................... 31
Maintenance schedule ................................................. 31
Operation of"your opener ............................................ 32
Receiver & remote control progralrdning ................... 33
Trouble shooting .......................................................... 34
Repair parts, rail assembly .......................................... 36
Repair parts, installation ............................................. 36
Repair parts, power unit .............................................. 37
Accessories ................................................................. 38
Index ........................................................................... 39
How to order repair parts ............................................ 40
Warranty ...................................................................... 40
Start by reviewing these important safety alert symbols:
Mechanical Electrical
When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage to your
garage door and/or the garage door opener if you do not comply with the corresponding instructions. Read the
instructions carefidly.
This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained
and tested in strict accordance with the safety instructions contained in this manual.

Safety Information and Precautions; Tools
An unbalanced garage door might not reverse when
requiredand someoneunderthedoorcouldbeseriously
injuredorkilled.
Ifyourgaragedoorbinds,sticksor isout ofbalance,call
forprofessionalgaragedoorservice.Garagedoors,door
springs,cables,pulleys,brackets,and their hardwareare
underextremetension and cancauseseriousinjuryor
death. Do not try to loosen, move or adjust them
yourself!
Ropes left on agarage door could causesomeoneto
become entangled and killed. Remove all ropes
connectedtothedoorbeforeinstallingand operatingthe
opener.
Toavoiddamageto thegaragedoorand opener,disable
locks beforeinstallingand operatingthe opener.Use a
woodscrewor nailtoholdlocksinthe"open" (unlocked)
position.
Operationat otherthan 120V 60 Hz will cause opener
malfunctionanddamage.
Identify the type and height of your door, any special
conditions that exist, and any additional materials that
lnay be required. Refer to pages 6 and 7.
Test Your Door for Balance
Before you begin, complete the following test to make
sure your door is balanced, and is not sticking or
binding:
• Lift the door about halfway as shown. Release the door.
It should stay in place, supported entirely by its springs.
• Raise and lower the door to see if there is any binding
or sticking.
Sectional Door
One-Piece Door
During assembly, installation and adjustment of the opener, instructions will call for tools shown below.
Stepladder
Level
Drilt
Tape Measure
Pencil
Wire Cutters
3/16",5/16"and
5/32"DritlBits Pliers
Screwdriver
Hack Saw
Claw Hammer
1/2" x 7/16" Box Wrench

Carton Inventory
Your garage door opener is packaged in one carton which contains the power unit and all parts illustrated below. If anything
is missing, carefully check the packing material. Parts may be "stuck" in the foam. KEEP THE FOAM INTACT (see
page i0). Hardware for asselnbly and installation is shown on page 5.
Lighted Console
Wall Control
Light Lens
Three-Function Remote Control
with Visor Ctip (1)
Rail Support
araces_
OSprocket
Coupling
Rail
Assembly
Hanging Brackets
2-Conductor Belt Wire
White & White/Red
Header/Rail
Brackets
Header Bracket
Door Bracket Plate
Safety Ldbels I
©
Door Bracket
Straight Door
Arm Section
Curved Door
Arm Section
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with attached
2-Conductor White & White/Black Bell Wire
Safety Reversing Sensor
Mounting Bracket
With Square Holes (2)
"C" Wrap (2)
Safety Reversing Sensor
Mounting Bracket
With Slot (2)

Hardware
Separate all hardware from the packages in the rail carton and the opener carton and group as shown below, for
the assembly and installation procedures.
Assembly Hardware
,,,,,,,,,,,,,,,,,,,,©
Bolt 1/4" - 20 x 5/8" Lock Nut
1/4-20xl-3/4" (8) Hex Screw (4) 1/4"-20 x 7/16 (12) Sprocket Coupling Steeve
Installation Hardware
Lag Screw
5/16"-18xl-7/8" (4) Hex Screw
5/16"-18x7/8" (4) Nut 5/16"-18 (6)
Carriage Bolt Screw
5/16"-18x2-1/2" (2) 6ABxl" (2)
o] _ oH
Clevis Pin CIevis Pill
5/16"X2-3/4" (1) 5/16"xl" (2)
Handle
©
Lock Washer 5/16" (6)
Dry Wall Anchors (2) Rope
©
Ring Insulated
Fastener (3) Staples (10)
Safety Reversing Sensor Installation Hardware
1/4x1-1/2" (4) ©
Carriage Bolt Lock Nut Wing Nut (2)
1/4"-20xl/2" (4) 1/4"-20 x 7/16 (4)
Screw Lock Nut Insulated
#10-32x3/8" (4) #10x32 (4) Staples (20)
Hex Screw
1/4-20x1-1/2" (2)

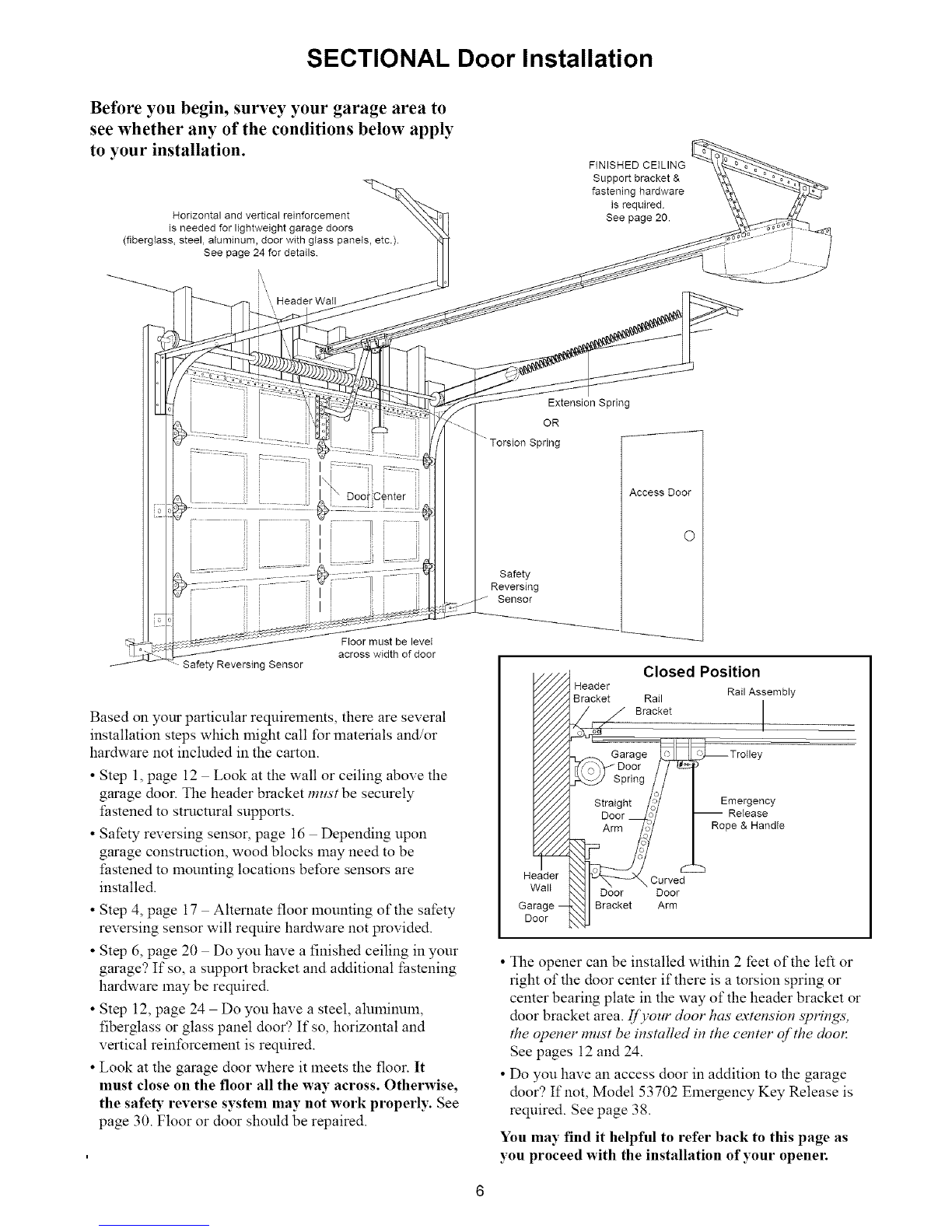

SECTIONAL Door Installation
Before you begin, survey your garage area to
see whether any of the conditions below apply
to your installation.
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with glass panets, etc.).
See page 24 for details
= Header Wail
FINISHED CEILING
Support bracket &
fastening hardware
is required
See page 20.
Safety Reversing Sensor
Dooi:_C_nter
Floor must be level
across width of door
Based on your particular requiremems, there are several
installation steps which might call for materials and/or
hardware not included in the carton.
• Step 1, page 12 Look at the wall or ceiling above the
garage door. The header bracket must be securely
fastened to structural supports.
• Safety reversing sensor, page 16 Depending upon
garage construction, wood blocks may need to be
fastened to lnounting locations before sensors are
installed.
• Step 4, page 17 Alternate floor mom_ting of the safety
reversing sensor will require hardware not provided.
• Step 6, page 20 Do you have a finished ceiling in your
garage? If so, a support bracket and additional fastening
hardware may be required.
• Step 12, page 24 Do you have a steel, aluminum,
fiberglass or glass panel door? If so, horizontal and
vertical reinforcelnent is required.
• Look at the garage door where it meets the floor. It
must close on the floor all the way across. Otherwise,
the safeD" reverse system may not work properly. See
page 30. Floor or door should be repaired.
Extension Spring
OR
Torsion Spring
Safety
Reversing
Sensor
Access Door
O
Header
Wall
Garage --
Door
Closed Position
Header
Bracket Rail Rail Assembly
Bracket
Garage _ Trotley
_Door spr,eg/ /I
Straight //_/ I Emergency
Door _7 _ Release
__ LRope & Handle
,! F\_ Curved
,_ I Door Door
_ Bracket Arm
• The opener can be installed within 2 feet of the left or
right of the door center if there is a torsion spring or
center bearing plate in the way of the header bracket or
door bracket area. If),our door has extension springs;
the opener must be installed in the center of the door.
See pages 12 and 24.
• Do you have an access door in addition to the garage
door? If not, Model 53702 Emergency Key Release is
required. See page 38.
You may find it helpful to refer back to this page as
you proceed with the installation of your opener.

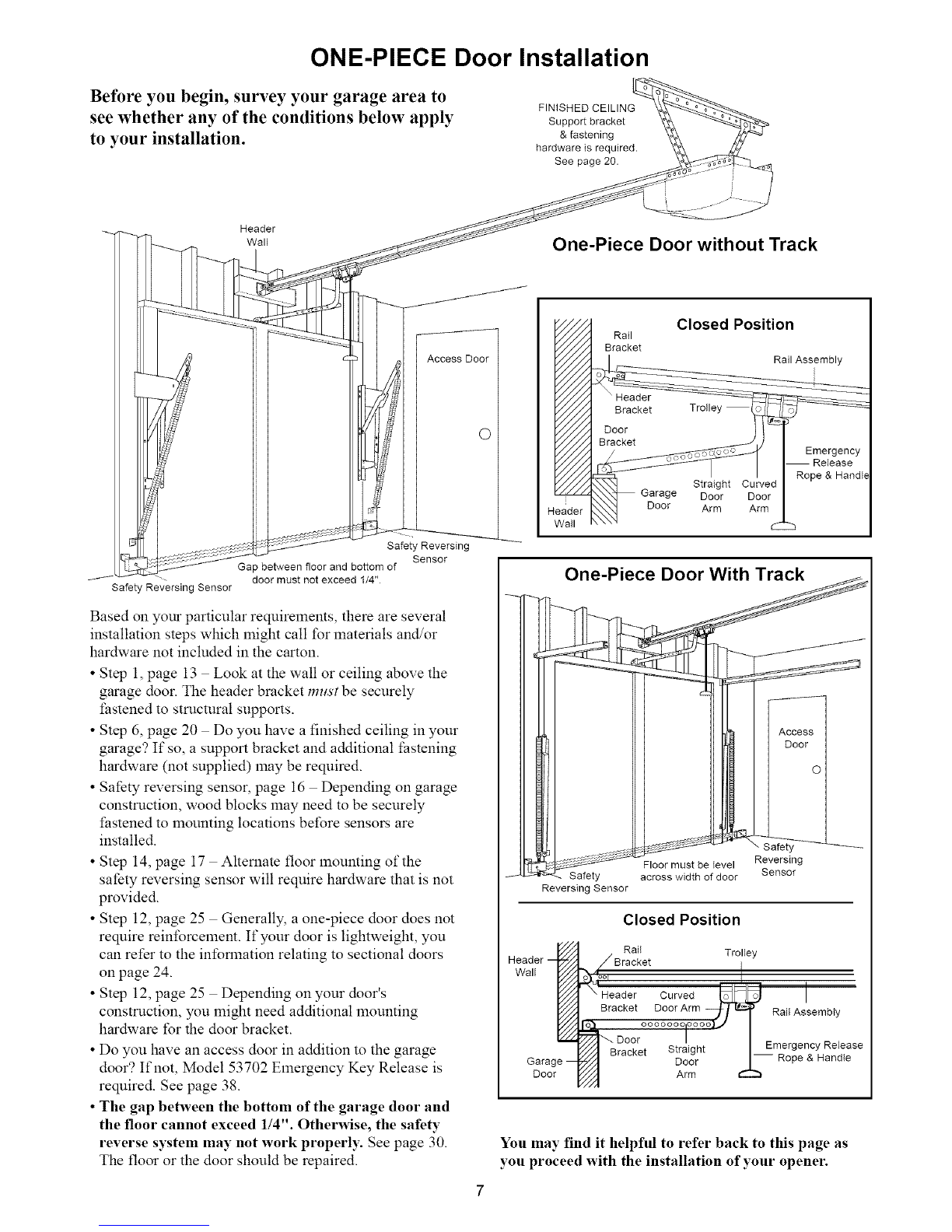

ONE-PIECE Door Installation
Before you begin, survey your garage area to
see whether any of the conditions below apply
to your installation.
Header
Wall
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 20.
One-Piece Door without Track
Access Door
O
Closed Position
Rail
Bracket Rail Assembly
Garage Door
Door Arm
Safety Reversing
Sensor
Gap between floor and bottom of
door must not exceed 1/4"
Safety Reversing Sensor
Based on your particular requirements, there are several
installation steps which lnight call for materials and/or
hardware not included in the carton.
• Step 1, page 13 Look at the wall or ceiling above the
garage door. The header bracket must be securely
fastened to structural supports.
• Step 6, page 20 Do you have a finished ceiling in your
garage? If so, a support bracket and additional t:astening
hardware (not supplied) may be required.
• Safety reversing sensor, page 16 Depending on garage
construction, wood blocks may need to be securely
fastened to mounting locations before sensors are
installed.
• Step 14, page 17 Alternate floor mounting of the
safety reversing sensor will require hardware that is not
provided.
• Step 12, page 25 Generally, a one-piece door does not
require reinforcement. If your door is lightweight, you
can refer to the inforlnation relating to sectional doors
on page 24.
• Step 12, page 25 Depending on your door's
construction, you lnight need additional mounting
hardware for the door bracket.
• Do you have an access door in addition to the garage
door? If not, Model 53702 Elnergency Key Release is
required. See page 38.
• The gap between the bottom of the garage door and
the floor cannot exceed 1/4". Otherwise, the safety
reverse system may not work properly. See page 30.
The floor or the door should be repaired.
One-Piece Door With Track
Floor must be tevel
Safety across width of door
Reversing Sensor
Access 1
Safety
Reversing
Sensor
Closed Position
Door
Rail Trolley
Curved I
BracketDoorArm_/ ==1"Rai_Assembly
.Door .... :_oloo_ozj i EmergencyRe,ease
Bracket oLralgHt I--
Door ]-- Rope & Handle
Arm
You may find it helpful to refer back to this page as
you proceed with the installation of your opener.

IASSEMBLY SECTION: PAGES 8 - 11
Assembly Step 1
Assemble the Rail ITo avoid installation difficulties, do not run the garage
door opener until instructed to do so.
Rail
Support
Braces
Straight
Door Arm Extend
End Rails
Outward Remove
Cardboard Packing
Center
Rait
Trotley Rack
Rail Assembly
Carton
Remove --@ Extend
Cardboard Packing End Rails
Outward
Rail Assembty Chassis Assembly
Hardware Bag Hardware Bag
1. Trim the opened rail carton upside down, emptying its
contents onto a level work surface.
2. Unfold the rails, taking care to avoid kinldng the screw
rod joints.
3. Rotate the rail sections so that the fiat side is down and SprocketEndRail
the screw side is up for all three lengths. Keep it clean I_Jl
and free of debris while you are working. _ Rlail
Sprocket
_ov "otdpttlling the rail
TroIleyRack __ rack away from the sere.,
I_// ro_et a_bout 9"[hot,, the end of the
_er of tbe tack.
_/ If _rt way out daring assemblk;
simply push it back in.
Door End Rail

Assembly Step 1 (Continued)
Assemble the Rail
4. Begim_ing with the sprocket end, straighten the two
rail sections so that the screw rod is in a straight line at
the joint. (Avoid handling the joints, which may have
sharp edges.)
5. Carefnlly slide the pins at the top edge of the rail into
the openings on the adjacent rail. It is essential that
the rail assembly be on a level surface to achieve
proper alignment and to avoid damage to the pins.
6. Insert two 1/4"-20xt-3/4" bolts through the center
holes of a brace, and place its open length against the
rail at this joint, aligning the holes as shown. Position
another brace on the opposite side of the rail over the
bolts, add 1/4"-20 lock nuts, and hand tighten. Insert
two additional bolts and hand tighten.
Lock
Nuts
7. Keeping the rail straight and on a level surface, grasp
the screw rods on each side of the relnaining joint and
pivot into a straight line. Repeat steps 5 and 6.
8. With a 7/16 wrench, tighten bolts til snug, working
froln the center holes of the braces to those flmher
froln the joints. Do not overtighten.
Sprocket End
Rail
Support
Brace Alignment Slide End
Hole Rails Towards
Center Rait
Door End
Lock
Nuts
Rail
Support
Brace
Rail Pin
AIignment
Center Rail
J 1/4x20x1-3/4"
Bolts
Stide End
Rails Towards
Center Rait
Hardware Shown Actual Size
BoIt 1/4"-20
1/4-20xl-3/4" (8) Lock Nut
1/4x20x1-3/4"
Bolts

Assembly Step 2
Fasten the Rail To the Power Unit
and Install the Trolley
NOTE: To aid in assembly and installation, replace
the foam packing around the power unit. Remove it
after Installation Step 5.
•Working on a level surface, align the rail asselnbly with
the power unit, as shown.
• Slip the coupling over the rail sprocket.
• Slide the rail tluough the power unit bracket until the
coupling fits securely over the power unit sprocket.
• Align the two screw holes in the rail with those in the
power unit bracket. Insert two 1/4"-20x5/8" hex screws
and lock nuts. Tighten securely with a 7/16" socket
wrench.
Foam Packaging
Rail/Power Unit Power Unit
Bracket Sprocket
Hex Screws
1/4"-20x5/8"
Trolley
Rail
Assembly
Hardware Shown Actual Size
1/4" - 20
1/4" - 20 x 5/8" Lock Nut
As illustrated above, slide the trolley onto and along the
bottom of the rail until it snaps firmly in place. Be certain
to install #facing correctly: the trolley release arm must
be horizontal (lock position), with its arrow pointed
away from the power unit.
10

Assembly Step 3
Attach the Rail Brackets
• Align rail brackets to end of rail assembly, as shown.
• Insert two i/4"-20 x 5/8" hex screws and lock nuts.
Tighten securely with a 7/i 6" socket.
Rail
Brackets
1/4"-20
Lock Nuts
Hardware Shown Actual Size
1/4" - 20
1/4" - 20 x 5/8" Lock Nut 1/4"-20x5/8
Hex
Screws
You have now finished assembling your garage door opener. Please read the following warnings
before proceeding to the installation section:
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of severe injury or death to persons:
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS
2. Install only on a properly balanced and lubricated garage door. An improperly balanced door may not
reverse and could result in severe injury or death. Repairs to cables, spring assemblies and other hardware
must be made by a professional service person before installing opener.
3. Disable all locks and remove all ropes connected to the garage door before installing the opener. Ropes
connected to a garage door can cause entanglement and death.
4. If possible, install door opener 7 feet or more above floor with the emergency release handle mounted 6
feet above the floor.
5. Do not connect the opener to power source until instructed to do so.
6. Locate the Wall Control within sight of the door at a minimum height of 5 feet where small children
cannot reach and away from all mo_ing parts of the door.
7. Install the User Safety Instruction Label on the wall adjacent to the control button and the Maintenance
Instruction Label in a prominent location on the inside of the garage door.
8. Upon completion of the installation, the door must reverse when it comes in contact with a one-inch high
object or a 2x4 laid flat on the floor.
9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose
clothing can be caught in the mechanism of the garage door or the opener.
11

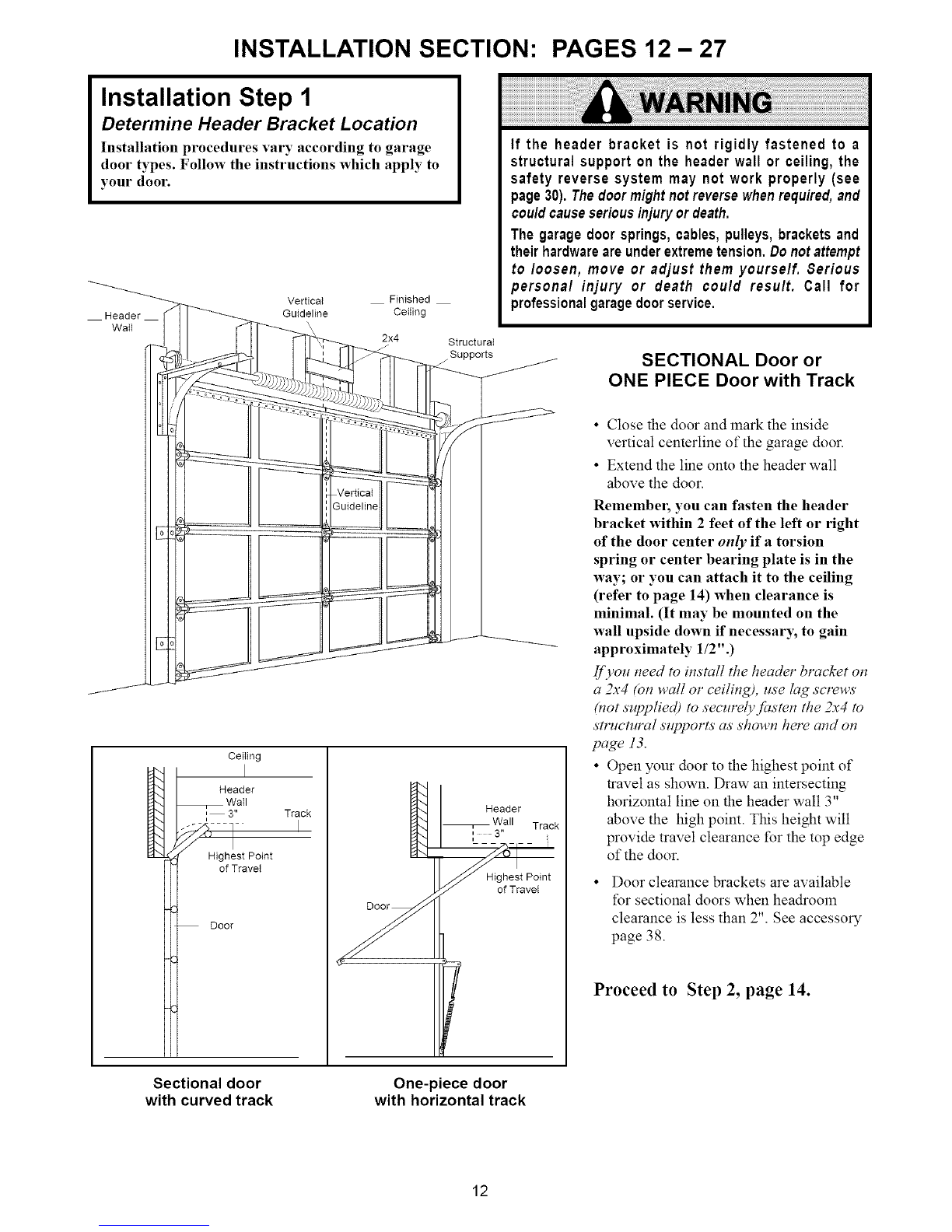

INSTALLATION SECTION: PAGES 12 - 27
Installation Step 1
Determine Header Bracket Location
Installation procedures vary according to garage
door types. Follow the instructions which apply to
your door.
Header
Walt
Vertical Finished
Guideline Ceiling
2x4 Structural
/Supports
If the header bracket is not rigidly fastened to a
structural support on the header wall or ceiling, the
safety reverse system may not work properly (see
page30). Thedoormightnot reversewhenrequired,and
cou/dcauseseriousinjuryor death.
The garagedoorsprings,cables,pulleys,bracketsand
theirhardwareare underextremetension.Do notattempt
to /oosen, move or adjust them yourse/f. Serious
persona/ injury or death cou/d resu/t. Call for
professionalgaragedoorservice.
SECTIONAL Door or
ONE PIECE Door with Track
Ceiting
Header
Wail
_',_2"_.
Highest Point
of Travel
Door
Sectional door
with curved track
Track
IHeader
Wall
i 3"
i
Track
Highest Point
of Travet
V
One-piece door
with horizontal track
• Close the door and mark the inside
vertical centerline of the garage door.
• Extend the line onto the header wall
above the door.
Remember, you can fasten the header
bracket within 2 feet of the left or right
of the door center only if a torsion
spring or center bearing plate is in the
way; or you can attach it to the ceiling
(refer to page 14) when clearance is
minimal. (It may be mounted on the
wall upside down if necessary, to gain
approximately 1/2".)
ff),ou need to install the header bracket otl
a 2x4 (on wall or ceiling), use lag screws
(not sztpplied) to securelyJasten the 2x4 to
structural supports as shown here and on
page 13.
• Open your door to the highest point of
travel as shown. Draw an intersecting
horizontal line on the header wall 3"
above the high point. This height will
provide travel clearance for the top edge
of the door.
Door clearance brackets are available
for sectional doors when headroom
clearance is less than 2". See accessory
page 38.
Proceed to Step 2, page 14.
12

ONE-PIECE Door Without Track
Read the Safety Instructions on page 12. They also apply to doors without tracks.
•Close the door and mark the inside
vertical centefline of your garage door.
Extend the line onto the header wall
above door.
If headroom clearance is minimal, you
can install the header bracket on the
ceiling. See page 14.
•If),ou need to install the header
bracket on a 2x4 (on wall or ceiling),
use lag screws (not supplied) to
securely fasten the 2x4 to structural
szlpports as shown.
Header Walt Vertical
Centertine 2x4
Unfinished
OPTIONAL CEILING MOUNT
FOR HEADER BRACKET
• Open your door to the highest point of
travel as shown. Measure the distance
froln the top of the door to the floor.
Subtract the actual height of the door.
Add 8" to the remainder. (See
Example).
• Close the door and draw an
intersecting horizontal line on the
header wall at the deterlnined height.
If the total number of inches exceeds
the height available in your garage,
use the maximum height possible, or
refer to page 14 for ceiling
installation.
Proceed to Step 2, page 14.
Door l
Jamb
Hardware
Header Wail
°.
...... Highest Point
of Travet
Floor
Header Highest Point
Wall of Travel
C3
One-piece door without track
jamb hardware One-piece door without track pivot hardware
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ............. 92"
Actual height of door ...................... -88"
Relnainder ................................ 4"
Add .................................... +8"
Bracket height on header wall ............... 12"
(Measure UP from top of CLOSED door.)
13

Installation Step 2
Install the Header Bracket
You can attach the header bracket either to the
wall above the garage door, or to the ceiling.
Follow the instructions which will work best for
your particular requirements.
Fastening the Header Bracket to the Wall
• Cemer the bracket on the vertical guideline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
• Mark either set of bracket holes (do not use the holes
designated for ceiling mount). Drill 3/16" pilot holes
and fasten the bracket securely to a structural support
with the hardware provided.
Wall
Mounting Holes
Fastening the Header Bracket to the Ceiling
• Extend the vertical guideline onto the ceiling as shown.
• Center the bracket on the vertical lnark, no more than 6"
from the wall. Make sure the arrow is pointing toward
the wall. The bracket can be mounted flush against the
ceiling when clearance is minimal.
• Mark holes designated for ceiling mount only. Drill
3/16" pilot holes and t:asten bracket securely to a
structural support with the hardware provided.
Ceiling Mounting Hotes
Optional
Wall Mounting
Holes
The nail hole is for
positioning only
You must use lag screws
to mount the header bracket.
_Header-- "Lag Screws
Wall
2x4
Structural Door
Support Spring
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket
/
/
/
f _Garage_
" I Door
Highest Vertical
Point of Travel Center
(of Garage Door) Line
_ Header_
Wall
Hardware Shown Actual Size
5/16"-18 x 1-7/8"
14

Installation Step 3
Attach the Rail to the Header Bracket
Header WalI
Bracket
Rail Bracket
Garage
Foam Packaging --
•Position the opener on the garage floor below the
header bracket. Use packing material as a protective
base.
If the door spring is in the way you'll need help. Have
someone hold the opener securely on a temporary
support to allow the rail to clear the spring.
•Position the rail bracket against the header bracket.
• Align the bracket holes and join with a clevis pin as
shown.
• Insert a ring fastener to secure.
Ring Fastener
Header Bracket
Rail
Opener Carton or
-- Temporary
Support
Hardware Shown Actual Size
°1
Clevis Pin
5/16" x 2-3/4" O
Ring Fastener
15

The Safety Reversing Sensor
Information you'll need before you begin the installation of the safety reversing sensor
The safety reversing sensor must be connected and
aligned correctly before the garage door opener will
move in the down direction. This is a required safety
device and cannot be disabled.
Installation procedures are the same Jbr sectional and
one-piece doot_'.
Be sure power to the opener is disconnected.
The sending eye transmits an invisible light beam to the
receiving eye. The units can be installed on either side of
the garage door as long as the snn never shines directly
into the receiving eye lens.
Look at the label on the connector end of each case to
identify the sensors.
The brackets must be comaected and fastened so that the
sending and receiving eyes face each other as shown.
If an obstrnction breaks the light beam while the garage
door is closing, the door will stop and reverse to full open
position and the opener lights will flash for 5 seconds.
The brackets must be secnrely fastened to a solid surt:ace
snch as the studs on either side of the door, or add a piece
of wood at each location if installing in masonry
construction.
Without aproperly working safety reversing sensor,
persons(particularlychildren)couldbe injuredor killed
by aclosing garage door. Read and follow all
instructions.
To protectsmall children, install the safety reversing
sensor so that the beamwill be no higherthan 4"-6"
abovethegaragefloor.
Disconnect power to the garage door opener before
installingthesafetyreversingsensor.
The invisible light beam path must be unobstrncted. No
part of the garage door (or door tracks, springs, hinges,
rollers or other hardware) can interrupt the beam while
the door is closing. If it does, use a piece of wood to bnild
om each sensor lnounting location m the lninilnnm depth
required for light beam clearance.
4_e:maSnirx,_ ] Ii _
,'n;;2e 2t :2m
Sensor
|// Beam
,I /4-6" max
above floor
Facing the door from inside the garage
16

Installation Step 4
Install the Safety Reversing Sensor
(Receiving and Sending Eyes)
Figures 1 and 2 show assembly of brackets and "C" wrap
based on the recolrdnended installation of the sensors on
each side of the garage door as shown on page 16.
However, Figures 3 and 4 are variations which may fit
your installation requirelnents better. Make sure the
wraps and brackets are aligned so the sensors will
face each other across the garage door.
1. Fasten the "C" wraps to the mounting brackets having
square holes, using the hardware shown in Figure 3.
2. Connect each assembly to a slotted bracket, using the
hardware shown in Figure 2.
Note the alignment of the brackets for left and
right sides of the door.
3. Finger tighten the lock nuts.
4. Use bracket mounting holes as a template to locate and
drill (2) 3/16" diameter pilot holes on both sides of the
garage door, 4"-6" above the floor but not exceeding
6". (See warning on page 16.)
5. Attach bracket assemblies with 1/4"x1-1/2" lag screws
as shown in Figure 2.
6. Adjust right and left side bracket assemblies to the
same distance out from the lnounting surface. Make
sure all door hardware obstructions are cleared.
Tighten the nuts securely.
Figure 1
#10 - 32
Lock Nuts
Mounting Bracket
With Square Holes "C" Wrap
#10-32x3/8"
Screws
Figure 2
Inside
_Garage
Wall
.2O
Lock Nuts
1/4 x 1-1/2" 1/4-20 x 1/2" Carriage Bolts
Lag Screws (with square shoulder)
"C" Wrap
Mounting Bracket
with Square Holes
Figure 3 Alternate Wall Mount
Inside
Garage
= VVal!
Mounting Bracket
ivith Slot
I °
Mounting Bracket
with Square Holes
./" "C" Wrap
Sensor
with wire
Indicator Light
Figure 4 Alternate Floor Mount
Inside
Garage
Wail Sensor with wire
Indicator Light
/
J Mounting Bracket
with Square Holes
/
Mounting Bracket
with Slot
Attach with
concrete anchors
(not provided)
Floor
#10 - 32 x 3/8"
Screw
©
#10 x 32
Lock Nut
Hardware Shown Actual Size
Lag Screw Staples 1/4" - 20 x 1/2" Carriage Bolts
©
1/4" - 20
Lock Nut
17

I Installation Step 4 (Continued)
Install the Safety Reversing Sensor
7. Center each sensor unit in a "C"- wrap with lenses
pointing toward each other across the door (see
Figure 5).
8. Secure sensors with the hardware shown. Finger
tighten the wing nut on the receiving eye to allow for
final adjustment. Securely tighten the sending eye
wing nut.
Recommended Wire Routing
1. Using insulated staples, run the wires froln both
sensors to the rail at the door header (see Figure 6).
2. Cross and twist the two wires where they meet the rail
(see inset A). Run the wires inside the channels at the
top of the rail, along each side, to the power unit and
pull taut (see inset B). Do not use the lower (trolley)
channels.
NOTE: If your access door is near the garage door,
you may choose to install the wall control at this time
and run the wall control wire along the rail with the
sensor wires. Use one rail channel for the wall control
wire and the other channel for both sensor wires. If
you choose this option, follow instructions 1-3
on page 21 now.
3. Thread the wires through the tabs on top of the drive
shaft cover.
4. With your screwdriver tip, rock the wires snugly into
the rail channels. You will complete the wiring in
Installation Step 7.
"C" Wra
indicator
Light
1/4-20 x 1-1/2"
Hex BoIt
Figure 5
Hardware Shown Actual Size
1/4-20 x 1-1/2"
Hex Bolt
Sensor
Wire
Twist
Wires
A
Header
-- Wall --
Sensor
Wire
Header
Bracket
Figure 6
B
1. Run wires from sensors to end of rail
at the door header, Cross & twist here to
help contain wires in channels on top of rail.
2. Run wires along channels
to power unit and pull taut.
3. Thread wires through tabs
on top of Drive Shaft Cover.
tuck wires snugly into channels.
Foam
Packaging
Belt Wire
Rail
ChanneI
Carton
Sensor InvisibIe Light Beam
Protection Area
.J
Sensor
18

Installation Step 5
Position the Opener
Follow instructions which apply to your door type
as illustrated. To prevent damage to steel, aluminum, fiberglass or
glass paneldoors,do not restthe opener on the door
withoutusinga2x4.
SECTIONAL Door or ONE-PIECE Door with Track
A2x4 laid flat is convenient for setting an ideal door-
to-rail distance.
•Raise the opener onto a stepladder.
Yoa will need help at this point if the ladder is"not tall
enough.
• Open the door all the way and place a 2x4 laid flat on
the top section beneath the rail.
If the top panel hits the trolley when you raise the door,
pull down on the trolley release arm to disconnect the
inner and outer sections. The trolley can remain
disconnected until Step 13 is" completed.
Rail 2x4
I
Foam
Door Packaging
_L._._._-- Trolley
Release Arm
ONE-PIECE Door without Track
• With the door fully open and parallel to the floor,
lneasure the distance froln the floor to the top of the
door.
• Using a stepladder as a support, raise the opener to the
same distance as the door from the floor (it will be at a
slight angle as shown).
• The top of the door should be level with the top of the
opener. Do not position the opener more than 3" above
this point.
Header
Bracket
Top of Opener
IIt F:am __
Packag ng
t Top of Door
19

I Installation Step 6
Hang the Opener I
Two representative installations are shown. Yours
may be different. Hanging brackets should be angled,
Figure 1, to provide rigid support. On finished ceilings,
Figure 2, attach a stnrdy metal bracket to strnctnral
snpports before installing the opener. The bracket and
.fastening hardwalv alv not s_lpplied.
1. Measure the distance froln each side of the opener to
the structural support.
2. Cm both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"xl-7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16" - 18x7/8" screws, lock washers and nuts.
6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the
door hits the rail, raise the header bracket.
Figure_ Supports
Measure
Distance
Lag Screws
5/16"xl-7/8"
5/16"-18x7/8"
Hex Screws
5/16" Lock Washers
5/16"-18 Nuts
Preferred Range of
Bracket Placement
Hardware Shown Actual Size
Lag Screw
5/16"-18 x 1-7/8"
Hex Screw
5/16"- 18 x 7/8" ©
Nut 5/16"- 18 ©
Lockwasher 5/16"
Figure 2
-- FINISHED CEILING --
Hidden
Support
5/16"-18x7/8" Screw
5/16"
5/16"-18 Nut
(Not Supplied)
5/16"-18x7/8" Screw
5/16" Lock Washer
5/16"-18 Nut
Preferred Range of
Bracket Placement
2O
