Craftsman CMXEOCG232 User manual

Owner's Manual
GARAGE DOOR OPENER
For Residential Use Only
MODELS CMXEOCG232 and CMXEOCG472
READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE FIRST USE
OF THIS PRODUCT.
FASTEN THE MANUAL NEAR THE GARAGE DOOR AFTER INSTALLATION.
PERIODIC CHECKS OF THE OPENER ARE REQUIRED TO ENSURE SAFE OPERATION.
DO NOT INSTALL ON A ONE-PIECE DOOR IF USING DEVICES OR FEATURES PROVIDING
UNATTENDED CLOSE.
UNATTENDED DEVICES AND FEATURES ARE TO BE USED ONLY WITH SECTIONAL DOORS. SEE
PAGE 3.
WWW.CRAFTSMAN.COM

INTRODUCTION 3
Safety Symbol Review and Signal Word Review 3
Unattended Operation 3
Preparing Your Garage Door 3
Tools Needed 4
Test the Wi-Fi® Signal Strength in Your Garage 4
Planning 5
Carton Inventory 7
Hardware Inventory 8
ASSEMBLY 9

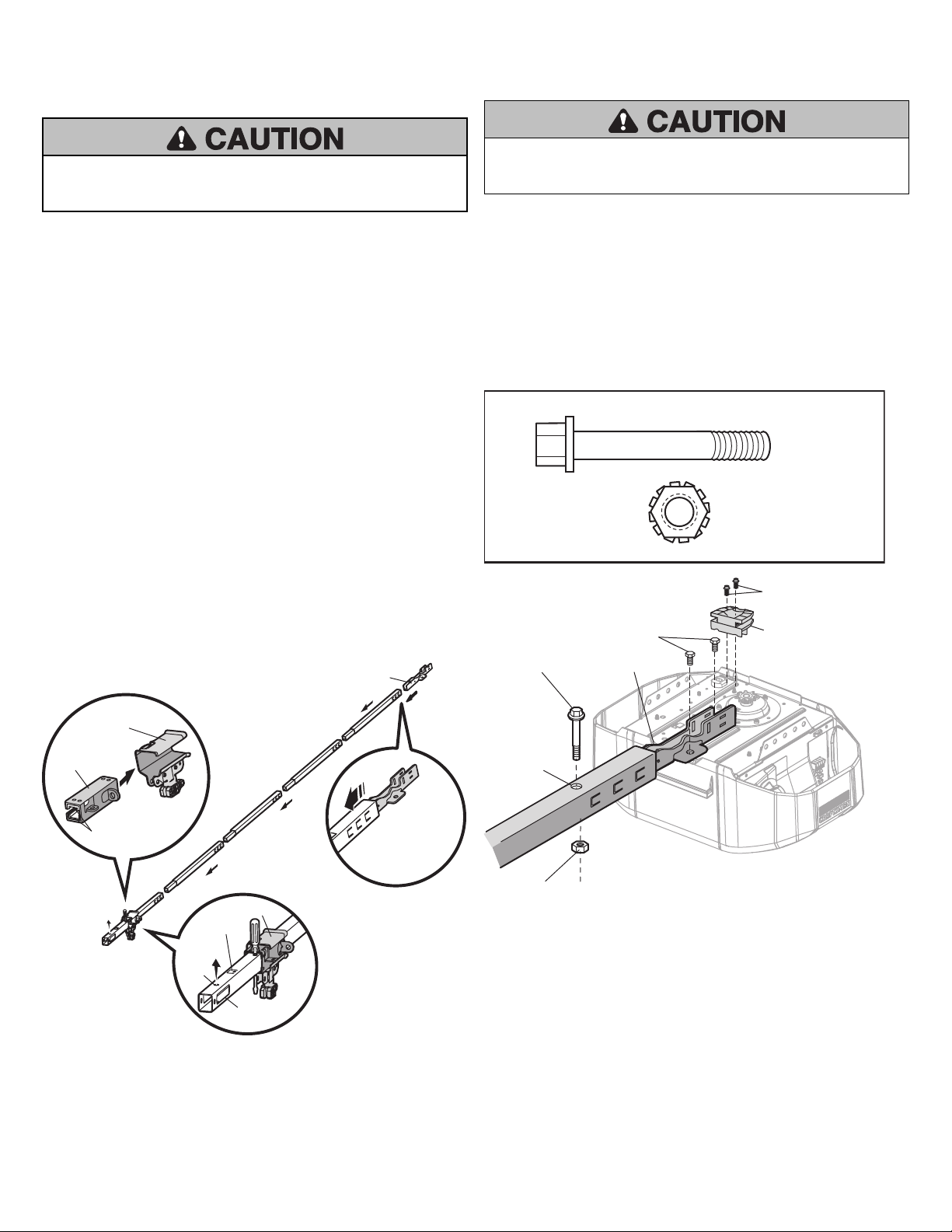

Assemble the Rail and Install the Trolley 9
Fasten the Rail to the Motor Unit 9

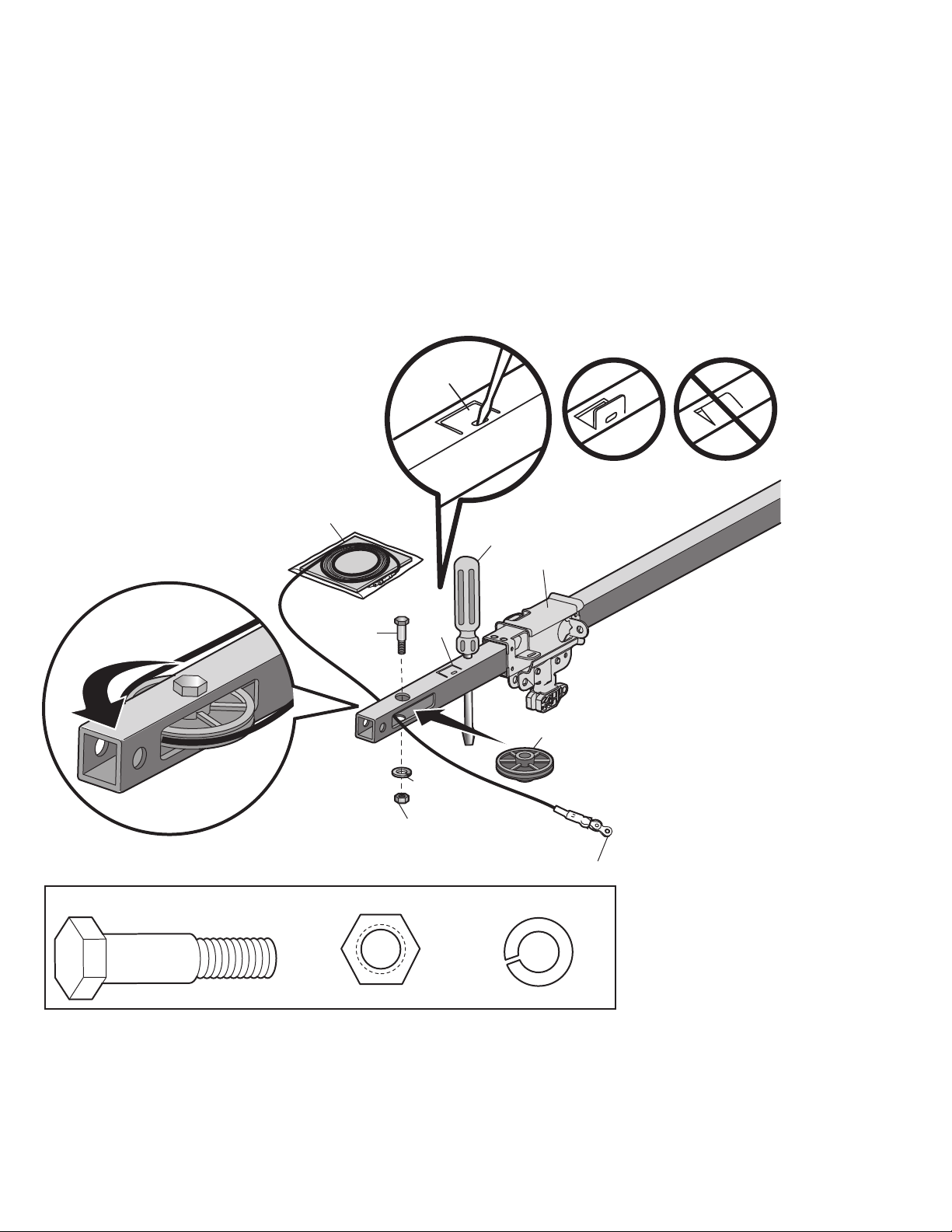

Install the Idler Pulley 10
Install the Chain/Cable 11
Tighten the Chain 12
INSTALLATION 12
Important Installation Instructions 12

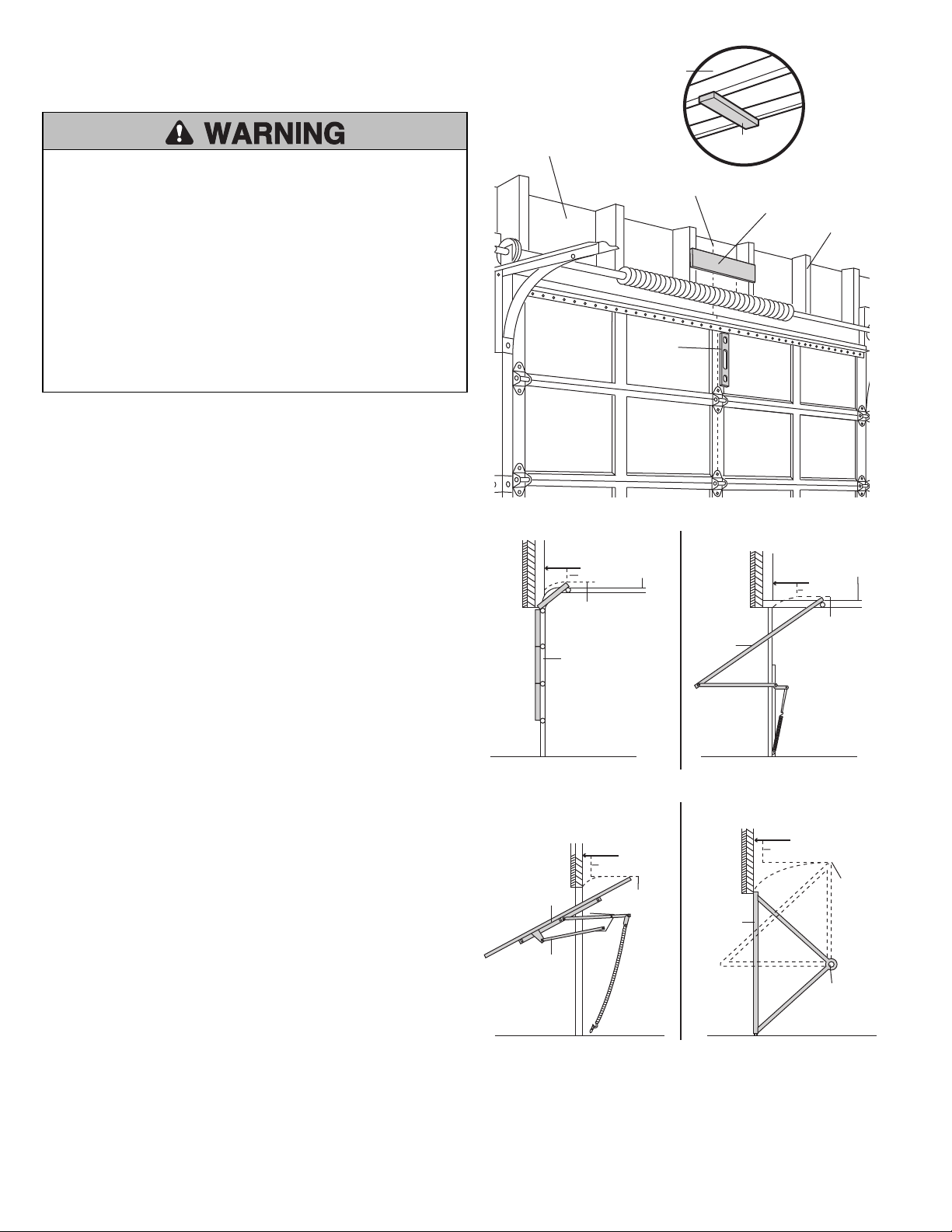

Determine the Header Bracket Location 13
Install the Header Bracket 14
Attach the Rail to the Header Bracket 15
Position the Opener 16
Hang the Opener 17

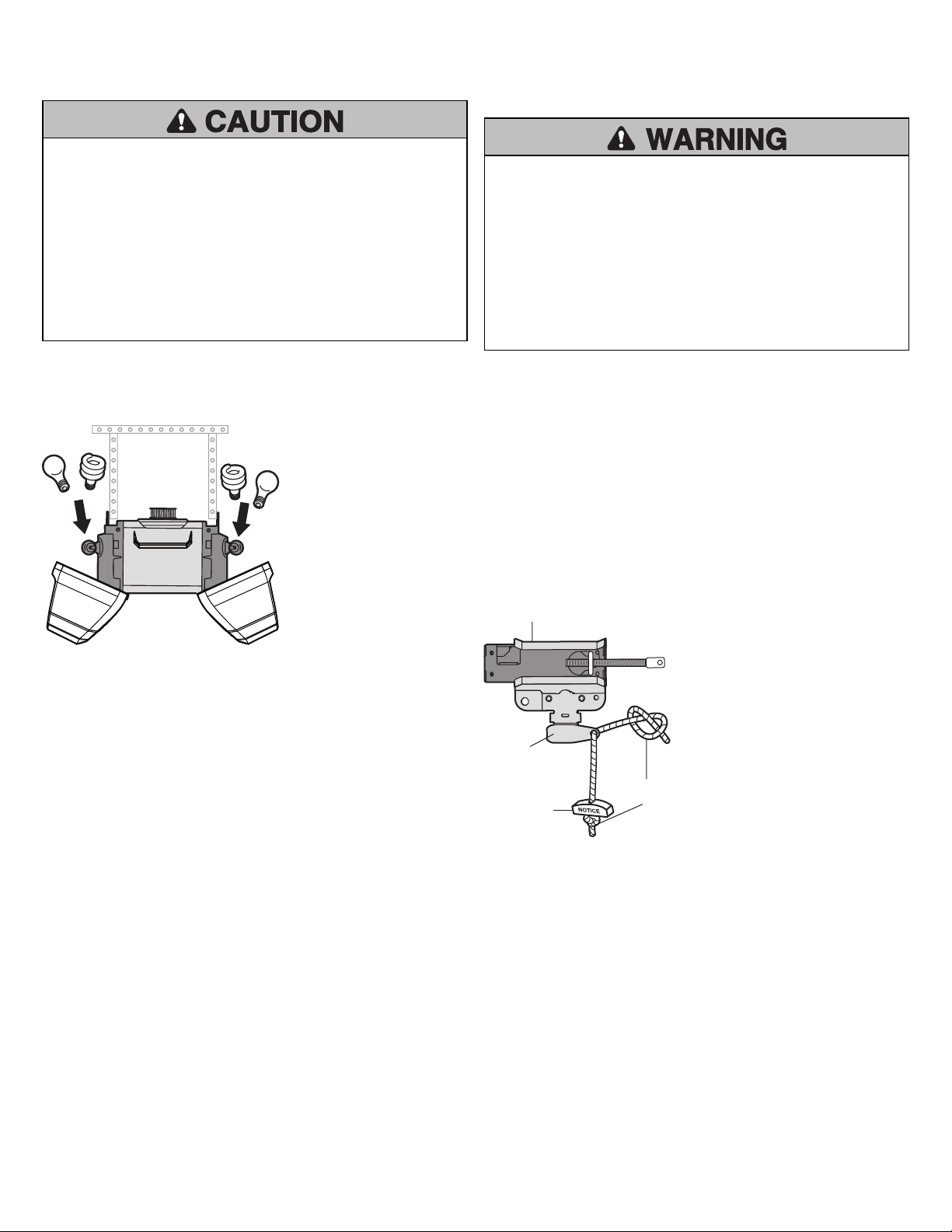

Install the Lights 18
Attach the Emergency Release Rope and Handle 18
Fasten the Door Bracket 19
Connect Door Arm to Trolley 21
Attach the Warning Labels 22
Install the Door Control - Model CMXEOCG232 23
Install the Door Control - Model CMXEOCG472 24
Install The Safety Reversal System 25
Electrical Requirements 28
Aligning the Safety Reversing Sensors 28
ADJUSTMENT 29
Introduction 29
1 - Program the Travel 30
2 - Automatic Force Set Up 30
3 - Test the Safety Reversal System 31
4 - Test the Protector System® 31
myQ® SMARTPHONE CONTROL 32
Connect With Your Smartphone 32
OPERATION 33
Important Safety Instructions 33
Features 34
Using Your Garage Door Opener 34
Using the Door Control - Model CMXEOCG232 34
Using the Door Control - Model CMXEOCG472 35
Remote Control 36
To Erase the Memory 36
To Open the Door Manually 37
The Remote Control Battery 37
Care of Your Opener 37
TROUBLESHOOTING 38
REPAIR PARTS 39
Rail Assembly Parts 39
Installation Parts 39
Motor Unit Assembly Parts - Model CMXEOCG232 40
Motor Unit Assembly Parts - Model CMXEOCG472 41
ACCESSORIES 42
WARRANTY 42
AUTOMATIC GARAGE DOOR OPENER SAFETY &
MAINTENANCE GUIDE 43
2
TABLE OF CONTENTS

INTRODUCTION

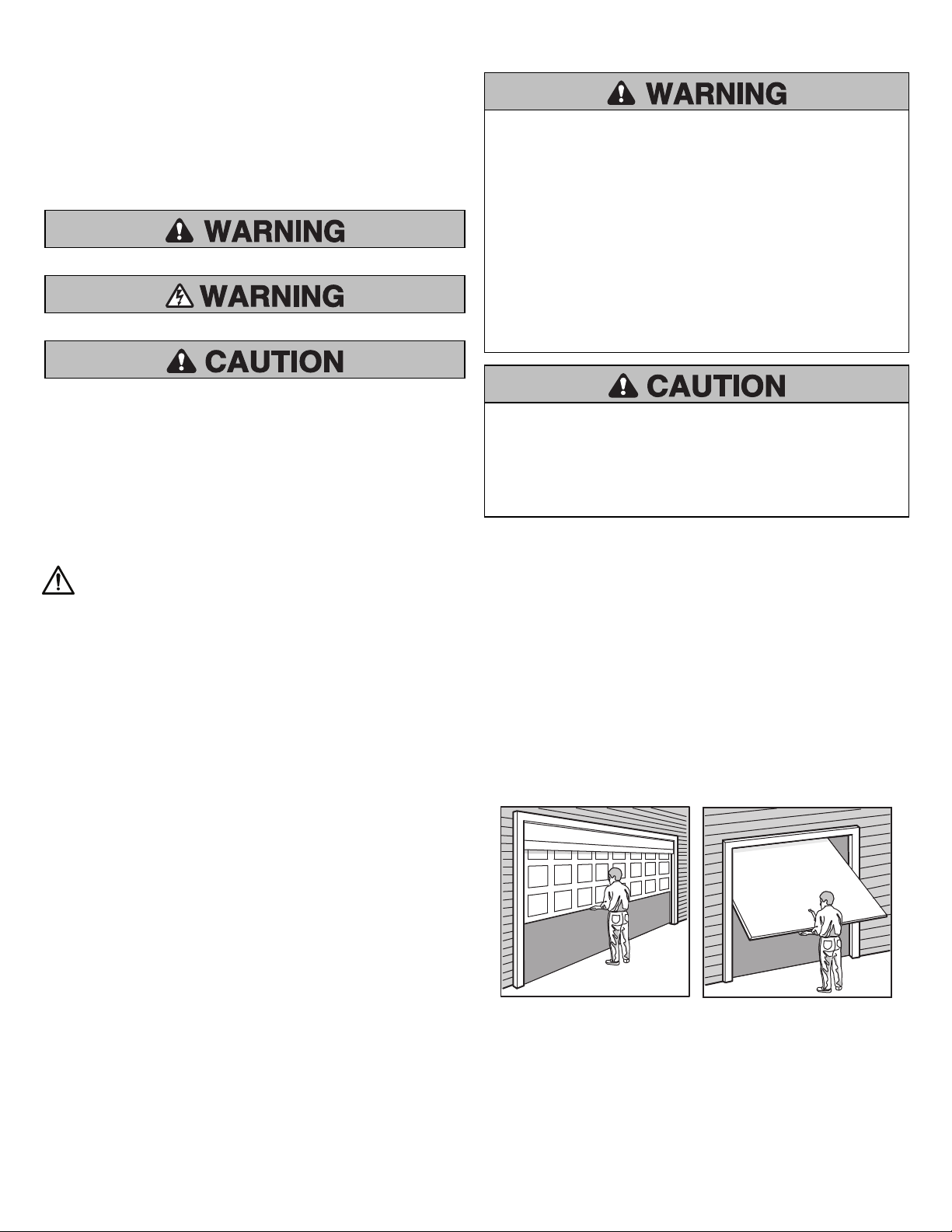

SAFETY SYMBOL REVIEW AND SIGNAL
WORD REVIEW
This garage door opener has been designed and tested to offer safe
service provided it is installed, operated, maintained and tested in
strict accordance with the instructions and warnings contained in this
manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal Words on the
following pages, they will alert you to the possibility of serious injury
or death if you do not comply with the warnings that accompany
them. The hazard may come from something mechanical or from
electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it will alert you
to the possibility of damage to your garage door and/or the garage
door opener if you do not comply with the cautionary statements that
accompany it. Read them carefully.
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov
UNATTENDED OPERATION
Any device or feature that allows the door to close without being in the
line of sight of the door is considered unattended close. Devices that
allow unattended operation are to be used ONLY with sectional
doors.
PREPARING YOUR GARAGE DOOR
To prevent possible SERIOUSINJURYor DEATH:
•ALWAYS call a trained door systems technician if garage door
binds, sticks, or is out of balance. An unbalanced garage door
may NOT reverse when required.
•NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, ALLof
which are under EXTREME tension.
•Disable ALLlocks and remove ALLropes connected to garage
door BEFORE installation and operating garage door opener
to avoid entanglement.
•DO NOT install on a one-piece door if using devices or
features providing unattended close. Unattended devices and
features are to be used ONLY with sectional doors.
To prevent damage to garage door and opener:
•ALWAYS disable locks BEFORE installing and operating the
opener.
•ONLY operate garage door opener at 120V, 60Hz to avoid
malfunction and damage.
Before you begin:
1. Disable locks and remove any ropes connected to the garage
door.
2. Lift the door halfway up. Release the door. If balanced, it
should stay in place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If
your door binds, sticks, or is out of balance, call a trained door
systems technician.
4. Check the seal on the bottom of the door. Any gap between
the floor and the bottom of the door must not exceed 1/4"
(6mm). Otherwise, the safety reversal system may not work
properly.
5. The opener should be installed above the center of the door. If
there is a torsion spring or center bearing plate in the way of
the header bracket, it may be installed within 4feet (1.2 m) to
the left or right of the door center. See page13.
Sectional Door One-Piece Door
3

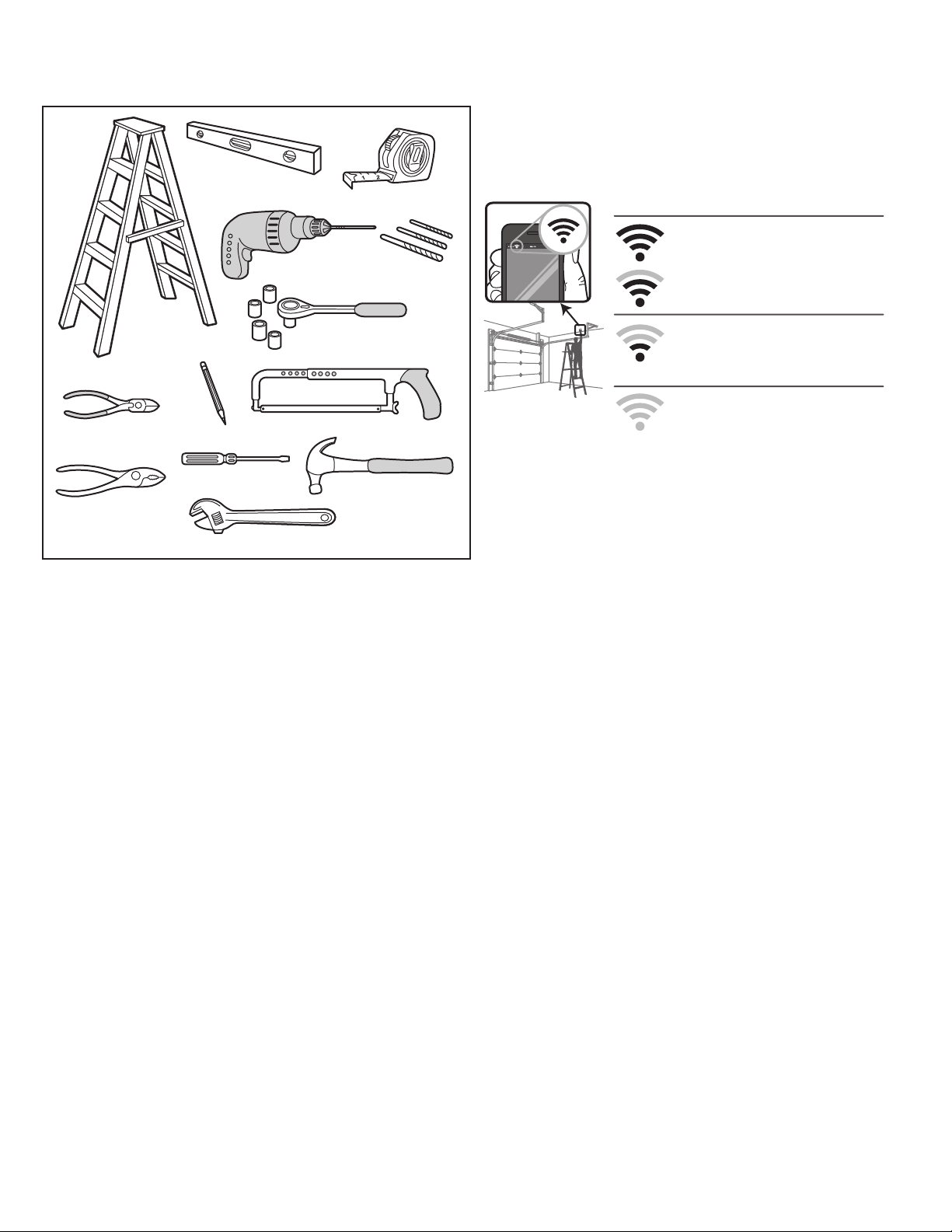

TOOLS NEEDED
During assembly, installation and adjustment of the opener,
instructions will call for hand tools as illustrated below.
Drill Bits 3/16",
5/16", and 5/32"
Claw Hammer
Carpenter’s Level
(optional)
Pencil
Screwdriver
Drill
Wire Cutters
Adjustable End Wrench
Tape Measure
Pliers
Sockets and Wrench 1/2",
5/8", 7/16", 9/16", and 1/4"
Hack Saw
Stepladder
TEST THE WI-FI®SIGNAL STRENGTH IN
YOUR GARAGE
Monitor and control your garage door from anywhere using the myQ®
App. You will need a router with Wi-Fi and a smartphone or other
mobile device. Make sure your mobile device is connected to your
Wi-Fi network. Hold your mobile device in the place where your
garage door opener will be installed and check the Wi-Fi signal
strength.
Wi-Fi signal is weak.
The garage door opener will likely connect to
your Wi-Fi network. If not, try one of the
options below.
No Wi-Fi signal.
Try one of the following:
• Move your router closer to the garage door
opener to minimize interference from walls
and other objects
• Buy a Wi-Fi range extender
Check Signal Strength. If you see:
Wi-Fi signal is strong.
You’re all set!
Install your new garage door opener.
Visit support.chamberlaingroup.com for more details
See myQ®App Control page 32 to connect your garage door opener
to your Wi-Fi network. Do NOT connect prior to installation.
Wi-Fi®is a registered trademark of Wi-Fi Alliance
4

PLANNING
Identify the type and height of your garage door. Survey your garage
area to see if any of the conditions below apply to your installation.
Additional materials may be required. You may find it helpful to refer
back to this page and the accompanying illustrations as you proceed
with the installation of your opener. Depending on your
requirements, there are several installation steps which may call for
materials or hardware not included in the carton.
•Installation Step 1 – Look at the wall or ceiling above the
garage door. The header bracket must be securely fastened
to structural supports.
•Installation Step 5 – Do you have a finished ceiling in your
garage? If so, a support bracket and additional fastening
hardware may be required.
•Installation Step 12 – Depending upon garage construction,
extension brackets or wood blocks may be needed to install
sensors.
•Installation Step 12 – Alternate floor mounting of the safety
reversing sensor will require hardware not provided.
•Do you have an access door in addition to the garage door?
If not, an emergency key release is required.
•Look at the garage door where it meets the floor. Any gap
between the floor and the bottom of the door must not
exceed 1/4" (6 mm). Otherwise, the safety reversal system
may not work properly. See Adjustment Step 2. Floor or door
should be repaired.
SECTIONAL DOOR INSTALLATION
•Do you have a steel, aluminum, fiberglass or glass panel
door? If so, horizontal and vertical reinforcement is required
(Installation Step 8).
•The opener should be installed above the center of the door.
If there is a torsion spring or center bearing plate in the way
of the header bracket, it may be installed within 4 feet (1.22
m) to the left or right of the door center. See Installation
Steps 1 and 8.
•If your door is more than 7 feet (2.13 m) high, see rail
extension kits listed on Accessories page.
Safety Reversing Sensor
Header Wall
Access Door
Safety Reversing
Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Extension Spring
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.).
Support bracket &
fastening hardware
is required.
FINISHED CEILING
Wall-mounted
Door Control
OR
Torsion Spring
Slack in chain tension
is normal when garage
door is closed.
Vertical
Centerline
of Garage
Door
Emergency
Release Rope
& Handle
Straight
Door
Arm
Garage
Door
Spring
Door
Bracket
Header
Bracket
Garage
Door
Header
Wall
CLOSED POSITION
Rail Tab
Curved
Door Arm
Chain
Trolley
SECTIONAL DOOR INSTALLATION
Motor unit
5

PLANNING (CONTINUED)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require reinforcement.
If your door is lightweight, refer to the information relating to
sectional doors in Installation Step 8.
•Depending on your door’s construction, you may need
additional mounting hardware for the door bracket
(Installation Step 8).
Without a properly installed safety reversing sensor, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a closing garage door.
•The gap between the bottom of the garage door and the floor
MUST NOT exceed 1/4" (6 mm). Otherwise, the safety
reversal system may NOT work properly.
•The floor or the garage door MUST be repaired to eliminate
the gap.
Safety Reversing Sensor
Access
Door
FINISHED CEILING
Support bracket
and fastening
hardware is required.
See page 16.
Safety Reversing
Sensor
Header Wall
Gap between floor
and bottom of door must
not exceed 1/4" (6 mm).
Rail
Slack in chain tension
is normal when garage
door is closed.
Access
Door
Safety Reversing Sensor
Safety Reversing Sensor
Gap between floor and bottom of door must
not exceed 1/4" (6 mm).
Header
Bracket
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door Bracket
Curved
Door
Arm
Header
Wall
Cable
Rail
Garage Door
CLOSED POSITION
Rail Tab
Straight Door
Arm
Curved
Door Arm
Door
Bracket
Header
Bracket
Garage
Door
Header
Wall
CLOSED POSITION
Rail Tab Chain
Rail
Cable
ONE-PIECE DOOR WITHOUT TRACK
ONE-PIECE DOOR WITH TRACK
Motor Unit
Wall-mounted
Door Control
6

CARTON INVENTORY
Your garage door opener is packaged in one carton which contains
the motor unit and all parts illustrated below. Accessories will
depend on the model purchased. If anything is missing, carefully
check the packing material.
Hardware for assembly and installation is shown on the next page.
Save the carton and packing material until installation and
adjustment is complete.
Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
2-Conductor Bell Wire
White & White/Red
Idler Pulley
001A5295
Chain and Cable
Hanging Brackets
(2) Safety Reversing Sensors
(1 Sending Sensor and 1 Receiving Sensor)
with 2-Conductor White & White/Black
Bell Wire attached
Door Bracket
Trolley
Safety Sensor
Bracket (2)
Rail
Center/Back
Sections
"U" Bracket
Rail
Front (header)
Section
Header Bracket
Chain Spreader
Motor Unit with a Light Lens
CMXEOCG232 CMXEOCG472
Motor Unit with 2 Light Lenses
Standard Doorbell 3-Button Remote Control
Dual-Function
Control Panel
7

HARDWARE INVENTORY
Separate all hardware and group as shown below for the assembly and installation procedures.
Handle
091B0019-1
Nut 5/16"-18 (6)
133A0028
Ring
Fastener (3)
158A0047
Insulated Staples
(Not shown)
131A0031
Drywall Anchors (2)
133A0126
Clevis Pin
5/16"x1"
146A0058
Rope
Lock Washer 5/16" (5)
216A0025
Lag Screw
5/16"-9x1-5/8" (4)
171A0480
Hex Bolt
5/16"-18x7/8" (4)
171A0301
Clevis Pin
5/16"x1-1/4"
146A0074
Screw
6ABx1" (2)
171A0361
Screw 6-32x1" (2)
171A0475
Clevis Pin
5/16"x1-1/2"
1460100
Self-Threading Screw
1/4"-14x5/8" (2)
171A0540
INSTALLATION HARDWARE
ASSEMBLY HARDWARE
Master
Link (2)
Idler Bolt
Nut 3/8"
Trolley Threaded Shaft
Lock Washer 3/8"
Lock Nut
1/4"-20
Bolt
1/4"-20x1-3/4"
Hexagonal Screw 10-24 (2)
Wing Nut 1/4"-20 (2)
8

ASSEMBLY STEP 1
ASSEMBLE THE RAIL AND INSTALL THE
TROLLEY
To prevent INJURY from pinching, keep hands and fingers away
from the joints while assembling the rail.
To avoid installation difficulties, do not run the garage door opener
until instructed to do so.
The front rail has a cut out “window” at the door end. The front rail has
a rail tab. This tab MUST be on the top of the rail when assembled.
1. Remove the straight door arm and hanging bracket packaged
inside the front rail and set aside for Installation Step 5 and 9.
NOTE: To prevent INJURY while unpacking the rail carefully
remove the straight door arm stored within the rail section.
2. Align the rail sections on a flat surface as shown and slide the
tapered ends into the larger ones. Tabs along the side will
lock into place.
3. Place the motor unit on packing material to protect the cover,
and rest the back end of the rail on top. For convenience, put
a support under the front end of the rail.
4. As a temporary stop, insert a screwdriver into the hole 10" (25
cm) from the front end of the rail, as shown.
5. Check to be sure there are 4 plastic wear pads inside the
inner trolley. If they became loose during shipping, check all
packing material. Snap them back into position as shown.
6. Slide the trolley assembly along the rail from the back end to
the screwdriver.
7. Slide the rail onto the “U” bracket, until it reaches all the stops
on the top and sides of the “U” bracket.
To garage
door opener
(TO MOTOR UNIT)
“U” Bracket
Outer Trolley
Inner Trolley
Wear Pads
SLIDE TO STOPS
ON TOP AND
SIDES OF
“U” BRACKET
Front Rail
Section
(TO DOOR)
Rail
Tab
Trolley
Window
Cut-Out
Idler
Pulley
Hole
ASSEMBLY STEP 2
FASTEN THE RAIL TO THE MOTOR UNIT
To avoid SERIOUS damage to garage door opener, use ONLY
those bolts/fasteners mounted in the top of the opener.
1. Insert a 1/4"-20 x 2-1/2" bolt into the cover protection bolt hole
on the back end of the rail as shown. Tighten securely with a
1/4"-20 lock nut. DO NOT overtighten.
2. Remove the bolts from the top of the motor unit.
3. Use the carton to support the front end of the rail.
4. Place the “U” bracket, flat side down onto the motor unit and
align the bracket holes with the bolt holes.
5. Fasten the “U” bracket with the previously removed bolts; DO
NOT use any power tools. The use of power tools may
permanently damage the garage door opener.
6. Attach chain spreader to the motor unit with two screws.
HARDWARE SHOWN ACTUAL SIZE
Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
“U” Bracket
Hex Screws
8-32x7/16
Cover
Protection
Bolt Hole
Bolt
Lock Nut
Bolts (Mounted in the
garage door opener)
Chain
Spreader
NOTE: Your product may look different than the illustrations.
9

ASSEMBLY STEP 3
INSTALL THE IDLER PULLEY
1. Lay the chain/cable beside the rail, as shown. Grasp the end
of the cable and pass approximately 12" (30 cm) of cable
through the window. Allow it to hang until Assembly Step4.
2. Remove the tape from the idler pulley. The inside center
should be pre-greased. If dry, regrease to ensure proper
operation.
3. Place the idler pulley into the window as shown.
4. Insert the idler bolt from the top through the rail and pulley.
Tighten with a 3/8" lock washer and nut underneath the rail
until the lock washer is compressed.
5. Rotate the pulley to be sure it spins freely.
6. Locate the rail tab. The rail tab is near the idler pulley on the
front rail section. Use a flat head screwdriver and lift the rail
tab until the tab is vertical (90º).
Lock
Washer
3/8"
Idler Bolt Rail Tab
Idler Pulley
Screwdriver
CORRECT INCORRECT
Chain and Cable
Cable Link
Rail Tab
Nut 3/8"
Idler Bolt
HARDWARE SHOWN ACTUAL SIZE
Trolley
Lock Washer 3/8"
Nut 3/8"
10
