Craftsman 919.672100 User manual

Owner’s Manual
4.0 Horsepower
2150 PSI
2.0 GPM
PRESSURE WASHER
• Safety Guidelines
• Assembly
• Operation
• Maintenance
• Storage
• Troubleshooting
• Repair Parts
Model No.
919.672100
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sold by Sears Canada, Inc. Toronto, Ont. M5B 2B8
D25079 Rev. 0 12/7/01

2- ENG
D25079
FULL ONE YEAR WARRANTY ON PRESSURE WASHERS
If this pressure washer fails due to a defect in material or workmanship within
one year from the date of purchase, RETURN IT TO THE NEAREST SEARS
SERVICE CENTER THROUGHOUT CANADA AND SEARS WILL REPAIR IT,
FREE OF CHARGE.
If this pressure washer is used for commercial or rental purposes, the warran-
ty will apply for ninety days (90) from the date of purchase.
This Craftsman pressure washer warranty gives you specific legal rights and
you may have other rights which vary from province to province.
Sears Canada, Inc., Toronto, Ont. M5B 2B8
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SPECIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
SAFETY GUIDELINES- DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . .3-7
BOX CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-14
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-17
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-21
REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-35
HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . . .Back Cover
WARRANTY

3- ENG D25079
used without the
safety alert symbol
indicates a potentially hazardous situ-
ation which, if not avoided, may result
in property damage.
indicates a poten-
tially hazardous sit-
uation which, if not avoided, could
result in death or serious injury.
This product may not be equipped with a spark arresting muffler. If
the product is not equipped and will be used around flammable
materials, or on land covered with materials such as agricultural crops, forest,
brush, grass, or other similar items, then an approved spark arrester must be
installed and is legally required in the state of California. It is a violation of
California statutes section 130050 and/or sections 4442 and 4443 of the
California Public Resources Code, unless the engine is equipped with a spark
arrester, as defined in section 4442, and maintained in effective working order.
Spark arrester are also required on some U.S. Forest Service land and may also
be legally required under other statutes and ordinances.
Engine exhaust contains chemicals known, in certain quantities, to cause cancer,
birth defects or other reproductive harm.
Read Operator’s Manual. Do not operate equipment until you have
read Operator’s Manual for Safety, Assembly, Operation, and
Maintenance Instructions.
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read and understand the manual and pay attention to
these symbols.
10/2/97
SAFETY GUIDELINES - DEFINITIONS
indicates an immi-
nently hazardous
situation which, if not avoided, will
result in death or serious injury.
indicates a potential-
ly hazardous situa-
tion which, if not avoided, may result
in minor or moderate injury.
SPECIFICATION CHART
Model No. 919-672100
Pressure Washer
Pressure 2150 PSI
Flow Rate 2.0 GPM
Cleaning Units (PSI x GPM) 4300
Engine
RPM 3600
Rated Horsepower 4.0
Spark Plug Gap .030” (0.76mm)
Gasoline Capacity 1 quart (0.95 liters)
Oil 20 oz. ( 0.6 liters) capacity SAE 30 weight

4- ENG
D25079
HAZARD
HOW TO PREVENT ITWHAT CAN HAPPEN
RISK TO BREATHING
RISK OF EXPLOSION OR FIRE
• Use of acids, toxic or corrosive chemi-
cals, poisons, insecticides, or any kind of
flammable solvent with this product
could result in serious injury or death.
• Some cleaning fluids contain substances
which could cause injury to skin, eyes, or
lungs.
• Spilled gasoline and it’s vapors can be-
come ignited from cigarette sparks,
electrical arcing, exhaust gases, and hot
engine components such as the muffler.
• Heat will expand fuel in the tank which
could result in spillage and possible fire
explosion.
• Operating the pressure washer in an ex-
plosive environment could result in a
fire.
• Materials placed against or near the
pressure washer can interfere with its
proper ventilation features causing over-
heating and possible ignition of the
materials.
• Muffler exhaust heat can damage paint-
ed surfaces, melt any material sensitive
to heat (such as siding, plastic, rubber,
or vinyl), and damage live plants.
• Improperly stored fuel could lead to ac-
cidental ignition. Fuel improperly
secured could get into the hands of chil-
dren or other unqualified persons.
• Do not spray flammable liquids
• Shut off engine and allow it to cool
before adding fuel to the tank.
• Use care in filling tank to avoid spilling
fuel. Move pressure washer away from
fueling area before starting engine.
• Keep maximum fuel level ½” below top
of tank to allow for expansion.
• Always keep pressure washer a mini-
mum of four feet away from surfaces
(such as houses, automobiles, or live
plants) that could be damaged from
muffler exhaust heat.
• Store fuel in an OSHA approved con-
tainer, in a secure location away from
work area.
• Operate and fuel equipment in well ven-
tilated areas free from obstructions.
Equip areas with fire extinguishers suit-
able for gasoline fires.
• Never operate pressure washer in an
area containing dry brush or weeds.
HAZARD
HOW TO PREVENT ITWHAT CAN HAPPEN
• Operate pressure washer in a well venti-
lated area. Avoid enclosed areas such
as garages, basements ,etc.
• Never operate unit in a location occu-
pied by humans or animals.
• Use only cleaning fluids specifically rec-
ommended for high pressure washers.
Follow manufacturers recommenda-
tions.Do not use chlorine bleach or any
other corrosive compound
• Breathing exhaust fumes will cause seri-
ous injury or death.
IMPORTANT SAFETY INSTRUCTIONS

5- ENG D25079
RISK OF UNSAFE OPERATION
•If proper starting procedure is not fol-
lowed, engine can kickback causing
serious hand and arm injury.
HAZARD
HOW TO PREVENT ITWHAT CAN HAPPEN
• Become familiar with the operation and
controls of the pressure washer.
• Keep operating area clear of all persons,
pets, and obstacles.
• Do not operate the product when
fatigued or under the influence of alco-
hol or drugs. Stay alert at all times.
• Never defeat the safety features of this
product.
• Do not operate machine with missing,
broken, or unauthorized parts.
• Never leave wand unattended while unit
is running.
•If engine does not start after two
pulls, squeeze trigger of gun to
relieve pump pressure. Pull starter
cord slowly until resistance is felt.
Then pull cord rapidly to avoid kick-
back and prevent hand or arm injury.
• Unsafe operation of your pressure
washer could lead to serious injury or
death to you or others.
• The spray gun/wand is a powerful clean-
ing tool that could look like a toy to a
child.
• Keep children away from the pressure
washer at all times.
• Reactive force of spray will cause
gun/wand to move, and could cause the
operator to slip or fall, or misdirect the
spray. Improper control of gun/wand can
result in injuries to self and others.
• Do not overreach or stand on an unsta-
ble support. Grip gun/wand firmly with
both hands. Expect the gun to kick
when triggered.
RISK OF ELECTRICAL SHOCK
• Spray directed at electrical outlets or
switches, or objects connected to an
electrical circuit, could result in a fatal
electrical shock.
• Unplug any electrically operated product
before attempting to clean it. Direct
spray away from electric outlets and
switches.
HAZARD
HOW TO PREVENT ITWHAT CAN HAPPEN

6- ENG
D25079
HOW TO PREVENT ITWHAT CAN HAPPEN
RISK TO FLUID INJECTION
• Your washer operates at fluid pressures
and velocities high enough to penetrate
human and animal flesh, which could
result in amputation or other serious
injury. Leaks caused by loose fittings or
worn or damaged hoses can result in
injection injuries. DO NOT TREAT FLUID
INJECTION AS A SIMPLE CUT! See a
physician immediately!
• Never place hands in front of nozzle.
• Direct spray away from self and others.
• Make sure hose and fittings are tight-
ened and in good condition. Never
hold onto the hose or fittings during op-
eration.
• Do not allow hose to contact muffler.
• Never attach or remove wand or hose
fittings while system is pressurized.
• Use only hose and high pressure
accessories rated for pressure higher
than your pressure washer's p.s.i.
HAZARD
• Relieve system pressure before at-
tempting maintenance or disassembly
of equipment.
• To relieve system pressure, shut off
engine, turn off water supply, and pull
gun trigger until water stops flowing.
HOW TO PREVENT ITWHAT CAN HAPPEN
HAZARD
RISK OF CHEMICAL BURN
• Use of acids, toxic or corrosive chemi-
cals, poisons, insecticides, or any kind
of flammable solvent with this product
could result in serious injury or death.
• Do not use acids, gasoline, kerosene, or
any other flammable materials in this
product. Use only household deter-
gents, cleaners and degreasers recom-
mended for use in pressure washers.
• Wear protective clothing to protect eyes
and skin from contact with sprayed
materials.
• Do not use chlorine bleach or any other
corrosive compound.

7- ENG D25079
HOW TO PREVENT ITWHAT CAN HAPPEN
HAZARD
RISK OF HOT SURFACES
• Contact with hot surfaces, such as
engines exhaust components, could
result in serious burn.
• During operation, touch only the control
surfaces of the pressure washer. Keep
children away from the pressure washer
at all times. They may not be able to
recognize the hazards of this product.
HOW TO PREVENT ITWHAT CAN HAPPEN
HAZARD
• Fuel or oil can leak or spill and could
result in fire or breathing hazard, serious
injury or death can result. Fuel or oil
leaks will damage carpet, paint or other
surfaces in vehicles or trailers.
• If pressure washer is equipped with a
fuel shut-off valve, turn the valve to the
off position before transporting to avoid
fuel leaks. If pressure washer is not
equipped with a fuel shut-off valve, drain
the fuel from tank before transporting.
Only transport fuel in an OSHA
approved container. Always place pres-
sure washer on a protective mat when
transporting to protect against damage
to vehicle from leaks. Remove pressure
washer from vehicle immediately upon
arrival at your destination.
RISK OF INJURY AND PROPERTY
DAMAGE WHEN TRANSPORTING
OR STORING
The powerful spray from your pressure washer is capable of caus-
ing damage to surfaces such as wood, glass, automobile paint, auto
striping and trim, and delicate objects such as flowers and shrubs. Before spraying,
check the item to be cleaned to assure yourself that it is strong enough to resist
damage from the force of the spray. Avoid the use of the concentrated spray stream
except for very strong surfaces like concrete and steel.
Operating without flow of water will result in equipment damage. Operating the pres-
sure washer with water supply shutoff will void your warranty. You should never run
this pressure washer for more than 2 minutes without pulling the trigger to allow cool
water to enter the pump and the heated (recirculated) water to exit.

8- ENG
D25079
2. Connect wand to gun. Tighten
securely.
3. Attach high pressure hose to gun.
Tighten securely.

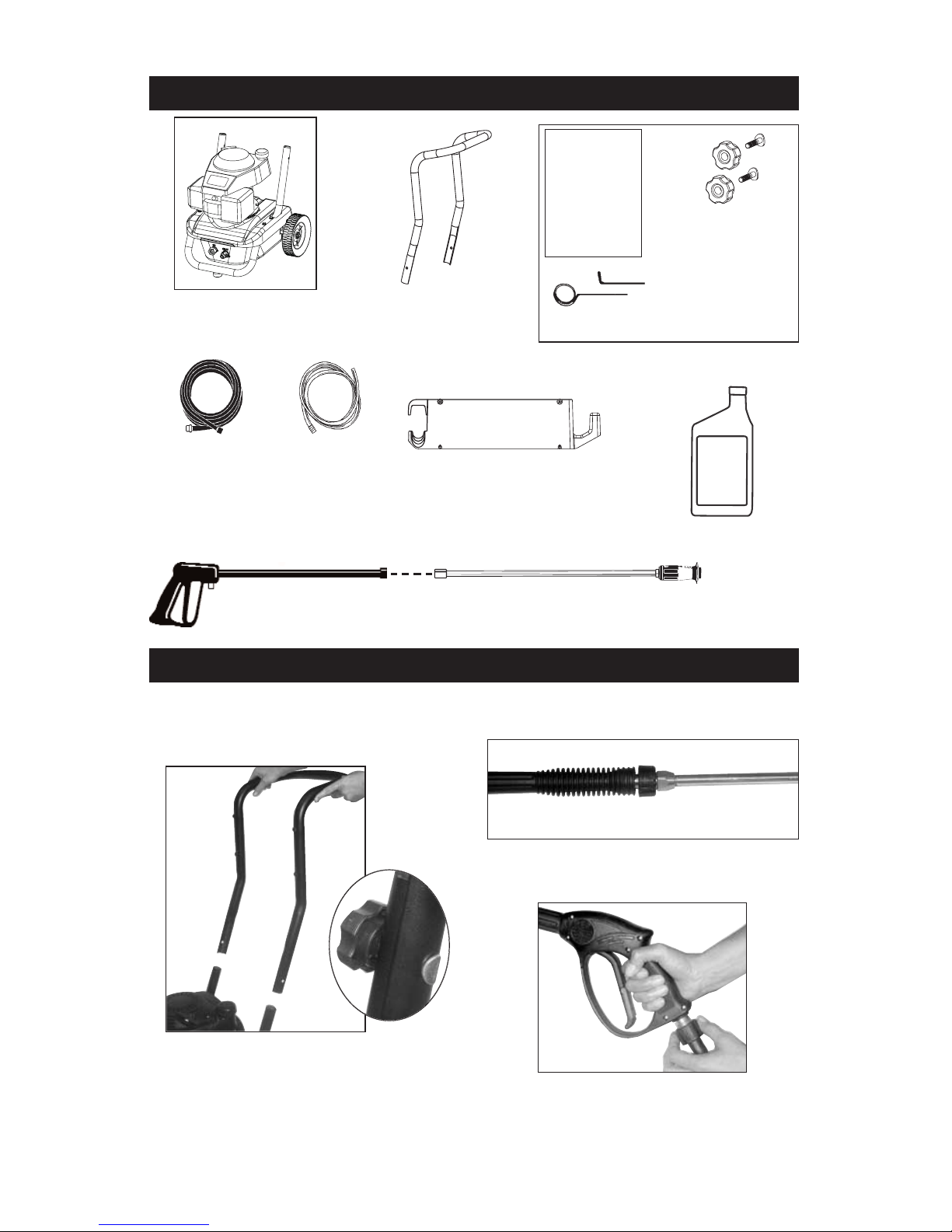

ASSEMBLY
1. Place handle assembly onto
frame and connect handle to
frame.
BOX CONTENTS
Handle
Part No. D22316
Bagged Parts
Nozzle Cleaning
Kit
English/
French
Operator’s
Manual
Engine Frame and
Wheel Assembly
High Pressure
Hose
Part No. D22166
Chemical Hose
Part No. H140
Engine Oil
Spray Gun
Part No. 17780
Multi-Reg Wand
Part No. D22837
Accessories Panel Part No. D25081
with Screws Part No. D22901
Knobs
Part No.
16471
Saddle
Bolts Part
No. D23196
Allen Wrench Part No. 16797
Cleaning Tool Part No. NCT001

9- ENG D25079
5. To Assemble Accessories Panel
a. Remove top screws on han-
dle assembly.
b. Loosen bottom screws on
handle assembly.
c. Place grooves in accessories
panel assembly onto screws
and slide panel assembly
into place.
d. Place screws (removed earli-
er) into the top holes and
secure accessories panel
assembly to handles. Do
not overtighten.
Loosen
Screws
Remove

10- ENG
D25079
PRESSURE WASHER
High Pressure Pump (located
inside the shroud): Increases the
pressure of the water supply.
Engine: Drives the high pressure
pump.
High Pressure Hose: Carries the
pressurized water from the pump to
the gun and wand.
Spray Gun: Connects with wand to
control water flow rate, direction, and
pressure.
Multi-Reg Wand: Has a spray nozzle
which adjust from a pencil stream (0°)
to a wide angle fan spray (40°). The
spray can be adjusted by twisting the
nozzle clockwise and/or counter-
clockwise. Also, the high and low
pressure settings can be controlled
by moving the nozzle in and out. See
Operation section.
ENGINE
Choke Control: Opens and closes
the choke valve in carburetor.
Throttle Control Lever: Controls
engine speed.
Starter Grip: Pulling starter grip
operates recoil starter to crank
engine.
Chemical Hose: Allows cleaners or
cleaning solvents to be mixed with
the pressurized water stream. See
How To Siphon Chemicals/Cleaning
Solvents in Operation section of this
manual.
OPERATION
Know Your Pressure Washer
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
High
Pressure
Pump
Engine
High
Pressure
Hose
Spray
Gun
Multi-Reg
Wand
Chemical
Hose
Hand
Grip
Air Filter
Choke
Control
Throttle Control
Oil
Fill

11- ENG D25079
TO ADJUST PRESSURE
The pressure setting is preset at the
factory to achieve optimum pressure
and cleaning. If you need to lower the
pressure, it can be accomplished by
these methods.
1. Back away from the surface to be
cleaned. The further away you
are, the less the pressure will be
on the surface to be cleaned.
2. Reduce the speed of the gaso-
line engine (RPM). Slow the
engine down and the water pres-
sure will go down with it.
DO NOT attempt to
increase pump
pressure. A higher pressure set-
ting than the factory set pressure
may damage pump.
HOW TO USE
IMPORTANT: Read and understand
how to use the pressure washer
before operating.
TO USE WAND
Your pressure washer is equipped
with a multi-reg wand with both high
and low pressure settings. The high
pressure setting is for cleaning and
rinsing, the low pressure setting is for
applying chemicals or cleaning solu-
tions to surfaces.
Risk of injection or
injury to person. Do
not direct discharge stream toward
persons, unprotected skin, eyes, or
towards any pets or animals.
Serious injury can occur.
For high pressure operation, pull back
the nozzle of the multi-reg wand as
shown.
PRESSURE WASHER
TERMINOLOGY
NOTE: Become familiar with this ter-
minology before operating.
PSI: Pounds per Square Inch. The
unit of measure for water pressure.
Also used for air pressure, hydraulic
pressure, etc.
GPM: Gallons Per Minute. The unit
of measure for the flow rate of water
through the pressure washer.
CU: Cleaning Units. GPM multiplied
by PSI.
Bypass Mode: In Bypass Mode, the
pump is recirculating water because
the trigger of the spray gun is not
pulled. If unit is left in bypass mode
for more than two (2) minutes, the
water temperature will rise to a dan-
gerous level and damage internal
components of the pump.Any dam-
age to pump due to these causes will
not be covered under warranty.
DO NOT allow your
unit to operate in
bypass mode for more than two
minutes at any time. Overheating
of pump can cause damage to
pump.
Thermal Relief Valve: In an effort to
prevent damage, pumps are
equipped with a thermal relief valve.
This valve will open when the temper-
ature inside the pump rises too high.
This valve will then release a gush of
water in an effort to lower the tem-
perature inside the pump.
Immediately after this occurs, the
valve will close.
Chemical Injection: Feeds cleaning
agents into the pump to mix with the
pressurized water and help in clean-
ing.
Water Supply: All pressure washers
must have a source of water. The
minimum requirements for a water
supply are 20 PSI and 5 gallons per
minute.

12- ENG
D25079D25079

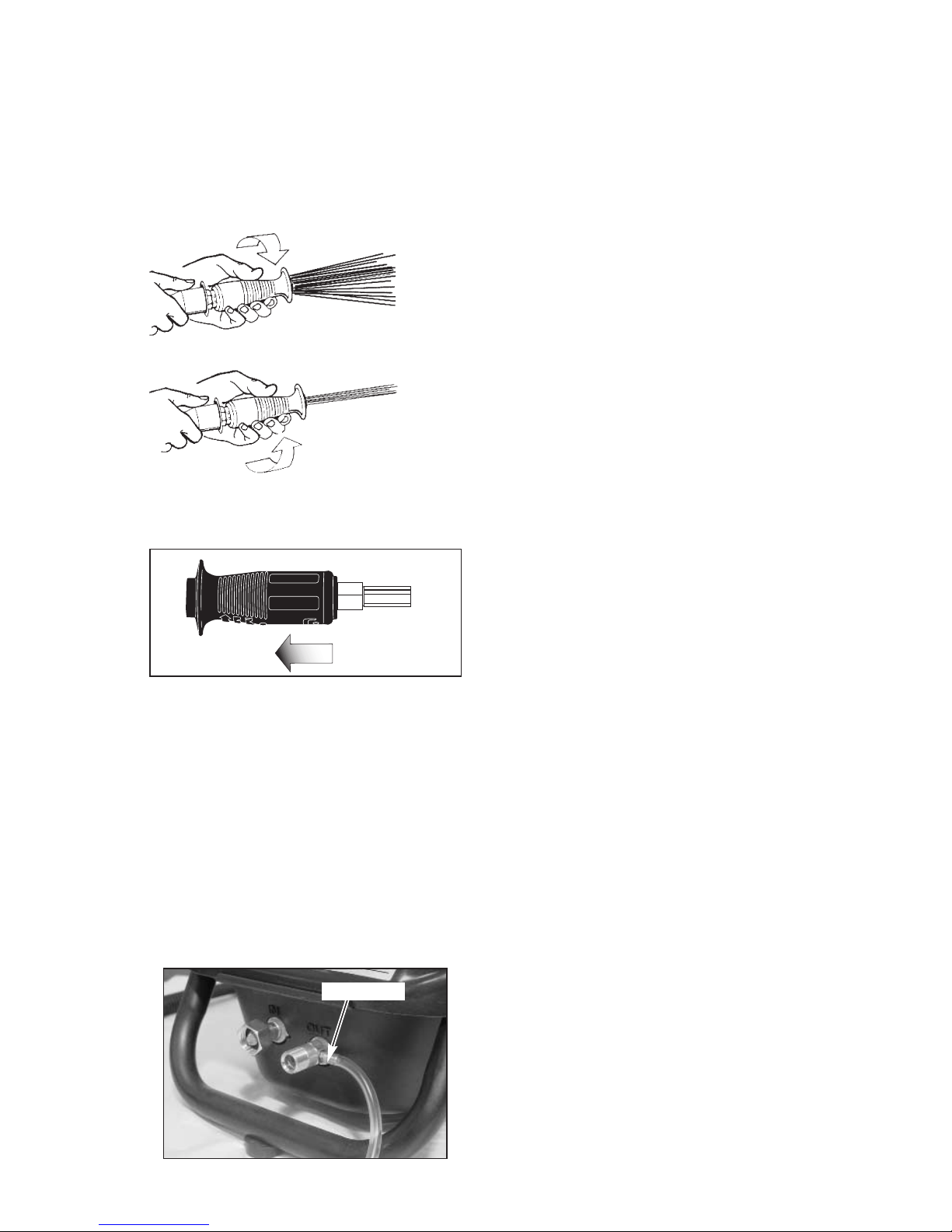

The nozzle at the end of the multi-reg
wand can be rotated to change the
high pressure spray pattern from a
narrow jet to a 40º fan shape, as
shown. Markings have been placed
on the nozzle to help you select the
spray pattern.
For low pressure operation, extend
the nozzle of the multi-reg wand as
shown.
40º fan spray
narrow jet stream
TO SIPHON
CHEMICALS/CLEANING
SOLVENTS
Siphoning chemicals or cleaning sol-
vents is a low pressure operation.
NOTE: Use only soaps and chemi-
cals designed for pressure washer
use. Do not use bleach.
1. Press chemical hose onto
barbed fitting located near high
pressure hose connection of
pump as shown.
2. Place other end of chemical hose
with filter on it into container
holding chemical/cleaning solu-
tion.
3. Set multi-reg nozzle to low pres-
sure setting, see How To Use
Wand paragraph in this section.

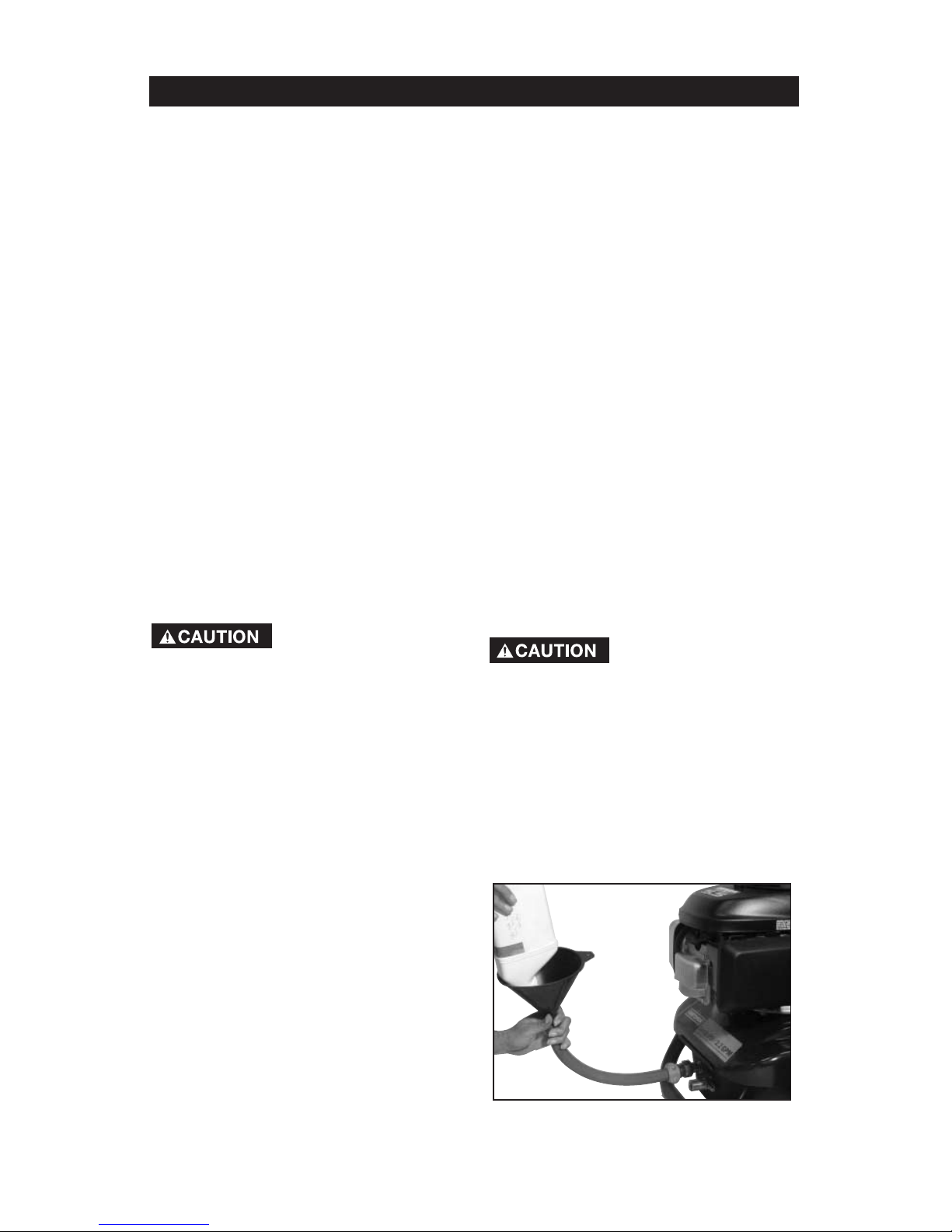

4. After use of chemical, siphon
clean water through chemical
hose to rinse it and pump clean.
Chemicals which remain in pump
can damage it. Damage to pump
due to chemicals will not be cov-
ered under warranty.
NOTE: Chemicals and soap will not
siphon when wand is in the high
pressure setting.
Barb fitting
TO SHUT DOWN
IMPORTANT: Read and understand
how to shut down the pressure
washer before operating.
1. If you have siphoned chemicals,
siphon a bucket of clean water
through the chemical hose.
NOTE: Failure to do so will
cause damage to the pump.
2. Turn engine off by placing the
throttle control in the STOP posi-
tion.
NOTE: NEVER turn the water off
with the engine running.
3. Turn water source off.
4. Pull trigger on spray gun to
relieve any water pressure in
hose or spray gun.
5. See Storage section in this man-
ual for proper storage proce-
dures.

13- ENG D25079D25079

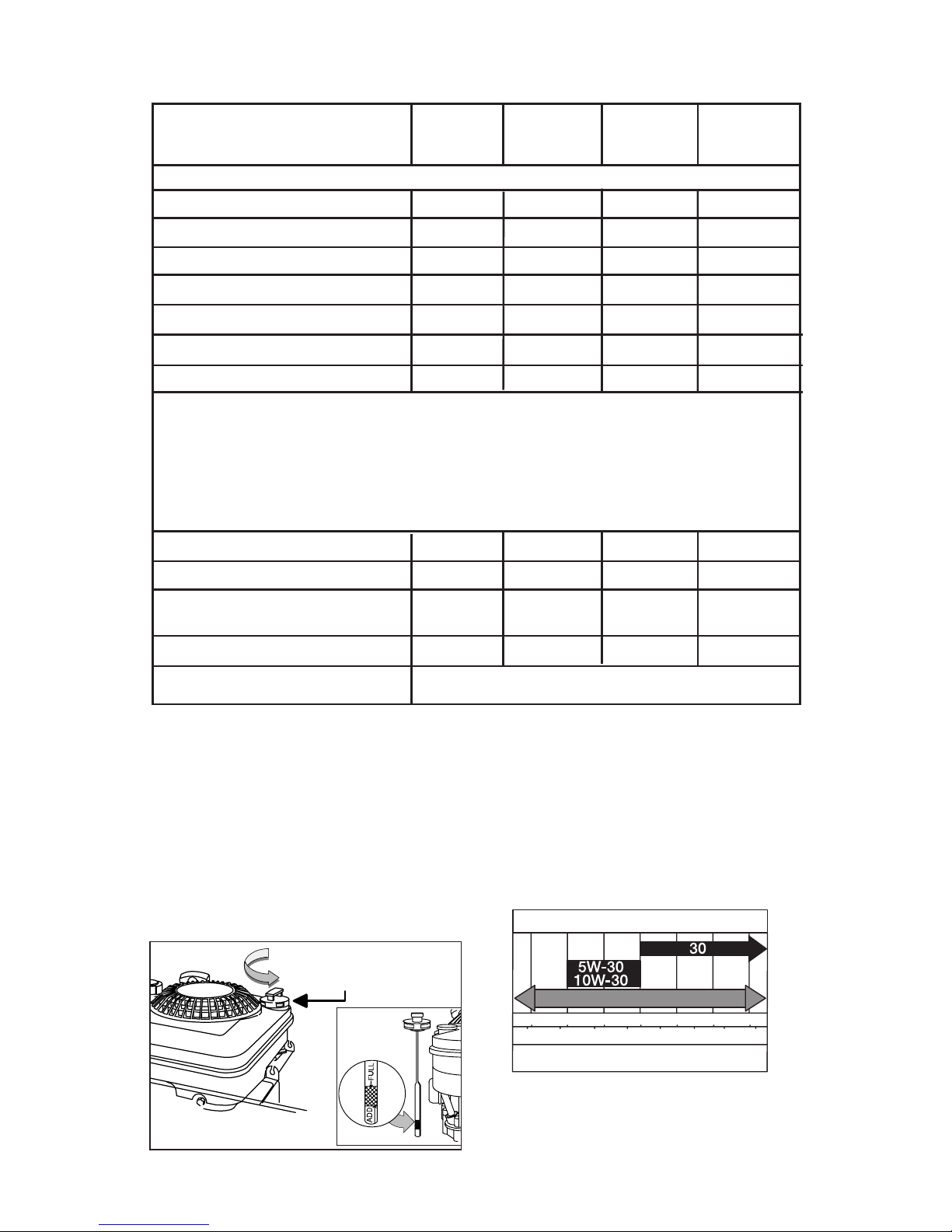

2. Remove filler cap/dipstick and
add engine oil (supplied) to
engine.
NOTE: There will be a slight amount
of oil in the engine from factory test-
ing.
3. Oil level should be at the FULL
line on dipstick. Always check oil
level before each start-up.
4. Verify the filter screen is in water
inlet of pump, as shown.
5. Connect high pressure hose to
pump outlet.
6. Connect water source to pump
inlet.
NOTE: Water source must provide
a minimum of 5 gallons per minute
at 20 p.s.i.
Water
Source
High
Pressure
Hose
Filter Screen
BEFORE STARTING
Read and understand all Important
Safety Instructions in the front of
this manual and the following
Cautions and Warnings before
starting the pressure washer.
• Never fill fuel tank completely.
Fill tank to 1/2" below bottom
of filler neck to provide space
for fuel expansion. Wipe any
fuel spillage from engine and
equipment before starting
engine.
• Never fill fuel tank indoors.
Never fill fuel tank when engine
is running or hot. Do not
smoke when filling fuel tank.
• Never run engine indoors or in
enclosed, poorly ventilated
areas. Engine exhaust con-
tains carbon monoxide, an
odorless and deadly gas.
• Never turn water supply off
while pressure washer engine
is running or damage to pump
will result.
• DO NOT use hot water, use
cold water only.
• DO NOT stop spraying water
for more than two minutes at a
time.
NOTE: Remove and discard blue
plug in fuel fill.
1. Add fresh high quality unleaded
gasoline with a pump octane rat-
ing of 86 or higher. Do not over-
fill. Wipe up spilled fuel before
starting the engine.
Filler cap/
dipstick
Fuel
Fill

14- ENG
D25079D25079
10. Pull starter grip slowly until you
feel resistance, then pull briskly.
Return starter grip gently. Pull
rope with a rapid full arm stroke.
Let rope rewind slowly. Repeat if
necessary. If the engine does
not start after two
pulls, pull the trigger to relieve the
pressure.
11. If the choke was used to start
the engine, move the choke lever
to the OFF position.
12. Depress trigger on gun to start
water flow. Release trigger to
stop water flow.
13. Adjust nozzle spray for the task
being performed. See How To
Use Wand instructions in this
section.
DO NOT let hoses
come in contact
with very hot engine muffler during
or immediately after use of your
pressure washer.
MAINTENANCE
WHEN PERFORMING MAINTENANCE, YOU MAY BE
EXPOSED TO HOT SURFACES, WATER PRESSURE, MOV-
ING PARTS, OR FIRE RESULTING IN DEATH. BEFORE PERFORMING ANY
MAINTENANCE OR REPAIR, DISCONNECT SPARK PLUG WIRE, LET
ENGINE COOL AND RELEASE ALL WATER PRESSURE. THE ENGINE CON-
TAINS FLAMMABLE FUEL. DO NOT SMOKE OR WORK NEAR OPEN
FLAMES WHILE PERFORMING MAINTENANCE.
To ensure efficient operation and longer life of your pressure washer, a routine
maintenance schedule should be prepared and followed. If the pressure washer
is used in unusual conditions, such as high-temperatures or dusty conditions,
more frequent maintenance checks will be required.
7. If you are applying a chemical or
cleaning solution, See How To
Siphon Chemicals/Cleaning
Solvents in Operation section of
this manual.
8. Turn water source on.
NOTE: Make sure water supply is
turned on.
9. Move the choke control lever to
the CHOKE ON position and
the throttle control to the FAST
position. NOTE: No choke is
needed to start a warm engine.
Choke
Control
Throttle
Control

5. If needed, add oil slowly and
recheck. Do not over fill.
NOTE: Use a high quality detergent oil
classified “For Service SF, SG, SH,
SJ” or higher, such as SAE 30.
NOTE: Other viscosities shown in the
chart may be used when the average
temperature in your area is within the
recommended range.
6. Replace filler cap/dipstick.
15- ENG D25079
CUSTOMER RESPONSIBILITIES TABLE
MAINTENANCE TASK
PRESSURE WASHER
ENGINE
check/clean inlet screen
check high pressure hose
check soap and chemical
hose and filter
check gun and wand for leaks
check oil level
change oil
check air cleaner
clean/replace spark plug
prepare for storage
Before
each use
Every 25
hours or
yearly
Every 50
hours or
yearly
Every 100
hours or
yearly
Prepare unit for storage if it is to remain idle for longer
than 30 days
X
X
X
X
X
X**
X*
X
ENGINE
To Check Oil
1. Shut down engine and place on a
level surface.
2. Remove filler cap/dipstick and
wipe it clean.
3. Replace and tighten dipstick.
Remove and check oil level.
4. Oil level should be at the FULL
line on dipstick.
F-20 0 20 40 60 80 100
C-30 -20 -10 0 10 20 30 40
STARTING TEMPERATURES RANGE
ANTICIPATED BEFORE NEXT OIL CHANGE
*
**
32
SAE Viscosity Grades
Synthetic 5W-30, 10W-30
Filler cap/
dipstick
clean debris X
clean air cooling system X
clean combustion chamber X
*Change oil after first 5 to 8 hours of use, then every 50 hours or every
season. Change oil every 25 hours when operating the engine under heavy
load or in high temperatures.
** Clean more often under conditions of dust or airborne debris. Replace air
cleaner parts, if very dirty.

16- ENG D25079
Air Cleaner
To Remove
1. Loosen screw and tilt cover
down.
2. Remove air cleaner.
3. Reinstall clean (or new) air clean-
er assembly inside cover. Lip of
pre-cleaner must be at bottom of
cartridge pleats.
4. Insert cover’s tabs into slots in
bottom of base.
5. Tilt cover up into place and tight-
en screw.
To Clean
Separate pre-cleaner from cartridge
and wash in liquid detergent and
water. Air dry thoroughly. Do not oil.
Reassemble dry pre-cleaner on clean
cartridge.
Do not use pressurized air or solvents
to clean cartridge. Pressurized air can
damage cartridge; solvents will dis-
solve cartridge.
Clean and Replace Spark Plug
Change the spark plug every 100
hours of operation or once each year,
whichever comes first. This will help
your engine to start easier and run
better.
Resistor
.030” (0.76 MM)
Wire Gauge
To Change Oil
Drain the engine oil when the engine
is warm. Warm oil drains quickly and
completely.
1. Before tipping engine or equip-
ment to drain oil, drain fuel from
tank by running engine until fuel
tank is empty.
2. Disconnect spark plug wire and
keep it away from spark plug.
3. With engine OFF but still warm
remove filler cap/dipstick.
4. Place a suitable container next
the engine to catch the used oil.
5. Keeping air claner above oil out-
let, drain oil.
NOTE: Please dispose of used motor
oil in a manner that is compatible with
the environment. It is recommended
to take used oil in a sealed container
to your local recycling center or serv-
ice station for reclamation. Do not
throw it in the trash or pour it on the
ground or down a drain.
6. With the engine in a level posi-
tion, fill to the FULL line on the
dipstick with SAE 10W-30 oil.
Engine oil capacity is 20 oz. (0.6
liter).
NOTE: Other viscosities shown in the
chart in the “To Check Oil”paragraph
may be used.
7. Replace the oil filler cap/dipstick
securely.
Cartridge
Pre-
Cleaner
Tabs
and
Slots
Cover Base
Pre-Cleaner Lip
Air Cleaner
Drain Oil
Screw
Cartridge Lip

17- ENG D25079D25079

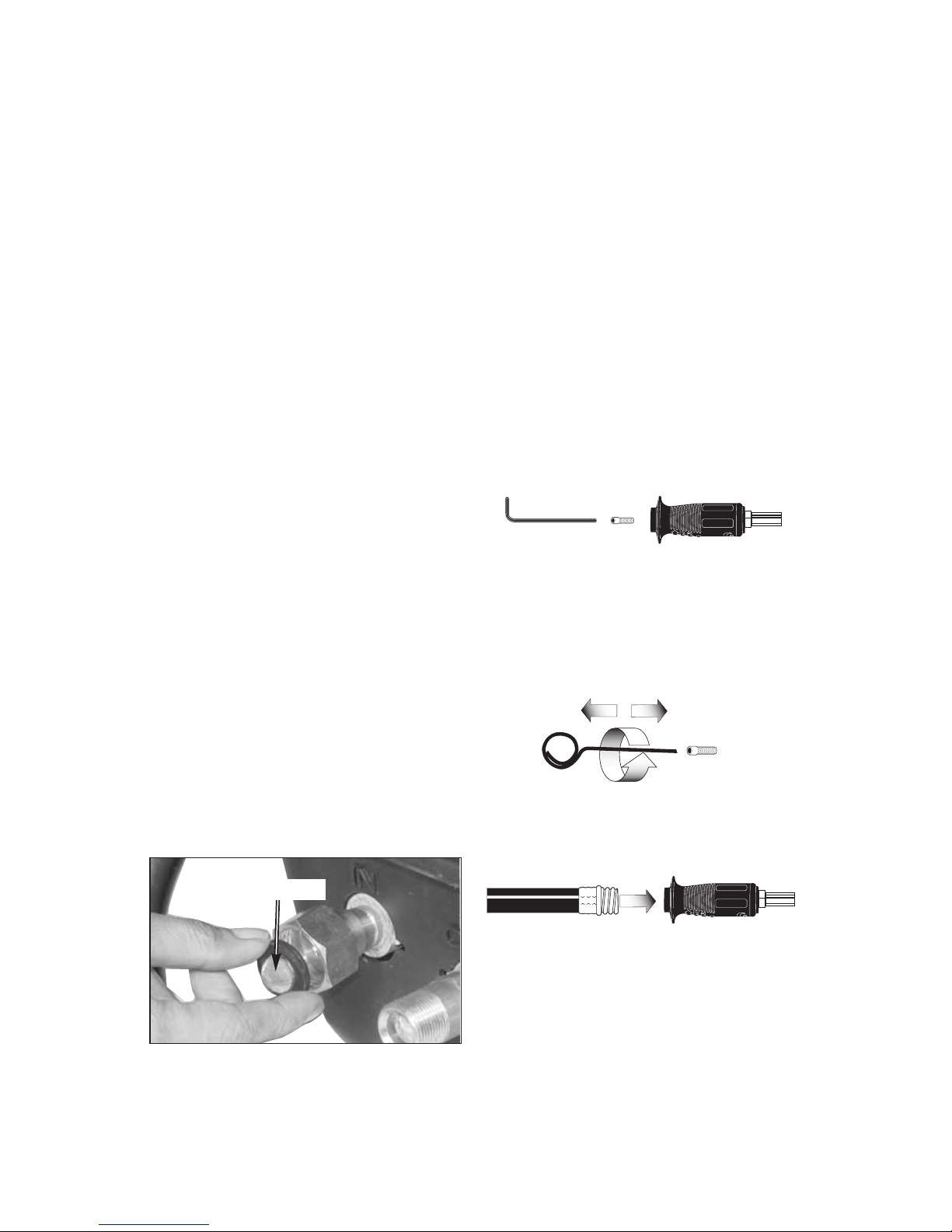

WAND
If the nozzle becomes clogged with
foreign materials, such as dirt, exces-
sive pressure may develop. If the
nozzle becomes partially clogged or
restricted, the pump pressure will pul-
sate. Clean the nozzle immediately
using the nozzle kit supplied and the
following instructions:
1. Shut off the pressure washer and
turn off the water supply.
2. Disconnect spark plug wire.
3. Pull trigger on gun handle to
relieve any water pressure.
4. Disconnect the wand from the
gun.
5. Remove the nozzle from the end
of the wand with the 2mm allen
wrench provided as shown.
6. Clean the nozzle using the nozzle
cleaner provided or a straight-
ened paper clip. Insert into the
nozzle end and work back and
forth until obstruction is re-
moved.
7. Direct water supply into nozzle
end to backflush loosened parti-
cles for 30 seconds.
8. Reconnect spark plug wire.
9. Reassemble the nozzle to the
wand. Tighten securely to pre-
vent leaks.
10. Reconnect wand to gun and turn
on water supply.
11. Start pressure washer and place
wand into high pressure setting
to test.
PUMP
This screen filter should be checked
periodically and cleaned if necessary.
1. Remove filter by grasping end
and removing it from water inlet
of pump as shown.
2. Clean filter by flushing it with
water on both sides.
3. Install filter into water inlet of
pump
Filter Screen
Cleaning Debris
Engine parts should be kept clean to
reduce the risk of overheating and
ignition of accumulated debris.
NOTE: Do not use water to clean
engine parts. Water could contami-
nate fuel system. Use a brush or dry
cloth.
Combustion Deposits
Every 100-300 hours an Authorized
Warranty Service Center should
remove combustion deposits from the
cylinder, cylinder head, top of piston,
and around valves.
Air Cooling System
Over time debris may accumulate in
cylinder cooling fins and cannot be
observed without partial engine disas-
sembly. For this reason an Authorized
Warranty Service Center should clean
the air cooling system per recom-
mended intervals.

18- ENG
D25079 D25079
ENGINE
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as the carbure-
tor, fuel filter, hose or tank during stor-
age. Also, experience indicates that al-
cohol-blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation
and formation of acids during storage.
Acidic gas can damage the fuel sys-
tem of an engine while in storage. To
avoid engine problems, the fuel sys-
tem should be emptied before storage
of 30 days or longer. Never use engine
or carburetor cleaner products in the
fuel tank or permanent damage may
occur.
Engine Preparation
•First add a fuel stabilizer to the
fuel tank.
•Run pressure washer for a full 5
minutes to allow fuel stabilizer to
enter the fuel system.
While preparing the
engine make sure
water supply is turned on and flow-
ing to the unit. NEVER run unit
without water supply running
through pump. Failure to do so will
cause pump damage.
•Next shut off engine and discon-
nect the water supply.
•Disconnect the spark plug wire
and remove the spark plug.
•Add one teaspoon of oil through
the spark plug hole.
•Place rag over spark plug hole
and pull the recoil a few times to
lubricate the combustion cham-
ber.
•Replace the spark plug, but do
not connect the spark plug wire.
PUMP
It is recommended that you follow
these steps to protect the internal
seals of the pressure washer when
storing the unit for an extended
period and WHEN FREEZING TEM-
PERATURES ARE EXPECTED.
NOTE: If storing the unit for more
than 30 days RV antifreeze or wind-
shield washer fluid needs to be run
through the pump. This helps pre-
vent damage within the pump head.
RV antifreeze or windshield washer
fluid is not only added for winteriz-
ing, but for proper lubrication
regardless of temperature or envi-
ronment. Storing the pump less than
30 days does not require the RV
antifreeze or windshield washer
fluid.
1. Obtain a funnel, six ounces of RV
antifreeze or windshield washer
fluid, and approximately 12 inches
of garden hose with a male hose
connector attached to one end.
Use only RV
antifreeze. Any
other antifreeze is corrosive and can
damage pump.
2. Disconnect spark plug wire.
3. Disconnect high pressure hose
from pump and from spray gun.
4. Connect 12 inch length of hose to
water inlet of pump.
5. Add RV antifreeze or windshield
washer fluid to hose as shown.
STORAGE

19- ENG D25079D25079
6. Pull engine starter rope slowly
several times until antifreeze or
windshield washer fluid comes
out of high pressure hose con-
nection of pump.
7. Remove short hose from water
inlet of pump.
8. Install spark plug into spark plug
hole and tighten securely, then
reconnect spark plug wire.
9. Drain all water from high pressure
hose, coil it, and store it in cradle
of the pressure washer handle.
10. Drain all water from spray gun
and wand by holding spray gun in
a vertical position with nozzle end
pointing down and squeezing
trigger. Store in gun/hose holder.
11. Store chemical hose, high pres-
sure hose, spray gun, and wand
so they are protected from dam-
age, such as being run over.
TROUBLESHOOTING GUIDE
PROBLEM CAUSE CORRECTION
Engine will not
start
1. No fuel.
2. Pressure builds up after
two pulls on the recoil
starter or after initial use.
3. Not choked.
4. Spark plug wire not
attached.
5. Choke lever in the
"Choke" position on a
"hot" engine or an engine
that has been exposed to
thermal heat for a long
period of time.
1. Add Fuel.
2. Squeeze gun trigger to
relieve pressure.
3. Choke engine, place
engine in the choke posi-
tion.
4. Attach spark plug wire.
5. Move choke to the "No
Choke" position.
No or low
pressure
(initial use)
1. Wand not in high pres-
sure.
1. See How to Use Wand
paragraph in the
Operation Section.
2. Low water supply. 2. Water supply must be at
least 5 GPM @ 20 PSI.
3. Leak at high pressure
hose. 3. Repair leak. Apply sealant
tape if necessary.
4. Nozzle obstructed. 4. Clean nozzle with paper
clip or nozzle cleaning
tool, pour water into noz-
zle end to flush out ob-
struction.
5. Water filter screen
clogged. 5. Remove and clean filter.

20- ENG
D25079 D25079
6. Air in hose. 6. Turn off the engine, then
the water source.
Disconnect the water
source from the pump
inlet and turn the water
source on to remove all air
from the hose. When there
is a steady stream of
water present, turn water
source off. Reconnect
water source to pump inlet
and turn on water source.
Squeeze trigger to remove
remaining air.
7. Choke lever in the
"Choke" position.
8. Throttle control lever is
not in the "Fast" position.
9. High pressure hose is too
long.
7. Move choke to the "No
Choke" position.
8. Move throttle control lever
to the "Fast" position.
9. Use high pressure hose
under 100 feet.
PROBLEM CAUSE CORRECTION
No or low
pressure
(initial use)
(continued)
6. Chemical build up in
chemical injector.
Will not draw
chemicals
1. Wand not in low
pressure.
2. Chemical filter clogged.
3. Chemical screen not in
chemical
4. Chemical too thick
5. Pressure hose is too long
2. Clean filter.
3. Insure end of chemical
hose is fully submerged
into chemical.
4. Dilute chemical. Chemical
should be the same con-
sistency as water.
5. Lengthen water supply
hose instead of pressure
hose.
6. Have parts cleaned or
replaced by AWSC.
1. See How to Use Wand
paragraph in the
Operation Section.
