Craftsman 919.672101 User manual

D28236 Rev. 1 6/17/03
Owner’s Manual
4.0 Horsepower
2150 PSI
2.0 GPM
PRESSURE WASHER
• Safety Guidelines
• Assembly
• Operation
• Maintenance
• Storage
• Troubleshooting
• Repair Parts
Model No.
919.672101
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sold by Sears Canada, Inc. Toronto, Ont. M5B 2B8

2- ENG
D28236
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SPECIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
SAFETY GUIDELINES- DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . .3
CONSUMER SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . .4-7
BOX CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-13
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-16
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-18
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-20
REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-33
HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . . .Back Cover
WARRANTY
FULL ONE YEAR WARRANTY ON PRESSURE WASHERS
If this pressure washer fails due to a defect in material or workmanship within
one year from the date of purchase, RETURN IT TO THE NEAREST SEARS
SERVICE CENTER THROUGHOUT CANADA AND SEARS WILL REPAIR IT,
FREE OF CHARGE.
If this pressure washer is used for commercial or rental purposes, the warranty
will apply for ninety days (90) from the date of purchase.
This Craftsman pressure washer warranty gives you specific legal rights and you
may have other rights which vary from province to province.
Sears Canada, Inc., Toronto, Ont. M5B 2B8

3- ENG D28236
SPECIFICATION CHART
This product may not be equipped with a spark arresting
muffler. If the product is not equipped and will be used
around flammable materials, or on land covered with materials such as
agricultural crops, forest, brush, grass, or other similar items, then an ap-
proved spark arrester must be installed and is legally required in the state of
California. It is a violation of California statutes section 130050 and/or sec-
tions 4442 and 4443 of the California Public Resources Code, unless the
engine is equipped with a spark arrester, as defined in section 4442, and
maintained in effective working order. Spark arresters are also required on
some U.S. Forest Service land and may also be legally required under other
statutes and ordinances.
Engine exhaust contains chemicals known, in certain
quantities, to cause cancer, birth defects or other
reproductive harm.
CONSUMER SAFETY INFORMATION
Model No. 919-672101
Pressure Washer
Pressure 2150 PSI
Flow Rate 2.0 GPM
Cleaning Units (PSI x GPM) 4300
Engine
RPM 3600
Rated Horsepower 4.0
Spark Plug Gap .030” (0.76mm)
Gasoline Capacity 1 quart (0.95 liters)
Oil 20 oz. ( 0.6 liters) capacity SAE 30 weight
SAFETY GUIDELINES - DEFINITIONS
Indicates an imminently
hazardous situation
which, if not avoided, will result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may result in minor
or moderate injury.
Used without the safety
alert symbol indicates a
potentially hazardous situation which, if
not avoided, may result in property
damage.
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.

4- ENG
D28236
IMPORTANT SAFETY INSTRUCTIONS
Read Operators Manual. Do not operate equipment until you
have read operators Manual for Safety, Assembly, Operation, and
Maintenance Instructions.
RISK OF EXPLOSION OR FIRE
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spilled gasoline and it’s vapors can be-
come ignited from cigarette sparks,
electrical arcing, exhaust gases, and hot
engine components such as the muffler.
• Shut off engine and allow it to cool before
adding fuel to the tank.
• Use care in filling tank to avoid spilling fuel.
Move pressure washer away from fueling area
before starting engine.
• Heat will expand fuel in the tank which
could result in spillage and possible fire
explosion.
• Keep maximum fuel level ½” below top of
tank to allow for expansion.
• Operating the pressure washer in an ex-
plosive environment could result in a fire. • Operate and fuel equipment in well ventilated
areas free from obstructions. Equip areas with
fire extinguisher suitable for gasoline fires.
• Materials placed against or near the pres-
sure washer can interfere with its proper
ventilation features causing overheating
and possible ignition of the materials.
• Never operate pressure washer in an area
containing dry brush or weeds.
• Muffler exhaust heat can damage painted
surfaces, melt any material sensitive to
heat (such as siding, plastic, rubber, or
vinyl), and damage live plants.
• Always keep pressure washer a minimum of
four feet away from surfaces (such as houses,
automobiles, or live plants) that could be dam-
aged from muffler exhaust heat.
• Improperly stored fuel could lead to acci-
dental ignition. Fuel improperly secured
could get into the hands of children or
other unqualified persons.
• Store fuel in an OSHA approved container,
in a secure location away from work area.
• Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flam-
mable solvent with this product could re-
sult in serious injury or death.
• Do not spray flammable liquids.
• Breathing exhaust fumes will cause serious
injury or death!
• Operate pressure washer in a well ventilated
area. Avoid enclosed areas such as garages,
basements, etc.
• Never operate unit in a location occupied by
humans or animals.
• Some cleaning fluids contain substances
which could cause injury to skin, eyes, or
lungs.
• Use only cleaning fluids specifically recom-
mended for high pressure washers. Follow
manufacturers recommendations. Do not
use chlorine bleach or any other corrosive
compound.
RISK TO BREATHING
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
READ AND SAVE THESE INSTRUCTIONS

5- ENG D28236
• Fuel or oil can leak or spill and could
result in fire or breathing hazard, serious
injury or death can result. Fuel or oil leaks
will damage carpet, paint or other
surfaces in vehicles or trailers.
• If pressure washer is equipped with a fuel
shut-off valve, turn the valve to the off
position before transporting to avoid fuel
leaks. If pressure washer is not equipped
with a fuel shut-off valve, drain the fuel from
tank before transporting. Only transport fuel
in an OSHA approved container. Always
place pressure washer on a protective mat
when transporting to protect against dam-
age to vehicle from leaks. Remove pressure
washer from vehicle immediately upon arrival
at your destination.
• Your washer operates at fluid pressures
and velocities high enough to penetrate
human and animal flesh, which could
result in amputation or other serious injury.
Leaks caused by loose fittings or worn or
damaged hoses can result in injection
injuries. DO NOT TREAT FLUID
INJECTION AS A SIMPLE CUT! See a
physician immediately!
• Never place hands in front of nozzle.
• Direct spray away from self and others.
• Make sure hose and fittings are tightened
and in good condition. Never hold onto the
hose or fittings during operation.
• Do not allow hose to contact muffler.
• Never attach or remove wand or hose
fittings while system is pressurized.
• Do not use acids, gasoline, kerosene, or
any other flammable materials in this
product. Use only household detergents,
cleaners and degreasers recommended for
use in pressure washers.
• Wear protective clothing to protect eyes
and skin from contact with sprayed
materials.
• Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flam-
mable solvent with this product could re-
sult in serious injury or death.
RISK OF INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING OR STORING
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
RISK TO FLUID
INJECTION
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• Injuries can result if system pressure is not
reduced before attempting maintenance or
disassembly.
RISK OF CHEMICAL BURN
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• To relieve system pressure, shut off engine,
turn off water supply, and pull gun trigger
until water stops flowing.
• Use only hoses and accessories rated for
pressure higher than your pressure
washer's p.s.i.

6- ENG
D28236
• Reactive force of spray will cause
gun/wand to move, and could cause the
operator to slip or fall, or misdirect the
spray. Improper control of gun/wand can
result in injuries to self and others.
• Do not overreach or stand on an unstable
support. Grip gun/wand firmly with both
hands. Expect the gun to kick when trig-
gered.
•If proper starting procedure is not
followed, engine can kickback causing
serious hand and arm injury.
• If engine does not start after two pulls,
squeeze trigger of gun to relieve pump
pressure. Pull starter cord slowly until
resistance is felt. Then pull cord rapidly
to avoid kickback and prevent hand or
arm injury.
• The spray gun/wand is a powerful clean-
ing tool that could look like a toy to a
child.
• Keep children away from the pressure
washer at all times.
• Contact with hot surfaces, such as
engines exhaust components, could
result in serious burn.
• During operation, touch only the control
surfaces of the pressure washer. Keep
children away from the pressure washer at all
times. They may not be able to recognize the
hazards of this product.
• Spray directed at electrical outlets or
switches, or objects connected to an
electrical circuit, could result in a fatal
electrical shock.
• Unplug any electrically operated product
before attempting to clean it. Direct spray
away from electric outlets and switches.
RISK OF UNSAFE OPERATION
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafe operation of your pressure washer
could lead to serious injury or death to
you or others.
• Do not use chlorine bleach or any other
corrosive compound.
• Become familiar with the operation and con-
trols of the pressure washer.
• Keep operating area clear of all persons,
pets, and obstacles.
• Do not operate the product when fatigued
or under the influence of alcohol or drugs.
Stay alert at all times.
• Never defeat the safety features of this
product.
• Do not operate machine with missing,
broken, or unauthorized parts.
• Never leave wand unattended while unit is
running.
RISK OF ELECTRICAL SHOCK
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
RISK OF HOT SURFACES
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT

7- ENG D28236
The powerful spray from your pressure washer is capable of causing
damage to surfaces such as wood, glass, automobile paint, auto
striping and trim, and delicate objects such as flowers and shrubs. Before spraying,
check the item to be cleaned to assure yourself that it is strong enough to resist damage
from the force of the spray. Avoid the use of the concentrated spray stream except for
very strong surfaces like concrete and steel.
Operating without flow of water will result in equipment damage. Operating the pressure
washer with water supply shutoff will void your warranty. You should never run this pres-
sure washer for more than 2 minutes without pulling the trigger to allow cool water to
enter the pump and the heated (recirculated) water to exit.
RISK OF INJURY FROM SPRAY
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• High velocity fluid spray can cause
objects to break, propelling particles at
high speed.
• Light or unsecured objects can become
hazardous projectiles.
• Always wear ANSI approved Z87 safety
glasses.Wear protective clothing to protect
against accidental spraying.
• Never point wand at, or spray people or
animals.
• Always secure trigger lock when wand is not
in service to prevent accidental operation.
• Never permanently secure trigger in pull
back (open) position.
BOX CONTENTS
Handle
Part No. D22316
Bagged Parts
Nozzle Cleaning
Kit
English/
French
Operator’s
Manual
Engine Frame and
Wheel Assembly
High Pressure
Hose
Part No. D22166
Chemical Hose
Part No. H140
Engine Oil
Spray Gun
Part No. 17780
Multi-Adjustable Spray Wand
Part No. D22837
Accessories Panel Part No. D25081
with Screws Part No. D22901
Knobs
Part No.
16471
Saddle
Bolts Part
No. D23196
Allen Wrench Part No. 16797
Cleaning Tool Part No. NCT001

8- ENG
D28236
5. To Assemble Accessories Panel
a. Remove top screws on
handle assembly.
b. Loosen bottom screws on
handle assembly.
c. Place grooves in accessories
panel assembly onto screws
and slide panel assembly into
place.
d. Place screws (removed
earlier) into the top holes and
secure accessories panel
assembly to handles. Do not
overtighten.
2. Connect wand to gun. Tighten
securely.
3. Attach high pressure hose to gun.
Tighten securely.
ASSEMBLY
1. Place handle assembly onto frame
and connect handle to frame.
NOTE: Knobs are assembled to
inside of frame.
Loosen
Remove
Screws

9- ENG D28236
OPERATION
Chemical Hose: Feeds cleaning
agents into the pump to mix with the
pressurized water. See How To Apply
Chemicals/Cleaning Solvents in
Operation section of this manual.
ENGINE
Choke Control: Opens and closes
carburetor choke valve
Throttle Control Lever: Controls
engine speed.
Starter Grip: Pulling starter grip
operates recoil starter to crank engine.
PRESSURE WASHER
High Pressure Pump (located inside
the shroud): Increases the pressure of
the water supply.
Engine: Drives the high pressure
pump.
High Pressure Hose: Carries the
pressurized water from the pump to
the gun and spray wand.
Spray Gun: Connects with spray wand
to control water flow rate, direction,
and pressure.
Multi-Adjustable Spray Wand: Has a
spray nozzle which adjusts from a
pencil stream (0°) to a wide angle fan
spray (40°). The spray can be adjusted
by twisting the nozzle clockwise
and/or counterclockwise. Also, the
high and low pressure settings can be
controlled by moving the nozzle in and
out. See How To Use Spray Wand
paragraph in this section.
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
High
Pressure
Pump
Engine
High
Pressure
Hose
Spray
Gun
Multi-Reg
Wand
Chemical
Hose
Hand
Grip
Air Filter
Choke
Control
Throttle Control
Oil
Fill

10- ENG
D28236
HOW TO USE SPRAY WAND:
Your pressure washer is equipped with
a multi-adjustable spray wand with
both high and low pressure settings.
The high pressure setting is for
cleaning and rinsing, the low pressure
setting is for applying chemicals or
cleaning solutions to surfaces.
When using the high
pressure setting, DO
NOT allow the jet-like spray to come
in contact with unprotected skin,
eyes, or with any pets or animals.
Serious injury can occur.
Risk of injection or
injury to person. DO
NOT direct discharge stream toward
persons.

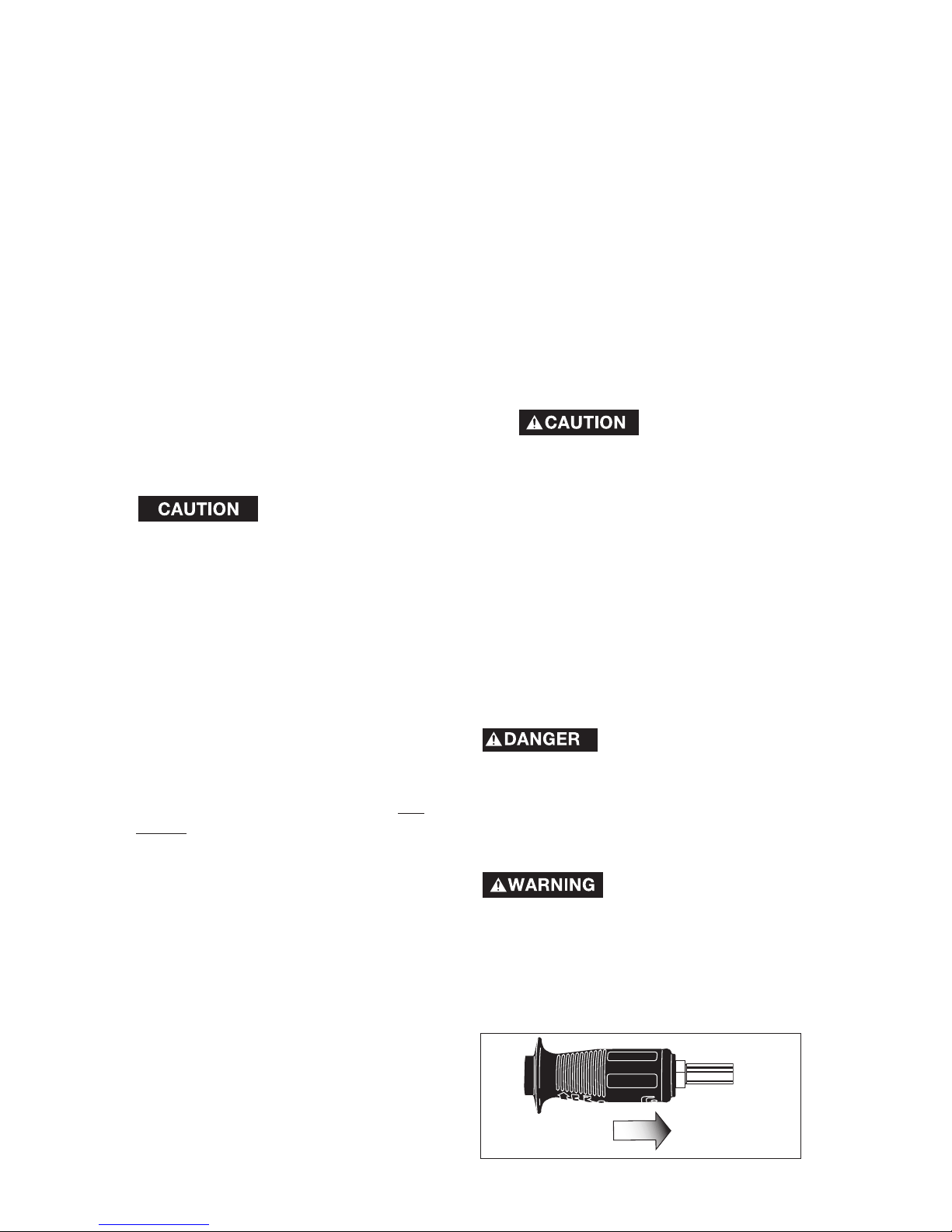

For high pressure operation, pull back
the nozzle of the multi-adjustable
spray wand as shown.
TO ADJUST PRESSURE
The pressure setting is preset at the
factory to achieve optimum pressure
and cleaning. If you need to lower the
pressure, it can be accomplished by
these methods.
1. Back away from the surface to be
cleaned. The further away you are,
the less the pressure will be on
the surface to be cleaned.
2. Rotate the nozzle at the end of
the multi-adjustable spray wand
to widen the fan spray. The wider
fan spray will minimize the
pressure on the surface to be
cleaned.
DO NOT attempt
to increase
pump pressure. A higher
pressure setting than the
factory set pressure may
damage pump.
HOW TO USE
IMPORTANT: Read and understand
how to use the pressure washer
before operating.
PRESSURE WASHER
TERMINOLOGY
PSI: Pounds per Square Inch. The unit
of measure for water pressure. Also
used for air pressure, hydraulic
pressure, etc.
GPM: Gallons Per Minute. The unit of
measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by
PSI.
Bypass Mode: In Bypass Mode, the
pump is recirculating water because
the trigger of the spray gun is not
pulled. If unit is left in bypass mode for
more than two (2) minutes, the water
temperature will rise to a dangerous
level and could damage internal
components of the pump. Any
damage to pump due to these causes
will not be covered under warranty.
DO NOT allow your
unit to operate in
bypass mode for more than two
minutes at any time. Overheating of
pump can cause damage to pump.
Thermal Relief Valve: In an effort to
prevent extreme damage, pumps are
equipped with a thermal relief valve.
This valve will open when the
temperature inside the pump rises too
high. This valve will then release a
gush of water in an effort to lower the
temperature inside the pump.
Immediately after this occurs, the
valve will close. The thermal relief
valve is part of the pump and is not
visible to the user.
Chemical Injection System: Mixes
cleaners or cleaning solvents with the
water to improve cleaning
effectiveness.
Water Supply: All pressure washers
must have a source of water. The
minimum requirements for a water
supply are 20 PSI and 5 gallons per
minute.

11- ENG D28236
The nozzle at the end of the multi-
adjustable spray wand can be rotated
to change the high pressure spray
pattern from a narrow jet to a 40º fan
shape, as shown. Markings have been
placed on the nozzle to help you
select the spray pattern.
For low pressure operation, extend the
nozzle of the multi-adjustable spray
wand as shown.
HOW TO APPLY CHEMICALS
AND CLEANING SOLVENTS
Applying chemicals or cleaning
solvents is a low pressure operation.
NOTE: Use only soaps and
chemicals designed for pressure
washer use. Do not use bleach.
1. Press chemical hose onto barbed
fitting located near high pressure
hose connection of pump as
shown.
2. Place other end of chemical hose
with filter on it into container holding
chemical/cleaning solution. NOTE:
The chemical/water ratio is 7:1, for
every 7 gallons of water pumped 1
gallon of chemical/cleaning solution
will be used.
3. Set multi-adjustable nozzle to low
pressure setting. See How To Use
Wand paragraph in this section.
4. After use of chemicals, place
chemical hose into container of
clean water and draw clean water
through chemical injection system
to rinse system thoroughly. If
chemicals remain in the pump it
could be damaged. Pumps
damaged due to chemicals will not
be covered under warranty.
NOTE: Chemicals and soaps will not
siphon when spray wand is in the high
pressure setting.
Barb fitting
TO SHUT DOWN
IMPORTANT: Read and understand
how to shut down the pressure
washer before operating.
1. If you have applied chemicals,
place chemical hose into container
of clean water and draw clean
water through chemical injection
system to rinse system thoroughly.
NOTE: Failure to do so could
cause damage to the pump.
2. Turn engine off by placing the
throttle control in the STOP
position.
NOTE: NEVER turn the water off
with the engine running.
3. Turn water source off.
4. Pull trigger on spray gun to relieve
any water pressure in hose or
spray gun.
5. See Storage section in this
manual for proper storage
procedures.
40º fan spray
narrow jet stream

12- ENG
D28236
2. Remove filler cap/dipstick and
add engine oil (supplied) to
engine. NOTE: There will be a
slight amount of oil in the engine
from factory testing. Always check
oil level before each start-up.
3. Oil level should be at the FULL
line on dipstick. Always check oil
level before each start-up.
4. Verify the filter screen is in water
inlet of pump. NOTE: Cone side
faces out.
5. Connect high pressure hose to
pump outlet.
6. Connect water source to pump
inlet.
NOTE: Water source must provide a
minimum of 5 gallons per minute at
20 p.s.i.
Water
Source
High
Pressure
Hose
Filter Screen
BEFORE STARTING
Read and understand all Important
Safety Instructions in the front of
this manual and the following
Cautions and Warnings before
starting the pressure washer.
• Never fill fuel tank completely.
Fill tank to 1/2" below bottom of
filler neck to provide space for
fuel expansion. Wipe any fuel
spillage from engine and
equipment before starting
engine.
• Never fill fuel tank indoors.
Never fill fuel tank when engine
is running or hot. Do not smoke
when filling fuel tank.
• Never run engine indoors or in
enclosed, poorly ventilated
areas. Engine exhaust contains
carbon monoxide, an odorless
and deadly gas.
• Never turn water supply off
while pressure washer engine is
running or damage to pump will
result.
• DO NOT use hot water, use cold
water only.
• DO NOT stop spraying water for
more than two minutes at a
time.
NOTE: Remove and discard blue plug
in fuel fill.
1. In a well ventilated outdoor area
add fresh, high quality, unleaded
gasoline with a pump octane
rating of 86 or higher. Do not
overfill. Wipe up spilled fuel before
starting the engine.
Fuel
Fill
Filler cap/
dipstick

13- ENG D28236
If the engine does
not start after two
pulls, pull the trigger to relieve the
pressure.
11. If the choke was used to start the
engine, move the choke lever to
the OFF position.
12. Depress trigger on gun to start
water flow. NOTE: Stand on a
stable surface and grip
gun/spray wand firmly with both
hands. Expect the gun to kick
back when triggered.
13. Release trigger to stop water flow.
14. Adjust nozzle spray for the task
being performed. See How To
Use Spray Wand instructions in
this section.
DO NOT let hoses
come in contact with
very hot engine muffler during or
immediately after use of your
pressure washer.
MAINTENANCE
When performing maintenance, you may be exposed to hot
surfaces, water pressure, or moving parts that can cause
serious injury or death! Before performing any maintenance or repair,
disconnect spark plug wire, let engine cool and release all water pressure.
The engine contains flammable fuel. DO NOT smoke or work near open
flames while performing maintenance.
To ensure efficient operation and longer life of your pressure washer, a routine
maintenance schedule should be prepared and followed. If the pressure washer is
used in unusual conditions, such as high-temperatures or dusty conditions, more
frequent maintenance checks will be required.
7. If you are applying a chemical or
cleaning solution, See How To
Siphon Chemicals/Cleaning
Solvents in Operation section of
this manual.
8. Turn water source on.
NOTE: Failure to do so could cause
damage to the pump.
9. TMove the choke control lever to
the CHOKE ON position and
the throttle control to the FAST
position. NOTE: No choke is
needed to start a warm engine.
10. Pull starter grip slowly until you
feel resistance, then pull briskly.
Return starter grip gently. Pull
rope with a rapid full arm stroke.
Let rope rewind slowly. Repeat if
necessary.
Choke
Control
Throttle
Control

14- ENG
D28236
CUSTOMER RESPONSIBILITIES TABLE
MAINTENANCE TASK
PRESSURE WASHER
ENGINE
check/clean inlet screen
check high pressure hose
check soap and chemical
hose and filter
check gun and wand for leaks
check oil level
change oil
check air cleaner
clean/replace spark plug
prepare for storage
Before
each use
Every 25
hours or
yearly
Every 50
hours or
yearly
Every 100
hours or
yearly
Prepare unit for storage if it is to remain idle for longer
than 30 days
X
X
X
X
X
X**
X*
X
clean debris X
clean air cooling system X
clean combustion chamber X
*Change oil after first 5 to 8 hours of use, then every 50 hours or every
season. Change oil every 25 hours when operating the engine under heavy
load or in high temperatures.
** Clean more often under conditions of dust or airborne debris. Replace air
cleaner parts, if very dirty.
5. If needed, add oil slowly and
recheck. Do not over fill.
NOTE: Use a high quality detergent oil
classified “For Service SF, SG, SH, SJ”
or higher, such as SAE 30.
NOTE: Other viscosities shown in the
chart may be used when the average
temperature in your area is within the
recommended range.
6. Replace filler cap/dipstick.
ENGINE
To Check Oil
1. Shut down engine and place on a
level surface.
2. Remove filler cap/dipstick and wipe
it clean.
3. Replace and tighten dipstick.
Remove and check oil level.
4. Oil level should be at the FULL line
on dipstick.
F-20 0 20 40 60 80 100
C-30 -20 -10 0 10 20 30 40
STARTING TEMPERATURES RANGE
ANTICIPATED BEFORE NEXT OIL CHANGE
*
**
32
SAE Viscosity Grades
Synthetic 5W-30, 10W-30
Filler cap/
dipstick

15- ENG D28236
Air Cleaner
To Remove
1. Loosen screw and tilt cover down.
2. Remove air cleaner.
3. Reinstall clean (or new) air cleaner
assembly inside cover. Lip of pre-
cleaner must be at bottom of
cartridge pleats.
4. Insert cover’s tabs into slots in
bottom of base.
5. Tilt cover up into place and tighten
screw.
To Clean
Separate pre-cleaner from cartridge
and wash in liquid detergent and water.
Air dry thoroughly. Do not oil.
Reassemble dry pre-cleaner on clean
cartridge.
Do not use pressurized air or solvents
to clean cartridge. Pressurized air can
damage cartridge; solvents will
dissolve cartridge.
Clean and Replace Spark Plug
Change the spark plug every 100 hours
of operation or once each year,
whichever comes first. This will help
your engine to start easier and run
better.
Resistor
.030” (0.76 MM)
Wire Gauge
To Change Oil
Drain the engine oil when the engine is
warm. Warm oil drains quickly and
completely.
1. Before tipping engine or
equipment to drain oil, drain fuel
from tank by running engine until
fuel tank is empty.
2. Disconnect spark plug wire and
keep it away from spark plug.
3. With engine OFF but still warm
remove filler cap/dipstick.
4. Place a suitable container next the
engine to catch the used oil.
5. Keeping air claner above oil outlet,
drain oil.
NOTE: Please dispose of used motor
oil in a manner that is compatible with
the environment. It is recommended to
take used oil in a sealed container to
your local recycling center or service
station for reclamation. Do not throw it
in the trash or pour it on the ground or
down a drain.
6. With the engine in a level position,
fill to the FULL line on the dipstick
with SAE 10W-30 oil. Engine oil
capacity is 20 oz. (0.6 liter).
NOTE: Other viscosities shown in the
chart in the “To Check Oil” paragraph
may be used.
7. Replace the oil filler cap/dipstick
securely.
Cartridge
Pre-
Cleaner
Tabs
and
Slots
Cover Base
Pre-Cleaner Lip
Air Cleaner
Drain Oil Screw
Cartridge Lip

16- ENG
D28236
WAND
If the nozzle becomes clogged with
foreign materials, such as dirt,
excessive pressure may develop. If the
nozzle becomes partially clogged or
restricted, the pump pressure will
pulsate. Clean the nozzle immediately
using the nozzle kit supplied and the
following instructions:
1. Shut off the pressure washer and
turn off the water supply.
2. Disconnect spark plug wire.
3. Pull trigger on gun handle to
relieve any water pressure.
4. Disconnect the wand from the
gun.
5. Remove the nozzle from the end of
the wand with the 2mm allen
wrench provided as shown.
6. Clean the nozzle using the nozzle
cleaner provided or a straightened
paper clip. Insert into the nozzle
end and work back and forth until
obstruction is removed.
7. Direct water supply into nozzle end
to backflush loosened particles for
30 seconds.
8. Reconnect spark plug wire.
9. Reassemble the nozzle to the
wand. Tighten securely to prevent
leaks.
10. Reconnect wand to gun and turn
on water supply.
11. Start pressure washer and place
wand into high pressure setting to
test.
PUMP
This screen filter should be checked
periodically and cleaned if necessary.
1. Remove filter by grasping end and
removing it from water inlet of
pump as shown.
2. Clean filter by flushing it with water
on both sides.
3. Re-insert filter into water inlet of
pump. NOTE: Cone side faces
out.
NOTE: Do not operate pressure
washer without filter properly installed.
Filter Screen
Cleaning Debris
Engine parts should be kept clean to
reduce the risk of overheating and
ignition of accumulated debris.
NOTE: Do not use water to clean
engine parts. Water could contaminate
fuel system. Use a brush or dry cloth.
Combustion Deposits
Every 100-300 hours an Authorized
Warranty Service Center should
remove combustion deposits from the
cylinder, cylinder head, top of piston,
and around valves.
Air Cooling System
Over time debris may accumulate in
cylinder cooling fins and cannot be
observed without partial engine
disassembly. For this reason an
Authorized Warranty Service Center
should clean the air cooling system per
recommended intervals.

17- ENG D28236
ENGINE
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as the
carburetor, fuel filter, hose or tank
during storage. Also, experience
indicates that alcohol-blended fuels
(called gasohol or using ethanol or
methanol) can attract moisture which
leads to separation and formation of
acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Never use engine or carburetor
cleaner products in the fuel tank or per-
manent damage may occur.
Engine Preparation
1. First add a fuel stabilizer to the
fuel tank.
2. Run pressure washer for a full 5
minutes to allow fuel stabilizer to
enter the fuel system.
While preparing the
engine make sure
water supply is turned on and
flowing to the unit. NEVER run unit
without water supply running
through pump. Failure to do so will
cause pump damage.
3. Next shut off engine and
disconnect the water supply.
4. Disconnect the spark plug wire
and remove the spark plug.
5. Add one teaspoon of oil through
the spark plug hole.
6. Place rag over spark plug hole and
pull the recoil a few times to
lubricate the combustion chamber.
7. Replace the spark plug, but do not
connect the spark plug wire.
PUMP
1. Drain all water from high pressure
hose, coil it, and store it in cradle
of the pressure washer handle.
2. Drain all water from spray gun and
spray wand by holding spray gun
in a vertical position with nozzle
end pointing down and squeezing
trigger. Store in gun/hose holder.
3. Store chemical hose, high pressure
hose, spray gun, and spray wand
so they are protected from dam-
age, such as being run over.
It is recommended that you follow
these steps to protect the internal seals
of the pressure washer when STORING
THE UNIT FOR MORE THAN 30 DAYS
AND/OR WHEN FREEZING
TEMPERATURES ARE EXPECTED.
*RV antifreeze needs to be run through
the pump as outlined in the steps
below.
4. Obtain a funnel, six ounces of *RV
antifreeze, and approximately
36 inches of garden hose with a
male hose connector attached to
one end.
Use only RV
antifreeze. Any other
antifreeze is corrosive and can
damage pump.
5. Disconnect spark plug wire.
STORAGE

18- ENG
D28236
6. Connect 36 inch length of hose to
water inlet of pump.
7. Add *RV antifreeze to hose as
shown.
8. Pull engine starter rope slowly
several times until antifreeze
comes out of high pressure hose
connection of pump.
9. Remove short hose from water
inlet of pump.
10. Reconnect spark plug wire.
* Windshield washer fluid may also be
used
TROUBLESHOOTING GUIDE
PROBLEM CAUSE CORRECTION
Engine will not
start
1. No fuel.
2. Pressure builds up after
two pulls on the recoil
starter or after initial use.
4. Spark plug wire not
attached.
5. Choke lever in the
"Choke" position on a
"hot" engine or an engine
that has been exposed to
thermal heat for a long
period of time.
1. Add Fuel.
2. Squeeze gun trigger to
relieve pressure.
4. Attach spark plug wire.
5. Move choke to the "No
Choke" position.
No or low
pressure
(initial use)
1. Wand not in high
pressure.
1. See How to Use Spray
Wand paragraph in the
Operation Section.
2. Low water supply. 2. Water supply must be at
least 5 GPM @ 20 PSI.
3. Leak at high pressure
hose fitting. 3. Tighten. Apply sealant tape
if necessary.
4. Nozzle obstructed.
5. Water filter screen
clogged. 5. Remove and clean filter.
4. See Spray Wand
paragraph in the
Maintenance section for
the correct procedure.
3. Choke lever in the “No
Choke” position.
3. Move choke to the
“Choke” position.

19- ENG D28236
6. Air in hose. 6. Turn off the engine, then the
water source. Disconnect
the water source from the
pump inlet and turn the
water source on to remove
all air from the hose. When
there is a steady stream of
water present, turn water
source off. Reconnect water
source to pump inlet and
turn on water source.
Squeeze trigger to remove
remaining air.
7. Choke lever in the
"Choke" position.
8. Throttle control lever is
not in the "Fast" position.
9. High pressure hose is too
long.
7. Move choke to the "No
Choke" position.
8. Move throttle control lever to
the "Fast" position.
9. Use high pressure hose
under 100 feet.
PROBLEM CAUSE CORRECTION
No or low
pressure
(initial use)
(continued)
6. Chemical build up in
chemical injector.
Will not draw
chemicals
1. Wand not in low
pressure.
2. Chemical filter clogged.
3. Chemical screen not in
chemical
4. Chemical too thick
5. Pressure hose is too long
2. Clean filter.
3. Insure end of chemical hose
is fully submerged into
chemical.
4. Dilute chemical. Chemical
should be the same
consistency as water.
5. Lengthen water supply hose
instead of high pressure
hose.
6. Have parts cleaned or
replaced by AWSC.
1. See Spray Wand paragraph
in the Maintenance section
for the correct procedure.

20- ENG
D28236
PROBLEM CAUSE CORRECTION
No or low
pressure (after
period of nor-
mal use.)
Water leaking
at gun/wand
connection
Water leaking
at pump
1. Worn seal or packing.
2. Worn or obstructed
valves.
3. Worn unloader piston.
1. Worn or broken o-ring.
2. Loose hose connection.
1. Loose connections.
2. Piston packings worn.
3. Worn or broken o-rings.
4. Pump head or tubes
damaged from freezing.
1. Have replaced by AWSC.
2. Have replaced by AWSC.
3. Have replaced by AWSC.
1. Check and replace.
2. Tighten.
1. Tighten.
2. Have replaced by AWSC.
3. Have replaced by AWSC.
4. Have replaced by AWSC.
1. Nozzle obstructed. 2. See Spray Wand paragraph
in the Maintenance section
for the correct procedure.
Pump
Pulsates
