Craftsman 919.672190 User manual

D30333 Rev. 0 11/03/03
Owner’s Manual
5.5 Horsepower
2500 PSI
2.5 GPM
PRESSURE WASHER
• Safety Guidelines
• Assembly
• Operation
• Maintenance
• Storage
• Troubleshooting
• Repair Parts
Model No.
919.672190
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sold by Sears Canada, Inc. Toronto, Ont. M5B 2B

2- ENG
D30333
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SPECIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
SAFETY GUIDELINES- DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CONSUMER SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . .3-7
BOX CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-15
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-18
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-20
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-23
REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-39
HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARRANTY
FULL ONE YEAR WARRANTY ON PRESSURE WASHERS
If this pressure washer fails due to a defect in material or workmanship within
one year from the date of purchase, RETURN IT TO THE NEAREST SEARS
SERVICE CENTER THROUGHOUT CANADA AND SEARS WILL REPAIR IT,
FREE OF CHARGE.
If this pressure washer is used for commercial or rental purposes, the warranty
will apply for ninety days (90) from the date of purchase.
This Craftsman pressure washer warranty gives you specific legal rights and you
may have other rights which vary from province to province.
Sears Canada, Inc., Toronto, Ont. M5B 2B8

3- ENG D30333
This product may not be equipped with a spark arresting
muffler. If the product is not equipped and will be used
around flammable materials, or on land covered with materials such as
agricultural crops, forest, brush, grass, or other similar items, then an ap-
proved spark arrester must be installed and is legally required in the state of
California. It is a violation of California statutes section 130050 and/or sec-
tions 4442 and 4443 of the California Public Resources Code, unless the
engine is equipped with a spark arrester, as defined in section 4442, and
maintained in effective working order. Spark arresters are also required on
some U.S. Forest Service land and may also be legally required under other
statutes and ordinances.
Engine exhaust contains chemicals known, in certain
quantities, to cause cancer, birth defects or other
reproductive harm.
CONSUMER SAFETY INFORMATION
Model No. 919.672190
Pressure Washer
Pressure 2500 PSI
Flow Rate 2.5 GPM
Cleaning Units (PSI x GPM) 6250
Engine
RPM 3600
Rated Horsepower 5.5
Spark Plug Gap .030” (0.76mm)
Gasoline Capacity .29 gallons (1.1 liters)
Oil .58 quarts ( .55 liters) capacity SAE 30 weight
SAFETY GUIDELINES - DEFINITIONS
Indicates an imminently
hazardous situation
which, if not avoided, will result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may result in minor
or moderate injury.
Used without the safety
alert symbol indicates a
potentially hazardous situation which, if
not avoided, may result in property
damage.
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
SPECIFICATION CHART

4- ENG
D30333
IMPORTANT SAFETY INSTRUCTIONS
Read Operators Manual. Do not operate equipment until you
have read operators Manual for Safety, Assembly, Operation, and
Maintenance Instructions.
RISK OF EXPLOSION OR FIRE
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spilled gasoline and it’s vapors can be-
come ignited from cigarette sparks,
electrical arcing, exhaust gases, and hot
engine components such as the muffler.
• Shut off engine and allow it to cool before
adding fuel to the tank.
• Use care in filling tank to avoid spilling fuel.
Move pressure washer away from fueling area
before starting engine.
• Heat will expand fuel in the tank which
could result in spillage and possible fire
explosion.
• Keep maximum fuel level ½” below top of
tank to allow for expansion.
• Operating the pressure washer in an ex-
plosive environment could result in a fire. • Operate and fuel equipment in well ventilated
areas free from obstructions. Equip areas with
fire extinguisher suitable for gasoline fires.
• Materials placed against or near the pres-
sure washer can interfere with its proper
ventilation features causing overheating
and possible ignition of the materials.
• Never operate pressure washer in an area
containing dry brush or weeds.
• Muffler exhaust heat can damage painted
surfaces, melt any material sensitive to
heat (such as siding, plastic, rubber, or
vinyl), and damage live plants.
• Always keep pressure washer a minimum of
four feet away from surfaces (such as houses,
automobiles, or live plants) that could be dam-
aged from muffler exhaust heat.
• Improperly stored fuel could lead to acci-
dental ignition. Fuel improperly secured
could get into the hands of children or
other unqualified persons.
• Store fuel in an OSHA approved container,
in a secure location away from work area.
• Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flam-
mable solvent with this product could re-
sult in serious injury or death.
• Do not spray flammable liquids.
• Never fill cleaning solution tanks with
gasoline or other flammable solvent.
• Breathing exhaust fumes will cause serious
injury or death!
• Operate pressure washer in a well ventilated
area. Avoid enclosed areas such as garages,
basements, etc.
• Never operate unit in a location occupied by
humans or animals.
• Some cleaning fluids contain substances
which could cause injury to skin, eyes, or
lungs.
• Use only cleaning fluids specifically recom-
mended for high pressure washers. Follow
manufacturers recommendations. Do not
use chlorine bleach or any other corrosive
compound.
RISK TO BREATHING
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
READ AND SAVE THESE INSTRUCTIONS

5- ENG D30333
• Fuel or oil can leak or spill and could
result in fire or breathing hazard, serious
injury or death can result. Fuel or oil leaks
will damage carpet, paint or other
surfaces in vehicles or trailers.
• If pressure washer is equipped with a fuel
shut-off valve, turn the valve to the off
position before transporting to avoid fuel
leaks. If pressure washer is not equipped
with a fuel shut-off valve, drain the fuel from
tank before transporting. Only transport fuel
in an OSHA approved container. Always
place pressure washer on a protective mat
when transporting to protect against dam-
age to vehicle from leaks. Remove pressure
washer from vehicle immediately upon arrival
at your destination.
• Your washer operates at fluid pressures
and velocities high enough to penetrate
human and animal flesh, which could
result in amputation or other serious injury.
Leaks caused by loose fittings or worn or
damaged hoses can result in injection
injuries. DO NOT TREAT FLUID
INJECTION AS A SIMPLE CUT! See a
physician immediately!
• Never place hands in front of nozzle.
• Direct spray away from self and others.
• Make sure hose and fittings are tightened
and in good condition. Never hold onto the
hose or fittings during operation.
• Do not allow hose to contact muffler.
• Never attach or remove wand or hose
fittings while system is pressurized.
• Do not use acids, gasoline, kerosene, or
any other flammable materials in this
product. Use only household detergents,
cleaners and degreasers recommended for
use in pressure washers.
• Read and understand all warnings and
instructions supplied by cleaning solution
manufacturer.
• Wear protective clothing to protect eyes
and skin from contact with sprayed
materials.
• Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flam-
mable solvent with this product could re-
sult in serious injury or death.
RISK OF INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING OR STORING
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
RISK TO FLUID
INJECTION
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• Injuries can result if system pressure is not
reduced before attempting maintenance or
disassembly.
RISK OF CHEMICAL BURN
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• To relieve system pressure, shut off engine,
turn off water supply, and pull gun trigger
until water stops flowing.
• Use only hoses and accessories rated for
pressure higher than your pressure
washer's p.s.i.

6- ENG
D30333
• Reactive force of spray will cause
gun/wand to move, and could cause the
operator to slip or fall, or misdirect the
spray. Improper control of gun/wand can
result in injuries to self and others.
• Do not overreach or stand on an unstable
support. Grip gun/wand firmly with both
hands. Expect the gun to kick when trig-
gered.
•If proper starting procedure is not
followed, engine can kickback causing
serious hand and arm injury.
• If engine does not start after two pulls,
squeeze trigger of gun to relieve pump
pressure. Pull starter cord slowly until
resistance is felt. Then pull cord rapidly
to avoid kickback and prevent hand or
arm injury.
• The spray gun/wand is a powerful clean-
ing tool that could look like a toy to a
child.
• Keep children away from the pressure
washer at all times.
• Contact with hot surfaces, such as
engines exhaust components, could
result in serious burn.
• During operation, touch only the control
surfaces of the pressure washer. Keep
children away from the pressure washer at all
times. They may not be able to recognize the
hazards of this product.
• Spray directed at electrical outlets or
switches, or objects connected to an
electrical circuit, could result in a fatal
electrical shock.
• Unplug any electrically operated product
before attempting to clean it. Direct spray
away from electric outlets and switches.
RISK OF UNSAFE OPERATION
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafe operation of your pressure washer
could lead to serious injury or death to
you or others.
• Do not use chlorine bleach or any other
corrosive compound.
• Become familiar with the operation and con-
trols of the pressure washer.
• Keep operating area clear of all persons,
pets, and obstacles.
• Do not operate the product when fatigued
or under the influence of alcohol or drugs.
Stay alert at all times.
• Never defeat the safety features of this
product.
• Do not operate machine with missing,
broken, or unauthorized parts.
• Never leave wand unattended while unit is
running.
RISK OF ELECTRICAL SHOCK
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
RISK OF HOT SURFACES
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT

7- ENG D30333
BOX CONTENTS
Handle
Part No. D22316 with
Screws Part No. D22901
High Pressure
Hose
Part No. D28094
Chemical Hose
Part No. H140
The powerful spray from your pressure washer is capable of causing
damage to surfaces such as wood, glass, automobile paint, auto
striping and trim, and delicate objects such as flowers and shrubs. Before spraying,
check the item to be cleaned to assure yourself that it is strong enough to resist damage
from the force of the spray. Avoid the use of the concentrated spray stream except for
very strong surfaces like concrete and steel.
Operating without flow of water will result in equipment damage. Operating the pressure
washer with water supply shutoff will void your warranty. You should never run this pres-
sure washer for more than 2 minutes without pulling the trigger to allow cool water to
enter the pump and the heated (recirculated) water to exit.
RISK OF INJURY FROM SPRAY
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• High velocity fluid spray can cause
objects to break, propelling particles at
high speed.
• Light or unsecured objects can become
hazardous projectiles.
• Always wear ANSI approved Z87 safety
glasses.Wear protective clothing to protect
against accidental spraying.
• Never point wand at, or spray people or
animals.
• Always secure trigger lock when wand is not
in service to prevent accidental operation.
• Never permanently secure trigger in pull
back (open) position.
Bagged Parts
Engine Oil
Accessories Panel
Part No. D25081
Bagged Accessories Panel
Engine Frame, Wheel
Assembly, and Dual
Tank Cleaning System
English/
French
Owners
Manual
Knobs
Part No.
16471 Saddle
Bolts Part
No. D23196
Nozzle
Cleaning
Kit
Allen Wrench Part No. 16797
Cleaning Tool Part No. NCT001
Spray Gun
Part No. D27858
Multi-Adjustable Spray Wand
Part No. D23314

8- ENG
D30333
ASSEMBLY
3. Connect wand to gun. Tighten
securely.
4. Attach high pressure hose to gun.
Tighten securely.
2. Place handle assembly onto frame
and connect handle to frame.
NOTE: Knobs are assembled to
the outside of frame.
5. To Assemble Accessories Panel
a. Remove top screws on
handle assembly.
b. Loosen bottom screws on
handle assembly.
c. Place grooves in accessories
panel assembly onto screws
and slide panel assembly into
place.
Loosen
Remove
1. Remove cleaning solution tanks
from frame assembly. Slide tanks up
and away from frame assembly.
Screws

9- ENG D30333
7. Attach cleaning solution hose to
barb fitting on control valve located
at the rear of unit.
d. Place screws (removed
earlier) into the top holes and
secure accessories panel
assembly to handles. Do not
overtighten.
6. Reinstall cleaning solution tanks.
Tilt cleaning solution tanks toward
engine, slide onto handles, and
snap into place.
barb fitting

10- ENG
D30333
OPERATION
High
Pressure
Pump
Engine
High
Pressure
Hose
Spray
Gun
Multi-
Adjustable
Spray Wand
Hand
Grip
Air Filter Fuel Valve
Lever
Choke
Control
Throttle
Control
Chemical Injector Rinsing Hose (not
shown): Rinses the chemical injector
after use of cleaning solution.
Dual Tank Cleaning System: Allows
easily switching from one cleaning
solution to another depending on the
cleaning task by simply turning the
control valve knob.
ENGINE
Choke Control: Opens and closes
carburetor choke valve
Throttle Control Lever: Controls
engine speed.
Starter Grip: Pulling starter grip
operates recoil starter to crank engine.
Fuel Valve Lever: Opens and closes
connection between fuel tank and
carburetor.
PRESSURE WASHER
High Pressure Pump (located inside
the shroud): Increases the pressure of
the water supply.
Engine: Drives the high pressure
pump.
High Pressure Hose: Carries the
pressurized water from the pump to
the gun and spray wand.
Spray Gun: Connects with spray wand
to control water flow rate, direction,
and pressure.
Multi-Adjustable Spray Wand: Has a
spray nozzle which adjusts from a
pencil stream (0°) to a wide angle fan
spray (40°). The spray can be adjusted
by twisting the nozzle clockwise
and/or counterclockwise. Also, the
high and low pressure settings can be
controlled by moving the nozzle in and
out. See Operation section. See How
To Use Spray Wand paragraph in this
section.
READ THIS OPERATION MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Dual Tank
Cleaning
System

11- ENG D30333
HOW TO USE SPRAY WAND:
Your pressure washer is equipped with
a multi-adjustable spray wand with
both high and low pressure settings.
The high pressure setting is for
cleaning and rinsing, the low pressure
setting is for applying cleaning
solutions to surfaces.
When using the high
pressure setting, DO
NOT allow the jet-like spray to come
in contact with unprotected skin,
eyes, or with any pets or animals.
Serious injury can occur.
Risk of injection or
injury to person. DO
NOT direct discharge stream toward
persons.
For high pressure operation, pull back
the nozzle of the multi-adjustable
spray wand as shown.
TO ADJUST PRESSURE
The pressure setting is preset at the
factory to achieve optimum pressure
and cleaning. If you need to lower the
pressure, it can be accomplished by
these methods.
1. Back away from the surface to be
cleaned. The further away you are,
the less the pressure will be on
the surface to be cleaned.
2. Rotate the nozzle at the end of
the multi-adjustable spray wand
to widen the fan spray. The wider
fan spray will minimize the
pressure on the surface to be
cleaned.
DO NOT attempt to
increase pump
pressure. A higher pressure setting
than the factory set pressure may
damage pump.
HOW TO USE
IMPORTANT: Read and understand
how to use the pressure washer
before operating.
PRESSURE WASHER
TERMINOLOGY
PSI: Pounds per Square Inch. The unit
of measure for water pressure. Also
used for air pressure, hydraulic
pressure, etc.
GPM: Gallons Per Minute. The unit of
measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by
PSI.
Bypass Mode: In Bypass Mode, the
pump is recirculating water because
the trigger of the spray gun is not
pulled. If unit is left in bypass mode for
more than two (2) minutes, the water
temperature will rise to a dangerous
level and could damage internal
components of the pump. Any
damage to pump due to these causes
will not be covered under warranty.
DO NOT allow your
unit to operate in
bypass mode for more than two
minutes at any time. Overheating of
pump can cause damage to pump.
Thermal Relief Valve: In an effort to
prevent extreme damage, pumps are
equipped with a thermal relief valve.
This valve will open when the
temperature inside the pump rises too
high. This valve will then release a
gush of water in an effort to lower the
temperature inside the pump.
Immediately after this occurs, the
valve will close. The thermal relief
valve is part of the pump and is not
visible to the user.
Chemical Injection System: Mixes
cleaners or cleaning solvents with the
water to improve cleaning
effectiveness.
Water Supply: All pressure washers
must have a source of water. The
minimum requirements for a water
supply are 20 PSI and 5 gallons per
minute.
high
pressure

12- ENG
D30333
3. Fill cleaning solution tanks with
desired cleaning solution. Each
tank holds approximately 1.25
gallon. NOTE: The cleaning
solution/water ratio is 7:1, for
every 7 gallons of water pumped,
1 gallon of cleaning solution will
be used.
Never fill cleaning
solution tanks with
gasoline or other flammable solvent.
4. Turn control valve knob toward
tank with desired cleaning
solution.
5. Set multi-adjustable nozzle to low
pressure setting. See How To Use
Spray Wand paragraph in this
section.
6. After use of cleaning solution the
chemical injector MUST be rinsed,
follow the instructions in the
Shutting Down paragraph after
each use.
NOTE: Cleaning solutions will not
siphon when spray wand is in the high
pressure setting.
DUAL TANK CLEANING
SOLUTION TIPS
1. Each tank may be filled with
different cleaning solutions
depending on the task to be
performed. Example: deck and
driveway. Fill one tank with deck
cleaning solution and the other
with driveway cleaning solution.
Clean the deck with the deck
cleaning solution and then simply
turn the control knob toward the
driveway cleaning solution and
clean the driveway.
The nozzle at the end of the multi-
adjustable spray wand can be rotated
to change the high pressure spray
pattern from a narrow jet to a 40º fan
shape, as shown. Markings have been
placed on the nozzle to help you
select the spray pattern.
For low pressure operation, extend the
nozzle of the multi-adjustable spray
wand as shown.
40º fan spray
narrow jet stream
HOW TO USE THE DUAL TANK
CLEANING SYSTEM
NOTE: Use only soaps and cleaning
solutions designed for pressure
washer use. Do not use bleach.
To apply cleaning solutions:
1. Make sure cleaning solution tanks
are assembled and all hoses are
connected.
2. Turn control valve knob arrow to
the down (off) position as shown.
Control Valve Knob
Tank to
be used
low
pressure

13- ENG D30333
TO SHUT DOWN
IMPORTANT: Read and understand
how to shut down the pressure
washer before operating.
1. After use of cleaning solution the
chemical injector MUST be rinsed in
order to prevent pump damage
caused by solution build up. The
warranty will not cover pumps that
are damaged because the chemical
injector was not properly rinsed.

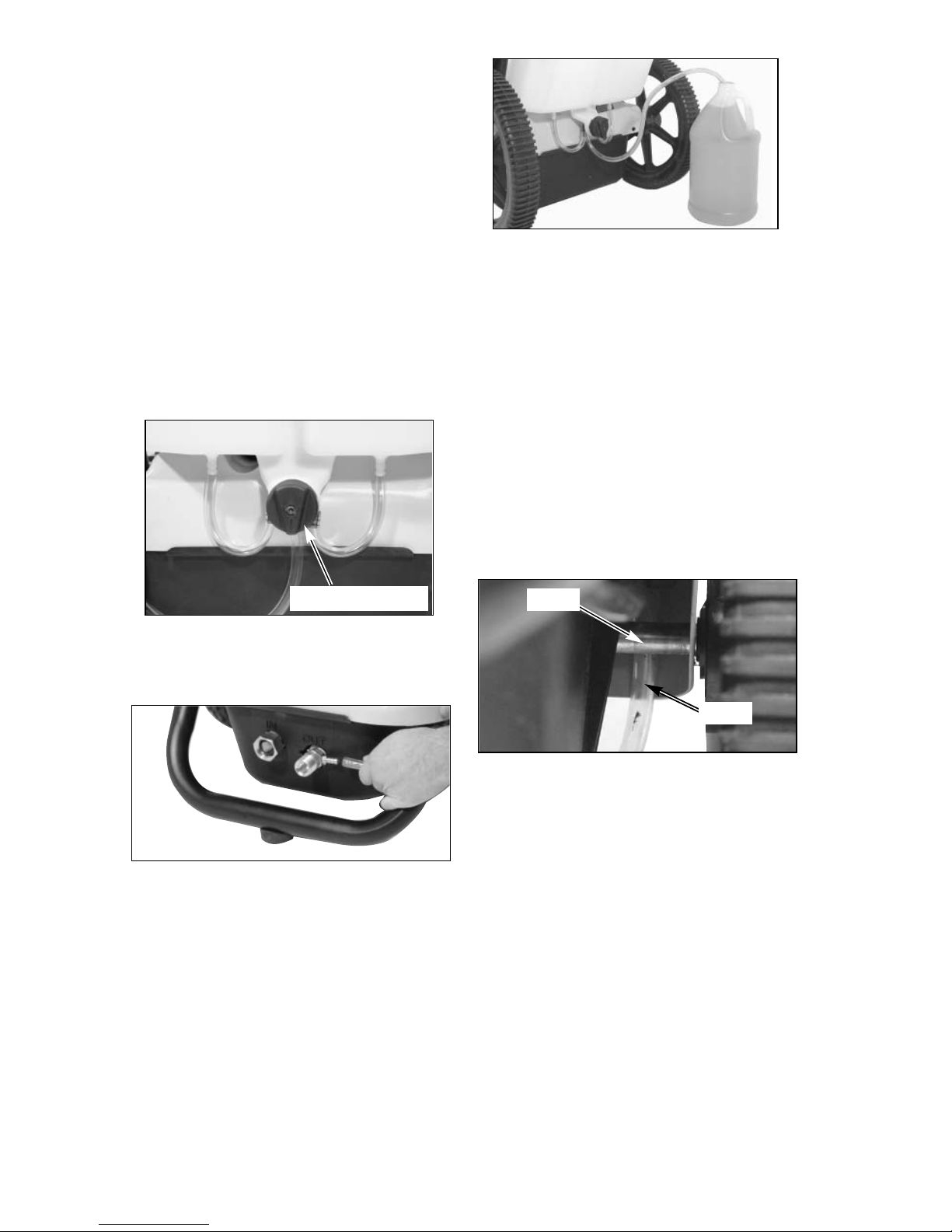

To rinse chemical injector using
chemical injector rinsing hose
a. Remove cleaning solution
hose from chemical injector
barb fitting.
b. Push chemical injector rinsing
hose onto the chemical
injector barbed fitting.
2. If only one cleaning solution is
being used both tanks may be
filled with the same solution to
double the capacity before refilling
tanks.
3. If only one cleaning solution is
being used the second tank may
be filled with clean water to
conveniently rinse the chemical
injector after use.
c. Place other end of chemical
injector rinsing hose into
container of clean water and
depress trigger to draw at least
one gallon of clean water
through chemical injection
system to rinse system
thoroughly.
d. Before reconnecting cleaning
solution hose to chemical
injector barb fitting make sure
that any remaining cleaning
solution has been completely
drained from the cleaning
solution hose.
To rinse chemical using cleaning
solution system tank
a. Turn control valve knob arrow
to the down (off) position.
b. Fill one of the cleaning
solution system tanks with
clean water.
c. Turn control valve knob
toward tank with clean water.
d. Depress trigger to draw clean
water through chemical
injection system to rinse
system thoroughly.
2. Turn engine off by placing the
throttle control in the OFF
position.
NOTE: NEVER turn the water off
with the engine running.
Control Valve Knob
Tank to
be used

14- ENG
D30333
1. In a well ventilated outdoor area
add fresh, high quality, unleaded
gasoline with a pump octane
rating of 86 or higher. Do not
overfill. Wipe up spilled fuel before
starting the engine.

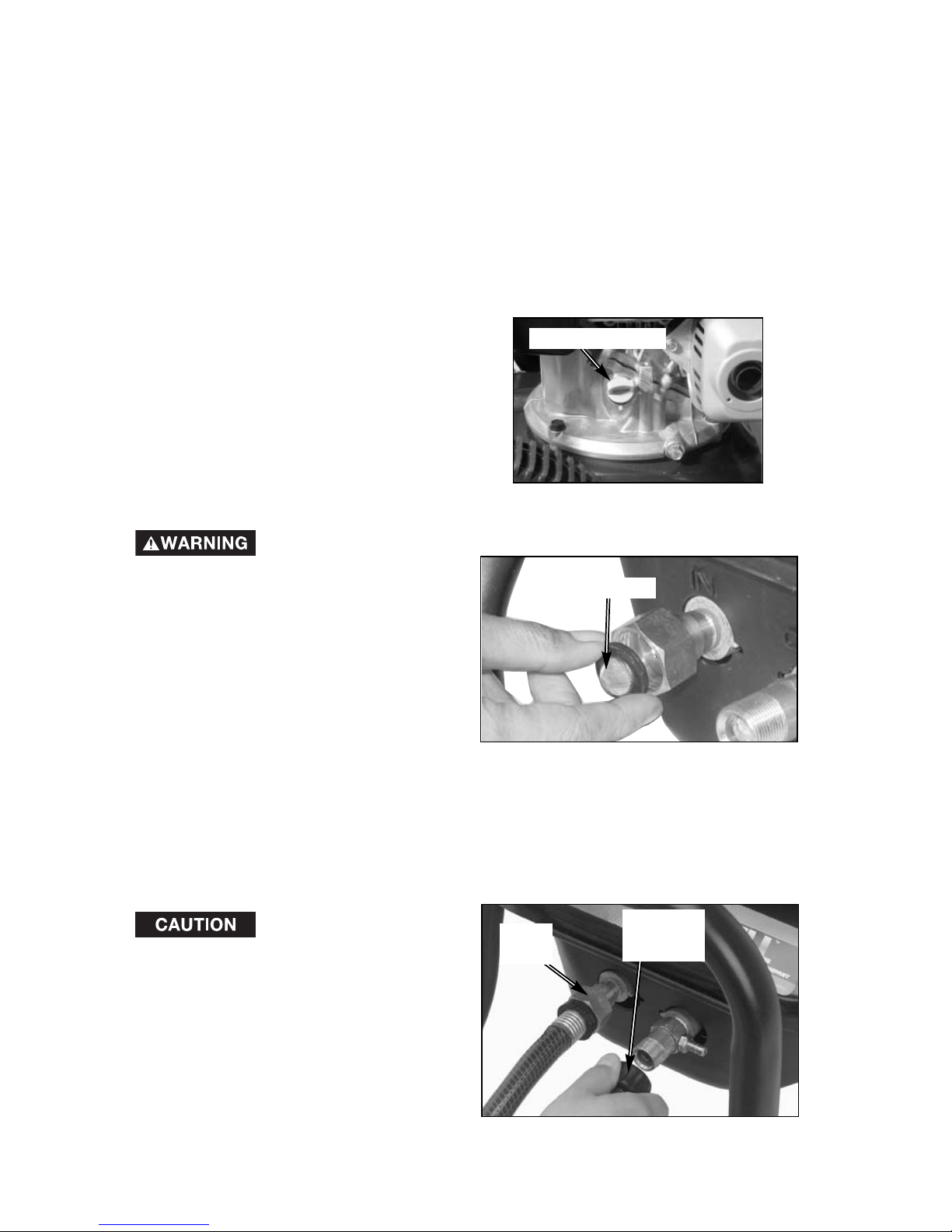

2. Remove filler cap/dipstick and
add engine oil (supplied) to
engine. NOTE: There will be a
slight amount of oil in the engine
from factory testing. Always check
oil level before each start-up.
3. Verify the filter screen is in water
inlet of pump. NOTE: Cone side
faces out.
4. Connect high pressure hose to
pump outlet.
5. Connect water source to pump
inlet.
NOTE: Water source must provide a
minimum of 5 gallons per minute at
20 p.s.i.
Water
Source
High
Pressure
Hose
Filter Screen
BEFORE STARTING
Read and understand all Important
Safety Instructions in the front of
this manual and the following
Cautions and Warnings before
starting the pressure washer.
• Never fill fuel tank completely.
Fill tank to 1/2" below bottom of
filler neck to provide space for
fuel expansion. Wipe any fuel
spillage from engine and
equipment before starting
engine.
• Never fill fuel tank indoors.
Never fill fuel tank when engine
is running or hot. Do not smoke
when filling fuel tank.
• Never run engine indoors or in
enclosed, poorly ventilated
areas. Engine exhaust contains
carbon monoxide, an odorless
and deadly gas.
• Never turn water supply off
while pressure washer engine is
running or damage to pump will
result.
• DO NOT use hot water, use cold
water only.
• DO NOT stop spraying water for
more than two minutes at a
time.
Filler cap/dipstick
3. Turn the fuel valve to the OFF
position if engine will not be
restarted soon.
4. Turn water source off.
5. Pull trigger on spray gun to relieve
any water pressure in hose or
spray gun.
6. See Storage section in this
manual for proper storage
procedures. NOTE: Cleaning
solution must be removed from
cleaning solution tanks if storing
unit longer than 30 days, see
Storage section for correct
procedure.

15- ENG D30333
6. If applying a cleaning solution, see
How To Use the Dual Cleaning
Solution System in Operation
section of this manual.
7. Turn water source on.
NOTE: Failure to do so could cause
damage to the pump.

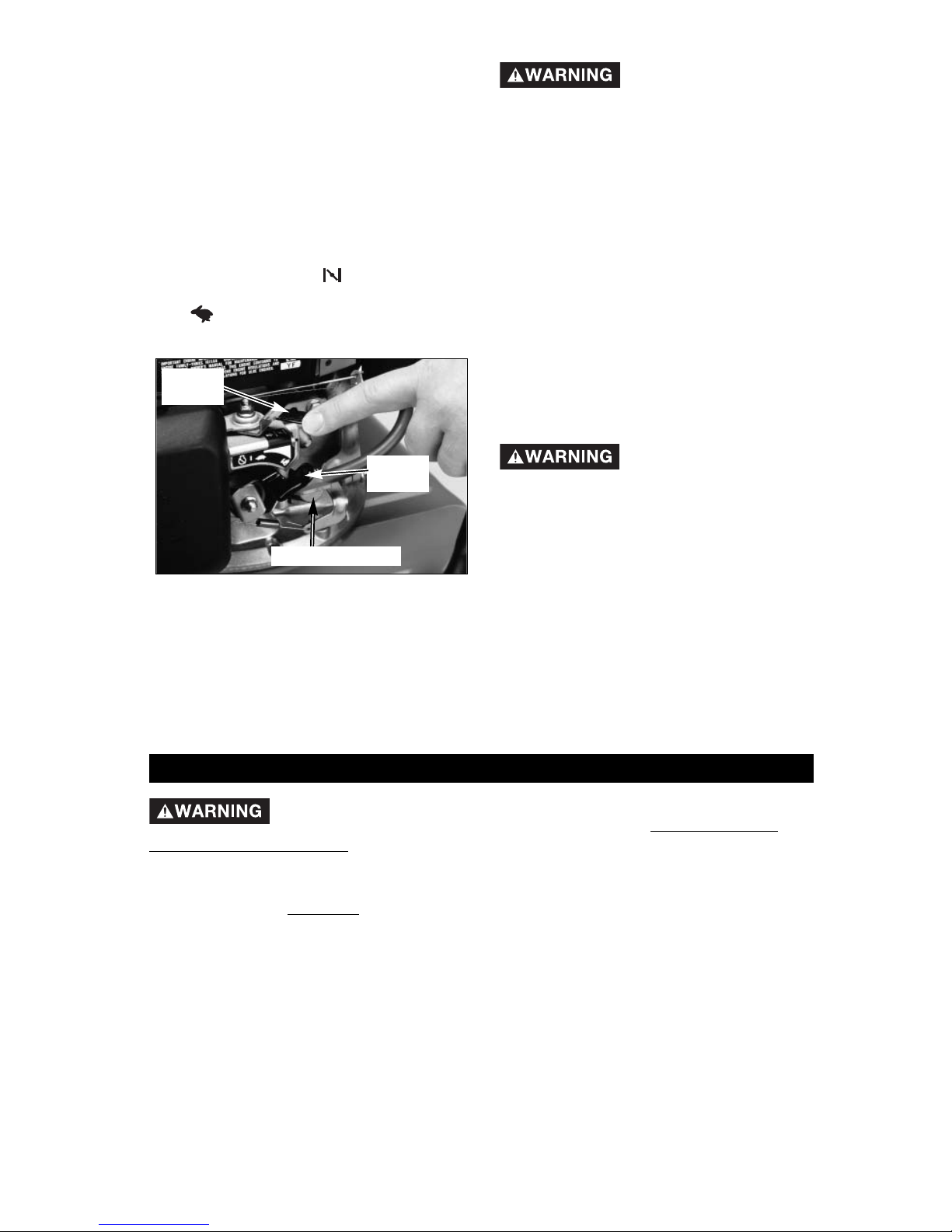

8. Turn fuel valve to the ON position,
1/4 turn counterclockwise.
9. Move the choke control lever to
the CHOKE ON position and
the throttle control to the FAST
position. NOTE: No choke is
needed to start a warm engine.
10. Pull starter grip slowly until you
feel resistance, then pull briskly.
Return starter grip gently. Pull
rope with a rapid full arm stroke.
Let rope rewind slowly. Repeat if
necessary.
Fuel Valve Knob
Choke
Control
Throttle
Control
If the engine does
not start after two
pulls, pull the trigger to relieve the
pressure.
11. If the choke was used to start the
engine, move the choke lever to
the OFF position.
12. Depress trigger on gun to start
water flow. NOTE: Stand on a
stable surface and grip
gun/spray wand firmly with both
hands. Expect the gun to kick
back when triggered.
13. Release trigger to stop water flow.
14. Adjust nozzle spray for the task
being performed. See How To
Use Spray Wand instructions in
this section.
DO NOT let hoses
come in contact with
very hot engine muffler during or
immediately after use of your
pressure washer.
MAINTENANCE
When performing maintenance, you may be exposed to hot
surfaces, water pressure, or moving parts that can cause
serious injury or death!
Before performing any maintenance or repair, disconnect spark plug wire,
let engine cool and release all water pressure. The engine contains
flammable fuel. DO NOT smoke or work near open flames while performing
maintenance.
To ensure efficient operation and longer life of your pressure washer, a routine
maintenance schedule should be prepared and followed. If the pressure washer is
used in unusual conditions, such as high-temperatures or dusty conditions, more
frequent maintenance checks will be required.

16- ENG
D30333
CUSTOMER RESPONSIBILITIES TABLE
MAINTENANCE TASK
PRESSURE WASHER
ENGINE
check/clean inlet screen
check high pressure hose
check soap and chemical
hose and filter
check gun and wand for leaks
check oil level
change oil
check air filter
clean/replace spark plug
prepare for storage
Before
each use
Every 25
hours or
yearly
Every 50
hours or
yearly
Every 100
hours or
yearly
Prepare unit for storage if it is to remain idle for longer
than 30 days
X
X
X
X
X
X
X
X
ENGINE
To Check Oil
1. Shut down engine and place on a
level surface.
2. Remove filler cap/dipstick and wipe
it clean.
3. Insert and remove the filler
cap/dipstick without screwing it
into the filler neck. Check the oil
level shown on the dipstick.
Filler cap/dipstick
4. If the oil level is low, fill to the edge
of the oil filler hole with the SAE
10W-30 oil.
NOTE: Other viscosities shown in the
chart may be used when the average
temperature in your area is within the
recommended range.
Oil Filler
Cap/Dipstick
Upper Limit
Lower Limit
F-20 0 20 40 60 80 100
C-30 -20 -10 0 10 20 30 40
STARTING TEMPERATURES RANGE
ANTICIPATED BEFORE NEXT OIL CHANGE
*
**
32
SAE Viscosity Grades
Synthetic 5W-30, 10W-30

17- ENG D30333

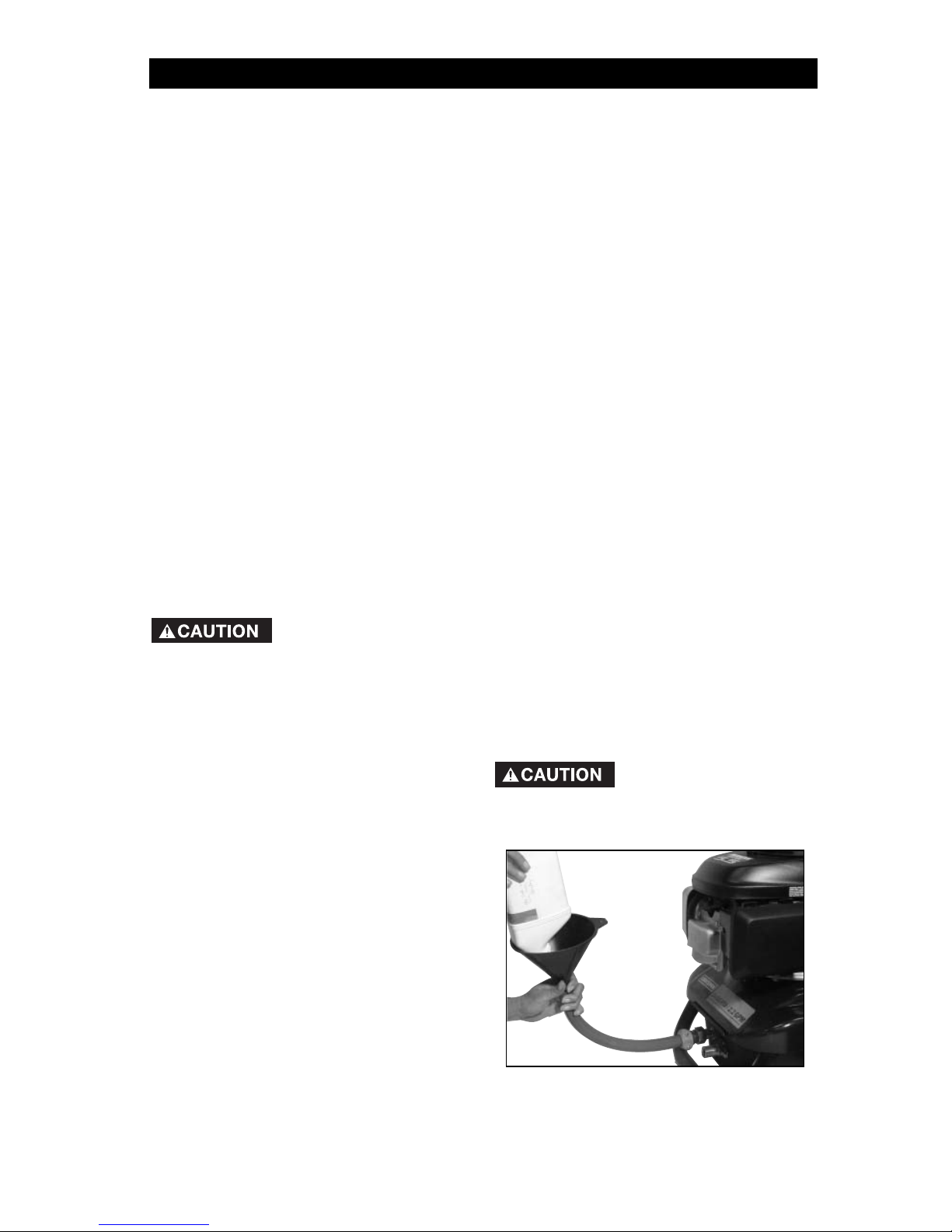

To Change Oil
Drain the engine oil when the engine is
warm. Warm oil drains quickly and
completely.
1. Turn the fuel valve to the OFF
position, 1/4 turn clockwise.
2. Place a suitable container next to
the engine to catch the used oil.
3. Remove filler cap/dipstick and
drain the oil into the container by
tipping the engine toward the oil
filler neck.
NOTE: Please dispose of used motor
oil in a manner that is compatible with
the environment. It is recommended to
take used oil in a sealed container to
your local recycling center or service
station for reclamation. Do not throw it
in the trash or pour it on the ground or
down a drain.
4. With the engine in a level position,
fill to the upper limit mark on the
dipstick with SAE 10W-30 oil.
Engine oil capacity is 0.58 quart
(.055 liter). NOTE: Other viscosities
shown in the chart in the “To
Check Oil” paragraph may be
used.
5. Replace the oil filler cap/dipstick
securely.
Upper Limit
Lower Limit
Oil Filler Neck
Oil Filler
Cap/Dipstick
Air Cleaner
A dirty air cleaner will restrict air flow to
the carburetor and cause poor engine
performance. Inspect the filter each
time the engine is operated. Clean the
filter more frequently if the engine is
operated in very dusty areas.
NOTICE: Operating the engine without
a filter, will allow dirt to enter the
engine, causing rapid engine wear. This
type of damage is not covered under
the warranty.
Inspect
1. Press the latch tabs on the top of
the air cleaner cover and remove
the cover. Check the filter to be
sure it is clean and in good
condition.
2. Reinstall the filter and air cleaner
cover.
Cleaning
1. Tap the filter several times on a
hard surface to remove dirt or
blow compressed air [not
exceeding 30 psi (207kPa, 1.2
kg/cm2) through the filter from the
clean side that faces the engine.
Never try to brush off dirt.
Brushing will force dirt into the
fibers.
2. Wipe dirt from the air cleaner body
and cover using a moist rag. Be
careful to prevent dirt from
entering the air duct that leads to
the carburetor.
Air Cleaner Body Filter Air
Cleaner
Cover
Latch
Tabs
Lower
Tabs
Air Duct

18- ENG
D30333
3. Pull trigger on gun handle to
relieve any water pressure.
4. Disconnect the wand from the
gun.
5. Remove the nozzle from the end
of the wand with the 2mm allen
wrench provided as shown.
6. Clean the nozzle using the nozzle
cleaner provided or a straightened
paper clip. Insert into the nozzle
end and work back and forth until
obstruction is removed.
7. Direct water supply into nozzle
end to backflush loosened
particles for 30 seconds.
8. Reconnect spark plug wire.
9. Reassemble the nozzle to the
wand. Tighten securely to prevent
leaks.
10. Reconnect wand to gun and turn
on water supply.
11. Start pressure washer and place
wand into high pressure setting to
test.
NOZZLE CLEANING
If the nozzle becomes clogged with
foreign materials, such as dirt,
excessive pressure may develop. If the
nozzle becomes partially clogged or
restricted, the pump pressure will
pulsate. Clean the nozzle immediately
using the nozzle kit supplied and the
following instructions:
1. Shut off the pressure washer and
turn off the water supply.
2. Disconnect spark plug wire.
Clean and Replace Spark Plug
Change the spark plug every 100 hours
of operation or once each year,
whichever comes first. This will help
your engine to start easier and run
better.
Resistor
.030” (0.76 MM)
Wire Gauge
PUMP
This screen filter should be checked
periodically and cleaned if necessary.
1. Remove filter by grasping end and
removing it from water inlet of
pump as shown.
2. Clean filter by flushing it with water
on both sides.
3. Re-insert filter into water inlet of
pump. NOTE: Cone side faces
out.
NOTE: Do not operate pressure
washer without filter properly installed.
Filter Screen

19- ENG D30333
ENGINE
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as the
carburetor, fuel filter, hose or tank
during storage. Also, experience
indicates that alcohol-blended fuels
(called gasohol or using ethanol or
methanol) can attract moisture which
leads to separation and formation of
acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Never use engine or carburetor
cleaner products in the fuel tank or per-
manent damage may occur.
Engine Preparation
1. First add a fuel stabilizer to the
fuel tank.
2. Run pressure washer for a full 5
minutes to allow fuel stabilizer to
enter the fuel system.
While preparing the
engine make sure
water supply is turned on and
flowing to the unit. NEVER run unit
without water supply running
through pump. Failure to do so will
cause pump damage.
3. Next shut off engine and
disconnect the water supply.
4. Disconnect the spark plug wire
and remove the spark plug.
5. Add one teaspoon of oil through
the spark plug hole.
6. Place rag over spark plug hole and
pull the recoil a few times to
lubricate the combustion chamber.
7. Replace the spark plug, but do not
connect the spark plug wire.
PUMP
1. Drain all water from high
pressure hose, coil it, and store it
in cradle of the pressure washer
handle.
2. Drain all water from spray gun
and spray wand by holding spray
gun in a vertical position with
nozzle end pointing down and
squeezing trigger. Store in
gun/hose holder.
3. Store chemical injector rinsing
hose, high pressure hose, spray
gun, and spray wand so they are
protected from damage, such as
being run over.
It is recommended that you follow
these steps to protect the internal seals
of the pressure washer when STORING
THE UNIT FOR MORE THAN 30 DAYS
AND/OR WHEN FREEZING
TEMPERATURES ARE EXPECTED.
*RV antifreeze needs to be run through
the pump as outlined in the steps
below.
4. Obtain a funnel, six ounces of *RV
antifreeze, and approximately 36
inches of garden hose with a male
hose connector attached to one
end.
Use only RV
antifreeze. Any other
antifreeze is corrosive and can
damage pump.
5. Disconnect spark plug wire.
6. Connect 36 inch length of hose
to water inlet of pump.
STORAGE

20- ENG
D30333
4. Turn control valve toward tank to
be drained.
5. Repeat steps 3-4 to drain second
tank.
6. Turn control valve knob to the
down (off) position.
7. Fill tanks with clean water.
8. Turn valve toward tank and drain
water from tank. Repeat on
second tank. NOTE: This will rinse
cleaning solution tanks.
9. Route the cleaning solution hose
over the axle and reconnect
cleaning solution hose to chemical
injector for future use.
7. Add *RV antifreeze to hose as
shown.
8. Pull engine starter rope slowly
several times until antifreeze
comes out of high pressure hose
connection of pump.
9. Remove short hose from water
inlet of pump.
10. Reconnect spark plug wire.
* Windshield washer fluid may also be
used
DUAL TANK CLEANING
SYSTEM
1. Turn control valve knob to the
down (off) position.
2. Remove cleaning solution hose at
chemical injector and pull it over
the axle and to the rear of the unit.
3. Place end of cleaning solution
hose into a suitable container to
drain cleaning solution.
Control Valve Knob Axle
Hose
