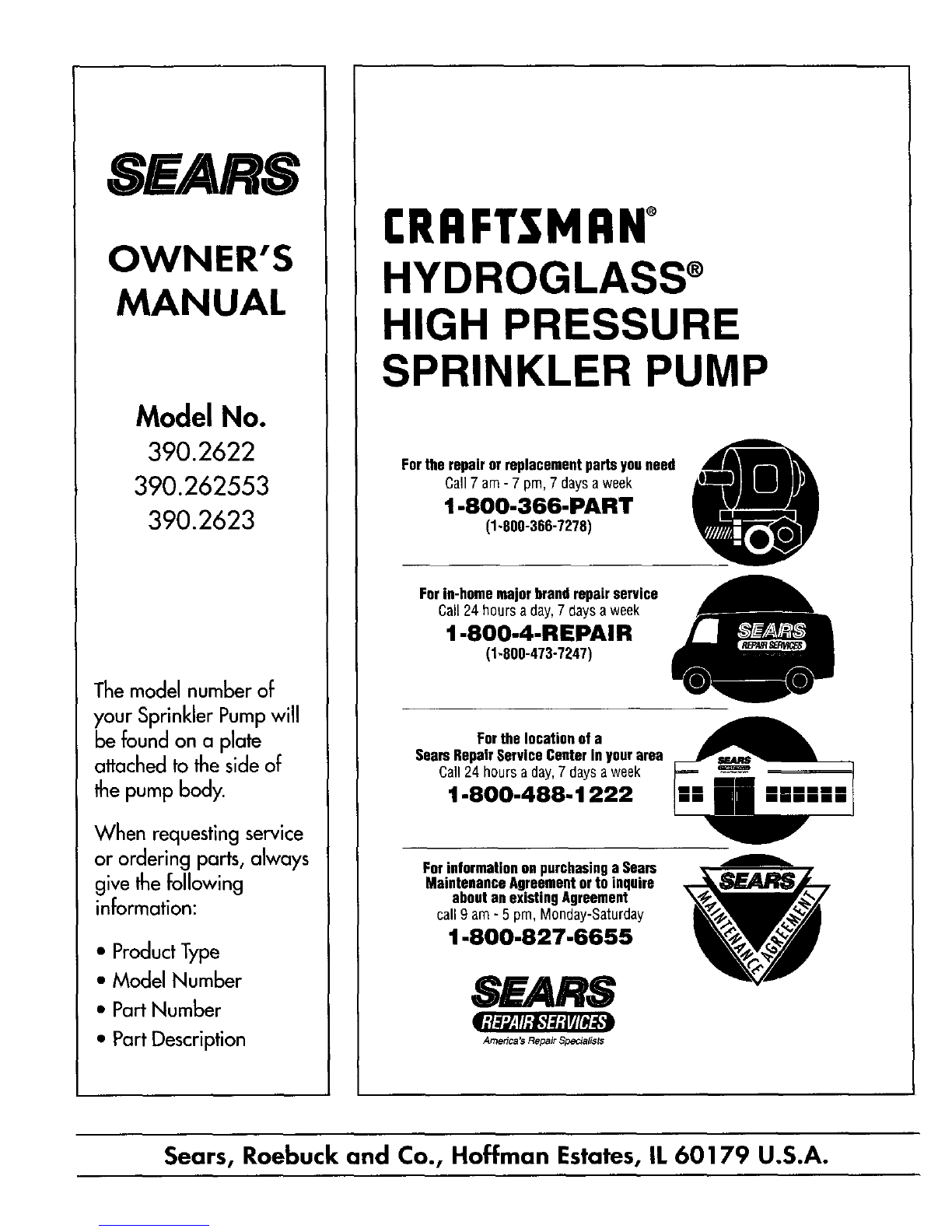

Craftsman HYDROGLASS 390.2622 User manual

SEARS
OWNER'S
MANUAL
MODELNO.
390.2622
390.262553
390.2623
CAUTION:
Readand Follow
All Safety Rulesand
Operating Instructions
BeforeFirstUseof
ThisProduct.
Save ThisManual For
FutureReference.
MODEL NOS.
390.2622
390.262553
MODEL NO. 390.2623
I:RRFTSNFIN°
HYDROGLASS ®
HIGH PRESSURE
SPRINKLER PUMP
•Safety Instructions
• Installation
•Electrical
•Maintenance
• Repair Parts
Sears, Roebuck and Co., Hoffman Estates, IL60179 U.S.A.
PP4NTED IN U.S.A. FormNo.F642-04710 (8/6/o4)

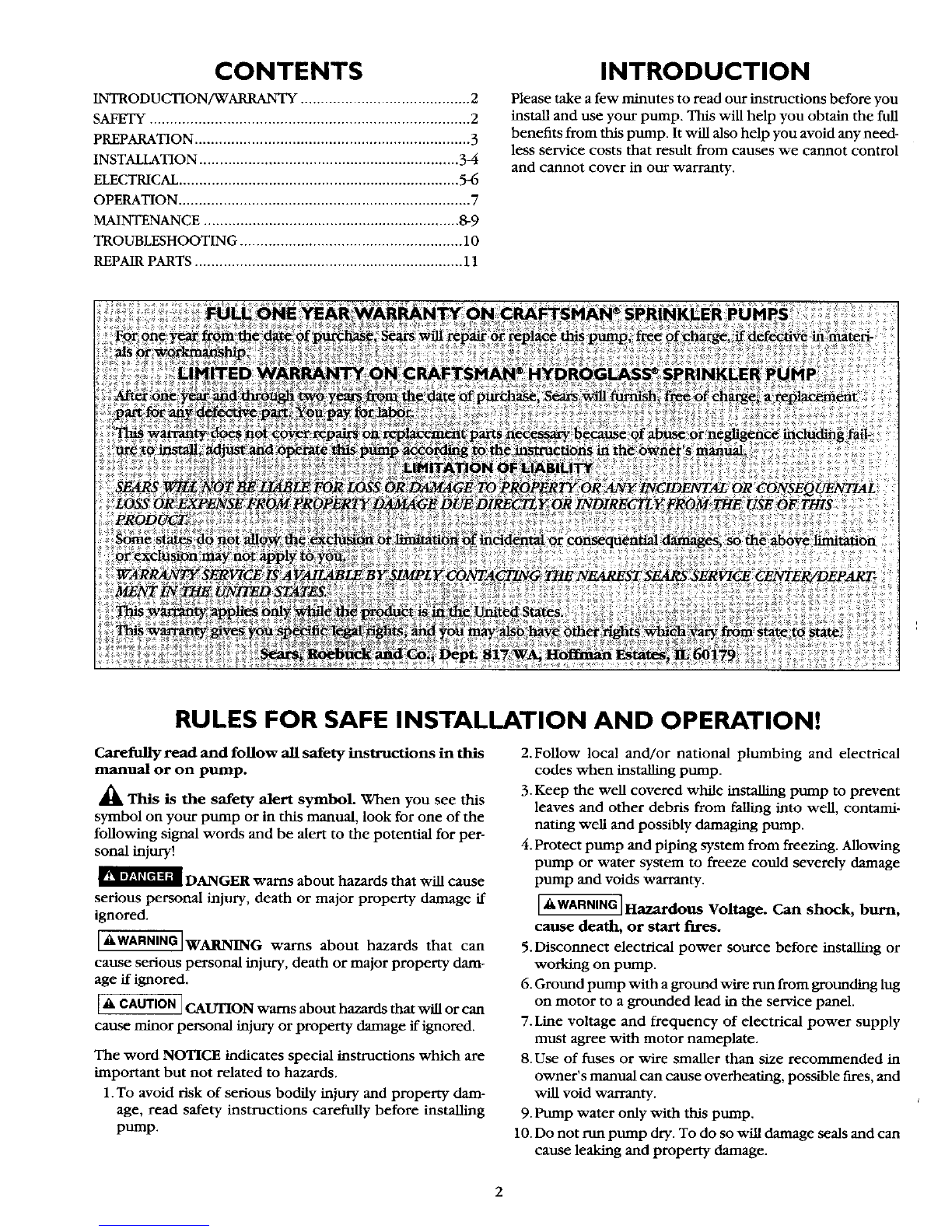

CONTENTS
INTRO DU CTION/WARR.MNITy .......................................... 2
SAFETY ............................................................................... 2
PREPARATION .................................................................... 3
INSTALLATION ................................................................ 3_i
ELECTRICAL ..................................................................... 54_
OPERATION ........................................................................ 7
MAINTENANCE ............................................................... 8-9
TROUBLESHOOTING ....................................................... 10
REPAIR PARTS .................................................................. 11
INTRODUCTION
Please take a few minutes to read our instructions before you
install and use your pump. This will help you obtain the full
benefits from this pump. It will also help you avoid any need-
less service costs that result from causes we cannot control
and cannot cover in our warranty.
RULES FOR SAFE INSTALLATION AND OPERATION!
Carefully read and follow all safety instructions in this
manual or on pump.
_k This is the safety alert symboL When you see this
symbol on your pump or in this manual, look for one of the
following signal words and be alert to the potential for per-
sonal injury!
_ DANGER warns about hazards that will cause
serious personal injury, death or major property damage if
ignored.
[&WARNING_wPdRNI_IG warns about hazards that can
cause serious personal injury, death or major property dam-
age if ignored.
[A CAUTION ]CAUTION warns about hazards that will or can
cause minor personal injury or property damage if ignored.
The word NOTICE indicates special instructions which are
important but not related to hazards.
1. To avoid risk of serious bodily injury and property dam-
age, read safety instructions carefully before installing
pump.
2. Follow local and/or national plumbing and electrical
codes when installing pump.
3. Keep the well covered while instalfing pump to prevent
leaves and other debris from Falling into well, contami-
nating well and possibly damaging pump.
4. Protect pump and piping system from freezing. Allowing
pump or water system to freeze could severely damage
pump and voids warranty.
]_kWARNING]Hazardous Voltage. Can shock, burn,
cause death, or start fires.
5. Disconnect electrical power source before installing or
working on pump.
6. Ground pump with a ground wire run from grounding lug
on motor to a grounded lead in the service panel.
7. Line voltage and frequency of electrical power supply
must agree with motor nameplate.
8.Use of fuses or wire smaller than size recommended in
owner's manual can cause overheating, possible fires, and
v_tll void warranty.
9. Pump water only with this pump.
10. Do not run pump dry. To do so will damage seals and can
cause leaking and property damage.

PREPARATION INSTALLATION (Continued)
BASIC TOOLS AND MATERIALS NEEDED
Pipe Wrenches Screwdriver
Hacksaw Check Valve
Adjustable Wrench Teflon Tape
Knife
Suction Pipe
iTee
and Plug
NOTICE: Depth to water must not be more than 20'.
1. Long runs and many fittings increase friction and reduce
flow. Locate pump as close to water source as possible:
use as few elbows and fittings as possible.
2. Be sure water is clear of sand. Sand will plug the pump
and void the warranty.
3. Protect pump and all piping from freezing. Freezing will
split pipe, damage pump and void the warranty. Check le-
eally for frost protection requirements (usually pipe must
be 12" below frost line and pump must be insulated).
4. Be sure all pipes and foot valve are clean and in good
shape.
5. No air pockets in suction pipe.
6. No leaks in suction pipe. Use Teflon tape or Plasto-Joint
Stik Ito seal pipe joints.
7. Unions installed near pump and water source will aid in
servicing. Leave room to use wrenches.
8. [AWARNINGIPump body may explode ffused as a
booster pump. DO NOT use in abooster application_
'Lake Chemical Co., Chicago, IUinois.
INSTALLATION
NOTICE: Use the installation method below which matches
your well type.
CASED WELL INSTALLATION
1. Inspect foot valve to be sure it works freely. Inspect
strainer to be sure it is clean.
2. Connect foot valve and strainer to the first length of suc-
tion pipe and lower pipe into well. Add sections of pipe
as needed, using Teflon tape on male threads. Be sure that
all suction pipe is leakproof or pttmp v¢tlllose prime and
failto pump. Installfoot valve 10 to 20 feet below the low-
est level to which water will drop while pump is operat-
ing (pumping water level). Your well driller can furnish
this information.
3. To prevent sand and sediment from entering the pump-
ing system, the foot valve/strainer should be at least 5 feet
above the bottom of the well.
4. When the proper depth is reached, install a sanitary well
seal over the pipe and in the well casing. Tighten the bolts
to seal the casing.
5. When using a foot valve, a priming tee and plug as shown
in Figure 1 are recommended.
DUG WELL OR OPEN WATER
INSTALLATION
1. Follow cased well installation, steps 1, 2, 3 and 5.
Sanitary
WellSeal
/
Foot
Valve
Strainer
2590 0996
Figure I - Cased/Dug Well Installation
DRIVEN POINT INSTALLATION
1. Connect the suction pipe to the drive point as illustrated in
Figure 2. Keep horizontal pipe run as short as possible. Use
Teflon tape on male pipe threads. Multiple well points may
be necessary to provide sufficient water to pump.
2. Install a check valve in piping as shown in Figure 2. Flow
arrow on check valve must point toward pump.
Suction Pipe
to Pump
Check-_.
Valve
Drive point i
below water
level
Drive
Coupling
Drive
Point
2589 0996
Figure 2 - Driven Point Installation
HORIZONTAL PIPING FROM WELL TO
PUMP
1. Never install a suction pipe that is smaller than the suc-
tion tapping of the pump.
3

INSTALLATION (Continued)
2. To aid priming on driven point installations, install a line
check valve as shown in Figure 2. Be sure check valve
flow arrow points toward pump.
DISCHARGE PIPE SIZES
1. If increagmg discharge pipe size, install reducer in pump
discharge tapping. Do not increase pipe size by stages.
2. When the pump is set away from the points of water use,
the discharge pipe size should be increased to reduce
pressure losses caused by friction.
• Up to 100' run: Same size as pump discharge tapping.
• 100' to 300' run: Increase one pipe size.
• 300' to 600' run: Increase two pipe sizes.
LAWN SPRINKLING APPLICATION
This pump is designed for lawn sprinkling. It is designed to
deliver plenty of water at full sprinkler pressure. It can pump
from a pond, cistern or well points.
Pump discharge can be divided to supply two (2) or more
To
Service
Priming
Plug
Valve
846 0494
Figure 3 - Multiple Discharge
sprinkler systems. Asuggested mtdtiple discharge to service
is shown in Figure 3.
Do not use in a pressure tank or booster pump
application.
Pump/Piping Installation
PUMP INSTALLATION
NOTICE: Use Teflon tape supplied with the pump for mak-
ing all threaded connections to the pump itself. Do not use
pipe joint compounds on the pump: they can react with
the plastic in the pump components.
1. Bolt pump to solid, level foundation.
2. Support all piping connected to the pump.
3. Wrap 1-1/2 to two layers of Teflon tape clockwise (as you
face end of pipe) on all male threads being attached to
pump.
4. Tighten joints hand tight plus 1-1/2 turns. Do not over-
tighten.
NOTICE: Install pump as close to water source as possible.
Long piping runs and many fittings create friction and re-
duce flow.
Use schedule 80 or iron pipe. See "Well Pipe Installation" for
more information.
Figure 4 - Bolt Pump Figure 5 - Independently
Down Support All Piping
Attached To Pump
DISCHARGE
PRESSURE
PSI
10
15
20
25
30
35
4O
45
50
DISCHARGE
PIPE TAPPING
SUCTION
PIPE TAPPING
TABLE II - PERFORMANCE CHART (IN GALLONS PER MINUTE)
3_,2622
1H.P.
5' 10' 15' 20'
55 49 48 45
51 46 45 44
45 42 39 37
38 35 32 29
31 28 24 20
23 19 16 11
17 13 8 -
390.262553
1-1/2H.P.
DISTANCE ABOVETO WATER
5' 10' 15' 20'
67 61 56 46
66 58 55 45
61 56 54 44
55 52 51 43
48 45 44 37
39 37 34 28
33 27 20 11
10 14 8 -
390.2623
2 H.P.
5' 10' 15'
69 67 65
65 63 60
59 56 54
52 50 48
47 45 42
42 38 35
34 30 27
25 18 13
14 7 -
1-1/2" NPT 1-1/2" NPT 2" NPT
1-1/2" NPT 1-1/2" NPT 2" NPT
20'
62
58
52
45
40
32
23
10

ELECTRICAL

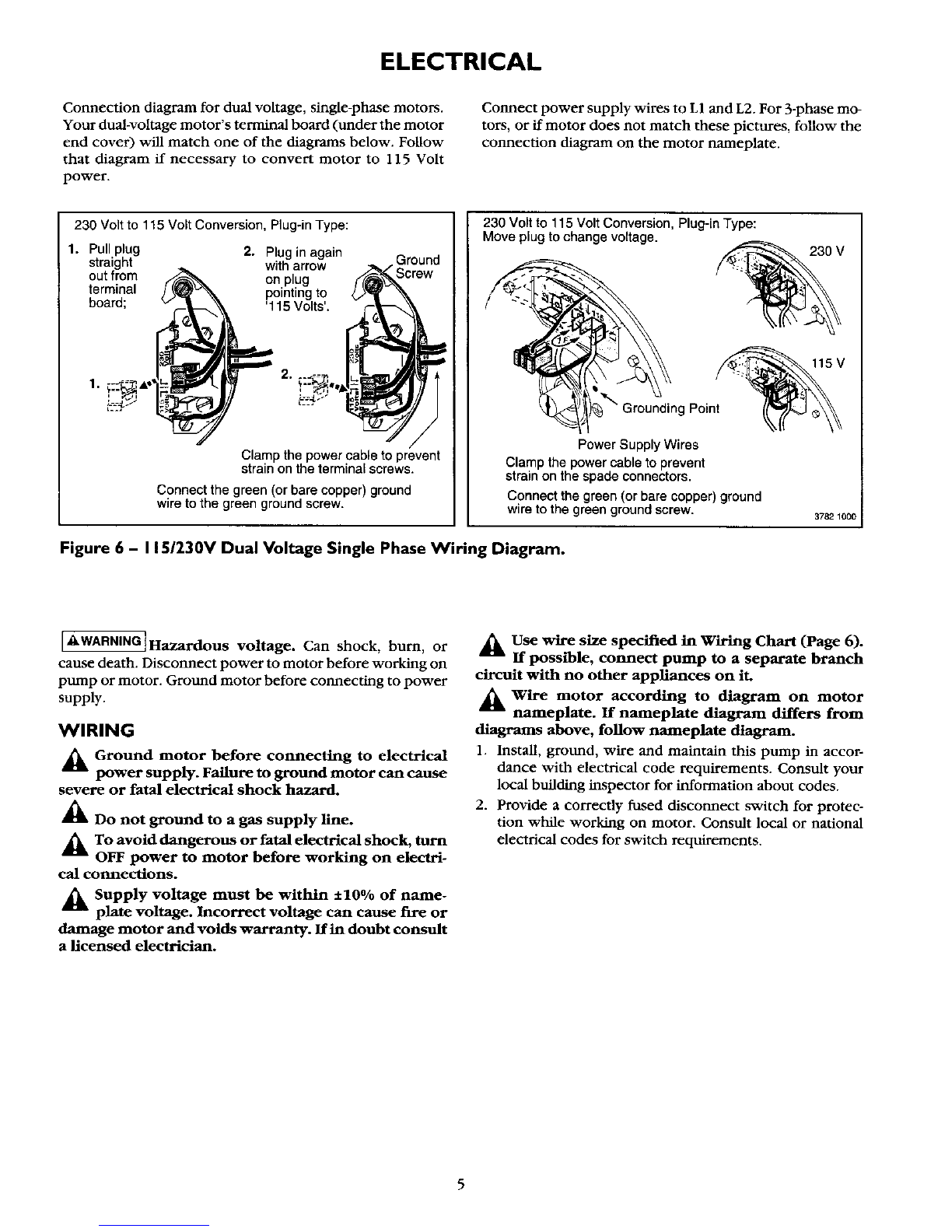

Connection diagram for dual voltage, single-phase motors.
Your dual-voltage motor's terminal board (under the motor
end cover) will match one of the diagrams below. Follow
that diagram ff necessary to convert motor to 115 Volt
power.
Connect power supply wires to L1 and L2. For 3-phase mo-
tors, or if motor does not match these pictures, follow the
connection diagram on the motor nameplate.
230 Volt to 115 Volt Conversion, Plug-in Type:
1. Pull plug 2. Plug in again
straight with arrow
out from on plug
terminal pointing to
board; '115 Volts'.
Clamp the power cable to prevent
strain on the terminal screws.
Connect the green (or bare copper) ground
wire to the green ground screw.
230 Volt to 115 Volt Conversion, Plug-in Type:
Move plug to change voltage.
V
g Point _._( I%j ®_
Power Supply Wires
Clamp the power cable to prevent
strain on the spade connectors.
Connect the green (or bare copper) ground
wire to the green ground screw. 3782 1000
Figure 6 - 115/230V Dual Voltage Single Phase Wiring Diagram.
[AWARNING_Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to motor before working on
pump or motor. Ground motor before connecting to power
supply.
WIRING
AGround motor before connecting to electrical
power supply. Failure to ground motor can cause
severe or fatal electrical shock hazard.
ADo not ground to a gas supply line.
A To avoid dangerous or fatal electrical shock, turn
OFF power to motor before working on electri-
cal connections.
A Supply voltage must be within ±10% of name-
plate voltage. Incorrect voltage can cause fire or
damage motor and voids warranty. If in doubt consult
a licensed electrician.
AUse wire size specified in Wiring Chart (Page 6).
If possible, connect pump to a separate branch
circuit with no other appliances on it.
A Wire motor according to diagram on motor
nameplate. If nameplate diagram differs from
diagrams above, follow nameplate diagram.
1. Install, ground, wire and maintain this pump in accor-
dance with electrical code requirements. Consult your
local building inspector for information about codes.
2. Provide a correctly fused disconnect switch for protec-
tion while working on motor. Consult local or national
electrical codes for switch requirements.
5

ELECTRICAL (Continued)
3. Disconnect power before servicing motor or pump. If the
disconnect switch is out of sight of pump, lock it open
and tag it to prevent unexpected power application.
4. Ground the pump permanently using a wire of the same
size as that specified in wiring chart (below). Make
ground connection to green grounding terminal under
motor canopy marked GRD. or @.
5. Connect ground wire to a grounded lead in the service
panel or to a metal underground water pipe or well caS-
ing at least 10 feet long. Do not connect to plastic pipe or
insulated fittings.
6. Protect current carrying and grounding conductors from
cuts, grease, heat, oil, and chemicals.
7. Connect current carrying conductors to terminals L1 and
L2 under motor canopy. When replacing motor, check
wiring diagram on motor nameplate against Figure6. Ifthe
motor wiring diagram does not match the diagrams in
Figure 6, follow the diagram on the motor.
IMPORTANT: 115/230 Volt single phase models are
shipped from factory with motor wired for 230 volts. If
power supply is 115 volts, remove motor canopy and re-
connect motor as shown in Figure 6. Do not try to run motor
as received on 115 volt current.
8. Motor has automatic internal thermal overload protec-
tion. If motor has stopped for unknown reasons, thermal
overload may restart it unexpectedly, which could cause
injury or property damage. Disconnect power before ser-
vicing motor.
9. If this procedure or the wiring diagrams are confusing,
consult a licensed electrician.
WIRING CHART
Recommended Wire and Fuse Sizes
Max,
Pump Load
Model HP Volt Amps
115 14.2
390,2622 1 230 7.6
390.262553 1-1/2 115 19.2
230 9.6
390.2623 2230 12.0
Branch
Fuse* Min,
DISTANCE IN FEET FROM MOTOR TO METER
0' 51' 101' 201' 301' 401'
TO TO TO TO TO TO
50' 100' 200' 300' 400' 500'
Rating* Wire
Amps Size
20 12 12
15 14 14
25 10 10
15 14 14
15 14 14
WIRE SIZE
12 8664
14 14 14 12 10
10 8 6 4 4
14 14 12 10 10
14 14 12 10 10
*Dual element or Fusetron time delay fuses recommended for all motor circuits.
6

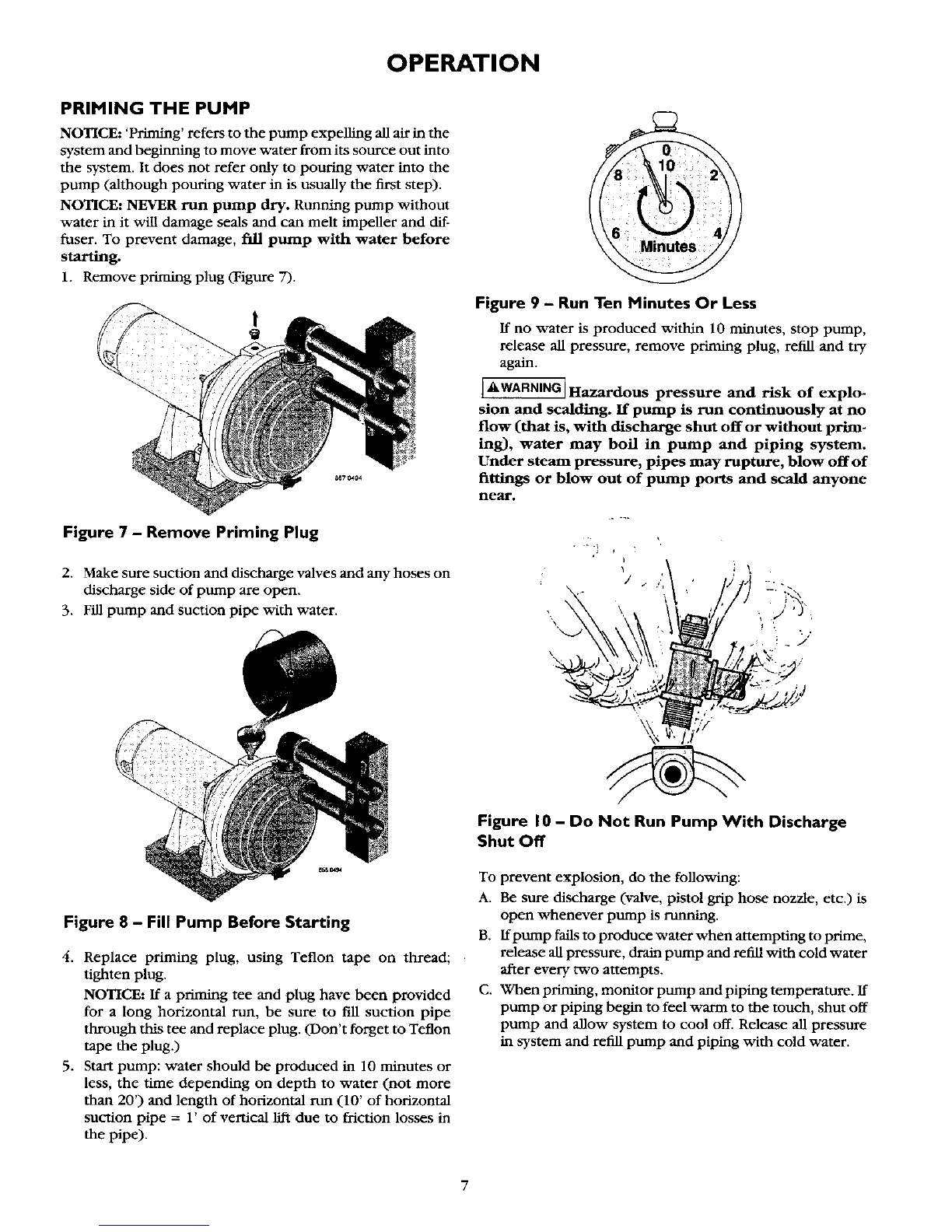

OPERATION
PRIMING THE PUMP
NOTICE: 'Priming' refers to the pump expelling all air in the
system and beginning to move water from its source out into
the system. It does not refer only to pouring water into the
pump (although pouring water in is usually the first step).
NOTICE: NEVER run pump dry. Running pump without
water in it will damage seals and can melt impeller and dif-
fuser. To prevent damage, fall pump with water before
starting.
1. Remove priming plug (Figure 7).
!
Figure 7 - Remove Priming Plug
2. Make sure suction and discharge valves and any hoses on
discharge side of pump are open.
3. Fill pump and suction pipe with water.
Figure 9 - Run Ten Minutes Or Less
If no water is produced within 10 minutes, stop pump,
release all pressure, remove priming plug, refill and try
again.
[AWARNING_Hazardous pressure and risk of explo-
sion and scalding. If pump is run continuously at no
flow (that is, with discharge shut offor without prim-
ing), water may boil in pump and piping system.
Under steam pressure, pipes may rupture, blow off of
fittings or blow out of pump ports and scald anyone
near,
Figure 8 - Fill Pump Before Starting
4. Replace priming plug, using Teflon tape on thread;
tighten plug.
NOTICE: If a priming tee and plug have been provided
for a long horizontal run, be sure to fill suction pipe
through this tee and replace plug. (Don't forget to Teflon
tape the plug.)
5. Start pump: water should be produced in 10 minutes or
less, the time depending on depth to water (not more
than 20') and length of horizontal run (10' of horizontal
suction pipe = 1' of vertical lift due to friction losses in
the pipe).
Figure I0 - Do Not Run Pump With Discharge
Shut Off
To prevent explosion, do the following:
A. Be sure discharge (valve, pistol grip hose nozzle, etc.) is
open whenever pump is running.
B. If pump fails to produce water when attempting to prime,
release all pressure, drain pump and refill with cold water
after every two attempts.
C. When priming, monitor pump and piping temperature. If
pump or piping begin to feel warm to the touch, shut off
pump and allow system to cool off. Release all pressure
in system and refill pump and piping with cold water.
7

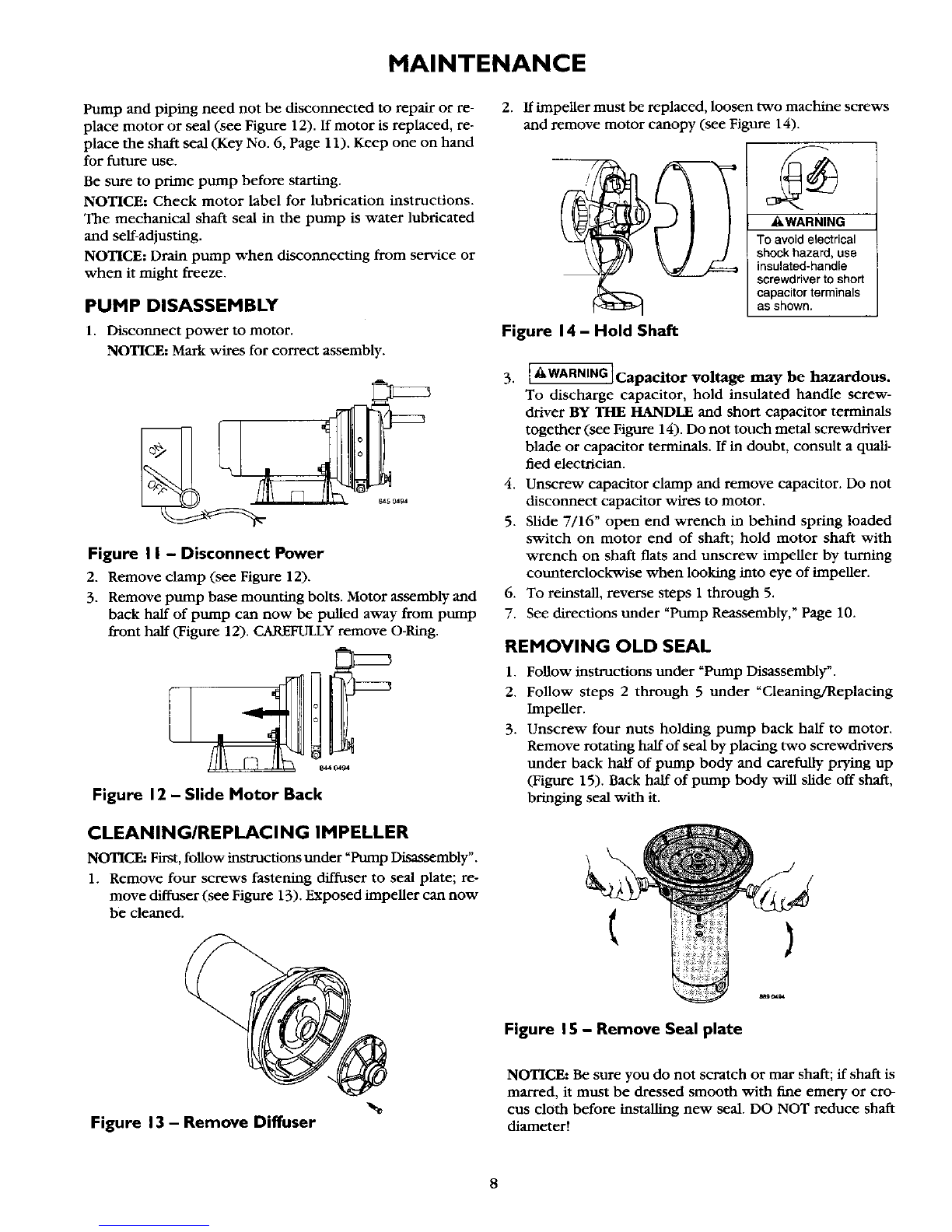

MAINTENANCE
Pump and piping need not be disconnected to repair or re-
place motor or seal (see Figure 12). If motor is replaced, re-
place the shaft seal (Key No. 6, Page 11). Keep one on hand
for future use.
Be sure to prime pump before starting.
NOTICE: Check motor label for lubrication instructions.
The mechanical shaft seal in the pump is water lubricated
and sell-adjnsting.
NOTICE: Drain pump when disconnecting from service or
when it might freeze.
PUMP DISASSEMBLY
1. Disconnect power to motor.
NOTICE: Mark wires for correct assembly.
Figure II - Disconnect Power
2. Remove clamp (see Figure 12).
3. Remove pump base mounting bolts. Motor assembly and
back haft of pump can now be pulled away from pump
front half (Figure 12). CAREFULLY remove O-Ring.
_ o4_4
Figure 12 - Slide Motor Back
CLEANING/REPLACING IMPELLER
NOTICE: First, follow instructions under "Pump Disassembly".
1. Remove four screws fastening diffuser to seal plate; re-
move diffuser (see Figure 13). Exposed impeller can now
be cleaned.
2. If impeller must be replaced, loosen two machine screws
and remove motor canopy (see Figure 14).
Figure 14 - Hold Shaft
_WARNING
To avoid electrical
shockhazard,use
insulated-handM
screwdriver toshort
capacitorterminals
asshown.
.I_kWARNING ]Capacitor voltage may be hazardous.
To discharge capacitor, hold insulated handle screw-
driver BY THE HANDLE and short capacitor terminals
together (see Figure 14). Do not touch metal screwdriver
blade or capacitor terminals. If in doubt, consult a quali-
fied electrician.
4. Unscrew capacitor clamp and remove capacitor. Do not
disconnect capacitor wires to motor.
5. Slide 7/16" open end wrench in behind spring loaded
switch on motor end of shaft; hold motor shaft with
wrench on shaft flats and unscrew impeller by turning
counterclockwise when looking into eye of impeller.
6. To reinstall, reverse steps 1 through 5.
7. See directions under "Pump Reassembly," Page 10.
REMOVING OLD SEAL
1. Follow instructions under "Pump Disassembly".
2. Follow steps 2 through 5 under "Cleaning/Replacing
Impeller.
3. Unscrew four nuts holding pump back hall to motor.
Remove rotating haft of seal by placing two screwdrivers
under back haft of pump body and carefully prying up
(Figure 15). Back haft of pump body vdll slide off shaft,
bringing seal with it.
Figure 13 - Remove Diffuser
Figure 15 - Remove Seal plate
NOTICE: Be sure you do not scratch or mar shaft; if shaft is
marred, it must be dressed smooth with fine emery or cro-
cus cloth before installing new seal. DO NOT reduce shaft
diameter!

MAINTENANCE (Continued)
4. Place pump body half face down on flat surface and tap
out stationary half of seal (see Figure 16). 9. Hold motor shaft with 7/16" open end wrench on shaft
flats (Figure 14, Page 8) and screw impeller onto shaft. Be
sure you do not touch capacitor terminals with
body or any metal object. Tightening impeller will au-
tomatically locate seal in correct position.
10. Remount diffuser on pump body half with five screws.
PUMP REASSEMBLY
1. Clean O-Ring and O-Ring groove.
2. Put O-Ring in groove on face of flange; put pump halves
together (see Figure 18).
Figure 16 - Tap Out Seal
INSTALLING NEW SEAL
1. Wet outer edge of Rubber Cup on ceramic seat with fiq-
uid soap. Be sparing!
2. Put clean cardboard washer on seal face. With thumb
pressure, press ceramic seal half firmly and squarely into
seal cavity in seal plate (see Figure 17). Polished face of
ceramic seat is up. If seal will not seat correctly, remove,
placing seal face up on bench. Reclean cavity. Seal should
now seat correctly.
4770194
Figure 17 - Press in New Seal
3. ff seal does not seat correctly after recleaning cavity, place
cardboard washer over polished seal face and carefully
press into place using a piece of standard 3/4" pipe as a
press.
NOTICE: Be sure you do not scratch seal face.
4. Dispose of cardboard washer and recheck seal face to be
sure it is free of dirt, foreign particles, scratches and
grease.
5. Inspect shaft to be sure it is free of nicks and scratches.
6. Reassemble pump body half to motor flange. BE SURE it
is right side up.
7. Apply liquid soap sparingly (one drop is sufftcient) to in-
side diameter of rotating seal member.
8. Slide rotating seal member (carbon face first) onto shaft
tmtil rubber drive ring hits shaft shoulder.
NOTICE: Be sure not to nick or scratch carbon face of seal
when passing it over threaded shaft end or shaft shoulder.
The carbon surface must remain clean or short seat life vdll
result.
Figure 18 - Assemble Pump
3. BE SURE inside of clamp is clean. Place clamp on pump
halves; snug up. Alternately tighten screw and tap clamp
with mallet to seat O-Ring (see Figure 19).
Figure 19 - Tap Clamp While Tightening
4. Replace base mounting bolts.
5. Replace motor wiring; close draincock.
6. Prime pump according to instructions. See "Operation."
7. Check for leaks.

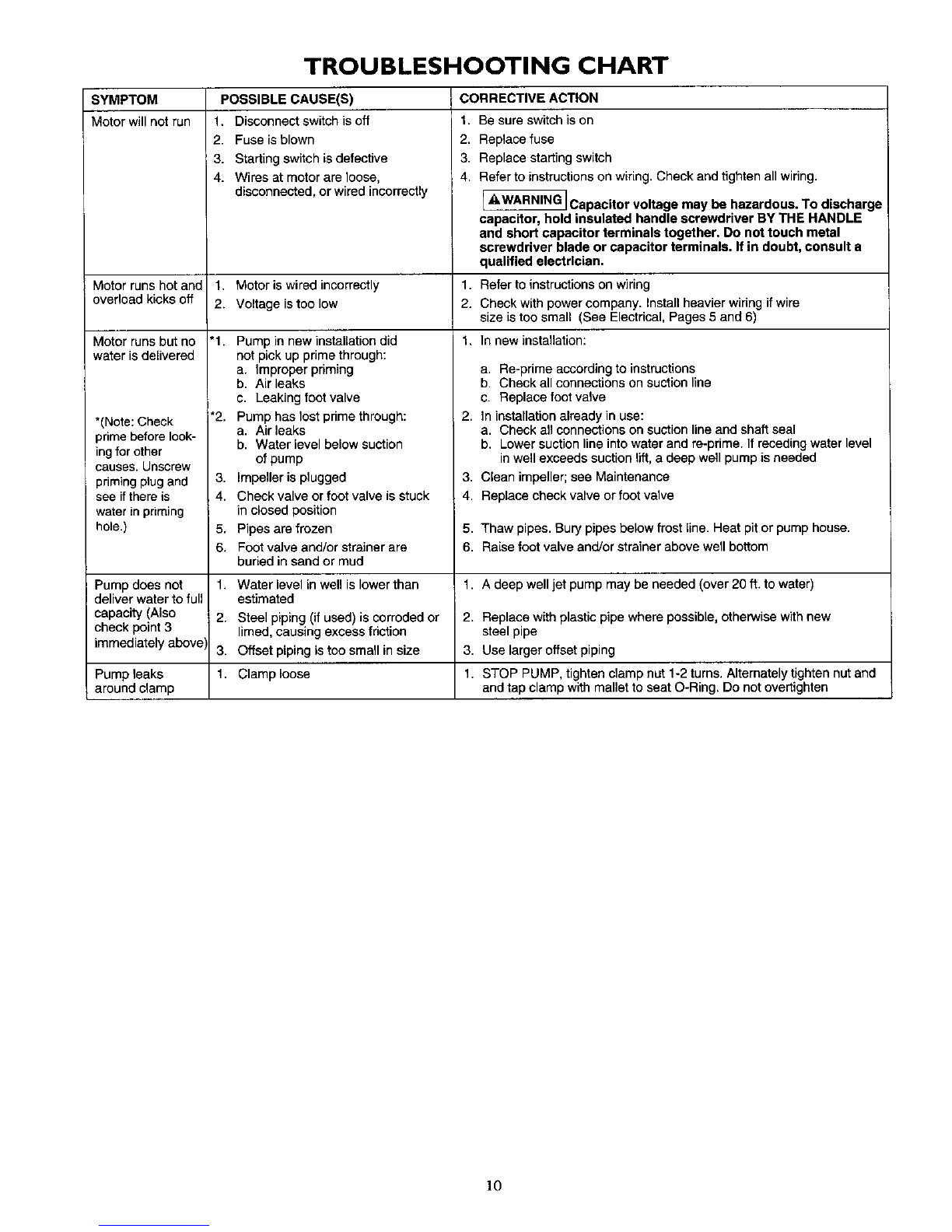

TROUBLESHOOTING CHART
SYMPTOM CORRECTIVE ACTION
Motor will net run 1. Be sure switch is on
POSSIBLE CAUSE(S)
1. Disconnect switch is off
2. Fuse isblown
3. Startingswitch isdetective
4. Wires at motor are loose,
disconnected, or wired incorrectly
2. Replace fuse
3. Replace starting switch
4. Refer to instructionson wiring. Check and tighten all wiring.
AWARNING] Capacitor voltage may be hazardous. To discharge
capacitor, hold insulated handle screwdriver BY THE HANDLE
and short capacitor terminals together. Do not touch metal
screwdriver blade or capacitor terminals. If in doubt, consult a
qualified electrician.
Motor runs hot and 1. Motor iswired incorrectly 1. Refer to instructions on wiring
overload kicks off 2. Voltage is too low 2. Check with power company. Installheavier wiring if wire
size is too small (See Electrical, Pages 5and 6)
Motor runs but no "1. 1. In new installation:
water is delivered Pump in new installation did
not pick up prime through:
a. Improper priming
b. Air leaks
c. Leaking foot valve
Pump has lost prime through:
a. Air leaks
b. Water level below suction
of pump
Impeller is plugged
Check valve or foot valve is stuck
in closed position
Pipes are frozen
Foot valve and/or strainer are
buried in sand or mud
a. Re-primeaccording to instructions
b. Check all connections on suction line
c. Replace foot valve
2. In installation already in use:
a. Check all connections on suction line and shaft seal
b. Lower suction line into water and re-prime. If receding water level
in well exceeds suction lift, a deep well pump is needed
3. Cleen impeller; see Maintenance
4. Replace check valve or foot valve
*(Note: Check '2.
prime before look-
ing forother
causes. Unscrew
priming plug and 3.
see ifthere is 4.
water in priming
hole.) 5.
6.
Pump does not 1.
deliver water tofull
capacity (Also 2.
check point 3
immediately above) 3.
Pump leaks 1.
around clamp
5. Thaw pipes. Burypipes below frost line. Heat pit or pump house.
6. Raise foot valve and/or strainer above well bottom
Water level inwell is lower than 1. A deep well jet pump may be needed (over20 ft. to water)
estimated
Steel piping (if used) is corroded or 2. Replace with plastic pipe where possible, otherwise with new
limed, causing excess friction steel pipe
Offset piping is too small in size 3. Use larger offset piping
Clamp loose 1. STOP PUMP, tighten clamp nut 1-2 turns. Alternately tighten nut and
and tap clamp with mallet to seat O-Ring. Do not overtighten
10

REPAIR PARTS
16 18
1
2
13
/
8A 11A
12
9!0
11
/
Motor
Overload Protector
Terminal Board
Contactor
Governor
Capacitor
Slinger
Priming Plug 1/2" NPT
Part
Description
Key
No.
1
1A
1B
1C
1D
1E
2
3
4 Tank Body Back Half Complete
5 O-Ring
6 Shaft Seal for 5/8" Shaft
7 impeller
Impeller Screw
8 Diffuser
8A Diffuser
9 Screw - #8 - 32 RH
(1 and 1-1/2 HP - 4 Req'd; 2 HP - 2 Req'd.)
Lockwasher
10 "V" Clamp
11 Tank Body Front Half (Incl. No. 12)
11A Tank Body Front Half Complete (Incl. Nos. 3 and 12)
12 Draincock - 1/4 NPT
13 O-Ring
14 Base
15 Flat Washer 5/16 (2 Req'd.)
16 Nut - 5/16 - 18 (4 Req'd.)
17 Rubber Pad
18 Lock Washer - 5/16 (2 Req'd.)
19 Capscrew, 3/8 - 16 x 1-3/4" (2 Req'd.)
20 Flat Washer 5/16 (2 Req'd.)
21 Capscrew, 3/8 - 16 x 1" (2 Req'd.)
390.2622
115/230V
60 Cy/1 Ph
1 HP
J216-1029
17351-0009
390.262553
115/230V
60 Cy/1Ph
1-1/2HP
J218-956C
U18-1342
U18-1180
U18-1098
U18-128
U18-525
17351-0009
• Not illustrated
*Standard hardware item. Purchase locally.
L176-47P1
U9-399
U109-6A
C105-92PVB
C1-258PCA
U30-869SS
C19-54SS
C176-53PA
U212-68T
U9-226
C4-42P
C35-11
U43-11ZP
L176-47P1
U9-399
U109-6A
C105-92PBBB
C1-258PCA
U30-869SS
C19-54SS
C176-53PA
U212-68T
U9-226
C4-42P
C35-11
U43-11ZP
1!
390.2623
230V
60 Cy/t Ph
2 HP
A100GSL
U18-1406
U18-1180
U18-1098
U18-128
U18-525
17351-OOO9
C3-189P1
U9-228A
U109-6A
C105-214PFA
C30-51SS
C1-274P
U30-542SS
U43-21SS
C19-37A
C176-62PA
U212-66T
U9-393
C4-42P
C35-11
U30-77SS
U43-42SS
U30-74SS

SEARS
OWNER'S
MANUAL
ModelNo.
390.2622
390.262553
390.2623
The model number of
your Sprinkler Pumpwill
be found on a plate
attached to the side of
the pump body.
When requesting service
or ordering parts, always
give the following
information:
•ProductType
•ModelNumber
• PartNumber r;tP#Jll;Jk'i:i;_J[#;[
•Part Description
I:RRFTSMRN°
HYDROGLASS ®
HIGH PRESSURE
SPRINKLER PUMP
Fortherepairorreplacementpartsyouneed
Call7 am- 7 pm,7 daysaweek
1-800-366-PART
(1-800-366-7278)
Forin-homemajorbrandrepairservice
Call24 hoursa day,7 daysaweek
1-800-4-REPAIR
(1-800-473-7247)
Forthelocationofa
SearsRepairServiceCenterin yourarea
Call24 hoursa day,7 daysa week
1-800-488-1222
Forinformationonpurchasinga Sears
MaintenanceAgreementorto inquire
aboutanexistingAgreement
call 9 am- 5 prn,Monday-Saturday
1-800-827-6655
SEARS
A
America's Repair Spscialists
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
