Creative Cedar Designs 3512 Assembly instructions
SG S- CO C-005310
1996 For est S tewardsh ip Counci l A.C.
For FSC certifie d products
look for the FSC label

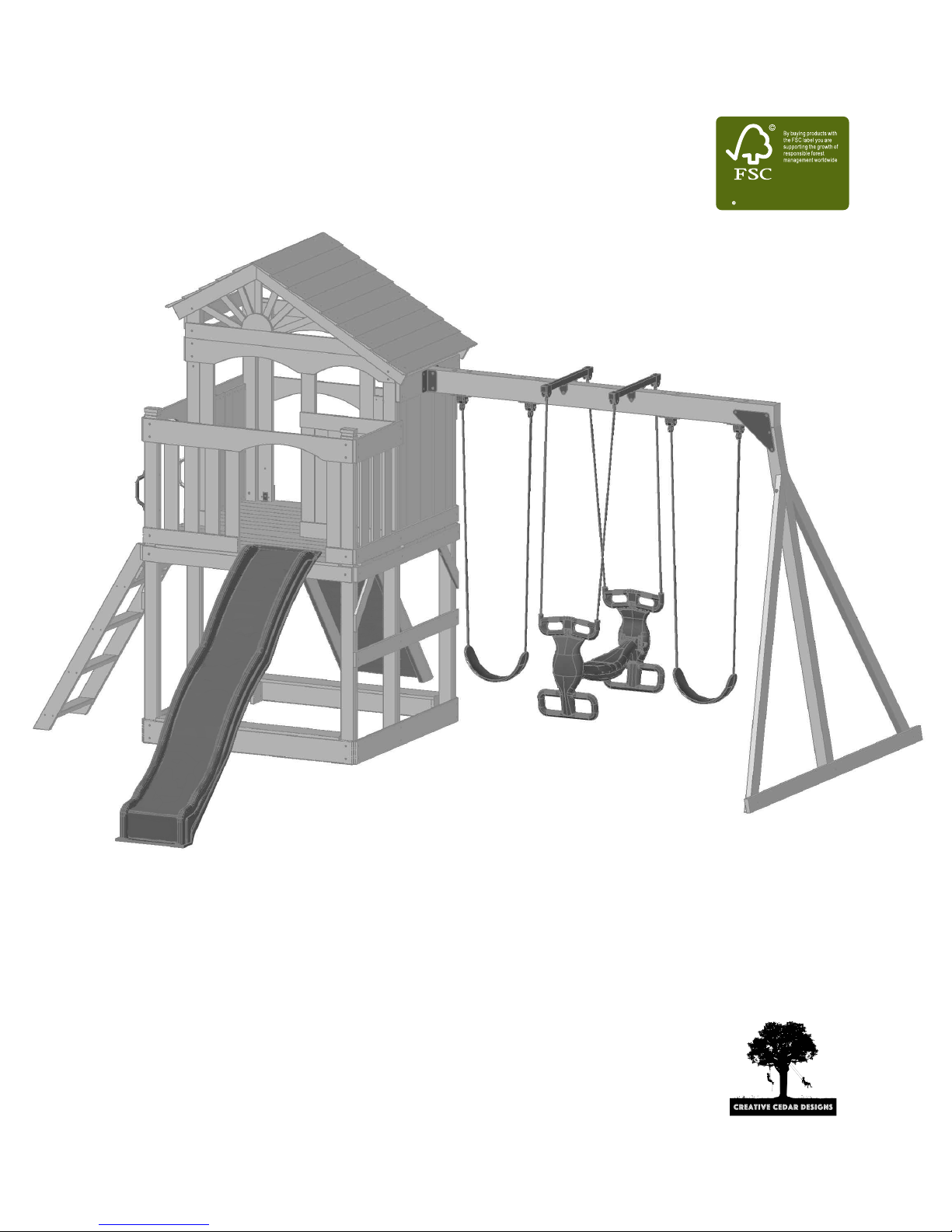

Timber Valley

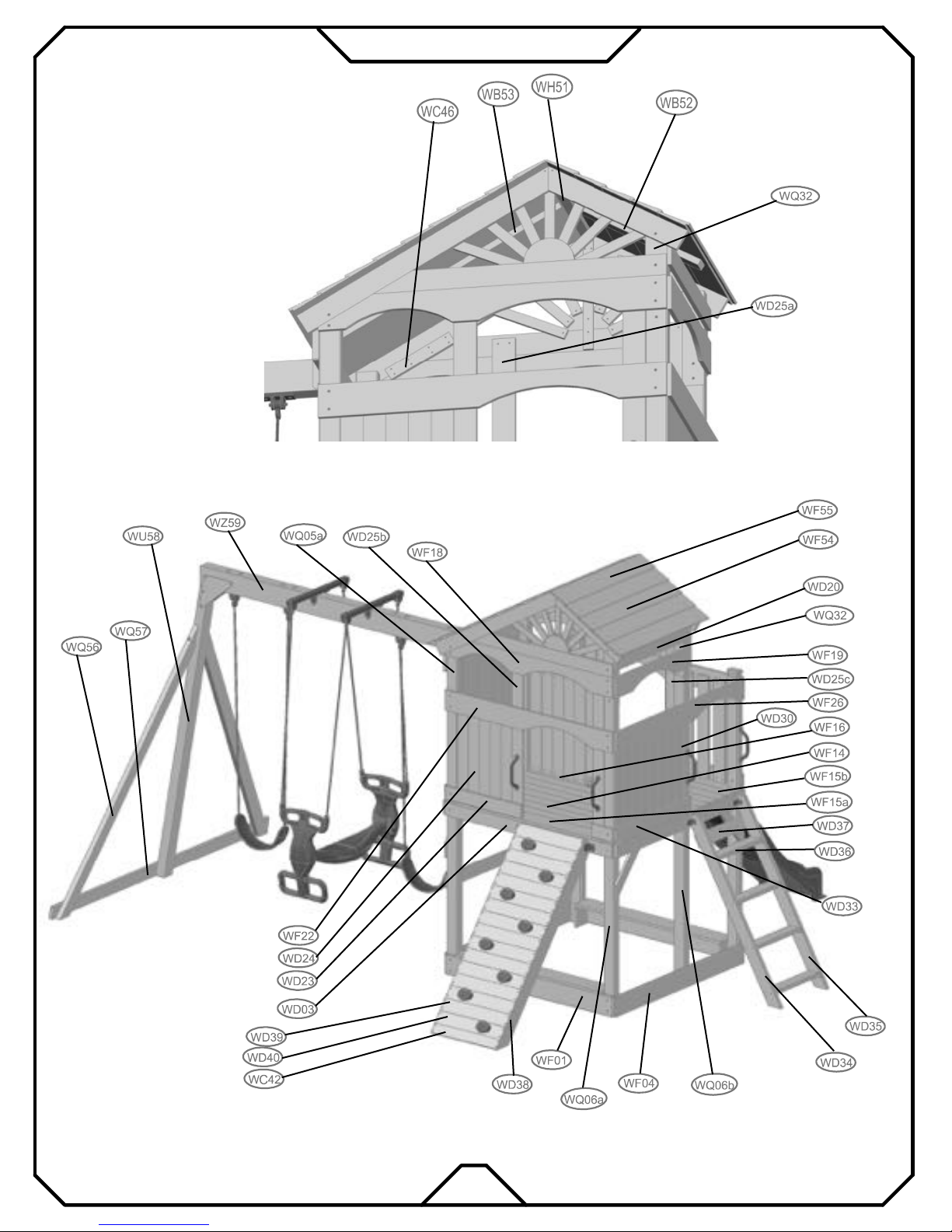

Model: 3512
Owner's Manual
And
Assembly Instructions
Thank you for purchasing a
Creative Cedar Designs
Playcenter. We hope it will
bring you and your children
many years of safe and
enjoyable backyard fun.
Table of Contents
Letter to Customer 2
Positioning Your Playcenter 3
Tools Required for Assembly 3
Helpful Installation Hints 4

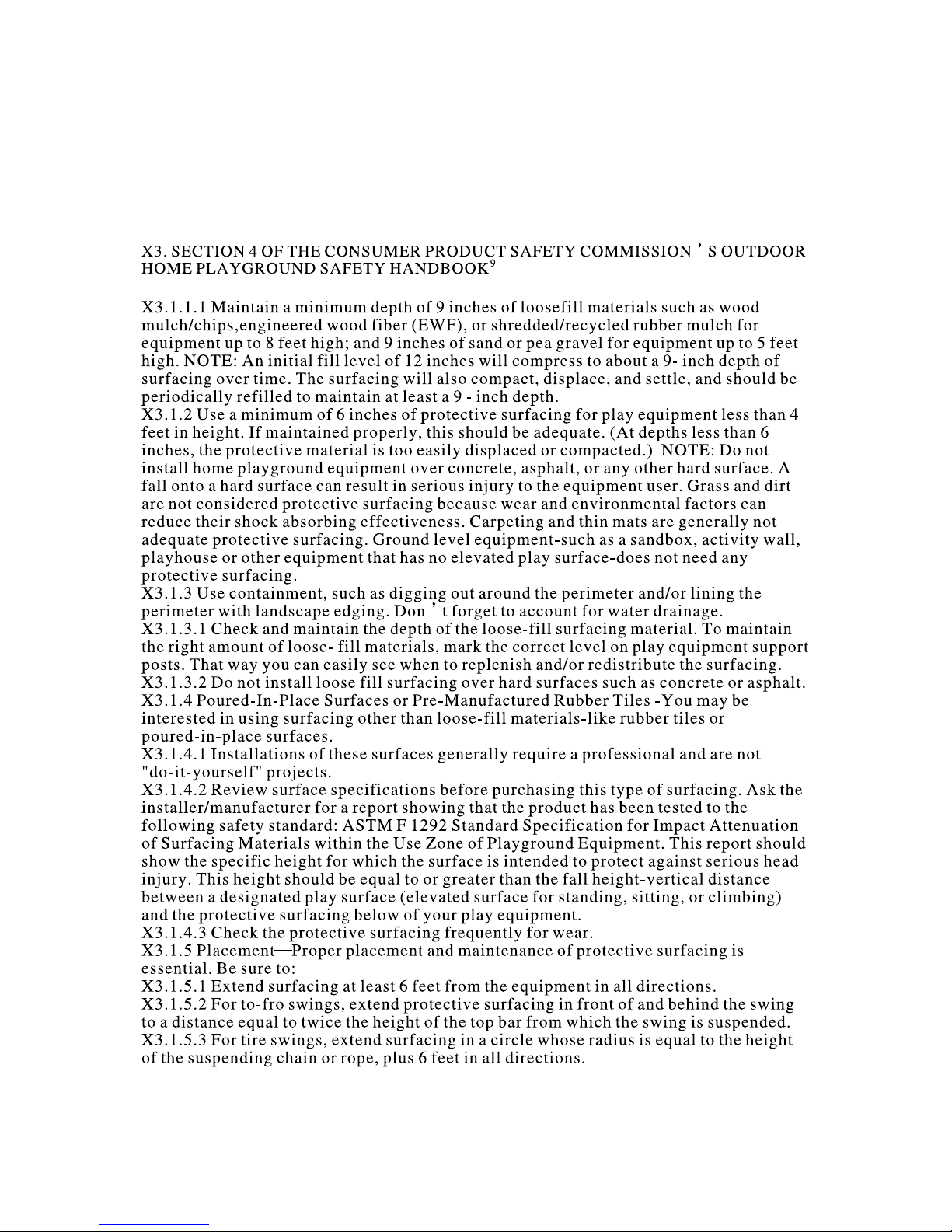

Suggested Playground Surfacing 5
Operating Instructions 6
Maintenance Instructions 7
Disposal Instructions 7
CPSC Information Sheet 8

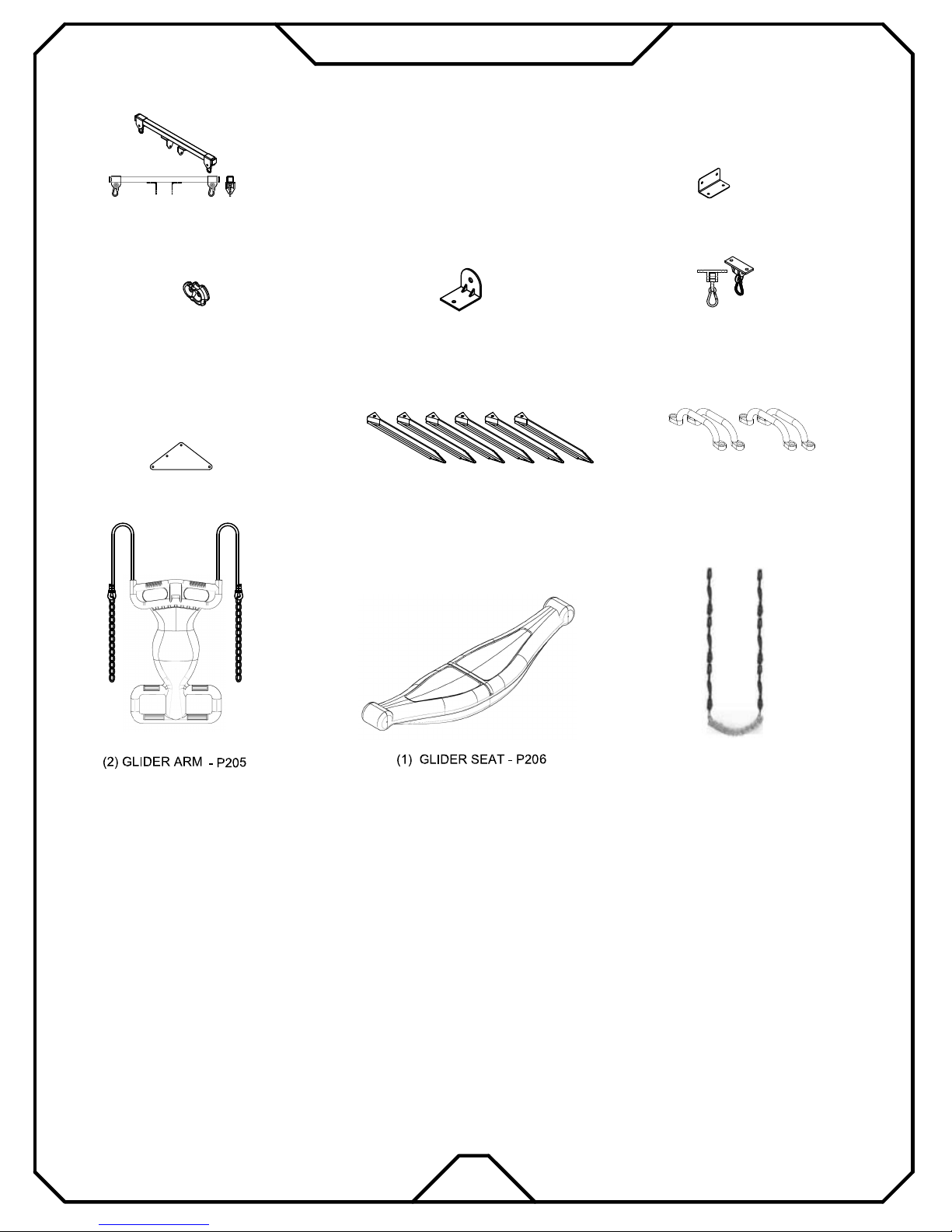

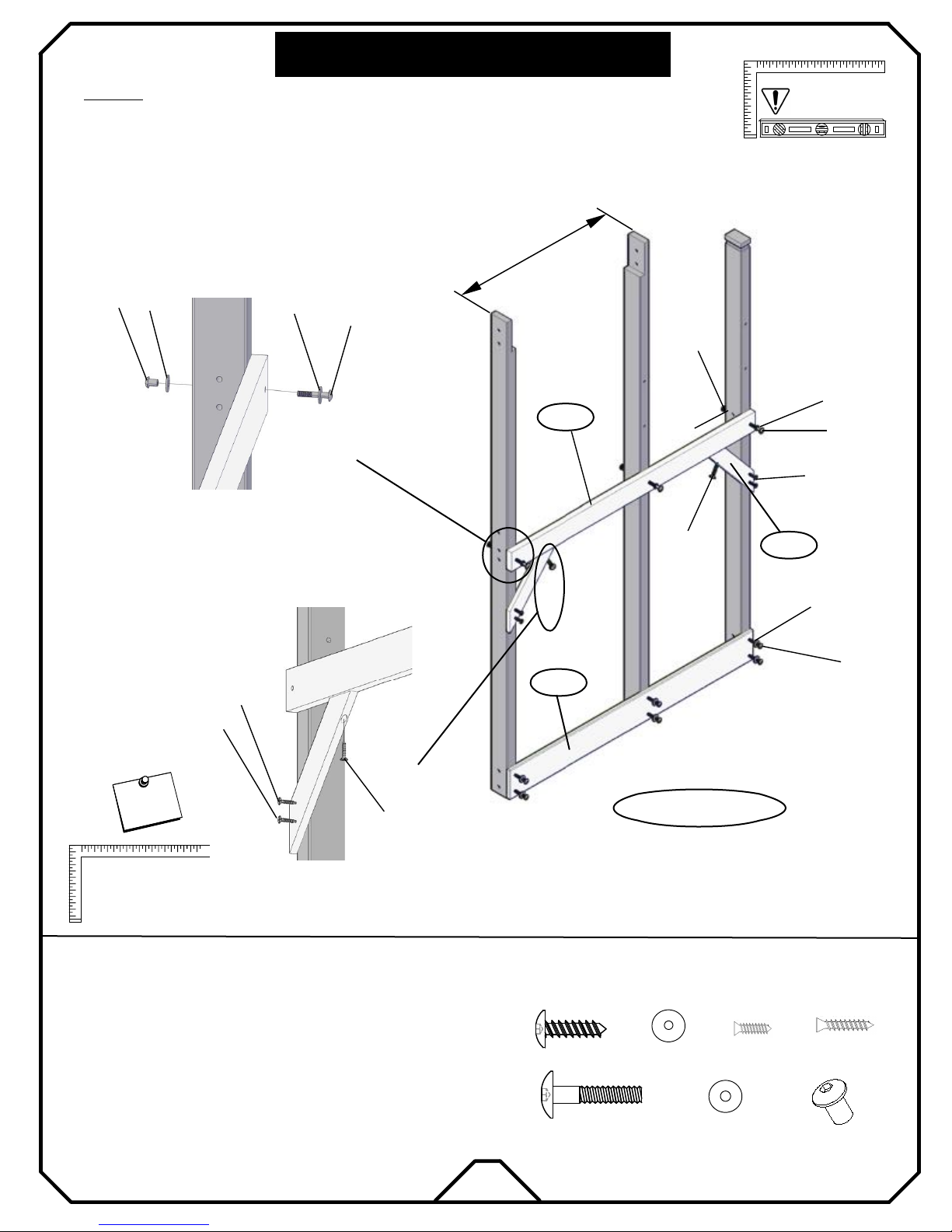

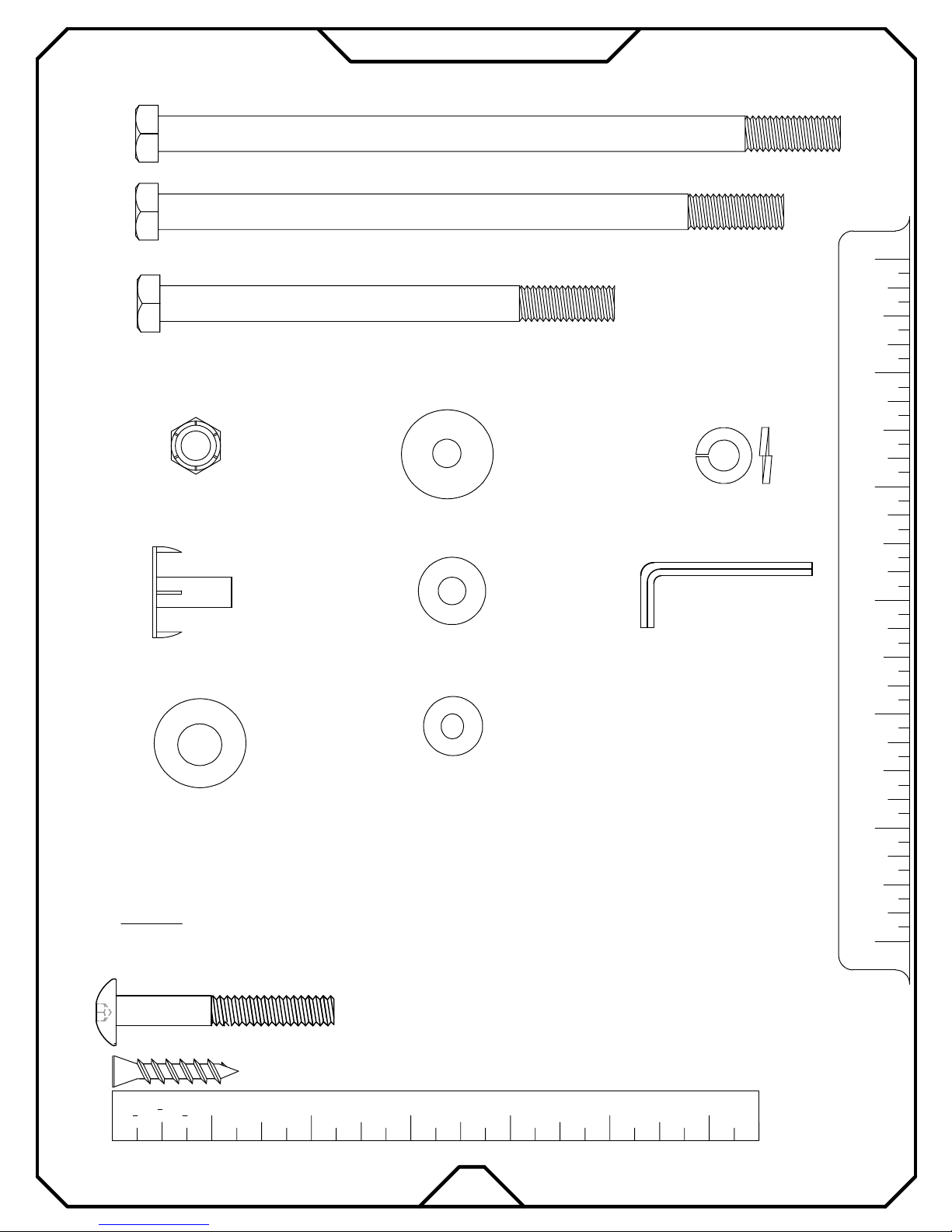

Assembly Instructions 9
Limited Warranty
Warranty Claim Procedure
Customer Registration Card
Your owner’s manual should be read carefully
before starting assembly.
42
43
44
1
STOP…PLEASE READ!!
IF YOU HAVE ANY QUESTION OR ARE
MISSING A PART, PLEASE DO NOT CONTACT
THE RETAILER THAT YOU PURCHASED THIS
PRODUCT FROM. PLEASE VISIT
www.creativecedardesigns.com
AT OUR OFFICE, 1-888-363-4967
WE WILL ANSWER YOUR
QUESTIONS,
OR HELP WITH WHAT YOU NEED.
For more efficient service, please log onto
our website at
www.creativecedardesigns.com
and fill out a request for missing or damaged parts.
A completed product registration is also necessary
for all warranty claims.
For all international customers, please visit the following website for information on all warranty
issues including where to obtain replacement parts.
www.creativecedardesigns.com
OR CONTACT US DIRECTLY
Dear Customer:
Thank you for purchasing a Creative Cedar Designs Playcenter. We hope it will bring you
and your children many years of safe and enjoyable fun. Creative Cedar Designs equipment
is recommended for use by children 3 to 10 years of age. Creative Cedar Designs structures
are not intended for public use. Creative Cedar Designs does not warranty any of its
residential structures subjected to commercial use.
WARNING: This Symbol points out important safety instructions which, if
not followed, could endanger the personal safety of yourself and your
children and/or damage your property. You MUST read and follow all
instructions in this manual before attempting to use this playcenter.
WARNING:Children must NOT use this playcenter until unit has been
completely assembled and inspected by an adult to insure set has been
properly installed.
Please follow all recommendations below. Failure to do so may result in the warranty
being void and/or safety violations that could result in serious injury. The following
information has been provided to help you in your installation, continued satisfaction, and
safe operation of your Creative Cedar Designs purchase.
Always keep the safety of your children in mind as your play structure is being built and
as your children play on the set. Before your children play on the set please review the
Operation Instructions with them to help ensure their safety.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
KEEP THEM IN A SAFE PLACE WHERE YOU CAN REFER TO THEM AS
NEEDED. IN ORDER TO PROVIDE YOU WITH THE MOST EFFICIENT
SERVICE, IT IS REQUIRED THAT YOU PROVIDE US WITH THE PART
NUMBERS WHEN ORDERING PARTS.
Please do NOT return the playcenter to the retailer from which it was purchased,
without first contacting Customer Service.
General Information:
Please take time and fill out the information below. This information will be needed for
warranty issues.
Date of Purchase:_______________ Date stamped on box:______________
Manufacturer: Creative Cedar Designs Vendor:
_____ _________________
2700 Riverside Dr.
______________________
Chattanooga, TN 37406
______________________
E-mail: [email protected]
Website: www.creativecedardesigns.com
Unit Type:
Unit Name: Timber Valley Play Sete: Revision Date: 11/24/2016
Unit Model Number: 3512
Maximum Fall Height: 6'-5"
2
The instructions and owner’s manual for your new Playcenter should be read in its
entirety before assembly, to minimize problems and safety issues. We recommend
reading the owner’s manual thoroughly after you have identified all of the parts for your
Playcenter as discussed in the Helpful Installations Hints section below.

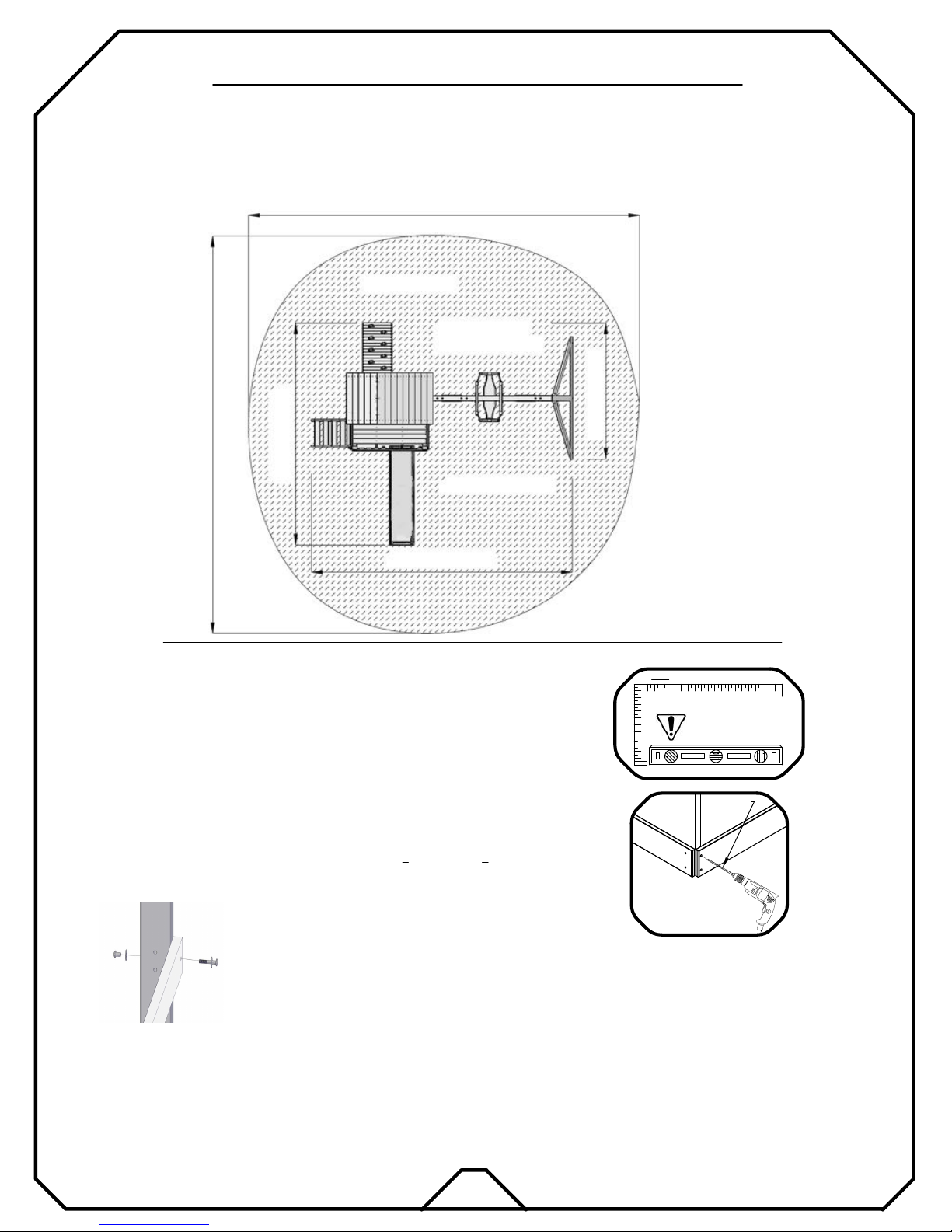

Positioning Your Play center
1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult
helper. Try to place in a flat area of your yard to minimize ground preparation.
2. Choose a level location for the equipment. This can reduce the likelihood of the play set
tipping over and loose-fill surfacing material washing away during heavy rains.
3. Place the equipment not less than 6 ft from any structure or obstruction such as a fence,
garage, house, overhanging branches, laundry lines, or electrical wires.
4. Provide enough room so that the children can use the equipment safely. For example, for
structures with multiple play activities, a slide should not exit in front of a swing.
5. It is a good idea to place your Playcenter in an area that is convenient for adults to watch
children at play.
6. Create a site free of obstacles that could cause injuries – such as low overhanging tree
branches, overhead wires, tree stumps and/or roots, large rocks, bricks and concrete. We
have additional suggestions in the Suggested Playground Surfacing Section.
7. Do not build your playset on top of surfacing material.
8. Locate bare metal platforms and slides out of direct sunlight to reduce the likelihood of
serious burns. A slide that faces north will receive the least direct sunlight.
9. Separate active and quiet activities from each other. For example, locate sandboxes away
from swings or use a guardrail or barrier to separate the sandbox from the movement of
the swings.
Tools Required for Installation:
(These are the tools that are generally required for assembly of our playsets. These tools are not included in the playset purchase.)
(Level 24”) (Open end Wrenches (Nut drivers
½” & 7/16” ) ½” & 9/16” )
(Tape Measure) (3/8” Drive Ratchet, ½”& 9/16” std sockets (Claw Hammer)
½” & 9/16 deep sockets)
(3/8” drill) (1/8”,5/16” & 3/8" Drill bits) (Drill attachments:
3/8” drill bits)
( 3/8” Socket Driver
Torque head screw)
(An Adult w/an (Phillips & Straight Blade (Rubber Mallet –Optional)
Adult helper) screw drivers)
Ladder
3/8” drill bits)
3
