Creative Playthings WILLIAMSBURG SD 920-800Q User manual

B
26-3/4"
16-3/4"
This hole maybe pre-drilled on the
Upright Corner.
MODEL # SD 920-800Q
ASSEMBLY MAN U AL
WILLIAMSBURG PICNIC TABLE
PICNIC TABLE ASSEMBLY PART DESCRIPTIONS
A
Upright Corners
Existing Safety Rail
SPECIAL NOTES AND INSTRUCTIONS
The installation of the Picnic Table option may require some disassembly of existing components.
Sand box Seats must be removed and will not be used with the Picnic Table. The existing Safety
Rail must be removed and will be utilized later in these instructions
illustration #2
illustration #1
illustration #1
STEP 1 - PILOT HOLES
You will have to drill two pilot holes in each of the corner
up rights for the 2x4 Picnic Table Support Rails (A) and the
5/16 x 2-1/2” Lag Screws.
Locate and mark for two pilot holes in each of the Corner
Up rights.
NOTE: They will be located on the same side as the Safety
Rail was attached and the adjacent side. Measure up 16-3/4”
from the bot tom of the Cor ner Up rights to the  rst hole and
26-3/4” to the second.
At each mark, drill a 3/16” diameter hole to a depth of 1” as
shown in illustration #3.
illustration #3
A -
(3)
31448-102 Picnic Table Support Rail - 2 x 4 x 59-1/4”
31448-102 Picnic Table Support Rail - 2 x 4 x 59-1/4”
B -
(4)
31941-102 Table Boards - 5/4 x 6 x 59-1/2”
31941-102 Table Boards - 5/4 x 6 x 59-1/2”
C -
(4)
32117-102 Seat Boards - 2 x 6 x 59-1/2”
32117-102 Seat Boards - 2 x 6 x 59-1/2”
D -
(1)
31942-102 Table Cleat - 5/4 x 6 x 20-1/4”
(6)
17036-1002 - 5/16 x 2-1/2” Lag Screws
(24)
17020-105 - #10 x 1-1/2” Flat Head Phillips Screw
(16)
17020-109 - #8 x 2-1/2” Flat Head Phillips Screw
(6)
12002-206 - 5/16” Flat Washer
(6)
15081-904 - 1” Hole Cap
Note: All hardware on this set is specially coated for corrosion re sis tance. If non-
Cre ative Playthings hardware is used, it
MUST
be galvanized or stainless steel.
C

Page 2
©
Copyright 2003, Creative Play things. Printed in China.
© Copyright 2003, Creative Play things. Printed in China. ©
19595-200 Rev C (10-03)
Williamsburg Picnic Table
ASSEMBLY INSTRUCTIONS
WILLIAMSBURG PICNIC TABLE
PLEASE CONSULT YOUR ORIGINAL GYM ASSEMBLY MANUAL FOR
MAIN TE NANCE AND SAFE TY INSTRUCTIONS
5/16” Flat Washer
Flat Head Phil-
lips Screws
5/16” Flat Washer
Counter-bored Hole
illustration #4

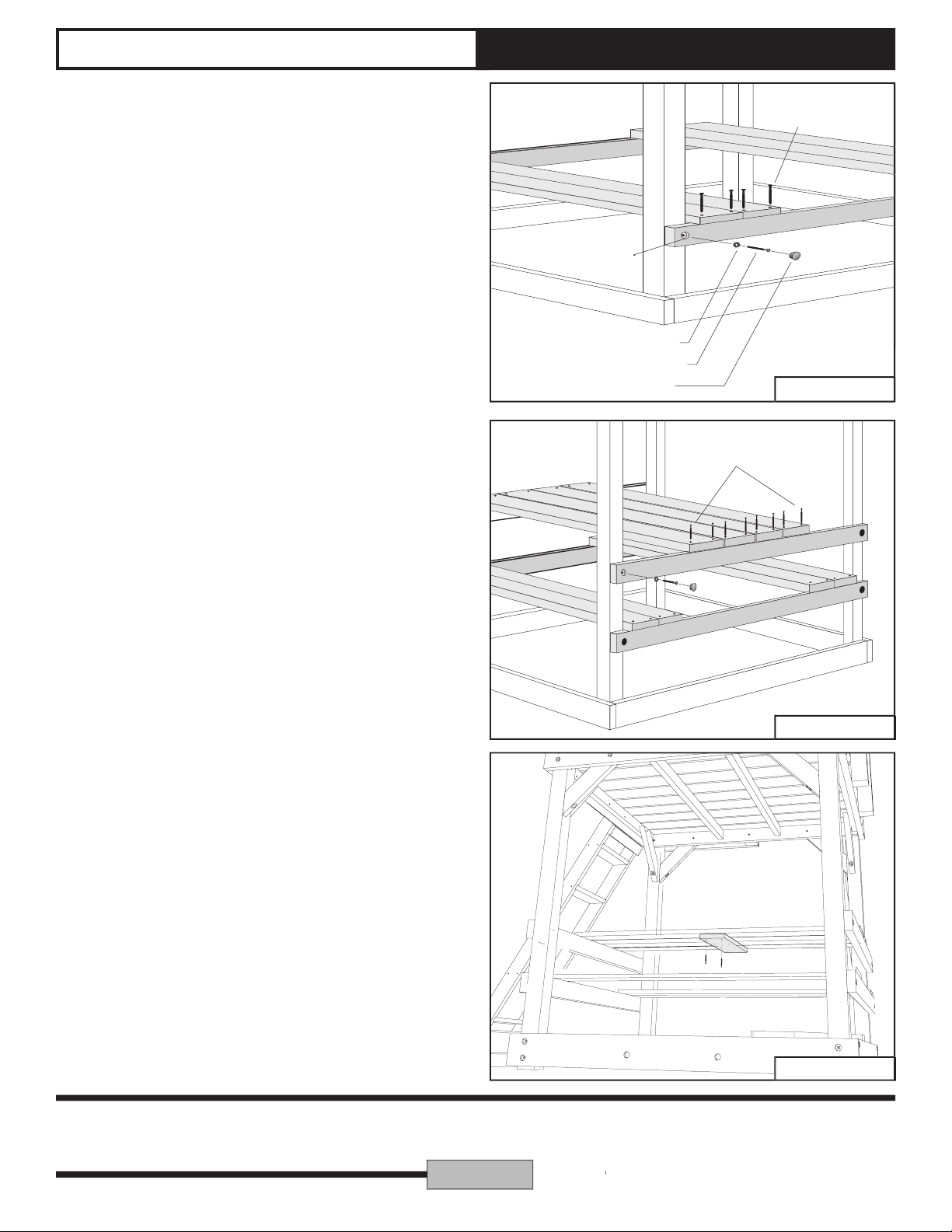

STEP 2 - INSTALL LOWER RAILS & SEATS
Install both of the lower Support Rails (A) to the Corner
Uprights using two 5/16 x 2-1/2” Lag Screws and 5/16” Flat
Washers in each as shown in il lus tra tion #4.
NOTE: The Existing Safety Rail will be utilized as one of the
Picnic Table Support Rails.
After all of the Lag Screws are installed and tightened, install
the 1” diameter Hole Caps into the counter-bored holes over
the bolt hardware.
Arrange two of the Seat Boards on each side of the lower
Support Rails. Attach the Seat Boards using four #8 x 2-
1/2” Flat Head Phillips Screws in each board as shown in
illustration #4.
STEP 3 - INSTALL TABLE TOP
Install both of the upper Support Rails (A) to the Corner
Up rights using two 5/16 x 2-1/2” Lag Screws and 5/16” Flat
Washers in each as shown in il lus tra tion #5.
After all of the Lag Screws are installed and tightened, install
the 1” diameter Hole Caps into the counter-bored holes over
the bolt hardware.
Arrange four Table Top Boards in the center of the two Top
Sup port Rails and attach each board using four #10 x 1-1/2”
Flat Head Phillips Screws in each as shown in illustration
#5.
CAUTION:
To avoid any possibility of injury, make
sure that all of the Flat Head Screws are in  ush or
slightly below the surface of the wood.
illustration #5
Counter-bored Hole
5/16 x 2-1/2” Lag Screw
Hole Cap
#10 x 1-1/2” Flat
Head Screws
STEP 4 - FASTEN CLEAT
Fasten the Table Cleat (D) in the center beneath the Table
Top Boards (B) using eight #10 x 1-1/2” Flat Head Phillips
Screws as shown in illustration #6.
illustration #6
