Compact and versatile power amplifier
l
2 x 25 W per channel (1 x 50 W) into 4 or 8 Ohm speakers
l
1 x 50 W output for Hi-Z (70V and 100V) speakers
l
Balanced, unbalanced, and stereo 3.5 mm inputs with auto
summing
l
Stereo or mono-summed operation
l
Remote power control
l
Energy saving design reduces power consumption when idle
l
Highly sensitive audio-sensing circuitry with high-speed
wake time
l
Convection cooled for noiseless operation
l
Volume, bass, and treble adjustments
l
Knob cover protects accidental changes to the device
settings
l
Captive speaker and power connectors for secure and
robust connectivity
l
Electronic short-circuit and overload protection
l
Factory installed surface mount flange brackets are
removable and reversible
l
Quarter-Rack width for rack mounting with optional kit
l
60 W DC power supply with locking barrel connector and
DCcable included

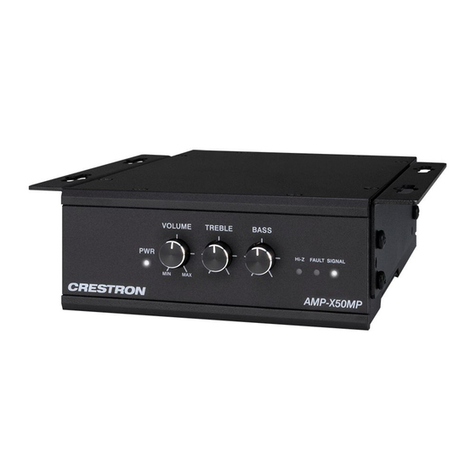

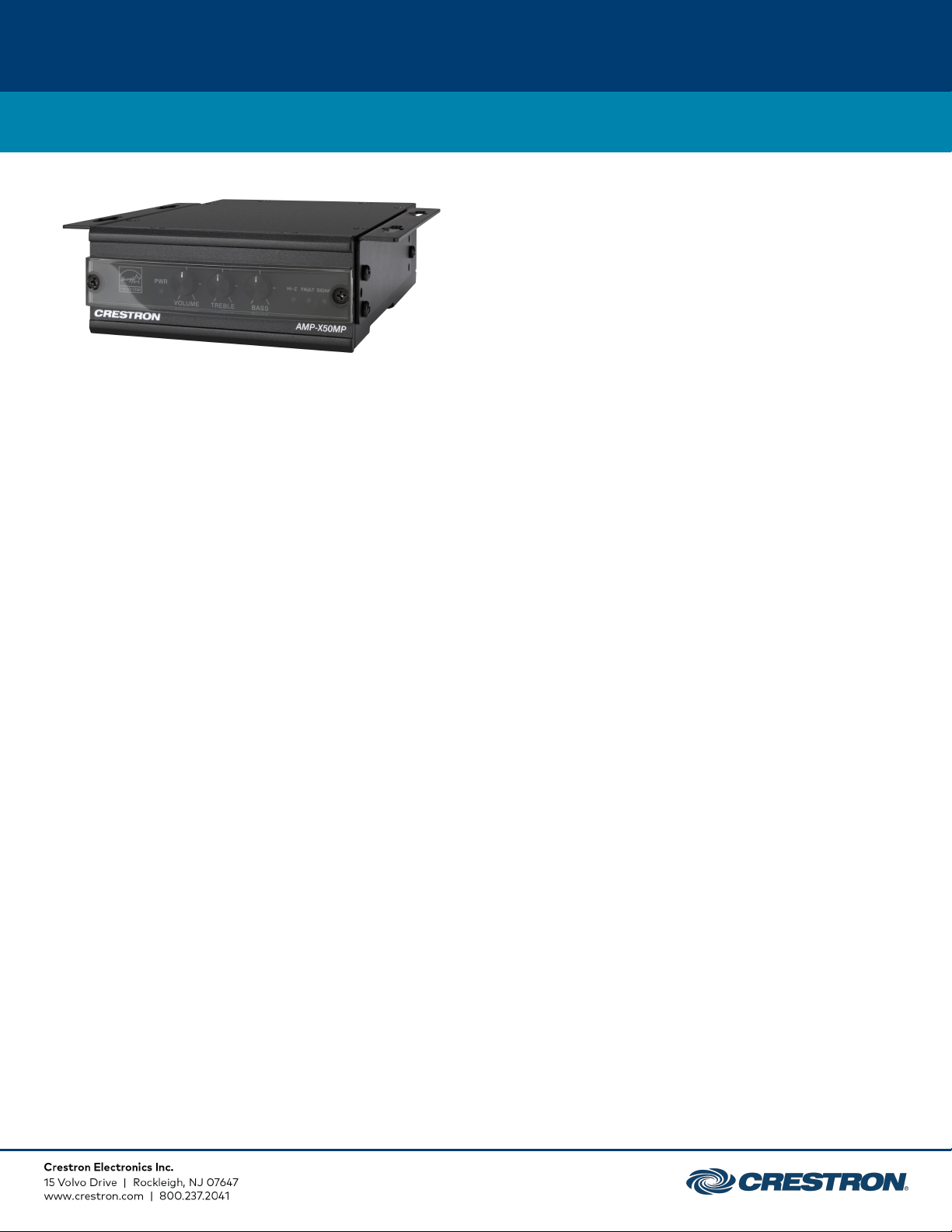

The Crestron® AMP-X50MP is a low-cost audio amplifier
solution that is suitable for a variety of applications. It
features a compact, surface-mountable design that installs
virtually anywhere without requiring an equipment rack.
LoZ (4/8 Ω) and Hi-Z (70V or 100V) Output
High-efficiency Class D circuitry delivers 25 W per channel to
drive one pair of 4 or 8 Ohm speakers, making it ideal to
support stereo speakers at the front of a room or mono
speakers in the ceiling. The amplifier can also be used with Hi-
Z (70/100V) speakers, delivering 50 W.
Convection Cooling
The efficient design provides cool running operation to ensure
long term reliability. The AMP-X50MP is high-density
stackable with other Crestron X Series and Modular
Amplifiers, allowing multiple units to be installed vertically in
an equipment rack without needing extra ventilation space.
Easy Installation
Installation and setup of the AMP-X50MP is simple.
Detachable connectors facilitate the termination of wiring.
Balanced and unbalanced inputs can connect directly to the
line output of a video projector or display, audio processor,
mixer, or AV switcher. Independent controls for volume, bass,
and treble allow a custom sound in any location. A knob cover
is included with the product to protect against accidental
changes to the front panel settings.
Fully Protected
The AMP-X50MP features protection against overheating,
shorted or overloaded speaker lines, excessive input signals,
and other faults. In the case of a shorted speaker line, both
outputs mute automatically until the fault condition is
resolved.
ENERGY STAR® Certified
An energy-efficient design enables the AMP-X50MP to meet
demanding ENERGY STAR requirements. In addition to its
high efficiency operation, the AMP-X50MP powers down
automatically when no input signal is detected for more than
25 minutes, reducing overall power consumption and heat as
part of an Energy Star® compliant system design. The
amplifier quickly powers back on the instant an input signal is
detected. A remote input can connect to a contact closure to
place the amplifier in standby mode.
AMP-X50MP
X Series Media Presentation Amplifier

Specifications1
Audio
Input Signal Types Balanced or unbalanced analog line-
level
Output Power
Mode 1 Channel Driven 2 Channels Driven
LoZ 8 ohm: 25 W
4 ohm:50 W 8 ohm: 25 W 4 ohm:25 W
Hi-Z 70V 50 W N/A
Hi-Z 100V 50 W N/A
FrequencyResponse LoZ (4-8 Ohms): 20 Hz to 20kHz
+/-0.5 dB at 1 W;
Hi-Z (70V/100V): 90 Hz to 20kHz
+/-3 dB at 1 W;
HPF @ 80 Hz (+/-10 Hz),
-12 dB/Octave
THD+N < 0.1 % at 1kHz @ -3 dB full rated
output power
S/N Ratio > 90 dBA, 20 Hz to 20kHz, balanced,
Hi-Z
Crosstalk -75 dB at 1 kHz
Input Sensitivity 1.23Vrms, +4 dBu balanced;
0.316Vrms, -10 dBV unbalanced;
For 25 W @ 8 Ohms
50 W @ 70V/100V
Gain 21.5 dB @ 8 Ohms, Balanced
Wake Signal
Threshold -57 dBu (1 mV) max
Protection Clip limiter, over current, under
voltage, over temperature, DC
offset, extreme high frequency
Connectors
Speaker Output (1) 6-pin, 5.08 mm pitch, 12A plug with
screw locking retainers;
Power amplifier outputs;
Wire Size: Terminals accept up to
12AWG (3.31mm2)
ALS OUT (1) 3.5 mm connector, female;
Unbalanced line level audio outputs;
Maximum Output Level: 2.24Vrms,
+7dBV (+9.2dBu);
Fixed audio output for assisted listening
devices duplicates the summed audio
input
AUDIO IN1-2
(unbalanced) (2) RCA connectors, female;
Unbalanced line level audio inputs;
Maximum Input Level: 2.24Vrms, +7dBV
(+9.2 dBu)
AUDIO IN1-2
(unbalanced) (1) 3.5 mm connector, female;
Unbalanced line level audio inputs;
Maximum Input Level: 2.24Vrms, +7dBV
(+9.2dBu)
AUDIO IN1-2
(balanced) (1) 5 pin 3.5 mm detachable terminal
block;
Balanced line level audio inputs;
Maximum Input Level: 7.75Vrms,
+20dBu;
Input Impedance: 20kOhms
REMOTE (1) 2 pin 3.5 mm detachable terminal
block;
Connect to contact closure to place
amplifier in standby mode.
G(1) M3 with captivated internal tooth
lock washer screw;
Chassis ground lug
24V, 2.5A (1) External 60 W desktop power supply
(24VDC/2.5A);
Mates with locking barrel connector DC
cord;
Power supply included.
Controls & Indicators
PWR (1) Bi-color white/red LED;
White indicates operating power
supplied;
Red indicates standby mode.
FAULT (1) Red LED;
Indicates an over temperature or over
current fault
SIGNAL (1) Bi-color white/red LED;
White indicates input signal presence;
Red indicates input signal
clipping/limiting
Hi-Z (1) White LED;
Indicates speaker output is in Hi-Z
(70V/100V) mode
MONO/STEREO (1) Slide switch to select STEREO,
MONO;
STEREO preserves channels;
MONO creates a mono downmix of the
input signals
Hi-Z/LoZ (1) Slide switch to select LoZ (low
impedance 4-8ohms) or Hi-Z (high
impedance 70V/100V)
VOLUME, BASS,
TREBLE (3) Rotary knobs adjust volume, bass (+/- 6 dB), and treble (+/-6dB) levels
AMP-X50MP
X Series Media Presentation Amplifier

Power
Main Power 24VDC, 2.5A;
100-240VAC, 50/60 Hz, 1.5A power
supply included
Power
Consumption 14.6 W, 2 channels driven at 1/8th output
power (4ohms);
6 W, idle (Hi-Zmode)
Environmental
Temperature 41° to 104°F (5° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Construction
Chassis Metal, convection cooled (fanless)
Front Panel Metal, black finish with polycarbonate
label overlay
Mounting Freestanding, surface mount, or 1/4
width 1 RU 19 in. rack mountable;
Gangable with other Crestron modular
and X series products (adhesive feet and
surface mounting brackets included);
Ganging kit and rack mounting kit
optional
Knob Cover Polycarbonate transparent material

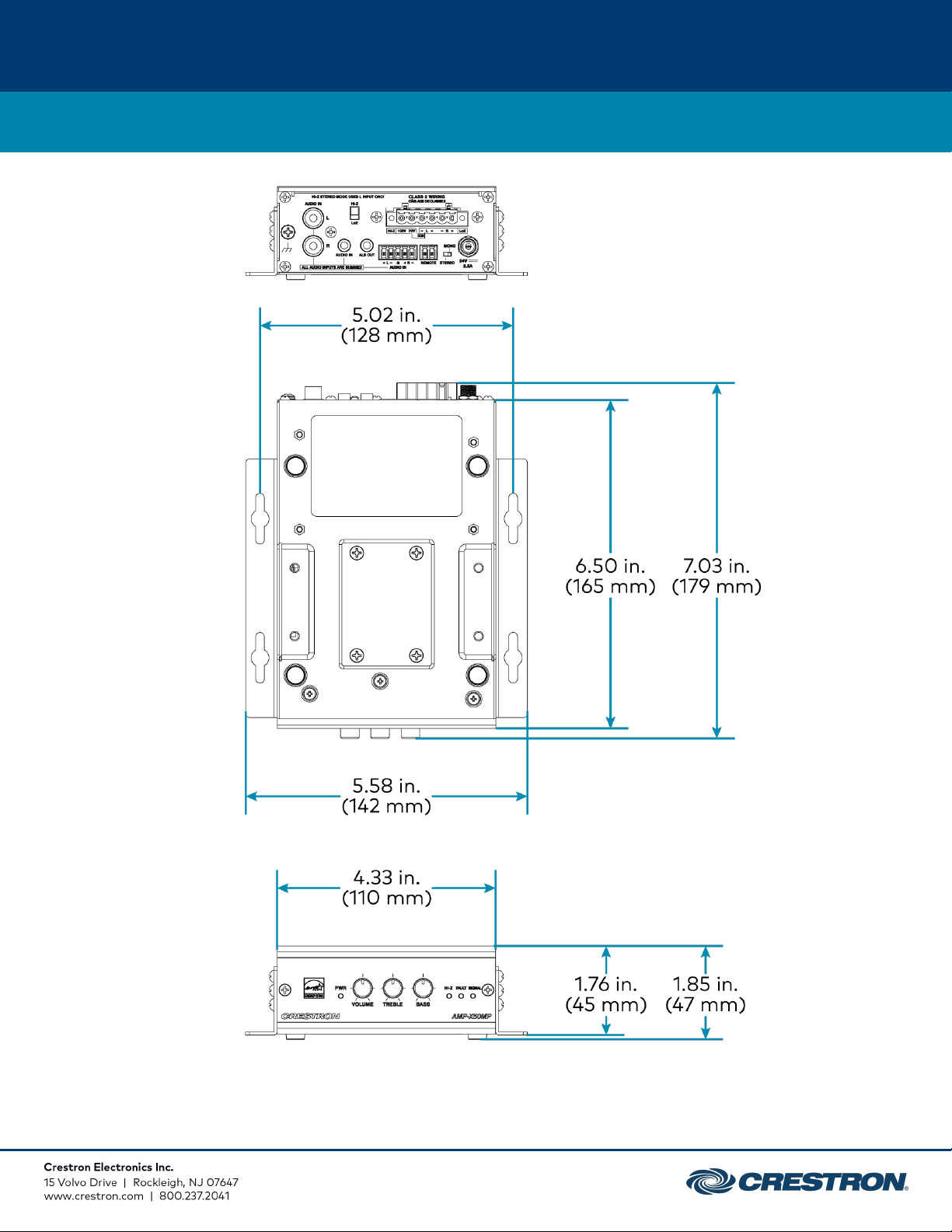

Dimensions
Height 1.74 in. (44 mm) without feet;
1.85 in. (47 mm) with surface kit
Width 4.33 in. (110 mm);
5.58 in. (142 mm) with surface kit
Depth 6.99 in. (178 mm) without knob cover;
7.57 in. (192 mm) with knob cover
Weight
3.24 lb (1.5kg)
Compliance
ENERGY STAR, ErP (1275/2008/EC), UL 62368, FCC Class B
commercial and residential use
Model
AMP-X50MP
X Series Media Presentation Amplifier
Available Accessories
For a list of available accessories, visit the AMP-X50MP
product page.
Note:
1. All nominal specs, +/- 10%
