Crestron HD-DA-2 Dimensional drawing

DO GUIDE
DO Congure the Device
Congure the Crestron®HD-DA-2 using DIP switches 1-7. The default setting of the DIP switches is
OFF.
NOTE: DIP switch 8 is not used.
Refer to the following table for DIP switch functions and associated settings.
DIP Switch Settings
DIP Switch Functions 1234567
Audio Input Source
Selection HDMI IN OFF
SPDIF Source ON
SPDIF Source,
Audio Embedding1AUDIO IN, SPDIF, RCA OFF
AUDIO IN, OPTICAL ON
Audio EDID
Control2
Copy HDMI OUT 1
Audio EDID OFF OFF
Copy HDMI OUT 2
Audio EDID ON OFF
LBR (DTS, AC3) or 2CH PCM OFF ON
2CH PCM Only ON ON
Audio/Video EDID
Control (Primary
EDID Control)
Copy HDMI 1 EDID
(Audio/Video)3OFF OFF OFF
Copy HDMI 2 EDID
(Audio/Video)3ON OFF OFF
Copy HDMI 1 EDID
(Video Only)4OFF ON OFF
Copy HDMI 2 EDID
(Video Only)4ON ON OFF
Best Common Resolutions
(Video Only)4OFF OFF ON
1. DIP switch 1 must be ON
2. May be overridden by DIP switches 5, 6, and 7
3. Overrides audio EDID set by DIP switches 3 and 4
4. DIP switches 3 and 4 control audio EDID
NOTE: Depending on the audio/video application, a DIP switch setting may be ignored.
NOTE: If DIP switch settings are changed after power is applied to the device, cycle power to the
device in order for the new DIP switch settings to be applied.

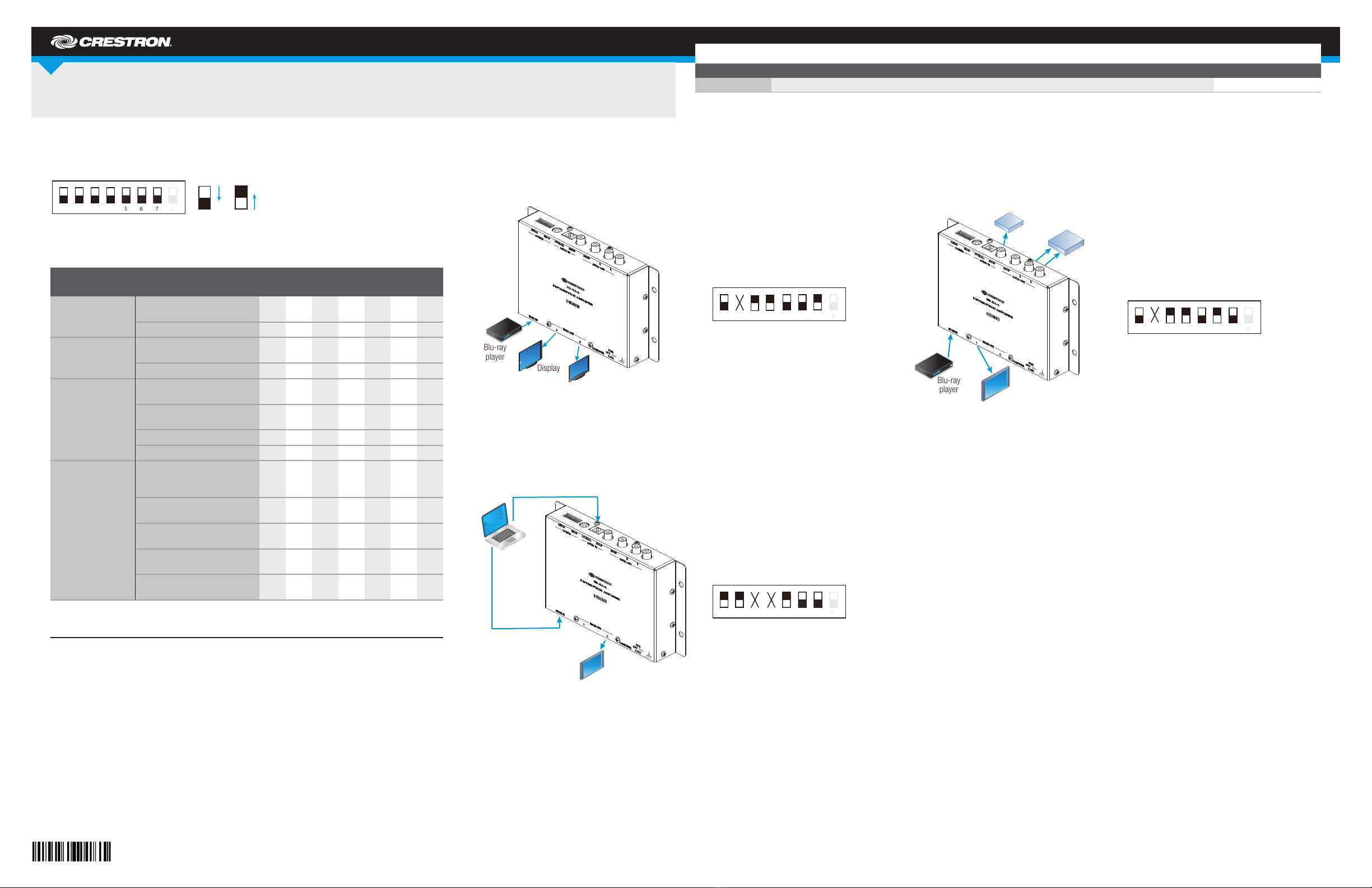

The following sections provide sample congurations and associated DIP switch settings for video
distribution, audio embedding, and audio extraction applications.
Video Distribution: The HD-DA-2 can be used to distribute one HDMI®video source to two
devices using their best common video EDID information. In the example below, one HDMI video
source, a Blu-ray™ player, connects to the HDMI IN port of the HD-DA-2. Two displays connect to
the HDMI OUT 1 and HDMI OUT 2 ports on the HD-DA-2. The DIP switch settings shown below
congure the HD-DA-2 to both distribute video from the Blu-ray player to the two displays using
their best common video resolutions and to send 2CH PCM to both displays.
Audio Embedding: The HD-DA-2 can be used to embed digital audio from DVI or HDMI sources
that do not transmit audio with the video (for example, video from a computer via a DVI-to-HDMI
conversion cable). Digital audio must then be sent to the HD-DA-2 separately from the video. In the
example below, the video output from a computer connects to the HDMI IN port of the HD-DA-2.
The digital audio output from the computer connects to the AUDIO IN OPTICAL port of the
HD-DA-2. A display connects to the HDMI OUT 2 port on the HD-DA-2. The DIP switch settings
shown below congure the HD-DA-2 to receive video at the HDMI IN port, to embed audio from the
OPTICAL port, and to send audio and video to the HDMI OUT 2 port.
Audio Extraction: The HD-DA-2 can be used to extract audio from an HDMI source and feed the
audio to an AV receiver or amplier or to both devices. In the example below, the HDMI source, a
Blu-ray player, connects to the HDMI IN port on the HD-DA-2. An AV receiver connects to the
AUDIO OUT SPDIF port, and an amplier connects to the AUDIO OUT R and L ports. The DIP
switch settings shown below congure the HD-DA-2 to route audio from the Blu-ray player to the
AV receiver and amplier.
DO Set the HDCP Keys
Using the rotary switch and a small screwdriver, set the required number of HDCP keys. The rotary
switch allows up to 16 keys to be set: A-F correspond to 10-15, and 0 corresponds to 16.
NOTE: If a rotary switch setting is changed after power is applied to the device, cycle power to
the device in order for the new rotary switch setting to be applied.
HD-DA-2
1-to-2 HDMI®Distribution Amplier and Audio Converter
DO Check the Box
QUANTITY PRODUCT PART NUMBER
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac 2045865
OFF
ON
1 2 3 4
5
6
7
8
Display
Display
Blu-ray
player
TM
DIP switch 2, represented by an X,
is ignored.
1 2 3 4 5 6 7
8
Display
DIP switches 3 and 4, each represented by
an X, are ignored.
1 2 3 4 5 6 7
8
Blu-ray
player
TM
Amplier
AV
receiver
Display
1 2 3 4 5 6 7
8
DIP switch 2, represented by an X,
is ignored.

DO GUIDE DOC. 7817B (2044643) 02.17
Specications subject to change without notice.
DO Install the Device
The HD-DA-2 can be mounted onto a wall or a rack rail as appropriate for the installation.
Mounting onto a Wall
Using four mounting screws (not included), mount the device onto a wall.
Mounting onto a Rack Rail
Using two mounting screws (not included), mount the left or right mounting ange of the device onto the front or rear rail of a rack.
As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.
This product is Listed to applicable UL®Standards and requirements tested by TUV.
Ce produit est homologué selon les normes et les exigences UL applicables par TUV
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION:Changes or modications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B)/NMB-3(B)
The specic patents that cover Crestron products are listed at patents.crestron.com. The product warranty can be found at www.crestron.com/warranty.
Certain Crestron products contain open source software. For specic information, please visit www.crestron.com/opensource.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Blu-ray is either a trademark or registered trademark of the Blu-ray Disc Association in the United States and/or other countries. HDMI and the
HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2017 Crestron Electronics, Inc.
DO Learn More
Visit the website for additional information and the latest rmware updates. To learn more about this product, use a QR reader
application on your mobile device to scan the QR image.
