Wall Mount Docking Station for
TPS-6X: TPS-6X-DSW
Introduction
The Crestron®TPS-6X-DSW Wall Mount Docking Station facilitates charging of the
TPS-6X Isys®Wireless Touchpanel (sold separately) while simultaneously enabling
wired touchpanel operation with full motion video capability. It is designed for
installation in a flat, vertical wall structure.
For detailed information about the TPS-6X, refer to the latest version of the TPS-6X
Operations Guide (Doc. 6575), which is available from the Crestron website
(www.crestron.com/manuals).
Features and Functions
• A stylish wall mount dock for the Isys®TPS-6X
• Provides a convenient battery charging solution
• Affords full-featured wall mount touchpanel operation
• Supports wired Ethernet or Cresnet®communications
• Enables balanced or unbalanced video input
• Powered by Cresnet
• Available in high gloss black or white or matte black
• Multiple wall mounting options available
Stylish Convenience
While docked, the touchpanel is partially recessed, providing a refined appearance
and useful functionality while inhibiting unauthorized removal. By pressing a button
or entering a passcode on the touchpanel, the mechanism gently extends the
touchpanel outward, allowing it to be released for wireless use. A hardware key is
also provided to release the touchpanel in the event of a power failure.
Flexible Connectivity
The TPS-6X-DSW provides both wired Ethernet and Cresnet®connectivity to the
touchpanel. When the touchpanel is placed in the docking station, it switches
automatically from RF wireless to fully wired operation if either Ethernet or Cresnet
are connected. Without a wired Ethernet or Cresnet connection present, the
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •1

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW
touchpanel will continue to operate wirelessly while it charges. Power is drawn from
the Cresnet network. A composite video input is also included to enable the display
of full motion video on the touchpanel screen while docked.
Vertical Mounting Options
The TPS-6X-DSW is designed for easy flush mount installation in a flat, vertical
wall structure. A variety of mounting accessories is offered for both pre- and
post-construction applications.
The TPS-6X-DSW is included with the TPS-6XWALL Isys 5.7” Wall Mount
Wireless Touchpanel and is also available separately for use with any TPS-6X
model. It is available in high gloss black or white or matte black finishes.
Specifications
Specifications for the TPS-6X-DSW are listed in the following table.
TPS-6X-DSW Specifications
SPECIFICATION DETAILS
Power Requirements 43 Watts (1.8 Amps @ 24 Volts DC)
with touchpanel docked;
Power is drawn from Cresnet network
Environmental
Temperature 41º to 104º F (5º to 40º C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 147 BTU/Hr
Enclosure
Chassis Metal, flush mountable in a vertical wall structure
(all mounting accessories sold separately)
Faceplate Plastic, color matched to touchpanel
Dimensions
Height 6.83 in (17.35 cm)
7.11 in (18.06 cm) with bezel
Width 9.35 in (23.74 cm)
9.70 in (24.63 cm) with bezel
Depth 3.70 in (9.39 cm)
4.17 in (10.60 cm) with bezel
4.50 in (11.42 cm) with touchpanel docked
Weight 5.2 lbs (2.4 kg)
Available Models
TPS-6X-DSW Wall Mount Docking Station for TPS-6X
High Gloss Black
TPS-6X-DSW-B-T Wall Mount Docking Station for TPS-6X,
Matte Black
TPS-6X-DSW-W-S Wall Mount Docking Station for TPS-6X,
High Gloss White
Available Accessories
BB-6X-DSW Pre-Construction Wall Mount Back Box
BBI-6X-DSW Wall Mount Back Box (International Version)
MMK-6X-DSW Mud Ring
(Continued on following page)
2 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A

Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X
TPS-6X-DSW Specifications (Continued)
SPECIFICATION DETAILS
Available Accessories
(Continued)
PMK-6X-DSW Pre-Construction Wall Mount Kit
TMK-6X-DSW Trim Ring
WMKM-6X-DSW Post-Construction Wall Mount Kit with Mud Ring
WMKT-6X-DSW Post-Construction Wall Mount Kit with Trim Ring
Physical Description
This section provides information on the connections, controls and indicators
available on your TPS-6X-DSW.

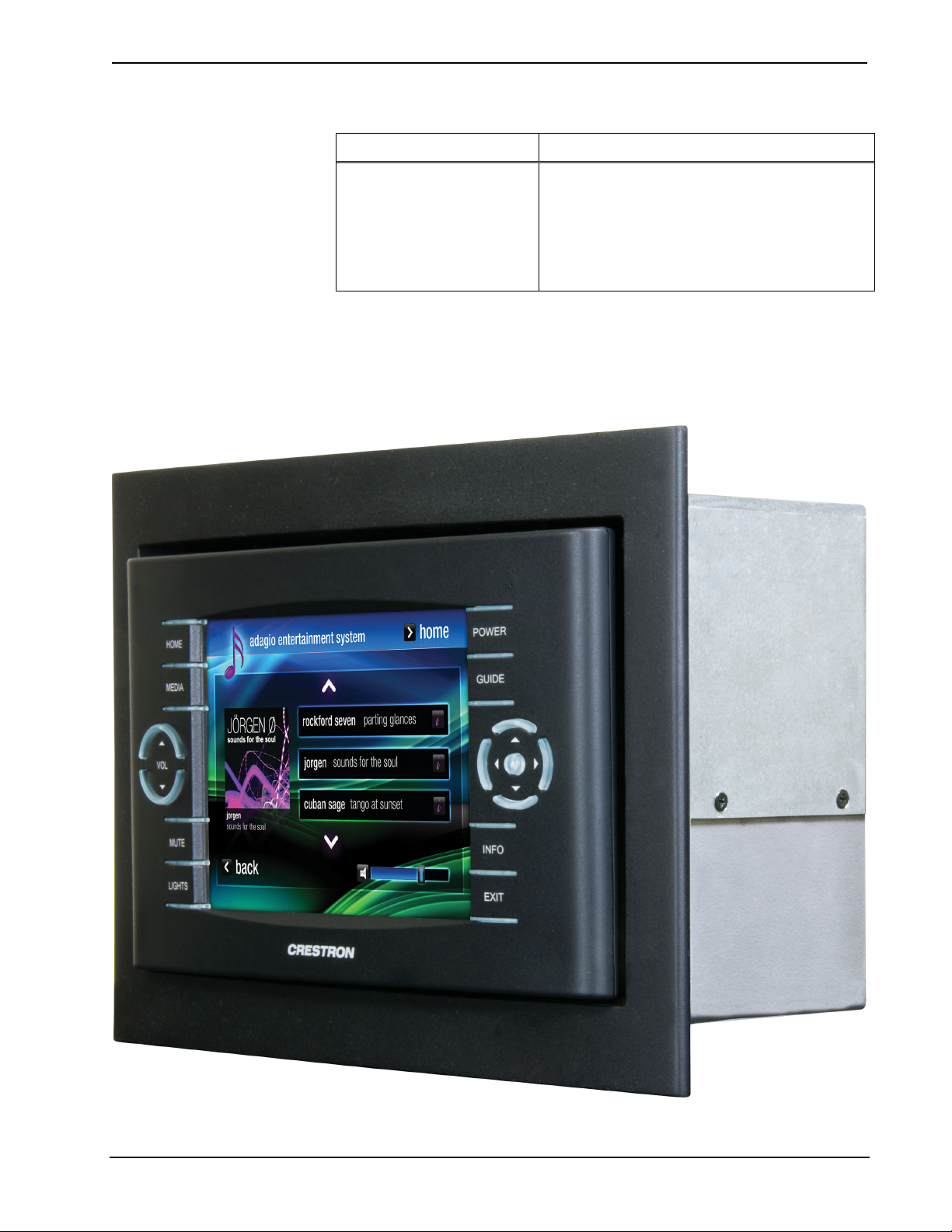

TPS-6X-DSW Physical View (Shown with TPS-6X Touchpanel Installed)
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •3

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW

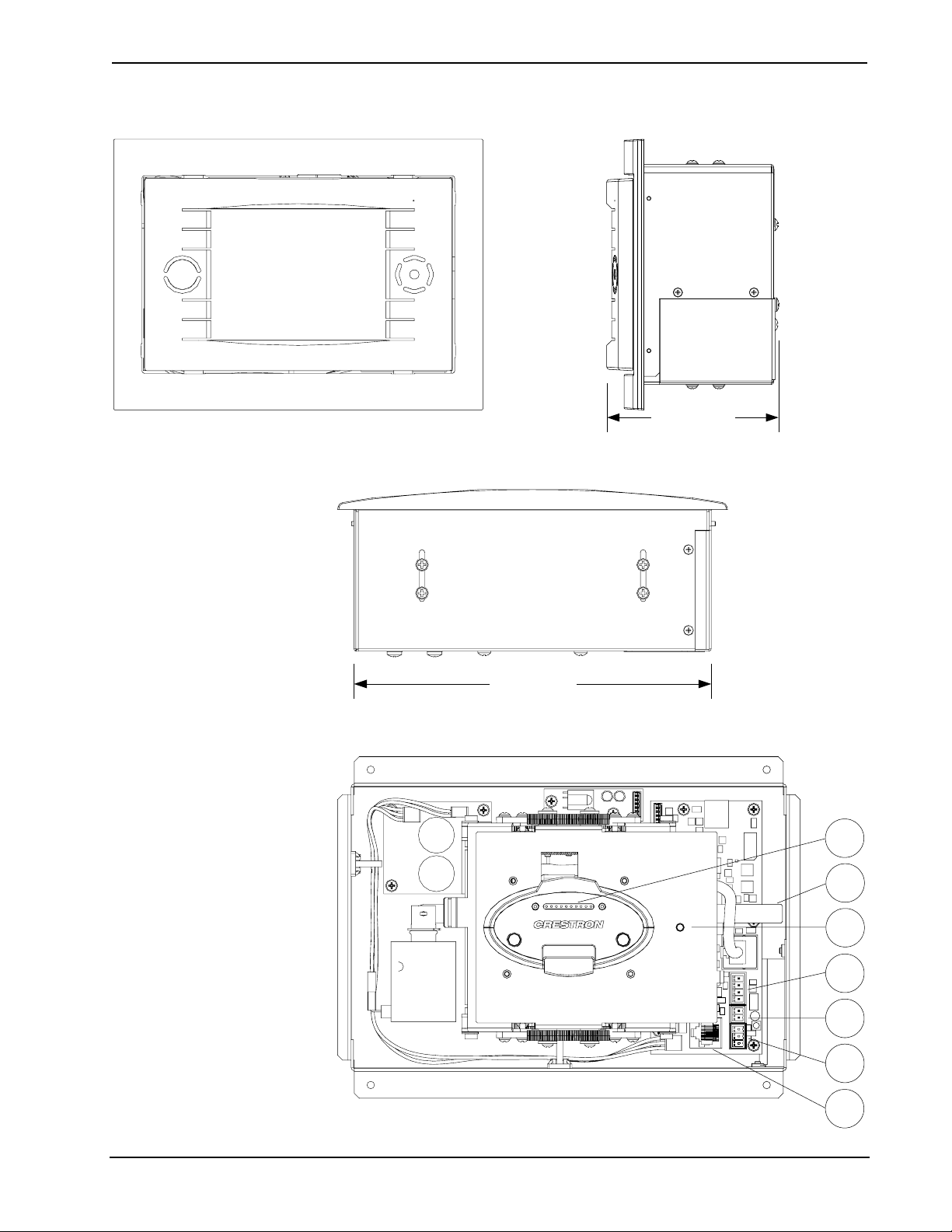

TPS-6X-DSW Overall Dimensions (Front and Side Views)
5.98 in
(15.19 cm)
3.70 in
(9.39 cm)
6.83 in
(17.35 cm)
6.35 in
(16.13 cm)
8.00 in
(20.32 cm)
9.35 in
(23.74 cm)
TPS-6X-DSW Overall Dimensions (Front and Side Views with Bezel Attached)
9.70 in
(24.63 cm)
7.11 in
18.06 cm)
4.17 in
(10.60 cm)
4 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A

Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X
TPS-6X-DSW Overall Dimensions (Front and Side Views with Bezel and TPS-6X Touchpanel Attached)
4.50 in
(11.42 cm)
TPS-6X-DSW Overall Dimensions (Bottom View with Bezel Attached)
8.89 in
(22.58 cm)

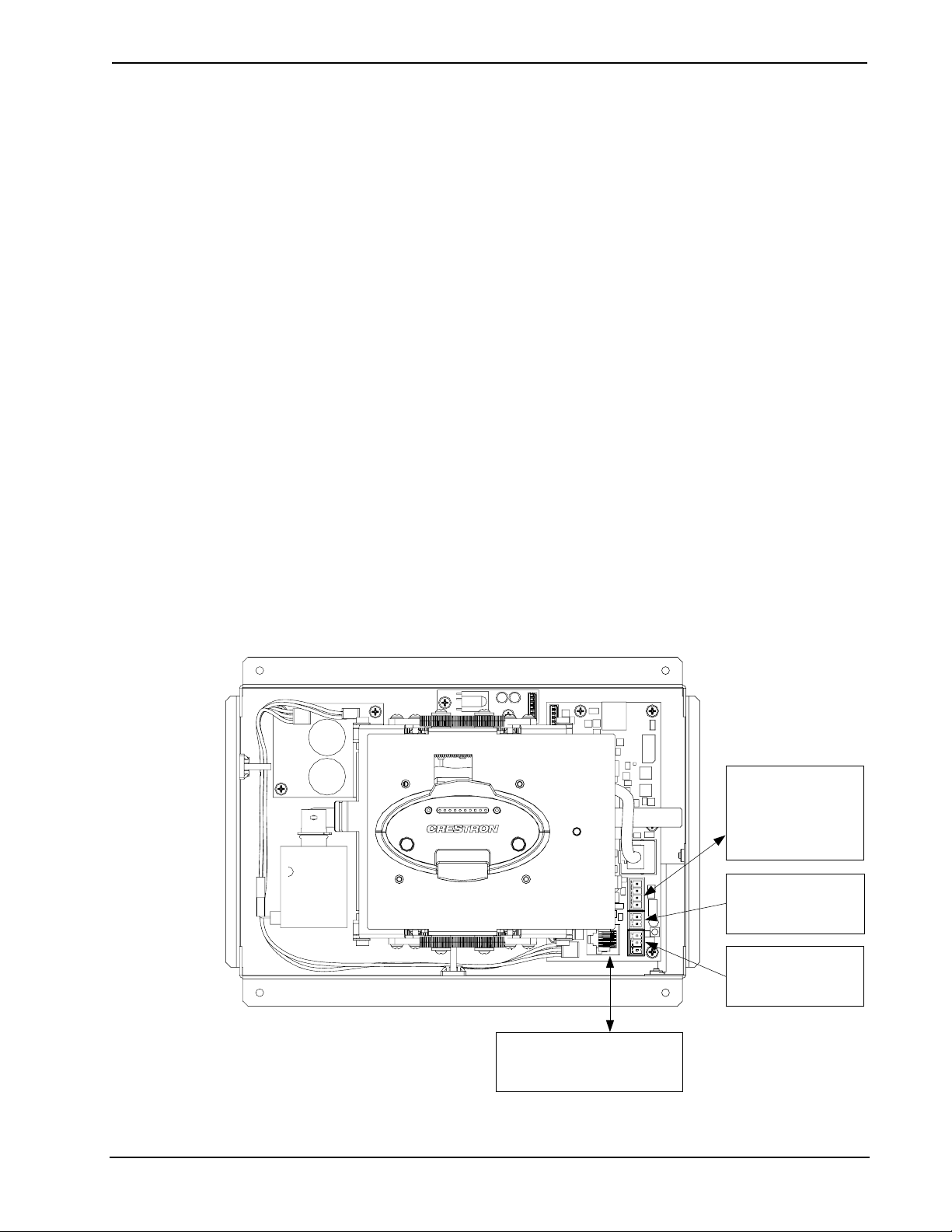

TPS-6X-DSW (Front View with Aesthetic Plate Removed to Show Connectors)
1
2
3
4
6
5
7
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •5

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW
Connectors, Controls & Indicators
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
1 TOUCHPANEL
CONNECTOR
(1) 10-pin connector for attaching touchpanel
2 LATCH RELEASE Manual latch release
3 OPEN
(1) Miniature pushbutton, accessible when
touchpanel is not docked, releases the
docking mechanism to allow touchpanel to
be docked
4 NET
(1) 4-pin 3.5 mm detachable terminal block;
Cresnet slave port, connects to Cresnet
control network
24: Power (24 Volts DC)
Y: Data
Z: Data
G: Ground
5 VID IN (UNBL)2
SV
(1) 2-pin 3.5 mm detachable terminal block;
Unbalanced composite video input;
Input impedance: 75 Ωnominal;
Input level: 1 Vp-p nominal, 1.5 Vp-p
maximum;
Maximum DC offset: ±2 Volts;
Connects to any conventional coax video
source
6 VID IN (BAL)2
S
-
+
(1) 3-pin 3.5 mm detachable terminal block;
Balanced composite video input;
Input impedance: 100 Ωnominal;
Input level: 1 Vp-p nominal, 1.5 Vp-p
maximum;
Maximum DC offset: ±2 Volts;
Connects to any Crestron CH CAT5 Video
Out port via CresCAT®cable
7 LAN3
Pin 1
(1) 8-wire RJ-45 female;
10 BASE-T/100BASE-TX Ethernet Port
PIN SIGNAL PIN SIGNAL
1 TX + 5 N/C
2 TX - 6 RC -
3 RC+ 7 N/C
4 N/C 8 N/C
1. Interface connectors for NET, VID IN (BAL), and VID IN (UNBL) ports are provided with the unit.
2. Balanced and unbalanced video inputs are mutually exclusive.
3. To determine which is pin 1 on the cable, hold the cable so that the end of the eight pin modular jack
is facing away from you, with the clip down and copper side up. Pin 1 is on the far left.
6 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A

Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X
Industry Compliance
As of the date of manufacture, the TPS-6X-DSW has been tested and found to
comply with specifications for CE marking and standards per EMC and
Radiocommunications Compliance Labelling.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •7

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW
Setup
Network Wiring
When wiring the Cresnet®and Ethernet network, consider the following:
• Use Crestron Certified Wire.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
CAUTION: Insufficient power can lead to unpredictable results or damage
to the equipment. Please use the Crestron Power Calculator to help calculate
how much power is needed for the system (www.crestron.com/calculators).
Cresnet For networks with 20 or more devices, use a Cresnet Hub/Repeater (CNXHUB) to
maintain signal quality.
For more details, refer to “Check Network Wiring” which starts on page 17.
Ethernet The TPS-6X-DSW can also use high-speed Ethernet for communications between
the device and a control system, computer, digital media server and other IP-based
devices.
For information on connecting Ethernet devices in a Crestron system, refer to the
latest version of the Crestron e-ControlReference Guide (Doc. 6052), which is
available from the Crestron website.
Supplied Hardware
The hardware supplied with the TPS-6X-DSW is listed in the following table.
Supplied Hardware for the TPS-6X-DSW
DESCRIPTION PART NUMBER QTY
Assembly, Bezel, with IR, Wall Dock, Black14504777 1
Assembly, Bezel, with IR, Wall Dock, Matte
Black2
4507641 1
Assembly, Bezel, with IR, Wall Dock, White34507241 1
Metal Plate, Aesthetic, Black1, 2 4505195 1
Metal Plate, Aesthetic, White34507217 1
Screw, #04-40 x 3/16”, Steel, Flat, Phil 2007145 4
Screw, #06-32 x 1 1/2”, Steel, Pan, Phil 2007254 4
Screw, #06-32 x 3/16”, Steel, Pan, Phil,
Black1, 2
2007203 4
Screw, #06-32 x 3/16”, Steel, Pan, Phil, Zinc32007204 4
Washer, Flat, Nylon, #6 2007665 4
Emergency Latch Release 4507211 1
1. These parts come with TPS-6X-DSW (High Gloss Black).
2. These parts come with TPS-6X-DSW-B-T (Matte Black).
3. These parts come with TPS-6X-DSW-W-S (High Gloss White).
8 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A

Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X
Mounting Options
The TPS-6X-DSW Docking Station and TPS-6X touchpanel install simply and
cleanly into existing or newly constructed walls with an assortment of pre- and post-
construction mounting options. All mounting options are provided separately from
the actual touchpanel. Refer to the following table for a complete list of mounting
options and respective Installation Guides for these touchpanels.
Mounting Options for the TPS-6X-DSW Docking Station and TPS-6X Touchpanel
PRE-CONSTRUCTION1
OPTION
POST-CONSTRUCTION2
OPTION
MODEL NUMBER DOCUMENT
NUMBER
Back Box Kit - BB-6X-DSW 6728
Pre-Construction Mount
Kit
- PMK-6X-DSW 6778
Mud Mount Kit
(accessory)
- MMK-6X-DSW 6779
Trim Mount Kit
(accessory)
- TMK-6X-DSW 6780
- Wall Mount Kit – Mud WMKM-6X-DSW36779
- Wall Mount Kit – Trim WMKT-6X-DSW36780
1. Pre-construction refers to framed walls prior to hanging drywall.
2. Post-construction refers to framed walls with drywall hung.
3. Since the TPS-6X-DSW contains moving parts, mounting to a stud offers more support and is
therefore highly recommended. Although Crestron offers the post-construction WMKM-6X-DSW and
WMKT-6X-DSW mounting options, a mounting option that is secured to a stud, such as the
BB-6X-DSW or PMK-6X-DSW is highly recommended.
NOTE: There is also an international Back Box Kit (BBI-6X-DSW) available for
the TPS-6X-DSW, for installation in concrete and masonry. Refer to the latest
version of the BBI-6X-DSW Installation Guide (Doc. 6842).
If the BB-6X-DSW or PMK-6X-DSW is to be used and a TPS-6X-DSW Docking
Station is not available, the installer can either leave the hole in the mounting surface
open (if permitted by local building codes) or attach the cover plate supplied with the
mounting kit.
Installation
To install the TPS-6X-DSW, complete the following procedure in the order
provided. The only tool required is a #2 Phillips screwdriver.
CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity
above and below the touchpanel for heat dissipation.
NOTE: The following steps are performed only after the BB-6X-DSW or
PMK-6X-DSW has been installed. It is assumed the BB-6X-DSW or PMK-6X-DSW
has been secured to the stud according to the instruction in the latest Installation
Guides (Doc. 6728 and Doc. 6778 respectively), which can be obtained from the
Crestron website. It is also assumed that drywall is in place and a cutout for the
TPS-6X-DSW and touchpanel is made in the drywall.
1. The TPS-6X-DSW is shipped with the docking mechanism locked in its
“back” position. In order to make cable connections, the mechanism must
first be unlocked so it slides to the “forward” position. To do this, slide the
release latch on the right side of the TPS-6X-DSW upward to release the
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •9

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW
mechanism. The mechanism will slide forward. To locate the release latch,
refer to illustration on page 5, showing the front view of the TPS-6X-DSW.
Callout #2 points to the release latch.
2. Remove the four screws holding the cover plate in place, to gain access to
the connectors on the TPS-6X-DSW.
TPS-6X-DSW Installation – Cover Plate Removal
BEFORE MOUNTING THE UNIT INTO
THE WALL, REMOVE THE COVER PLATE
TO ACCESS THE CONNECTORS.
ONCE ALL CABLES ARE CONNECTED,
REPLACE THE COVER PLATE.
3. Hold the TPS-6X-DSW near the back box and connect the NET, VID IN
and LAN cables from the back box to the ports on the back of the unit.
(Refer to “Hardware Hookup” on page 13 for details.)
4. Replace the cover plate, using the four screws from step 2.
5. Place the TPS-6X-DSW into the back box (or against the PMK-6X-DSW if
using this instead of the back box) and using the four supplied
#06-32 x 1 1/2” screws (2007254), two at the top and two at the bottom, to
attach the TPS-6X-DSW to the back box, as shown in the illustration on the
following page.
10 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A

Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X
TPS-6X-DSW Installation – Secure to Mounting Option
SCREWS (4)
#06-32 x 1 1/2"
(2007254)
NOTE: EITHER THE BB-6X-DSW OR PMK-6X-DSW MUST BE
INSTALLED BEFORE INSTALLING TPS-6X-DSW INTO THE WALL.
WALL
SECURE AESTHETIC PLATE TO
DOCKING STATION ASSEMBLY
WITH SCREWS (4) #04-40 X 3/16"
(2007145)
AESTHETIC PLATE
(4505195 or 4507217)*
* Part # 4505195 comes with TPS-6X-DSW (black).
Part #4507217 comes with TPS-6X-DSW-W-S (white).
6. Use the four supplied #04-40 x 3/16” flat head screws (2007145), to attach
the aesthetic plate to the front of the TPS-6X-DSW mechanism.
7. Push the mechanism backward, into the box, until it locks in place,
exposing the screw holes on the left and right sides. Refer to illustration on
the following page.
8. Install the bezel, being careful to orient it with the IR window facing up.
Refer to illustration on the following page.
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •11

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW

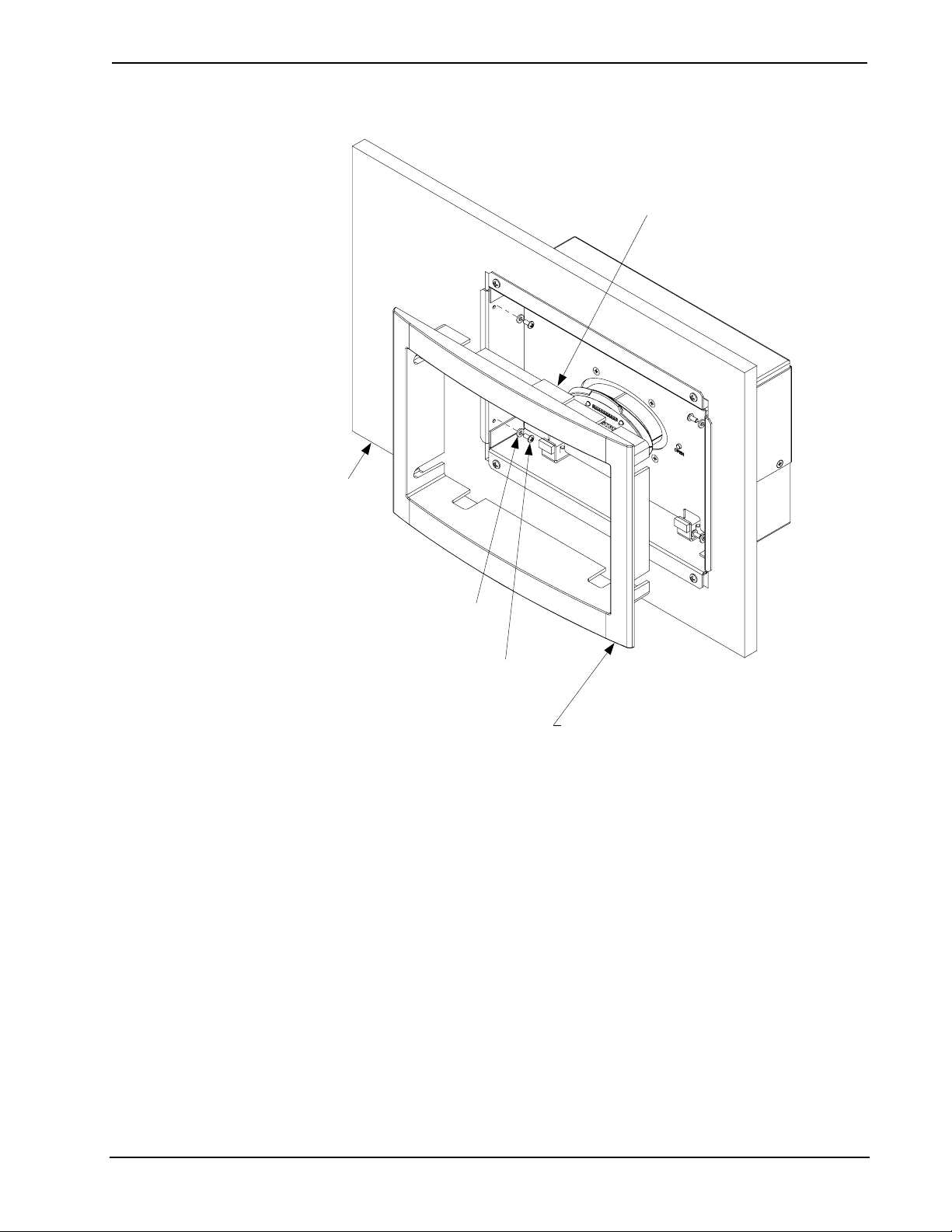

TPS-6X-DSW Bezel Installation
SCREWS (4)
#06-32 x 3/16"
(2007203 or 2007204)*
INSTALL BEZEL WITH
THE IR WINDOW FACING UP
SECURE BEZEL TO METAL CHASSIS BOX WITH
THE SUPPLIED SCREWS AND WASHERS
NYLON WASHERS (4)
#6 (2007665)
WALL
* Part # 2007203 comes with TPS-6X-DSW (black).
Part #2007204 comes with TPS-6X-DSW-W-S (white).
9. Use the four supplied #6 nylon washers (2007665) and #06-32 x 3/16”
screws (2007203 or 2007204), two on the left side and two on the right side,
to attached the bezel.
10. The TPS-6X touchpanel can now be docked. Refer to “Docking the
Touchpanel’’ on page 14 for details.
12 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A

Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X
Removal
If it is necessary to remove the TPS-6X-DSW after it has been installed, complete
the following steps in the order provided. The only tool required is a #2 Phillips
screwdriver.
1. Undock the touchpanel. Refer to “Undocking the Touchpanel” which starts
on page 14 for details.
2. Push the TPS-6X-DSW mechanism backward, into the box, until it locks in
place, exposing the screws securing the bezel on the left and right sides.
(Refer to illustration on previous page.)
3. Remove the screws and washers, two from the left side and two from right
side, which secure the bezel and gently remove the bezel from the
TPS-6X-DSW.
4. Remove the screws, two from the top and two from the bottom, which
secure the TPS-6X-DSW to the back box. (Refer to illustration on page 11.)
5. If necessary, secure and label the attached cables before disconnecting them
from the TPS-6X-DSW.
Hardware Hookup
Make the necessary connections as called out in the illustration that follows this
paragraph. Refer to “Network Wiring” on page 8 before attaching the 4-position
terminal block connector. Apply power after all connections have been made.
When making connections to the TPS-6X-DSW, use Crestron power supplies for
Crestron equipment.
Hardware Connections for the TPS-6X-DSW
NET:
TO CONTROL
SYSTEM AND
OTHER CRESNET
DEVICES
LAN:
10BASE-T/100BASE-TX
HIGH SPEED ETHERNET
VIDEO IN (UNBL):
UNBALANCED
VIDEO INPUT
VIDEO IN (BAL):
BALANCED
VIDEO INPUT
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •13

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW
Operation
Docking the Touchpanel
To mount the TPS-6X, perform the following procedure in the order provided.
1. Press the OPEN button located on the front of the TPS-6X-DSW, to the
right of the docking fixture. The mechanism will slide forward.
2. Position the touchpanel onto the TPS-6X-DSW at a slight angle to latch the
top portion of the touchpanel to the tab on the top of the docking fixture.
When the top portion is latched, move the bottom of the touchpanel into
position, flat against the docking fixture. Magnets on the docking fixture
will contact the metal plates installed on the TPS-6X to secure the
touchpanel in place.
3. Push the touchpanel backward, being careful not to touch the display
screen, until the TPS-6X-DSW mechanism locks into place and the
touchpanel is flush with the TPS-6X-DSW bezel. When the mechanism
locks into place, the tab on the bottom of the docking fixture will slide into
the recess on the rear of the touchpanel, securing it in place.
Undocking the Touchpanel
In normal operation, the TPS-6X-DSW unlatches the touchpanel electrically via the
control system program. The control system program defines the method
(i.e. touchpanel button) for unlatching. When the touchpanel is unlatched, the
docking mechanism will slide forward and the tab on the bottom of the docking
fixture will slide clear of the recess on the rear of the touchpanel. The touchpanel
may then be removed from the TPS-6X-DSW by first pulling the bottom of the
touchpanel slightly forward, then lifting the touchpanel upward, off the tab on the top
of the docking mechanism.
Electrical Undocking of Touchpanel
1. Use the touchpanel or control system program to unlatch the touchpanel.
2. Pull the bottom of the touchpanel slightly forward, then lift the touchpanel
upward, off the tab on the top of the docking mechanism.
Manual Undocking of Touchpanel
In the event of a power failure or if for some other reason, you cannot release the
touchpanel from the TPS-6X-DSW, you can use the supplied emergency latch
release tool to release the touchpanel with the following procedure:
1. While standing directly in front of the TPS-6X-DSW, insert the emergency
latch release tool into the space between the right side of the touchpanel and
the TPS-6X-DSW bezel, about 1” (25 mm) up from the bottom right corner.
Insert the tool all the way up to the line marked on the tool. Refer to
illustration on the following page.
14 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A

Crestron TPS-6X-DSW Wall Mount Docking Station for TPS-6X
Manual Undocking of Touchpanel Using Supplied Emergency Release Tool
TO RELEASE, INSERT THE EMERGENCY LATCH RELEASE TOOL
ONE INCH ABOVE THE LOWER RIGHT CORNER AND LIFT UP.
2. Slide the emergency latch release tool upward to engage the release latch.
The TPS-6X-DSW mechanism will slide forward and the tab on the bottom
of the docking fixture will slide clear of the recess on the rear of the
touchpanel.
3. The touchpanel can now be removed from the TPS-6X-DSW by first
pulling the bottom of the touchpanel slightly forward, then lifting the
touchpanel upward, off the tab on the top of the docking mechanism.
Operations & Installation Guide – DOC. 6708A Wall Mount Docking Station for TPS-6X: TPS-6X-DSW •15

Wall Mount Docking Station for TPS-6X Crestron TPS-6X-DSW
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble situations. If
further assistance is required, please contact a Crestron customer service
representative.
TPS-6X-DSW Troubleshooting
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
The touchpanel is not
properly docked.
Adjust the touchpanel to
ensure it is squarely seated
in the TPS-6X-DSW and fully
snapped into position.
The electrical contacts
are dirty.
Perform “Manual Undocking
of Touchpanel” (refer to page
14) and clean the contacts.
The Cresnet connector
is not secure.
The solenoid connector
is not secure.
Perform “Manual Undocking
of Touchpanel” (refer to page
14), then perform “Removal“
(refer to page 13) and ensure
the connectors are secure.
Device is not receiving
power from a Crestron
power source.
Use a Crestron power
source. Verify connections.
The TPS-6X-DSW
does not unlatch
the touchpanel.
IR window is dirty or
obstructed.
Verify IR window at top of
bezel is clean and
unobstructed.
The touchpanel
does not dock in
the TPS-6X-DSW.
There is mechanical
binding in the
TPS-6X-DSW.
Perform “Removal” (refer to
page 13) and check the
assembly.
The electrical contacts
of the TPS-6X-DSW are
dirty.
Perform “Manual Undocking
of Touchpanel” (refer to page
14) and clean the contacts.
The touchpanel
works in wireless
mode but not
communicate in
wired mode
docked.
Insufficient power for the
Cresnet network.
User the Crestron Power
Calculator to help determine
system requirements. Refer
to “Network Wiring” on page
8.
The electrical contacts
of the TPS-6X-DSW are
dirty.
Perform “Manual Undocking
of Touchpanel” (refer to page
14) and clean the contacts.
The Cresnet connector
is not secure.
Perform “Manual Undocking
of Touchpanel” (refer to page
14), then perform “Removal“
(refer to page 13) and ensure
the connectors are secure.
The touchpanel
does not
communicate with
Cresnet when
docked.
The Net ID in the
SIMPL™ Windows®
program does not match
the Net ID of the
touchpanel.
Verify Net ID in the SIMPL
Windows program matches
the Net ID of the touchpanel.
(Continued on following page)
16 •Wall Mount Docking Station for TPS-6X: TPS-6X-DSW Operations & Installation Guide – DOC. 6708A
