Crime Guard 550i6 User manual

#651-05
Omega part #
2-Way Keyless Entry & Security System
Programmable Features
Feature # Default Arm/Lock Disarm/Unlock
Feature #1 Pin Code (for overriding alarm) 1 Press options are: 2 through 12 Presses
Feature #2 Last DoorArming OFF ON OFF
Feature #3 Doors Lock With Last Door Arming ON ON OFF
Feature #4 Auto Rearming OFF ON OFF
Feature #5 Doors Lock With Automatic Rearming ON ON OFF
Feature #6 Siren & Horn or Horn Siren & Horn Siren & Horn Horn
Feature #7 Ignition Lock ON ON OFF
Feature #8 Ignition Unlock ON ON OFF
Feature #9 System Trigger Cycle 30 Seconds 30 Seconds 60 Seconds
Feature #10 Double Pulse Unlock 1 Pulse 2 Pulses 1 Pulse
Feature #11 Immobilizer Mode OFF ON OFF
Feature #12 Shock Sensor FalseAlarm Bypass OFF ON OFF
Feature #13 Dome Light Delay Bypass OFF ON OFF
Feature #14Auxiliary Channel Output 1.5 Second 1.5 Second 30 Seconds
Feature #15Auxiliary Function Disarm Disarm MaintainStatus
Feature #16 3rd Channel Output (B3) Remote Start Mode (A/L) 30 Second Latched (D/U) 30 Seconds Upon Arm
Feature #17 ControllerActivatedAnti-Carjacking OFF ON OFF
Feature #18 Open DoorActivated Anti Car-Jacking OFF ON OFF
Feature #19 IgnitionActivatedAnti Car-Jacking OFF ON OFF
Feature #20 “Hands Free”Activated Anti-Carjacking OFF ON OFF
Feature #21 “Hands Free”Activated Anti-Carjacking OFF ON OFF
Feature #22 Lock Pulse Time .8 Second 4 Seconds .8 Second
Feature #23 Factory Settings Reset - Reset (all features to factory settings)
NEW Features! Immobilizer mode Proximity disarm/unlock Proximity anti-carjack
Multi-car operation Programmable auxiliary channels Silent arm & disarm
2-stage disarm Has siren output & horn honk output Onboard doorlock relays
Standard Features: Dual light flash outputs w/ selectable polarity; starter interrupt; Automatic re-
arming; Last door arming; ignition activated doorlocks; anti-carjacking protection; includes mini 6
tone siren; includes two 5 button controllers; 22 programmable features; window mount antenna;
includes AU-84TM dual zone shock sensor.

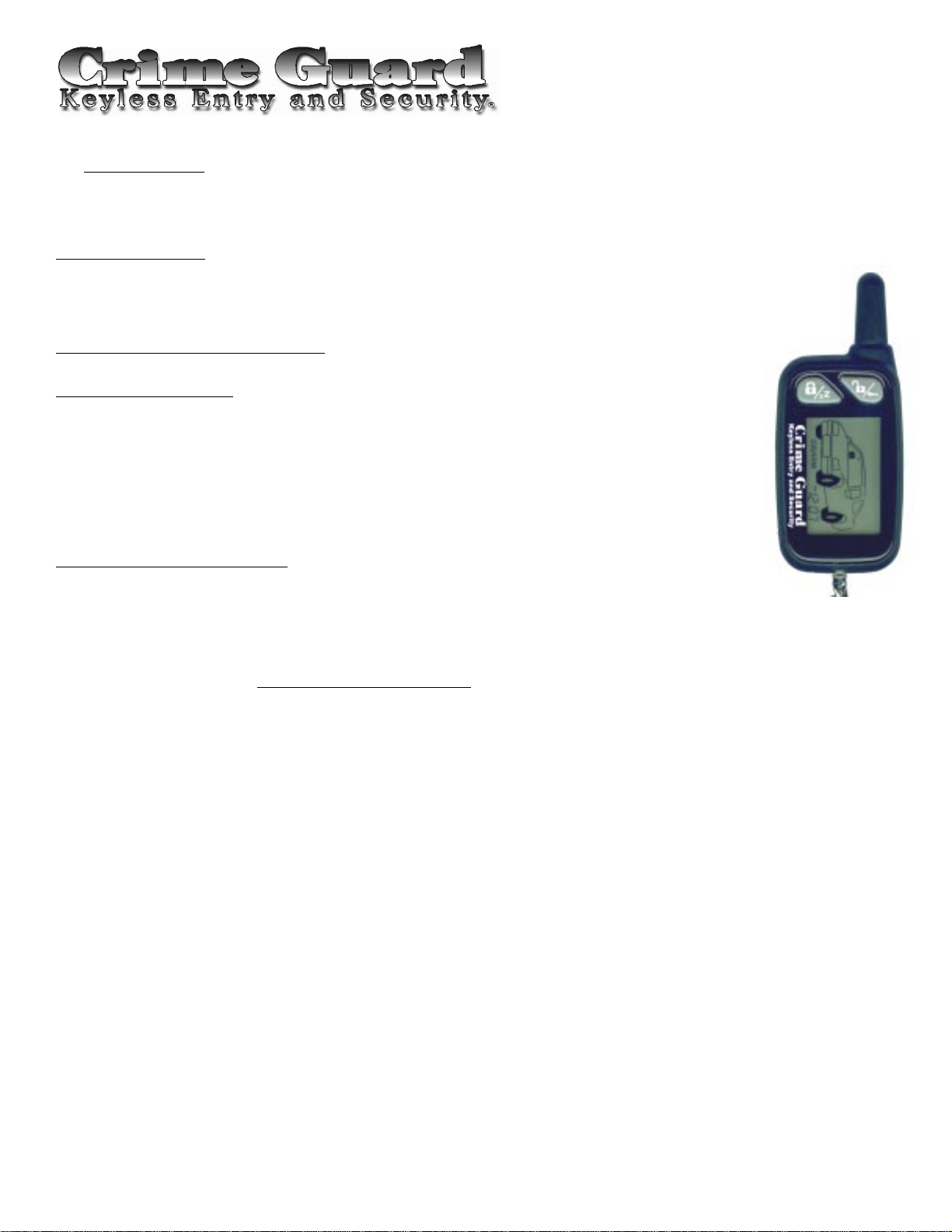

TWO 2-way Controllers included: New! 5 button blue backlit LCD 2-way controllers
feature proximity (hands-free) disarm/unlock; power save mode; keypad lock; multicar use.
Controller Operations:
Arm/Lock Button - Press and release to arm/lock. Press and hold to activate panic.
Disarm/Unlock Button -Press and release to disarm/unlock.
Small “Button 3” - Press and hold to activate auxiliary channel.
Small “Button 4” - Activate 3rd channel; vehicle finder; remote anti-carjack.
Small “Button 5” - Turn on backlighting; setting times and other functions.
Button Combinations - Sensor bypass; hands free on/off; controller power-saver on/off;
keypad lock on/off; chirp or vibrate; change vehicle type icon (multicar operation).
Specifications subject to change 7/09
How to Code the Controllers: Turn “on” the ignition, then press the valet switch 5 times
and wait for siren to chirp. Then press and release any button on each controller, one at a time.
The system will respond to each with an audible confirmation. Note: Choose the desired
controller vehicle type icon (car, pickup or van/SUV) before programming the controller to the system. The multi-
car operation is programmable from vehicle to vehicle by changing the controller’s vehicle type icon.
550i6

Specifications subject to change 7/09
Pink: (-) 3rd
Channel Output
123
123
123
123
123
123
123
123
123
123
Parking Lights
(2) White:
(+) Parking
Light
Output
Blue: (-)
Instant Trigger
Input
Violet: (+)
Door
Trigger
Black/White: (-)
Dome Light Output
Red/White:
(+/-) Light
Polarity
Unit
Transceiver
Red: To Starter
Red: To Ignition Switch
Relay
Orange: Armed (-) Output
Switch
Ignition
Socket & relay for starter interrupt
Starter
123
123
123
123
123
123
123
123
123
123
Green: (-) Door Trigger
Yellow: 12 Volt
Ignition (+)
Gray: Auxillary
Channel
+
Brown/Black: (-)
Hood Switch
Brown/White:
(-) Horn Honk
15Amp
Red: (+) 12 Volt Power
Black:
(-)
Ground
Violet/Blk: (Lock Relay Input Pin #87 (N/O)
LED Status Light
Valet Switch
Dual Zone
Shock
Sensor
Battery Green/Blk: (Lock Relay Output pin #30 (Common)
White/Blk: Lock Relay Input Pin #87A (N/C)
Brown: Unlock Relay Input Pin #87A (N/C)
Blue: Unlock Relay Output pin #30 (Common)
Violet: Unlock Relay Input Pin #87 (N/O)
DOOR LOCKS:
Crime Guard
550i6
Socket Yellow:
12 Volt Ignition (+)
10Amp
Crime Guard 550i6 Wiring Diagram:
How to Program the Features:
Turn the ignition on, then off.
Within 7 seconds press the valet switch 5 times, then wait for audible response.
Select the feature by pressing the valet switch the number of times equal to the feature number; the siren
will chirp the same number as entered.
Press the Lock (1 chirp) or Unlock (2 chirps) transmitter button to configure the feature as desired.
Repeat pressing the valet switch to access the next feature, and then again press the Lock or Unlock
button to configure the feature.
