CrimeStopper EZEE START EZ-10 User manual

EZ-30 / EZ-10
REMOTE ENGINE STARTING SYSTEM
OPERATING INSTRUCTIONS
INTRODUCTION
**IMPORTANT NOTES:- FOR EZ-10 MODEL ONLY**
The EZ-10 Model is for remote starting purposes only. It has NO keyless entry functions. Any information in this
manual pertaining to remote keyless entry functions, door lock & door unlock applies only to the EZ-30 model.
*IMPORTANT INFORMATION: Primary and Optional Features
-PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Remote
Start connections, Flashing lights, Brake Reset. For programming, the hood pin and program button are required.
-OPTIONAL: These features are to be connected only if desired or agreed upon by the customer and the
installing dealer i.e. Anti-Grind, Turbo timer, etc. These features may also require additional parts and/or labor
fees. Consult with your installer beforehand to be sure of what is going to be installed with your particular system.
This device complies with FCC Rules part 15. Operation is
subject to the following two conditions: 1) This device may not
cause interference, and (2) this device must accept any
interference that may be received, including interference that
may cause undesired operation. The manufacturer is not
responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
TECHNICAL SUPPORT: [phone]
Monday - Friday 8:00am - 4:30pm Pacific Std. Time
Web Site: www.crimestopper.com
E-mail: [email protected]
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET, SIMI VALLEY, CA. 93063
REV A - 08.2004

TABLE OF CONTENTS
Operation Cautions & Warnings…….……………..….…………………………………….…………………………2
Remote Control Diagrams………...……………………………………………………………………………...…….3
Remote Engine Control…………….…..…………………………………………………………………….……….4-6
Turbo Timer Mode……………………………….……………………………………...………………………………7
Convenience and Safety Features……………………………….……………………………………...……..……8-9
Transmitter Programming….…………….…………………………………………….……………………...……..9-10
2 Vehicle Operation.…………………………………….………………...……………………..…………….………11
Troubleshooting “Before You Call” Section……………..……………………………………………………..….11-12
OPERATION CAUTIONS & WARNINGS
CRIMESTOPPER SECURITY PRODUCTS, INC. / EZEE START and its VENDORS shall not be liable for any
accident resulting from the use of this equipment. This system is designed to be professionally installed into a car
or vehicle in which all items, such as parking brake and all associated components, door switches, transmission
shift linkage, throttle linkage, and all engine safety features, are in perfect working condition.
DO NOT install the Remote Engine Starting System on MANUAL TRANSMISSION vehicles. If accidentally left
in gear the vehicle could become a self-propelled threat to life and property.
IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this system
and its safety features. B) Check for proper operation of the system prior to accepting delivery of the vehicle from
the installation facility. C) Check and maintain the condition of the vehicle and all items relative to the proper
operation of this system and its safety features. D) Always leave the doors and windows closed and locked to
protect against accident and theft.
DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there is
adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide
fumes.
2

REMOTE CONTROL DIAGRAMS
#1
#2
#3
LOCK
ENGINE
UNLOCK
VEHICLE #2
FLASHLIGHT
START/STOP
EZ-30
Engine
Start/
Stop
Flashlight
Vehicle
#2
EZ-10 System
EZ-30 SYSTEM
The transmitter supplied with the EZ-30 system has 5 buttons total. The button configuration of the EZ-30 is
Factory-set and unchangeable. See Page 11 for additional information on how to use your remote to operate a
second vehicle equipped with an EZ-30 or EZ-10 system.
EZ-10 SYSTEM
The transmitter supplied with the EZ-10 system has 3 buttons total. The button configuration of the EZ-10 is
Factory-set and unchangeable. See Page 11 for additional information on how to use your remote to operate a
second vehicle equipped with an EZ-10 system.
“COOLFLASH” BLUE LED FLASHLIGHT
Your remote control is equipped with a handy mini LED “CoolFlash” flashlight. Press the upper side button of
your remote control to active the remote’s LED indicator as a flashlight.
NOTE: REMOTE START BUTTON DELAY
There is a deliberate delay built into the system on the remote start button to help prevent accidental remote
starting from the remote being in your pocket or purse. During normal use push the button deliberately for at least
a 1-second. If you press the remote start button too quickly, the system may not accept the signal to start the
engine.
3

REMOTE ENGINE CONTROL

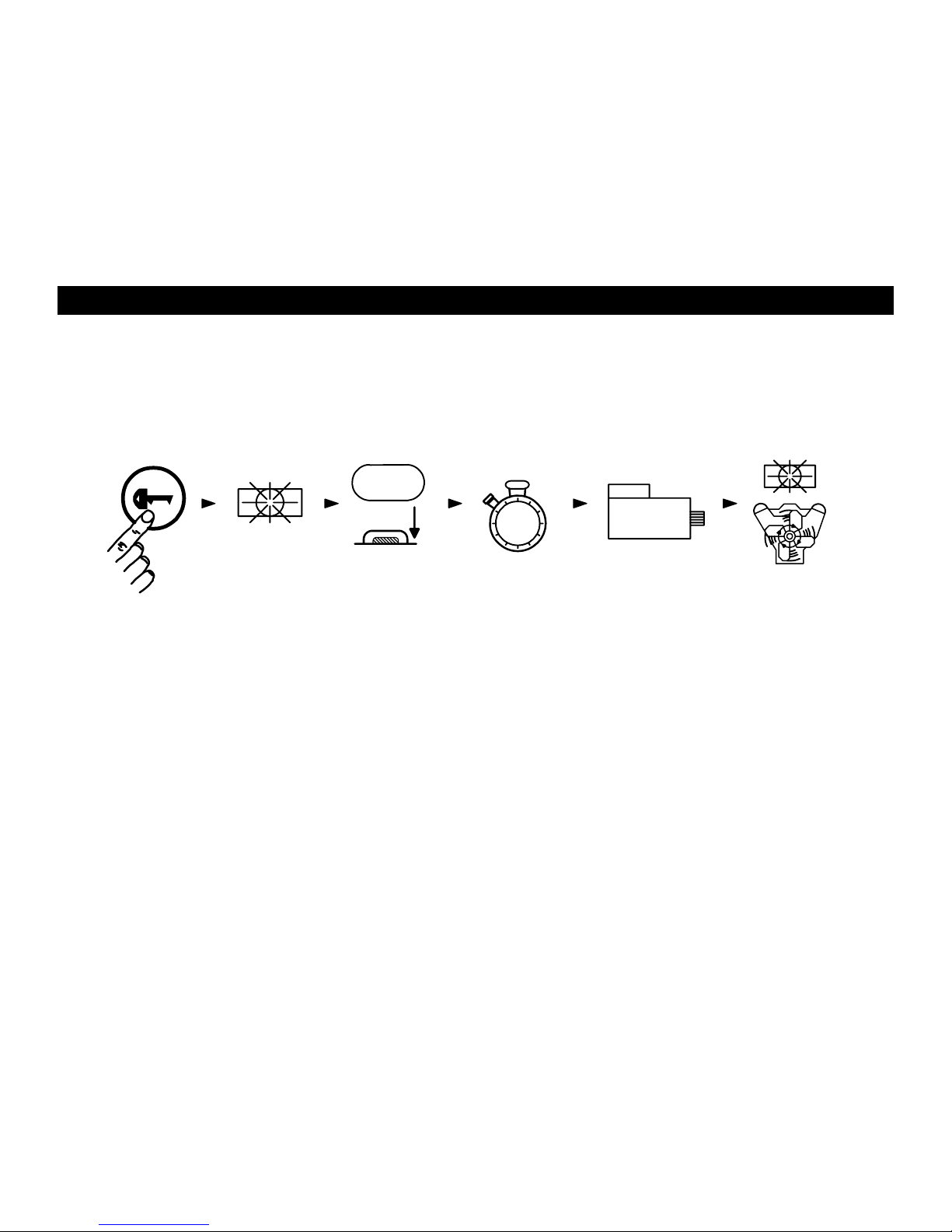

REMOTE ENGINE STARTING - SUCCESSFUL START:
1) Press the remote start button for at least 1 second.
2) Parking lights flash once; return solid, and the Ignition/Acc circuits turn on.
3) After a few seconds the Starter Motor engages, Parking lights and Acc circuits will turn off while cranking.
4) Engine Starts and Runs. Parking Lights and Acc turn back on, Doors Lock.
5) Engine will remain running for programmed run time until it is reset with Brake pedal.
AFTER
IGN
3
STARTER
THEN
FLASH 1X
SOLID
SOLID
SEC.
REMOTE ENGINE STARTING - UNSUCCESSFUL START
In the event that the engine does not start on the first attempt, the system shuts down for a few seconds, then
attempts to restart the engine a 2nd and 3rd time. For hard starting engines, the unit will allow a starter crank time
of up to10 seconds maximum. This should provide ample cranking time for difficult starts, but is limited to 10
seconds to help prevent damage to the starter from over cranking.
1) If the engine starts on 2nd or 3rd attempt, see steps 4 & 5 above of "Successful Start".
2) If Third attempt fails to start engine, the system will turn off and doors will remain locked. NO FURTHER
ATTEMPTS WILL BE MADE AUTOMATICALLY
TURNING OFF A REMOTE STARTED ENGINE:
1) Engine is running in Remote Start (Parking lights ON).
2) Press and release the remote start button
3) Engine & parking lights OFF.
EZ-30 MODEL ONLY: REMOTE START RUN TIME RESET:
You can reset the engine-run timer to allow for more running time after remote start has already occurred
using the remote control. After a successful remote start, press both the Lock & Unlock buttons together for at
least 2 seconds. The parking lights will flash 3 times and the internal engine timer will reset back to zero
minutes.
4

REMOTE ENGINE CONTROL

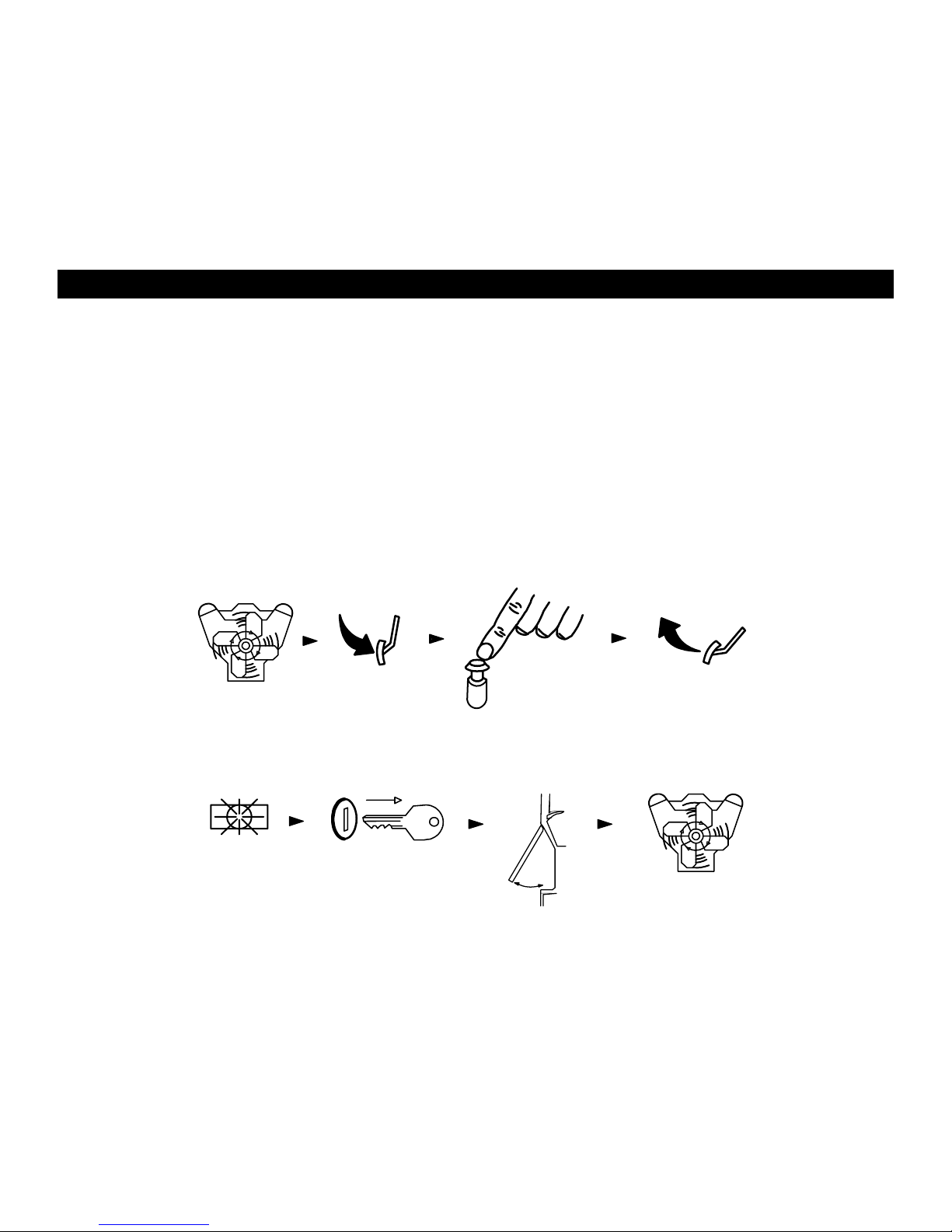

ENTERING YOUR REMOTE STARTED VEHICLE:
1) With engine running, Remote Unlock system (EZ-30) or open door with key.
2) Enter vehicle and be careful not to step on brake pedal! (Remote Start Reset)
3) Turn Ignition to ON/RUN position, then press brake pedal to reset the Remote Starter & Shift out of park.
4) Remote starter will reset instantly when the brake is pressed. Parking lights will turn off and the ignition key is
now controlling your vehicle.
IDLE DOWN MODE:
This mode allows the unit to take over operation of the parked vehicle while the ignition key is removed and you
exit the vehicle. The vehicle is put into a remote running condition before you exit and it will remain running for the
programmed run time or until you come back. Example: You pull up to a convenience store for a quick stop, "Idle
Down" mode keeps engine running when you exit the vehicle, (with keys in hand) remote lock doors(EZ-30). When
you return, unlock, turn ignition ON and drive away.
IDLE DOWN MODE - EXITING THE VEHICLE:
1) With vehicle engine running with key, press the Remote Start button for at least one second.
2) Parking Lights will turn ON.
3) EZ-30 Model: Doors will unlock, or if brake pedal is being depressed, doors will unlock when it is released.
4) Turn OFF Ignition and remove key. Engine should remain running.
5) Exit vehicle then remote lock doors if desired.
6) Engine will remain running for programmed run time or until you return (whichever comes first).
IGN
SOLID
OFF
UNLOCK
5

REMOTE ENGINE CONTROL
INFINITY RUN MODE
This mode can only be activated when "Idle Down" procedure. The Infinity Run mode allows the vehicle engine to
remain running INDEFINITELY after the programmed run time elapses. This mode will allow the vehicle to be left
running and unattended without the ignition key in the switch preventing the vehicle from being stolen. This mode
can be beneficial to law enforcement or commercial trucks that need to remain running unattended for long
periods of time.
INFINITY RUN MODE – EXITING THE VEHICLE:
1) With vehicle engine running with the key, press the Remote Start button for at least 1 second, pause a few seconds,
then press and release the remote start button a second time.
2) Parking Lights will start flashing, and doors will unlock.
3) Turn Ignition switch OFF, remove key and exit the vehicle. Engine should remain running.
4) The vehicle’s parking lights will flash for the programmed run time of 12, 24, or 36, or 48 minutes and then switch to solid
while motor runs indefinitely or until fuel supply runs out.
ENTERING A VEHICLE DURING IDLE-DOWN or INFINITY RUN MODES:
See “Entering Your Remote Started Vehicle” on Last page.
SELECTABLE HOURLY COLD-START MODE (1-4 HOURS)
This mode allows the vehicle to be programmed to self-start every 1, 2, 3 or 4 hours and run for the programmed
run time. This can be helpful during extremely cold conditions where engine fluid freeze-up is a concern. THE
VEHICLE MUST BE OUTDOORS OR IN A WELL VENILATED AREA! Once this mode is set, the unit will start at
the programmed hourly interval and run for the programmed run time. To reset this mode, either start the vehicle
with the key or the remote control.
SELECTABLE HOURLY COLD-START MODE – EXITING THE VEHICLE:
1) Engine should be running with the Key. Press the Remote Start button for at least 1 second. Lights will turn on signaling
the remote start has turned on and doors will unlock (Unlock on EZ-30 Model only).
2) Within 10 seconds press and release the valet/program button once for each hourly increment (1 time = 1hour, 2X = 2
hours, 3X = every 3 hours, 4X = every 4 hours).
3) Parking Lights will turn off once the button is pressed and flash for each consecutive button press.
4) Turn Ignition switch OFF, remove key and exit the vehicle. Engine should remain running.
5) Once outside the vehicle, press and release the remote start button to turn off engine. The parking lights will flash the
number of times indicating the hourly increment for final confirmation.
6) The vehicle will start by itself at the selected hourly increment until driven with key or started by the remote.
6

TURBO TIMER MODE (OPTIONAL)
The optional Turbo Timer mode allows the EZEE Start system to keep a Turbo or Turbo Diesel vehicle running for
1 to 5 minutes [selectively] after you remove the key, exit the vehicle, and lock the doors remotely. This is handy
for turbo cool-down without the need for expensive turbo timers. This mode requires the use of an extra part
called a momentary switch/button that is not included with the kit. Check with your installer about adding this
feature.
NOTE: The turbo timer button will also trigger a remote start if it is inadvertently pressed when the vehicle is not
running. Please note this when installing the button and choose a location out of harm’s way.
1) Engine should be running with the key.
2) Press and hold down the brake pedal.
3) Press your “Turbo Timer” button 1 to 5 times for each minute of run time you desire. (1 press = 1 min.)
4) As you release the brake pedal, your system will confirm by flashing the lights the same number of times the
button was pressed.
5) Turn Ignition switch OFF, remove key and exit the vehicle. Remote lock your doors for safety (EZ-30). The
engine should remain running for the selected number of minutes.
REMOVE KEY
PRESS TURBO
FLASH 1-5X
EXIT VEH.
PRESS
AND HOLD
BRAKE
TIMER BUTTON
1-5 TIMES
RUNNING
RELEASE
BRAKE
LIGHTS
RUNNING
REMAIN
1-5 MIN.
7

CONVENIENCE AND SAFETY FEATURES
EZ-30 ONLY: KEYLESS ENTRY (POWER DOOR LOCK CONTROL, Optional)
This system enables you to remotely lock and unlock the vehicle’s doors (if equipped with power locks) via remote
control for safety and convenience. Note: This feature may require extra labor and/or parts to install. Press the
Lock or Unlock transmitter button as you leave or come near the vehicle. Parking lights will flash once for lock and
twice for unlock. If vehicle is running by the remote start system, the lights will flash, but return back to solid.
EZ-30 ONLY: AUTO LOCK/UNLOCK
The Auto Lock feature controls whether the doors will automatically lock/unlock on your vehicle when driving or
with turning the Ignition ON/OFF. If the Auto Lock feature is turned on, and your system is in “Tach” mode, then
the doors should automatically lock as the engine RPM’s increase (driving). If the Auto Lock feature is turned on,
and your system is in “Smart Tachless” mode, then the doors will lock a few seconds after the Ignition is turned on.
When the Auto Lock feature is turned on, the system will always unlock the doors when the Ignition is turned off.
With this feature turned OFF, the system will not automatically lock or unlock the vehicle. See your installer for
programming information on this feature.
EZ-30 ONLY: CAR FINDER ASSIST
To assist in locating your vehicle in a parking lot or structure at night, press the Lock Button on the remote for
more than 2 seconds. The vehicle will flash the parking lights for 1 minute. Reset by pressing the lock/unlock
button.
VALET MODE (Program button required)
Before servicing your vehicle or handing the keys over to a Valet we recommend putting the unit into valet mode. The
remote start function WILL NOT operate when in Valet mode. To enter Valet mode, turn the key to the ON position, press
and hold Program/Valet Button for 5-6 seconds. The LED will turn on solid and the system is now in valet. Perform this
procedure again to exit of Valet mode. The keyless entry will still function normally while in valet mode. In the event of a
lost or broken transmitter, perform this step to override the Starter Disable (if installed).
ANTI-GRIND (Optional, relay not included)
This Optional feature prevents the user from accidentally grinding the starter if the Ignition key is turned too far to the start
position while engine is already running from the remote starter. The Anti-Grind requires an external relay.
HOOD OPEN SAFETY (Requires grounding hood pin installation)
This feature prevents the engine from being remote started when hood is open. Helps eliminates risk of injury to someone
working under the hood of the vehicle with a properly working hood pin installed. If Remote Start button is pressed with the
hood open, the unit will not attempt a start.
8

CONVENIENCE AND SAFETY FEATURES
BRAKE PEDAL RESET
Prevents starting or shuts off a remote started vehicle when this circuit is active or activated. Prevents
unauthorized tampering. This circuit shuts the system down immediately when brake pedal is pressed if the key is
not in ignition and turned to the ON position.
OEM ALARM INTERFACE
This feature is designed to Disarm and Re-arm Factory equipped security systems in conjunction with remote start
and keyless entry (if needed for your vehicle). This feature will maintain the original integrity and security of your
vehicle’s factory equipped systems before, during, or after remote start.
NOTE:
When changing, charging, or jumpstarting the vehicle’s battery we recommend removing the main power fuses
located on the heavy gauge RED wires near the remote start module.
TRANSMITTER PROGRAMMING
Note: All transmitter codes must be learned at time of programming!! The EZEE systems learn up to 4
different transmitter codes.
1. Open Hood (If no hood pin installed with your system, then you must ground the Gray Hood pin wire).
2. Turn key to the ON position.
3. Press Programming button 4 times, then after a few seconds the unit flashes the parking lights 4 times.
4. Press Lock Button #1 of the transmitter to be coded. EZ-10 MODEL: Press Engine Start Button. You should
get 2 light flashes indicating the unit is waiting for a 2nd code, then press button #1 of a second transmitter, the
unit will flash 3 times indicating its waiting for the 3rd code and so on. If all 4 codes are learned, the unit will
automatically exit code learning mode, otherwise turn key off and close hood. See diagram next page.
9

TRANSMITTER PROGRAMMING
TRANSMITTER PROGRAM DIAGRAM:
IGN
OFF
WAIT FOR
4 FLASHES
PRESS 4X's
FLASH 2, 3, or 4 X's
(GRAY WIRE GROUNDED)
EZ-30
IGN
OFF
PRESS
PRESS
LOCK BUTTON
EZ-10
COMPLETE
START BUTTON
10

2-VEHICLE OPERATION
The EZ-30/10 systems can be used for 2 vehicle operation.
A single remote can control a second vehicle with an
identical system installed. There are some exceptions. See
“Multi-Vehicle Notes” section below.
VEHICLE #2
Press lower side button
first, then you have
4 seconds to
control vehicle #2.
Pressing the lower side button on your remote transmitter
switches your remote to car #2 mode for 3-seconds. You
can continue operating Vehicle#2 functions within this 3-
second window as long as you keep pressing buttons. Once
the 3-second time period has elapsed, your remote will
switch back to Vehicle #1 (primary vehicle).
See diagram at right on how to switch your remote(s) to vehicle #2 operation. To set up the 2-Vehicle
operation you must first program your remotes to Vehicle #2. Follow the “Transmitter Programming” steps at
the second vehicle and learn YOUR remote, along with vehicle #2’s existing remotes.
MULTI-VEHICLE NOTES:
(1) The EZ-30 system can remote start an EZ-10 one-button system using the EZ-30’s Unlock button as
the “start” button for an EZ-10.
(2) An EZ-10 system remote can ONLY control another EZ-10 system. You cannot remote start any
other models using the EZ-10.
(3) Other EZEE Start remotes, such as the EZ-90 system, can be programmed to control an EZ-30 or
EZ-10 system.
TROUBLESHOOTING: “BEFORE YOU CALL” SECTION
UNIT WILL NOT ATTEMPT A START (KEYLESS ENTRY FUNCTIONS NORMALLY):
The unit is in Valet mode. Turn IGN ON, press and hold valet/programming button for 5-6 seconds then turn key off. Unit is
now out of valet mode and should remote start. If optional LED is installed, then it will be on solid when in Valet.
SYSTEM IS UNSUCCESSFUL AT REMOTE START DURING EXTREME COLD CONDITIONS:
Please be aware that during sub-freezing conditions your remote starter may take more that one attempt to start, or it may
not successfully start the vehicle after 3 attempts. During these conditions the vehicle may not properly start even using the
key, therefore trying to start by the remote would also be unsuccessful.
11

TROUBLESHOOTING: “BEFORE YOU CALL” SECTION
UNIT FLASHES LIGHTS ONCE AND WILL NOT ATTEMPT A START:
The unit senses a fault at the Brake (Purple wire is active) or the Hood is OPEN (Gray wire grounded). This is a safety
feature of the unit. Check installation for faults and make sure hood is closed and latched and brake wire is not active.
UNIT CRANKS VEHICLE BUT ENGINE NEVER STARTS:
•In some vehicles, there may be a Factory anti-theft system that will not allow the engine to run without the key in the
ignition. These systems may include Factory Security Modules, GM Passkey®/Passlock®, and RF Transponder
systems (Ford P.A.T.S.®). Many late 1990’s through 2005 vehicles include some type of Anti-Theft system which may
require a bypass module.
•The vehicle may have more than one Ignition or Accessory circuit that requires power for the vehicle to start. This is
common on some GM/Toyota vehicles.
VEHICLE STARTS BUT CHECK ENGINE LIGHT COMES ON OR ENGINE RUNS BADLY:
•Many 1995-UP General Motors cars/trucks require a secondary ignition circuit for the Transmission computer and other
on board systems. If the vehicle is started without this wire energized, there may be a “Check Engine” or “Service
Engine” light in the dash. This may cause damage if the vehicle is driven in this condition. Be sure to check for an
additional WHITE (or sometimes GREEN) Ignition wire on GM cars and trucks. Connect the Pink/White IGN#2 wire to
this circuit in the vehicle.
•Some Vehicles (Commonly Nissan) require 2 Start (Cranking) circuits for the vehicle to run properly. If this is the case,
then use the PINK/WHITE output of this system to power the Starter #2 circuit of the vehicle. See Jumper pin diagram
for configuration. Note that the secondary starter wire may be a smaller gauge wire than the primary starter wire.
NO RESPONSE FROM REMOTE TRANSMITTER:
•Check antenna connection: Antenna must be plugged in (3 pin black plug on side of module).
•Press remote control Lock or Unlock button several times in succession to check if remote is out of sync with receiver.
ONLINE TECHNICAL SUPPORT
www.crimestopper.com/techweb04.html
•Verify if remotes are programmed to module, otherwise perform transmitter programming steps.
www.crimestopper.com
[email protected]
Phone [phone]
FAX [phone]
© 2004 Crimestopper Security Products
