Crouzet 88 970 564 User manual

Installation and Startup Guide
This document covers the installation of CTP107-E Series HMI, for the detailed specifications
and operation, please refer to Brochure and Crouzet Touch Soft User Manual.
Handling and Storage:
Environmental
Considerations
(1) Storage temperature -20°C/+60°C.
(2) Do not let water penetrate into packaging boxes during their storage and
transportation.
(3) Do not store the product in places of high temperature or under direct
sunlight.
(4) Please also avoid the places of high humidity. Be sure not to expose the
product to condensation, rain or frozen condition.
Install Environment:
NEMA Rating
CTP107-E Series HMI is NEMA 4 rated (Indoor Only).
Electrical
Environment
CTP107-E Series HMI has been tested to conform to European CE
requirements. This means that the circuitry is designed to resist the effects of
electrical noise. This does not guarantee noise immunity in severe cases. Proper
wire routing and grounding will insure proper operation.
Environmental
Considerations
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
flammable gases, vapors or dusts.
(3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.

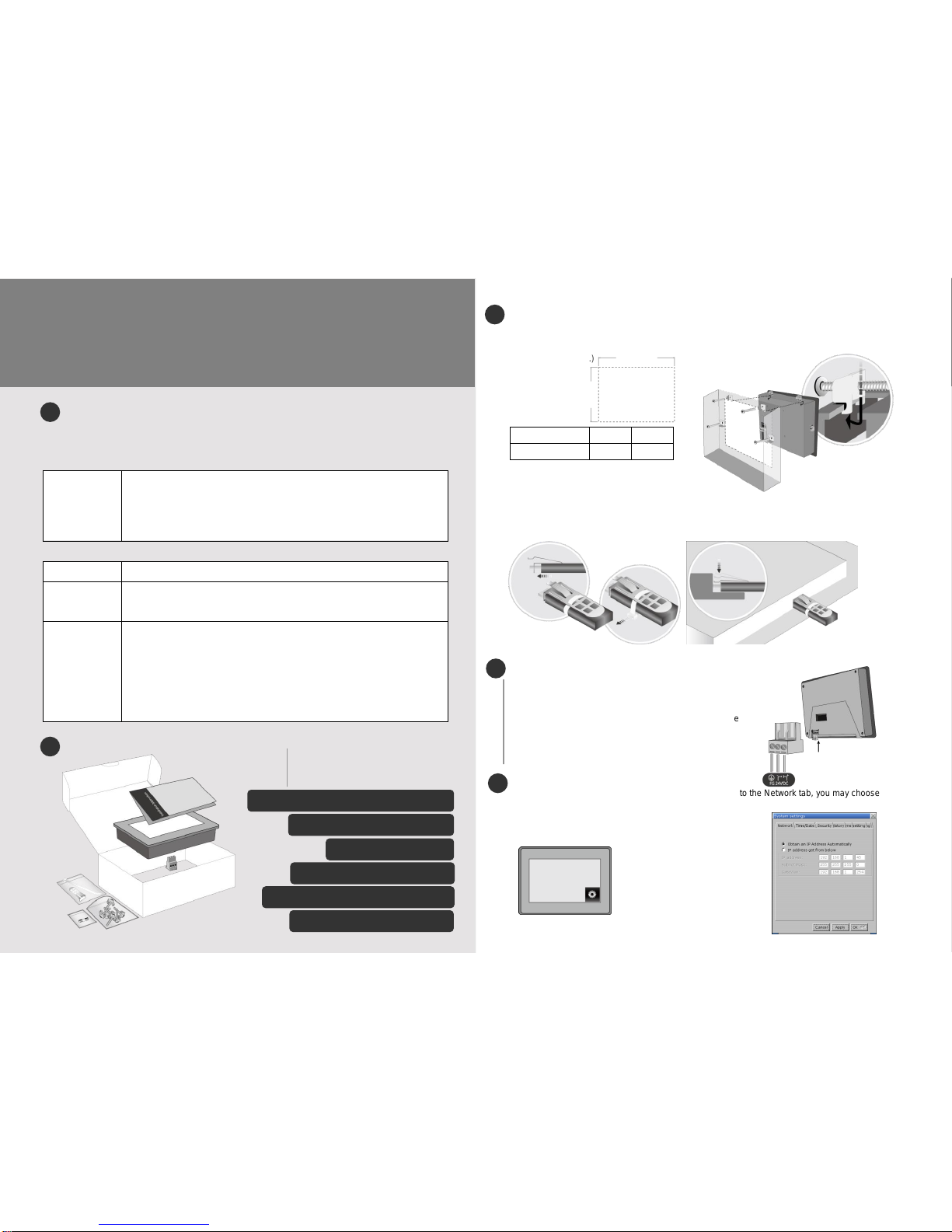

Unpacking the Unit
Installation Instructions
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws. ScrewTorque: 0.29 ~ 0.44 N.m (For reaching waterproof effect and preventing the panel
from being deformed.)
Type
A(mm)
B(mm)
CTP107-E
192
138
USB Stick Clamp Usage
Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.
Power Connections
System Settings
When HMI is powered up and displays image,
click the system setting button.
(Default System Password: 111111)
It is necessary to connect the HMI to
your network through a RJ-45 cable.
CTP107-E series 88 970 564
Installation Instruction
Unpack and check the delivery. If damage
is found, notify the supplier.
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
NOTE:
1. Connect positive DC line to the ‘+’ terminal and the DC
ground to the ‘-’terminal.
2. When using a USB cable to download project file, please
do not connect HMI with PLC and PC simultaneously to
prevent potential difference from destroying USB ports of
HMI and PC.
(A)
(B)
Cutout
3
5
4
(1)
(2)
(3)
(5) (4)
(6)
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
(5) USB Stick Clamp & Tying Strap *1
(6) Fuse 1.25A/250V 5*20mm *1
1
2

Crouzet Touch Soft Settings
Launch Crouzet Touch Soft software, select
your project file, press F7 shortcut key to
open the download dialog box:
Select Ethernet > IP tab > Enter your HMI IP
> Click Download to download this project
file to HMI.
( Please refer to Crouzet Touch Soft User Manual
for software operation details )
Communication Connections
COM1 [RS232] 9 Pin, Male, D-sub COM2 / COM3 [RS485] 9 Pin, Female, D-sub
DIP SW Settings
Power
The unit can be powered by DC power only, voltage range: 24±20% Volts DC, compatible with
most controller DC systems. The power conditioning circuitry inside the unit is accomplished by a
switching power supply.The peak starting current can be as high as 2A.
Fusing
Require-
ments
If the display does not come on within 5 seconds of power up, remove power.An internal fuse will
prevent damage if the polarity of the DC power is incorrect. Check wiring for proper connections
and try to power up again.
CAUTION
NN
Limited Warranty
This product is limited warranted against defects in design and manufacture.
The proven defective product will either be repaired or replaced, at Crouzet’s discretion.
This warranty shall not cover any product which is
(a)Out of warranty period which is 12 months from the manufacturing month of the HMI products.
(b) Damage caused by Force Majeure, accident, negligence, improper installation or misuse.
(c) Product has been repaired or taken apart by unauthorized technicians.
(d) Products whose identification markings have been removed or damaged.
NOTE:
Make sure that all local and national electrical standards are met when installing
the unit. Contact your local authorities to determine which codes apply.
PIN#
COM1 [RS232]
1
2
RxD
3
TxD
4
5
GND
6
7
RTS
8
CTS
9
PIN#
COM2
[RS485]2w
COM2
[RS485]4w
COM3
[RS485]
1
Data-
Rx-
2
Data+
Rx+
3
Tx-
4
Tx+
5
GND
6
Data-
7
8
9
Data+
SW1
SW2
SW3
SW4
Mode
ON
OFF
OFF
OFF
Touch Screen Calibration Mode
OFF
ON
OFF
OFF
Hide HMI System Setting Bar
OFF
OFF
ON
OFF
Boot Loader Mode
OFF
OFF
OFF
ON
Not supported
OFF
OFF
OFF
OFF
Normal
Another way to enter touch screen calibration mode: Press and hold
anywhere on the screen for more than 2 seconds when HMI starts.
6
7
8
CAUTION
NN
NOTE:
Make sure that all local and national electrical standards are met when installing
the unit. Contact your local authorities to determine which codes apply.
CAUTION
NOTE: Make sure that all local and national electrical standards are met when
installing the unit. Contact your local authorities to determine which codes apply.
High Voltage
An Internal fuse will prevent damage for overcurrent condition however it isn’t guaranteed. DC
voltage sources should provide proper isolation from main AC power and similar hazards.
Emergency
Stop
A Hard-wired EMERGENCY STOP should be fitted in any system using HMI to comply with ICS
Safety Recommendations.
Supply
Voltage
Condition
Do not power the unit and inductive DC loads, or input circuitry to the controller, with the same
power supply. Note: The 24 VDC output from some controllers may not have enough current to
power the unit.
Wire Routing
a. Power wire length should be minimized (Max: 500m shielded, 300m unshielded).
b. Please use twisted pair cables for power wire and signal wire and conform to the impedance
matching.
c. If wiring is to be exposed to lightning or surges, use appropriate surge suppression devices.
d. Keep AC, high energy, and rapidly switching DC power wiring separated from signal wires.
e. Add a resistor and capacitor in the parallel connection between the ungrounded DC power
supply and the frame ground. This provides a path for static and high frequency dissipation.
Typical values to use are 1M Ohm and 4700pF.
Hardware
Considerations
The system designer should be aware that devices in Controller systems could fail and thereby
create an unsafe condition. Furthermore, electrical interference in an operator interface can lead to
equipment start-up, which could result in property damage and/or physical injury to the operator.
If you use any programmable control systems that require an operator, be aware that this potential
safety hazard exists and take appropriate precautions.Although the specific design steps depend on
your particular application, the following precautions generally apply to installation of solid-state
programmable control devices, and conform to the guidelines for installation of Controllers
recommended in NEMA ICS 3-304 Control Standards.
Programming
Considerations
To conform with ICS Safety Recommendations, checks should be placed in the controller to ensure
that all writable registers that control critical parts of plant or machinery have limit checks built into
the program, with an out-of-limit safe shut down procedure to ensure safety of personnel.
Disposal
Considerations
This product is an electronic device (EEE) and as such, must be sent to approved authorized
treatment facility (*) after service life for proper disposal.
This product includes a lithium battery.
Do not open it by force; do not throw it in fire.
In compliance with Directive 2006/66/UE requirements, we inform you that batteries must not be
discarded in household waste, and must also be sent to approved authorized treatment facility (*)
after service life for proper disposal.
(*) visit http://www.crouzet-automation.fr/assistance/valorisation-des-dechets/
GMECT17E0_CTP107-E_Installation_161006
DANGER
