SST-4622
7/05 132260-3B
SYSTEM SOLUTION TOPOLOGIES
Crown’s Three-Year, No-Fault, Fully Transferable Warranty
Crown offers a Three-Year, No-Fault, Fully Transferable Warranty for every new Crown amplifier
product—an unsurpassed industry standard. With this unprecedented No-Fault protection, your
new Crown amplifier product is warranted to meet or exceed original specifications for the first
three years of ownership. During this time, if your unit fails, or does not perform to original
specifications, it will be repaired or replaced at our expense. About the only things not covered
by this warranty are those losses normally covered by insurance and those caused by intentional
abuse. And the coverage is transferable, should you sell your unit.
See your authorized Crown dealer for full warranty disclosure and details. For customers outside
of the USA, please contact your authorized Crown distributor for warranty information or call
574-294-8200.
Specifications subject to change without prior notice. Latest
information available at www.crownaudio.com.
Crown and Crown Audio are registered trademarks of Crown
International. Other trademarks are the property of their
respective owners. Printed in U.S.A.
© 2005 Crown Audio®, Inc.

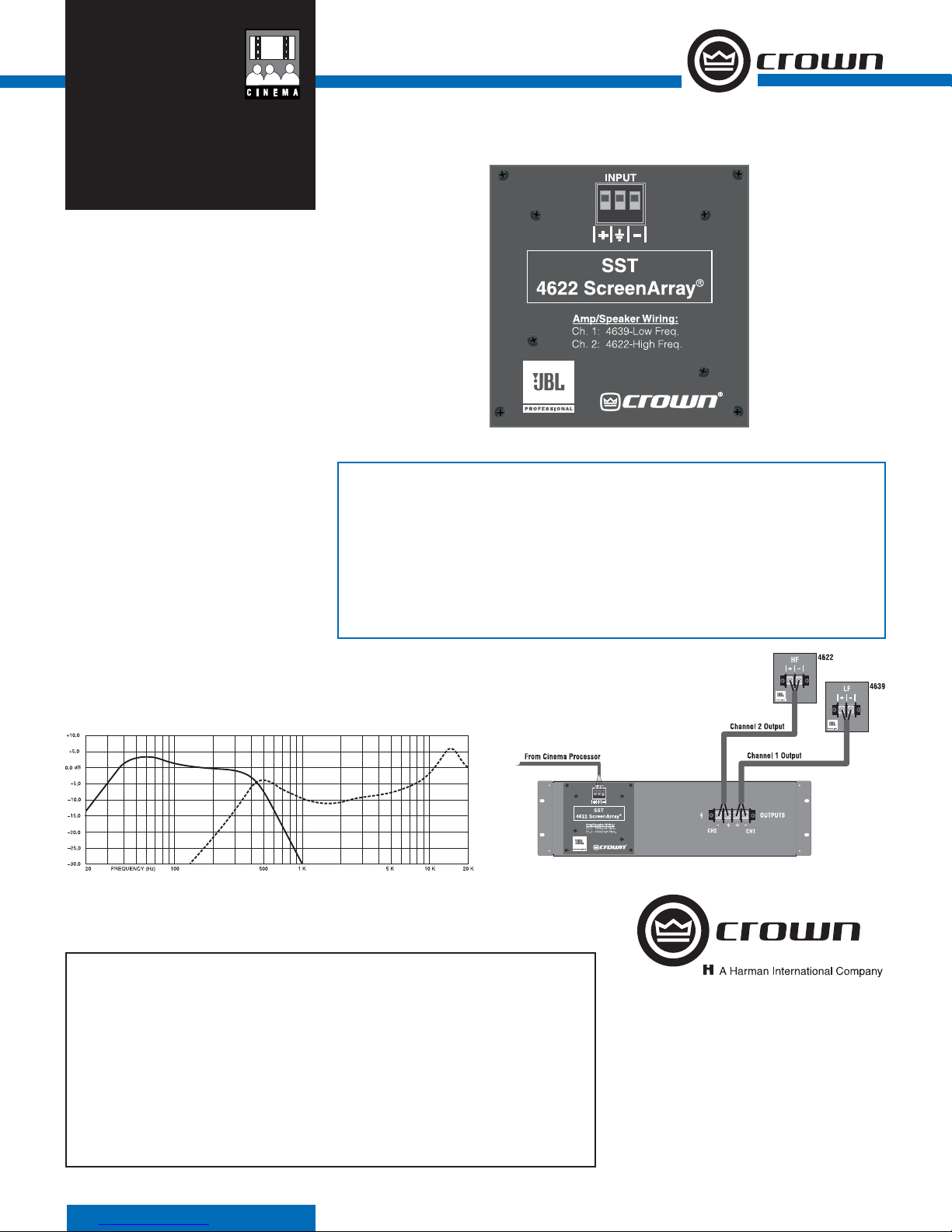

System Block Diagram
Frequency Response
Features
• High-quality crossover and equalization
module designed specifically for use with JBL
model 4622 ScreenArray®cinema speaker
systems
• SST modules install into the back of your
amplifier, saving rack space and simplifying
system wiring
• Low-frequency (LF) signals are internally
routed to the channel one amplifier input, and
high-frequency (HF) signals are routed to the
channel two amplifier input
• Terminal block jack for balanced signal input
• SST Modules add flexibility by allowing you to
tailor your Crown Contractor (CH/CL) Series or
CE Series amplifier to your application
The Crown SST-4622 is a custom two-
channel crossover network with equaliza-
tion specifically designed for use with
JBL model 4622 ScreenArray®cinema speaker
systems installed in cinemas, studio production
and post-production environments.
SST (System Solution Topologies) modules
install into the back of Crown SST-compatible
amplifiers, saving rack space and simplifying
system wiring.
For more details about the Crown SST-4622,
contact Crown Technical Support at
800-342-6939 or 574-294-8200. Also, visit the
Crown Audio website at www.crownaudio.com.
Specifications
Frequency Response: See graph.
Signal to Noise Ratio: 90dB, A weighted.
Input Impedance: 20k balanced,
10k unbalanced.
Connectors
Input: Electronically Balanced, 3 position
removable terminal block.
