Crown SXN-4M User manual
MANUAL 10272 REV 2 (04/22)
$21.00
ELECTRIC COUNTER CONVECTION STEAMER
MANUAL SECTION CO
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #:
___________________________
Serial #:
___________________________
Date Purchased:
_____________________
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing this equipment.
Model SXN-4M
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Electric
Counter Convection Steamer
SXN-4M
Installation & Operation Manual
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 2 OF 20
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of
precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator,
service personnel, or to the equipment.
CAUTION
WARNING
NOTICE
This symbol warns of immediate hazards that will result in severe injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury, product
damage, or property damage.
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
DANGER
WARNING
Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing, operating or
servicing this equipment.
NOTICE
This manual should be retained for future reference.
NOTICE
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
WARNING
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 3 OF20
Table of Contents
Important Notes For Installation and Operation.................................................................... 2
............................................................................................................. 4
Installation Instructions ......................................................................................................... 5
Testing Procedures ............................................................................................................... 10
Operation .............................................................................................................................. 11
Cleaning................................................................................................................................ 15
Cooking Guidelines............................................................................................................... 13
Maintenance ......................................................................................................................... 20
................................................................................. 22
Troubleshooting .................................................................................................................... 23
TC
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 4 OF 20
ELECTRICAL CHARACTERISTICS
COMPARTMENT PAN CAPACITY, WEIGHT AND CLEARANCE
SERVICE CONNECTIONS
Model Pan Depth
Inches 1” 2.5” 4” 6” Shipping Weight Minimum Clearance
MM 25 64 102 152
Total Quantity of Pans 4 2 2 155 lbs. [70 kg]
BACK
0
0
Terry System Cartridge Changes / Installation
water supply being fed to the steamer. Failure to do so can result in component damage within the steamer which is not covered under warranty.
DISCLAIMER
WATER QUALITY STATEMENT
............................
Total alkalinity ........................................ .........................
.......................................................
concerning your water meeting these parameters.
*Failure or malfunction of this appliance due to poor water quality is not covered under warranty.
Reference www.crownsteamgroup.com for complete warranty details and instructions.
Model kW
AMPS/PHASE
208V 220V 240V 380V 8.4kW 415V
1 PH 3 PH 1 PH 3 PH 1 PH 3 PH 3 PH 3 PH
9 22.1 41.7 24.1 13.9
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 5 OF20
At high altitude locations a lower temperature is required to achieve atmospheric steaming.
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
Immediately after unpacking the steamer, check for possible shipping damage. If the steamer is found to be damaged,
save the packaging material and contact the carrier within 15 days of delivery.
located on the left side panel.
G
Allow space for plumbing and electrical connections. Allow adequate access for operating and servicing the steamer
corners of the steamer.
Using a spirit level, adjust the feet on the adjustable legs to level the steamer front-to-back and side-to-side. After the
opening at the back of the compartment cavity.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 6 OF 20
()
1. Ensure that there is adequate clearance to open the manual drain handle.
2. Place steamer in the desired location on the levelled counter top and mark four corners. Remove the steamer and drill
3. Apply a bead of RTV or other equivalent sealant around bottom perimeter edge of the steamer. If anchoring the
Figure 1
generator tank and the cooling system where steam is condensed before entering the drain line. Each will be marked to
indicate condensate or generator feed. The condensate feed must be cold water and the boiler feed may be either cold or
be provided convenient to the steamer.
WARNING
Plumbing connections must comply with applicable sanitary, safety and plumbing codes.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 7 OF20
CAUTION
In order to avoid any back pressure in the steamer, do not connect solidly to any drain connection.
()
open air gap and piped to an open air gap type drain. Drain pipe should be copper. DO NOT use PVC pipe - PVC pipe
may lose its rigidity or glue may fail.
Figure 2
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE OF 20
The water supply connected to this steamer should contain no more than 2.0 grains of hardness per gallon with pH from
any steam generating equipment.
Untreated water contains scale producing minerals which can precipitate onto the surfaces in the boiler. Due to the
temperatures in the boiler, the minerals can bake onto the surfaces and components. This can result in early component
failure and reduced product life.
Mineral scale on components causes several problems:
hot spots on the heating elements and result in premature failure.
unable to maintain the proper water level in the boiler. This situation may cause an electric heating element to fail if
the element is not adequately covered by water.
This connection supplies water to the generator that produces steam to cook with. Connect to a potable source of water
This connection supplies water to condense any residual steam from cooking and tempering the drain. This must be
gallons per hour during cooking.
of ventilating hoods may be obtained from Vapor Removal from Cooking Equipment, NFPA standard No. 96 (latest edition).
WARNING
Disconnect electrical power supply and place a tag at the disconnect switch to indicate that you are working on the circuit.
Electrical grounding must be provided in accordance with local codes or in the absence of local codes, with the National
Use copper wire suitable for at least 90 degrees Celsius. The steamer must be grounded. The wiring diagram is located
on the right side panel as you face the steamer.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 9 OF20
Once the steamer is installed and all mechanical connections have been made, thoroughly test the steamer before
operation.
1. Check that proper water, drain and electrical connections have been made.
2. Ensure the manual drain valve is in the closed position.
the water temperature is 205 degrees Fahrenheit.
steam is entering the compartment and that the COOKING light is OFF.
5. Close compartment door. The COOKING light should now be illuminated and steam should be heard
entering the compartment after about 45 seconds.
6. Check drain line to ensure that water from cold water condenser is flowing through the drain line.
come on as COOKING light goes off.)
sound signalling the end of the cooking cycle. Buzzer must be manually turned off by setting the timer to its
OFF position.
9. To shut down steamer, turn main power switch OFF, open the manual drain valve and leave compartment
door slightly open.
CAUTION
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 10 OF 20
C
ON.......................
OFF .....................
Ready Light........
Fahrenheit and is ready for the cooking cycle.
Cooking Light ....
Timer ..................
cycle will be interrupted if the door is opened during the cooking cycle; resume cooking by closing the
OFF to stop the buzzer.
closed during the preheat cycle.
COOKING light is lit.
COOKING light is lit. Opening the door will interrupt cooking; resume by closing the door.
cooking chamber. To stop the buzzer, turn the timer to OFF.
IMPORTANT
Each compartment is equipped with a removable drain screen. Frequently check the drain screen for
accumulation of food particles. Should food particles accumulate against, or clog the drain screen,
remove it, clean it thoroughly and then replace it in its original position
Frequently check that the compartment drain and plumbing is free of all obstructions. Never place food containers, food or
food portion bags in the cooking compartment in such a way that the compartment drain becomes obstructed.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 11 OF20
Operation for Timed Cooking
will be illuminated as well as the COOKING pilot light.
controlled. Keep hot-food-holding-time to a minimum to produce the most appetizing results. Prepare small batches, cook
Use a pan cover for precooked frozen dishes that cannot be cooked in the covered containers in which they are packed if
is necessary.
Cooking time for frozen foods depends on amount of defrosting required. If time permits, allow frozen foods to partially
thaw overnight in a refrigerator. This will reduce their cooking time.
Prepare vegetables, fruits, meats, seafood and poultry normally by cleaning, separating, cutting, removing stems, etc.
inch pan placed under a perforated pan. Perforated pans are used for frankfurters, wieners and similar items when juices
fruits are cooked in solid pans to preserve their own juices. Meats and poultry are cooked in solid pans to preserve their
own juices or to retain broth. Canned foods may be heated in their opened cans (cans placed in 12 inch by 20 inch solid
pans) or the contents may be poured into solid pans.
1"
4 2 2
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 12 OF 20
WARNING
Disconnect the power supply to the appliance before cleaning or servicing.
CAUTION
Do not use cleaning agents that are corrosive.
CAUTION
The appliance and its parts are hot. Use care when operating, cleaning and servicing the appliance.
CAUTION
CAUTION
An obstructed drain can cause personal injury or property damage.
At the end of each day, or between cooking cycles if necessary:
1. Turn main power switch OFF.
2. Open the manual drain for the generator
3. Remove pans and racks from compartment and wash in sink.
wipe with a dry cloth.
and wipe with a dry cloth. Do not apply food oils or petroleum solvents or lubricants directly to door gasket or surfaces
which touch door gasket.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 13 OF20
The steamer steam cooks vegetables, frankfurters, eggs in their shells, and certain other meats or food items at
atmospheric pressure.
temperature, density, previous condition of the foods (fresh, pre-blanched or frozen) and degree of doneness desired.
PRODUCT TIME (MINUTES) WEIGHT PER PAN
COOK IN SOLID PANS
10 - 12
(Cover with 4 cups water per pound.) 25 2 lb.
Pasta (Place perforated pan inside solid
pan,cover pasta with cold water.)
12 - 15
12 - 15
35 Full Pan
40 15 lb.
Beef
Ground Chuck
20 - 25
35 - 40
10 lb.
10 lb.
5 4 lb.
Beans
Baked
Refried
9
9
10 lb. Can
10 lb. Can
Prunes, Dried 12 to 15
COOK IN PERFORATED PANS
SEAFOOD
Clams
Frozen
Fresh, Cherrystone
10 - 12
5 - 6
3 Doz.
3 Doz.
King Crab, Frozen
Claws
4
4 - 6
6
5
10 lb.
4 Per Pan
5
4 3 lb.
3 - 5 4 lb.
Eggs
Hard Cooked
15
9 - 10
4 Doz.
4 Doz.
4 Doz.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 14 OF 20
PRODUCT TIME (MINUTES) WEIGHT PER PAN
COOK IN PERFORATED PANS (Continued)
20 15 lb.
Turkey, Frozen
Breasts (2)
90
55
6 - 7 lb. Each
20 - 25 lb.
Corned Beef 40 - 75
3
VEGETABLES
Frozen
Fresh 10 - 12
5
3 Doz.
5 lb.
Beans
6
5
5 lb.
5 lb.
5 lb.
6 5 lb.
Broccoli
Florets, Frozen
6
6
4 lb.
5 lb.
5 lb.
5 lb.
Carrots
Crinkle Cut, Frozen
11
7 lb.
4 lb.
9 lb.
Frozen
Fresh
6
4 lb.
5 lb.
7 5 lb.
Corn
Cobbettes, Frozen
Corn-On-Cob, Fresh
5
10 - 12
5 lb.
27 Ears
54 Ears
Peas, Green 6 5 lb.
55 40 lb.
Chopped, Frozen
Defrosted
Fresh Cut
17
5
3
6 lb.
6 lb.
2 lb.
25 10 Halves
10 lb.
6 - 7 5 lb.
FRUIT
Fruit, Blanch for Peeling,
Grapefruit, Oranges 3
4
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 15 OF20

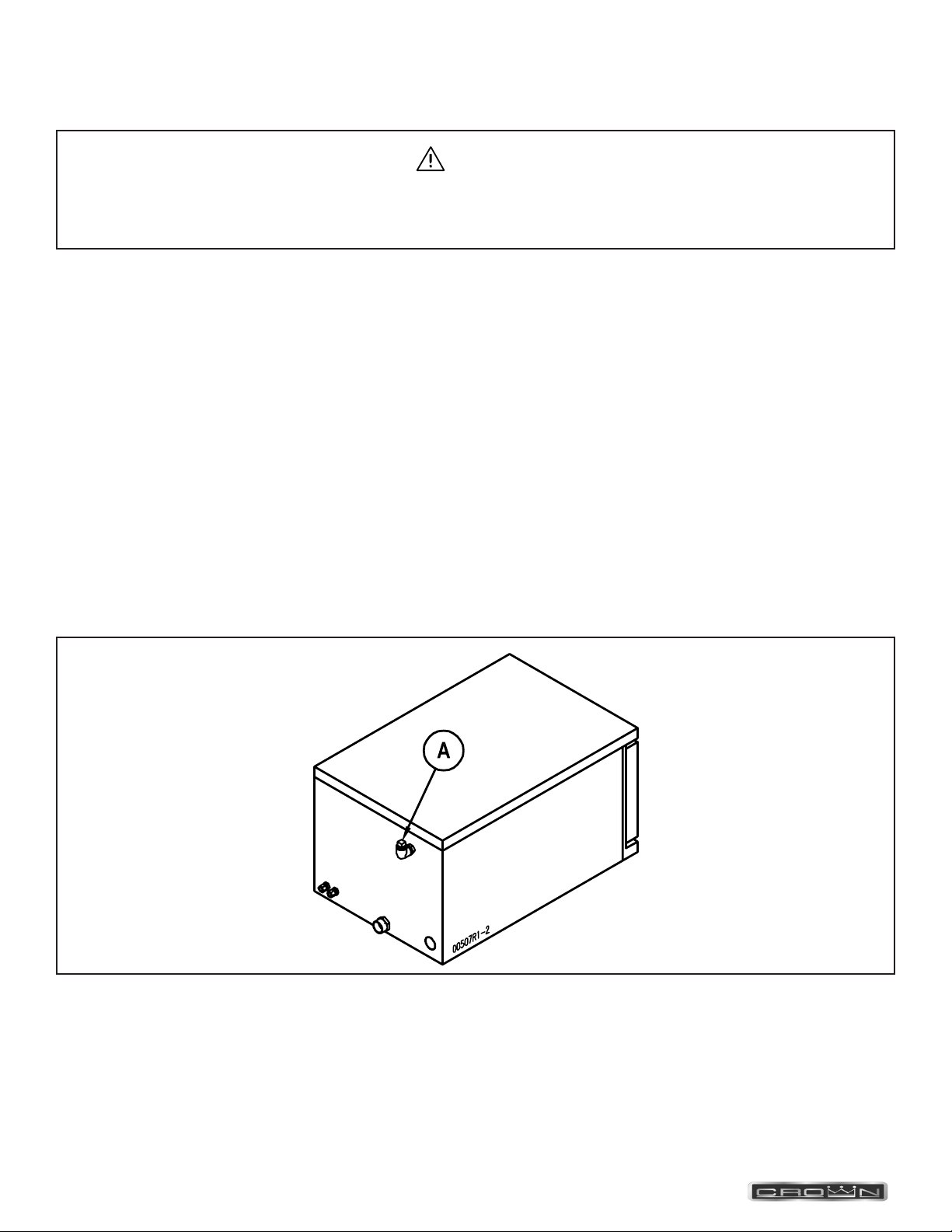

The steamer is equipped with a cold water condenser in the rear of the cooking chamber which helps to condense the
steam prior to discharge into the drain. The steamer freely vents itself by the negative pressure created by the condensate
water drainage. This negative pressure prevents steam leakage around the door gasket and helps draw the steam
It is recommended that your steamer be delimed once a month, or more often if necessary.
The generator tank has a removable sealed tank cover. The main purpose of the removable cover is for inspection of
tank cover have to be removed, check condition of sealing gasket before replacing cover. The hold down bolts are to be
tightened to 160 inch pound torque each.
WARNING
Disconnect the power supply to the appliance before cleaning or servicing.
CAUTION
CAUTION
The appliance and its parts are hot. Use care when operating, cleaning and servicing the appliance.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 16 OF 20
WARNING
contact with skin, rinse with clean water.
(pour slowly to avoid spillage). Remove tube and funnel.
4. Turn power switch to ON and set the timer to OFF.
valve to allow generator to completely empty.
power switch to OFF and open the manual drain valve to allow generator to completely empty. Repeat these steps
compartment door open when not in use.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 17 OF20
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
locations, an authorized servicer must adjust the steamer temperature lower. To adjust:
1. Close the manual drain valve and remove side panel and turn control panel power switch to ON.
2. Open compartment door, and after about 5 minutes, steam will be seen, entering the cooking compartment.
3. Turn thermostat shaft counterclockwise to lower temperature until steam just ceases to enter cooking compartment
4. Replace side panel.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE OF 20
2. Clean valve(s) thoroughly and reassemble, or replace valve(s).
Any or all of these symptoms may indicate a problem with the operating probe due to either:
1. A short between the operating probe terminal and body of the steamer. Call your authorized servicer.
probe.
This problem is an indication of severe harmful water conditions which should be corrected immediately to avoid
then the thermostat bulb may be coated with scalant and unable to sense water temperature in the boiler accurately, and
therefore unable to control the contactors.
1. Replace contactor.
This problem may be an indication of inadequate water quality and is not covered under warranty. Have water quality
analyzed and corrected immediately to avoid complete malfunction of the steamer.
1. Pressure switch has been activated due to 5 psi (34 kPa) pressure in the generator tank.
2. Pressure in the generator tank is caused by plugged steam jet tubes or steam diverters due to scale or poor water
conditions.
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22) PAGE 19 OF20
INSTALLATION & OPERATION MANUAL 10272 REV 2 (04/22)
PAGE 20 OF 20
Electric
to the model number, serial number, and type of your appliance.
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Other manuals for SXN-4M
1
Table of contents
Other Crown Kitchen Appliance manuals
