Croydex HENDERSON MM8300 E Series Manual

MIR 038 R06
1
MM8300##E
HENDERSON LED
ILLUMINATED MIRROR
500 X 700 X 37mm
ALL PRODUCT DIMENSIONS DETAILED IN THIS INSTALLATION AND MAINTENANCE
MANUAL ARE APPROXIMATE
ALL ILLUSTRATIONS OF THE PRODUCT ARE FOR REFERENCE ONLY. COMPONENTS
SUPPLIED WITH INDIVIDUAL PRODUCTS MAY DIFFER
CONTACT DETAILS (UK)
Croydex
Central Way
Andover
Hampshire
SP10 5AW
UK
Tel: [phone]
Email: [e-mail]
www.croydex.com
CONTACT DETAILS (EU)
MIL
Unit 8 Purcellsinch Ind Est
Dublin Road
Kilkenny
R95 HP71
Ireland
ALWAYS CHECK THE PACKAGING FOR FIXINGS AND PARTS BEFORE RECYCLING OR
DISPOSAL.
PLEASE READ THROUGH AND FULLY UNDERSTAND THE INSTRUCTION LEAFLET BEFORE
STARTING THE INSTALLATION OF THIS MIRROR.
ENSURE YOU HAVE ALL THE FIXINGS AND PARTS BEFORE ATTEMPTING TO ASSEMBLE OR FIT
THIS PRODUCT.

MIR 038 R06
2
SECTION 1 - INTRODUCTION
Thank you for purchasing this Croydex product. Please follow the fixing and care instructions to
ensure that your product is fitted safely and that it retains its high quality finish. PLEASE RETAIN
THIS MANUAL FOR FUTURE REFERENCE.

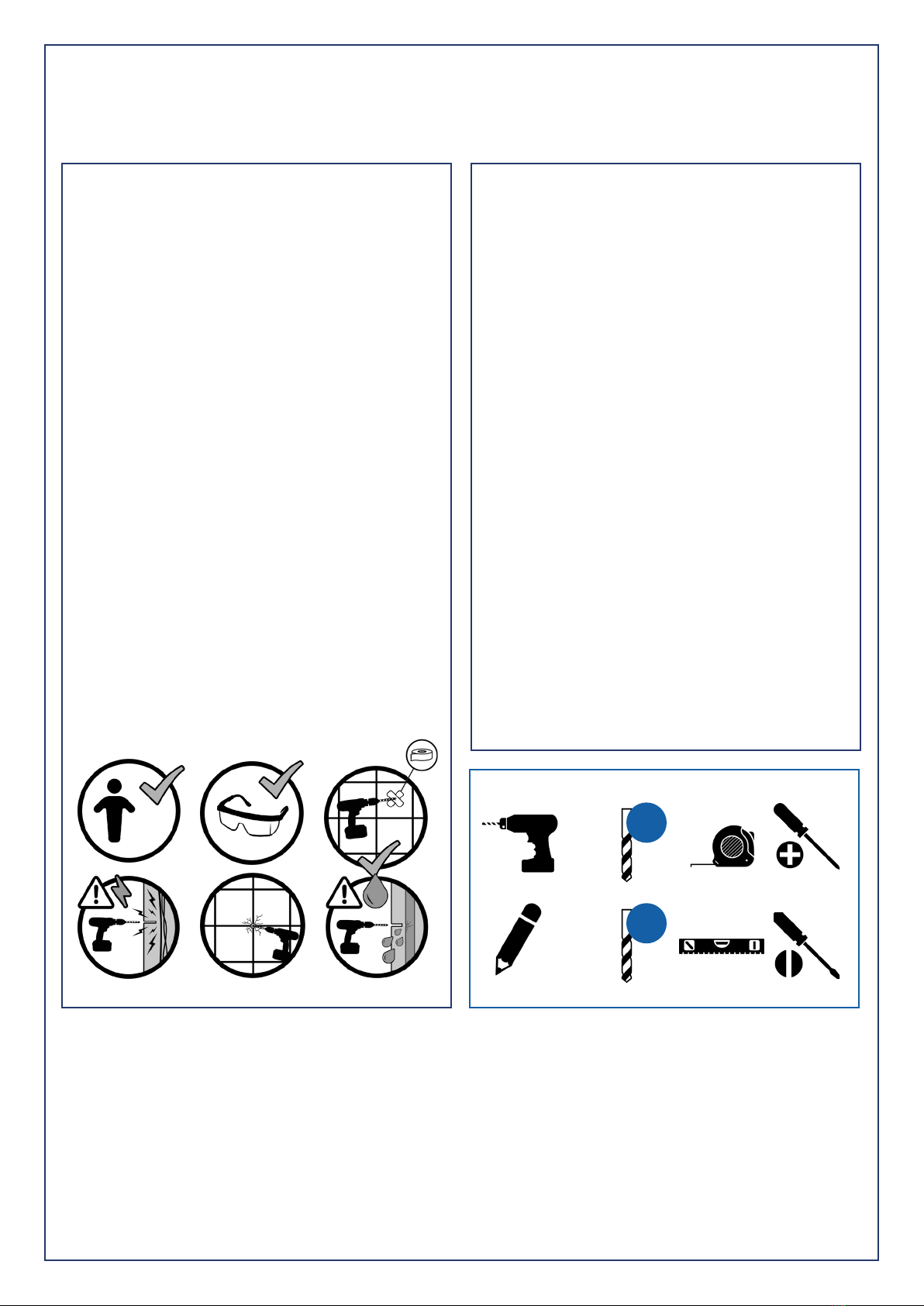

SAFETY & PRODUCT CARE
1. ALWAYS take care when using power
tools, particularly if there is any water in the
working area.
2. ALWAYS wear eye protection when using
power tools.
3. ALWAYS check for pipes and cables
before drilling into walls.
4. ALWAYS use a ceramic drill bit when
drilling into tiled surfaces.
5. ALWAYS use a drill bit that is suitable for
the surface that is being drilled.
6. The wall plugs supplied are for use
on solid walls only. For cavity walls or
plasterboard ALWAYS use specialist fixings
that are suitable for the type of wall
construction.
7. DO NOT use abrasive or chemical
cleaners as these may damage the product.
8. DO NOT strike the mirror with hard or
sharp objects.
9. DO NOT drill on the grout line of tiles.
10. ALWAYS use masking tape on tiles
surfaces.
x1
IMPORTANT INSTALLATION
INFORMATION
THIS IS A CLASS 1 APPLIANCE AND MUST BE
CONNECTED TO EARTH
HAZARDOUS VOLTAGES INSIDE – DO NOT OPEN
SEALED UNITS
THERE ARE NO USER REPLACEABLE PARTS IN
THE MIRROR
In accordance with Statutory Instrument 2004
No. 3210 - The Building (Amendment) (No.3)
Regulations 2004, any work, other than repair/
replacements, in a room where there is water
(e.g. kitchen, bathroom, etc.) must be either:
• Carried out by an electrician who is a
member of a competent person self
certification scheme who will certify the
work complies with the Building Regulations
and you do not need to notify your local
authority.
OR
• Carried out after prior notification to the
Local Authority Building Control Department,
which has responsibility for ensuring that the
work is inspected and tested.
6
mm
TOOLS REQUIRED
8
mm

MIR 038 R06
3
IMPORTANT WARRANTY INFORMATION
In accordance with Statutory Instrument 2004 No. 3210 - The Building (Amendment) (No.3)
Regulations 2004, the installer must give the occupier of the premises in which this product has
been installed a certificate to confirm that the requirements of regulations 4 and 7 have been
satisfied, or the installation of this product must be inspected and tested by the Local Authority
Building Control Department who will issue a compliance certificate.
A copy of this certificate may be required for certain warranty claims. Failure to provide a copy of
the certificate may invalidate the warranty.
This does not aect your statutory rights
We recommend that you make yourself aware of the Regulations before you undertake any
work and if you require clarification you should contact your Local Authority Building Control
Department.
POSITIONING THE MIRROR
1. The mirror is rated IP44 and must only be installed with the connection to the domestic
mains electrical supply in the Outside Zones, as shown in Fig. 1.
2. Ensure that the access to the domestic mains electrical supply is located behind the
intended mounting position for the mirror and unobstructed by the mounting brackets.
fig. 1
WALL FIXING PACK
x2 Countersink
Screw
x2 Hang n Lock
Wall Plug
x1 Hang N Lock
Bracket - Left x2 Cam
x2 Toggle Bolts
x1 Wall Plugs
x1 L-Bracket
x1 L-Bracket
x1 Pan-Head
Screw

BRACKET
fig.5
MIR 038 R06
4

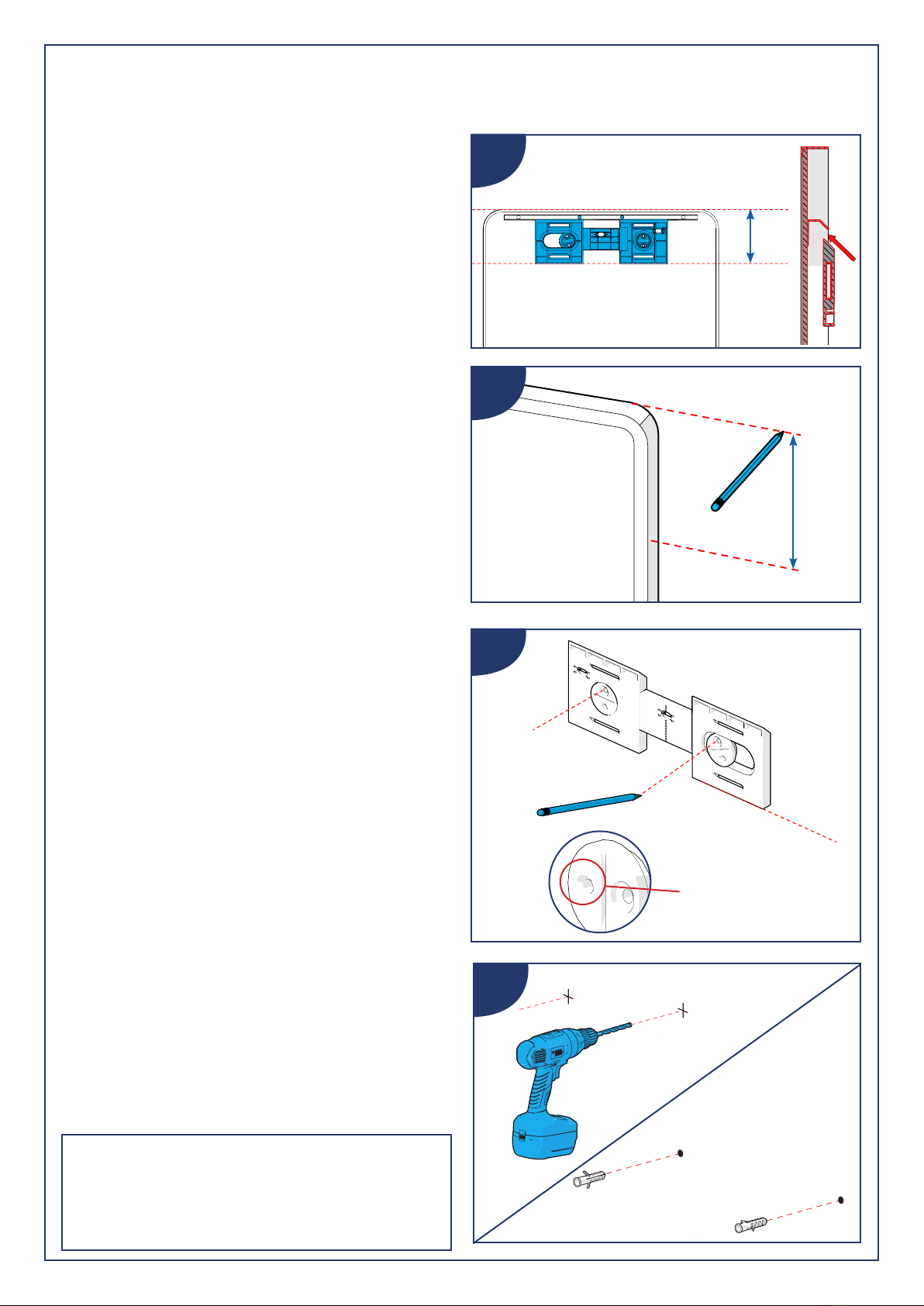

SECTION 2 - MOUNTING USING HANG N LOCK
1. Place the Hang ‘N’ Lock bracket onto the
support slot on the back of the mirror. Make a
note of the distance from the bottom edge of
the bracket to the top edge of the mirror - this
will help you when mounting your mirror.
(See Fig. 2)
fig. 2
2. Carefully hold your mirror in the desired
location on the wall. Using a pencil, draw a
reference line along the top edge of the mirror.
Use the bracket distance you measured earlier
to create a reference line where the bottom of
your Hang ‘N’ Lock bracket will be.
(See Fig. 3)
fig. 3
3. Place the bottom edge of the Hang ’N’ Lock
bracket onto the lower reference line. Mark the
hole centres with a pencil.
(See Fig. 4)
Note: Check the cams are oriented
correctly with the countersink holes
positioned at the top.
fig. 4
4. Drill the marked holes to a depth of 45mm.
Insert the wall plugs level with the surface of
the wall. If you are fitting to a tiled surface,
insert the wall plugs below the surface of the
tile to avoid cracking the tiles. Wall plugs
supplied are for use on solid walls only. (See
Fig. 5)
NOTE:
For CAVITY WALLS or PLASTERBOARD
use toggle bolts provided. See SECTION 3 -
Toggle Bolt Installation. Continue to Step
6.
COUNTERSINK
HOLE
Dim. Y
Dim. Y

MIR 038 R06
5
5. Insert the countersink screws through the
Hang ‘N’ Lock cams and loosely secure the
Hang ‘N’ Lock bracket to the wall.
(See Fig. 6)
Note: Check the cams are oriented
correctly with the countersink holes
positioned at the top.
fig. 6
6. With the Hang ’N’ Lock bracket loosely
attached to the wall, adjust for height and
level by rotating the cams with a flat head
screwdriver. Use the attached spirit level as
a guide. Once complete, fully tighten the
mounting screws to securely fix the bracket into
position.
(See Fig. 7)
fig. 7
7. Hang the mirror onto the Hang ‘N’ Lock
bracket. Ensure the mirror has securely located
onto the bracket before letting go.
(See Fig. 8)
Note: If the mirror is not vertical, remove
the mirror, loosen bracket screws and
repeat Step 6.
fig. 8
COUNTERSINK
SCREWS
BRACKET
Note: The position of the
mirror can be adjusted
by sliding left or right
along the bracket.
8. Place the L bracket over the threaded
rivet located at the bottom of the mirror.
Using a pencil mark the position of the L
bracket onto the wall.
(See Fig. 10)
fig. 9

MIR 038 R06
6
9. Gently remove the mirror, place the L
bracket on the mark and drill a hole in the
centre of the slot on the wall. Insert the wall
plug and lightly screw the bracket to the
wall, allowing the bracket to be moved up
and down the slot.
(See Fig. 10)
fig. 10
10. With the mirror in place, secure the
L bracket to the mirror using the bolt
provided. (See Fig. 12)
fig. 10
* Refer to SECTION 4 - CONNECTING THE ELECTRICAL SUPPLY before proceeding to
step 10 and fastening the mirror. *
SECTION 3 - TOGGLE BOLT INSTALLATION
TOGGLE BOLT INSTALLATION
During Step 4 & 5, if toggle bolts are used, follow the steps bellow:
fig. 11
fig.9
fig.10
i) Drill marked holes with an 11mm drill bit.
fig.11
ii) Dismantle the toggle bolt. (See Fig. 9)
iii) Insert the threaded bolt through
the Hang ‘N’ Lock cams and reattach
the plugs and spring.
(See Fig. 10)
Note: Ensure the screws go
through the holes with the
counter-bore holes.
iv) Push the spring loaded wall braces
on the toggle bolts through the drilled
holes and loosely secure the Hang ‘N’
Lock bracket to the wall. (See Fig. 11)
1. 2.
*Continue from STEP 6 on the
main instruction leaflet*
COUNTERSINK
SCREWS

MIR 038 R06
7
SECTION 4 - CONNECTING THE ELECTRICAL SUPPLY
REMOVE THE MIRROR FROM THE WALL.
ENSURE THAT THE DOMESTIC ELECTRICAL MAINS SUPPLY TO WHICH THE
CABINET IS TO BE CONNECTED IS TURNED OFF.
Connect the flexible mains supply cable on the mirror to the domestic electrical mains
supply ensuring that:
• The Live (Brown) conductor is connected to the Live on the domestic electrical mains
supply.
• The Neutral (Blue) conductor is connected to the Neutral on the domestic electrical
mains supply.
• The Earth (Green/Yellow) conductor is connected to the Earth/Ground on the domestic
electrical mains supply.
Note: Connection of the product to the domestic electrical mains supply must only be
carried out by a Building Regulations Part P certified electrician or must be checked by
your Local Authority Building Control Department.
Hang the mirror and secure the L bracket to the mirror using the bolt provided. (Step 10)
SECTION 5 - OPERATING THE MIRROR
FOLLOW THESE INSTRUCTIONS TO OPERATE THE MIRROR
FROM OFF:
1. Single SHORT TOUCH AND RELEASE to turn ON light and activate anti-fog function.
2. Single SHORT TOUCH AND RELEASE to turn OFF light and de-activate anti-fog
function.
Colour temperature: 6400K
SECTION 6 - DECLARATION OF CONFORMITY
THIS PRODUCT COMPLIES WITH THE REQUIREMENTS OF
The UK Electrical Equipment (Safety) Regulations 2016
The UK Electromagnetic Compatibility Regulations 2016
The UK Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
Regulations 2012
The EU Low Voltage Directive (LVD) 2014/35/EU
The EU Electromagnetic Compatibility (EMC) Directive 2014/30/EU
The EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
The following UKCA and CE Declarations of Conformity can be requested from [e-mail] or
downloaded from www.croydex.com:
UKCA electrical safety and EMC (UKCA-DoC-00001-Safety-EMC.pdf)
UKCA RoHS (UKCA-DoC-00001-RoHS.pdf)
EU CE LVD and EMC (CE-DoC-00001-LVD-EMC.pdf)
EU CE RoHS (CE-DoC-00001-RoHS.pdf)
