Croydex Newport AP504122 User manual

Thank you for purchasing this Croydex product. Please follow the fixing and care instructions to ensure
your shower seat is fitted safely and retains its high quality finish.
Please retain this leaflet for future reference.
This installation guide applies to the following product:
AP504122 - Newport Seat
Tools required - not supplied
Pencil;Tape Measure; Screwdriver appropriate to fixings; Spirit level; Drill; Masonry drill bit appropriate to
fixings, Ceramic drill bit (optional) appropriate to fixings.
KEEP DIY TOOLS OUT OF THE REACH OF CHILDREN
Note: Please ensure suitable fixings are purchased that are compatible with wall construction materials.
Home Safety Advice
• It is recommended that two people fit this product to ensure that it is fitted safely.
• Always take care when using power tools, particularly in the bathroom.
• Always check for hidden cables and pipework before drilling and take extreme care if there is any
water in the working area.
• It is advisable to use a residual current circuit breaker (RCCB).
• Always wear suitable eye protection when drilling.
• If the product is to be fitted on a ceramic tiled wall, a ceramic drill bit should be used.
• Always ensure that the drill hole passes through the central tiled area rather than through the grouted
area. To prevent damage to the tile, mask the area around the hole with tape before drilling.
• Do not strike the product with hard or sharp objects.
• This product is suitable for users up to 130kg / 286lbs / 20st 6lbs
• Double check the drill bit size matches the wall plug diameter before drilling the wall.
Product Care
To retain the best quality finish, clean product regularly with a soft damp cloth.
Do not use abrasive or chemical cleaners as these will damage the product.
Dry the shower seat after use.
Product Location
Shower seats are only as strong as the wall to which they are fixed and the fixings that are used.
For different wall types you will need to ensure that you are using the correct type of fixing for the
material of the wall.
The addition of backboards on the outside of the wall or appropriate strengthening of internal structures
may be required to provide adequate wall strength.
NOTE: If the wall is made of lightweight thermal blocks, aerated hollow brickwork or prefabricated
partitions even the most appropriate fixings may not be able to withstand the loads which can be
suddenly applied to shower seats.
Newport Seat
1S&H 055 R04

2S&H 055 R04
Step
4Step 5Step
6

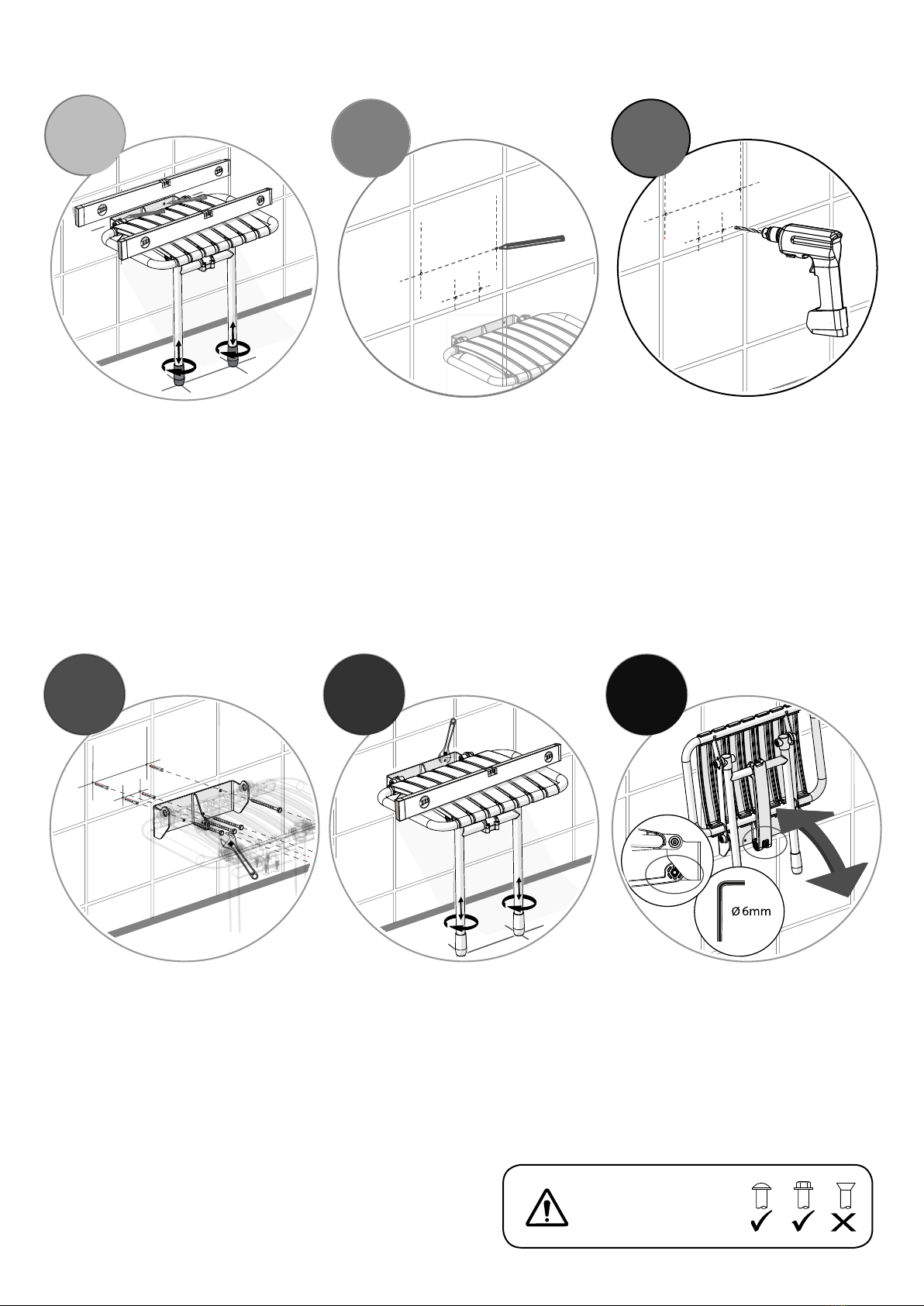

Identify the most appropriate
position for the shower seat
ensuring the product is at a
comfortable height and distance
for showering.
The product can be folded
upwards for more convenient
storage so please ensure there is
sufficient space above the fixing to
allow for this.
Place the shower seat in the
desired position on the wall
and using the hole centres
located on the wall bracket as
a template, mark the screw
fixing positions on the wall
surface, ensuring the product
is level.
Drill the holes to a depth
suitable for the wall fixings you
have chosen.
Do not drill through the tiles
using a ‘hammer action’ on
the drill as this can crack the
tiles.
Use suitable wall fixings to
secure the mounting
bracket to the wall.
Do-not over-tighten fixings
and do not use countersunk
screws as these can reduce
the strength of the seat and
will invalidate any warranty or
weight capacity stated.
Check the seat operation,
levels and leg positioning
when it is raised and lowered.
To adjust the rate the seat
lowers, tighten the linkage bolt
under the seat with a 6mm
Allen key.
Step
3
Step
2
NOTE: The height of the seat can be adjusted and levelled by rotating the plastic feet, clockwise to
increase height, anti-clockwise to reduce height - see Step 1.
For details of the other items in the Croydex
range please visit our website: www.croydex.com
Croydex, Central Way, Andover, Hampshire,
SP10 5AW, UK
Tel: [phone] Fax: [phone]
E-mail: [email protected]
Step
1
±
15
±
15
321
X X
Do not use fixings with
Countersunk heads.
