CTD PALLEON MOBILE User manual

Version 1
19/10/16
Fire-fighting
PALLEON Range
USER MANUAL
PALLEON MOBILE

2
Date Version Modification N° pages
modified
19/10/16 1 Creation
History of modifications

3
Pages
General presentation............................................................. 4
Description of the system ..................................................... 4
PERFORMANCES
- Palleon Mobile ............................................................. 6
- List of compatible foam concentrates ......................... 7 to 9
HYDRAULIC DRAWING
- Palleon Mobile ............................................................. 11
PRESENTATION OF THE PALLEON MOBILE
- Presentation ............................................................... 13
PRESENTATION OF THE PALLEON CONTROL UNIT
- Intervention screen ..................................................... 15
- Maintenance screen ................................................... 16
- Daily report screen ...................................................... 17
PROCEDURE OF INTERVENTION
-Procedure of intervention ............................................ 19 to 20
- Specific effects during the intervention ....................... 21
PROCEDURE OF MAINTENANCE
- Maintenance to be accomplished ............................... 23
- Notes .......................................................................... 23
Sommary

4
Palleon Mobile is in version : Low pressure (15 bar maxi).
The output of the system Palleon is 30 l/min.
This model comply with EN 16327 classification.
> Operating ranges: See operating curves in page 6.
General presentation
Description of the system
 Palleon is a single-point pressurized injection device compliant with the requirements of
EN 16327.
 Palleon can be used with soft water or seawater.
 Palleon is designed to be installed on fire trucks used under normal operating conditions
(outdoors, tunnel, etc.). Explosive atmospheres must be avoided.
 Palleon operates within a temperature range of - 15°C and + 60°C with a humidity level bet-
ween 30 and 90%.
 CTD recommends the use of gloves compliant with DIN EN 659 when using a Palleon device.

5
PERFORMANCES

6
PALLEON MOBILE - DZA 30 / 0,5 - 6
Flowmeter DN40
Standard EN 16327
Supply voltage 24 Vdc
Maximum power consumption 60 A
Maximum injection pressure 15 bar
Electric motor power 1 Kw
Maximum output of the foam pump 30 L/mn
Dimensions of the motor pump unit 600 mm (L) x 400 mm (l) x 320 mm (H)
Total weight 41 Kg
Compatible foam concentrate
Class B
(according to DIN EN 2 => See compatible foam
concentrate table page 7 to 10)

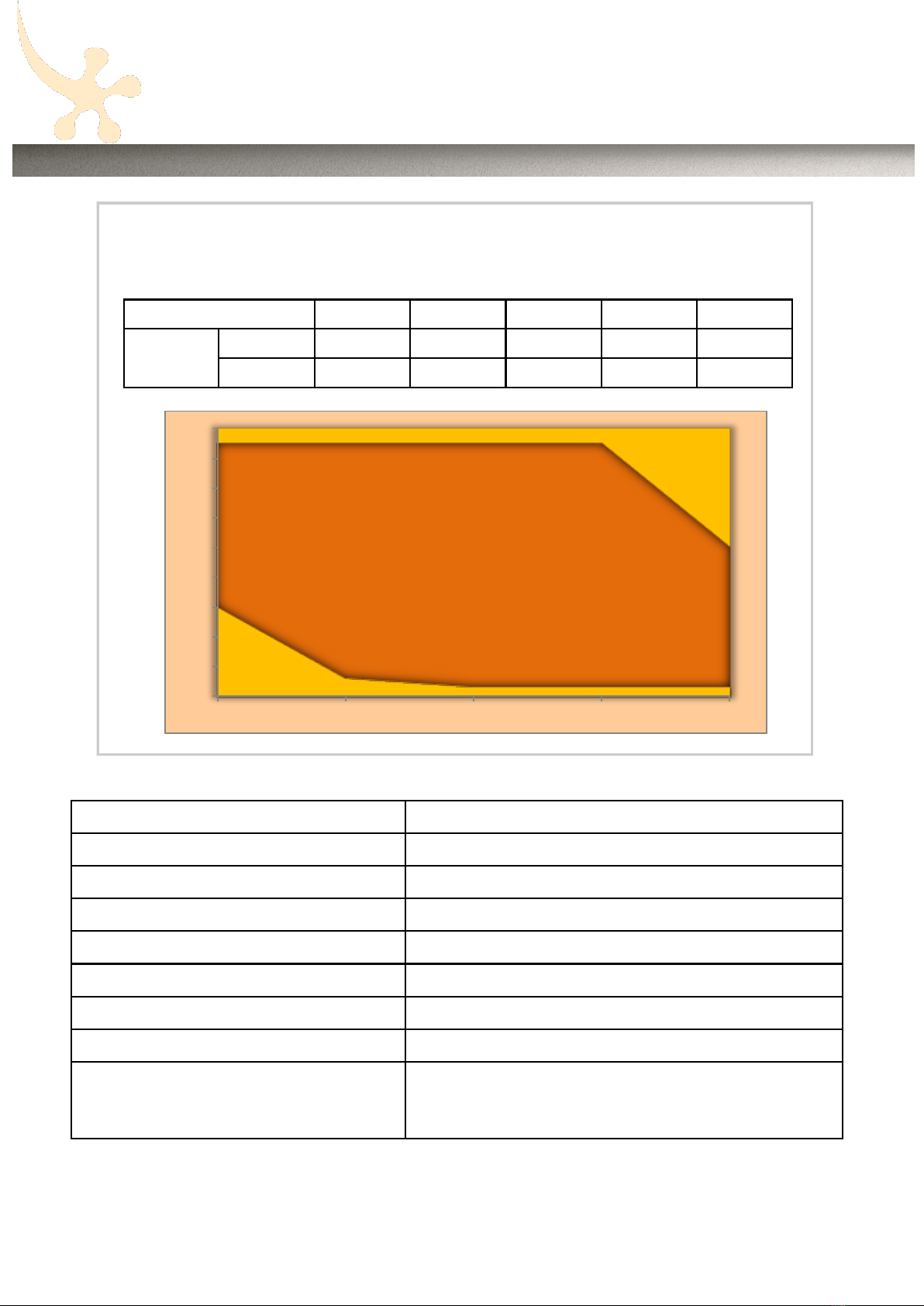

Performances
Palleon Mobile
0
100
200
300
400
500
600
700
800
900
0,1%
0,5%
1,0%
3,0%
6,0%
CONCENTRATION 0.1 % 0.5 % 1 % 3 % 6 %
MINIMUM 300 60 30 30 30
FLOW MAXIMUM 850 850 850 850 500

7
foam concentrates
List of compatible
EMULSEUR / CLASS B
Fabricant / Manufacturer Nom du produit / Name of the product
3M FC203
3M FC203A
3M FC3017
3M FC600
3M FC602
3M AR-AFFF FC-600 3/6
3M AR-AFFF FC-602 3/6
3M AR-AFFF FC-603EF3/3
3FFF AFFF - Freesolv 1
3FFF AFFF - Freesolv 3
3FFF AFFF - Freesolv 6
3FFF AFFF - Fluoex 1
3FFF AFFF - Fluoex 3
3FFF AFFF - Fluoex 6
3FFF AFFF - Chemex 1
3FFF AFFF - Chemex 3
3FFF AFFF - Chemex 6
3FFF ARF-Freedol (Fluoro-Free used at 3 or 6%)
3FFF ARF - Filmex 1.3
3FFF ARF - Filmex 3.3
3FFF ARF - Filmex 3.6
3FFF ARF - Polarex 3
3FFF ARF - Polarex 6
3FFF PF - PRO397
3FFF PF - PRO694
3FFF PF - FP397
3FFF PF - FP694
3FFF PF - Proseal 3
3FFF PF - Proseal 6
3FFF PF - Protol 9
ANSUL 3x3 Low Viscosity ARC
ANSUL T’storm ATC AR-AFFF 1% or 3%
AUXQUIMIA CAFILM
AUXQUIMIA AQUAFILM
AUXQUIMIA POLYFOAM
AUXQUIMIA AQUAFILM-ARN
AUXQUIMIA FLUOPOL
AUXQUIMIA MULTIEXPANSION
BIO-EX BIOFILM 3
BIO-EX BIOFILM 3S
BIO-EX BIOFILM 6
BIO-EX BIOFILM 6S
BIO-EX FILMOPOL 3
BIO-EX FILMOPOL 6
BIO-EX HYDROFILM 3
BIO-EX HYDROFILM 6
BIO-EX POLYFILM 9
BIO-EX BIO HYDROPOL 3

8
BIO-EX BIO HYDROPOL 6
BIO-EX ECOPOL
CHEMGUARD AR 3%-6% Part # CAR36P
CHEMGUARD AR-AFFF, 3%x3%, Part # C333
CHEMGUARD Ultraguard 1%-3% Part # C133
CHEMGUARD 3%-6% AR-AFFF Product # C361
CHEMGUARD 3%-6% AR-AFFF Product # C363
Dr STHAMER STHAMEX AFFF F15
Dr STHAMER STHAMEX AFFF
Dr STHAMER MOUSSOL APS F15 AFFF AR
Dr STHAMER FOAMOUSSE FFFP
Dr STHAMER FOAMOUSSE FP
EAU & FEU A3 SP
EAU & FEU KE FILM 3
EAU & FEU PETROFILM
EAU & FEU PETROFILM 3
EAU & FEU POLYFLUIDOL
EAU & FEU POLYPETROFILM
EAU & FEU POLYPETROFILM 3/3
EAU & FEU POLYPETROFILM 6-6
EAU & FEU SFPM 3/3
EAU & FEU SFPM 6/6
EAU & FEU TRIDOL S3
EAU & FEU TRIDOL S6
EAU & FEU PETROFILM 3XT
EAU & FEU PETROFILM 6XT
EAU & FEU FLUOROPOLYDOL
EAU & FEU FP 570
EAU & FEU FP 70
EAU & FEU EXPANDOL
EAU & FEU SFPM 3/3
EAU & FEU SFPM 6/6
EUROFEU EURAL A 4P SP
Kidde Fire Fighting/ National Foam Universal Gold 3% AR-AFFF
Kidde Fire Fighting/ National Foam Universal Gold 1% - 3% AR-AFFF
Kidde Fire Fighting/ National Foam 1% Aero-Water
PROFOAM PROFILM AR 3.3
PROFOAM PROFLEX AR 3.3
PROFOAM PROFLEX AR 3/6
PROFOAM PROFILM AR 6.6
PROFOAM PROFILM 3
PROFOAM PROFILM 6
PROFOAM PROFILM AR 3.3
PROFOAM PROFLEX 3
PROFOAM PROFLEX 6
PROFOAM PROFLON FP
SOLBERG ARCTIC 201 AF
SOLBERG ARCTIC 203 A
SOLBERG ARTIC 203
SOLBERG ARTIC 206 AF

9
SOLBERG ARTIC 602
SOLBERG ARTIC 603 EF
SOLBERG ARCTIC 603 F
SOLBERG EXPIROL 3/6
Tyco - Sabo Foam HYDRAL 3
Tyco - Sabo Foam HYDRAL 6
Tyco - Sabo Foam HYDREX
Tyco - Sabo Foam HYDREX 3
Tyco - Sabo Foam HYDREX AR
Tyco - Sabo Foam TOWALEX AFFF 3
Tyco - Sabo Foam TOWALEX ARC 3/3
Tyco - Sabo Foam NEOMERPIN
Tyco - Sabo Foam APIROL FX 3
Tyco - Sabo Foam APIROL FX 6
Tyco - Sabo Foam UNIVEX
Tyco - Sabo Foam PLUREX NK
Tyco - Sabo Foam HYDRAL AR
Tyco - Sabo Foam UNIVEX
UNISER CENTRIFOAM 903
UNISER FILMFOAM 1013
UNISER UNISERAL A 102 A 4P
UNISER UNISERAL A 104 AR
UNISER UNISERAL A106-A4P
UNISER UNISERAL AF 12 S-6
UNISER UNISERAL AF20A4P3/6
UNISER UNISEROL PFP 3/6
UNISER UNISEROL PFP 6/6
UNISER UNISERAL AF 20
US FOAM 1-3% Alcohol Resistant AFFF (P/N USAR13)
US FOAM 3-6% Alcohol Resistant AFFF (P/N USFCAR36)
VS FOCUM BoldFoam 05
VS FOCUM BoldFoam B1
VS FOCUM BoldFoam B3F
VS FOCUM BoldFoam B3
VS FOCUM BoldFoam BF601
VS FOCUM BoldFoam B6-E
VS FOCUM BoldFoam 6000
VS FOCUM BoldFoam 611
VS FOCUM BoldFoam B13
VS FOCUM BoldFoam BF-130
VS FOCUM BoldFoam 613
VS FOCUM BoldFoam B33
VS FOCUM BoldFoam BF-330
VS FOCUM BoldFoam B36
VS FOCUM BoldFoam BF-360
VS FOCUM BoldFoam B66
VS FOCUM BoldFoam R3
VS FOCUM BoldFoam R6
VS FOCUM BoldFoam APC

10
HYDRAULIC
DRAWING

11
Palleon Mobile

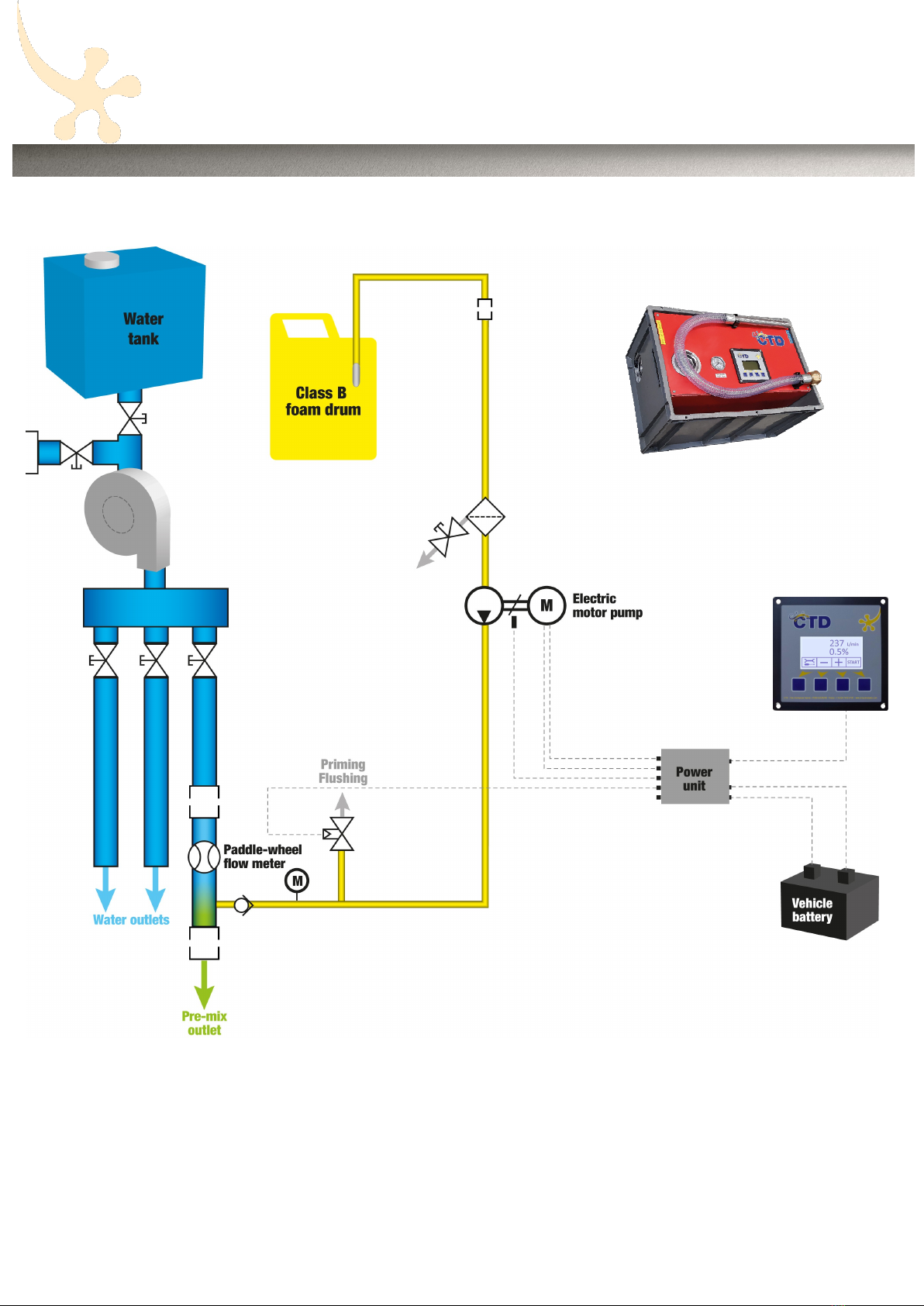

Hydraulic drawing

12
PRESENTATION
OF THE PALLEON MOBILE

13
Presentation
Pre-mix
output
Palleon screen
Adapters injection
manifold
Power cable
Foam
concentrate
suction
Water
intake
Suction pipe DN 25
Manometer
Injection
pressure

14
PRESENTATION
OF PALLEON SCREEN

15

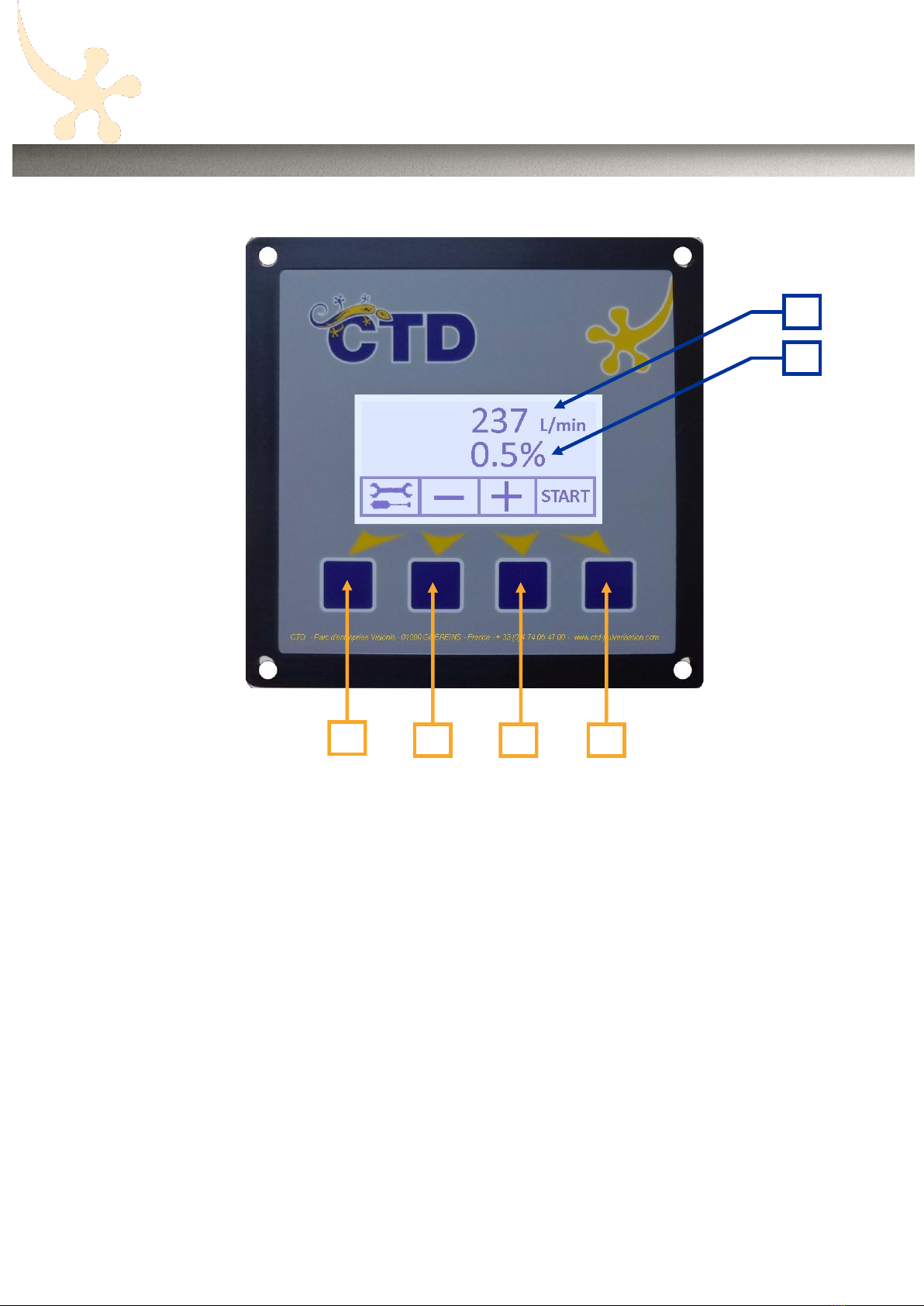

Intervention screen
T4T2
1
2
T3
T1
STARTING AND USING BUTTON
T1 Button of access to the maintenance screen and priming in intervention.
T2 Button for reducing the concentration percentage (mini 0.1%)
T3 Button for increasing the concentration percentage (maxi 1%)
T4 Button for start and stop the intervention
INFORMATION DISPLAY ON THE SCREEN
1Real time water flow
2Concentration in %

16
Maintenance screen
T4T2
1
2
T1
STARTING AND USING BUTTON
T1 Button for accessing to the DAILY REPORTS
T2 Button for accessing to the SECURE MENU
T4 Button EXIT, return to the home screen
INFORMATION DISPLAY ON THE SCREEN
1Serial number of the PALLEON
2Date of the next maintenance

17
Daily report screen
T4T2
1
2
T3
T1
STARTING AND USING BUTTON
T1 Button « GUM » to clear the daily reports
T2 Button « NEXT PAGE »
T3 Button « PREVIOUS PAGE »
T4 Button EXIT, return to the home screen
INFORMATION DISPLAY ON THE SCREEN
1Quantity of water used
2Quantity of product used
3Interventions duration
3

18
INTERVENTION
PROCEDURE

19

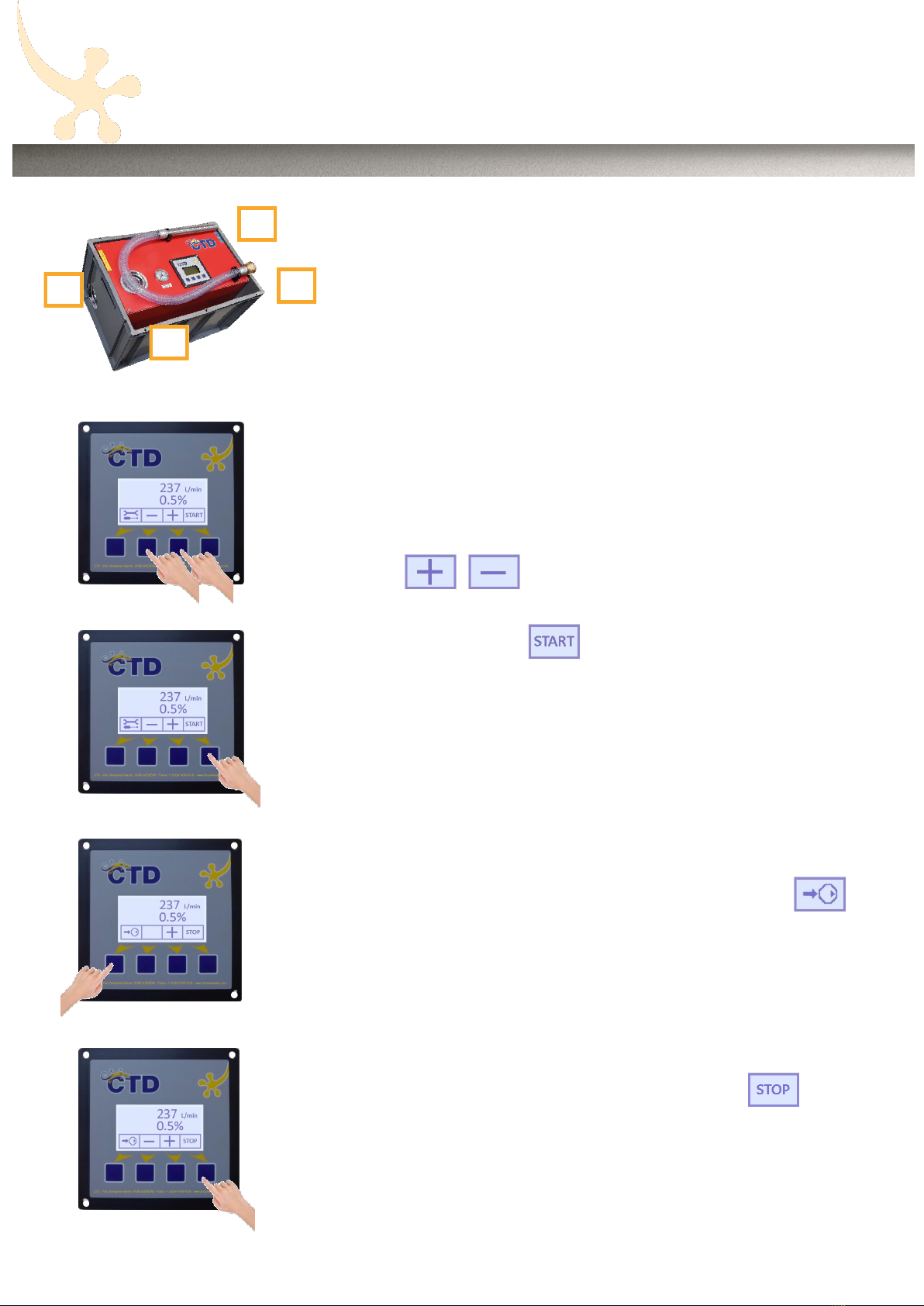

1 - Connect a water hose to the inlet of the Palléon Mobile
2 - Connect one or more hose to the premix outlet
3 - Connect a suction pipe to the foam concentrate intake
4 - Connect the Palléon Mobile with the power cable on the
24 Vdc truck
- PALLEON powers on after switch on the battery switch.
The screen displays the current water flow and the last concen-
tration used.
- Select the concentration wanted by pressing the « + » and « - »
buttons. (Possible change during the intervention)
- Press « START »
- Dosing begins automatically when the water flow rate is higher
than 50 l/mn.
PALLEON keep the concentration depending the water flow wi-
thout any action from the users.
- Check the injection pressure (Manometer of the injector),
which must be greater than the discharge pressure of the water
pump.
- If the injection pressure is lower than the water pressure,
press and hold down the « PRIMING » button until the
liquid escapes from the prime tube.
Release the button to stop priming and check again the injection
pressure.
- At the end of the intervention press the button
When using foam concentrate it is necessary flushing the circuit.
Intervention procedure
1
3
2
4

20
Intervention procedure
Flushing the PALLEON
- Plunge the suction pipe in a canister of water.
- Press the button « TOOL »
- Press the button « FLUSHING »
- Start the flushing by pressing the button
« START »
When clear water flows out the priming outlet, stop flushing
by pressing the button
- Come back to the intervention screen by pressing 2 times
the key
