Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
1
Table!of!Contents
!
Before You Begin
!
Safety Instructions 2
Equipment Warning, Caution & Notice Labels 4
Getting Started
!
What’s Included 5
Assembling Cubii 6!
Exercising with your Cubii
!
Tips for Use 7
Finding your comfort zone 7
Using the Chair Wheel Stopper 8!
Adjusting the Resistance 8
Tracking your stats with the display monitor 9
LCD screen battery caution & disposal 10
Carrying Cubii 10
Storage 11
Care and Maintenance 11!
General Info and Specifications
!
Size and Weight 12!
Environmental Conditions 12!
Help 12!
Return Policy and Warranty 12!
Regulatory and Safety Notices
!
EU 13
Important Safety Instructions 13
Disposal and Recycling Information 14!
!
NOTE: Please be advised that the content of this Product Manual may change
periodically to reflect the most recent hardware and software updates.
!
!
!
!
!
!
!

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
2
Before!You!Begin!
!
Welcome to the Cubii community. Whether you are a busy professional or a
stay-home parent, you’ve taken a big stride towards a life more active,
productive and fulfilling.
Before you begin, we want you to be familiar with important information on
how to use Cubii safely so that you and your loved ones do not get hurt. Let’s
review the safety notes and warnings now.
If you have any questions, please contact [email protected].
Safety Instructions
WARNING
Consult your physician before starting this or any exercise
program. This is especially important if you are over the age of 35,
have never exercised before, are pregnant, or suffer from any
health problem.
WARNING
Do not use when standing. Only use when sitting. Failure to follow
all warnings and instructions could result in serious injury or
death.
WARNING
To reduce the risk of serious injury, read the following Safety
Instructions before using Cubii.
1.!Read all warnings and cautions posted on Cubii
.
2.!Cubii should only be used after a thorough review of the Product Manual.
3.!We recommend that two people be available for assembly of this product.
4.!Keep children away from Cubii
.
Do not allow children to use or play on
Cubii. Keep children and pets away from Cubii when it is in use.
5.!Set up and operate Cubii on a solid level surface. Do not position Cubii on
loose rugs or uneven surfaces.
6.!Make sure that adequate space is available for access to and around Cubii.
7.!Before using, inspect Cubii for worn or loose components, and securely
tighten or replace any worn or loose components prior to use.
8.!Consult a physician prior to commencing an exercise program. If, at any
time during exercise, you feel faint, dizzy, or experience pain, stop and
consult your physician.
9.!Follow your physician’s recommendations in developing your own personal
fitness program.
10.!Always choose the workout which best fits your physical strength and
flexibility level. Know your limits and train within them. Always use
common sense when exercising.
11.!Do not wear loose or dangling clothing while using Cubii.

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
3
12.!Never exercise in bare feet or socks; always wear correct footwear, such as
running, walking, or crosstraining shoes. Be sure that they fit well, provide
foot support and feature non-skid rubber soles.
13.!Be careful to maintain your balance on your chair while using, mounting,
dismounting, or assembling Cubii; loss of balance may result in a fall and
serious bodily injury.
14.!Keep both feet firmly and securely on the pedal caps while exercising.
15.!Cubii should not be used by persons weighing over 250 pounds.
16.!Cubii should be used by only one person at a time.

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
4

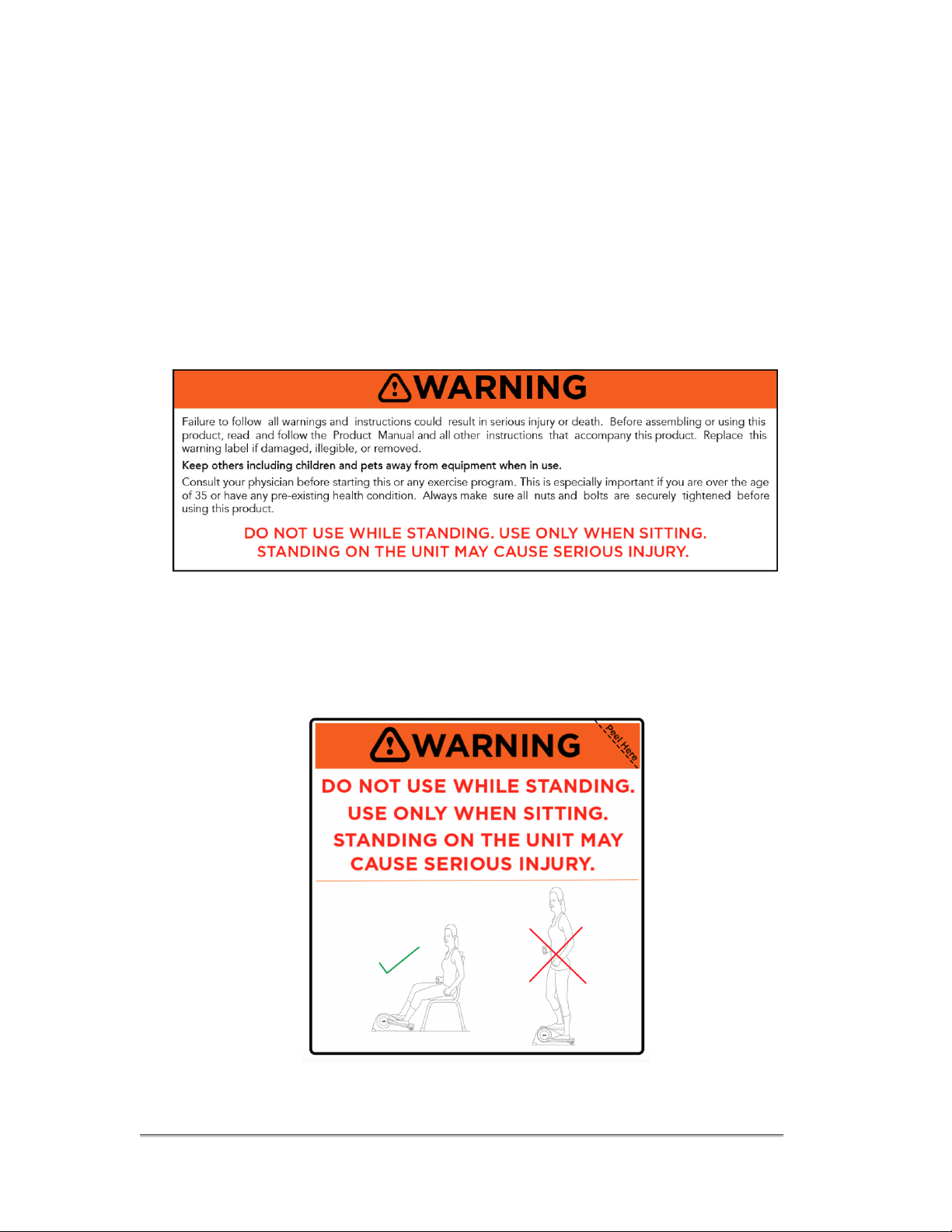

Equipment Warning, Caution & Notice Labels
This chart is provided to help identify the warning, caution, and notice labels
on Cubii. Please take a moment to familiarize yourself with all of the warning,
caution, and notice labels
(1)
!
Main Warning
Label is larger than actual size
(2)
!
Pre-use Warning
Label is smaller than actual size

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
5
Getting!Started
What’s Included
!
!
Your Cubii Jr box includes:!
!
!
!
!
If any of the components listed above are missing in your box, or broken,
please reach out to [e-mail], and indicate which component
needs replacement along with photos of breakage, if applicable.

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
6
Assembling Cubii Jr
!
Here’s an instruction on how to assemble Cubii after you unbox. Refer to the
section “What’s Included” for a complete list of components. It is also
recommended that you assemble Cubii with a friend, family member or
colleague to help secure the pedals in place while you screw them in.
!
!
1.!Place the right pedal on top of the right shaft so that the screw holes
are aligned. Refer to the diagram above
2.!Keeping the pedal in positon, flip it over by the hinge so the pedal is
underneath the shaft and the screw holes are exposed on top.
3.!Screw the pedal in by using the screwdriver. Make sure that the pedal is
secured tightly to avoid noise, risk of damage, and injury.
4.!Repeat steps 1-3 for the left pedal.
In case you have trouble assembling, here is a video to help you get
started: mycubii.com/tutorial

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
7
Exercising!with!your!Cubii!Jr!
!
Tips for Use
!
!

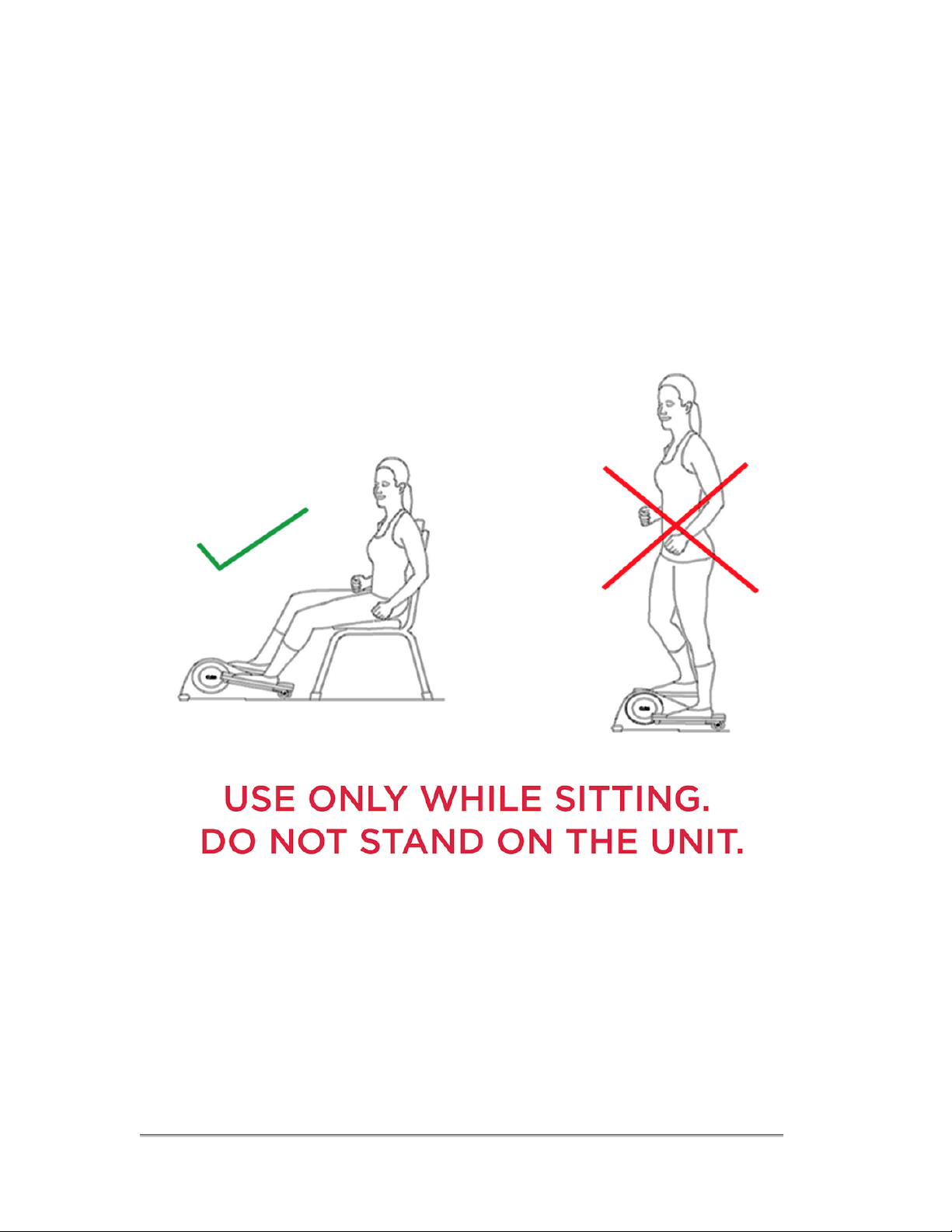

●! Cubii was designed for use only while sitting. Do not stand on the
pedals. Cubii was not designed for use while standing. Standing on
Cubii may result in serious injury.!
●! Before using Cubii, ensure that both pedals are on tight. Loose pedals
will slowly come undone, create noise, and cause risk of damage and
injury. !
●! Do not place Cubii in a location where it may cause an obstruction. !
●! If you find your knees hitting the desk, you may:!
a.!Lower your chair. This lowers your knees by several inches.
b.!Move Cubii farther away from you to extend your legs more.
Extending your legs lowers your knees.
●! Sit up straight while using Cubii. This will help strengthen your core and
is good for your spine. !
●! Keep your upper body still. Try not to rock from side to side and make
sure you are pedaling with your legs and not your body. !
●! If are using a chair with wheels and find your chair moving when using
Cubii, please refer to the below section, “Using the Chair Wheel
Stopper.”!
!
Finding your comfort zone
!
!
Adjust the distance between Cubii and your chair for the most comfortable
position. If your knees hit the desk, try sitting away from Cubii or pushing Cubii
further back if space allows. If your feet do not reach the pedals at your
current chair configuration, try lowering your chair, and place Cubii closer to
your feet.
!
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35 or have any pre-existing
health condition. If you feel faint or dizzy, immediately discontinue use of
this equipment. Serious bodily injury can occur if this equipment is not
assembled and used correctly. Serious bodily injury can also occur if all
instructions are not followed. Keep others and pets away from equipment
when in use. Follow all safety instructions in this manual.

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
8
Using the Chair Wheel Stopper
If you’re using Cubii while sitting on a chair with wheels or castors, your chair
may move. If this is happening, follow the steps below:
1.!Place the provided wheel stopper under the front-most wheel on your
chair. If you are using a four-legged chair with wheels, place a wheel
stopper under each of the front wheels.
2.!You can now resume using Cubii as you normally would.
!
!!!! !
Adjusting the Resistance
!
!
1.!Cubii comes with 8 levels of resistance.
2.!Turn the knob clockwise to increase the resistance. The higher the
number, the higher the resistance. We highly recommend you begin at
Level 1 and increase the intensity as you get used to the product.

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
9
Tracking your stats with the display monitor
!
You can track your workout using the LCD screen. It tracks the below stats:
1) Stride (0-9999)
2) Calorie (0-999.9 kcal)
3) Distance (0.00-999.9 miles)
4) Time (0:00-99:59 min:sec)
5) RPM (0-999 strides/min)
Screen turns on when the silver button is pressed or when you start pedaling.
Screen turns off after 4 minutes of inactivity.
To reset stats, press the silver button for 3 seconds or replace the battery.
When the stats reach maximum values, they will reset to zero.

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
10

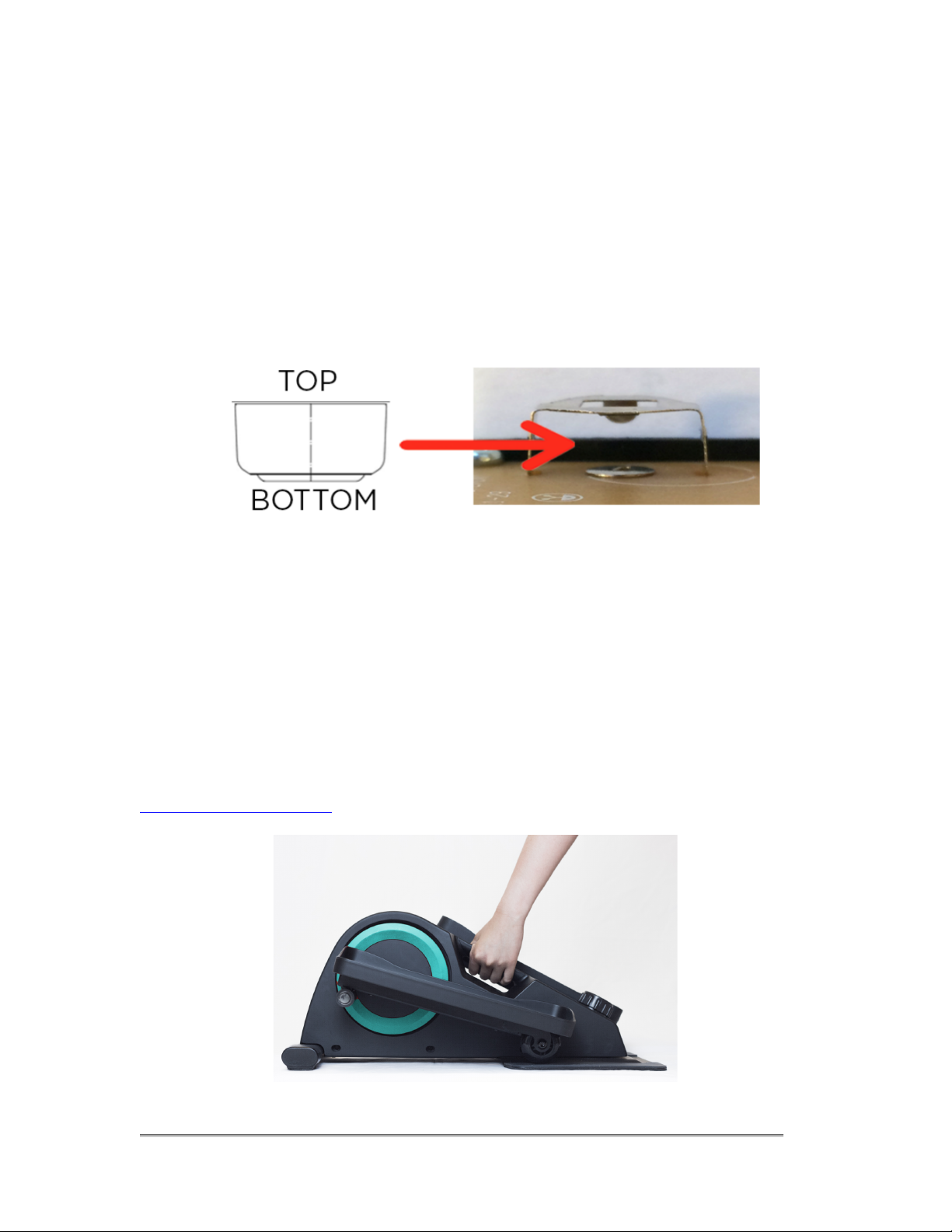

LCD screen battery caution & disposal
!
!
To replace battery, gently remove the screen from the housing to access the
back panel.
1.!For best results, use 1.5V LR44H Alkaline Zinc-Manganese Dioxide
Button Cell.
2.!Install only new battery of the same type.
3.!Failure to insert battery in the correct polarity may shorten the life of
the battery or cause the battery to leak. Correct orientation below:
4.!Do not dispose of battery in fire.
5.!Battery should be recycled or disposed of as per state and local
guidelines.
!
Carrying Cubii
!
To move Cubii around, carry it by the handle at the top. For additional
support, place your other hand under the base. Ask a friend, family member or
colleague for help if you find it heavy. Do not carry by the pedal arms.
If you wish to carry your Cubii over long distance (e.g. home to work), please
consider purchasing our Travel Case. For more information, please contact
[e-mail].

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
11
Storage
!
1.!To store Cubii, simply keep it in a clean dry place.
2.!Cubii is approximately 24 inches long x 12.5 inches wide x 12.5 inches
tall.
3.!Hold the handle to move Cubii. Do not use the pedal arms to move
Cubii.
Care and Maintenance
!
The safety and integrity designed into Cubii can only be maintained when
Cubii is regularly examined for damage and wear. Special attention should be
given to the following:
1.!Tighten the pedal screws regularly to ensure that the pedals are
secured properly.
2.!Adjust the Resistance Knob and verify that the flywheel provides
tension. The flywheel should provide many years of use.
3.!Verify that the Warning Label is in place and easy to read. Email Fitness
Cubed Inc immediately at [e-mail] a replacement
Warning Label if it is missing or damaged.
4.!It is the sole responsibility of the user/owner to ensure that regular
maintenance is performed.
5.!Worn or damaged components shall be replaced immediately or Cubii
removed from service until repair is made. Email Fitness Cubed Inc at
[e-mail] to request replacement parts.
6.!Only Fitness Cubed Inc supplied components shall be used to
maintain/repair Cubii.
7.!Keep your Cubii clean by wiping it off with an absorbent cloth after use.
!
If you have any questions, please contact [e-mail].

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
12
General!Info!and!Specifications!
!
Size and Weight
!
!
Length: 58.8 cm / 23.15 in!
Width: 44.6 cm / 17.56 in!
Height: 24.8 cm / 9.77 in!
Weight: 12.50 kg / 27.56 lbs!
!
Environmental Conditions
!
!
Operating Temperature: 24.0°C!
Non-Operating Temperature: 32.0°C!
!
Help
!
!
For troubleshooting and assistance for your Cubii, you can email us at
[e-mail].!
!
Return Policy and Warranty
!
Warranty information and Cubii Return Policy can be found online at
http://mycubii.com/support!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
13
Regulatory!and!Safety!Notices!
!
EU (European Union)
Declaration of Conformity with Regard to the EU Directive 1999/5/EC
Fitness Cubed Inc is authorized to apply the CE Mark on Cubii, Model F3A2,
thereby declaring conformity to the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Compliant with the standard R&TTE 99/CE/05
Conforme à la norme R&TTE 99/CE/05
Important Safety Instructions
●! Read and follow these instructions
●! Cubii has been designed to be used only while sitting. Do not stand on
the pedals as it was not designed to be used while standing.
●! Make sure the pedals on Cubii are tight before use. Loose pedals will
slowly come undone, create noise, and cause risk of damage and injury.
●! Do not subject Cubii to heavy shock or treat it excessively. Do not
attempt to disassemble or modify it.
●! Use Cubii indoors on a level surface. Keep it away from moisture and
dust.
●! Do not expose Cubii to extremely high or low temperatures. Do not
leave Cubii in direct sunlight for an extended period of time.
●! Do not place Cubii in a location where it may cause an obstruction.
●! Do not use abrasive cleaners to clean Cubii.
●! Do not use any lubricants. They can damage the unit.
!
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35 or have any pre-existing
health condition. If you feel faint or dizzy, immediately discontinue use of
this equipment. Serious bodily injury can occur if this equipment is not
assembled and used correctly. Serious bodily injury can also occur if all
instructions are not followed. Keep others and pets away from equipment
when in use. Follow all safety instructions in this manual.

F3A2
Cubii Jr Seated Elliptical
mycubii.com
[e-mail]
14
Disposal and Recycling Information
!
!
!
The symbol on the product or its packaging signifies that this product has to
be disposed separately from ordinary household wastes at its end of life.
Please kindly be aware that this is your responsibility to dispose electronic
equipment at recycling centers so as to help conserve natural resources. Each
country in the European Union should have its collection centers for electrical
and electronic equipment recycling. For information about your recycling drop
off point, please contact your local electrical and electronic equipment waste
management authority or the retailer where you bought the product.
Le symbole sur le produit ou sur son emballage signifie que ce produit à la fin
de sa vie doit être recyclé séparément des déchets ménagers ordinaires.
Notez que ceci est votre responsabilité d'éliminer les équipements
électroniques à des centres de recyclage afin d'aider à préserver les
ressources naturelles. Chaque pays de l'Union européenne a ses centres de
collecte et de recyclage pour le recyclage des équipements électriques et
électroniques. Pour plus d'informations ou trouver un centre de recyclage,
contactez votre commune ou le magasin où vous avez acheté le produit.
•!Do not dispose of Cubii with household waste.
•!Batteries are not to be disposed of in municipal waste stream and
require separate collection.
•!Disposal of the packaging and your Cubii should be done in accordance
with local regulations.
For additional information on disposal and recycling, including contact details
of a distributor in your region, please visit http://mycubii.com/support
Pour plus amples renseignements sur le recyclage, y compris les coordonnees
d'un distributeur dans votre region, visitez http://mycubii.com/support
