CUBUSAN CP120 User manual

Cubusan CP120
Instruction manual
EN-US
78-560-014
25.11.2021

Table of contents
Cubusan CP120 EN-US 17
Table of contents
1 Preface ......................................................................................................................................................................... 18
1.1 Note on use ........................................................................................................................................................ 18
2 Intended use................................................................................................................................................................ 19
3 About this document .................................................................................................................................................. 20
3.1 Explanation of the symbols used in the manual ................................................................................................. 20
3.2 Statutory warranty and liability ........................................................................................................................... 20
4 General data ................................................................................................................................................................ 21
4.1 Safety basics ...................................................................................................................................................... 21
4.2 General safety instructions................................................................................................................................. 21
4.3 Safety instructions for transportation.................................................................................................................. 21
4.4 Safety instructions for maintenance, servicing, and troubleshooting ................................................................. 21
4.5 Storage............................................................................................................................................................... 22
4.6 Views and design ............................................................................................................................................... 22
5 Use and operation....................................................................................................................................................... 23
5.1 Function.............................................................................................................................................................. 23
5.2 Commissioning................................................................................................................................................... 23
5.3 Site selection ...................................................................................................................................................... 24
5.4 Operation............................................................................................................................................................ 24
6 Care and maintenance................................................................................................................................................ 25
6.1 Care.................................................................................................................................................................... 25
6.2 Inspection/refresh by the manufacturer.............................................................................................................. 25
6.3 Clearing faults .................................................................................................................................................... 25
7 Appendix...................................................................................................................................................................... 27
7.1 Technical data .................................................................................................................................................... 27
7.2 Shut-down and disposal ..................................................................................................................................... 27
7.3 Information regarding the EU declaration of conformity ..................................................................................... 27

Preface
18 EN-US Cubusan CP120
1 Preface
This operating manual must be read by operating personnel and those responsible for the device before initial use. Dam-
age caused by failure to follow the instructions herein will not be covered by the warranty.
Users of this device are required by law to comply with the respective national accident prevention regulations. Further-
more, this operating manual shall be treated confidentially. Only authorized persons shall be allowed access to it. It shall
only be entrusted to third parties on written permission from WINTERSTEIGER.
All documents are protected under copyright. Distribution, reproduction, and utilization of documents and parts thereof,
as well as communication of their contents, are not permitted unless authorized expressly and in writing. Infringements
are liable to prosecution and will result in damage claims.
WINTERSTEIGER shall retain all rights to exercise industrial property rights.
1.1 Note on use
We expressly point out that the use of the Cubusan is only complementary to an effective hygiene concept and does not
replace other hygiene measures.
When using the Cubusan, always observe the manufacturer's instructions for use and the specified minimum square me-
ters per person without exception.
In particular, WINTERSTEIGER shall not be liable for damage caused by unsuitable or improper use, incorrect or negli-
gent handling or storage. The Cubusan is designed in particular to prevent infections.
However, a risk of infection cannot be completely ruled out even when the Cubusan is used correctly. Further hygiene
measures are especially necessary in the case of viruses that pose a high risk of infection, such as SARS-CoV-2.
In order to further reduce the risk of infection, ensure that the maximum number of persons in closed rooms is not ex-
ceeded.
There should be a maximum of one person per 3.5m2 room area (for example, 50m2 room area = maximum of 14 per-
sons).
Furthermore, a minimum distance to other persons of at least 1.2meters must be maintained.

Intended use
Cubusan CP120 EN-US 19
2 Intended use
This device is intended for air purification with STEREX plasma technology for private and commercial use as well as in
municipal and healthcare facilities.
The CUBUSAN CP-120 is designed to remove airborne bacteria, viruses, fungal spores, and odors; it is not suitable for
removing harmful gases (such as carbon monoxide contained in cigarette smoke).
The CUBUSAN CP-120 is designed for placement on a flat surface as a upright unit or, if desired, for wall or ceiling
mounting.
This device is intended solely for use in enclosed spaces.
Any use extending beyond this is deemed to be improper. The manufacturer is not liable for any damage resulting from
improper use. The user takes full responsibility in such cases.
Appropriate usage also includes following the operating, maintenance and service stipulations set out by the manufac-
turer.
The applicable accident prevention regulations and other generally accepted safety and occupational health regulations
shall also be adhered to.
Any changes to the device by the user renders manufacturer liability null and void with regards to any resulting damages.
We constantly try to improve our products and therefore reserve the right to make any changes or improvements we feel
are appropriate. We are, however, not obligated to extend these changes or improvements to already delivered devices.
Reasonably foreseeable misuse:
nUse in a potentially explosive atmosphere
nEnvironment with high dust and grease content in the indoor air
nUse and operation of the device without having read and understood the operating manual.
nUse of the product outside the specified limits (see technical data).
Original operating manual
© Copyright by
WINTERSTEIGER AG
A-4910 Ried/I Dimmelstrasse 9
Tel. [phone]
e-mail: [email protected]

About this document
20 EN-US Cubusan CP120
3 About this document
This operating manual forms part of the device and helps users to familiarize themselves with the device and to work
with it.
Damage caused by failure to follow the instructions herein will not be covered by the warranty. Users of this device are
required by law to comply with the respective national accident prevention regulations.
The cleaning and maintenance section contains tips on how to keep the device fully operational for many years.
The operating manual also points out (potential) dangers.
All images, dimensions, and weight information in the operating manual are non-binding.
3.1 Explanation of the symbols used in the manual
DANGER indicates a hazard with a high degree of risk, which, if not prevented, will cause
death or serious injury.
WARNING indicates a hazard with a medium degree of risk, which, if not prevented, could
cause death or serious injury.
CAUTION describes a hazard with a low degree of risk, which, if not prevented, could re-
sult in a slight or moderate injury.
This symbol indicates special information on practical work or a general recommendation.
Device damage! This symbol indicates possible damage to / destruction of the product,
the process and/or its surrounding area.
3.2 Statutory warranty and liability
Safe and fault-free operation of the device can only be ensured with Original WINTERSTEIGER spare parts and con-
sumables recommended by WINTERSTEIGER.
Non-WINTERSTEIGER material is used at the owner's risk and is the responsibility of the operator. WINTERSTEIGER
does not provide any warranty or guarantee and does not accept liability for damage or defects arising from the use of
non-Wintersteiger material!
Furthermore, warranty claims are excluded if the parts affected by the defect or that caused the defect have been im-
properly modified, replaced, or repaired by the customer or a third party.

General data
Cubusan CP120 EN-US 21
4 General data
nOperate the device as described in the operating manual.
nNever remove safety equipment or warnings.
nNever modify the device without the manufacturer's written approval.
nExtremely low or high temperatures can result in malfunctions or damage.
nThe device must not be put into operation if any parts of it are faulty and safety cannot be guaranteed.
nMake sure that the device is not operated if exposed to strong magnetic fields, electrical currents, radiation, or
strong vibrations.
nIf the supply lines are damaged or the device is malfunctioning, it must be shut down immediately, even if it has
been operated in accordance with the operating manual.
nRepair work must only be carried out by specialists authorized by the manufacturer.
nModifications to the device are not permitted and would immediately render the guarantee and warranty void.
4.1 Safety basics
This device is constructed using the best possible technology according to accepted safety regulations. However, dan-
gers for the user or third parties as well as damages to the device and other objects can occur if:
nthe device is used for inappropriate purposes,
nthe device is not properly maintained or repaired.
4.2 General safety instructions
nThe device must not come into contact with water or excessive moisture during operation or storage (see chapt.
Technical data, page27).
nAny applicable accident prevention specifications and other generally accepted safety and medical regulations are
to be obeyed.
nThe device may only be used if it is in a flawless technical condition and only according to the intended use under
consideration of safety aspects, potential dangers, and the operating manual. Faults that may affect safety must be
immediately repaired!
nNever operate the device when using insect repellent or when it is in a room where there is oily residue, smoke
from incense sticks, sparks from lit cigarettes, chemical vapors, or similar in the air; the same applies to rooms
such as bathrooms where the device may become damp.
nDo not smoke in rooms where the CUBUSAN is in use.
nDo not use the device within reach of children.
4.3 Safety instructions for transportation
nFollow the pictograms on the packaging.
nAlways ensure that the device is protected against vibration and impacts during transport.
nReport any transit damage and/or missing parts to the supplier without delay.
4.4 Safety instructions for maintenance, servicing, and troubleshooting
nPlease adhere to the mandatory periods or periods listed in the operating instructions for recurring tests/inspec-
tions.
nOnly qualified personnel may carry out repairs on the device.

General data
22 EN-US Cubusan CP120
nEnsure safe and environmentally sound disposal of operating and auxilliary materials as well as spare parts.
nWork on the electrical equipment of the device may only be performed by qualified electricians, in line with electro-
technology rules. Only qualified electricians are permitted access to the device's electrical systems and may per-
form work on them.
4.5 Storage
nDevices and components must not be stored outdoors.
nStore the device in its original packaging inside a building only, at a temperature of 5 °C to +30 °C and a maximum
relative humidity of 60%.
To avoid damage, never place any other packages or items on top of the packaged unit.

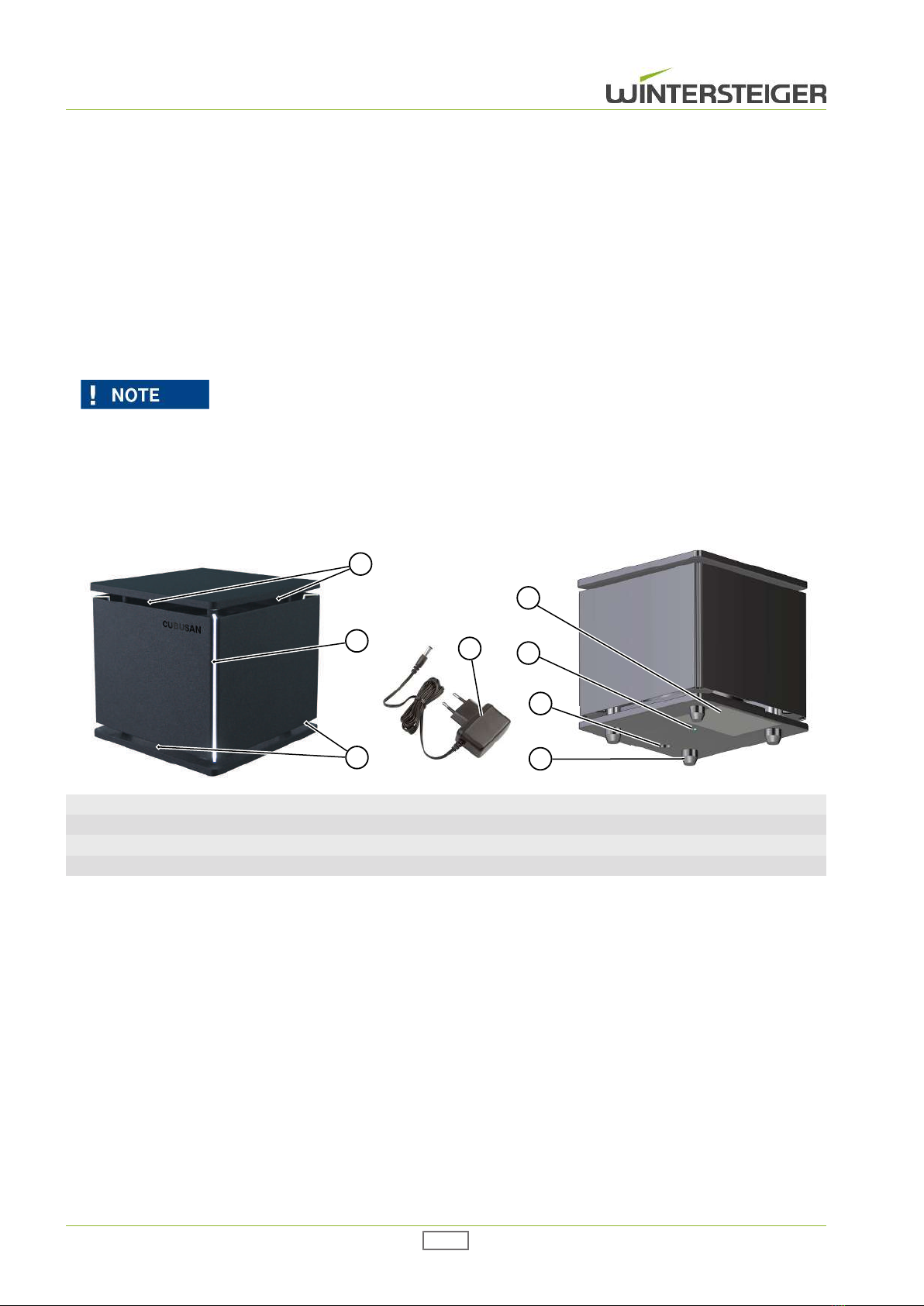

4.6 Views and design
1
2
3
4
5
Front view Underside
6
7
8
1 Air outlet 5 Fixing for wall/ceiling mounting
2 Decorative lighting 6 Power adapter connection (grid adapter)
3 Air inlet 7 Adjustable feet
4 Type plate 8 Power adapter (grid adapter)

Use and operation
Cubusan CP120 EN-US 23
5 Use and operation
5.1 Function
nMake sure that sufficient fresh air is supplied to the room. The Cubusan is not a substitute for adequate ventilation
and is not capable of reversing the conversion of oxygen (O2) to carbon dioxide (CO2) that occurs through breathing
as well as through combustion processes.
At least one full air exchange or more per hour is recommended. This can be as part of a continuous process in-
volving a ventilation system or can be performed manually through correct 'rush airing' (for a maximum of five min-
utes every 30 minutes).
nThe Cubusan with STEREX technology is an effective method of indoor air treatment and is harmless to human
health.
nThis technology is very environmentally friendly as no chemicals are required while the indoor air is being treated
by the Cubusan.
nThe Cubusan contains a plasma generator, which produces a mixture of air and cold atmospheric plasma through
an electrophysical process. This contains various oxygen species, including highly reactive hydroxyl radicals.
These are distributed evenly within the room by the built-in fan and react with the aerosols, killing germs, viruses,
bacteria, and fungal spores contained in the air. The Cubusan is therefore able to eliminate up to 99.99%* of
microorganisms in the air and thus also helps to remove bad odors.
nThe plasma air mixture generated by the STEREX technology eliminates bacteria, viruses, germs, etc. that are in
the air by 99.99%. You can therefore be sure that the air in a 50m² room (with a room height of approx. 2.5m) will
be cleaned after a short time.
*The disinfection effect during continuous operation of the device (>60 min; continuous disinfection) has therefore been
proven to eliminate up to 99.99% of microorganisms in efficacy classes A (native bacteria and fungi) and B (limited viru-
cide, virucidal effect on enveloped viruses) of the RKI list in a test pursuant to EN14476.
5.2 Commissioning
Damage to the device can endanger your safety. Check it for visible damage. Never oper-
ate a damaged device.
The device may only be operated at the specified voltage. Use only the power adapter
supplied.
nMake sure that all the contents have been delivered and check for any visible damage.
If there is any damage or if any parts are missing from the delivery, contact your retailer or the manufacturer.
1 2

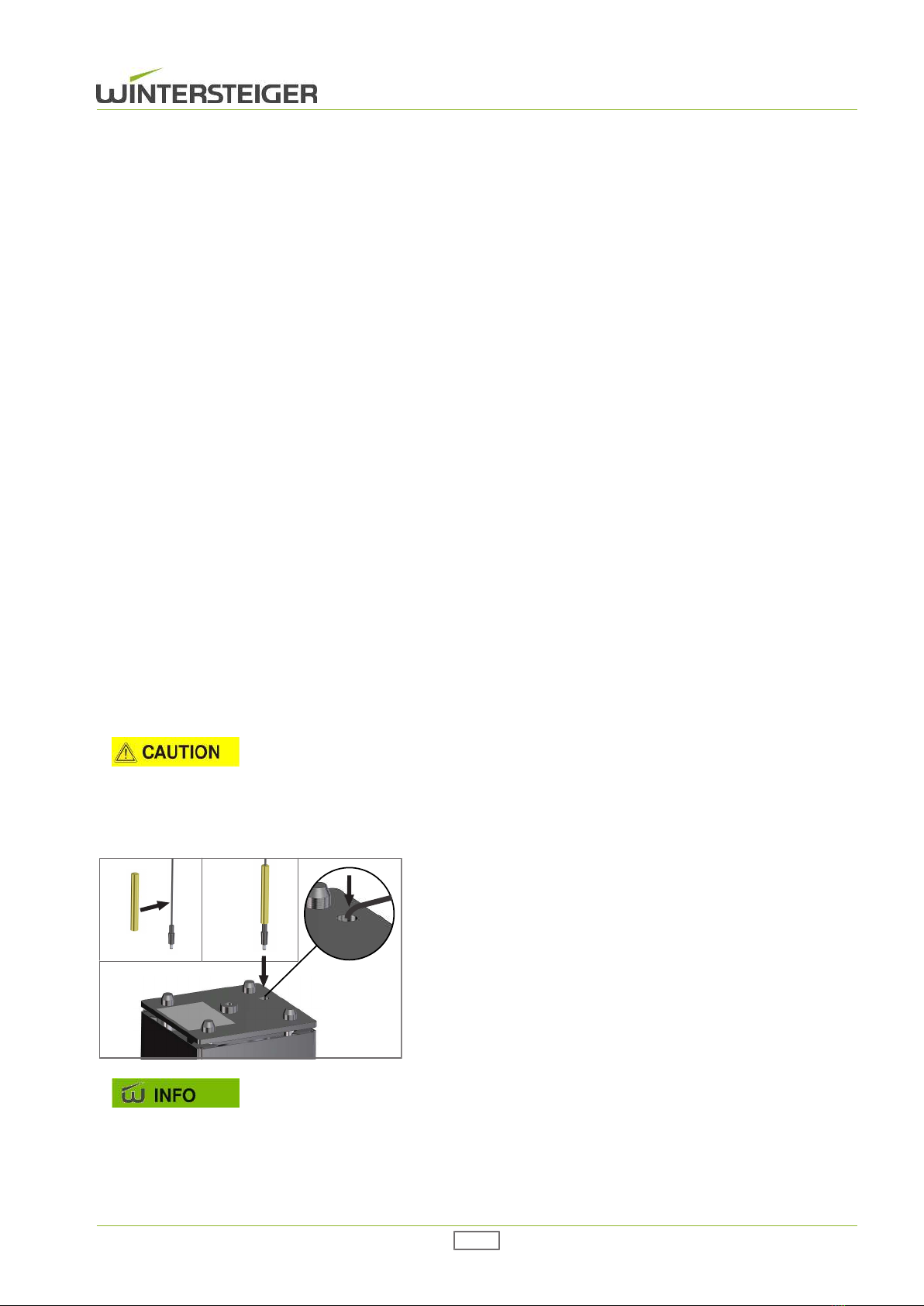

nBefore commissioning, remove all packaging and the protective
film.
nPlace the CUBUSAN on a soft surface with the underside facing
upwards.
nSlide the supplied mounting aid over the cable of the power plug
and push it together until it clicks into the connection socket of
the CUBUSAN.
nRemove the mounting aid and turn the CUBUSAN so it is up-
right.
nKeep the mounting aid, the packaging, and the user manual for
future transport and servicing purposes.
To operate the device at convenient operating times, we also recommend the optional
WLAN connector.

Use and operation
24 EN-US Cubusan CP120
5.3 Site selection
For optimum operation of the device, an ambient temperature of 18°C bis 24°C at medium dust concentration is
recommended. Recommended room size for the CUBUSAN 120 m3 (corresponds to approx. 50 m2 at 2.5 m room
height).
nPlace the device on a stable surface and at a minimum distance of 15cm from the nearest vertical surface, such as
a wall or cabinet with sufficient air supply.
nDo not position the device directly next to a stove, a heater, or near a window with direct sunlight.
nThe device must not be operated outdoors or in explosion-risk areas.
nDo not position the device near a humidifier.
nA suitable mounting plate is required for wall or ceiling mounting. If desired, this can be obtained from WINTER-
STEIGER.
nDo not use the device within reach of children. The device must be at least 1 meter above the floor.
nBefore moving the CUBUSAN , unplug the power adapter.
The best result is achieved when the CUBUSAN is placed centrally in the room. The more
centrally the CUBUSAN is positioned, the more even the distribution.
For high rooms, rooms over 120 m³ , or rooms with strong ventilation, the use of several
air purifiers may be necessary. We recommend discussing this with the manufacturer.
The air exchange per hour should not be more than 4 times the air in the room.
5.4 Operation
The CUBUSAN has several openings/slits for the air inlet/air outlet, which must not be covered under any
circumstances. Make sure that none of these openings are covered during installation. Keep a distance of
150mm between the openings and any objects on all sides so that the device can blow out air freely.
1. Plug the cable of the power adapter output into the bottom of the CUBUSAN CP-120 and the power adapter into an
outlet (see chapt. Commissioning, page23).
2. The fan in the device starts to work and sucks in air, which is disinfected and freed from odors with the help of the
STEREX technology. The decorative lighting on the corners of the CUBUSAN CP-120 lights up permanently.
3. Unplug the device as necessary.
The power supply to the CUBUSAN CP-120 can only be completely disconnected by pulling out the power adapter.
Ideally, plug in the device at least 1 hour before you want to disinfect the air.
A smell of freshness can be detected when the device is being properly operated.

Care and maintenance
Cubusan CP120 EN-US 25
6 Care and maintenance
Risk of injury!
Servicing and maintenance work may only be carried out by people who have received proper training and instructions.
Before carrying out maintenance, setting, repair, or cleaning work, ensure that the device is switched off and discon-
nected from the power supply.
6.1 Care
To avoid damaging the surfaces, do not use rough sponges or abrasive cleaning agents
when cleaning the device.
Do not insert any objects into the openings of the air inlet or air outlet. This could damage
the device.
nClean the outside of the device with a slightly damp (NOT wet) soft microfiber cloth.
Do not use solvents or organic cleaning fluids. The additives of a cleaning agent could damage the surface of the
device.
nCarefully clean the air inlet and outlet with a vacuum cleaner attachment or soft brush.
6.2 Inspection/refresh by the manufacturer
nThe Cubusan is equipped with a maintenance-free fan motor.
nUnder normal use, the device does not require any special maintenance! We recommend that the plasma unit is in-
spected/refreshed by the manufacturer after 25,000 operating hours*.
*(with average use: 8 hrs/day x 365 days = 25,000 hrs = 8.5 years)
Depending on the operating environment, and especially when the device is used in ex-
treme conditions, the performance of the STEREX plasma unit may reduce in a shorter
time than originally anticipated. If there is no longer any noticeable air purification, the de-
vice should be checked by the dealer or by the manufacturer.
6.3 Clearing faults
Disconnect the device from the power supply before performing maintenance and repair
work!
Fault Cause Elimination
1) No fan noise and no device
lighting after the device has been
put into operation
No line voltage at the outlet Check outlet and power supply
Power adapter not plugged in cor-
rectly
Plug in the power adapter correctly
Power supply connector on CUBU-
SAN not plugged in correctly
Connect the power supply to the device prop-
erly (see chapt. Site selection, page24)
Power supply cable damaged Replace power adapter
Power adapter faulty Replace power adapter
2) No device lighting after the
device has been put into opera-
tion, but fan noise and air flow
are present
Lighting faulty Have the device checked/repaired by the
manufacturer

Care and maintenance
26 EN-US Cubusan CP120
Fault Cause Elimination
3) No air coming out of the air
outlet, fan noise present and de-
vice lighting working
Air intake blocked Check that all packaging materials have been
removed and that there are no foreign bodies
at/in the air inlet (at the bottom, all round the
device)
Air outlet blocked Check that all packaging materials have been
removed and that there are no foreign bodies
at/in the air outlet (at the top, all round the de-
vice)
Device is being operated in a location
that does not comply with the specifi-
cations
Position the device in a suitable location (see
chapt. Site selection, page24)
Fan defective Have the device checked/repaired by the
manufacturer
4) Odor in room Insufficient supply of fresh air to the
room
Increase the fresh air supply to the ventilation
system or manually ventilate the room more
regularly (see chapt. Site selection, page24)
If this does not resolve the problem, have the
device checked by the manufacturer.

Appendix
Cubusan CP120 EN-US 27
7 Appendix
7.1 Technical data
Type CUBUSAN CP-120
Dimensions (WxHxD) 190 x 190 x 190 mm
Weight 8,5 kg
Operating voltage 220 - 240V AC, 50 Hz
Connected load max. 25,2 Watt
Protection class IP20
Recommended room size per device min./
max.
120 m3 (corresponds to approx. 50 m2 at 2.5 m room height)
Noise level 32 dB(A)
Ideal ambient temperature 18°C bis 24°C
Ambient temperature min./max. 15°C bis 28°C
Ideal humidity 40% bis 60% rel.
Humidity min./max. 10% bis 60% rel.
Transport and storage conditions 5°C bis 30°C, max. 60% rel.
7.2 Shut-down and disposal
In accordance with the requirements of the European Directive 2012/19/EC on waste electrical
and electronic equipment (WEEE), this device must not be disposed of with household waste.
Similarly, this also applies to countries outside the EU according to the applicable national regula-
tions.
nDispose of this device in accordance with local regulations in a separate collection for
electrical and electronic equipment.
If you have any questions, please contact the relevant authority or the dealer from whom you pur-
chased this device.
If the device is passed on (e.g., for continued private or commercial/industrial use), this regulation
must be passed on accordingly.
7.3 Information regarding the EU declaration of conformity
This product complies with the applicable EU regulations and directives. The full, original declaration of conformity can
be obtained from WINTERSTEIGER.
WINTERSTEIGER AG
4910 Ried/Innkreis
Dimmelstraße 9
AUSTRIA

Appendix
28 EN-US Cubusan CP120
