ThankYou
AND WELCOME TO YOUR NEW WORLD OF BETTER LIVING
WITH CULLIGAN WATER.
The Culligan®Mark 100 water softeners are tested and validated by WQAagainstANSI/NSF Standard 44 for
the effective reduction of the calcium and magnesium, along with Barium and Radium 226/228*.
If this is your first experience having soft, conditioned water in your home, you’ll be amazed at the marvelous difference it makes.
We promise that you’ll never want to be without it again.
Congratulations, too, on selecting one of the “first family” of water conditioners in the prestigious CulliganMark Series. With Culligan’s
many years of knowledge and experience in water treatment, you can be confident that the model you selected has
been designed and engineered to provide years of service with a minimum of care and attention.
Some localities have corrosive water.Asoftener cannot correct this problem and so its printed warranty disclaims liability for corrosion of
plumbing lines, fixtures or appliances. If you suspect corrosion, your Culligan Dealer has equipment to control the
problem.
SODIUM INFORMATION: Water softeners using sodium chloride for regeneration add sodium to the water. Persons who are on
sodium restricted diets should consider the added sodium as part of their overall sodium intake.
* Verified utilizing hardness surrogate per ANSI/NSF Standard 44.

SOFTENERMODEL 1
MARK 100 9" Water Softener
Performance Data Sheet - Page 10
MARK 100 9" Water Softener with Soft-Minder®Meter
Performance Data Sheet - Page 11
MARK 100 9" Water Softener with Aqua-Sensor®Sensing Device
Performance Data Sheet - Page 12
MARK 100 12" Water Softener
Performance Data Sheet - Page 13
MARK 100 12" Water Softener with Soft-Minder®Meter
Performance Data Sheet - Page 14
MARK 100 12" Water Softener with Aqua-Sensor®Sensing Device
Performance Data Sheet - Page 15
PerformanceDataSheetsareincludedinthismanualforthevariousMark100Softenermodels. Refertothe Perfor-
manceDataSheetforyourspecificsoftener,asthereareslightdifferencesbetween the models. The softener warranty
islocatedon page 16 of thisOwner'sGuide.
Softener Model

Specifications
Culligan®Mark100WaterConditionerswithTimeClock,Aqua-Sensor®DeviceorSoft-Minder®Meter
1 Capacities and corresponding salt dosages pertain to low hardness waters. Capacities given are per recharge
2 Measured from top of media to top of inlet fitting (backwashed and drained).
3 Measured from top of underbedding to top of inlet fitting.
4 Backwash at 120 psi (830 kPa).
5 10 minute backwash, 7 lb (3.2 kg) 9” model or 13 lb (5.9 kg) 12” model salt dosage at 30 psi (204 kPa).
9” Model 12” Model
ControlValve 5-cycle, Reinforced Thermoplastic 5-cycle, Reinforced Thermoplastic
Overall Conditioner Height 51 in 51 in
1 295 mm 1 295 mm
Media Tank Dimensions (Dia x Ht) 9 x 45 in 12 x 45 in
229 x 1 143 mm 305 x 1 143 mm
Salt Storage Tank Dimensions (Dia x Ht) 16 x 43 in 18 x 43 in
406 x 1 092 mm 457 x 1 092 mm
18 x 43 in
457 x 1092 mm
Exchange Media, Type and Quantity Cullex®Media, 0.86 ft3Cullex®Media, 1.4 ft3
Cullex®Media, 24.5 L Cullex®Media, 40 L
Underbedding, Type and Quantity Cullsan®Underbedding, 12 lb Cullsan®Underbedding, 30 lb
Cullsan®Underbedding, 5.4 kg Cullsan®Underbedding, 14 kg
Exchange Capacity 17,500 gr @ 4.0 lb 24,100 gr @ 6.0 lb
@ Salt Dosage Per Recharge11 133 g @ 1.8 kg 1 560 g @ 2.7 kg
23,900 gr @ 8.0 lb 34,500 gr @ 12.0 lb
1 547 g @ 3.6 kg 2 234 g @ 5.4 kg
26,600 gr @ 12.0 lb 41,900 gr @ 18.0 lb
1 722 g @ 5.4 kg 2 713 g @ 8.1 kg
Freeboard to Media216.6-17.6 in 17.5-18.5 in
420-447 mm 444-470 mm
Freeboard to Underbedding339.2 in 38.5 in
996 mm 978 mm
Salt Storage Capacity 250 lb or 375 lb 375 lb
114 kg or 170 kg 170 kg
Rated Service Flow @ Pressure Drop 7.5 gpm @ 15 psi 7.5 gpm @ 15 psi
30 Lpm @ 102 kPa 31 Lpm @ 102 kPa
Total Hardness, Maximum 75 gpg 99 gpg
1 283 mg/L 1 692 mg/L
Total Iron, Maximum 5 ppm 5 ppm
5mg/L 5 mg/L
Hardness to Iron Ratio, Minimum 8 gpg to 1 ppm 8 gpg to 1 ppm
140 mg/L to 1 mg/L 140 mg/L to 1 mg/L
Operating Pressure 20-125 psi 20-125 psi
140-860 kPa 140-860 kPa
Operating Temperature 33-120°F 33-120°F
1-50°C 1-50°C
ElectricalRequirements 120V/60 Hz 120V/60 Hz
Electrical Power Consumption, Min/Max 3 Watts/35 Watts 3 Watts/35 Watts
Drain Flow, Maximum42.0 gpm 3.5 gpm
8 Lpm 14 Lpm
RechargeTime,Average580 min 85 min
RechargeWater Consumption,Average 45gal 86gal
170 L 325 L
2CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE

IT’SALLSOEASY,SOECONOMICAL,SOEFFICIENT,SOENJOYABLE!
KINDTOSKINANDCOMPLEXION
Soft water will help prevent red, itchy or dry skin because there are no hardness impurities to cause soreness, no soap curd to coat the skin.
Shaving is easier, smoother - either with blade or electric shaver.
BATHINGANDSHOWERING
You’ll use far less soap with conditioned water. Use your soap very sparingly - not as you did before soft water. Just a quick rinse removes
all lather, leaving your skin pleasantly smooth and silky - because now it’s free of sticky soap curd and film.
SAVESWASHINGCOSTS.HELPSCONTROLENVIRONMENTALPOLLUTION
Soft water washes whiter and cleaner with less soap or detergent. Because the hardness impurities are removed, your soap can concentrate
solely on washing. People usually find that they can reduce the amount of soap they use substantially. If you normally used a cup per wash
load with hard water, try using only 1/3 cup depending on the size of your wash load and the degree of soil. Different amountsare required,
but you can use less with softened water. An added bonus is the fact that your washable fabrics will last longer.
SUPERHAIRCONDITIONING
Soft water is great for scalp and hair care. No insoluble deposits are formed. Hair is shinier, softer, more manageable. Reduce the amount of
shampoo you have normally used.
DISHESAREADELIGHT
Washed by hand or in a dishwasher, glassware, dishes and silver wash cleaner, easier. Follow your dishwasher manufacturer’s instructions.
Soft water promotes sanitation because no greasy hard water film can form to collect or harbor bacteria.
EASIERHOUSEKEEPING,GLEAMINGFIXTURES
You’ll be amazed at the marvelous difference. Just a swish of the cloth, and the bathtub or shower and fixtures are clean and sparkling.
Imagine, no scouring! No hard water scum to cause rings, streaks, spots and stains. To keep their gleaming luster, simply wipe fixtures with
a towel after use. Formica, tile, walls, floors, woodwork surfaces clean easier, stay clean longer. You’ll save on cleaning aids and save on
time.
SAVESWATER-HEATINGENERGYHELPSWATER-USINGAPPLIANCES
Soft water reduces the formation of rock-like hard water scale which encrusts water heaters, hot water pipes, shower heads, and water-
using appliances. This scale can cause premature maintenance and failure.
Elimination of hard water also provides substantial energy savings because scale acts as an insulator, wasting electricity or gas used to
heat water.
SAVINGSGALORE
A water conditioner is frequently referred to as “the appliance that pays for itself”. You’ll find that your savings on soaps, detergents,
cleaning aids, and personal care products will help your family’s household budget.And if you place a price on your time, you’ll be most
happy with the time saved by your new family servant.
WATERFORLAWNSANDHOUSEHOLDPLANTS
If possible, lawn sprinkling faucets should be supplied with hard water primarily because it is uneconomical to soften so much water.
Household plants are much more sensitive than lawns with respect to the kind of water which is best. First, because they receive no rainfall
and, second, there is little or no drainage of the soil. Preferably they should be watered with rainwater or water which is low in mineral
content such as distilled or demineralized water. Softened water is not recommended for house plants because a build-up of sodium in the
soilmayinterfere with efficientabsorption of water bytheplantrootsystem.Additionalinformationmay be obtainedfromyourindependently
operated Culligan dealer.
Introduction
INTRODUCTION 3

Why Water Gets Hard And How It’s Softened
All of the fresh water in the world originally falls as rain, snow, or sleet. Surface water is drawn upward by the sun, forming clouds. Then,
nearly pure and soft as it starts to fall, it begins to collect impurities as it passes through smog and dust-laden atmosphere.And as it seeps
through soil and rocks it gathers hardness, rust, acid, unpleasant tastes and odors.
Water hardness is caused primarily by limestone dissolved from the earth by rainwater. Because of this, in earlier times people who wanted
soft water collected rainwater from roofs in rain barrels and cisterns before it picked up hardness from the earth.
Some localities have corrosive water.Asoftener cannot correct this problem and so its printed warranty disclaims liability for corrosion of
plumbing lines, fixtures or appliances. If you suspect corrosion, your Culligan Man has equipment to control the problem.
Iron is a common water problem. The chemical/physical nature of iron found in natural water supplies is exhibited in four general types:
1. Dissolved Iron -Also called ferrous or “clear water” iron. This type of iron can be removed from the water by the same ion exchange
principle that removes the hardness elements, calcium and magnesium. Dissolved iron is soluble in water and is detected by taking a
sample of the water to be treated in a clear glass. The water in the glass is initially clear, but on standing exposed to the air, it may
gradually turn cloudy or colored as it oxidizes.
2. Particulate Iron -Also called ferric or colloidal iron. This type of iron is an undissolved particle of iron.Asoftener will remove larger
particles, but they may not be washed out in regeneration effectively and will eventually foul the ion exchange resin. A filtering
treatment will be required to remove this type of iron.
3. Organic Bound Iron - This type of iron is strongly attached to an organic compound in the water. The ion exchange process alone
cannot break this attachment and the softener will not remove this type of iron.
4. Bacterial Iron - This type of iron is protected inside a bacteria cell. Like the organic bound iron, it is not removed by a water softener.
When using a softener to remove both hardness and dissolved iron it is important that it regenerates more frequently than ordinarily would
becalculated for hardnessremovalalone.Although many factorsandformulashave been usedtodeterminethis frequency,it is recommended
that the softener be regenerated when it has reached 50 - 75% of the calculated hardness alone capacity. This will minimize the potential for
bed fouling.
If you are operating a water softener on clear water iron, regular resin bed cleaning is needed to keep the be from coating with iron. Even
when operating a softener on water with less than the maximum of dissolved iron, regular cleanings should be performed. Clean every six
months or more often if iron appears in your conditioned water supply. Use resin bed cleaning compounds carefully following the
directions on the container.
CAUTION: Do not use where the water is microbiologically unsafe or with water of unknown quality
without adequate disinfection before or after the unit.
How Your Water Conditioner Works
4CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE

YourCulligan waterconditioner consists ofthree basic components,(A) theControlValve, (B)the MineralTank, and(C) theBrineSystem.
A. The exclusive Culligan control valve automatically performs a variety of tasks that are necessary for the proper operation of your water
conditioner. These tasks, commonly referred to as cycles or operating positions, are:
SERVICE,REGENERATION,ANDBRINEREFILL.
1. SERVICE: While the control valve is in the “Service cycle”, hard water is directed down through the column of Cullex®resin where
hardness minerals are removed from the water. The softened water is then directed into your household plumbing lines. The ability
of the Cullex resin to remove hardness minerals needs to be periodically replenished; this is referred to as . . .
2. REGENERATION: While the control valve is in the “Regeneration cycle”, water is first directed up through the column of Cullex
resin to flush accumulated sediment out of the resin and down the drain. Then, the regenerant brine solution is slowly drawn from
the bottom of the salt storage tank of the Brine System and is directed down through the column of Cullex resin, restoring the ability
of the resin to remove hardness minerals from your water supply. Once completed, the regeneration cycle is followed by . . .
3. BRINE REFILL: Whilethe control valveis in the“BrineRefill cycle”,apredetermined amount ofwater is directedto the saltstorage
tank of the Brine System so that additional salt can be dissolved to provide the brine solution that will be needed for the next
regeneration cycle.
B. The exclusiveBondedTripl-Hull™MineralTank containsthe Cullex resincolumn,Cullsan®underbedding, and anoutlet manifold. Note:
TheMineralTankofAqua-Sensor®modelsalsocontainsa mineral sensor devicethatdetermineswhenthe Cullex resin needsregeneration.
The number of gallons of hard water that can be softened by the Cullex resin column before it needs regeneration is called the
“capacity” of the resin column, and depends upon the amount of hardness minerals in each gallon of water (expressed as grains per
gallon) and upon the amount of regenerant brine solution (expressed as pounds of salt) passed through the resin column during
regeneration.
Your Culligan serviceperson, taking into account the hardness of your water and the amount of softened water your household may
reasonably expect to use each day, has carefully established how often the softener will regenerate and how much salt will be used for
each regeneration. This will ensure that all of your soft water needs will be fulfilled without using an excessive amount of salt.
C. The Brine System consists of a salt storage container and hydraulic Dubl-Safe™valve. The salt storage container holds the salt that is
used to make the regenerant brine solution. The hydraulic Dubl-Safe valve limits the amount of water that is returned to the salt storage
tank during the brine refill cycle.
Since a predetermined amount of salt is dissolved with each brine refill cycle, the salt must be periodically replenished in order to
maintain efficient operation.Your Culligan serviceperson will be able to tell you about how often salt must be added to the salt storage
container.
The Culligan Process
THECULLIGANPROCESS 5

6CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE

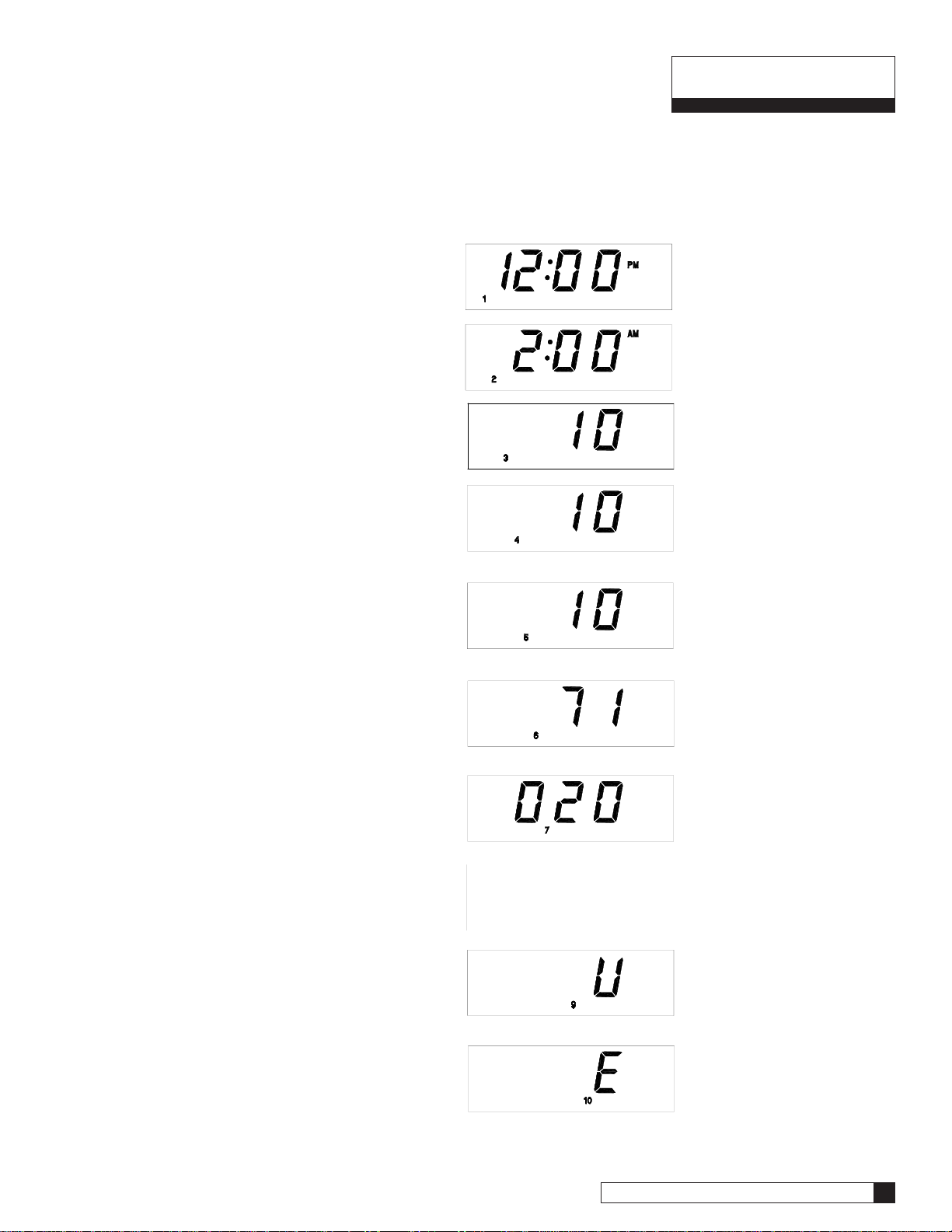

Display
As shipped from the factory, the display of the board will turn off if there has been no keyboard activity for a 1 minute period.To have a the
display constantly lit, press the STATUS button until the number 10 icon is lit. Next, press the UP arrow. A “d” for
disable will appear in the display. To have the display blank again, press the UP arrow.An “E” will appear in the display.
Power Loss
TheAccuSoft®circuit board is equipped with a Hi-Cap Capacitor and EEPROM memory chip. The capacitor is capable of maintaining the
time, for at least one day, in the event of a power outage. The EEPROM ensures that the individual programming parameters of your
softener are not lost.
If the power outage lasts long enough to drain the Hi-Cap Capacitor, the control will flash "12:00 PM" when power is returned to the
control. The unit will continue to keep time from the moment power is restored, and will initiate a full regeneration at the preset regen-
eration time. The time of day will need to be reset in order to return the regeneration to its preset time.
If you live in an area where power outages occur with a regular frequency, a battery backup option is available for ensuring that the
time of day is properly maintained. Contact your Culligan Dealer for more information.
Meter Operation
For units equipped as a Soft-Minder®meter, the gallons remaining can be viewed by pressing the STATUS button until the screen is blank.
Press the DOWN arrow until the number 15 icon is illuminated. The display must be multiplied by 10 to determine the actual gallons
remaining before the unit calls for a regeneration.
Regeneration
To initiate an immediate regeneration, press the “REGEN” button twice.An immediate regeneration will also occur if a power outage has
lasted for more than four hours and the Immediate Regeneration option is chosen. Ask your Culligan Dealer about
this feature.
Aregeneration at the Time of Regeneration will occur if so signaled by theAqua-Sensor®sensing device or the Soft-Minder meter. If the
blanking option is engaged, the display will light indicating a regeneration signal has been received. It will then blank itself after 1 minute.
The “REGEN” enunciator on the display will also be lit.
Service
The Culligan®Mark 100 water softener is equipped with a self diagnostic program to insure optimal operation of your water softener.
Should service become necessary, a phone icon will appear in the display. If this condition occurs, call your local Culligan dealer for
assistance. The phone icon will be the only item displayed when service is required on the control.
Familiarization

Press Vto increase or
Wto decrease
Press Vto increase or
Wto decrease
Press Vto increase or
Wto decrease
1. With a flashing or blank display, pressing the
status button twice will move to the Time-of-Day
adjustment. Anumber “1” will appear at the
bottom of the display while in this mode.
2. Press status again, this displays the Time-of-
Regeneration. Anumber “2” will appear at the
bottom of the display while in this mode.
3. Press status again, the number “3” will appear at
the bottom of the display. This setting is not
used.
4. Pressing status again will show the Salt Dosage.
This can be adjusted from 3-15 lbs. for the 9” and
5-24lbs. on12” models. Anumber “4”will
appear at the bottom of the display while in this
mode.
The Culligan®AccuSoft®circuit board controls all of the softener functions. These settings are programmed at the time of
installation. The following is a list of all the microprocessor functions, in the event that any of the settings need to be adjusted.
If a small padlock icon appears in the lower right corner of the display, the microprocessor settings are locked and only the Time-
of-Day setting can be adjusted, call your Culligan Dealer if setting changes are required.
Programming
Press Vto increase or
Wto decrease
8. Press status again, for time clock models the display
will show the RegenerationInterval. Controls witha
Soft-Minder®meter will display the Gallonsto Signal
(multiply the displayed value by 10). Anumber “8”
will appear at the bottom of the display while in this
mode.
9. Press status again, the number “9” will appear at the
bottom of the display. This setting is not used.
10. Pressing status again brings up the ability to Enable/
Disable the screen blanking. To have the display
constantly lit, press the up arrow, a “d” for disable will
appear in the display. Pressing the up arrow again
displays an “E”, signifying that display blanking is
enabled. Anumber “10” will appear at the bottom of
the display while in this mode.
Press Vto increase or
Wto decrease
Press Vto increase or
Wto decrease
Press Vto increase or
Wto decrease
5. Press status again, this displays the Backwash Time.
The setting can be adjusted between 5 and 40
minutes. Anumber “5” will appear at the bottom of
the display while in this mode.
6. Press status again to display the Brine/Rinse Time.
The settings can be adjusted from 37-85 min for 9”,
and 35-89 min for 12”. Anumber “6” will appear at the
bottom of the display while in this mode.
7. Press status again to display the Hardness Level.
The setting can be adjusted from 2-99 gpg. Meter
ModelsOnly. Anumber “7” will appear at the bottom
of the display while in this mode.
Press Vto change
PROGRAMMING 7

8CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE
Salt is the mineral used to “recharge” your water conditioner. Abrine solution is automatically made up in the bottom of the salt storage
container, the Cullex®resin beads in the tall, thin tank are flushed with brine solution as a step in the recharging process.
Your Culligan Water Conditioner has been carefully designed to get the greatest amount of softening capacity from the salt it
uses. Here is some pertinent information about salt usage, types and service.
SALT ECONOMIZER
This control is set at the time of installation, and determines salt usage according to the water hardness, number of persons in
the household, and water usage.
WHAT KIND OF SALT IS BEST
All Culligan Water Conditioners are designed to use any water conditioner salt of good quality, including “rock”, “pellet”, “solar”,
or “evaporated” types.
All rock salt, regardless of source, contains insoluble material which collects at the bottom of the salt storage tank and requires
periodic clean-out.
Regardless of what type of salt is used, we recommend Culligan Brand Salt as suggested by your Culligan Dealer. He is the
expert and can provide you with the best product for your Culligan Water Conditioner.
AUTOMATIC SALT DELIVERY SERVICE
Ask your Culligan Dealer for details about salt delivery service.You can have your salt supply replenished on a regular basis. Whether you
have automatic delivery service or pick up salt from your Culligan Dealer, you will be getting quality salt packaged according to rigid
Culligan specifications. Using Culligan Brand Salt will help assure continued efficiency and trouble-free operation of your water condi-
tioner.
CAREANDCLEANINGOFYOURCULLIGANWATERCONDITIONER
Following these simple precautions will help assure continued trouble-free service and keep your Culligan Water Conditioner looking
like new for years.
Do not place heavy objects on top of the salt storage tank or timer cover.
Use only mild soap and warm water when cleaning the exterior of the conditioner. Never use harsh, abrasive cleaning
compounds or those which contain acid, such as vinegar, bleach and similar products.
Important: Protect your water conditioner and the entire drainline from freezing temperatures. DANGER: If your
unit should freeze, do not attempt to disassemble it. Call your Culligan Dealer.
Should service, adjustment or trouble-shooting information be needed which is not covered in this Owner's Guide,
a complete Service Manual covering the conditioner that you own may be obtained from your Culligan Dealer.
1
2
3
4
Salt Supply, Usage and Service

A periodic clean-out of the Salt Storage Tank is necessary to keep your Culligan Water Conditioner at peak operating efficiency.
Do it at least every 2 years when the salt supply is low. Follow these step-by-step procedures:
Toolsneeded:
• Scoop
• Clean, bucket-size container
• Phillips-head screwdriver
• Garden hose, Household scrub brush or sponge
1. Remove the salt storage tank cover and the cap from the brine valve chamber.
2. Lift the brine valve out of the brine valve chamber and set aside in an upright position.
3. If you’d like to save any clean, dry salt remaining in the tank, remove it and place it in a clean container.
4. Using the scoop, dig out and discard as much remaining salt, water and debris as possible.
5. Remove the brine valve chamber by removing the chamber retaining screw and nut.
6. Remove the salt plate at the bottom of the tank.
7. Lay the salt tank on its side and direct a brisk stream of water from your garden hose to its inside to rinse out all residue.
8. Using a household scrub brush and a mild soapy solution, clean the salt plate. This will complete the tank cleaning.
9. Stand salt tank upright. Make sure to place the tank on a flat, smooth, solid surface.
10. Replace the salt plate. Place brine valve chamber in position and affix with screw and nut.
11. Insert the brine valve into the chamber and replace brine valve chamber cap.
12. Fill the salt storage tank with 4 to 6 inches of water.
13. Fill the tank with salt to within a few inches of the top.
14. Replace salt storage tank cover.
To Clean Out the Salt Storage Tank
TOCLEAN OUTTHESALTSTORAGETANK 9

10 CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE
Performance Data Sheet
** Verified utilizing hardness surrogate per ANSI/NSF Standard 44.
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its
performance. It's because of this and more than sixty years of commitment to customer satisfaction that Culligan is
providing this Performance Data Sheet to its customers.
IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your
actual water treatment needs. It is recommended that before purchasing a water treatment unit, you have your
water supply tested to determine your actual water treatment needs.
MANUFACTURER
CulliganInternationalCompany
One Culligan Parkway, Northbrook, IL60062-6209 USA
[phone]
PRODUCT
Culligan®Mark 100, 9" Water Softener
TESTING CONDITIONS& RESULTS
Capacity:
17,500grains @4.0lb. salt
23,900grains @8.0lb. salt
26,600grains @ 12.0lb. salt
MaximumFlowRate:
7.5gpm(30 Lpm)
PressureDropatMaximumFlowRate:
15psi(102kPa)
OperatingTemperatureRange:
33-120oF(1-50oC)
MaximumDrainFlowRate:
2.0gpm(8Lpm)
Working Pressure Range:
20-125psi(140-860 kPa)
FlowRate: 7.5gpm
Pressure: 30-40 psi
Acidity: Non-Corrosive
Temperature: 68°(20°C)
pH: 7.6
SOFTENER SPECIFICATIONS
NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
The Culligan Mark 100 water softeners are tested and validated by WQAagainstANSI/NSF Standard 44 for the effective reduction of
calciumand magnesium(hardness) along withBarium and Radium226/228*.
Refer to the Specifications, Familiarization, and Warranty sections of this Owner's Guide for more specific product information. To
avoid contamination from improper handling and installation, your system should only be installed and serviced by your Culligan Man.
Performance will vary based on local water conditions. The substances reduced by this system are not necessarily in your water.
Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you ask your local
Culligan man for his suggestion on the best type and grade of salt to use in this softener.

* Verified utilizing hardness surrogate per ANSI/NSF Standard 44.
Performance Data Sheet
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its
performance. It's because of this and more than sixty years of commitment to customer satisfaction that Culligan is providing
this Performance Data Sheet to its customers.
IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water
treatment needs. It is recommended that before purchasing a water treatment unit, you have your water supply tested to
determine your actual water treatment needs.
MANUFACTURER
CulliganInternationalCompany
One Culligan Parkway, Northbrook, IL60062-6209 USA
[phone]
PRODUCT
Culligan®Mark 100, 9" Water Softener with Soft-Minder®Meter
TESTING CONDITIONS
Capacity:
17,500grains @4.0lb. salt
23,900grains @8.0lb. salt
26,600grains @ 12.0lb. salt
MaximumFlowRate:
7.5gpm(30 Lpm)
PressureDropatMaximumFlowRate:
15psi(102kPa)
OperatingTemperatureRange:
33-120oF(1-50oC)
MaximumDrainFlowRate:
2.0gpm(8Lpm)
Working Pressure Range:
20-125psi(140-860 kPa)
FlowRate: 7.5gpm
Pressure: 30-40 psi
Acidity: Non-Corrosive
Temperature: 68°(20°C)
pH: 7.6
SOFTENER SPECIFICATIONS
NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
Refer to the Specifications, Familiarization, andWarranty sections of this Owner'sGuide for more specific product information.To avoid
contamination from improper handling and installation, your system should only be installed and serviced by your Culligan Man.
Performance will vary based on local water conditions. The substances reduced by this system are not necessarily in your water.
Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you ask your local
Culligan man for his suggestion on the best type and grade of salt to use in this softener.
This Culligan Mark 100 water softener is tested and validated by WQAtoANSI/NSF Standard 44 for the effective reduction of calcium and
magnesium(hardness) alongwith Barium andRadium 226/228*.
This softener is efficiency rated, it has a Demand Initiated Regeneration (D.I.R.) feature which complies with specific performance specifi-
cations intended to minimize the amount of regenerant brine and water used in their operation. The softener has a rated salt efficiency of
not less than 3350 grains of total hardness exchange per pound of salt used (based on NaCl equavalency), and shall not deliver more salt
thanits listedrating. The efficiency is measuredby a laboratorytest described inANSI/NSF Standard 44. This testrepresentsthe maximum
possible efficiency that the system can achieve. Operational efficiency is the actual efficiency achieved after the system has been installed.
Operational efficiency is typically less then the efficiency due to individual application factors including water hardness, water usage, and
other contaminants that reduce the softener's capacity.
PERFORMANCEDATASHEET 11

12 CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE
NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
Performance Data Sheet
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its
performance. It's because of this and more than sixty years of commitment to customer satisfaction that Culligan is providing
this Performance Data Sheet to its customers.
IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water
treatment needs. It is recommended that before purchasing a water treatment unit, you have your water supply tested to
determine your actual water treatment needs.
MANUFACTURER
CulliganInternationalCompany
One Culligan Parkway, Northbrook, IL60062-6209 USA
[phone]
PRODUCT
Culligan®Mark 100, 9" Water Softener with Aqua-Sensor®Sensing Device
TESTING CONDITIONS
Capacity:
17,500grains @4.0lb. salt
23,900grains @8.0lb. salt
26,600grains @ 12.0lb. salt
MaximumFlowRate:
7.5gpm(30 Lpm)
PressureDropatMaximumFlowRate:
15psi(102kPa)
OperatingTemperatureRange:
33-120oF(1-50oC)
MaximumDrainFlowRate:
2.0gpm(8Lpm)
Working Pressure Range:
20-125psi(140-860 kPa)
FlowRate: 7.5gpm
Pressure: 30-40 psi
Acidity: Non-Corrosive
Temperature: 68°(20°C)
pH: 7.6
SOFTENER SPECIFICATIONS
Refer to the Specifications, Familiarization, and Warranty sections of this Owner's Guidefor more specific product information. To avoid
contamination from improper handling and installation, your system should only be installed and serviced by your Culligan Man.
Performance will vary based on local water conditions. The substances reduced by this system are not necessarily in your water.
Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you ask your local
Culligan man for his suggestion on the best type and grade of salt to use in this softener.
This Culligan Mark 100 water softener is tested and validated by WQAtoANSI/NSF Standard 44 for the effective reduction of calcium and
magnesium(hardness) alongwith Barium andRadium 226/228*.
This softener is efficiency rated, it has a Demand Initiated Regeneration (D.I.R.) feature which complies with specific performance specifi-
cations intended to minimize the amount of regenerant brine and water used in their operation. The softener has a rated salt efficiency of
not less than 3350 grains of total hardness exchange per pound of salt used (based on NaCl equavalency), and shall not deliver more salt
thanits listedrating. The efficiency is measuredby a laboratorytest described inANSI/NSF Standard 44. This testrepresentsthe maximum
possible efficiency that the system can achieve. Operational efficiency is the actual efficiency achieved after the system has been installed.
Operational efficiency is typically less then the efficiency due to individual application factors including water hardness, water usage, and
other contaminants that reduce the softener's capacity.
* Verified utilizing hardness surrogate per ANSI/NSF Standard 44.

* Verified utilizing hardness surrogate per ANSI/NSF Standard 44.
Performance Data Sheet
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its
performance. It's because of this and more than sixty years of commitment to customer satisfaction that Culligan is
providing this Performance Data Sheet to its customers.
IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your
actual water treatment needs. It is recommended that before purchasing a water treatment unit, you have your
water supply tested to determine your actual water treatment needs.
MANUFACTURER
CulliganInternationalCompany
One Culligan Parkway, Northbrook, IL60062-6209 USA
[phone]
PRODUCT
Culligan®Mark 100, 12" Water Softener
TESTING CONDITIONS& RESULTS
Capacity:
24,100grains @6.0lb. salt
34,500grains @ 12.0lb. salt
41,900grains @ 18.0lb. salt
MaximumFlowRate:
7.5gpm(30 Lpm)
PressureDropatMaximumFlowRate:
15psi(102kPa)
OperatingTemperatureRange:
33-120oF(1-50oC)
MaximumDrainFlowRate:
2.0gpm(8Lpm)
Working Pressure Range:
20-125psi(140-860 kPa)
FlowRate: 7.5gpm
Pressure: 30-40 psi
Acidity: Non-Corrosive
Temperature: 68°(20°C)
pH: 7.6
SOFTENER SPECIFICATIONS
NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
The Culligan Mark 100 water softeners are tested and validated by WQAagainstANSI/NSF Standard 44 for the effective reduction of
calciumand magnesium(hardness) along withBarium and Radium226/228*.
Refer to the Specifications, Familiarization, and Warranty sections of this Owner's Guide for more specific product information. To
avoid contamination from improper handling and installation, your system should only be installed and serviced by your Culligan Man.
Performance will vary based on local water conditions. The substances reduced by this system are not necessarily in your water.
Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you ask your local
Culligan man for his suggestion on the best type and grade of salt to use in this softener.
PERFORMANCEDATASHEET 13

14 CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE * Verified utilizing hardness surrogate per ANSI/NSF Standard 44.
Performance Data Sheet
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its
performance. It's because of this and more than sixty years of commitment to customer satisfaction that Culligan is providing
this Performance Data Sheet to its customers.
IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water
treatment needs. It is recommended that before purchasing a water treatment unit, you have your water supply tested to
determine your actual water treatment needs.
MANUFACTURER
CulliganInternationalCompany
One Culligan Parkway, Northbrook, IL60062-6209 USA
[phone]
PRODUCT
Culligan®Mark 100, 12" Water Softener with Soft-Minder®Meter
TESTING CONDITIONS
Capacity:
24,100grains @6.0lb. salt
34,500grains @ 12.0lb. salt
41,900grains @ 18.0lb. salt
MaximumFlowRate:
7.5gpm(30 Lpm)
PressureDropatMaximumFlowRate:
15psi(102kPa)
OperatingTemperatureRange:
33-120oF(1-50oC)
MaximumDrainFlowRate:
2.0gpm(8Lpm)
Working Pressure Range:
20-125psi(140-860 kPa)
FlowRate: 7.5gpm
Pressure: 30-40 psi
Acidity: Non-Corrosive
Temperature: 68°(20°C)
pH: 7.6
SOFTENER SPECIFICATIONS
NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
Refer to the Specifications, Familiarization, and Warranty sections of this Owner's Guidefor more specific product information. To avoid
contamination from improper handling and installation, your system should only be installed and serviced by your Culligan Man.
Performance will vary based on local water conditions. The substances reduced by this system are not necessarily in your water.
Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you ask your local
Culligan man for his suggestion on the best type and grade of salt to use in this softener.
This Culligan Mark 100 water softener is tested and validated by WQAtoANSI/NSF Standard 44 for the effective reduction of calcium and
magnesium(hardness) alongwith Barium andRadium 226/228*.
This softener is efficiency rated, it has a Demand Initiated Regeneration (D.I.R.) feature which complies with specific performance specifi-
cations intended to minimize the amount of regenerant brine and water used in their operation. The softener has a rated salt efficiency of
not less than 3350 grains of total hardness exchange per pound of salt used (based on NaCl equavalency), and shall not deliver more salt
thanits listedrating. The efficiency is measuredby a laboratorytest described inANSI/NSF Standard 44. This testrepresentsthe maximum
possible efficiency that the system can achieve. Operational efficiency is the actual efficiency achieved after the system has been installed.
Operational efficiency is typically less then the efficiency due to individual application factors including water hardness, water usage, and
other contaminants that reduce the softener's capacity.

* Verified utilizing hardness surrogate per ANSI/NSF Standard 44.
Performance Data Sheet
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its
performance. It's because of this and more than sixty years of commitment to customer satisfaction that Culligan is providing
this Performance Data Sheet to its customers.
IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water
treatment needs. It is recommended that before purchasing a water treatment unit, you have your water supply tested to
determine your actual water treatment needs.
MANUFACTURER
CulliganInternationalCompany
One Culligan Parkway, Northbrook, IL60062-6209 USA
[phone]
PRODUCT
Culligan®Mark 100, 12" Water Softener with Aqua-Sensor®Sensing Device
TESTING CONDITIONS
Capacity:
24,100grains @6.0lb. salt
34,500grains @ 12.0lb. salt
41,900grains @ 18.0lb. salt
MaximumFlowRate:
7.5gpm(30 Lpm)
PressureDropatMaximumFlowRate:
15psi(102kPa)
OperatingTemperatureRange:
33-120oF(1-50oC)
MaximumDrainFlowRate:
2.0gpm(8Lpm)
Working Pressure Range:
20-125psi(140-860 kPa)
FlowRate: 7.5gpm
Pressure: 30-40 psi
Acidity: Non-Corrosive
Temperature: 68°(20°C)
pH: 7.6
SOFTENER SPECIFICATIONS
NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
Refer to the Specifications, Familiarization, andWarranty sections of this Owner'sGuide for more specific product information.To avoid
contamination from improper handling and installation, your system should only be installed and serviced by your Culligan Man.
Performance will vary based on local water conditions. The substances reduced by this system are not necessarily in your water.
Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you ask your local
Culligan man for his suggestion on the best type and grade of salt to use in this softener.
This Culligan Mark 100 water softener is tested and validated by WQAtoANSI/NSF Standard 44 for the effective reduction of calcium and
magnesium(hardness) alongwith Barium andRadium 226/228*.
This softener is efficiency rated, it has a Demand Initiated Regeneration (D.I.R.) feature which complies with specific performance specifi-
cations intended to minimize the amount of regenerant brine and water used in their operation. The softener has a rated salt efficiency of
not less than 3350 grains of total hardness exchange per pound of salt used (based on NaCl equavalency), and shall not deliver more salt
thanits listedrating. The efficiency is measuredby a laboratorytest described inANSI/NSF Standard 44. This testrepresentsthe maximum
possible efficiency that the system can achieve. Operational efficiency is the actual efficiency achieved after the system has been installed.
Operational efficiency is typically less then the efficiency due to individual application factors including water hardness, water usage, and
other contaminants that reduce the softener's capacity.
PERFORMANCEDATASHEET 15

16 CULLIGAN®MARK100WATERSOFTENEROWNER'SGUIDE
CULLIGAN®MARK SERIES AUTOMATIC WATER CONDITIONERS
You have just purchased one of the finest water conditioners made.As an expression of our confidence in Culligan products,
yourwaterconditioneriswarranted to the original end-user,wheninstalled inaccordancewithCulliganInternationalCompany
specifications,against defects in material and workmanship from the dateoforiginal installation, as follows:
For a period of ONE YEAR The entire conditioner
For a period of FIVE YEARS The control valve timer
The AccuSoft®circuit board, or Soft-Minder®meter, if so equipped
For a period of TEN YEARS The control valve body
The salt storage container, brine valve and all its component parts
For the LIFETIME of the original The Tripl-Hull™conditioner tank including all internal components and
consumer purchaser the Cullex®resin
Ifapartdescribedaboveis found defective within thespecifiedperiod,youshouldnotifyyourindependently operated Culligan
dealerandarrange a time during normal business hours for the dealer to inspectthewaterconditioneron your premises. Any
part found defective within the terms of this warranty will be repaired or replaced by the dealer. You pay only freight from our
factoryandlocaldealercharges.
We are not responsible for damage caused by accident, fire, flood, freezing, Act of God, misuse, misapplication, neglect,
oxidizing agents (such as chlorine, ozone, chloramines and other related components), alteration, installation or operation
contrary to our printed instructions, or by the use of accessories or components which do not meet Culligan specifications, is
not covered by this warranty. Refer to the specifications section in the Installation and Operating manual for application
parameters.
Our product performance specifications are furnished with each water conditioning unit. TO THE EXTENT PERMITTED BY
LAW, CULLIGAN DISCLAIMSALLIMPLIED WARRANTIES, INCLUDING WITHOUTLIMITATION WARRANTIES OF MER-
CHANTABILITYANDFITNESSFORPARTICULARPURPOSE;TOTHEEXTENTREQUIRED BYLAW,ANYSUCHIMPLIED
WARRANTIESARELIMITEDINDURATIONTOTHEONE-YEAR PERIOD SPECIFIEDABOVEFORTHE ENTIRE CONDI-
TIONER.As amanufacturer, we donotknowthecharacteristicsof your watersupplyorthepurpose for which youarepurchas-
ing a water conditioner. The quality of water supplies may vary seasonally or over a period of time, and your water usage rate
may vary as well. Water characteristics can also differ considerably if your water conditioner is moved to a new location. For
thesereasons,weassumeno liability for thedeterminationoftheproper equipment necessary tomeetyourrequirements,and
wedonot authorize otherstoassumesuch obligations forus.Further,weassumenoliability andextendnowarranties,express
or implied, for the use of this product with a non-potable water source. OUR OBLIGATIONS UNDER THIS WARRANTYARE
LIMITEDTOTHEREPAIR ORREPLACEMENTOFTHEFAILEDPARTSOFTHEWATERCONDITIONER,ANDWEASSUME
NO LIABILITY WHATSOEVER FOR DIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, GENERAL,
OROTHERDAMAGES.
CONSUMERS:
Somestatesdonotallowtheexclusion of implied warranties or limitations onhowlonganimpliedwarrantylasts,sothe above
limitation may not apply to you. Similarly, some states do not allow the exclusion of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Consult your telephone directory for your local independently operated Culligan
dealer, orwriteCulliganInternationalCompanyforwarrantyandservice information.
CULLIGANINTERNATIONALCOMPANY
One Culligan Parkway
Northbrook, Illinois 60062
LIMITED
WARRANTY

WITHCULLIGAN,YOUGETMORETHANAQUALITYPRODUCT
We’re here to provide you with fast, local, dependable service, making sure any problems you have are taken care of. The Culligan Man has
been around for over sixty years, delivery dependable service all along. That’s why people say, “Hey Culligan Man!®” Because we’re the
water experts.And that’s who you want taking care of your water.
YOU GET YOUR WATER EXPERT, THE CULLIGAN MAN.
At Culligan, we understand that a water quality improvement system is an investment in your family’s well-being. That’s why our 1,350
independently operated dealers worldwide don’t just sell products: they sell water quality you can count on. We stand behind our
products with written limited warranties and our unequaled Culligan service. No matter where you live, you can depend on Culligan
expertise to work for you — today and tomorrow.
THE CULLIGAN PROMISE
Simply call and say . . .
CULLIGANINTERNATIONALCOMPANY
OneCulliganParkway, Northbrook,IL 60062-6209
CULLIGANPROMISE 17

Materials & description: 8-1/2 x 11, 20 page book, saddle stitched, three
hole punched - Prints black ink on 50# offset white
This page contains materials
and DCO information. IT DOES
NOT PRINTAS PART OF THE
DOCUMENT!
LET CHANGE BY APRVD DATE
A DCO 200 TPD JS 3/16/00
B DCO TPD JS 1/22/01
