Culver Mobility 7001R User manual

1
USER MANUAL
Please,Read and follow all instructions, warnings, and notes in this manual
before attempting to operate your power wheelchair for the first time. If there is
any information in this manual which you do not understand, or if you require
additional assistance for assembly or operation, please contact with your
authorized local provider. Whether to use your product safely is up to whether
you follow instructions, cautions and warnings in this manual. We are not liable
for any damage and/or injures resulting from individual unsafe operation or
failure to follow instructions, cautions and warnings in this manual. These
symbols below in this manual are used to identify warnings and important
information. All of them are very important to your safety. It is strongly
recommended that you should read and understand them completely.
Safety:
Please read User Manual carefully and follow riding requirements
during the power chair ride. Please do not use it until riders have
read User Manual carefully and learned the performance well. Do
not lend it to those who cannot manipulate power chair.

2
Important Note:
You need lots of practice to grasp the skill before you ride power
chair safely. If you are not skilled or fail to follow the user guide of
this product, it may cause rider or others injury or property loss.
Our company only takes the responsibility for product defects or
damage, and we are NOT responsible for physical injury or
property loss related with using products.
Attentions before operation:
Get familiar with local traffic rules.
Power chair belongs to non-motor vehicle, being designed
especially for the old and the people with mobility problem. No
driving license is needed in accordance with
traffic law, but driver of power chair should observe the same
traffic rules that are applied to pedestrians.
Please drive power chair in pedestrian lane or bike
lane:
A- Get familiar with all the traffic signals marks used for
pedestrians.
B- Do not turn direction or crossroad suddenly when driving on
road.
• Operation Practice:
Before your first time to operate this power chair, please get
familiar with all the functions of this vehicle. Practice the
operations like moving forward, increasing speed, reducing

3
speed, stopping, moving backward, moving uphill, moving
downhill and turning direction in a safe pace with less people
and good road condition. Then you can officially drive on road
after getting familiar with all these operations.
Do not drive the power chair after you drink, are exhausted or
are not consciously clear to guarantee your safety.
Please confirm that the operator of this power chair is not
suffered from any mental disease or other diseases that may
attack during driving and result in the driver's incompetence of
driving the vehicle safely.
If you are taking medicine, please confirm from your doctor
that if such medicine will have adverse influence on your ability
to operate the electric wheelchair..
Check the vehicle condition to confirm if the brake and various
properties are normal, if the seat is locked and the charge
volume is enough.
Never expose the electrical system of this vehicle to humid
environment (such as rain, snow or fog), do not wash this
vehicle with water, which will damage the electrical system. If
the power chair is wet, it could only be used after being dried
and confirmed for good condition.
Do not drive the power chair under hostile weather conditions,
such as rain, snow, fog, strong wind, temperature lower than
-20°C or higher than 40°C. The electrical system may be
damaged under those conditions to cause failures in control.
Do no drive the power chair on desert, beach, muddy road,
road with pooled water, iced road, too smooth road or saline
and alkaline land to prevent the driving property
of this vehicle.
Attentions after Operation:

4
1. If you are not going to use the power chair for over 48 hours,
Please, turn off the power switch.
2. When bring power chair to other vehicles, make sure the
battery is fixed.
Battery usage:
1. Auxiliary charge: such as short delivery time, users can directly
use the battery. If the delivery time is longer (2 months or
longer), the battery will lose power during storage and
transport. It is better to charge the battery before use. To
charge it requires plugging the exclusive charge to the battery
charging hole and connecting AC100-240V power source for 8
hours untill the charger is full.
2. The normal charge of the battery: the operation of AIR is also
the discharge process of the battery. The battery should be
charged immediately after the use of the power-assisted
vehicle. Please turn off the power if not riding.
3. The connectors of the battery box should be fixed tightly
according to the requirements (the battery box connecting line
has been reliably connected before ex-factory). Loosened or
wrong connection will cause the related parts abnormal and
lead to serious damage.
4. Lithium batteries can not be close to open fire or high
temperature heat source, can not be thrown into water and can
not be exposed in the sun in high temperature season.
5. Do not disassemble and decompose, as the internal part of
them lithium battery has been packaged intactly.
6. The waste lithium battery of the product is to be recycled by
the enterprise or dealer, and the government designated
outlets. Please do not throw away the waste battery, so as not
to pollute the environment.

5
Contents
Introduction………………………………………………........6
Quick Reference Guide……………………………………......8
Specification………………………………………….............. 12
Practice before operation………………………………..........13
EMI warning…………………….....….....................................15
Safety instruction………………………………………..…....23
Terminology…………………………………………..…........27
Joystick controller operation instruction………………….......28
Electric mode handle ………………………….....…......34
Fold your wheelchair…………………………………….........35
Adjust the controller out of length……………….………........36
Back flip rotating armrest……………………………..............37
Remove the battery……………………………………..…......38
Battery application……………………………………...…......39
Warranty……………………………………….........................43
remote controller…………........................................................43

6
1. Joystick
2. Charger port on joystick
3. Safe belt
4. Footfest
5. 8’ front wheel
6. Headrest
7. Armrest flip lock
8. 12’ rear wheel
2
4
1
5
7
6
8
3

7

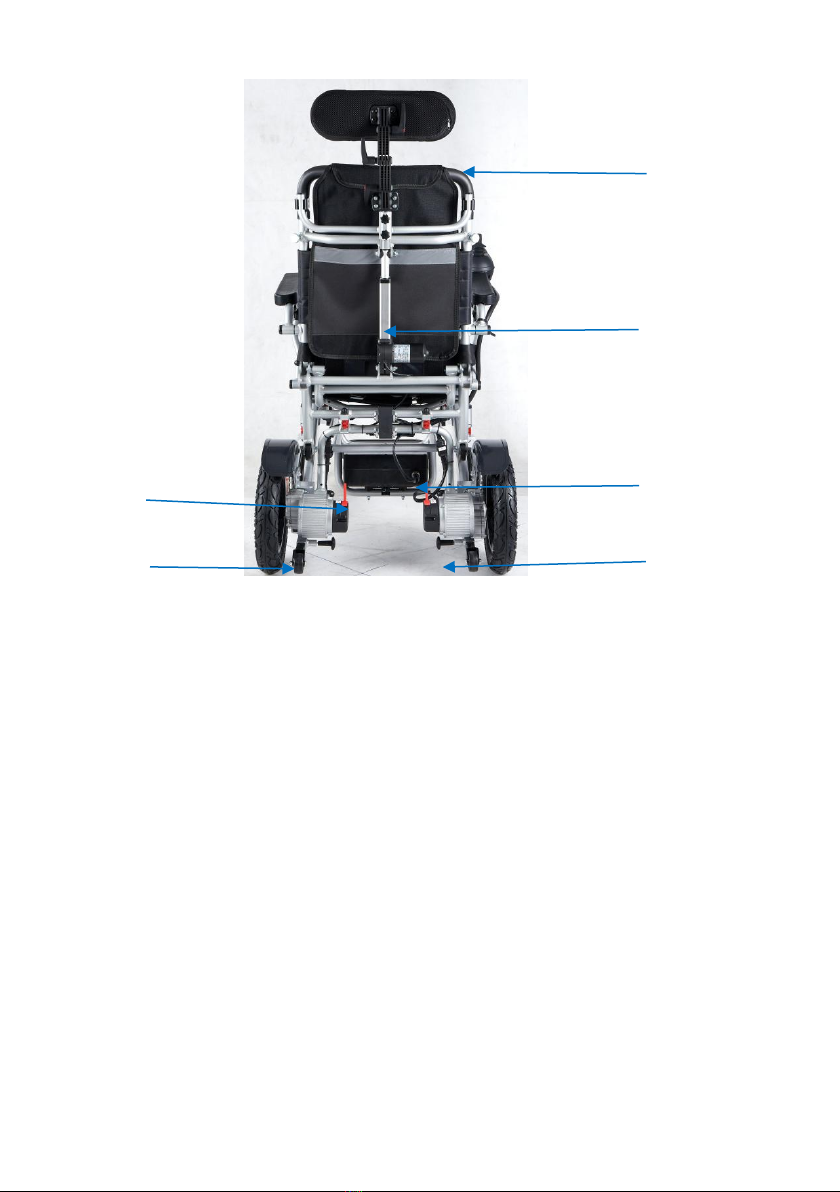

1. electric/manual model adjust handle
2. Castor
3. Battery socket
4. Castor adjust lock
5. Backrest electric push rod
6. Push handle
Packing detail
1pcs charger
1pcs remote controller
1pcs user manual
1pcs power wheelcahir
1set tools bag
4
3
2
1
5
6

8
A:Install the headrest
Using the tools inside the buttom pack to install the headrest
If you don’t know it ,kindly contact us to get the video please.
1.Take out the headrest from the carton.

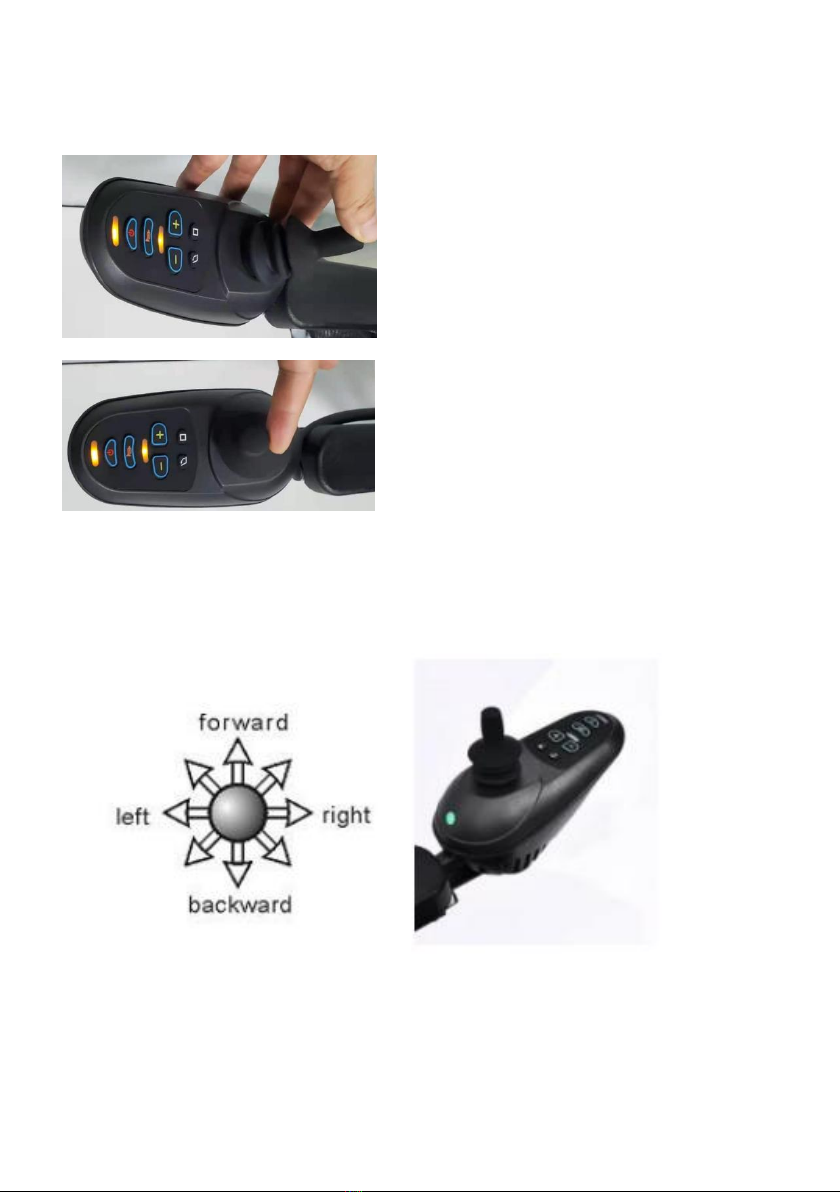

B:Install the joystick
1.This is the controller buttons look like.
2.There are two buttons for lie down and confirm of the
wheelchair.
Lie down button
Confirm button

9
3.Take out the wheelchair and spare parts from the packing
box.
4.Install the controller to the right or left
armrest of the driver;
5.Turn on the joystick,click on the lie down button until the
indicator light flash to be on the middle
7. Then click on the confirm button till hear three beep
sound ,
8. You can push the joystick forward or backward to

10
control the angle of the backrest.
backward
forward

11
Specification
Model Name
7001R Automatically lie down
Whole product size (unfolded)
1100*630*1180mm
Net Weight (With battery)
30kgs
Front wheel
200mm×50mm
Rear wheel
320×60 mm
Loading capacity
130kg
Forward speed
0-6km/h(adjustable)
Range per charge
≥13KM
Motor
24v/250w×2
Turning radius
600mm
Battery (Lithium)
24V/26AH,24V/20AH,24V/12AH,24V/6.6AH*2
Brake
intelligent Electromagnetic brake
Anti-tip wheel
50mm×25mm
Climbing ability
≤12°
Charger
AC100-240V50/60HZ
Output：24V2A

12
Failure to follow the instructions below may result in
damage to the electric wheelchair or serious injury.
Practice before operation
Find an open area such as a park and have an assistant to help you
practice until you can operate this vehicle skilled.
Make sure that the power is off before getting on or off the seat. Set the

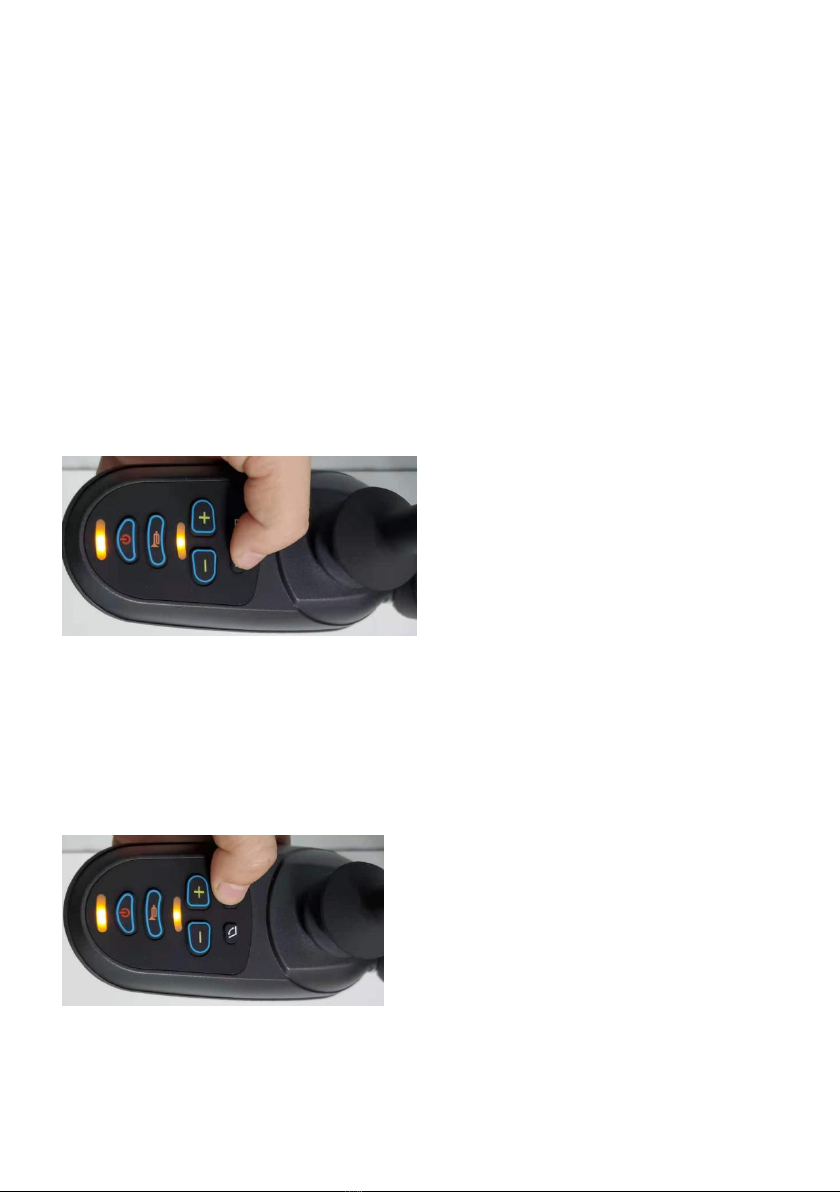

speed control button according to your driving
to proper speed you need.
We recommend you to keep the speed at the
slowest shift until you are familiar with the
driving characteristics of this vehicle.

13

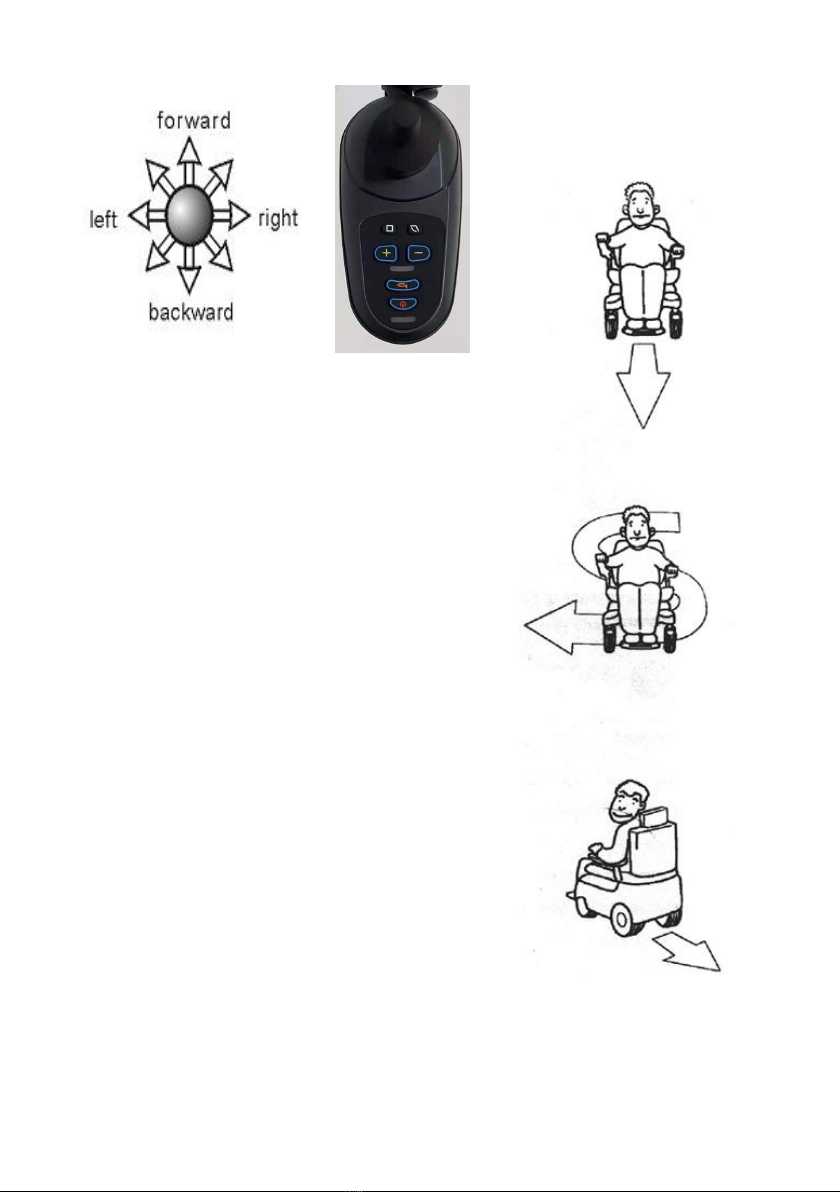

Stop, forward, and Reverse operation
practice.
Push the joystick in the directions as above
picture show when you want to drive to the
direction accordingly.
First, practice moving forward. Be sure to set
the speed to the lowest shift.
After familiar with moving forward, practice
"S" turn.
After familiar with moving forward, practice
drawing back.Attention to the speed controlling when backward.

14
EMI warning
The rapid development of electronic technology, especially in the
communication area, is filled with electromagnetic waves in our living
environment, such as television, radio and communication signals.
These electromagnetic waves are invisible, and its intensity is enhanced.
All the electronic devices as the antenna to the electromagnetic signal
and its degree of change. All electric wheelchairs and electric scooters
are susceptible to electromagnetic interference (EMI). These
disturbances can cause abnormal movement and control instability.
Electric wheelchair and electric scooters are likely to be subject to
electromagnetic interference. These disturbances of electromagnetic or
energy are transmitted from, for example, radio, television and mobile
phones. These disturbances may cause the electric wheelchair to fail to
brake, move suddenly or not in the specified direction. It may cause
damage to the electric wheelchair control system.
The brake system of the 630 wheelchair is electric magnetic(EM)means

15
the once you release your hand from the joystick, it stops completely.
ATTENTION：
1, Electric wheelchair buyers or users should be using electric
wheelchair in the electromagnetic environment specified in the table
201,202,204,206 , otherwise it may lead to electric wheelchair not
working properly.
2, Portable and mobile radio frequency communications equipment may
affect the normal use of electric wheelchair, please use the electric
wheelchair in recommended electromagnetic environment.
WARNING：
1. In addition to the accessories and cables provided by the
manufacturer of the electric wheelchair, the use of other accessories and
cables may result in an increase in the transmission of the electric
wheelchair or a reduction in immunity.
2, Electric wheelchair should not be close to or stacked with other
equipment,if it is necessary to be close or stacked, need to observe that
it is working properly using the configuration.

16
Table 201
Guidance and manufacturer's statement - Electromagnetic emission
Electric wheelchair is expected to be used in the following specified
electromagnetic environment, the purchaser or the user should ensure that
it is used in this electromagnetic environment:
Launch test
Compliance
Electromagnetic Environment -
Guide
radio-frequency
emission
GB 4824
1 Group
Electric wheelchair only
uses radio frequency energy for
its internal functions. As a result,
its RF emissions are low and
there is little chance of
interfering with nearby
electronics
radio-frequency
emission
GB 4824
Type B
Electric wheelchair is
suitable for non-domestic use ,
and is used in all facilities that
are not directly connected to the
public low-voltage supply
network of domestic homes.
Harmonic
emission
GB 17625.1
Not applicable
Voltage fluctuation
/ flashing emission
GB 17625.2
Not applicable
Table 202
Guidance and manufacturer's statement - electromagnetic immunity
Electric wheelchair is expected to be used in the following specified
electromagnetic environment, the purchaser or the user should ensure that it
is used in this electromagnetic environment:
Immunity test
IEC
60601Test
level
Match level
Electromagnetic
Environment - Guide

17
Electrostatic
discharge
GB/T 17626.2
±6 kV Contact
discharge
±8 kV Air
discharge
±6 kVContact
discharge
±8 kV Air
discharge
The ground should be
wood, concrete or
tiles, if the ground
with synthetic
materials, the relative
humidity should be at
least 30%
Electrical
transient bursts
GB/T 17626.4
±2 kV On the
power cord
±1 kV For
input / output
lines
Not applicable
The network power
supply should have
the quality used in
typical commercial or
hospital environment
Surge
GB/T 17626.5
±1 kV Line to
line
±2 kV Line to
ground
Not applicable
The network power
supply should have
the quality used in
typical commercial or
hospital environment
Power input
line voltage
sag, short
interrupt and
voltage change
GB/T
17626.11
＜5% UT，For
0.5 cycles
（UT，＞95%
Sag）
40% UT，For 5
cycles
（UT，60%
Sag）
70% UT，For
25 cycles
（UT，30%
Sag）
＜5% UT，Last
for 5s
（UT， ＞
Not applicable
The network power
supply should have
the quality used in
typical commercial or
hospital
environment .If the
electric wheelchair
users need to run
continuously during
power interruption, it
is recommended that
the electric wheelchair
be powered by
uninterruptible power
supply or battery

18
95%Sag）
Frequency
magnetic field
（50 Hz/60
Hz）
GB/T 17626.8
3 A/m
3 A/m
The frequency
magnetic field should
have the frequency
characteristics of the
frequency field in a
typical commercial or
hospital environment
Note: UT refers to the AC voltage before applying the test voltage.
Table 204
Guidance and manufacturer's statement - electromagnetic immunity
Electric wheelchair is expected to be used in the following specified
electromagnetic environment, the purchaser or the user should ensure that it
is used in this electromagnetic environment:
Immunity
test
IEC
60601Test
level
Match
level
Electromagnetic Environment -
Guide
Radio
frequency
conduction
3 V（Valid
values）
150 kHz～
Not
applicable
Portable and mobile RF
communication equipment
should not be used closer to any
part of the electric wheelchair
than the recommended isolation
distance, including cables. The
distance should be calculated by
the formula corresponding to the

19
GB/T
17626.6
Radio
frequency
radiation
GB/T
17626.3
80 MHz
3 V/m
80 MHz～
2.5 GHz
3 V/m
transmitter frequency.
Recommended isolation
distance
1.2d P
80 MHz～800 MHz
2.3d P
800 MHz～2.5 GHz
P- According to the maximum
rated output power of the
transmitter provided by the
transmitter manufacturer in
watts (W);
D - Recommended isolation
distance in meters (m).
The field strength of the fixed
RF transmitter is determined by
the investigation of the
electromagnetic field a, which is
lower in each frequency range
than the coincidence level.
Interference may occur near the
device marking the following
symbols.
Note 1: At frequencies above 80 MHz and 800 MHz, a higher
frequency band is used.
Note 2: These guidelines may not be suitable for all situations where
electromagnetic transmission is affected by the absorption and reflection of
buildings, objects and humans.
