Custom Equipment Hy-Brid Lifts PUSH-AROUND Programming manual

HB-P527
SERIES 1
MAINTENANCE & TROUBLESHOOTING MANUAL
PUSH-AROUND AERIAL WORK PLATFORM
SUPO-643
REV A
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
2
TABLE OF CONTENTS
SECTION 1 | SAFETY...............................................................................................................6
1.1 | SAFETY SYMBOLS ..................................................................................................................... 6
1.2 | GENERAL RULES AND PRECAUTIONS............................................................................... 6
1.3 | SAFETY GUIDELINES................................................................................................................ 7
SECTION 2 | MAINTENANCE ................................................................................................8
2.1 | BATTERY MAINTENANCE....................................................................................................... 8
2.2 | BATTERY MAINTENANCE WET CELL BATTERIES .......................................................... 8
2.3 | CHARGING THE BATTERY..................................................................................................... 8
2.4 | LUBRICATION ........................................................................................................................... 10
2.5 | COMPONENTS REQUIRING ADJUSTMENT..................................................................... 10
2.6 | EXAMINATION, REPAIR, REPLACEMENT OF LIMITED LIFE COMPONENTS............ 10
2.7 | SAFETY DEVICES AND SYSTEMS REQUIRING CHECKS ................................................ 10
2.8 | STORAGE ................................................................................................................................... 10
2.9 | MAJOR ALTERATIONS OR REPAIRS.................................................................................... 10
SECTION 3 | MAINTENANCE CHECKLISTS ........................................................................11

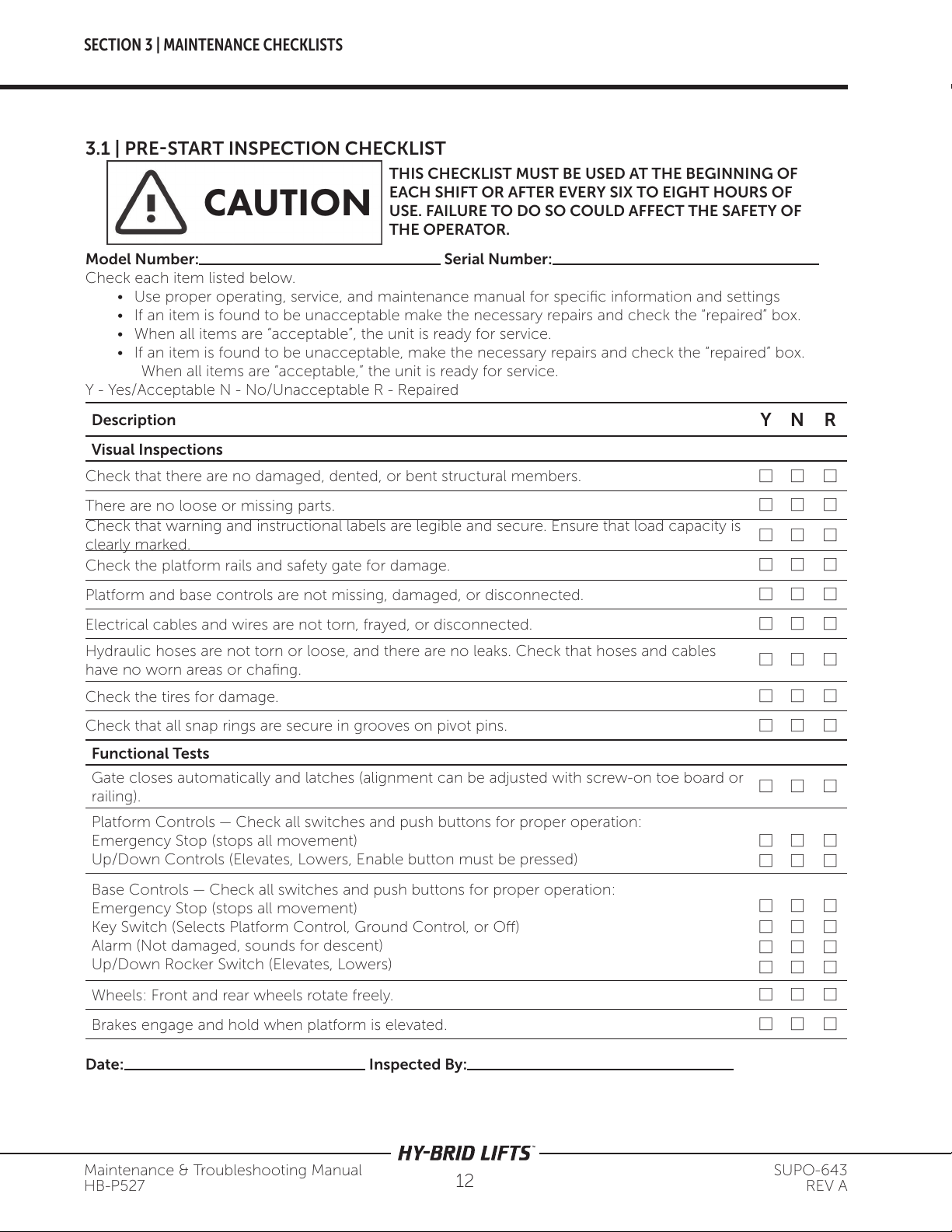

3.1 | PRE-START INSPECTION CHECKLIST................................................................................. 12

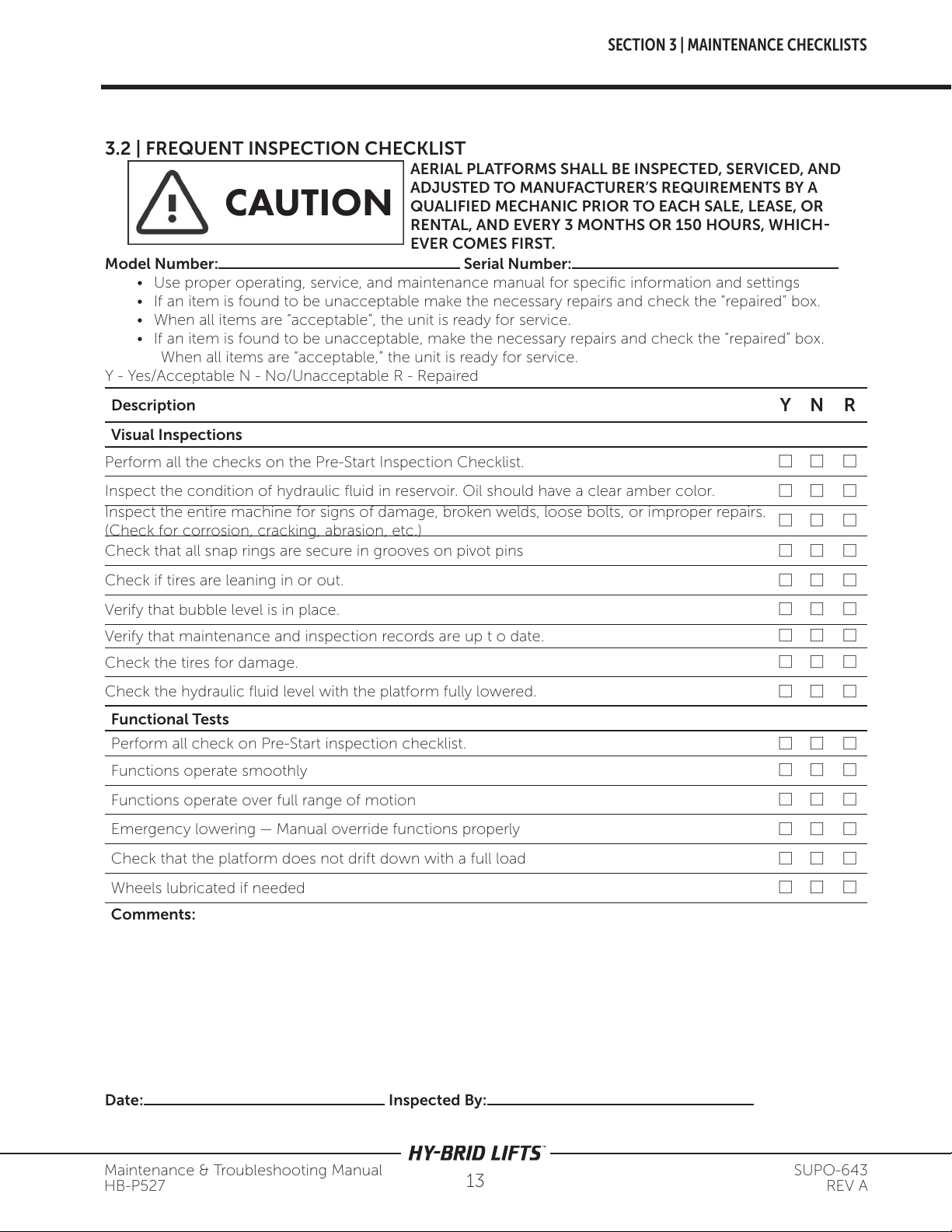

3.2 | FREQUENT INSPECTION CHECKLIST................................................................................ 13
3.3 | FREQUENT INSPECTION CHECKLIST................................................................................ 14
SECTION 4 | TECHNICAL REFERENCES .............................................................................16
4.1 | HYDRAULIC SCHEMATIC ....................................................................................................... 17
4.2 | ELECTRICAL SCHEMATIC...................................................................................................... 19
SECTION 5 | WIRING DIAGRAMS.........................................................................................20
5.1 | WIRING DIAGRAM.................................................................................................................... 20
5.2 | UPPER CONTROL WIRING DIAGRAM ............................................................................... 22
SECTION 6 | TROUBLE SHOOTING FLOWCHARTS .........................................................24
6.1 | TROUBLESHOOTING FLOWCHART: POWER .................................................................. 24
6.2 | TROUBLESHOOTING FLOWCHART: ELEVATING .......................................................... 27
6.3 | TROUBLESHOOTING FLOWCHART: LOWERING........................................................... 28
SECTION 7 | PARTS DIAGRAMS............................................................................................30
7.1 | SAFETY CONTROL DECALS................................................................................................... 30
7.2 | MAIN POWER/SAFETY CIRCUIT........................................................................................... 31
7.3 | ELEVATE/LOWER CIRCUIT PARTS ....................................................................................... 32
7.4 | WHEELS/BREAKS ...................................................................................................................... 34
7.5 | COVERS/OTHER....................................................................................................................... 35
SECTION 8 | WARRANTY.......................................................................................................36
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
3
INDEX OF FIGURES
FIGURE 1: Maintenance Lock Use .................................................................................................7
FIGURE 2: Maintenance Lock Storage..........................................................................................7
FIGURE 3: Battery Charger LED Display.......................................................................................9
FIGURE 4: Platform Control Removal .........................................................................................10
Revisions:
Revision A: Initial Release ...................................................................................... September 2015
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
4
NOTES
If There Is A Question About Application And/
Or Operation, Contact:
Custom Equipment, Inc.
2647 Hwy 175
Richfield, WI 53076
U.S.A.
P: [phone]
F: [phone]
www.hybridlifts.com
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
5

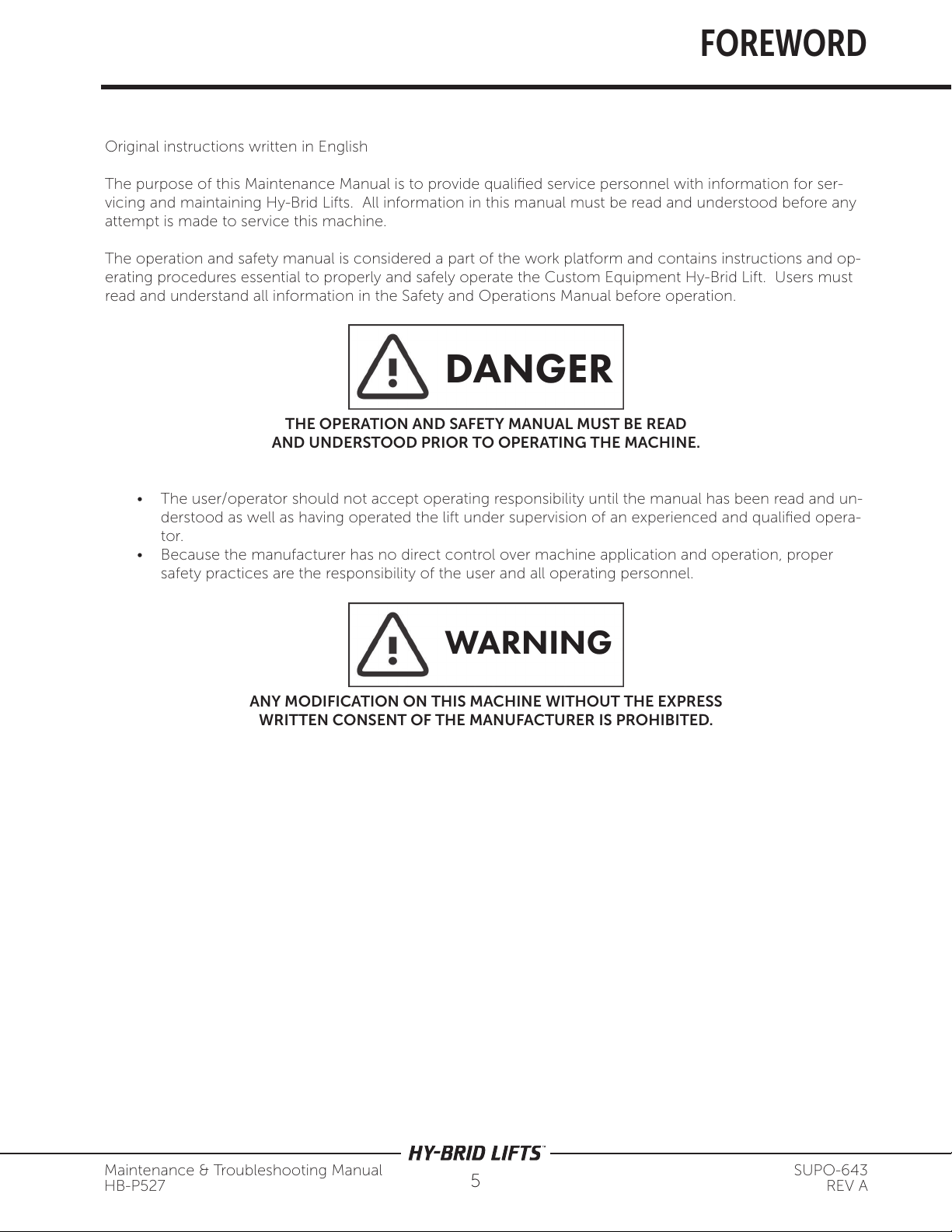

FOREWORD
Original instructions written in English
The purpose of this Maintenance Manual is to provide qualified service personnel with information for ser-
vicing and maintaining Hy-Brid Lifts. All information in this manual must be read and understood before any
attempt is made to service this machine.
The operation and safety manual is considered a part of the work platform and contains instructions and op-
erating procedures essential to properly and safely operate the Custom Equipment Hy-Brid Lift. Users must
read and understand all information in the Safety and Operations Manual before operation.
DANGER
THE OPERATION AND SAFETY MANUAL MUST BE READ
AND UNDERSTOOD PRIOR TO OPERATING THE MACHINE.
• The user/operator should not accept operating responsibility until the manual has been read and un-
derstood as well as having operated the lift under supervision of an experienced and qualified opera-
tor.
• Because the manufacturer has no direct control over machine application and operation, proper
safety practices are the responsibility of the user and all operating personnel.
WARNING
ANY MODIFICATION ON THIS MACHINE WITHOUT THE EXPRESS
WRITTEN CONSENT OF THE MANUFACTURER IS PROHIBITED.
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
6
1.1 | SAFETY SYMBOLS
DANGER
FAILURE TO FOLLOW THIS WARNING WILL CAUSE
DEATH OR PERSONAL INJURY.
“DANGER” indicates an imminently hazardous sit-
uation, which, if not avoided, will result in death or
serious injury.
WARNING
FAILURE TO FOLLOW THIS WARNING MAY CAUSE
DEATH OR PERSONAL INJURY.
“WARNING” indicates a potentially hazardous situa-
tion, which, if not avoided, could result in death or
serious injury.
CAUTION
FAILURE TO FOLLOW THIS WARNING MAY CAUSE
INJURY OR DAMAGE TO EQUIPMENT
“CAUTION” indicates a potentially hazardous situa-
tion which, if not avoided, could result in minor or
moderate injury or damage to equipment.
1.2 | GENERAL RULES AND PRECAUTIONS
Custom Equipment, Inc. designed the Hy-Brid Lift push-around scissor lift to be safe and reliable. It is in-
tended for elevating personnel, along with their necessary tools and materials to overhead work locations.
Vibration does not create significant hazards on this machine.
An operator of any type of work platform is subject to certain hazards that cannot be protected by mechani-
cal means. It is therefore essential that operators be competent, careful, physically and mentally fit, and thor-
oughly trained in safe operation of this machine. Although Custom Equipment, Inc. conforms to specified
EN: 280 requirements, it is the responsibility of the owner to instruct operators with the safety requirements
made not only by Custom Equipment, Inc., but by the various safety boards in your area, as well as additional
requirements set forth by EN: 280 If you come across a situation that you think might be unsafe, stop the
platform and request further information from qualified sources before proceeding.
WARNING
MAINTENANCE INFORMATION IS FOR USE BY
TRAINED PERSONNEL ONLY.
WARNING
NEVER REACH BETWEEN SCISSOR LINKS OR
PROP UP PLATFORM UNLESS MAINTENANCE PINS
ARE IN LOCK.
SECTION 1 | SAFETY
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
7
SECTION 1 | SAFETY
1.3 | SAFETY GUIDELINES
Maintenance Lock
The maintenance lock must be placed into position whenever the machine is being serviced in the raised or
partially raised position. Serious injury and/or death could result if maintenance lock is not used properly.
FIGURE 1: Maintenance Lock Use FIGURE 2: Maintenance Lock Storage
WARNING
FAILURE TO COMPLY WITH THE LISTED SAFETY
PRECAUTIONS MAY RESULT IN MACHINE DAM-
AGE, PERSONNEL INJURY, OR DEATH.
Other Guidelines
• Never work under an elevated platform until maintenance locks have been engaged.
• Remove all rings, watches, and jewelry when performing any maintenance.
• Do not wear long hair unrestrained or loose fitting clothing and neckties which may become caught
on or entangled in equipment.
• Observe and obey all warnings and cautions on machine and in manual.
• Keep oil, grease, water, etc. wiped from standing surfaces and handhold’s
• Before making any adjustments, lubricating or performing any other maintenance, shut o all power
controls.
• Battery should always be disconnected during replacement of electrical components.
• Keep all support equipment and attachments stowed in their proper place.
• Use only approved nonflammable cleaning solvents
• After maintenance, inspect the machine as described for Pre-delivery
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
8
SECTION 2 | MAINTENANCE
2.1 | BATTERY MAINTENANCE
Battery cycle life will vary significantly depending on the depth of discharge. The deeper the depth of dis-
charge the fewer cycles a battery will deliver. Conversely, the shallower the depth of discharge the more
cycles a battery will deliver. To optimize the health of your battery, limit discharge to 80%.
The performance and life of a battery will vary with application, usage, temperature and depth of discharge.
AGM batteries tend to deliver higher than their rated capacity (up to 10-15% higher) for -30 cycles until they
are “broken in” and settle at their rated capacity.
Operating batteries above 80°F (27°C) will yield runtime above the rated capacity and operating batteries be-
low 80°F (2rC) will yield runtime below the rated capacity. Cold temperatures can significantly reduce battery
capacity. Although higher temperatures increase the battery capacity
they also accelerate corrosion and reduce overall battery life.
2.2 | BATTERY MAINTENANCE WET CELL BATTERIES
If this unit is equipped with a deep cycle 12-volt Group 27 battery, the care and maintenance of your battery
has much to do with how well this unit functions. Battery wiring and water level should be checked month-
ly. Do not overfill. When the cells are too full, fluid will seep out when charging. The solution is at its prop-
er strength when the battery is manufactured. Use distilled water and keep fluid up to proper level. When
required, water should be added to battery after charging, unless water level is below the plates.
• Slide cabinet open to access battery.
• Remove battery caps and check fluid level.
• Fill each cell (if needed) to split ring with distilled water.
• Reinstall caps.
• Wash all dirt, debris, acid, etc., o battery whenever corrosion is detected. Use a solution of 5ml bak-
ing soda per 0.95 liters of warm water.
• Coat terminals with a commercially available coating.
• Close cabinet and latch in place.
2.3 | CHARGING THE BATTERY
This unit is equipped with either a deep cycle 12-volt AGM maintenance-free battery or a deep cycle Group
27 battery. Batteries should be fully charged after each use. Opportunity charging can be done but the batter-
ies should be fully charged at least every other day if they are used daily. Charge in a ventilated area as gases
may be released through the pressure relief valve if the batteries are excessively over-charged.
NOTE: The surrounding temperature greatly aects the power reserve within a battery. Example:
A battery that is 100% charged at 80° F (27°C) drops to 65% at 32°F (0°C) At 0°F (-18°C), this battery
will drop to 40% eciency.
WARNING
BATTERIES GENERATE EXPLOSIVE GASES. KEEP SPARKS AND
FLAME AWAY FROM BATTERIES. DO NOT SMOKE WHILE
CHARGING.
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
9
SECTION 2 | MAINTENANCE
Do not operate unit while charging. Shortened battery life will result.
• Park the machine on a level surface
• Plug charger into AC outlet until charged.
• For best battery life, leave charger plugged in until machine will be used again, the charger will main-
tain the battery charge.
WARNING
DO NOT OPERATE UNIT WHILE CHARGING
CAUTION
NEVER ADD ACID TO BATTERY.
FIGURE 3: Battery Charger LED Display
POWER
BATTERY 1 STATUS
BATTERY 1 STATUS
POWER
POWER
BATTERY 1 STATUS
CHARGING
CHARGING READY
CHARGING READY
READY
Green LED
(ON)
Green LED
(ON)
Green LED
(ON)
Green LED
(ON)
Red LED
(OFF)
Green LED
(OFF)
Red LED
(ON)
Green LED
(OFF)
Red LED
(OFF)
HOW TO READ BATTERY DISPLAY
This display indicates that the power is on but there is no connection to a bat-
tery. The charger must see approximately five (5) volts on a battery do deliver
D/C current.
This display indicates that power is on and that both outputs are delivering D/C
current to the batteries.
This display indicates that power is on and that both outputs are finished
charging and are in a float maintenance mode.
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
10
SECTION 2 | MAINTENANCE
2.4 | REMOVING PLATFORM CONTROL
For maintenance, the upper control panel will need to be unscrewed and removed in order to operate from
ground level. Elevate the platform to set the mainenance lock in place.
FIGURE 4: Platform Control Removal
2.5 | LUBRICATION
Item Specification Frequency
Wheels Teflon Spray Quarterly
2.6 | COMPONENTS REQUIRING ADJUSTMENT
Under normal use, no components should require adjustment. Contact the manufacturer if adjustments are
required.
2.7 | EXAMINATION, REPAIR, REPLACEMENT OF LIMITED LIFE COMPONENTS
With proper use, regular battery charging, and regular inspection, there are no limited life components that
require routine replacement.
2.8 | SAFETY DEVICES AND SYSTEMS REQUIRING CHECKS
Check safety functions as part of daily inspection. Check that the brakes are holding.
2.9 | STORAGE
After periods of storage, exposure to extremes of ambient conditions-heat, cold, moisture, dust etc. inspect
the machine. Batteries will need to be charged. Refer to the Pre-Delivery/ Frequent Inspection Checklist in
the Maintenance Manual.
2.10 | MAJOR ALTERATIONS OR REPAIRS
Any alterations must be approved by the manufacturer. Major repairs, which aect the stability, strength, or
performance of the machine must also be approved by the manufacturer, recorded, and include machine
inspection and testing. Never attach pipe racks, material lifting devices, or make any other alteration that is
not part of the intended design of the machine.
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
11
CAUTION
FAILURE TO PERFORM INSPECTIONS AND PREVENTATIVE
MAINTENANCE AT RECOMMENDED INTERVALS MAY RESULT
IN THE UNIT BEING OPERATED WITH A DEFECT THAT MAY
RESULT IN INJURY OR DEATH OF THE OPERATOR
Regular inspection and conscientious maintenance is important to ecient economical operation of this ma-
chine. It will help to assure that equipment will perform satisfactorily with a minimum of service and repair.
Make checks at the stated intervals or more frequently if required by local operating conditions. The follow-
ing inspection checklists are required and included in this manual:
• Pre-Start (Required before operation at each work shift)
• Frequent (Required at intervals not more than three months)
• Pre-Delivery/Annual (Required at intervals not more than twelve months)
The rated life of the machine is Light Intermittent Duty (typical use 10 years, 40 weeks per year, 20 hours per
week, 5 load cycles per hour).
SECTION 3 | MAINTENANCE CHECKLISTS
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
12
SECTION 3 | MAINTENANCE CHECKLISTS
3.1 | PRE-START INSPECTION CHECKLIST
THIS CHECKLIST MUST BE USED AT THE BEGINNING OF
EACH SHIFT OR AFTER EVERY SIX TO EIGHT HOURS OF
USE. FAILURE TO DO SO COULD AFFECT THE SAFETY OF
THE OPERATOR.
CAUTION
Model Number: Serial Number:
Check each item listed below.
• Use proper operating, service, and maintenance manual for specific information and settings
• If an item is found to be unacceptable make the necessary repairs and check the “repaired” box.
• When all items are “acceptable”, the unit is ready for service.
• If an item is found to be unacceptable, make the necessary repairs and check the “repaired” box.
When all items are “acceptable,” the unit is ready for service.
Y - Yes/Acceptable N - No/Unacceptable R - Repaired
Description Y N R
Visual Inspections
Check that there are no damaged, dented, or bent structural members. □ □ □
There are no loose or missing parts. □ □ □
Check that warning and instructional labels are legible and secure. Ensure that load capacity is
clearly marked. □ □ □
Check the platform rails and safety gate for damage. □ □ □
Platform and base controls are not missing, damaged, or disconnected. □ □ □
Electrical cables and wires are not torn, frayed, or disconnected. □ □ □
Hydraulic hoses are not torn or loose, and there are no leaks. Check that hoses and cables
have no worn areas or chafing. □ □ □
Check the tires for damage. □ □ □
Check that all snap rings are secure in grooves on pivot pins. □ □ □
Functional Tests
Gate closes automatically and latches (alignment can be adjusted with screw-on toe board or
railing). □ □ □
Platform Controls — Check all switches and push buttons for proper operation:
Emergency Stop (stops all movement)
Up/Down Controls (Elevates, Lowers, Enable button must be pressed)
□
□
□
□
□
□
Base Controls — Check all switches and push buttons for proper operation:
Emergency Stop (stops all movement)
Key Switch (Selects Platform Control, Ground Control, or O)
Alarm (Not damaged, sounds for descent)
Up/Down Rocker Switch (Elevates, Lowers)
□
□
□
□
□
□
□
□
□
□
□
□
Wheels: Front and rear wheels rotate freely. □ □ □
Brakes engage and hold when platform is elevated. □ □ □
Date: Inspected By:
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
13
SECTION 3 | MAINTENANCE CHECKLISTS
3.2 | FREQUENT INSPECTION CHECKLIST
AERIAL PLATFORMS SHALL BE INSPECTED, SERVICED, AND
ADJUSTED TO MANUFACTURER’S REQUIREMENTS BY A
QUALIFIED MECHANIC PRIOR TO EACH SALE, LEASE, OR
RENTAL, AND EVERY 3 MONTHS OR 150 HOURS, WHICH-
EVER COMES FIRST.
CAUTION
Model Number: Serial Number:
• Use proper operating, service, and maintenance manual for specific information and settings
• If an item is found to be unacceptable make the necessary repairs and check the “repaired” box.
• When all items are “acceptable”, the unit is ready for service.
• If an item is found to be unacceptable, make the necessary repairs and check the “repaired” box.
When all items are “acceptable,” the unit is ready for service.
Y - Yes/Acceptable N - No/Unacceptable R - Repaired
Description Y N R
Visual Inspections
Perform all the checks on the Pre-Start Inspection Checklist. □ □ □
Inspect the condition of hydraulic fluid in reservoir. Oil should have a clear amber color. □ □ □
Inspect the entire machine for signs of damage, broken welds, loose bolts, or improper repairs.
(Check for corrosion, cracking, abrasion, etc.) □ □ □
Check that all snap rings are secure in grooves on pivot pins □ □ □
Check if tires are leaning in or out. □ □ □
Verify that bubble level is in place. □ □ □
Verify that maintenance and inspection records are up t o date. □ □ □
Check the tires for damage. □ □ □
Check the hydraulic fluid level with the platform fully lowered. □ □ □
Functional Tests
Perform all check on Pre-Start inspection checklist. □ □ □
Functions operate smoothly □ □ □
Functions operate over full range of motion □ □ □
Emergency lowering — Manual override functions properly □ □ □
Check that the platform does not drift down with a full load □ □ □
Wheels lubricated if needed □ □ □
Comments:
Date: Inspected By:
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
14
SECTION 3 | MAINTENANCE CHECKLISTS
3.3 | FREQUENT INSPECTION CHECKLIST
AERIAL PLATFORMS SHALL BE INSPECTED, SERVICED, AND
ADJUSTED TO MANUFACTURER’S REQUIREMENTS BY A
QUALIFIED MECHANIC PRIOR TO EACH SALE, LEASE, OR
RENTAL, AND EVERY 3 MONTHS OR 150 HOURS, WHICH-
EVER COMES FIRST.
CAUTION
Model Number: Serial Number:
• Use proper operating, service, and maintenance manual for specific information and settings
• If an item is found to be unacceptable make the necessary repairs and check the “repaired” box.
• When all items are “acceptable”, the unit is ready for service.
• If an item is found to be unacceptable, make the necessary repairs and check the “repaired” box.
When all items are “acceptable,” the unit is ready for service.
Y - Yes/Acceptable N - No/Unacceptable R - Repaired
BASE: Y N R PLATFORM: Y N R
Inspect slide tracks for damage □ □ □ All rails in place/secure □ □ □
All frame bolts tight □ □ □ No bent rails □ □ □
Pump Secure □ □ □ No broken welds □ □ □
DC motor secure □ □ □ Platform power outlet safe/working (if in-
stalled) □ □ □
Battery Hold Downs Secure □ □ □ Entrance gate closes freely □ □ □
Batteries Fully Charged □ □ □ Cables in place/secure □ □ □
Counterweights secured □ □ □ Functions:
Wheels: Grease casters □ □ □ Elevate/Lower Operational □ □ □
Wheels: Bolts/Nuts Tight □ □ □ Master Power Switch Breaks Circuits □ □ □
Maintenance Locks: Pins storage
location □ □ □ Emergency Stop Breaks Circuits □ □ □
All Shields/Guards in place □ □ □ Emergency Down Operational □ □ □
Hydraulic Oil Level □ □ □ Motion Alarms Functional □ □ □
Check all hydraulic hoses for leaks □ □ □ Brakes: Operational □ □ □
Check all hydraulic fittings for leaks □ □ □ Bubble Level in Place □ □ □
SCISSORS
When beginning to elevate, overload light and
alarm activate. Then, if not overloaded, allows
elevation to continue, and light and alarm stop.
□ □ □
No Broken Welds □ □ □ When overloaded, platform stops elevating. □ □ □
Ret. Rings Secure on Pivots □ □ □ Check battery Voltage: <12.5V, charge. □ □ □
No Bent Beam Members □ □ □ Wiring / Other:
All rollers turn freely □ □ □ Switches secure □ □ □
DECALS: Contactor(s) secure □ □ □
Legibility □ □ □ Tight on terminals (no loose wiring) □ □ □
Correct capacity noted □ □ □ Operator / Service Manual Included □ □ □
Proper placement quantity □ □ □ Battery Charger Secure / Operational □ □ □
COMMENTS:
Date: Inspected By:
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
15
SECTION 3 | MAINTENANCE CHECKLISTS
THIS PAGE WAS INTENTIONALLY LEFT BLANK
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
16
SECTION 4 | TECHNICAL REFERENCES
4.1 | HYDRAULIC SCHEMATIC
Part No HS-HB-P3.6/527
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
17
SECTION 4 | TECHNICAL REFERENCES
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
18
SECTION 4 | TECHNICAL REFERENCES
4.2 | ELECTRICAL SCHEMATIC
Part No WS-143-20-001-50
+
-
NC
NO
NC
NO
-
+
M
OFF
3
2
1
5
4
20 AMP
PUMP
SOLENOID
SOLENOID
OPERATED
UP VALVE
SOLENOID
OPERATED
DOWN VALVE
Down Signal
Armguard Signal
TIME
DELAY
RELAY
Motion Alarm, if so Equipped
Beacon Light, if so Equipped
20 AMP
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
B-SIZE
ORIGINALLY DRAWN BY: DJS
Custom Equipment, Inc.
Richfield, WI 53076
Phone: [phone]
DATE:09/11/2015
WS,HB-P527
SCALE:1:1
DO NOT SCALE DRAWING
THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY TO CUSTOM, EQUIPMENT AND IS LOANED IN EXPECTATION THAT IT WILL BE KEPT CONFIDENTIAL AND USED ONLY FOR THE PURPOSE FOR WHICH IT IS LOANED.
SPEC/MATL: Wiring Diagram
DRAWING #: WS-143-20-001-50
REV
DESCRIPTION OF CHANGE
DATE REV BY
A INITIAL RELEASE
04/30/2013
DJS
ECO #
2014-2286
SHEET 1 OF 1
WEIGHT: APPROX. 0.00 LB.
A
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
19
SECTION 4 | TECHNICAL REFERENCES
+
-
NC
NO
NC
NO
-
+
M
OFF
3
2
1
5
4
20 AMP
PUMP
SOLENOID
SOLENOID
OPERATED
UP VALVE
SOLENOID
OPERATED
DOWN VALVE
Down Signal
Armguard Signal
TIME
DELAY
RELAY
Motion Alarm, if so Equipped
Beacon Light, if so Equipped
20 AMP
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
B-SIZE
ORIGINALLY DRAWN BY: DJS
Custom Equipment, Inc.
Richfield, WI 53076
Phone: [phone]
DATE:09/11/2015
WS,HB-P527
SCALE:1:1
DO NOT SCALE DRAWING
THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY TO CUSTOM, EQUIPMENT AND IS LOANED IN EXPECTATION THAT IT WILL BE KEPT CONFIDENTIAL AND USED ONLY FOR THE PURPOSE FOR WHICH IT IS LOANED.
SPEC/MATL: Wiring Diagram
DRAWING #: WS-143-20-001-50
REV
DESCRIPTION OF CHANGE
DATE REV BY
A INITIAL RELEASE
04/30/2013
DJS
ECO #
2014-2286
SHEET 1 OF 1
WEIGHT: APPROX. 0.00 LB.
A
Courtesy of Crane.Market

Maintenance & Troubleshooting Manual
HB-P527
SUPO-643
REV A
20
SECTION 5 | WIRING DIAGRAMS
5.1 | WIRING DIAGRAM
Part No WD-143-20-001-50
+
-
DOWN
UP
-
+
PUMP
RESERVOIR
+
-
HYD PUMP
M
BATTERY
BATTERY
CHARGER
UPPER
CONTROL
POWER
SWITCH
NO NC
ARMGUARD /
OVERLOAD
LIMIT SWITCH
143-01-025-51
143-01-025-50
ELEC-641-002
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
B-SIZE
ORIGINALLY DRAWN BY: DJS
Custom Equipment, Inc.
Richfield, WI 53076
Phone: [phone]
DATE:09/11/2015
WD,HB-P527
SCALE:1:1
DO NOT SCALE DRAWING
THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY TO CUSTOM, EQUIPMENT AND IS LOANED IN EXPECTATION THAT IT WILL BE KEPT CONFIDENTIAL AND USED ONLY FOR THE PURPOSE FOR WHICH IT IS LOANED.
SPEC/MATL: Wiring Diagram
DRAWING #: WD-143-20-001-50
REV
DESCRIPTION OF CHANGE
DATE REV BY
A INITIAL RELEASE
09/11/2015
DJS
ECO #
2014-2286
SHEET 1 OF 1
WEIGHT: APPROX. 0.00 LB.
A
Courtesy of Crane.Market
