CONGRATULATIONS
The Cutwater family has a passion for boating. We are committed to continuous
process improvement in all areas that affect our customer’s satisfaction with our
products and providing great customer service.
SAFETY
Safety is always a concern at Cutwater. Please read all manuals to ensure that equip-
ment is used in a safe manner. We highly recommend attendance in a Coast Guard
approved boating safety course. Such courses are available from the Coast Guard
directly or from boating organizations. Owners should have annual inspections to
ensure that all safety equipment is current.
Operating, servicing and maintaining
a recreational marine vessel can expose
you to chemicals including engine exhaust,
carbon monoxide, phthalates, and lead,
which are known to the State of California
to cause cancer and birth defects or other
reproductive harm. To minimize exposure,
avoid breathing exhaust, service your vessel
in a well-ventilated area and wear gloves or
wash your hands frequently when servicing
this vessel. For more information go to
www.P65warnings.ca.gov/marine.
Prop 65 Boat Owner’s
Manual Image
Notes on use of the above:
27 CCR § 25607.18
§ 25607.18. Recreational Vessel Exposure Warnings -
Method of Transmission. [Operative August 30, 2018]
(a) A warning for exposures that occur during the operation
or maintenance of a recreational vessel as defined in California
Harbor and Navigation Code Section 651(t) meets the
requirements of this subarticle if it complies with the content
requirements in Section 25607.19 and is provided as follows:
(1) The warning is printed in the owner's manual for the
specific recreational vessel, in no smaller than 12-point type
enclosed in a box printed or affixed to the inside or outside
of the front or back cover of the manual or on the first page
of the text, and;
(2) The warning is provided on a hang tag readily visible from
the helm of the vessel printed in no smaller than 12-point type.
https://www.boat-manuals.com/

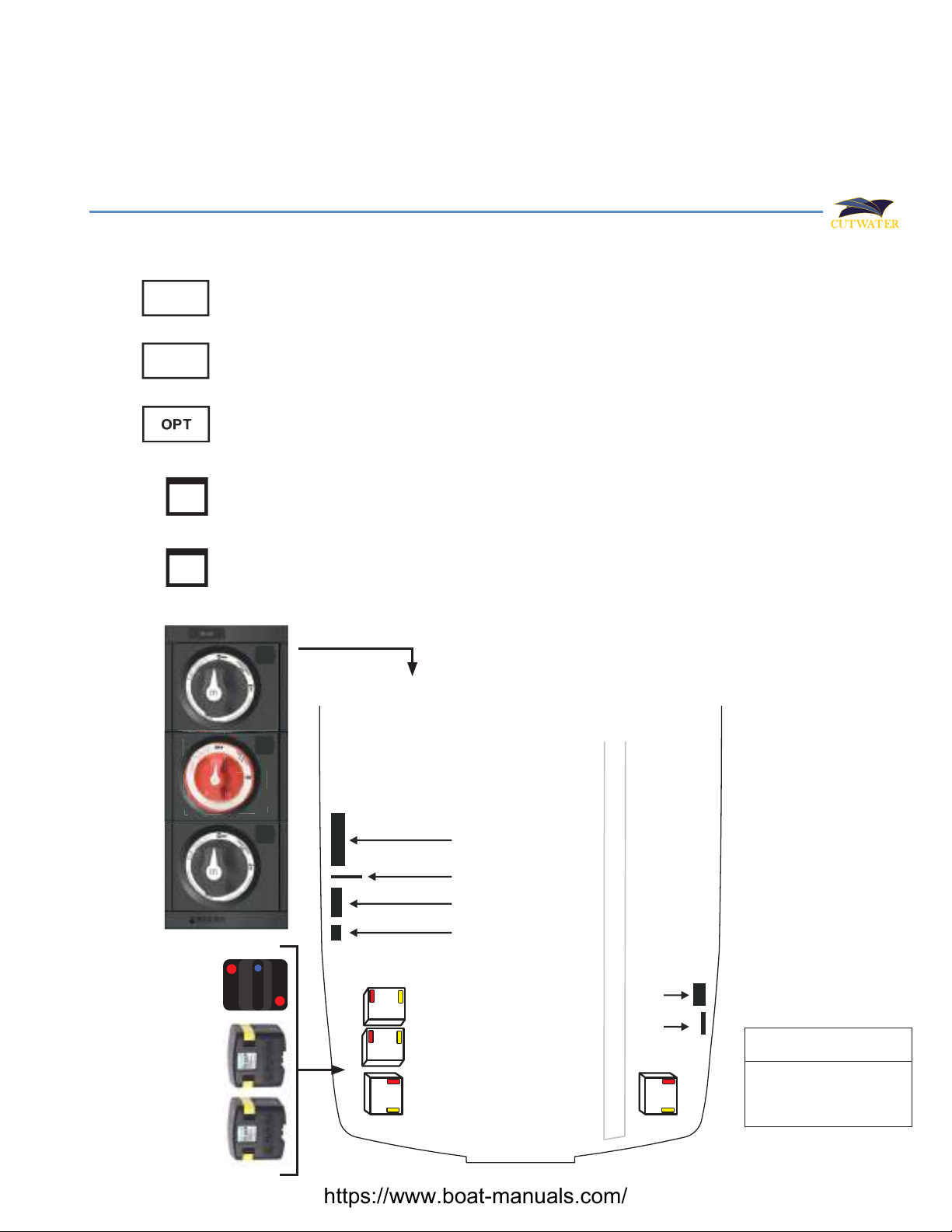

SYMBOL GLOSSARY
4
STE
OPT
Attention! – Important Operating or Maintenance Instructions
Attention! – Electrical Shock Hazard
Fresh Water
Black Water
Fuel
Standard Equipment
Optional Equipment
Hints
https://www.boat-manuals.com/

SPECIFICATIONS
5
(Subject to Change Without Notice)
C-24 Coupe
LOH (transom - bow) ....................................................................23’ 7” 7.2 m
LOA (motor down) ........................................................................31’ 4” 9.55 m
LOA (motor up) .............................................................................33’ 8” 10.26 m
Beam ............................................................................................8’ 6” 2.6 m
Draft (motor down) ......................................................................30” .76 m
Draft (motor up) ...........................................................................19” .48 m
Weight, dry ...................................................................................4,900 lbs 2,223 kg
Bridge clearance ...........................................................................9’ 11” 3.0 m
Fuel capacity .................................................................................116 U.S. Gal 439 L
Water capacity ..............................................................................22 U.S. Gal 83.27 L
Hot water tank .............................................................................4 U.S. Gal 15.14 L
Holding tank capacity ...................................................................11 U.S. Gal 42 L
Height on trailer ............................................................................9’ 11” 3.02 m
Height on trailer (with radar) .........................................................10’ 7” 3.22 m
Bridge clearance (w/radar) .............................................................8’ 2” 2.5 m
Bridge clearance (no radar) ...........................................................7’ 6” 2.28 m
Length on trailer (motor down) .....................................................34’ 2” 10.41 m
Length on trailer (motor up) ..........................................................36’ 6” 11.12 m
C-24 Sport Coupe
LOH (transom - bow) ....................................................................23’ 7” 7.2 m
LOA (motor down) ........................................................................31’ 4” 9.55 m
LOA (motor up) .............................................................................33’ 8” 10.26 m
Beam ............................................................................................8’ 6” 2.6 m
Draft (motor down) ......................................................................30” .76 m
Draft (motor up) ...........................................................................19” .48 m
Weight, dry ...................................................................................4,900 lbs 2,223 kg
Bridge clearance ...........................................................................9’ 11” 3.0 m
Fuel capacity .................................................................................116 U.S. Gal 439 L
Water capacity ..............................................................................22 U.S. Gal 83.27 L
Hot water tank .............................................................................4 U.S. Gal 15.14 L
Holding tank capacity ...................................................................11 U.S. Gal 42 L
Height on trailer ............................................................................9’ 11” 3.02 m
Height on trailer (with radar) .........................................................10’ 7” 3.22 m
Bridge clearance (w/radar) .............................................................8’ 2” 2.5 m
Bridge clearance (no radar) ...........................................................7’ 6” 2.28 m
Length on trailer (motor down) .....................................................34’ 2” 10.41 m
Length on trailer (motor up) ..........................................................36’ 6” 11.12 m
https://www.boat-manuals.com/

EQUIPMENT LOCATION
6

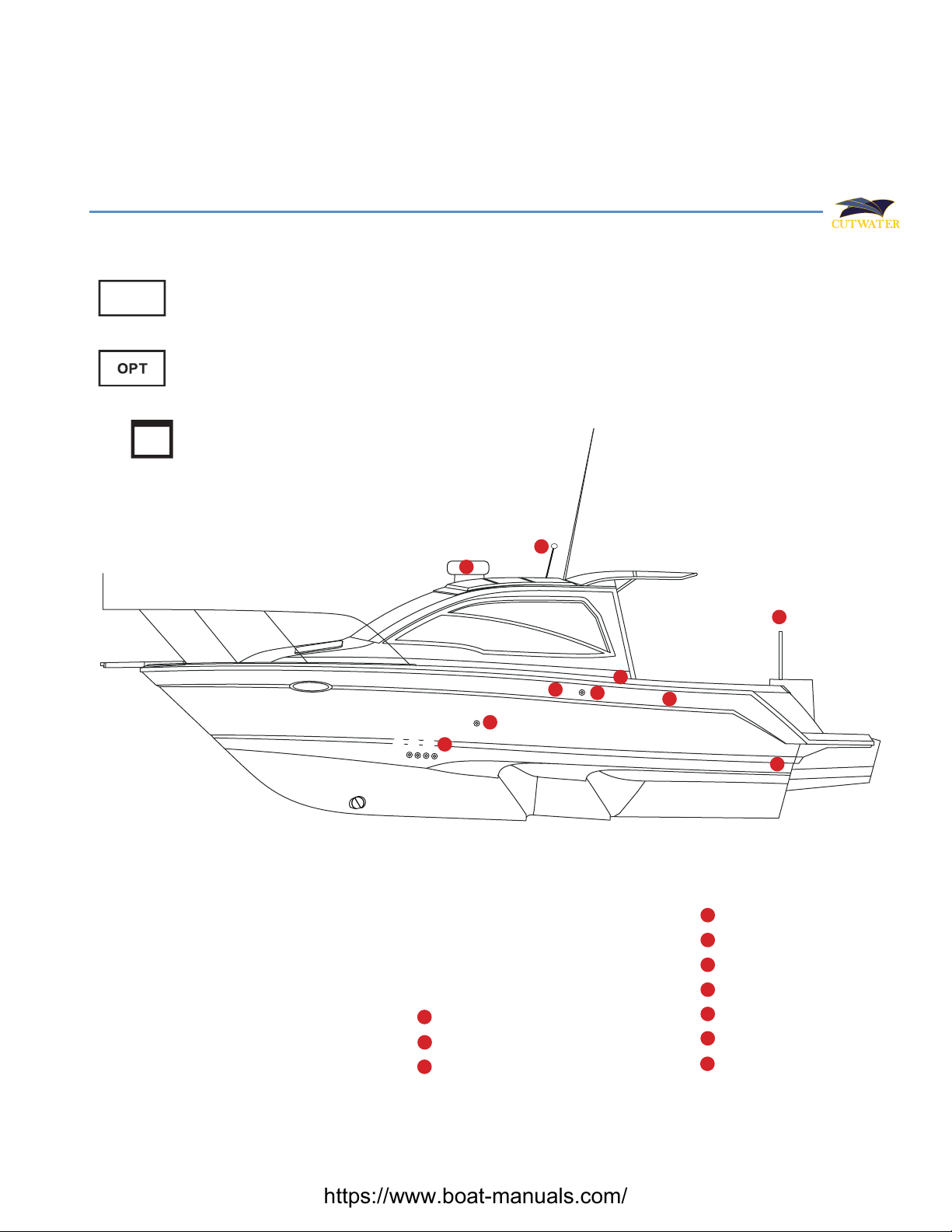

STARBOARD FITTINGS
1 2 3 4 6 7 8 9 11 12 15 16 17 18 19 20 21 22
5 10 13 14
Keep all vents, drains and exhausts clear of any obstructions
to ensure proper performance of each system.
STE
➏
11
13
12
14 15
16
17 19
18
➎
➌
➋
➊
➓
➊ Swim Ladder
➋ Fuel Fill
➌ Aft Bilge
➍ Forward Aft Bilge
➎ Ski Pole
➏ Waste Pumpout
➐ Galley Sink Drain
➑ Trailering Side Marker Light
➒ Macerator Thru-Hull
➓ VHF Antenna
Anchor Light
Radar
Water Fill
Water Tank Vent
Waste Tank Vent
Bow Thruster
Nav Light
Bow Eye
Windlass
Horn
Burgee Flag Pole
Bow Pulpit with Beaching
Ladder & Anchor Roller
11
13
12
14
15
16
17
18
19
20
20
21
21
22
22
➍
➑
➒
➐
https://www.boat-manuals.com/

7
STE
PORT FITTINGS
1 4 5 6 8 9 12 16 17 18
2 3 7 10 11 13 14 15
Keep all vents, drains and exhausts clear of any
obstructions to ensure proper performance of
each system.
11
13
12
14
15 16 17
19
19
➎
➌
➋
➊
➓
➊ Burgee Flag Pole
➋ Bow Pulpit with Beaching
Ladder & Anchor Roller
➌ Docking Lights
➍ Nav Light
➎ Anchor Locker Drain
➏ Bow Eye
➐ Bow Thruster
➑ Head Sink Drain
➒ Forward Bilge Drain
➓ Shower Drain
AC Drain
Webasto Exhaust
Radar
Anchor Light
Trailering Side Marker Light
Webasto Air Intake
Webasto Fuel Fill
Generator Air Intake
Ski Pole
Generator Exhaust
11
13
12
14
15
16
17
18
18
20
20
➍
➏➑
➐
➒
https://www.boat-manuals.com/

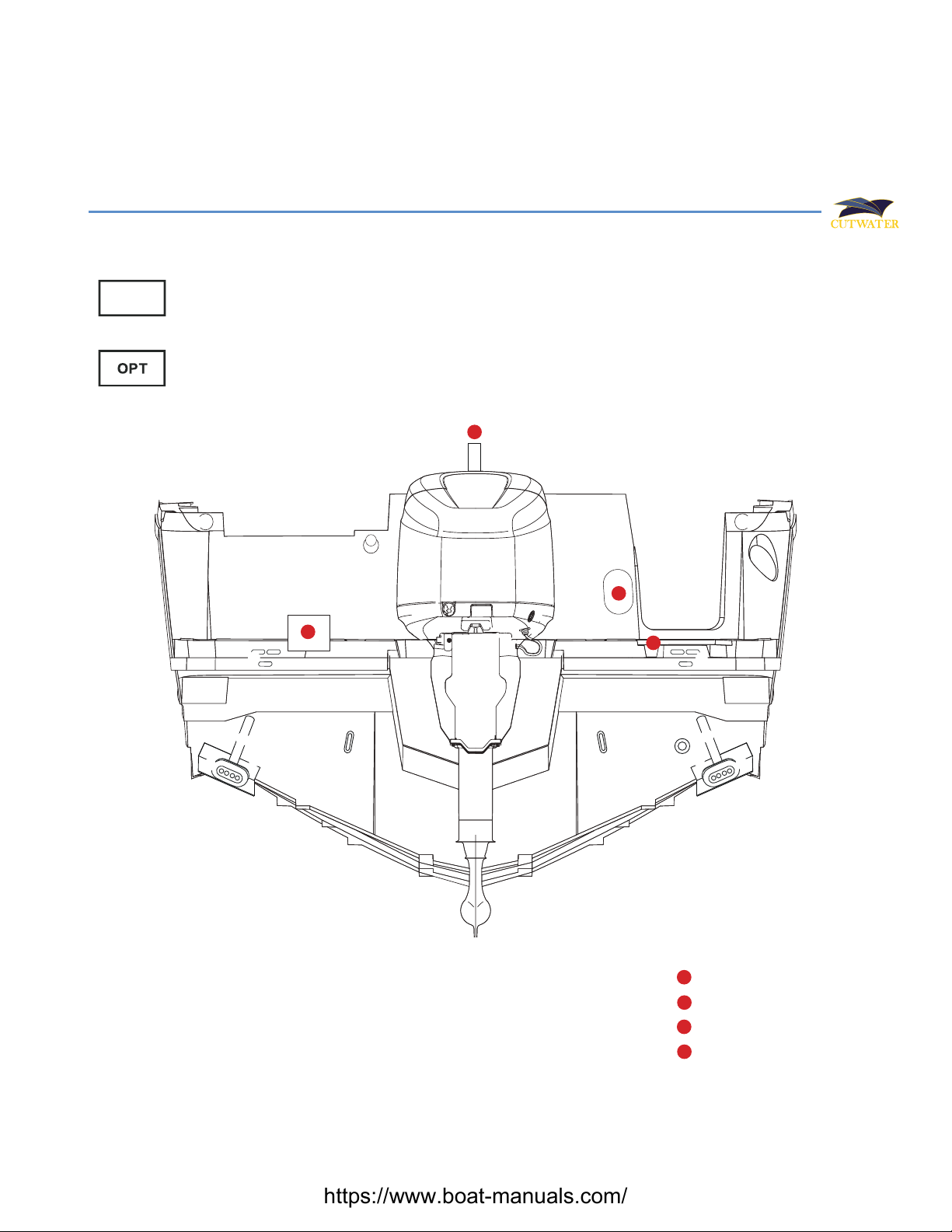

➊ Swim Platform Courtesy Lights
➋ Fuel Fill
➌ Cockpit Scupper Drains
➍ Underwater Lights
➎ Drain Plug
➏ Trailer Turn/Brake Lights
➐ Rod Holders
➑Flagstaff Mount
➒Towing Strapdown
➓Trim Tab Ram
Shower
Ski Pole
Outboard Bracket
Swim Ladder
8
STERN COMPONENTS
STE
1 2 3 5 6 7 8 9 10 11 12 13
4
➊➊
➋
➌ ➌
➌
11
14
14
12
➑
➐ ➐
➓➓
11
12
➍
➏
➒
➏
➍
➒
➎
13
13
https://www.boat-manuals.com/

9

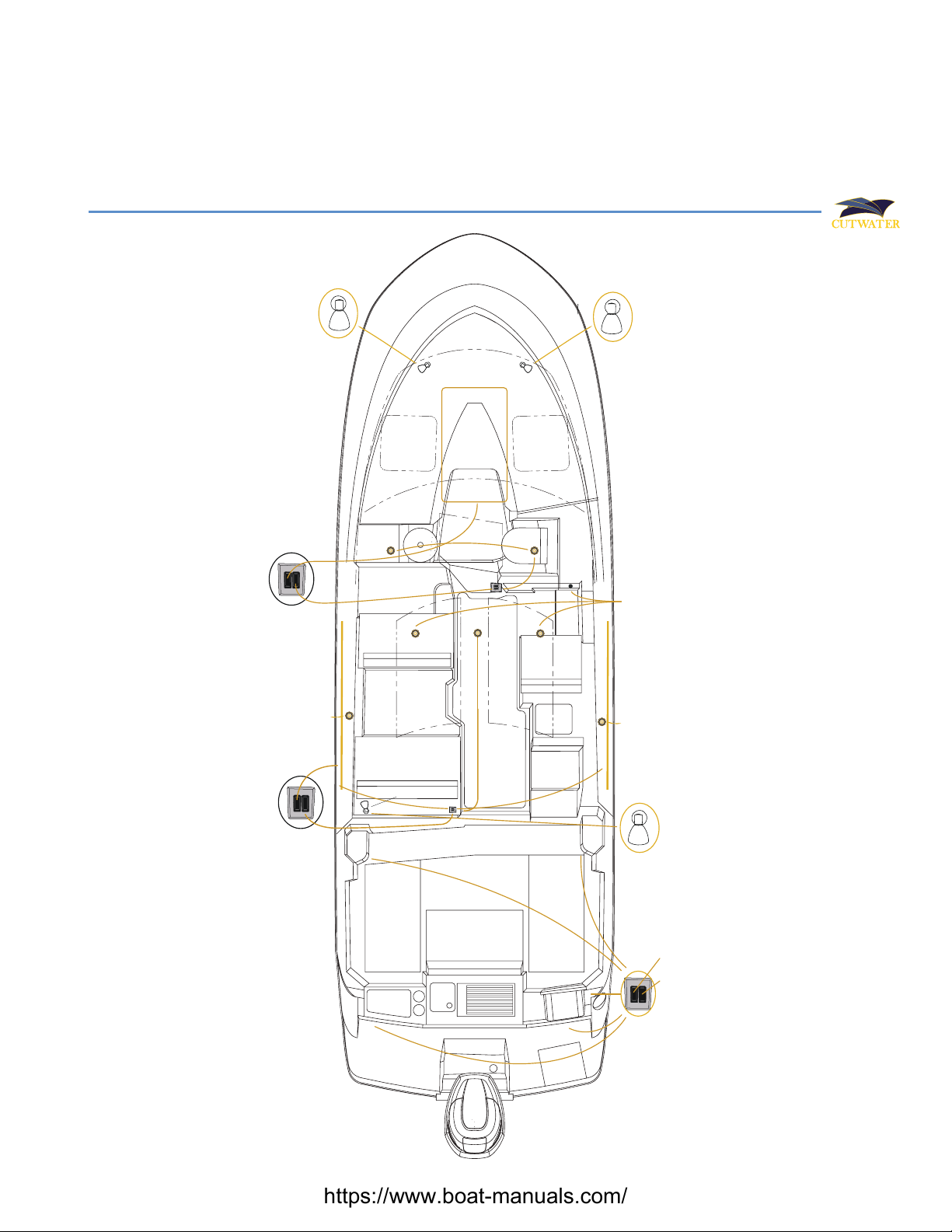

MAIN CABIN AND COCKPIT LIGHTS
Switch on
fixture Switch on
fixture
Switch on
fixture
V-Berth Lighting
(below seat in midberth)
Indirect LED
Lighting
Push On/Off
LED Lights Push On/Off
LED Lights
Red cabin night lights
switch on dash
Indirect LED
Lighting
Cabin lighting
Courtesy / LED
Lights
Optional Underwater Lights
https://www.boat-manuals.com/

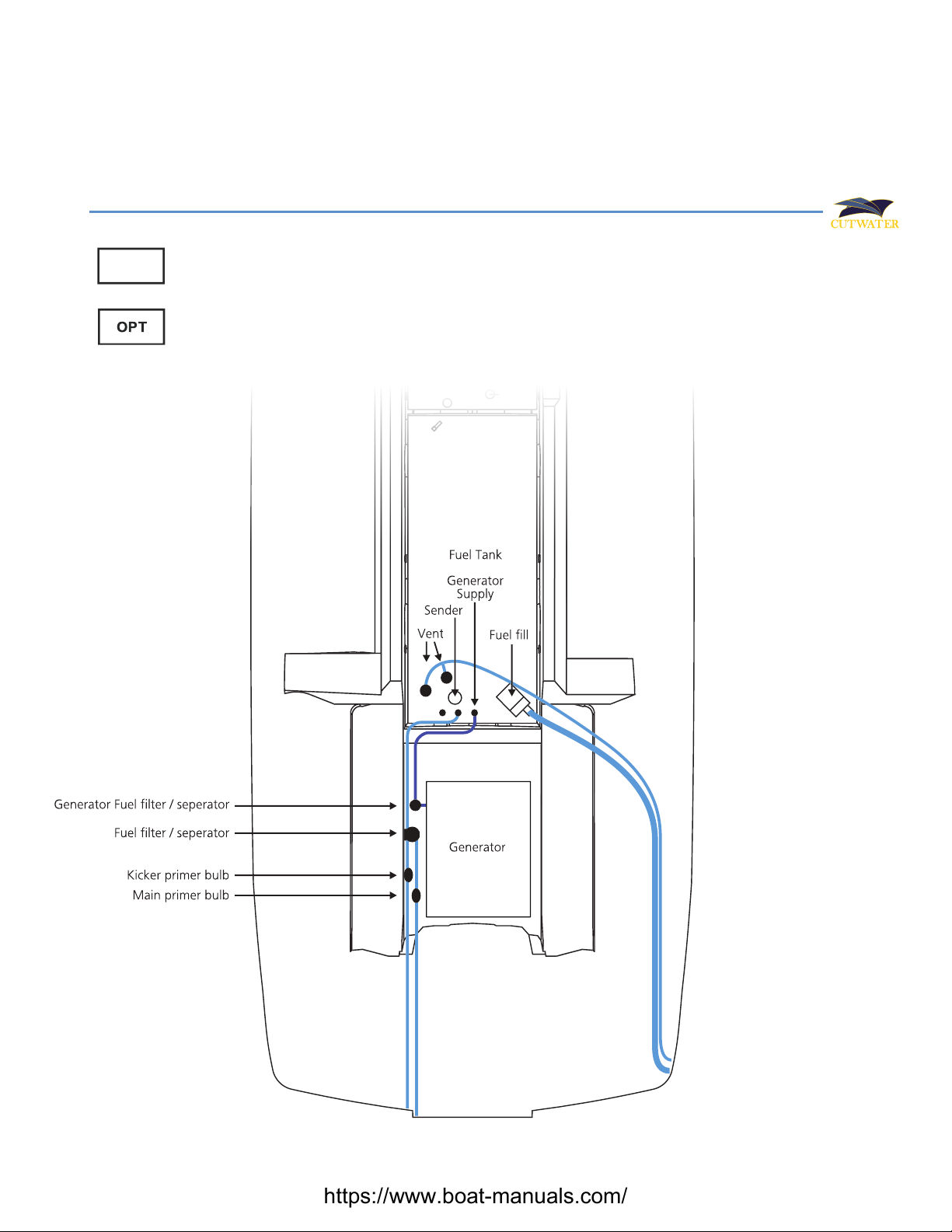

FUEL SYSTEM, ENGINE, GENERATOR
10
STE
Yamaha 250
Generator / Yamaha 300 / Kicker (9.9 Yamaha)

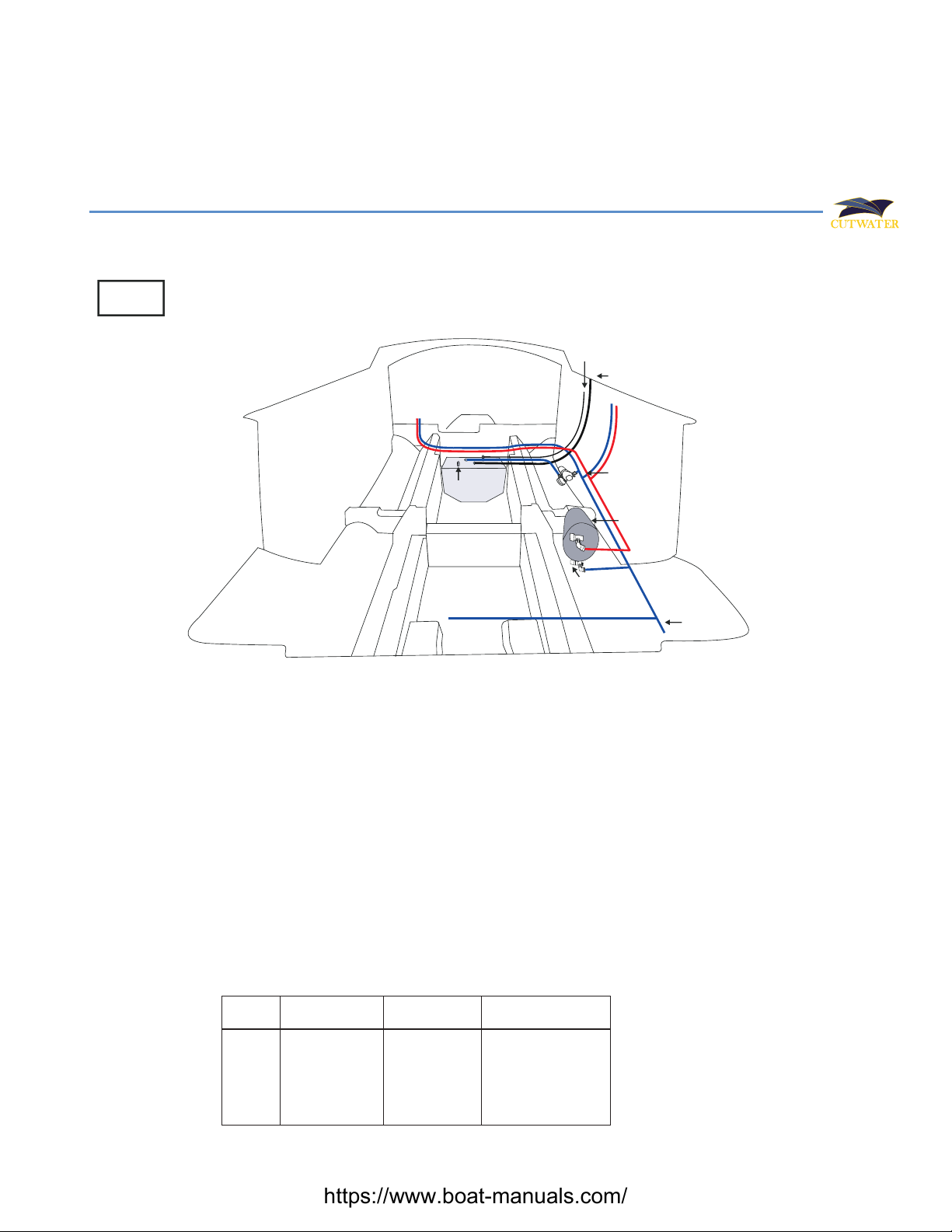

Fuel Tank
Kicker primer bulb
Main primer bulb
Fuel fill
Sender
Vent
Fuel filter / seperator
Generator
Generator Fuel filter / seperator
Generator
Supply
https://www.boat-manuals.com/

11

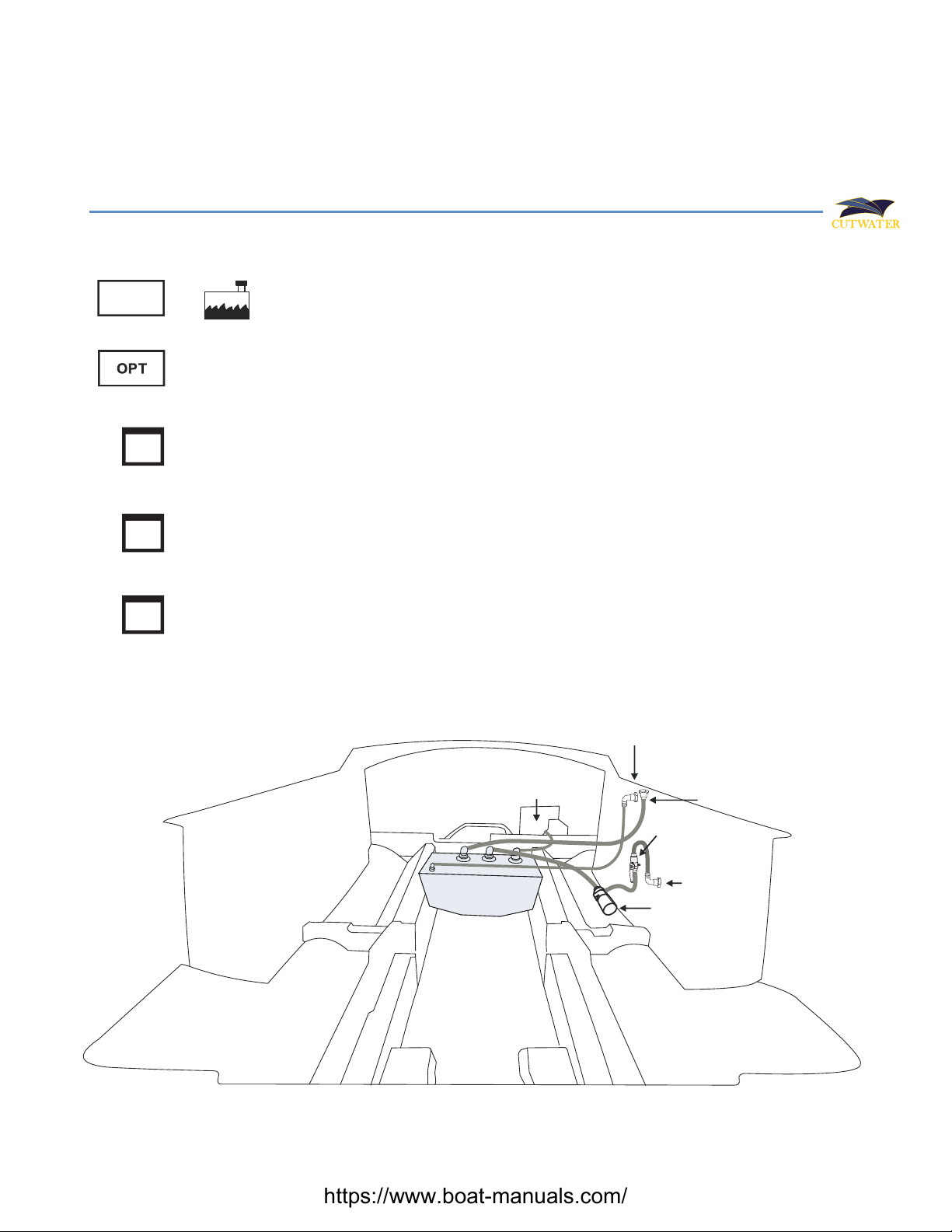

RAW WATER / SEA STRAINER SYSTEM
STE

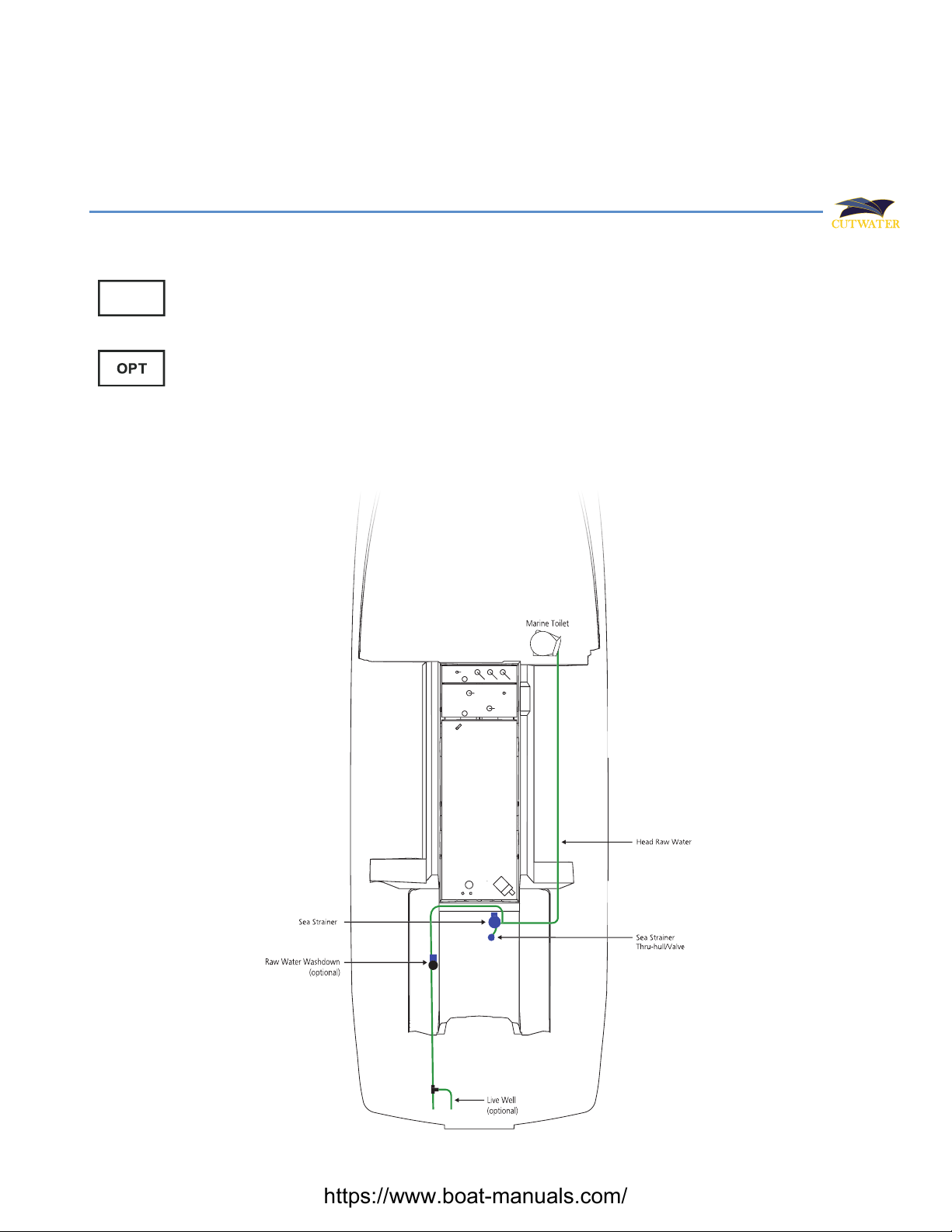

• Multi port sea strainer for head and raw water wash down pump.
Raw Water Washdown
(optional)
Marine Toilet
Head Raw Water
Sea Strainer
Thru-hull/Valve
Sea Strainer
Live Well
(optional)
• Generator raw water thru-hull strainer
Raw Water System
https://www.boat-manuals.com/

12
FRESH WATER PLUMBING SYSTEM
STE
22 Gallon Fresh Water Tank, 4 Gallon Hot Water Heater, 3.5 GPM Fresh Water Pump.
Disinfecting The Fresh Water System
Water fill
Water vent
Cabin sink
Water Pump
with removable
strainer
Head
sink
Water heater
Transom
shower
Transom
sink
Water heater
drain
Sender
H-23
7/14
© 2014 American Boat & Yacht Council, Inc.
6
APPENDIX - POTABLE WATER SYSTEMS
The information contained in this appendix provides supplementary data about disinfecting a potable water system.
A SUGGESTED METHOD OF DISINFECTION
Perform the following steps in the order indicated:
a. Flush entire system thoroughly by allowing potable water to flow through it;
b. Drain system completely;
c. Fill entire system with a chlorine solution having a strength of at least 100 parts per million, and allow to
stand for one (1) hour. Shorter periods will require greater concentrations of chlorine solution. See Table I
d. Drain chlorine solution from entire system;
e. Flush entire system thoroughly with potable water;
f. Fill system with potable water.
Table I shows how much disinfecting agent is required to make up various quantities of 100 parts per million chlorine
solution.
TABLE I – CHLORINE CONCENTRATIONS
Amount of chlorine compound required for 100 ppm solution
Solution
(Gallons)
Chlorinated Lime
25% (ounces)
High Test Calcium
Hypochlorite 70%
(ounces)
Liquid Sodium
Hypochlorite 1% (quarts)
5
0
.
3 0
.
1 0
.
2
10 0
.
6 0
.
2
0
.
4
1
5
0
.
9 0
.
3 0
.
6
2
0 1
.
2
0
.
4 0
.
8
30 1
.
8 0
.
6 1
.
2
5
0 3
.
0 1
.
0
2
.
0
100 6
.
0
2
.
0 4
.
0
NOTE: This table contains information taken from the Handbook on Sanitation of Vessel Water Points,
Public Health Service Publication No. 274 - Reprinted June 1963.
* * * * *
Origin and Development of ABYC H-23, Water Systems for Use on Boats
ABYC H-23, Installation of Potable Water Systems for Use on Boats was first published in 1970. Revised editions
were published in 1974, 1983, 1996, and 2008. In 2014 the title was revised to H-23, Water Systems for Use on
Boats. The 2014 version is the work of the Hull Piping Project Technical Committee.
* * * * *
ABYC technical board rules provide that all reports, including standards and technical information reports, are
advisory only. Their use is entirely voluntary. They represent, as of the date of publication, the consensus of
knowledgeable persons, currently active in the field of small craft, on performance objectives that contribute to small
boat safety.
The American Boat & Yacht Council assumes no responsibility whatsoever for the use of, or failure to use, standards
and technical information reports promulgated by it, their adaptation to any processes of a user, or any consequences
flowing therefrom.
Prospective users of the standards and technical information reports are responsible for protecting themselves
against liability for infringement of patents.
The American Boat and Yacht Council standards and technical information reports are guides to achieving a specific
level of design or performance, and are not intended to preclude attainment of desired results by other means.
https://www.boat-manuals.com/

13

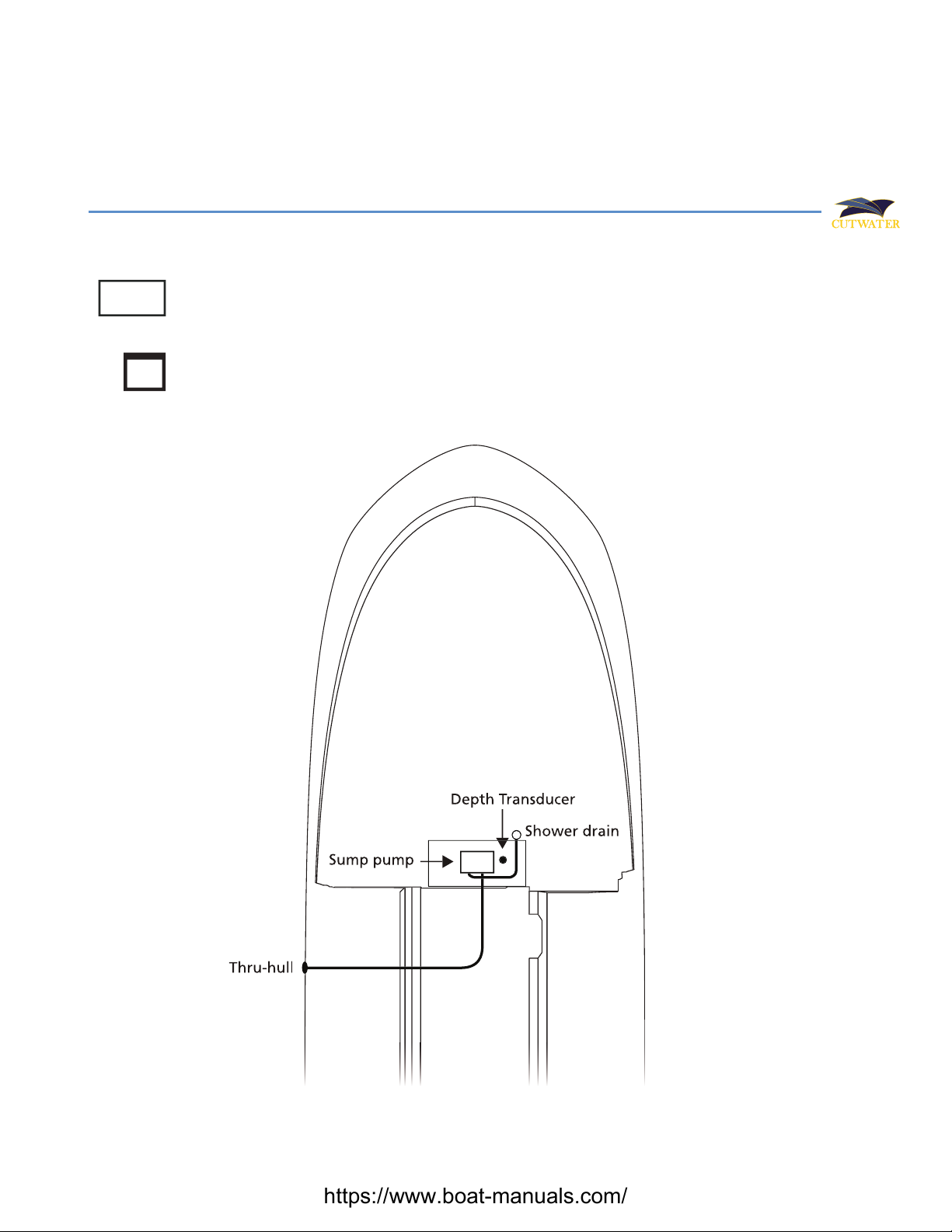

SHOWER SUMP
STE
12V, 1000 GPH
(This should be inspected for debris on a regular basis if shower is used frequently.)
Shower drain
Thru-hull
Sump pump
Depth Transducer
The shower sump box is located underneath the v-berth step positioned just
outside the head door.
https://www.boat-manuals.com/

14
BILGE PUMP SYSTEM
Forward bilge
pump
(
1
1
00
GPH)
Aft bilge pump
(1100 GPH)
(1100 GPH)
Thru-hulls
Thru-hull
High water alarm
Helm switch must be in the down
“armed position” to activate
V-berth bilge pump
under step (900 GPH)
STE
The bilge pumps operate automatically by checking for water every 2.5 minutes even with
battery switches and breakers in the OFF position.
However, the bilge pumps will run continuously once their switches are placed in the on position.
Monitor the outflow accordingly. Do not run when dry.
• All manual bidge pump switches are located at the helm.
• V-berth switch is labeled “ACCY”.
12V 1100 GPH
12v 900 GPH
https://www.boat-manuals.com/

15
WASTE SYSTEM WITH MACERATOR PUMP
STE
11 Gallon Tank with standard pump out, and vent
Waste tank pump out stations are widely available.
Please follow the directions carefully for the pump out equipment you are using to avoid damage
to the waste system.
Boat owner is responsible for following all applicable laws when using the macerator
system to pump out into the surrounding waters.
Overboard shutoff valve is accessed under the galley sink above the pump area.
Macerator pump out
Holding Tank
Waste pumpout
Macerator out
Macerator pump
Macerator
shut off
Waste vent
Toilet
https://www.boat-manuals.com/

16
AIR CONDITIONING
Main Cabin A/C Control
Panel (in Mid-Berth)
Main Cabin A/C Unit
(Under Seat)
A/C / Sink Drain
A/C Vent
A/C Vent
Sea Strainer
Thru-hull/Valves
AC Water Pump
(optional)
https://www.boat-manuals.com/

17

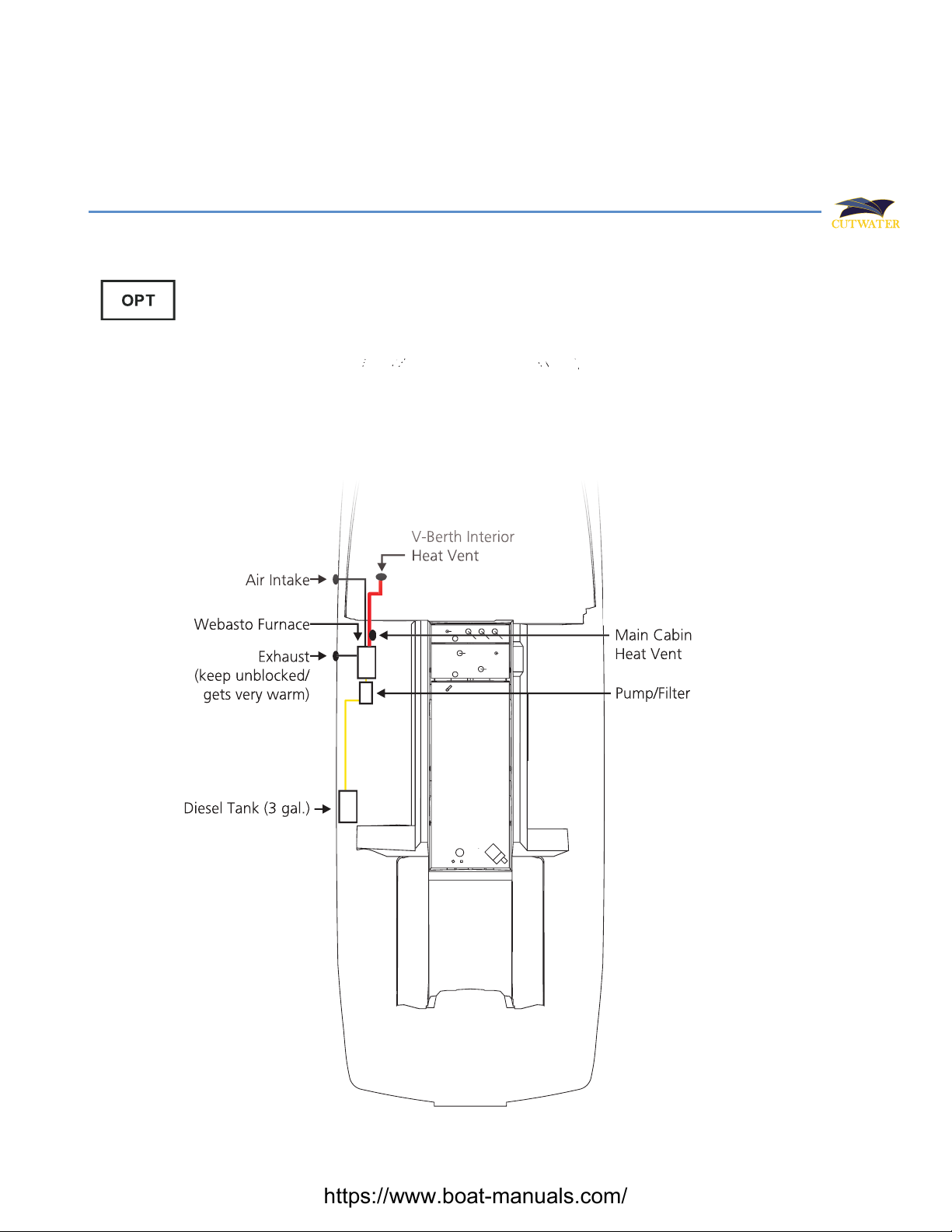

WEBASTO FURNACE
Webasto furnace is located under the foward passenger seat.
The control panel is located at the quarter berth power management center.
The fuel pump and filter are beneath the passenger seat, inside of the black box.
To access the heater/pump the seat must be removed. The fuel filter should be changed during
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
the annual maintenance. Filter change intervals may vary depending on usage.
Webasto Furnace
Diesel Tank (3 gal.)
V-Berth Interior
Heat Vent
Main Cabin
Heat Vent
Exhaust
(keep unblocked/
gets very warm)
Air Intake
Pump/Filter
https://www.boat-manuals.com/

18
BATTERY CONFIGURATION
STE
2 House Batteries, 1 Engine Battery
1
1
2 3
3 bank battery charger
Ground/bonding bus
Inverter battery switch
Inverter current breaker (200A)
Thruster battery switch (optional)
Thruster ANL fuse 200A (optional)
HOUSE
ENGINE
EMERGENCY
PARALLEL
STE
House, engine, & battery parallel switches are located in the midberth.
1 Thruster Battery (optional). Thruster battery switch is located in the starboard side lazarette
Inverter battery switch and ANL fuse located in the port side lazarette
Once the EMERGENCY PARALLEL switch is placed in the on position the power from the
HOUSE batteries will be transferred to the ENGINE battery. Use only for EMERGENCY
starting of the engine.
If the house bank drops below 10.8v you must reset the charging relay by switching on
the parallel while the engine is running or while plugged into shore power.
Automatic Charging
Relay (ACR)
House Breaker
Automatic Charging
Relay (ACR)
Downrigger Starboard
Freshwater Switch
Downrigger Port
TV
Washdown Switch
Cabin Light
LED Light Switch
Fridge Foreward
Fridge Aft
Underwater Lights
USB V-Berth
USB Port
40
40
CO Monitor
Stereo Memory
Stove Switch
#1 Float
#2 Float
3 3
1
HOUSE
BREAKER
175
Battery Banks
1= House
2= Engine
3= Thruster (optional)
https://www.boat-manuals.com/

Battery Banks
1= House
2= Engine
3= Thruster (optional)
19

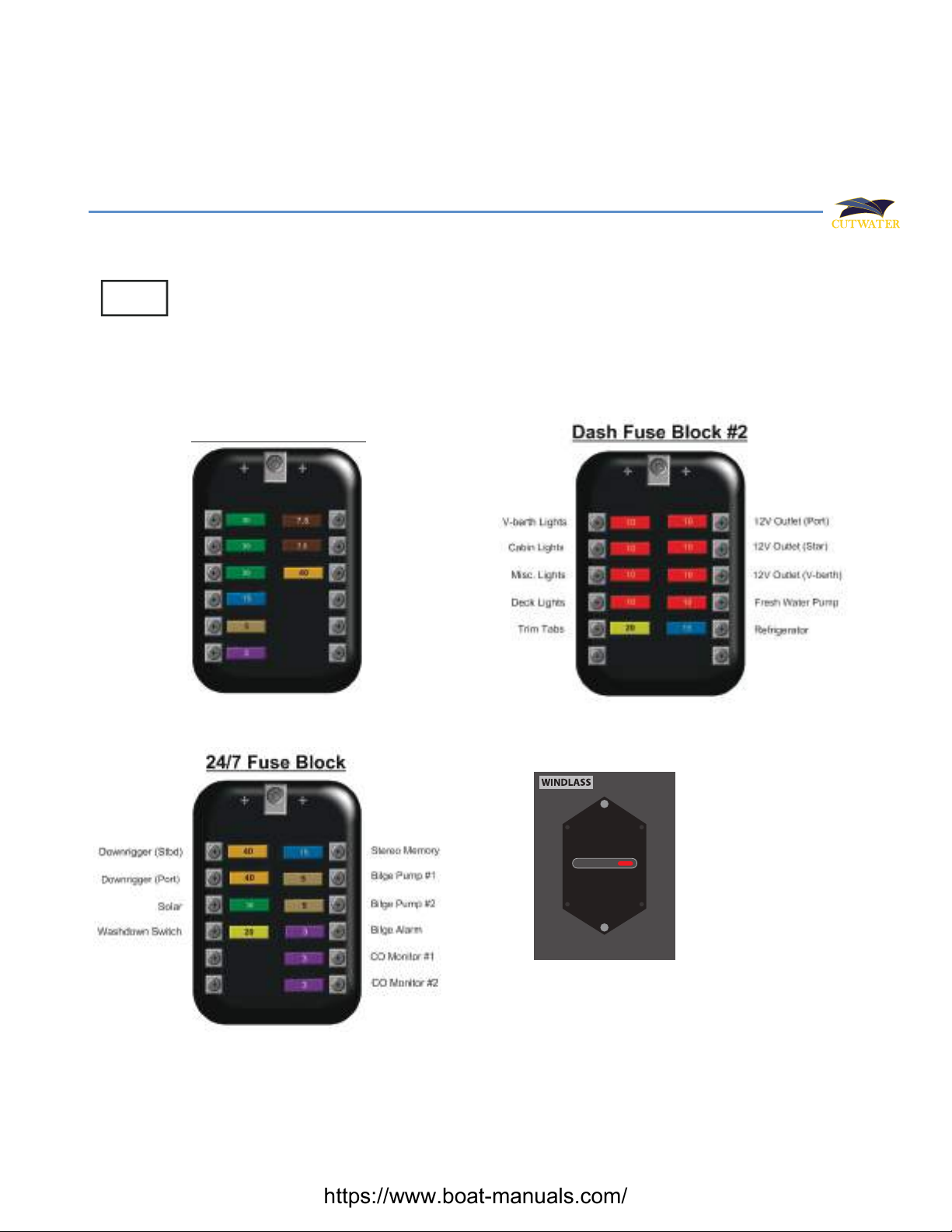

FUSE LOCATION & VALUESFUSE LOCATION & VALUES
STE
Dash fuse blocks are located behind a hinged access panel in the head. The 24/7 fuse block is
located in the mid cabin behind a removable panel secured with Velcro in the aft inboard corner.
Fuses are automotive blade type and all values shown below are in Amps.
* To reset, reinsert yellow
arm “up” into the breaker.
To test, press red button
and the yellow arm should
flip down.
Left Right
Trim Tab
Toilet
Switch Panel
12v Outlet
Bathroom
Reading Light
Bathroom Light
V Berth Light12v Outlet
Spot Light
Stereo
Shower Pump
4 SW Panel Power
GPS
8 SW Panel Power #2
8 SW Panel Power #1
NEMA
AIS
Bildge Pump
VHF
Auto Pilot 40
CW-24
Fuse Block Layouts
Last Update:8/16/16
Dash Fuse Block #1
4SwitchPanel
8SwitchPanel
8SwitchPanel
Stereo
ShowerPump
T.V. #1 (Option)
HeaterCraft(Option)
VHF
Auto Pilot Pump
CW-24
Fuse Block Layouts
Last Update:8/16/16
Dash Fuse Block #1
4SwitchPanel
8SwitchPanel
8SwitchPanel
Stereo
ShowerPump
T.V. #1 (Option)
HeaterCraft(Option)
VHF
Auto Pilot Pump
CW-24
Fuse Block Layouts
Last Update:8/16/16
Dash Fuse Block #1
4SwitchPanel
8SwitchPanel
8SwitchPanel
Stereo
ShowerPump
T.V. #1 (Option)
HeaterCraft(Option)
VHF
Auto Pilot Pump
https://www.boat-manuals.com/

20
AC DISTRIBUTION PANEL & ROTARY SWITCH
STE
STE
AC Rotary Selector Switch (Available with Generator) AC Main Line 2 (with AC)
Inverter. While using, you must power manage the devices you choose to use.
Do not exceed 1000 watt maximum. Never have charger breaker on while using the inverter.
The AC Rotary Switch Selector Switch will determine which source
of incoming 120 Volt power to use for your AC Distribution Panel.
A/C Main 1 and battery charger breaker must on in order for batteries to charge.
AC Distribution Panel
AC Distribution Panel
AC Main 1
Inverter Switch
House
Engine
Thruster
AC Distribution Panel with Generator
AC Main 1 AC Main 2
MICROWAVE
STBD
OUTLETS
REVERSE
POLARITY
AC MAIN
1
AIR
CONDI-
TIONER
BATTERY
CHARGER
WATER
HEATER
PORT
OUTLETS
ACCESSORY ACCESSORY
ACCESSORY
STOVE
GEN
SHORE INVERTER
25A
STOVE
OFF
15A
WATER HEATER
OFF
15A
MICROWAVE
OFF
15A
STBD
OUTLETS
OFF
15A
PORT
OUTLETS
OFF
30A
OFF
30A
OFF
15A
AIR
CONDITIONER
OFF
15A
ACCESSORY
ACCESSORY
OFF
15A
OFF
BATTERY
CHARGER
INVERTER
REVERSE
POLARITY
SHORE
15A
OFF
120 VOLT AC / 60 HZ DISTRIBUTION
30A
30A
House
Engine
Thruster (optional)
REMOTE SWITCH
KISAE
Inverter Operation:
• Press and hold Inverter Remote switch until the
green light comes on.
• On the AC Distribution panel, Turn the Shore
Power off and the Inverter on.
• Microwave, AC outlets, etc. are now powered
by the inverter.
https://www.boat-manuals.com/
Other manuals for C-24 Coupe
1
This manual suits for next models
1
Table of contents
Other Cutwater Boat manuals
