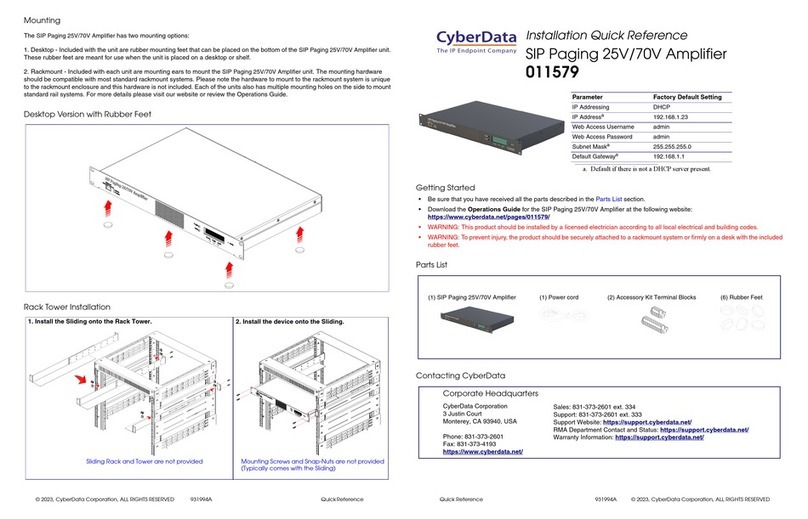

CyberData 011579 User manual

Quick Start Guide 931995A
The IP Endpoint Company
1.0 Out-of-Box and Prior to Final Installation
1.1. Verify that you have received all of the parts listed on the Installation Quick
Reference placemat.
1.2. Download the current manual, otherwise known as an Operations Guide,
which is available on the Documentation page at the following website
address:
https://www.cyberdata.net/products/011579
Note You can also navigate to the Downloads tab by going to
www.cyberdata.net and following the steps that are indicated by the
following figures:
2.0 Select Power Source and Network Settings
Switch AC Power Source
Disable PoE power, only network
connection is required.
Plug included cable into SIP Paging 25V/70V
Amplifier and appropriate power source.
Make sure port is not in trunk mode.
011579 SIP PAGING
1PRODUCTS
VOIP PRODUCTS
A
B
SIP ENABLED
C
3
2
Downloads
IP to Analog
A
B
25V/70V AMPLIFIER
SIP Paging 25V/70V Amplifier
Quick Start Guide

Quick Start Guide 931995A
3.0 Power Test
3.1. Plug the CyberData device into the network and enable the power switch on
the back of the device. Monitor the LED and LCD activity on the front of the
device. See the following figure:
3.2. The GREEN/BLUE Status LED will blink during the boot process. The
GREEN Paging LED will illuminate solid during initial network setup and
then turns off. After the initialization process the GREEN/BLUE Status LED
will blink twice a second.
The GREEN Power LED will illuminate when power is applied to the device.
The LCD Display is off during the initialization process and turns on shortly
after. The LCD Display will illuminate BLUE and show CYBERDATA SIP
PAGING 2570.
The square, YELLOW Link LED above the Ethernet port indicates that the
network connection has been established at 100 Mb. The Link LED
changes color to confirm the auto-negotiated connection speed:
• The Link LED is off at 10 Mbps.
• The Link LED is YELLOW at 100 Mbps.
You can disable Beep on Initialization on the Device Configuration page.
The GREEN Network Activity LED blinks when there is network traffic.
If there is no DHCP server available on the network, it will try 12 times with a
three second delay between tries and eventually fall back to the
programmed static IP address (by default 192.168.1.23). This process will
take approximately 80 seconds.
3.3. When the device has completed the initialization process, press the
TOGGLE button to find the device's IP Address. Another option is to briefly
press and then quickly release the RTFM switch to bring up the RTFM
screen and select Speak IP Address.
This concludes the power test. Go to Section 4.0, "Connecting to a Network
in a Test Environment"
Status
(GREEN/BLUE LED)
Paging (GREEN LED)
Link (YELLOW LED)
Network Activity
(GREEN LED)

Quick Start Guide 931995A
4.0 Connecting to a Network in a Test Environment
Note The following connections are usually needed for this procedure:
• Computer
• Network Switch
• AC Power Source
• CyberData SIP Paging 25V/70V Amplifier
4.1. In a test environment, use a computer that is connected to the same switch
as a single CyberData device. Note the subnet of the test computer.
4.2. Use the CyberData Discovery Utility program to locate the device on the
network. You can download the Discovery Utility program from the following
website address:
https://www.cyberdata.net/pages/discovery
4.3. Wait for initialization to complete before using the Discovery Utility program
to scan for a device. The device will show the current IP address, MAC
address, and serial number.
4.4. Select the device.
4.5. Click Launch Browser. If the IP address is in a reachable subnet from the
computer that you are using to access the device, the Discovery Utility
program should be able to launch the browser window which is configured
to the device’s IP address.
4.6. Log on to the web interface by using the default username (admin) and
password (admin) to configure the device.
4.7. The device is now ready to be set for your desired network configuration.
You may reference our IP-PBX specific configurations at the following
website address:
https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers

Quick Start Guide 931995A
5.0 LCD Display Explanation
5.1. The LCD Display can be interacted with via the TOGGLE and ENTER
buttons on the front panel of the device.
5.2. The TOGGLE button is used to switch between menu pages and on specific
pages to toggle between options.
5.3. The ENTER button is used on specific pages to confirm a setting.
5.4. LCD Display menu pages:
Screen 1: CyberData Splash Screen
Screen 2: Serial Number and Mode (25V and 70V)
Screen 3: Temperature (Celsius /Fahrenheit) and fan status (on or off)
Screen 4: IP Address and MAC Address
Screen 5: Firmware Version and Part Number
Screen 6: Master Volume Level
Screen 7: Test Audio (Shows in Green)
6.0 Contacting CyberData VoIP Technical Support
You are welcome to call CyberData VoIP Technical Support at 831-373-2601
x333.
We encourage you to access our Technical Support help desk at the following
address:
https://support.cyberdata.net/
Note You can also access the Technical Support help desk by going to
www.cyberdata.net and clicking on the SUPPORT menu.
The Technical Support help desk provides the options of accessing
documentation for your CyberData product, browsing the knowledge base, and
submitting a troubleshooting ticket.
Please be advised requests for Returned Materials Authorization (RMA) numbers
require an active VoIP Technical Support ticket number. A product will not be
accepted for return without an approved RMA number.
