Cybex Silver SOLUTION B-FIX/B2-FIX+LUX User manual

GOODBABY CYBEX SOLUTION B-FIX
CYBEX SOLUTION B2FIX+LUX
Type: Belt-positioning booster
Last date made: current
First made: 2020
Weight limits: 40 to 120 lbs. and at least 4 years old.
Harness: No harness. Vehicle lap and shoulder belt are required.
Backrest: Not removable. Diagram 1 shows allowable range of backrest
recline. If backrest is over reclined, you’ll hear a “click”
(diagram 2). Vehicle headrest must not interfere with booster seat head
support. Squeeze adjustment handle on back of restraint to adjust headrest
height to one of eleven locked positions (diagram 3). Bottom of headrest
should be two fingers width above child’s shoulders. On B2-Fix+Lux the
headrest reclines to 3 comfort positions (diagram 4). To adjust, lift up
headrest and push back or pull forward into position.
Belt Path: Do not use with inflatable safety belt. Do not install restraint in
a seating position with an active frontal airbag unless specifically approved
by vehicle manufacturer. Use vehicle lap-shoulder belt to restrain child.
Route both sides of lap belt and lower end of shoulder belt under armrest
guides. Buckle must not intrude into armrest guide. Route shoulder belt
through shoulder belt guide on headrest (diagram 5).
SEE PAGE 2
Important: This information sheet is not a substitute for complete manufacturer’s directions and current recall list.
SafetyBeltSafe U.S.A., P.O. Box 553, Altadena CA 91003 [phone] (800)745-SAFE ©SafetyBeltSafe U.S.A. #450 08/21
P. 1 of 2
3 4
1
2
5

LATCH: No tether. Lower connector use is optional.
On B2Fix+Lux rigid lower connectors are located at
bottom of seat. Squeeze orange release handle under
front of booster base and pull connectors all the way
out, then rotate connectors 180 degrees (diagram 6).
Push connectors onto lower anchors. Green indicators
become visible on release buttons when connectors
are properly secured (diagram 7). Squeeze orange release handle and push
booster toward vehicle seat back until it is flush.
On B-Fix, a webbing strap with two hook connectors is stored in a
compartment on the underside of the booster base (diagram 8). May be
installed in center seating position when spacing between bars is 11-20
inches and when vehicle manufacturer designates it as a LATCH location.
To install, remove both connectors from their storage, attach to anchors,
tighten strap. Do not overtighten. Do not install booster using lower
connectors if a safety belt or safety belt buckle is located between
lower anchors.
Other: No portion of booster can extend beyond edge of vehicle seat.
Use of cup holders is optional.
For initial setup of the booster, side impact bolsters must be slid
into guides under backrest cover (diagram 9) until an audible “click” is
heard.
Restraint expires eight years from date of manufacture.
Important: This information sheet is not a substitute for complete manufacturer’s directions and current recall list.
SafetyBeltSafe U.S.A., P.O. Box 553, Altadena CA 91003 [phone] (800)745-SAFE ©SafetyBeltSafe U.S.A. #450 08/21
Pg. 2 of 2
Goodbaby Cybex Solution B-Fix/ B2Fix+Lux
7
6
8
9

SOLUTION B-FIX/B2-FIX+LUX
READ this Owner’s Manual carefully before rst use, and keep it for future reference.
LEA con cuidado este Manual del propietario antes de usar el producto por primera vez y guárdelo para uso futuro.
Owner’s Manual
Manual del propietario
ENES

Thank you for purchasing the CYBEX Solution B-Fix/B2-Fix+Lux High Back Booster Seat. We are proud to
bring this German engineered seat to North America. We hope the Solution B-Fix/B2-Fix+Lux will make your
child’s travel both safer and more pleasant, as well as making installation and use for you as simple and easy
as possible.
The Solution B-Fix/B2-Fix+Lux is the next generation of the award winning CYBEX booster seats. With greatly
improved protection in side impact and forward facing crashes, the Solution B-Fix/B2-Fix+Lux takes booster
safety to a new level.
Statistics show that over 75% of car seats are installed incorrectly!
Please read and follow these instructions to install this booster seat correctly, even if the installation and use
of this booster seat might seem simple and intuitive. The safety of your child depends on it! Although many
booster seats may be used without the backrest attached, the Solution B-Fix/B2-Fix+Lux should NEVER BE
USED WITHOUT THE BACKREST ATTACHED as it dramatically reduces the protection in a crash.
We recommend keeping your young child in a properly sized and installed car seat as long as possible before
making the switch to the Solution B-Fix/B2-Fix+Lux High Back Booster Seat.
No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of death
or serious injury. If you have any questions or need assistance, please contact CYBEX at 1-877-242-5676.
Also, please remember to register your booster seat so we can contact you in the unlikely event of a recall.
Register online:
• In the United States, at http://register.cybex-online.com/us/carseats
• In Canada, at http://register.cybex-online.com/ca/carseats
Keep this Owner’s Manual for future reference by storing it in the pocket behind the Backrest pad. We
appreciate your purchase and invite you to visit our web site www.cybex-online.com to see other great CYBEX
products.
Before the rst use of this booster seat, please make sure you have followed all the steps in the Safety
Checklist found on pg. 31.
WELCOME TO THE CYBEX FAMILY.

EN
INDEX
SOLUTION B-FIX/B2-FIX+LUX FEATURES ................................................................................................ 3
REGISTRATION AND RECALL INFORMATION .......................................................................................... 4
BOOSTER SEAT OVERVIEW .................................................................................................................... 5-6
WHEN TO PLACE YOUR CHILD IN A BOOSTER SEAT ............................................................................ 7
CHILD HEIGHT, WEIGHT, AND AGE REQUIREMENTS ............................................................................ 8
WARNINGS ................................................................................................................................................9-12
BOOSTER SEAT ASSEMBLY ...................................................................................................................... 13
VEHICLE SEAT LOCATION REQUIREMENTS .................................................................................... 14-15
VEHICLE SEAT BELT REQUIREMENTS ................................................................................................... 16
VEHICLE LATCH/UAS REQUIREMENTS .................................................................................................. 17
INSTALLING WITH LATCH/UAS: SOLUTION B-FIX ONLY ...................................................................... 18
INSTALLING WITH RIGID LATCH/UAS: SOLUTION B2-FIX+LUX ONLY ............................................... 19
INSTALLING WITH SEAT BELT ONLY ....................................................................................................... 20
ADJUSTING THE SEAT FOR YOUR CHILD .............................................................................................. 21
USING THE THREE POSITION RECLINING HEADREST (SOLUTION B2-FIX+LUX ONLY) ............... 22
SECURING YOUR CHILD IN THE BOOSTER SEAT ..........................................................................23-36
UNINSTALLING THE BOOSTER SEAT ..................................................................................................... 27
REMOVING AND REPLACING THE SEAT COVERS .......................................................................... 28-29
CARE AND CLEANING ................................................................................................................................ 30
SAFETY CHECKLIST ................................................................................................................................... 31
RESOURCES ................................................................................................................................................ 32
WARRANTY .............................................................................................................................................33-34

THREE POSITION
RECLINING HEADREST
D
E
E
P
S
A
F
E
T
Y
Z
O
N
E
3
The Solution B-Fix/B2-Fix+Lux brings all new technologies to the High Back Booster Seat category to enhance
the safety of your child in the event of a side impact collision.
LINEAR SIDE-IMPACT PROTECTION™ (L.S.P.)
The L.S.P. system allows the forces from a side impact collision to be reduced
gradually to help minimize injuries. The Head and Shoulder Protectors are made of
extra deep and thick energy absorbing EPS foam to create a deep Safety Zone™
around your child.
THREE POSITION RECLINING HEADREST (SOLUTION B2-FIX+LUX ONLY)
When a child sleeps, their head can fall forward. If your child slumps forward out
of position when asleep, there is an increased risk that your child will not be well
protected in the event of a collision. The Three Position Reclining Headrest on the
Solution B2-Fix+Lux helps avoid this by allowing your child’s head to recline and
remain protected in the Safety Zone of the Head Protectors.
Thanks to the Three Position Reclining Headrest, your child will be able to lean back and sleep comfortably
with their head inside the Safety Zone.
SOLUTION B-FIX/B2-FIX+LUX FEATURES

EN
4
REGISTRATION AND RECALL INFORMATION
Please complete the Registration Card that came
with your Child restraint and mail it immediately
or register online.
Child restraints could be recalled for safety reasons.
You must register this restraint to be reached in a
recall. Send your name, address, e-mail address
if available, and the restraint’s model number and
manufacturing date to:
Columbus Trading-Partners USA Inc.
Attn: ParentLink
1801 Commerce Drive
Piqua, Ohio 45356, USA
or call 1-877-242-5676 or register online at
http://register.cybex-online.com/us/carseats
For recall information, call the U.S. Government’s
Vehicle Safety Hotline at:
1-888-327-4236 (TTY: 1-800-424-9153),
or go to www.NHTSA.gov.
PUBLIC NOTICE FOR CANADIAN CUSTOMERS
To register your booster, return the registration card,
call 1-877-242-5676, or register online at
http://register.cybex-online.com/ca/carseats
For recall information, call Transport Canada at
1-800-333-0510 (1-613-993-9851 in Ottawa region)
or Goodbaby Canada Inc. at 1-877-242-5676.
CERTIFICATION
This restraint is certied for use only in passenger
and multi-purpose passenger motor vehicles, buses,
and trucks equipped with lap/shoulder belt systems.
THIS RESTRAINT IS NOT CERTIFIED
FOR AIRCRAFT USE as shoulder belts
are not available for proper use.
FEDERAL STANDARD NO. FMVSS213-
Child restraint Systems
This child restraint system conforms to all
applicable Federal Motor Vehicle Safety Standards.
CANADIAN REGULATORY NOTICE
This child restraint system meets all the applicable
requirements of Canadian Motor Vehicle Safety
Standard CMVSS 213.2.
Registration information may be found a󰀩xed to
the underside of the Booster Base.

5
BOOSTER SEAT OVERVIEW
FRONT VIEW
q
w
e
r
t
u
q Headrest (Solution B-Fix)
Three Position Recling Headrest
(Solution B2-Fix+Lux) (see pg. 22)
w L.S.P. (Solution B-Fix)
L.S.P. with Bolster
(Solution B2-Fix+Lux) (see pg. 13)
e Backrest
r Armrest
t Lower Belt Guide
y Cup holder(s)*
u Booster Base
* Quantity will vary.
y

EN
6
REAR VIEW
BOOSTER SEAT OVERVIEW
BOTTOM VIEW
SOLUTION B2-FIX+LUX
Rigid LATCH
Adjustment
Handle
User
Guide
LATCH
Storage
LATCH
Storage
User
Guide
SOLUTION B-FIX
Shoulder Belt
Guide
Headrest
Height
Adjustment
Handle

7
WHEN TO PLACE YOUR CHILD IN A BOOSTER SEAT
Booster seats raise the child up and help to position
the vehicle lap and shoulder belt correctly. When the
child is properly restrained in a booster seat, their
risk of injury in all types of crashes is reduced.

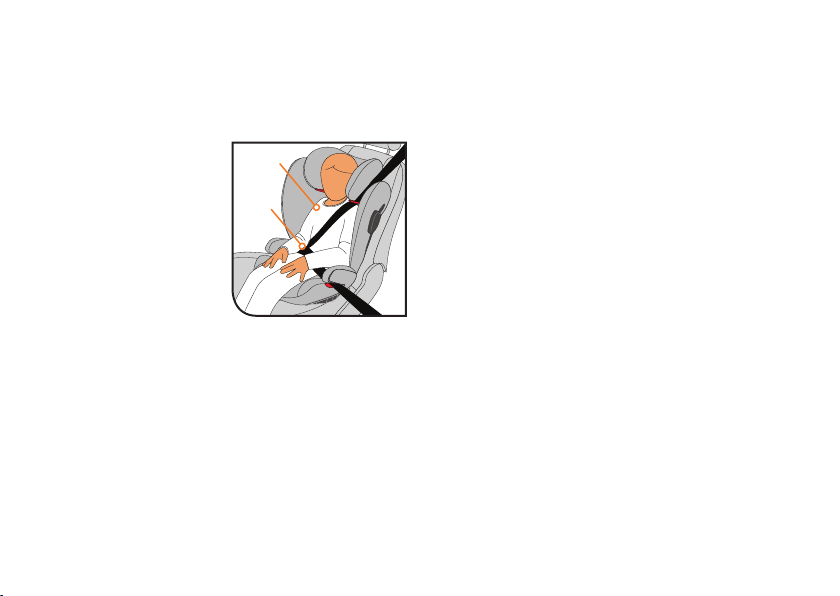

It is important for the
child to sit properly
within the vehicle seat
belts. When the vehicle
seat belt is buckled, the lap
belt must be positioned low
and snug at the child’s
hips A, and the shoulder
belt should lie across the
middle of the shoulder
B. If the child leans out or
moves the belt behind the
back or places it under the arm, it will not provide
the intended restraint.
There are a number of things to consider when
deciding whether the child is ready to sit in a booster
seat, including: the weight and height rating on their
current child seat, the child’s own weight and height,
their maturity, and the seating positions available in
your vehicle.
How is a booster seat used?
Using a booster seat is very similar to buckling
yourself into the vehicle:
• Read the instruction manuals for both the booster
seat and the vehicle before you start.
• Put the booster in the back seat in a location with
a lap and shoulder belt. Never use a booster with
only a lap belt, as this could cause serious injuries.
• After the child is in the booster, pull the lap and
shoulder belt across him/her and buckle it.
• Check that the shoulder belt lies across the middle
of the shoulder and that the lap belt is low on the
hips.
How can you tell if your child is ready to
transition to a booster seat?
You should consider using a booster seat if the
following conditions apply:
• The child is mature enough to sit in the booster seat
and not put the belts under their arm or behind their
back.
• The child is approaching the weight or height limit of
the child restraint they are currently using.
• Your vehicle does not have a tether anchorage
available, but does have a lap/shoulder seat belt in
the rear seat.
A
B

EN
The tops of the child’s ears (Orange Line) are below
the top of the booster seat (Red Line).
When sitting in a booster seat, the shoulder belt
should lie across the middle of the shoulder and
snug across the midpoint of the child‘s chest.
The lap portion of the seat belt MUST be positioned
low and snug at the child's hips.
The lap and shoulder belts should lie snug, not
twisted, and with no slack.
8
CHILD HEIGHT, WEIGHT, AND AGE REQUIREMENTS
• USE ONLY with children who are 4 years
of age or older AND who weigh 18-54 kg
(40-120 lb) AND whose height is 96-152
cm (38-60 inches). Using this booster
seat with a child who does not meet ALL
of these requirements may increase the
risk of death or serious injury.
• Use this booster seat FORWARD
FACING ONLY.
18-54 kg
(40-120 lb)
AND
96-152 cm
(38-60 in)
WARNING!
DEATH or SERIOUS INJURY can occur

9
• YOUR CHILD’S SAFETY depends on
you correctly installing and using this
booster seat.
• READ and FOLLOW all booster seat
and vehicle instructions carefully. Failure
to follow these instructions and the
product labeling can result in DEATH
or SERIOUS INJURY of your child in a
sharp turn, sudden stop, or crash.
• DO NOT install or use this booster seat
until you have read and understand the
instructions in this manual and in your
vehicle Owner’s Manual. If there is a
conict between the two, the vehicle
Owner’s Manual must be followed unless
explicitly warned against in this manual.
• NEVER USE this booster seat with a
lap belt only, or with any motorized, door
mounted, or inatable vehicle belts. Your
child would not be properly restrained in
the event of a crash.
WARNING! DEATH or SERIOUS INJURY can occur
• DO NOT let others install or use this
booster seat unless they understand how
to correctly install and use it.
• KEEP this Owner’s Manual for future
reference by storing it in the Base of the
Booster Seat.
• NEVER USE the Booster Base without
the Backrest attached.
• NEVER TAKE your child out of the
booster seat to tend to his or her needs
while the vehicle is moving. Unrestrained
occupants are at a greatly increased risk
of DEATH or SERIOUS INJURY in a car
crash.
• NEVER TEND to your child’s needs
while driving. Driving while distracted is
the cause of many car crashes. Safely
stop your vehicle in order to tend to your
child.
• NEVER LEAVE children unattended in a
vehicle, even for a short period of time.
• The primary protection for occupants of
a vehicle in a collision is the structure of

EN
10
the vehicle itself; a booster seat and the
vehicle restraint system may not protect
a child from injury when a vehicle is
seriously impacted. Correctly used per
the instruction and labeling, this booster
seat will substantially improve the
chances for survival in most crashes.
• TOOMUCHRECLINEINTHEVEHICLE
SEAT BACK can result in improper seat
belt position. An improperly positioned
seat belt increases the risk of DEATH
or SERIOUS INJURY in a crash. Follow
your vehicle Owner’s Manual instructions
for proper seat back positioning.
• USE ONLY the vehicle’s lap and
shoulder belt system when restraining
your child in this booster seat.
• IMPROPER PLACEMENT of this
booster seat in a vehicle a󰀨ects the
booster seat’s performance and can
result in DEATH or SERIOUS INJURY.
• ONLY PLACE this booster seat
WARNING! DEATH or SERIOUS INJURY can occur
FORWARD FACING in a vehicle
seating location allowed by the vehicle
manufacturer. Refer to your vehicle
Owner’s Manual for information about
vehicle seat belt systems, air bags, and
child restraint/booster seat installation to
determine allowable seating positions.
• Use this booster seat FORWARD
FACING ONLY.
• ACCORDING TO ACCIDENT
STATISTICS, children are safer when
properly restrained in rear vehicle seating
positions.
• DO NOT USE this booster seat in a
seating position with an airbag unless the
vehicle manufacturer specically allows
placement there. If an air bag inates, it
can hit your child with such a great force
that it may cause DEATH or SERIOUS
INJURY.
• The Backrest of this booster seat MUST
FIT FLAT against the vehicle seat back.
• Vehicle headrest MUST NOT

11
INTERFERE with the booster seat
Backrest. See the vehicle Owner’s
Manual for adjustment or possible
removal of vehicle headrest.
• NO PART of this booster seat should
hang over the front of the vehicle seat.
• NEVER USE a locking clip when
installing this booster seat.
• ALWAYS secure the Booster Seat with
the vehicle seat belt or lower anchors
when not occupied. An unsecured
Booster Seat can injure other occupants
in the event of a crash.
• DO NOT SECURE this booster seat to
the vehicle’s lower LATCH/UAS anchors
if the seat belt or seat belt buckle is not
easily accessible when the booster seat
is securely installed or if it negatively
impacts the positioning of the seat belt
over the child.
• NEVER LEAVE a vehicle seat with a
folding mechanism unlocked. In the
event of a sudden stop, a loose vehicle
WARNING! DEATH or SERIOUS INJURY can occur
seat back could prevent this booster
seat from protecting your child as well as
it should.
• DO NOT LEAVE loose objects (e.g.
books, bags, etc.) in a vehicle. In the
event of a sudden stop, loose objects
will become projectiles, potentially
causing serious injuries.
• DO NOT USE anything to raise this
booster seat o󰀨 the vehicle seat.
• NEVER USE this booster seat in the
home, on aircraft, boats, low speed
vehicles (LSV), all-terrain vehicles (ATV),
golf carts, or any other non-certied
application.
• NEVER ALLOW children to play with
this booster seat.
• NEVER ALLOW children to play with
vehicle seat belts as they may create
an ENTANGLEMENT HAZARD for any
child that can reach the seat belt and
may wrap it around his or her neck.
• DO NOT USE this booster seat if it has

EN
12
been in a crash. There may be hidden
damage and it must be replaced. Your
insurance company may provide some
assistance replacing the booster seat.
• NEVER USE this booster seat if it
has been damaged in any way or has
missing parts.
• NEVER USE a cut, damaged, frayed, or
inoperable vehicle seat belt.
• DO NOT ATTEMPT to make repairs to
or otherwise modify or tamper with this
booster seat.
• NEVER USE this booster seat without
properly installed fabric covers.
• NEVER USE a second-hand booster
seat or a booster seat whose history you
do not know.
• DO NOT use cup holders to store cans
or hard cups. DO NOT place any cups
that contain hot liquids in cup holders.
• DO NOT USE accessories or parts
WARNING! DEATH or SERIOUS INJURY can occur
with this booster seat other than those
approved by CYBEX. Use of accessories
or parts from other manufacturers could
alter the performance of the booster
seat.
• DISCONTINUE USING this booster seat
when it is older than eight (8) years and
recycle it. The date of manufacture can
be found on a label a󰀩xed to the bottom
of the Booster Base.
• This booster seat and the vehicle seat
belt can become very hot if left in the sun
and can burn your child’s skin. ALWAYS
TOUCH the surfaces of the parts before
putting your child in the booster seat.

GUIDE
e
13
1. Connect the Backrest to the Booster Base.
2. Fold the Backrest up until it CLICKS into place.
3. Install cup holder(s) if used.
4. SOLUTION B2-FIX+LUX ONLY: Install L.S.P.
Bolster.
a. Line up one L.S.P. Bolster with the guide on
the corresponding side of the seat.
Note: L.S.P. guides are located under the
backrest cover on the sides of the seat.
b. Slide L.S.P. Bolster into position over top of
backrest cover until you hear and audible
CLICK. Repeat with other side.
BOOSTER SEAT ASSEMBLY
• NEVER USE the Booster Base without the Backrest attached.
• NEVER use this booster seat with the Backrest past the allowable adjustment range. An
audible CLICK will alert you when you have gone too far.
WARNING! DEATH or SERIOUS INJURY can occur
q w
r

EN
14
• ACCORDING TO ACCIDENT STATISTICS, children are safer
when properly restrained in rear vehicle seating positions.
• ONLY PLACE this booster seat FORWARD FACING in a
vehicle seating location allowed by the vehicle manufacturer.
Refer to your vehicle Owner’s Manual for information about
vehicle seat belt systems, air bags, and child restraint/booster
seat installation to determine allowable seating positions.
• Use this booster seat ONLY IN FORWARD FACING VEHICLE
SEATS.
VEHICLE SEAT LOCATION REQUIREMENTS
WARNING! DEATH or SERIOUS INJURY can occur

CLICK!
15
• Vehicle headrest MUST NOT
INTERFERE with the booster seat
Backrest. See the vehicle Owner’s
Manual for adjustment or possible
removal of vehicle headrest.
• NO PART of this booster seat should
hang over the front of the vehicle seat.
• NEVER ALLOW your child to use this
booster seat if the vehicle seat back is in
a reclined position.
• NEVER use this booster seat with the
Backrest past the allowable adjustment
range. An audible CLICK will alert you
when you have gone too far.
• The Backrest of this booster seat MUST
FIT FLAT against the vehicle seat back.
The Backrest will adjust to the vehicle seat
back through an allowable adjustment range of
approximately 15° as shown in green.
VEHICLE SEAT LOCATION REQUIREMENTS
WARNING!
DEATH or SERIOUS INJURY can occur

EN
16
VEHICLE SEAT BELT REQUIREMENTS
• USE ONLY the vehicle’s lap and shoulder belt system when restraining your child in
this booster seat.
• NEVER USE this booster seat with a lap belt only, or with any motorized, door
mounted, or inatable vehicle belts. Your child would not be properly restrained in the
event of a crash.
The design and operation of vehicle seat belt systems vary from vehicle to vehicle and from seating location
to seating location in the same vehicle. Refer to your vehicle Owner’s Manual for proper use, placement, and
adjustment of the vehicle’s lap and shoulder belts.
This booster seat may not t some vehicle seating positions.
Select a seat location allowed by your vehicle manufacturer that is equipped with a LAP AND SHOULDER
BELT system.
WARNING! DEATH or SERIOUS INJURY can occur

LATCH and UAS are acronyms for Lower Anchors and Tethers for CHildren (USA)
and Universal Anchorage System (Canada), and refer to a pair of xed Lower Anchors
(or bars) and a Top Tether anchor that are built into your vehicle, in vehicles built after
September 1, 2002.
Note: Your vehicle owner’s manual may also refer to this system as ISOFIX or Lower
Universal Anchorage System (LUAS).
The lower LATCH/UAS anchors are located in the crease, or bight, between the
vehicle seat back and seat cushion, and if not visible, will typically be indicated by the
symbol. Top tether anchors are located in various places behind the rear vehicle seat.
Center installation in a non-standard LATCH/UAS position:
Center installation of this booster seat is permitted using inner Lower Anchor Bars from the outside seating
positions if:
1. your vehicle manual allows such installation; and
2. the inner Lower Anchor Bars from the outside seating positions are 28-51 cm (11-20 in.) apart.
LATCH/UAS typically o󰀨ers an easier and more consistent installation. However, this booster seat can be safely
installed using either LATCH/UAS or vehicle belts and meets the requirements of Federal Safety Standard
FMVSS 213 and Canadian Safety Standard CMVSS 213.2 with either installation method. Either method is safe
for your child when installed correctly.
The LATCH/UAS system is intended to be used ONLY as described in these instructions. Serious injury or death
may result from misuse. Refer to your vehicle Owner’s Manual for lower anchor bar positions in your vehicle.
The Solution B-Fix/B2-Fix+Lux has been designed to attach to the lower anchors of this system using one of two
di󰀨erent styles of LATCH (see pgs. 18-19) and may also be used in seating positions without lower LATCH/UAS
anchors (see pg. 20).
17
VEHICLE LATCH/UAS REQUIREMENTS
