CYCJET' CL Series Manual V1.6.16
CYCJET
CO2
Fly Laser Printing
Machine
Manual
(V1.6.16)
SHANGHAI YUCHANG INDUSTRIAL CO., LTD

CYCJET' CL Series Manual V1.6.16
Part I
User’s Guide for the Machinery

CYCJET' CL Series Manual V1.6.16
Please take time to read and understand this User’s Guide and familiarize yourself with the
information that we have compiled for you before you use the product. This User’s Guide should
stay with the product to provide you and all future users and owners of the product with important
operating, safety and other information

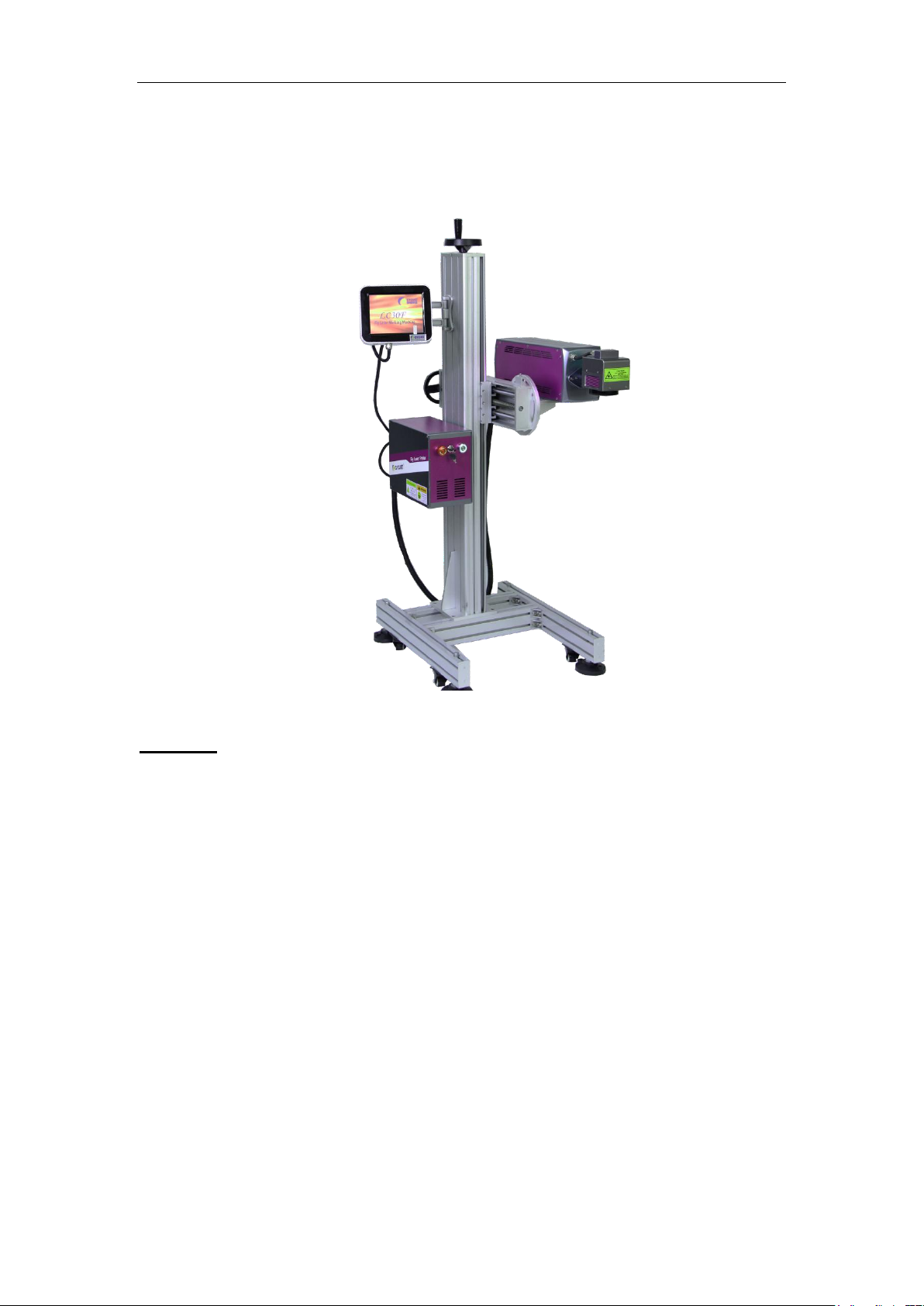

Pic1. External View
Notices
The information contained in this document is subject to change without notice. CYCJET Laser
believes that the information provided is accurate and reliable, however CYCJET makes no
warranty of any kind as to the information contained in this document, including without
limitation the implied warranties of merchantability or fitness for a particular purpose. Further,
CYCJET does not assume responsibility for use of the information contained in this document or
for any infringement of patents or other rights of third parties that may result from its use.
CYCJET shall not be liable for errors contained in this documents or for incidental or
consequential damages in connection with the furnishing, performance or use of this material.
CYCJET grants no license, directly or indirectly under any patent or other intellectual property
rights from use of the information provided herein.
Copyright 2017 CYCJET Laser. All rights reserved. You may not reproduce, transmit, store in a
retrieval system or adapt this publication, in any form or by any means, without the prior written
permission of CYCJET, except as allowed under applicable copyright laws.
We have identified words that we consider as trademarks. Neither the presence nor absence of
trademark identifications affects the legal status of any trademarks.

CYCJET' CL Series Manual V1.6.16
I. Installation & Commissioning:
1. Machine Setup Warning:
a. Printer's power supply or electricity socket must be independent & Electricity must be have
earth wire.
b. Printer must be connect earth wire before working.
2. Guidelines of Daily Maintenance:
Prohibit touching or knocking against the workbench when the machine is working.
The laser and the Optical Lenses are fragile, and need to be very careful and escape shocking
when moving.
You must stop the machine when anything wrong with it, and ask the professionals to deal with.
Please notice the way of turning on and off the machine.
Keep the workshop and machine surface clean.
3. Working Environment:
Temperature: 5-40℃; Relative Humidity：30～80%（non-condensing）
Ventilation device is required, no strong shocking and hot body around. And workshop
needs to be clean.
4. Details of Maintenance The Whole Printer:
Keep the workbench clean. and regular remove dust on machine body, fans & electronic part
Wipe the transmitting mirror with carton fabric and alcohol regularly.
Lock the machine cabinet well, in case some metal drop into it to damage the circuit.
The scanning workbench is precise instrument, and the working environment must be clean.
Don’t be close to the laser when it working. If anything wrong, please ask the professionals
to deal with.
If the laser decay and weaken, please turn off the machine first, then re-plugged the USB
line between the PC and control card testing.
5. Normal Fault Checking:

CYCJET' CL Series Manual V1.6.16
a. If the workbench doesn’t move, please check the following in sequence:
If the power supply is in good connection; If the power line is in good connection
b. If there is no laser output from the laser, please check the following in sequence:
If the power supply is in good connection; If the power of the software is too low (the best in
50%---90%)
If the optical system was broken; Re-plugged the USB line between the PC and control card
c. There is laser outputting, but shallowly carving even the power is normal, please
check:
Check the focal length
If the optical system skewing
If any dirt on the transmitting mirror surface
Re-plugged the USB line between the PC and control card
d. If the carving lines are out-off-straight, please check:
If the marking head loosening
If the machine doesn’t connect the earth wire
If there is any external electromagnetic interference
Pic2. Interal installation Pic3. External installation

CYCJET' CL Series Manual V1.6.16
Pic4. Base Installation
1.Laser Device. 2.Laser Power Station 3. Air Fans. 4. Galvanometer Power Station. 5. Mother
Board. 6.Color Touch Screen
II. Safety Instruction:
The CYCJET Laser Model CL Series is a Class IV laser product.
This laser emits about 20/30 Watts of invisible laser radiation in the optical band near 1064 um.
Avoid eye or skin exposure to direct or scattered radiation emitted from the optical output.
Do not open the device. There are no user serviceable parts, equipment or assemblies associated
with this product. All service and maintenance will be performed only at the factory.
Safety Conventions
We use various words and symbols that are designed to call your attention to hazards or important
information. These include:
WARNING
Refers to a potential personal hazard. It requires a procedure that, if not correctly followed, may
result in bodily harm to you and/or others. Do not proceed beyond the WARNING sign until you
completely understand and meet the required conditions.

CYCJET' CL Series Manual V1.6.16
CAUTION
Refers to a potential product hazard. It requires a procedure that, if not correctly followed, may
result in damage or destruction to the product or components. Do not proceed beyond the
CAUTION sign until you completely understand and meet the required conditions.
IMPORTANT
Refers to any information regarding the operation of the product. Please do not overlook this
information.
This symbol indicates laser radiation. We place this symbol on products which have a laser output.
General Safety Instructions
In order to ensure the safe operation and optimal performance of the product, please follow these
warnings and cautions in addition to the other information contained elsewhere in this document.
WARNING: Always use your laser device in conjunction with a properly grounded power
source.
CAUTION: Before supplying the power to the instrument, make sure that the correct
voltage of the DC power source is used (24 VDC). Failure to use the correct
voltage could cause damage to the instrument.
WARNING: No operator serviceable parts inside. Refer all servicing to qualified CYCJET
personnel. To prevent electrical shock, do not remove covers.Any tampering
with the product will void the warranty.
WARNING: This device has an output optical head connected to the laser by a fiber cable.
Please, be careful dealing with the output head.
WARNING: If this instrument is used in a manner not specified in this document, the
protection provided by the instrument may be impaired. This product must be
used only in normal conditions.
Laser Classification
This device is classified as a high power Class IV laser instrument under IEC 60825 [and under 21
CFR 1040.10]. This product emits light at or around 1060 um wavelength at total power of light

CYCJET' CL Series Manual V1.6.16
radiated out of the optical output up to nearly 20 W. This level of light may cause damage to the
eye and skin. Despite the radiation being invisible, the beam may cause irreversible damage to the
cornea. Laser safety eyewear is not provided with this instrument, but must be worn at all times
while the laser is operational.
WARNING: Do not install the collimator when the laser is active.
WARNING: NEVER look directly into the output head and make sure that you wear
appropriate laser safety glasses at all times while operating the product.
CAUTION: Use of controls or adjustments or performance of procedures other than those
set forth in this Guide may result in hazardous radiation exposure.

CYCJET' CL Series Manual V1.6.16
Part II
User’s Guide for Control System

CYCJET' CL Series Manual V1.6.16
1.Painting interface
1.1 File operation
save
Save as
open
create a new file
Into hibernation, then
click the screen to
wake up. (Note: it is
not off state)
Undo

CYCJET' CL Series Manual V1.6.16
reduction
Laser control card related
parameter setting.
1.2 Zoom bar
Zoom in the
contents of
the view area
Reduce the size of
the view area
Revert to the
view's
original area
Enter the system
settings interface
Start red
light,
preview the
graphics.

CYCJET' CL Series Manual V1.6.16
1.3 Toolbar
Make tools
Operating tools
Click the text to select text,
time, date, serial number and
other new.
PLT vector file import
Barcode generation tools
Edit barcode attributes
Text content editing
delete
Edit page object list
Coding delete, copy, copy
files by clicking on the
management.

CYCJET' CL Series Manual V1.6.16
rotate to the left
rotate to the left
Move up
Move Downward
move to the left
move to the right
mobile
Select graphics, click copy,
then click on the blank space,
copy the same graphics.
Multiple choice graphics
Select all graphics
Fill the graphic settings

CYCJET' CL Series Manual V1.6.16
Scale bar
Height adjustment
Width adjustment
Character radian adjustment
Lock solution or open, corresponding to the same
regulation xy, and were adjusted.
Adjust the accuracy of the operation

CYCJET' CL Series Manual V1.6.16
1.4 Object list
Conversion function：When some texts overlap or a text is not in the view area，click conversion
button into the area where the text is in and select the text.

CYCJET' CL Series Manual V1.6.16
1.5 Text editing sub interface
Text editing interface: Text content display, text segment list, function keys.
Text content display bar: Displays the list of input texts.
Font
selection:
Font height, spacing, line spacing, coordinate center information editing:
Text
content
display
Text
segment
list
New text
section
toolbar
Wrap, cancel
the newline
Font
selecti
on
Font
height
spacing
Line
spacing
Coordinat
e center

CYCJET' CL Series Manual V1.6.16

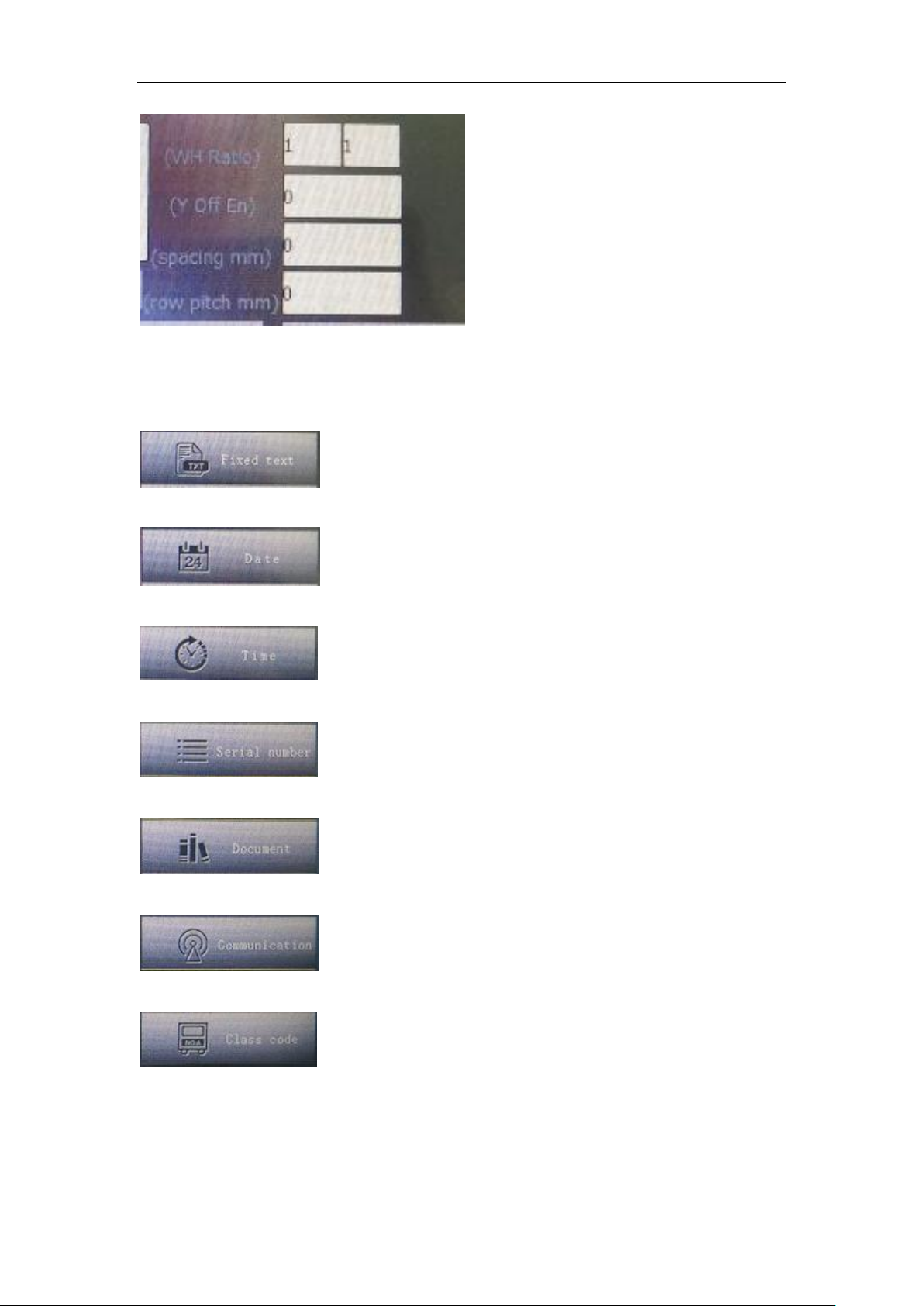

Function keys:
: Insert fixed text.
：Insert the date text.
：Insert time text.
: Insert the serial number text.
: Insert txt file.
: Edit serial communication files.
: Edit shift information file.

CYCJET' CL Series Manual V1.6.16

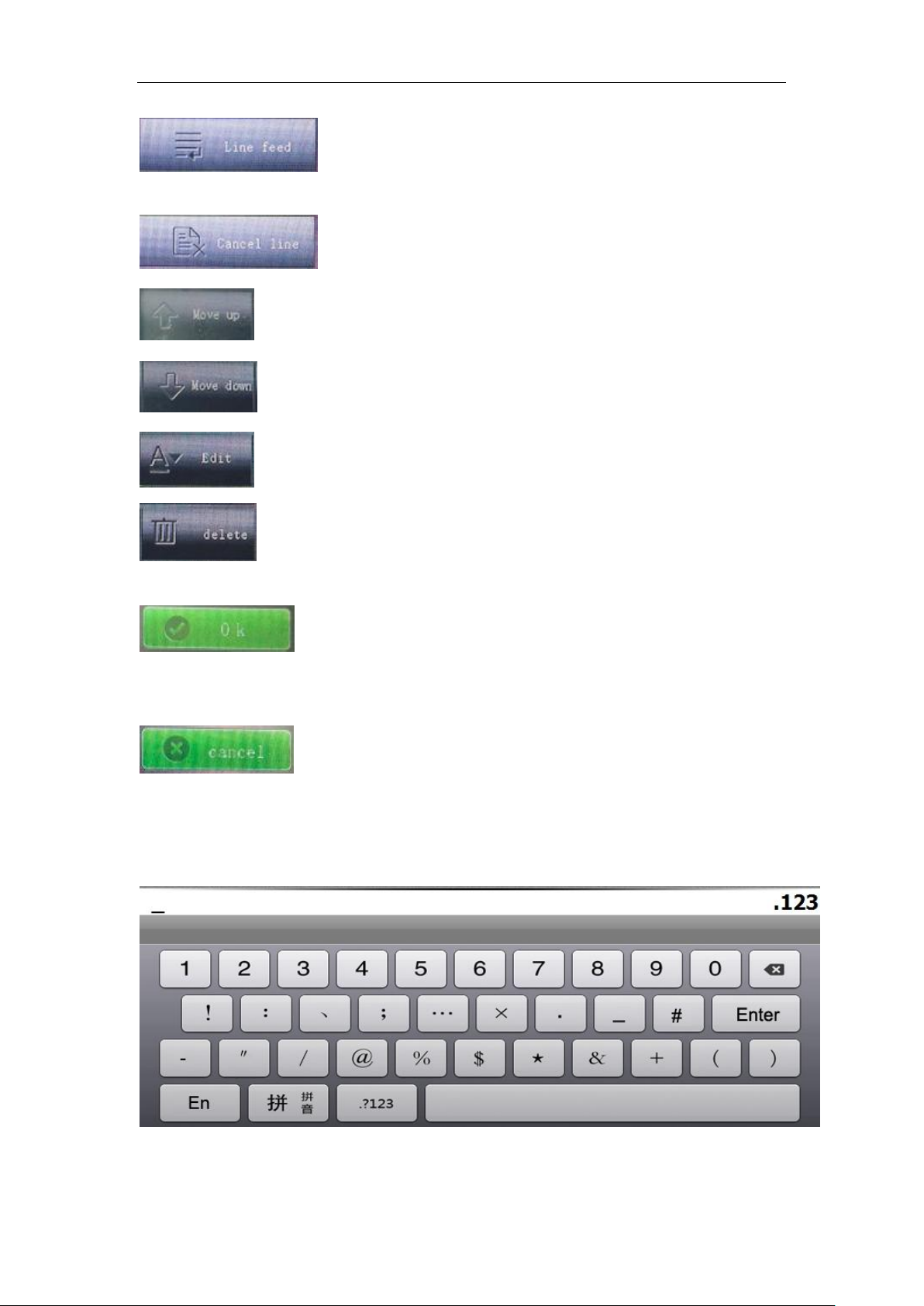

:Use the line feed button to edit multi-segment text,
use the text to select a line feed, and click the linefeed button.
:Cancel the newline.
:The selected text segment moves up.
:The selected text segment moves down.
:Modify the currently edited text segment
:Delete the currently edited text segment.
:Save the current edited text, and exit the current
interface
：Cancel the current edit text, exit the current
interface.

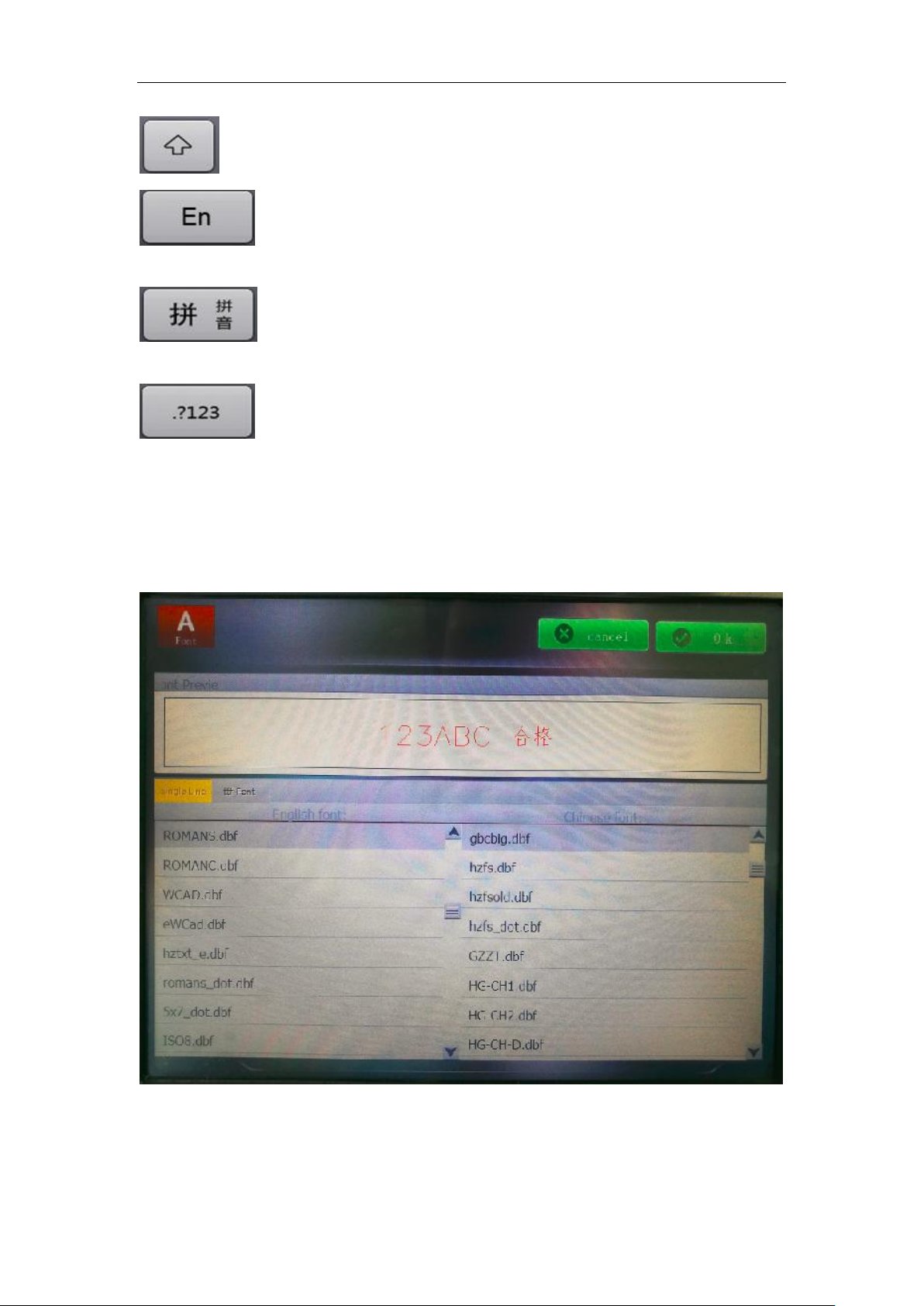

Keyboard input
method:

CYCJET' CL Series Manual V1.6.16
：Enable English capital input.
:Enable English input.
：Enable pinyin input.
: Enable figures, punctuation input.
1.3 Font preview selection interface
Font preview selection interface, you can preview the font selection font is
asfollows:
Select the file in the drawing interface, click the Font icon, enter the font library.

CYCJET' CL Series Manual V1.6.16

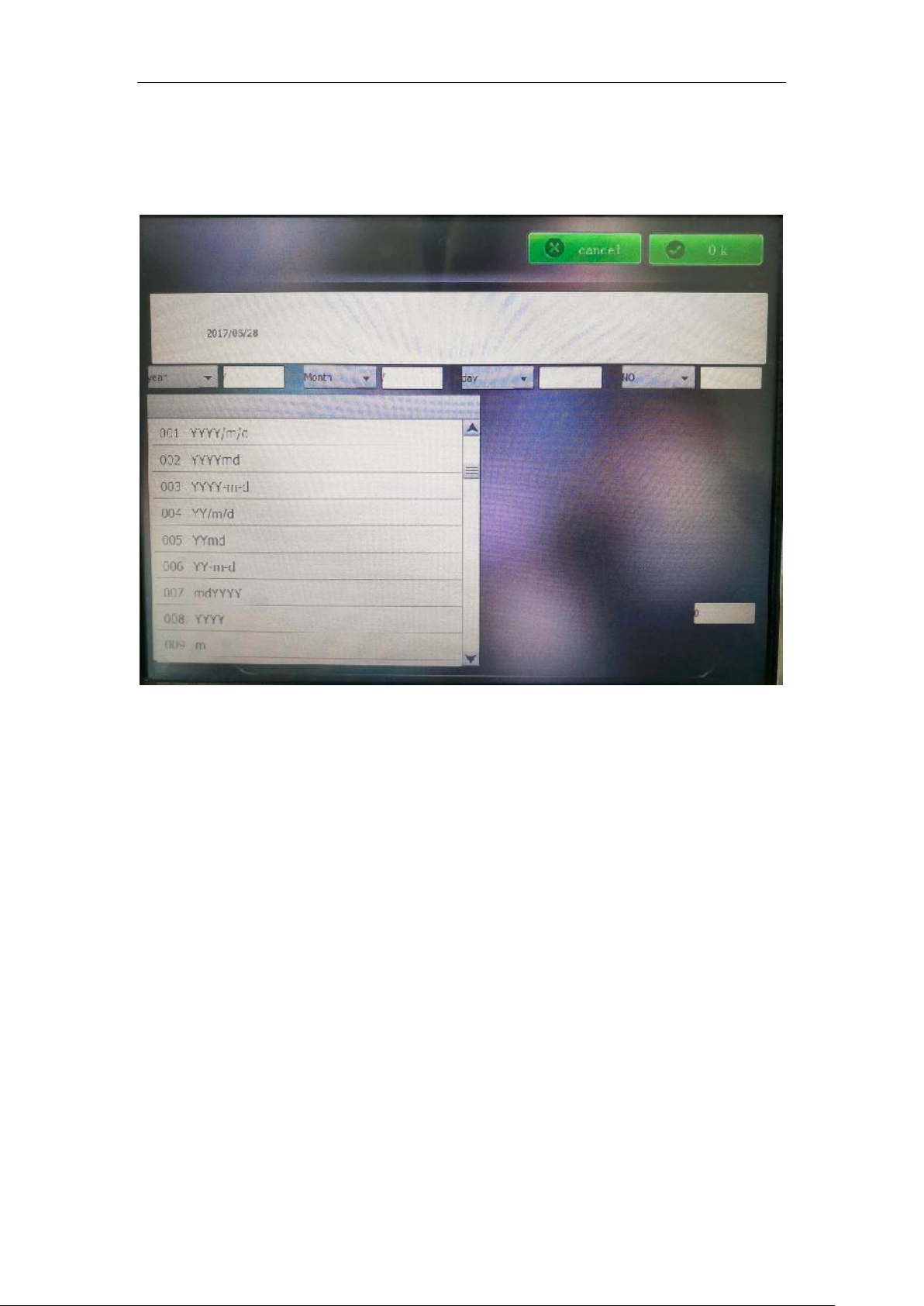

1.6 date editor sub-interface
The system supports multiple formats of date and time, the list box lists
the date of various formats to choose from, if the user needs to set their
own format, first select a column, and then click edit to modify their
format.
Date Offset: How many days to offset from the current time. If the current
time is 2014/7/28, enter 2
Time content will become 2014/7/30.
