CycleLocker CS-650BK User manual

1
【保存用】
室内用縦置自転車スタンド
「クランクストッパースタンド」
CS-650BK/CS-650WH/CS-650RD
取扱い説明書
この取扱説明書は、室内用縦置自転車スタンドである「クランクストッパース
タンド」の使用方法を説明したものです。最初にこの取扱い説明書をよくお読み
の上、ご使用下さい。
目次
2
2
2
3
3
4
[For storage]
Indoor Vertical Bike Storage
”Crack Stopper Stand”
CS-650BK/CS-650WH/CS-650RD
Users’ Manual
This users’ manual describes how to use our “Crank Stopper Stand”
product, an indoor vertical bike storage. Please read thorough this
manual carefully prior to use.
Contents
1. Precautions for use 2
2. Considerations prior to use 2
3. Procedure for use 2
4. Maintenance procedure 3
5. Troubleshooting 3
6. Quality guarantees 4

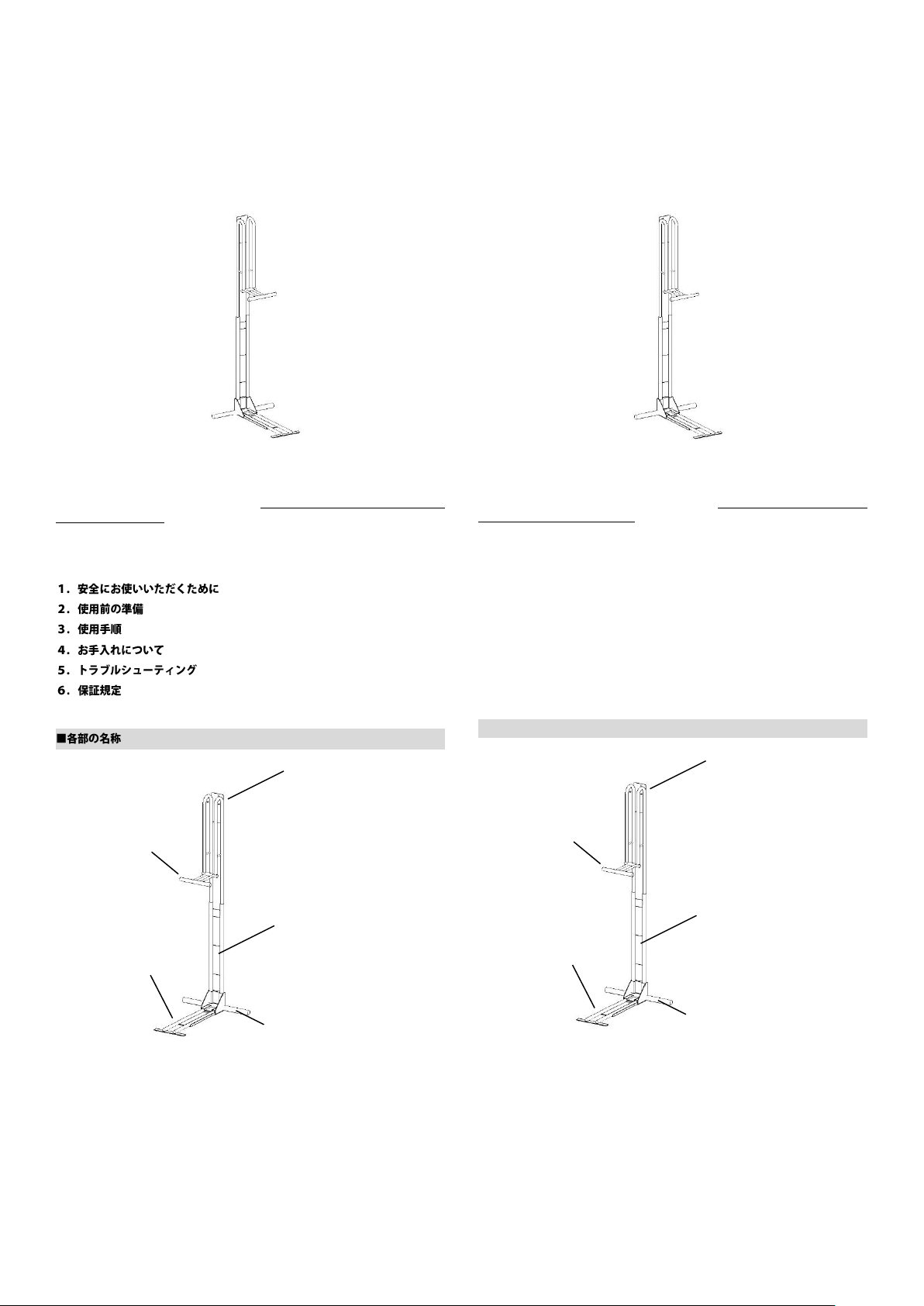

Name of parts
Upper pillar
Crank stopper
Wide base
Front Base
Under pillar
ピラー上
クランクストッパー
横ベース
前ベース
ピラー下

2
[Intended use]
This product is a bicycle storage for exclusive use of sports bikes,
which is capable of supporting a bicycle in the vertical position. Do
not use it for any other purposes.
[Overturn of the bicycle storage body]
Be sure to install the product in the place where children do not
come; otherwise, they may be seriously injured when they hit it and
knock over the main body or a bicycle.
Do not prop/hung something against/on the product, or lean against
it; otherwise, the storage or the bicycle propped against it may be
overturned.
Be sure to fix the storage top to the wall surface using chains so
that the main body does not turn over by earthquakes. If the
product overturns, the human body may be seriously injured.
[Overturn of the bicycle]
The product has been designed for sports-type bicycles. It may not
be available depending on the specifications of the bicycle. For this
reason, do not use the product with incompatible bicycles;
otherwise, the bicycles may be detached from the crank stopper and
overturned. For more information, see Attachment 2 “Bicycle
compatible with CS-650 Crank Stopper Product”.
Do not carry the product with your bicycle attached to the storage;
otherwise, the bicycle may detached from the crank stopper and
overturned.
In case of vibrations, the rear wheel rotate, and the crank might
come off from a crank stopper. For this reason, do not use the
product on the loading spaces of vehicles.
[Others]
Do not alter the product; otherwise, its intended performance may
be deteriorated, causing injury on the human body or damage to the
product.
Do not use the product with the bolts or screws loosened; otherwise,
the product may be overturned, causing injury on the human body.
Do not apply any load other than the bicycle on the product or hang
down the product; otherwise, the product may be overturned,
causing injury on the human body or damage to the product.
[Assembly procedure]
Assemble the product according to the instructions described in
Attachment 1 “Assembly Procedure”.
[Installation place]
Be sure to the product indoors; otherwise, it may be overturned or
rust and corrosion on it may become serious due to exposure to wind
and water.
Be sure to install the product on a flat floor with no step and
inclination; otherwise, it may be overturned. Do not use it on a soft
floor covered with a thick carpet and so on.
Attach the back of the pillar to the wall. In the case where it can
not be installed in this way, Please warn a bicycle not to fall down
backward, when you put a front wheel into the product
Please do not use this product at the place where a person and
baggage may hit. The product body and a set bicycle might turn
over.

3
3
4
[To fix your bicycle to the storage]
1: Grasp handle with both hands and
lift a front wheel, and so holds it in
a vertical position.
2: At first, from a rear wheel, insert a
bicycle along the rail of the front
base.
3: Insert a front wheel between pipes,
and hit the pillar with a two
wheels lightly
4: Reverse a pedal (crank), and catch
it on a crank stopper. Either right
and left pedal goes well.
5: When fixation is not done well, turn
the gear lever on the outer and top
side
[To detach your bicycle from the storage]
1: Grasp the handles with both hands
from the bottom, and then attach
your knees to the saddle.
2: With the handles slightly lifted,
draw the bicycle out from the crank
stopper carefully
Check regularly that the parts, such as volts and nuts, have
been foxed firmly with no rattle.
When you remove dirt, dry-wipe it with Inui cloth.
Do not place the product in the location which receive direct
sunshine or in the location of high-temperature and humidity;
otherwise, it may change in its form, color, or properties.
Dispose the product according to your local Waste Management
provisions.
Missing accessories, volts, nuts, etc.
If any of them is lost during assembly work,
purchase it at your local hardware shop or do-it-
yourself store. The standard article (M6 volt nut)
may be used for the lost one.
Crank stopper incapable of being fixed
Check that the chain has been attached to your
bicycle correctly. If it is detached, try to attach the
chain to the bicycle.
Read carefully Attachment 2 “Bicycles
compatible with CS-650 Crank Stopper”. If you
have purchased the product incompatible with
your bicycle, we shall not accept the returned
product.
The position of the crank stopper not aligned with the
bicycle
For a 700C roadbike, fix the crank stopper with
the volts in the position about 87 cm apart from
the floor.
For a MTB, or crossbike, fix the crank stopper
higher than those for other types.
For a bicycle with the small wheels, fix the crank
stopper lower than those for other types.
Loosely fixed, the front wheel not retained
Turn the gear lever on the outer and top side.
Clearance between the cranks will be reduced.
Main pillar inclined
Check that the floor is flat. The floor is not flat
due to water gradient in some cases.
The bicycle not detached from the storage
Your bicycle is never detached from the storage
even if pulling it. Lift it directly upward and
rotate the rear wheel. The cranks rotate in for
forward direction smoothly and the bicycle will be
detached easily.

4
・The product which is purchased from official retailer in Japan
is provided one-year guarantee.
[Covered Under Warranty]
・Damage malfunctions to the structure
・Guarantee period: one year
[Not Covered Under Warranty]
・The product which was taken outside Japan
・The product which passed in a term of a guarantee
・Changes of exterior cladding/finished surface in color
・Failures and damages in/to the product caused by wearing ・
and deterioration associated with continuous use.
・Failures or damages caused by fire or natural diseases or any
damage during transportation
・Failures or damages caused by alteration or repair with no
our consent.
・Failures or damages, for which the user is responsible.
・Used purchase
・Auction flea market, individual buying and selling, a transfer
by a non-regular route
・In the event if the owner cannot present the sales receipt as
the evidence of the original owner
・Any claim alleged from user's own policy
・Repair, exchange request from anyone other than a buyer
・Product without mention of the sale store's name (Online
sale will exclude)
[Descriptive labeling]
・Outside dimension: W 500 × D 600× H 1535
・Installation place: Indoor
・Main materials: Steel
・Surface treatment: Powder coating
・Manufactured in: Taiwan
・Manufacturer: CycleLocker Inc.
[Product sold at outside of Japan]
・About the product sold outside Japan, contact the shop where
you originally purchased the product first.
[Contact]
Issiki1887-6, Hayama-machi, Miura-gun, Kanagawa, postal
code 2400113
CycleLocker Inc. [e-mail]
Crank Stopper Stand CS-650 MANUAL / CycleLocker Inc. Apr 2018
