Cycling Sports Group cannondale QUICK FULL CARBON 2012 Configuration guide

OWNER’S
MANUAL
SUPPLEMENT
WARNING
READ THIS SUPPLEMENT AND YOUR
CANNONDALE BICYCLE OWNER’S MANUAL.
Both contain important safety information.
Keep both for future reference.
2012 QUICK FULL CARBON
126221.PDF (04/10)

This manual meets EN standards
14764, 14766, and 14781.
Vélo certifié conforme aux exigences du décret
N 95-937 du 24 août 1995 norme NFR030
In this supplement, particularly important information is presented in the following ways:
WARNING Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
NOTICE Indicates special precautions that must be taken to
avoid damage.
TIP A TIP provides helpful information.

126221.PDF
11 EN - 126221.PDF Rev 04/10
SAFETY INFORMATION
IMPORTANT COMPOSITES MESSAGE
WARNING
Your bike (frame and components) is made from composite
materials also known as“carbon ber.”
All riders must understand a fundamental reality of
composites. Composite materials constructed of carbon
bersare strongandlight, butwhencrashed oroverloaded,
carbon bers do not bend, they break.
For your safety, as you own and use the bike, you must
follow proper service, maintenance, and inspection of all
the composites (frame, stem, fork, handlebar, seat post,
etc.) Ask your Cannondale Dealer for help.
We urge you to read PART II, Section D.“Inspect For Safety”
in your Cannondale Bicycle Owner’s Manual BEFORE you
ride.
YOUCAN BESEVERELYINJURED,PARALYZEDORKILLED
INAN ACCIDENT IF YOU IGNORE THIS MESSAGE.
BICYCLE REPAIR/ WORK STANDS
The clamping jaws of a bike stand can generate a crushing force
strong enough to seriously damage your frame.
NOTICE
Never place your bike in a bike stand by clamping the frame.
Placeyourbikeinastandbyextendingtheseatpostandpositioning
the stand clamp on the extended seat post. Don’t extend beyond
the MINIMUM INSERT line marked on the seat post.
Since your carbon seat post can also be damaged by clamping
force, adjust the stand clamp for the minimum clamping force
needed to secure the bike.
Also, before clamping, clean the post and protect the seat post
nish with a rag.
INSPECTION& CRASH DAMAGE OF
CARBONFRAMES/FORKS
WARNING
AFTERACRASH ORIMPACT:
Inspect frame carefully for damage (See PART II, Section
D. Inspect For Safety in your Cannondale Bicycle Owner’s
Manual. )
Do not ride your bike if you see any sign of damage, such as
broken, splintered, or delaminated carbon ber.
ANY OF THE FOLLOWING MAY INDICATE A
DELAMINATIONORDAMAGE:
■An unusual or strange feel to the frame
■Carbon which has a soft feel or altered shape
■Creaking or other unexplained noises,
■Visible cracks, a white or milky color present in carbon
ber section
Continuing to ride a damaged frame increases the
chances of frame failure, with the possibility of
injury or death of the rider.
INTENDED USE
WARNING
UNDERSTAND YOURBIKE AND ITS INTENDED USE.
USING YOURBIKE THE WRONG WAY IS DANGEROUS.
Industry usage Conditions 1 - 5 are generalized and evolving.
Consult your Cannondale Dealer about how you intend to use your
bike.
Please read your Cannondale Bicycle Owner’s Manual for
more information about Intended Use and Conditions 1-5.
OBSERVETHE“INTENDED USE” FORYOURBIKE FOUND INTHE
GEOMETRY/ SPECIFICATIONS SECTIONOF THIS SUPPLEMENT.

2
SEAT POST
The limit a seat post can be inserted into the frame is 140 mm. In order to adjust some saddle heights, the seat post
may require cutting to shorten it. If this is the case, it should be done by a professional bike mechanic experienced in
servicing high-performance carbon components.
When installing or adjusting the seat post:
Always wipe the seat post and inside of the seat tube with a clean dry shop towel.
Apply a generous quantity of carbon gel KF115/ to the inside of the seat tube and to the seat post. Use a small
nylon brush or old tooth brush to spread the gel evenly.
Insert the seat post and set the saddle height.
Tighten the seat binder bolts evenly to the specied torque with a torque wrench. Do not exceed the maximum
torque indicated.
NOTICE
■OBSERVE THE INSERT LIMIT.
■NEVERUSE SOLVENTS ORSPRAY CLEANERS.
■DON’T USE GREASE; ALWAYS USE CARBONGEL.
Cannondale in kit KF115/ is a small quantity, enough
for two or three applications.
■DO NOT INSTALL THE SEAT POST SO THAT IS
BOTTOMED OUT INSIDE THE SEAT TUBE. Riding
with the seat post bottomed-out in the frame may
damage the frame.
■NEVERFORCE THE SEAT POST INTO THE FRAME.
■ALWAYS USE ATORQUE WRENCH.
WARNING
If the seat post requires cutting, have it done by a
professional bike mechanic with experience cutting high-
performance carbon components.
YOU CAN BE SEVERELY INJURED, PARALYZED OR
KILLED IF YOURIGNORE THIS WARNING.
NOTE: U.S. Consumer Product Safety Commission (CPSC) bicycle
regulations require minimum seat post insertion be marked on
the seat post.
More Information on Carbon Seat Posts
For more information about carbon ber seat posts, see also
“APPENDIX C. Care and Maintenance of Carbon Fiber Seat Posts”
in your Cannondale Bicycle Owner’s Manual.

3
126221.PDF

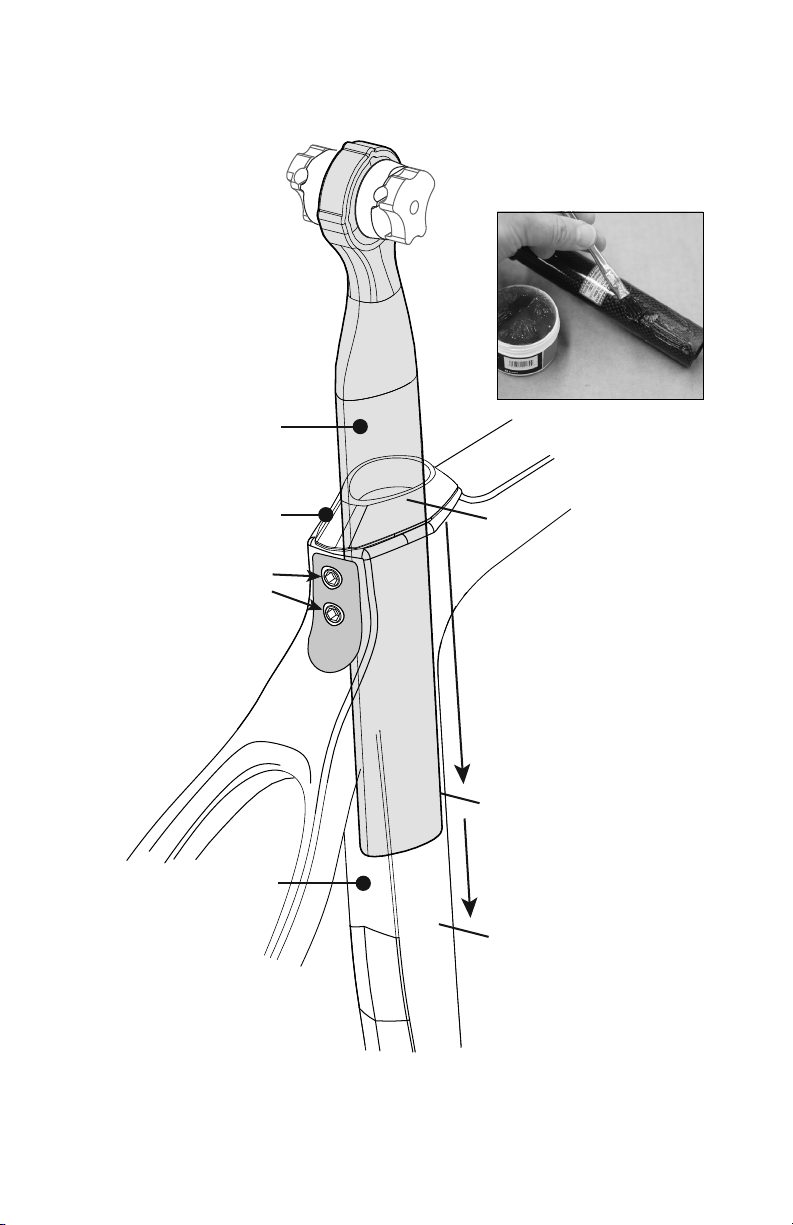

MINIMUM INSERT
80 mm
INSERT LIMIT
140 mm
SEAT BINDER
SEAT POST
SEAT TUBE
(Saddle not shown)
SEAT BINDER BOLTS
5 Nm, 44 In Lbs
MAXIMUM TORQUE
Tighten bolts uniformly.
APPLY CARBONGEL KF115/

4
SEAT BINDER BOLTS
WEDGE
SEAT BINDER
PLATE
RETAINING SCREW


2.0 Nm, 17.7 In Lbs
KP153/
SEAT BINDERPARTS
SEAT BINDERMAINTENANCE
Periodically, remove the seat binder from the frame, clean the binder and inside the seat tube.
To remove the binder assembly, completely remove both seat binder bolts out through the small
frame holes. Then, remove the small retaining screw at the front of the binder. Lift the binder
and the wedge up out of the top of the seat tube.

5
126221.PDF
9 - 12 Nm
DO NOT APPLY GREASE TO
ANY PART OF THIS ASSEMBLY
SEAT POST HEAD INNER
CLAMP
OUTER
THREADED
CLAMP
INNER
CLAMP
OUTER
CLAMP
CLAMP BOLT
SEAT POST
Loctite® 242 (blue)
KP096/
M6X50
Saddle rails aligned
with inner and outer clamp grooves.
SADDLE
RAILS
CORRECT
7mm
WARNING
Incorrect alignment of the saddle clamp parts can result
in the saddle moving unexpectedly while riding. When
adjusting the saddle angle, make sure the saddle rails
on both sides of the saddle are aligned with the inner
and outer clamp on both sides of the saddle. Ask your
Cannondale Dealer for assistance.
YOU CAN BE SEVERELY INJURED, PARALYZED,
ORKILLED IF YOU IGNORE THIS WARNING.

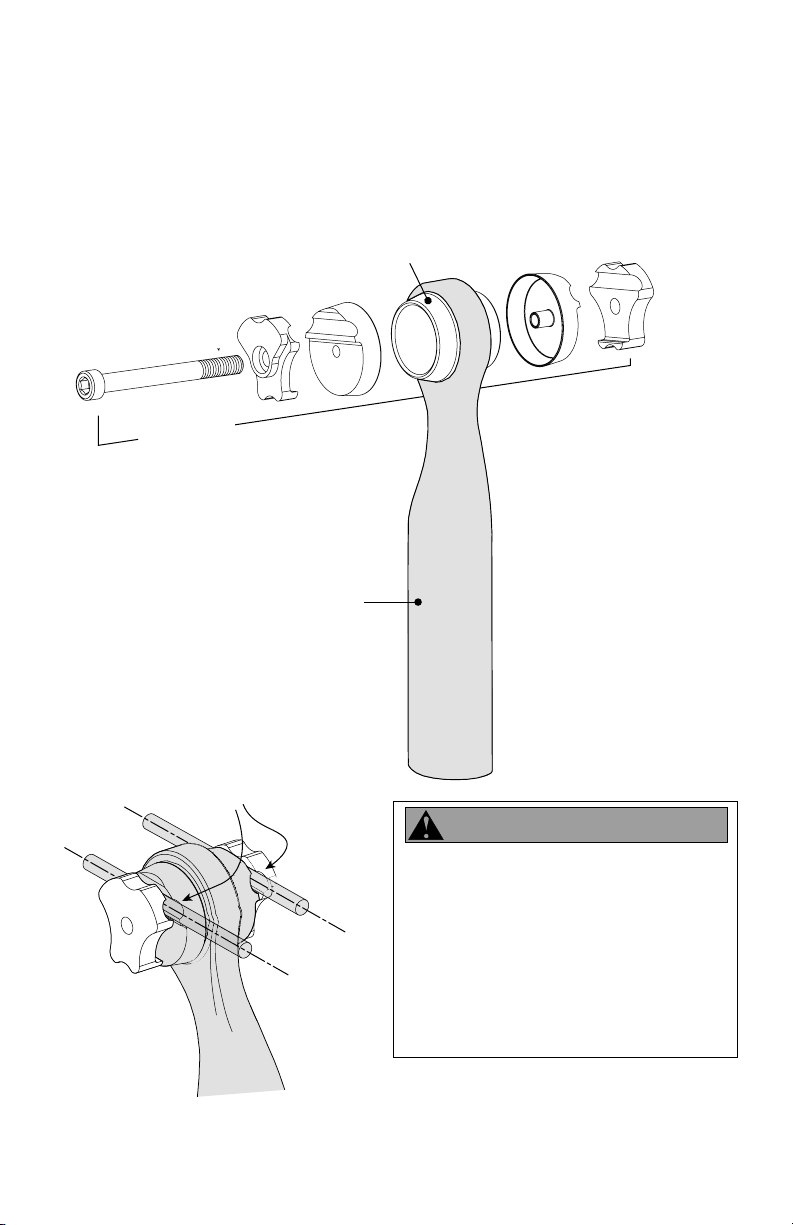

SADDLE CLAMP PARTS

6
KP063/
TOP TUBE GUIDE
Ferrule
REAR BRAK
E
HOUSING
REAR BRAKE
FRAME OPENING
INTEGRATED GUIDE
REAR BRAKE
Ferrule Seat
BRAKE CABLE
FRONT DERAILLUER
BB Guide
Extension
Screw
KF363/
REAR DERAILLUER
BB CABLE GUIDE
BOTTOM BRACKET OPENING
SERIAL NUMBER

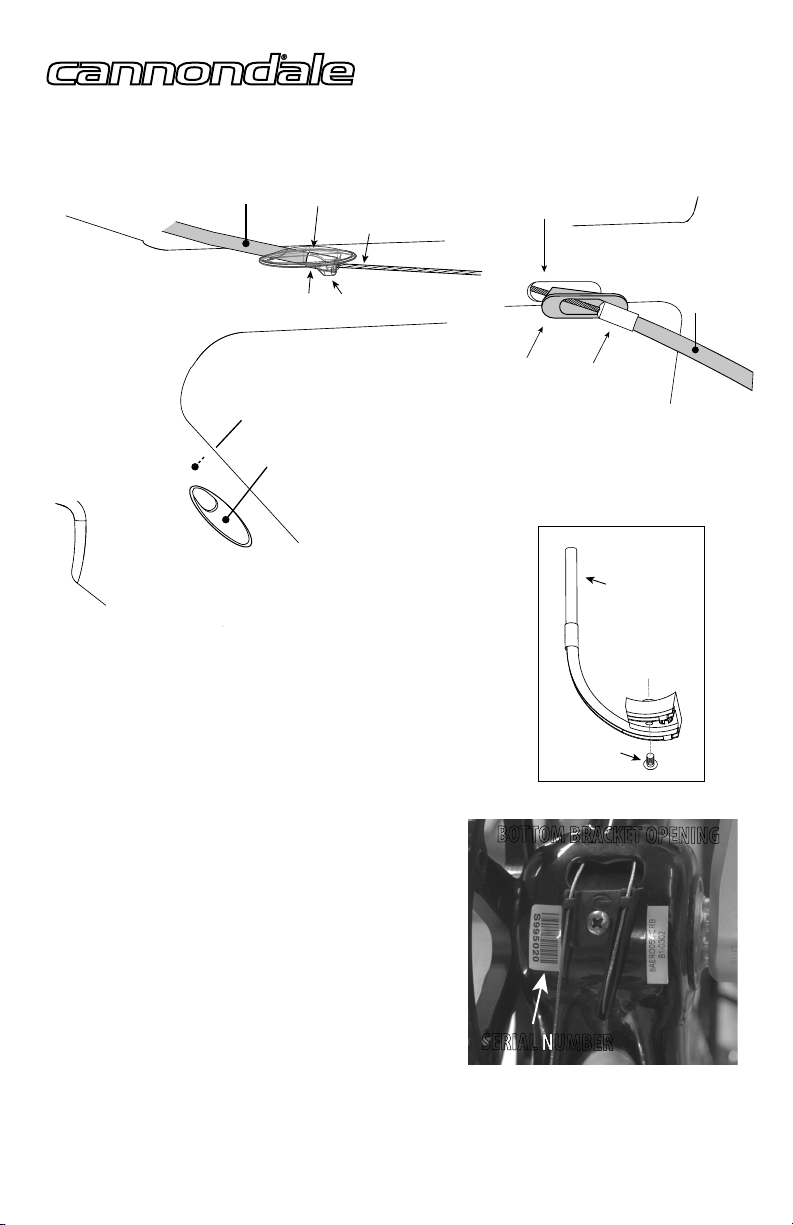

CABLE ROUTING
INTEGRATED FRAME GUIDES
The front cable guides are bonded into the top tube and down tube.
Cables are routed inside the tubes without housing.
TIP: When a housing end is inserted into the bonded guide , make
sure the ferrule (which must be used) locates into the guide seat
before the cable is tensioned.
The rear top tube brake guide is removable. The guide is secured in the
tube opening by brake cable tension. Make sure the guide is seated
properly in the top tube opening when installing and connecting the
rear brake.
The front and rear derailleurs at the bottom bracket opening and pass
through the BB cable guide.
SERIAL NUMBER
The serial number for this bicycle is printed on a barcoded label on the
underside of the bottom bracket. Use this serial number for warranty
registration and theft recovery. See your Cannondale Bicycle
Owner’s Manual for more information on warranty registration.

7
126221.PDF
KF096/
2.5 mm
Loctite® 242 (blue)
1.1 Nm, 9.7 InLbs
LIGHT GREASE
M4(.8)X14
5 Nm, 44 InLbs
Loctite® 242 (blue)
CHAINSTAY
DROPOUT OUTER BOLT
REAR DERAILLEUR
HANGER
INNER BOLT
REAR DERAILLEURHANGER
Clean and carefully inspect the dropout for any cracks or
damage before replacement. Apply a light lm of bike grease
to the dropout to minimize any noise or“creaking”that might
result from very slight movement between the dropout and
hanger during movement of the derailleur. Apply grease and
Loctite carefully.
Check derailleur adjustment after replacement. Readjust
wheel quick release so it is very tight. See PART I Section 4. A
in your Cannondale Bicycle Owner’s Manual.
The smaller M4 size outer bolt threaded into the inner may be
used as connecting point for compatible fenders /racks. Be
sure to use the specied Loctite and a torque wrench when
tighening this fastener.
NOTICE
■Do not use a derailleur hanger alignment
tool to straighten. If bending adjustment is
necessary, remove the hanger from the frame
rst.
■The larger inner connecting bolt inner
is permanently bonded in place. Do not
attempt to removed it.
Make sure the outer bolt is installed and
tightened even if a fender/rack is not used.
REAR DROPOUT

8
BEARING MAINTENANCE
Inspect bearing condition annually (at a minimum) and any-
time the crankset assembly is disassembled or serviced.
With the crankset removed, rotate the inner bearing race of
both bearings; rotation should be smooth quietly. No bearing
play or movement inside the shell. If the bearing is damaged,
replace both bearings with new ones.
BOTTOM BRACKET
The bottom bracket shell is compatible with the BB30 Standard. See http://www.bb30standard.com/ . The SI bottom bracket
adapter enables the use of standard English/68mm bottom bracket cranksets.
KB6180/ - Standard
KP018/ - Ceramic
CIRCLIPS
QC616/
BOTTOM BRACKET SHELL
Circlip groove
BEARINGS

9
126221.PDF
KT010/
BEARING INSTALLATION TOOL
BEARING
BEARING
KT011/
BEARING DRIVER
Thin blade
screw driver
to lift hooked
out of BB groove

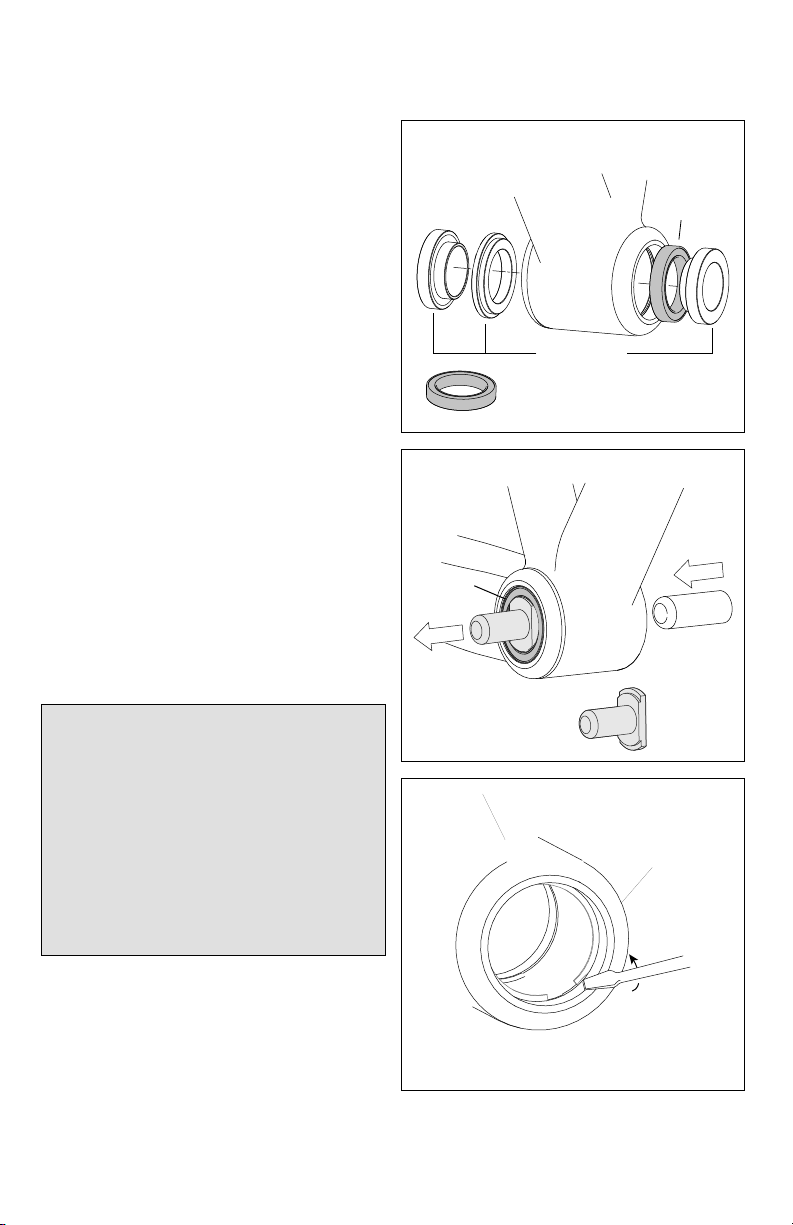

BEARING INSTALLATION
1. Clean the inside and outside surfaces of the bottom
bracket shell.
2. Apply a high-quality bicycle bearing grease to the inside
surface of the shell.
3. Install the square end of the circlip into the groove rst,
then moving clockwise, push the clip into the groove until
it is fully seated in the groove. Install the other circlip the
same way.
4. With a headset press, and Cannondale tool KT010/ install
the bearings into the shell as shown. Press the bearing
until it is seated against the circlip.
5. To nish, apply a light coating of a high-quality bicycle
bearing grease to both sides of each bearing to help repel
moisture.
BEARING REMOVAL
1. To remove the bearings, position Cannondale tool KT011/
behind the bearing so that the tool ridges are seated on
the bearing.
2. Insert a driver (punch or drift) from the opposite side.
Locate it on the back of the tool and use light tapping to
drive the bearing from the shell.
NOTICE
Frequent or routine renewal of undamaged bearings is
not recommended. Repeated removal and reinstallation
can damage the inside BB shell surfaces resulting in poor
bearing t.
DO NOT FACE, MILL ORMACHINE THE BOTTOM
BRACKET SHELL FORANY REASON.
Doing so can result in serious damage and possibly a
ruined bike frame.
TIP: Unless a circlip is damaged, removal is unnecessary
during bearing removal . Use a small thin-blade screw
driver or pick to lift the hooked end up out of the groove and
then pushing the circlip out counter-clockwise.

10

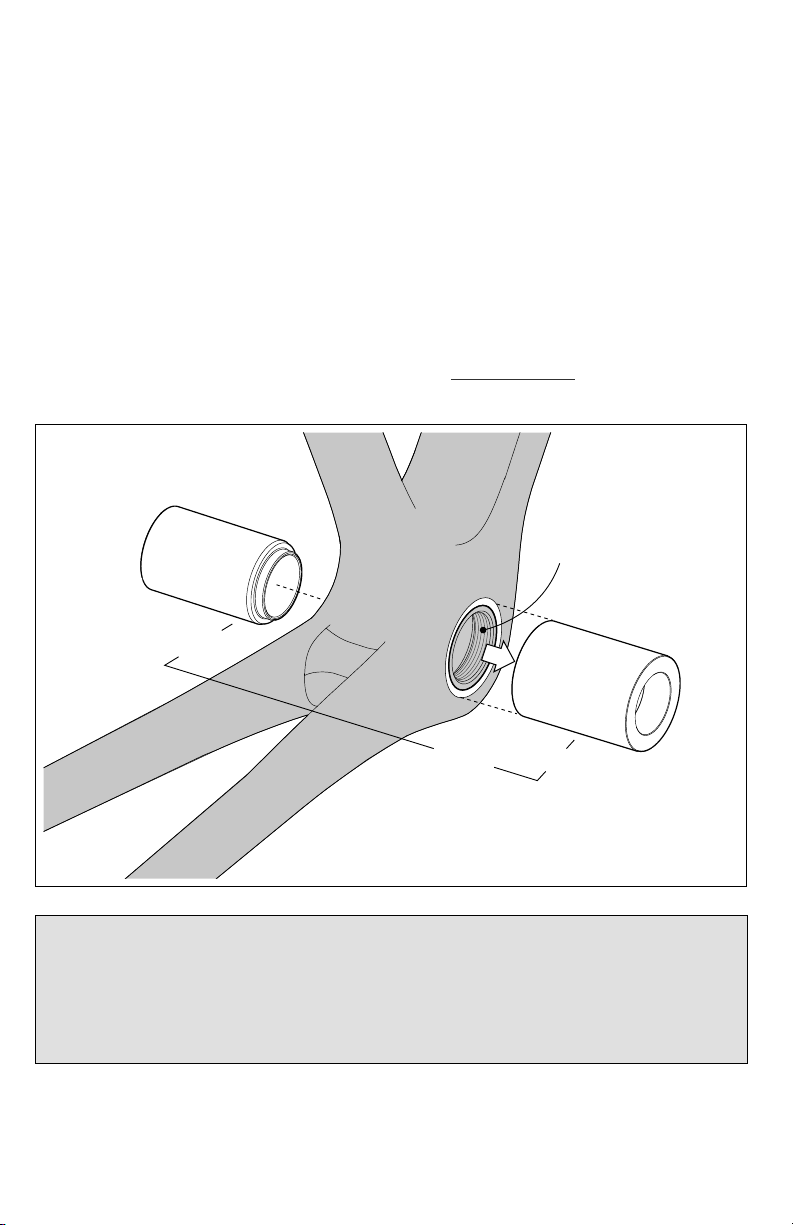

68 MM ADAPTERINSTALLATION
The following procedure should only be completed
by a professional bike mechanic. The adapter IS NOT a
repair part and will only work in undamaged frames in good
condition.
1. Remove the BB30 bearings and circlips from the bottom
bracket shell.
2. Thoroughly clean and dry the inside of the bottom bracket
shell. Remove any grease or dirt. Use a clean lint-free
shop towel dampened with alcohol to nish.
3. Apply Loctite™ 609 carefully to the bearing seat positions
on both side of the inside shell.
4. Clean the outer surface of the adapter. Use a clean shop
towel dampened with alcohol.
5. The groove side of the adapter must be located on the
drive side. With a headset press, the ADAPTER until the
groove side face is ush with the drive side face of the SI
BB shell.
Allow at least 12 hours (at 72°F) for the Loctite to cure
before installing the standard bottom bracket crankset.
Follow Loctite Technical Data Sheet http://tds.loctite.com/
tds5/docs/609-EN.PDF
NOTICE
We strongly recommended that you use a swab to
control the application and avoid spillage of the Loctite.
Prolonged contact with the frame nish may result in
discoloration or damage. Be sure to immediately wipe up
any spills and remove any compound in contact with the
painted surfaces.
Groove
KP009/
ADAPTER
DRIVE SIDE
(Headset press not shown)
KF365/
ADAPTER w/TOOL
Loctite™ 609
GROOVE
DRIVE SIDE

11
126221.PDF
68MM ADAPTERREMOVAL
The following procedure should only be completed by a professional bike mechanic. The adapter is removable, how-
ever, repeated removal and reinstallation could result in damage to the SI BB shell and is not recommended.
1. Removal of the SI BB ADAPTER is accomplished through the use of the extraction tool KF366/, a two-piece tool set used with
a headset bearing press. The arrangement of the tool parts for removal is shown next gure.
2. Press the adapter out of the shell using the headset press until the adapter is retained inside the receiver and can be withdrawn
from the bottom bracket shell.
Following removal, it will be necessary to clean all remaining Loctite residue with a before reinstalling the SI circlips and
bearings. Use Loctite 768. Use a dental pick to remove any adhesive from the grooves. Do not cut, face, or use abrasives to
clean the inside if the BB shell. For Loctite clean-up instructions : http://tds.loctite.com/
68mm ADAPTER
RECEIVER
DRIVE SIDE
DRIVER
KF366/
ADAPTER
EXTRACTION TOOL
(Headset press not shown)
NOTICE
Use only extraction tool Cannondale KF366/ and a headset press. Do not use other tools.
Make sure the Reciever part of the tool is centered on the drive side bottom bracket shell while pressing.
We strongly recommend that your have this procedure performed by an Authorized Cannondale Dealer. Damage caused by
improper removal is not covered under your warranty.

12
FORK
Construction
Your fork is a “carbon ber fork.” The steerer tube, crown,
and fork legs of the fork made from carbon ber/composite
materials. The dropouts are an alloy material. The illustration
at right shows the features and parts of the fork.
Maintenance
The care and maintenance of all carbon bicycle components is
very important to your safety. Please consult Section D, Inspect
For Safety and APPENDIX D. in your Cannondale Bicycle Owner’s
Manual for safety information regarding carbon components.
Accessories
If you decide to install accessories on your bike such as lights,
fenders, or racks please consult with a professional bike
mechanic rst. The fork must not be modied in any way to
mount accessories.
Headset
WARNING
ONLY USE CANNONDALE COMPRESSIONASSEMBLY - KP017/.
Do not use a star nut or any other compression or expanding
wedge assembly.
DO NOT INSTALL HEADSET SPACERS ONTOP OF THE STEM.
Installing spacers above the stem will raise the TOP CAP inside
the steerer removing necessary support for the steerer tube wall.
When stem bolts are tightened, the steerer tube can be damaged.
All spacers must be below the stem and limited to the MAXIMUM
STACK HIEGHT of 55 mm.
YOU CAN BE SEVERELY INJURED, PARALYZED, ORKILLED IF
YOU IGNORE THIS WARNING.
M5 x .8
RACK/FENDER
MOUNT
50 mm
ALLOY
DROPOUT
LEG
RAKE
V-BRAKE
MOUNT
CROWN RACE
CROWN
SIDE VIEW
(fork removed)
STEERER TUBE
M5 x .8
RACK/FENDER
MOUNT
FRONT VIEW
(at bottom)
TAB TAB
100 mm
DROPOUT SPACING
TAB

13
126221.PDF
STEERER TUBE
KP017/
HEADTUBE
STEM
2 - 3 mm
HEADSET TOP CAP
HEADSET SPACERS
48 mm
Do not grease.
MAXIMUM STACK HEIGHT
Measure from the top edge of the
headtube to the bottom edge
of the stem.
55mm
5 mm
EXPANDER BOLT
+#)+(
6 mm
TOP CAP
EXPANDER
EXPLODED VIEW
Top cap at
upper stem bolt
Expander at
lower stem bolt
INSTALLED CORRECTLY
SI COMPRESSIONASSEMBLY - KP017/
The following procedure should only be completed by a professional bike mechanic.
1. Assemble the fork, headset, spacers, and stem without tightening the stem bolts onto the headtube. When the system is
assembled, the carbon steerer tube should be 2-3 mm below the top stem. All spacers must be located below the stem and
within the maximum stack height as shown. No spacers may be used above the stem.
2. Set-up the compression assembly before inserting it. Adjust the length so that the expander is located at lower stem bolt.
The top cap and the expander end provides critical support to the carbon steerer when tightening the stem bolts. Adjust the
length by threading the top cap on the expander parts.
3. When the assembly is the correct length, insert it into the steerer tube. It is designed to t snugly inside the steerer. Insert a
5 mm Allen key through the access hole in the TOP CAP and into the EXPANDER BOLT. Tighten the expanding parts by turning
clockwise to 6.8Nm, 5 ftLbs.
4. Now, to set bearing preload, insert a 6mm allen key into the hex shape in the TOP CAP itself. Turn the entire top cap clockwise
to increase preload. Turning it counter-clockwise will decrease the preload. When the headset preload feels correct, turn
the stem to align the handlebar and tighten the stem fork clamp bolts to the torque specied for the stem. Consult the stem
manufacturer’s instructions. The torque values for components are often marked on the part.

14
CHAINSTAY PROTECTION
KF367/
The chainstay plate (KF367/) located on the right chainstay just behind the chain rings, protects the chainstay from
damage in the event the chain is dropped from the chain ring. Contact your Cannondale Dealer for a replacement if it
is becomes missing or damaged. The clear chainstay protector (above right) provides limited protection against frame
or nish damage caused by the chain. Replacement protectors are available through a Cannondale Dealer.
HEADTUBE
The headtube is compatible with Campagnolo® Hiddenset
headset standard.
Both upper and lower cups are bonded in the headtube and
can not be removed.
NOTICE
Do not use cutting tools on the cups.
Only use headsets compatible with the Campagnolo®
Hiddenset headset standard.
A complete headset with crown race is available in Cannondale
kit - KB002/ .
UPPER CUP
LOWER CUP

126221.PDF
GEOMETRY/SPECIFICATION
C
F
M
K
B
A*
H
EL
I
G
J
D
Z
QUICK FULL CARBON
Size Small Medium Large X-Large Jumbo
A*Measured Size (cm)* 38.5/15.2 41/16.1 46/18.1 51/20.1 57/22.4
BSeat Tube Angle 75 76 74.5 73 72.5
CHead Tube Angle 71 71 71.5 72 72.5
DHorizontal Top Tube Length (cm) 53.5 53.5 56 58.5 62
EChain Stay Length (cm) 43 43 H H
FFork Rake (cm) 5.0 5.0 H H H
GBottom Bracket Height (cm) 27.4 27.4 27.4 27.4 27.4
HWheelbase (cm) 101.4 102.3 103.9 104.8 107.5
ITrail (cm) 6.6 6.5 6.2 5.9 5.6
JStandover Height (cm) 74.3 75.0 78.7 82.8 87.0
KBottom Bracket Drop (cm) 7.0 H H H H
LFront Center (cm) 59.5 60.4 61.9 62.8 65.4
MHead Tube Length (cm) 14 13 16 19 22
Headset Campy style bearings: 41.8mm OD w/ 45° chamfers
Headset Compression (See page 12.) Cannondale SI Compression Assembly - KP017/
Seatpost Minimum Insert Depth (See page 2.) 80 mm
ZSeatpost Insert Limit (See page 2.) 140 mm
Seat Binder KP153/ - MAXIMUMTORQUE 5 Nm, 44 In Lbs
Dropout Spacing Front 100 mm, Rear 130 mm
INTENDED USE (See page 1.) CONDITION 2, General Purpose Riding
MAXIMUMWEIGHT LIMIT RIDER : 300 lbs / 136 kg , LUGGAGE: 30 lbs / 14 kg,
TOTAL : 330 lbs / 150 kg
* Measured size is from the center of the bottom bracket to the top of the top tube, measured along the seat tube axis.
Please note that the specications and information in this manual are subject to change for product improvement.
For the latest product information, go to http://www.cannondale.com/tech_center/

16
TIP: Replacement Cannondale part numbers are shown throughout this supplement in BOLD ITALIC text.
For an up to date list of kits available for your bike, please visit our Tech Center at : http://www.cannondale.com/bikes/tech/
REPLACEMENT PARTS
CANNONDALE TOOLS
KT010/ KIT,TOOL-BB BEARING-SI
KT011/ KIT,TOOL -BEARING REMOVAL SI
KT012/ KIT,TOOL-LOCK RING-SI
KT013/ KIT,CRANK EXTRACTION TOOL
KF365/ KIT,TOOL,SIBB/68 ADP.INSTALL
KF366/ KIT,TOOL,SIBB ADPAPTER EXTRACT
FRAME
KF363/ KIT,BB CABLEGUIDE, w/xing bolt
KF055/ KIT,ADJUSTER-INLINE SHIFTER-2
KP063/ KIT,GUIDE,BRAKE SLICE AERO
KF096/ KIT,DER.HANGER,SINGLE SIDED RD
KF367/ KIT,CH.STAY PROTECT-SYNAPSE
Seat Post
KP153/ KIT,SEATBINDER,QUICK CARBON
KF115/ KIT,GEL,DYNAMIC,CARBN SEATPOST
HEADSET & FORK
KB002/ KIT,HEADSET,SI CRB W/15 TC
KP017/ KIT,COMP ASSY,23.6ID,EXPANDER
HOLLOGRAM SL BB30
Cranksets
KA014/170BLK KIT,CRANKSET,SL,ROAD 39/53,170
KA014/172BLK KIT,CRANKSET,SL,ROAD 39/53,172
KA014/175BLK KIT,CRANKSET,SL,ROAD 39/53,175
KA015/170BLK KIT,CRANKSET,SL,ROAD 34/50,170
KA015/172BLK KIT,CRANKSET,SL,ROAD 34/50,172
KA015/175BLK KIT,CRANKSET,SL,ROAD 34/50,175
Spindle Kits
QC690/ KIT,BB,CDALE Si,68X104mm Rd
QC850/ KIT,BB,CDALE Si,68X104mm Rd-SRM
KA019/ KIT,BB,CDALE Si,68X104 CERAMIC
Crankarms
KP020/170L KIT,CRANKARM-SL BLK,170 LFT
KP020/172L KIT,CRANKARM-SL BLK,172 LFT
KP020/175L KIT,CRANKARM-SL BLK,175 LFT
KP020/170R KIT,CRANKARM-SL BLK,170 RHT
KP020/172R KIT,CRANKARM-SL BLK,172 RHT
KP020/175R KIT,CRANKARM-SL BLK,175 RHT
KP022/BLK KIT,CRANK BOLTS,H-GRAM SL,(2)
Spiders
QC694/ Kit,Spider,H-GRAM SI,130MM BCD
QC693/ Kit,Spider,H-GRAM SI,110mm BCD
KP021/ KIT,LOCKRING-SL --REQUIRES KT012/
Chainring
KF360/ KIT,BOLT,SI C-RING, MK4/5 ONLY
QC603/ Kit, Pin,Chain Catch-SI
KP024/ KIT,CHAINRING,MK5-53T/130BCD
KP025/ KIT,CHAINRING,MK5-39T/130BCD
KP026/ KIT,CHAINRING,MK5-50T/110BCD
KP027/ KIT,CHAINRING,MK5-34T/110BCD
Other
KP023/BLK KIT,BEARING SHIELD,BB-SL
KB6180/ KIT,BEARING,BB-SI,2PCS
(SKF#6806-2RS /SRI2 /90% FILL)
KP018/ KIT,BEARING,BB-SI,CERAMIC,2PCS
QC616/ KIT,CIRCLIPS (2) BB-SI
QC617/ KIT,SHIM-PLASTIC, BB-SI; CONTAINS 5 0.5MM SHIMS
QC618/ KIT,WASHER-WAVE, BB-SI
KP140/ KIT,BB,ADAPTER BB30 TO TAP
KF365/ KIT,TOOL,SIBB/68 ADP.INSTALL
KP009/ KIT,ADAPTER,SIBB TO 68MM TAP

CANNONDALE USA
Cycling Sports Group, Inc.
172 Friendship Road,
Bedford, Pennsylvania, 15522-6600, USA
(Voice): 1-800-BIKE-USA
(Fax): 814-623-6173
[email protected]
CANNONDALE AUSTRALIA
Cycling Sports Group
Unit 8, 31-41 Bridge Road
Stanmore NSW 2048
Phone: [phone]
Fax: [phone]
[email protected]
CANNONDALE EUROPE
Cycling Sports Group Europe, B.V.
mail: Postbus 5100
visits: Hanzepoort 27
7570 GC, Oldenzaal, Netherlands
(Voice): +41 61.4879380
(Fax): 31-5415-14240
[email protected]
CANNONDALE JAPAN
Namba Sumiso Building 9F,
4-19, Minami Horie 1-chome,
Nishi-ku, Osaka 550-0015, Japan
(Voice): 06-6110-9390
(Fax): 06-6110-9361
[email protected]
CANNONDALE UK
Cycling Sports Group
Vantage Way, The Fulcrum,
Poole, Dorset, BH12 4NU
(Voice): [phone]
(Fax): [phone]
[email protected]
WWW.CANNONDALE.COM
126221 (04/10)
© 2011 Cycling Sports Group
