CYP CH-506TXPL User manual

Operation Manual
Operation Manual

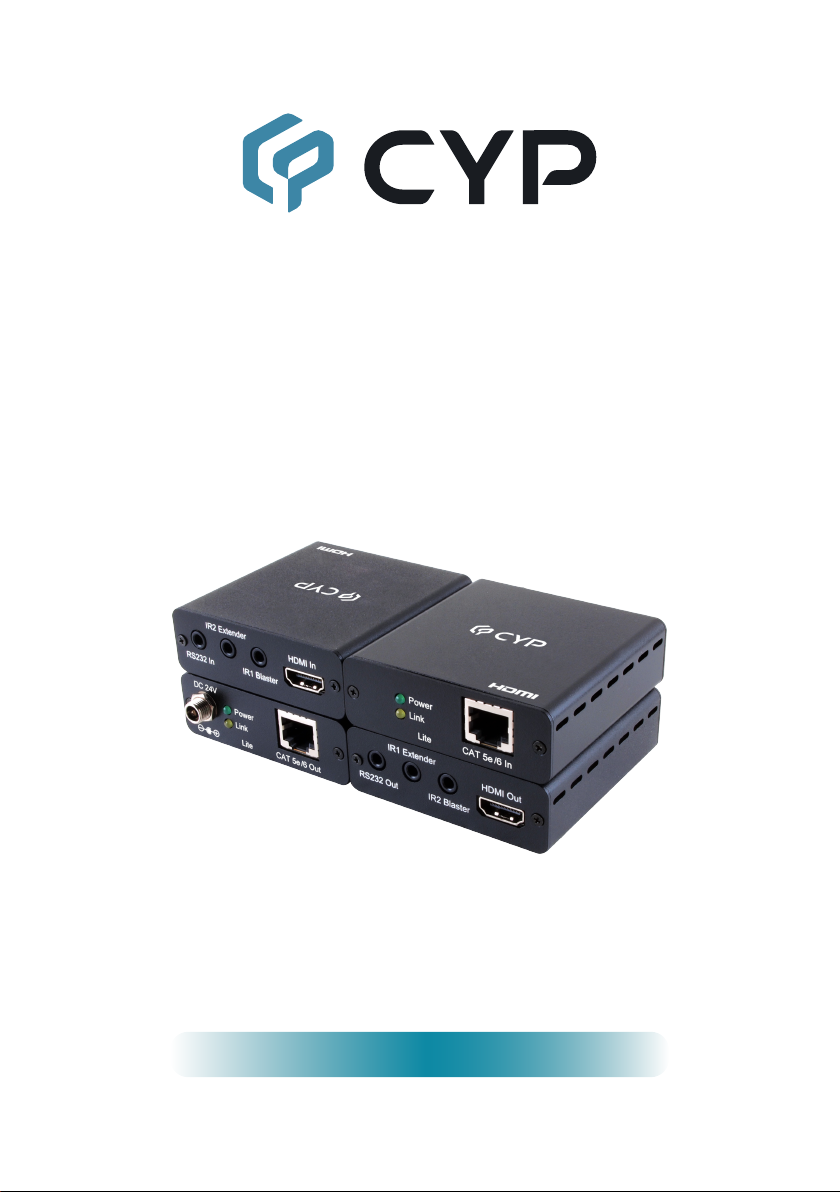

HDMI to CAT5e/6 Extender
CH-506TXPL & RXPL


DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer fi le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for suffi cient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
VR0 2013/01/18 Preliminary Release
VR1 2014/11/21 Package Contents
VR2 2019/07/25 Update Format and Cable Distance

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for suffi cient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
VR0 2013/01/18 Preliminary Release
VR1 2014/11/21 Package Contents
VR2 2019/07/25 Update Format and Cable Distance
CONTENTS
1. Introduction.................................................. 1
2. Applications ................................................. 1
3. Package Contents ....................................... 1
4. System Requirements................................. 1
5. Features........................................................ 2
6. Operation Controls and Functions ............ 3
6.1 Transmitter Front and Rear Panels ......... 3
6.2 Receiver Front and Rear Panels ............. 4
6.3 IR Pin Assignment ................................... 5
6.4 D-Sub 9 Pin Defi nitions ........................... 6
7. Connection and Installation ....................... 7
8. Specifi cations .............................................. 8
8.1 CAT5e/6/7 Cable Specifi cation................ 9
9. Acronyms ................................................... 10

1
1
1. INTRODUCTION
The HDBaseTTM HDMI over single CAT5e/6 with bidirectional IR, RS-232 &
PoC Transmitter and Receiver set can make your home or offi ce set-up more
effi cient and easy to use. Uncompressed video and audio can be transmitted
up to 70 meters at 1080p or 40 meters at 4K. with the PoC function and
added benefi t of controls through the built-in RS-232 and IR ports. This
family design of HDBaseT™ technology allows a full usage of HDMI and
controls over CAT5e/6/7.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control for projector
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI to CAT5e/6 with IR/RS232 & PoE Transmitter x 1
• CAT5e/6 to HDMI with IR/RS232 & PoE Receiver x 1
• IR Blaster x 1(in Transmitter)
• IR Extender x 1(in Receiver)
• 3.5Ø to RS-232 female cable x 1(in Transmitter)
• 3.5Ø to RS-232 male cable x 1(in Receiver)
• 24V/1.25A DC Power Adaptor x 1(in Transmitter)
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player/PC, output
display with HDMI input jack and connection cables of HDMI and CAT5e/6/7.

2
1
1. INTRODUCTION
The HDBaseTTM HDMI over single CAT5e/6 with bidirectional IR, RS-232 &
PoC Transmitter and Receiver set can make your home or offi ce set-up more
effi cient and easy to use. Uncompressed video and audio can be transmitted
up to 70 meters at 1080p or 40 meters at 4K. with the PoC function and
added benefi t of controls through the built-in RS-232 and IR ports. This
family design of HDBaseT™ technology allows a full usage of HDMI and
controls over CAT5e/6/7.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control for projector
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI to CAT5e/6 with IR/RS232 & PoE Transmitter x 1
• CAT5e/6 to HDMI with IR/RS232 & PoE Receiver x 1
• IR Blaster x 1(in Transmitter)
• IR Extender x 1(in Receiver)
• 3.5Ø to RS-232 female cable x 1(in Transmitter)
• 3.5Ø to RS-232 male cable x 1(in Receiver)
• 24V/1.25A DC Power Adaptor x 1(in Transmitter)
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player/PC, output
display with HDMI input jack and connection cables of HDMI and CAT5e/6/7.
2
5. FEATURES
• HDMI 1.x and DVI 1.0 compliant
• HDCP compliant
• Supports HDMI 3D and 4K x 2K features
• Supports HDCP repeater and CEC bypass
• Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K
through CAT5e/6/7 cable
• HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(
YUV 4:4:4, 8-bit)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and
Bitstream over HDMI
• Supports HDBaseT Lite Technology

3
3
6. OPERATION CONTROLS AND FUNCTIONS

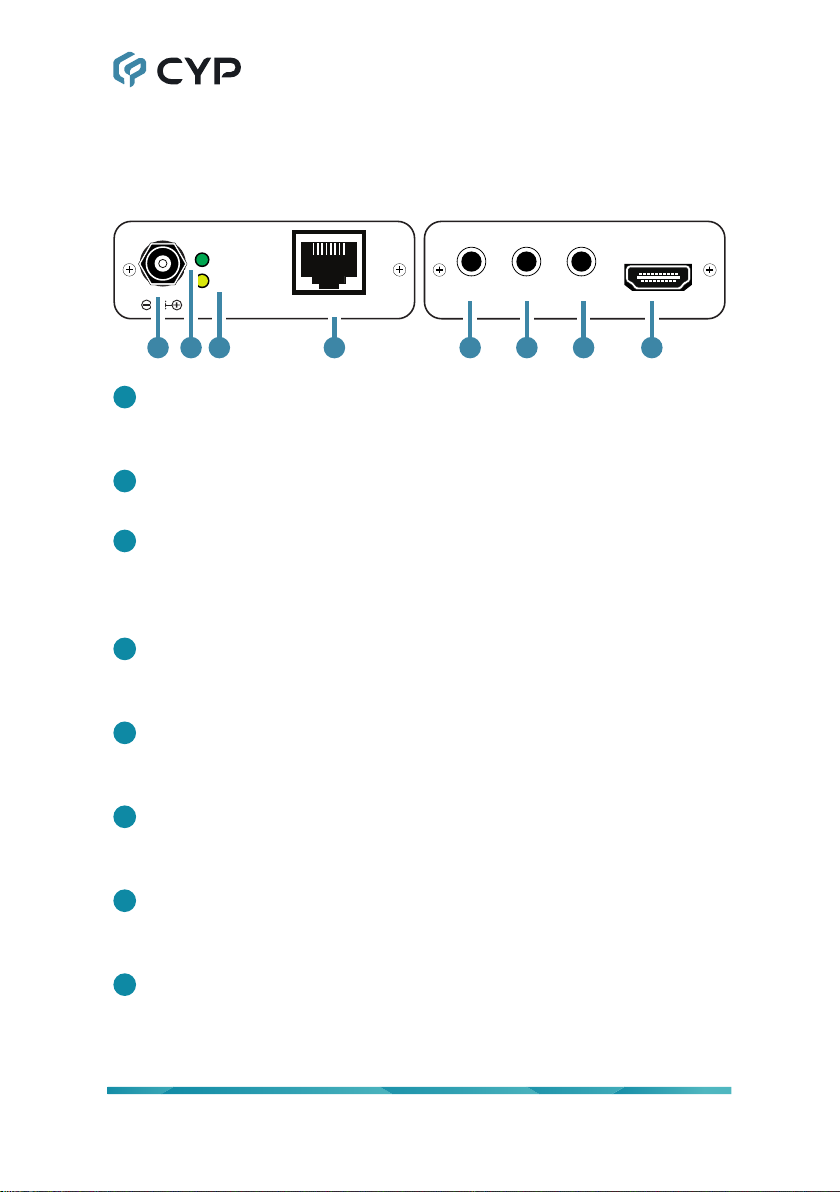

6.1 Transmitter Front and Rear Panels
IR2 Extender
RS232 In IR1 Blaster
HDMI In
Power
Link
CAT 5e /6 OutLite
DC 24V
1 42 3 5 6 7 8
1DC 24V
Plug the 24V DC power supply into the unit and connect the adaptor to
an AC outlet.
2Power LED
This LED will illuminate when the device is connected with power supply.
3LINK LED
This LED will illuminate when the device is connected with a CAT5e/6
cable from the Receiver side. When the data transmission accrue with
error the LED will be blinking.
4CAT5e/6/7 Out
Connect to the Receiver unit with a single CAT5e/6/7 cable for
transmission of all data signals.
5RS232 In
Plug the 3.5Ø to D-Sub 9 pin female cable included in the package and
connect to a PC or laptop for RS-232 commands transmission.
6IR2 Extender
Connect to the IR Extender cable for IR signal reception. Ensure that
remote being used is within the direct line-of-sight of the IR Extender.
7IR1 Blaster
Plug the IR Blaster for IR signal sending from the Receiver side. Place
the IR Blaster in direct line-of-sight of the equipment to be controlled.
8HDMI In
Connect with source equipment such as DVD/Blu-ray player or any HDMI
equipped source device for input signal sending.

4
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
IR2 Extender
RS232 In IR1 Blaster
HDMI In
Power
Link
CAT 5e /6 OutLite
DC 24V
1 42 3 5 6 7 8
1DC 24V
Plug the 24V DC power supply into the unit and connect the adaptor to
an AC outlet.
2Power LED
This LED will illuminate when the device is connected with power supply.
3LINK LED
This LED will illuminate when the device is connected with a CAT5e/6
cable from the Receiver side. When the data transmission accrue with
error the LED will be blinking.
4CAT5e/6/7 Out
Connect to the Receiver unit with a single CAT5e/6/7 cable for
transmission of all data signals.
5RS232 In
Plug the 3.5Ø to D-Sub 9 pin female cable included in the package and
connect to a PC or laptop for RS-232 commands transmission.
6IR2 Extender
Connect to the IR Extender cable for IR signal reception. Ensure that
remote being used is within the direct line-of-sight of the IR Extender.
7IR1 Blaster
Plug the IR Blaster for IR signal sending from the Receiver side. Place
the IR Blaster in direct line-of-sight of the equipment to be controlled.
8HDMI In
Connect with source equipment such as DVD/Blu-ray player or any HDMI
equipped source device for input signal sending.
4
6.2 Receiver Front and Rear Panels
IR1 Extender
RS232 Out IR2 Blaster
HDMI Out
Power
Link
CAT 5e /6 InLite
31 2
4 5 6 7
1Power LED
This LED will illuminate when the device is connected from the
Transmitter with power supply.
2LINK LED
This LED will illuminate when the devices are connected with a CAT5e/6
cable from the Transmitter side. When the data transmission accrue with
error the LED will be blinking.
3CAT5e/6/7 In
Connect to the Transmitter unit with a single CAT5e/6/7 cable for
transmission of all data signals.
4RS232 Out
Plug the 3.5Ø to D-Sub 9 pin male cable included in the package and
connect to the device that is to be controlled by RS-232 commands
5IR1 Extender
Connect to the supplied IR Extender cable for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR extender.
6IR2 Blaster
Plug the IR Blaster included in the package for IR signal sending from the
Receiver side. Place the IR Blaster in direct line-of-sight of the equipment
to be controlled.

5
5
7HDMI Out
Connect to a HDMI equipped TV/monitor for display of the HDMI input
source signal.
6.3 IR Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Grounding
IR Receiver
IR Blaster

6
5
7HDMI Out
Connect to a HDMI equipped TV/monitor for display of the HDMI input
source signal.
6.3 IR Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Grounding
IR Receiver
IR Blaster
6
6.4 D-Sub 9 Pin Defi nitions
PIN DEFINE TX / RX
1 N/C
2TxD/RxD
3RxD/TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
9 NC

7
7

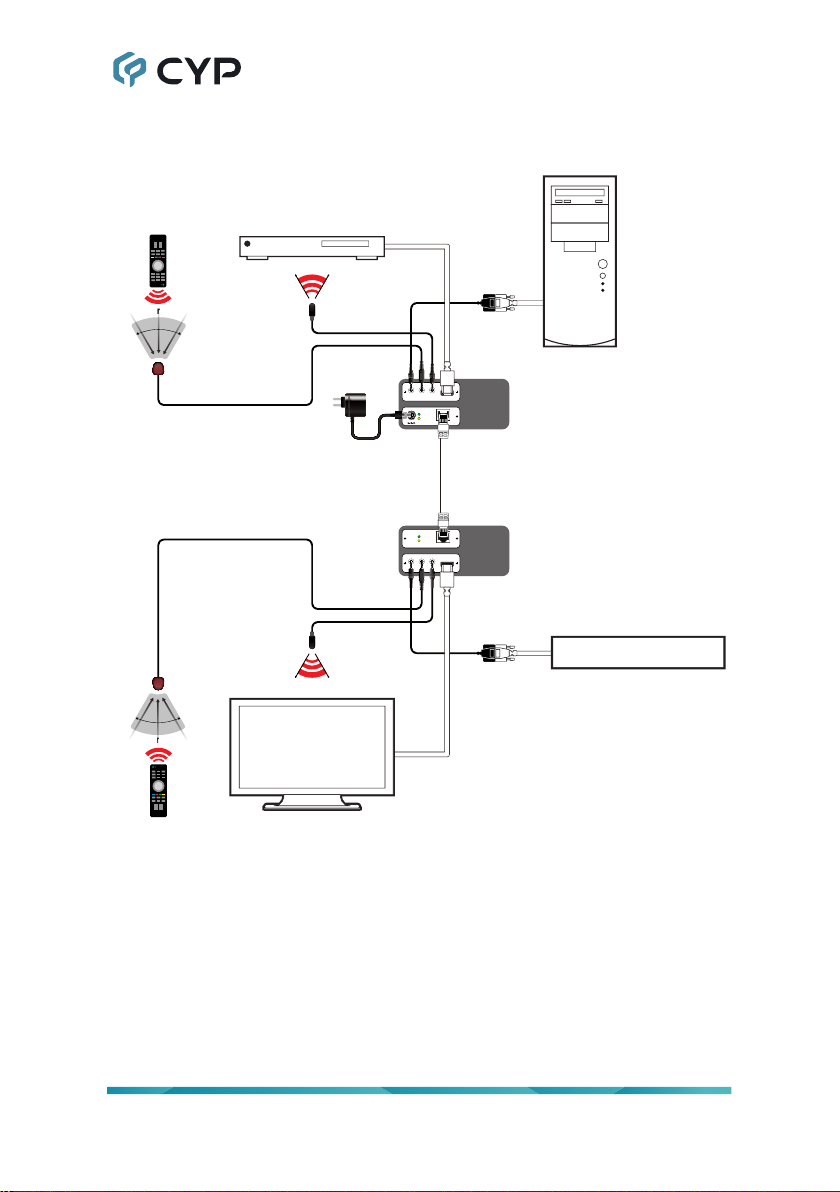

7. CONNECTION AND INSTALLATION
Power
Link
CAT 5e/6 OutLite
DC 24V
IR1 Extender
RS232 Out IR2 Blaster
HDMI Out
Power
Link
CAT 5e/6 InLite
IR2 Extender
RS232 In IR1 Blaster
HDMI In
1.5m
60°
7m
3m 3m
60°
m
1.5m
60°
7m
3m
3m
60°
m
TX
RX
DVD or Blu-ray Player
HDMI
HDMI
Display
Single
CAT5e/6/7
Cable
Power
Supply
RS-232 Equipped Device
RS-232
Equipped
PC or
Notebook
IR Extender
IR Extender
IR Blaster
IR Blaster
RS-232
Adaptor
RS-232
Adaptor

8
7
7. CONNECTION AND INSTALLATION
Power
Link
CAT 5e/6 OutLite
DC 24V
IR1 Extender
RS232 Out IR2 Blaster
HDMI Out
Power
Link
CAT 5e/6 InLite
IR2 Extender
RS232 In IR1 Blaster
HDMI In
1.5m
60°
7m
3m 3m
60°
m
1.5m
60°
7m
3m 3m
60°
m
TX
RX
DVD or Blu-ray Player
HDMI
HDMI
Display
Single
CAT5e/6/7
Cable
Power
Supply
RS-232 Equipped Device
RS-232
Equipped
PC or
Notebook
IR Extender
IR Extender
IR Blaster
IR Blaster
RS-232
Adaptor
RS-232
Adaptor
8
8. SPECIFICATIONS
HDMI Bandwidth 10.2Gbps
HDBaseT Bandwidth 10.2Gbps
Transmitter
Input Ports 1×HDMI, 1×IR Extender, 1×RS-232
Output Ports 1×CAT5e/6/7, 1×IR Blaster
Receiver
Input Ports 1×CAT5e/6/7, 1×IR Extender
Output Ports 1×HDMI, 1×RS-232, 1×IR Blaster
IR Frequency 30 - 50kHz
(30 - 60kHz under ideal conditions)
Baud Rate up to 115200/sec
Power Supply 24V/1.25A DC (US/EU standards, CE/FCC/
UL certifi ed)
ESD Protection Human Body Model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions 71 mm(W) x 79 mm(D) x 23 mm(H)/each
71 mm(W) x 73.5 mm(D) x 23 mm(H)/each
Weight 120 g/TX, 126 g/RX
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 3W/TX, 6W/RX

9
9
8.1 CAT5e/6/7 Cable Specifi cation
Cable Length
1080p 4K30 4K60
8-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Input 15m 10m 5m 5m
HDMI Output 15m 10m 5m 5m
Ethernet Cable
Cat.5e/6 60m 35m
Cat.6a/7 70m 40m
• 1080p (FHD Video)
- Up to 1080p@60Hz, 12-bit color
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
• 4K30 (UHD Video)
- 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit color
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps

10
9
8.1 CAT5e/6/7 Cable Specifi cation
Cable Length
1080p 4K30 4K60
8-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Input 15m 10m 5m 5m
HDMI Output 15m 10m 5m 5m
Ethernet Cable
Cat.5e/6 60m 35m
Cat.6a/7 70m 40m
• 1080p (FHD Video)
- Up to 1080p@60Hz, 12-bit color
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
• 4K30 (UHD Video)
- 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit color
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
10
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
HDCP High-bandwidth Digital Content Protection
HDMI High-Defi nition multimedia Interface
IR Infrared

CYPRESS TECHNOLOGY CO., LTD.
www.cypress.com.tw
Other manuals for CH-506TXPL
1
This manual suits for next models
2
Table of contents
Other CYP Extender manuals
