CYP PU-USB-AL User manual

PU-USB-AL
USB 2.0, Audio & LAN over CAT Extender
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2020 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 08/07/2019 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
7. Connection Diagram .......................... 10
8. Specifications...................................... 11
8.1 Technical Specifications ........................11
8.2 Audio Specifications...............................12
8.3 Cable Specifications ...............................13
8.4 HDBaseT Features....................................13
9. Acronyms............................................. 14

6
1. INTRODUCTION
Currently, USB is the most prevalent interface standard in use today, and
almost every webcam, storage device, and HID (Human Interface Device)
uses it. Applications for USB are everywhere, so naturally the need to
extend the range of a USB connection is just as common. This USB 2.0 Hub
Transceiver with Audio/LAN provides a simple and efficient way to extend
not only USB 2.0 signals, but also stereo audio, and LAN connectivity.
These signals are extended as a high quality, uncompressed, data stream
over a single Cat.6A cable with a maximum length of up to 100 metres (328
feet).
A typical system can support one USB host and up to 6 USB devices (3
on the transmitter side and 3 on the receiver side). The location of the
USB host device is automatically set by hot plug detection, but can also
be manually controlled using a front panel button. This unit supports bi-
directional PoC (Power over Cable) and can receive, or provide, power
from/to the connected unit.
2. APPLICATIONS
Security and monitoring
Industrial Control
Conference room and boardroom KVM Extension
3. PACKAGE CONTENTS
2× USB 2.0 Hub Transceiver with Audio/LAN
1× 24V/2.7A DC Power Adapter
1× Operation Manual
4. SYSTEM REQUIREMENTS
The use of industry standard Cat.6A or Cat.7 cable is highly
recommended.

7
5. FEATURES
1 USB 2.0 host and 3 USB 2.0 device ports
2 100BaseT LAN ports with switching hub functionality
2 3.5mm stereo audio ports (1 input, 1 output)
HDBaseT feature support: Stereo Audio, 100BaseT Ethernet, and PoC
(bi-directional)
Supports transmission distances of up to 100m over a single Cat.6A, or
better cable
Supports USB host connection auto detection
All USB device ports on both the transmitting unit and receiving unit
are active simultaneously, allowing for the connection of up to 6 USB
2.0 devices to a single host
Supplies up to 1A to each USB port
Unit can be powered directly, or via PoC from a compatible HDBaseT
unit
When powered by a local power supply, the unit can provide power to
a compatible HDBaseT unit via PoC
USB host selection is controllable via a front panel button

8
6. OPERATION CONTROLS AND FUNCTIONS

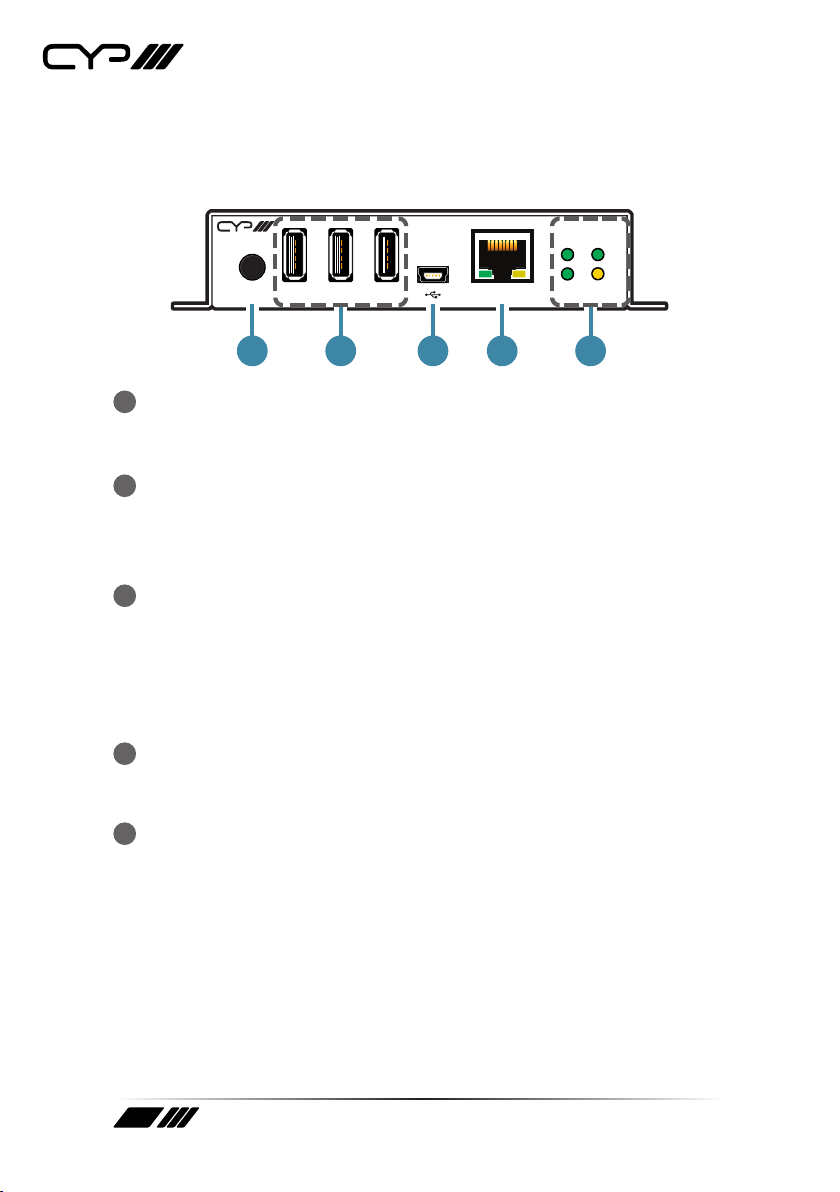

6.1 Front Panel
LAN RX LINK
TX POWER
321SELECT
PU-USB-AL-KIT
2 51 3 4
1SELECT Button: Press this button to manually toggle the unit
between Tx and Rx mode.
Note: The connected transceiver device will also change modes.
2USB 2.0 (Type A) Device Ports: Connect directly to standard USB
devices such as a mouse, keyboard or flash drive to extend their USB
functionality to the currently active USB Host Port.
Note: These ports are always active, regardless of Tx/Rx mode.
3USB 2.0 (Mini B) Host Port: Connect directly to a USB host such
as a PC or laptop to extend their USB functionality to all currently
connected USB devices.
Note: This port is only active when the unit is in Rx mode. Connecting a
live host to a unit that is in Tx mode will automatically switch the unit to
Rx mode.
4LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to all LAN ports at
both ends of the HDBaseT connection.
5Status LED Block:
TX LED: This LED will illuminate solidly when unit is in Tx mode.
RX LED: This LED will illuminate solidly when unit is in Rx mode.
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible receiver is active.

9

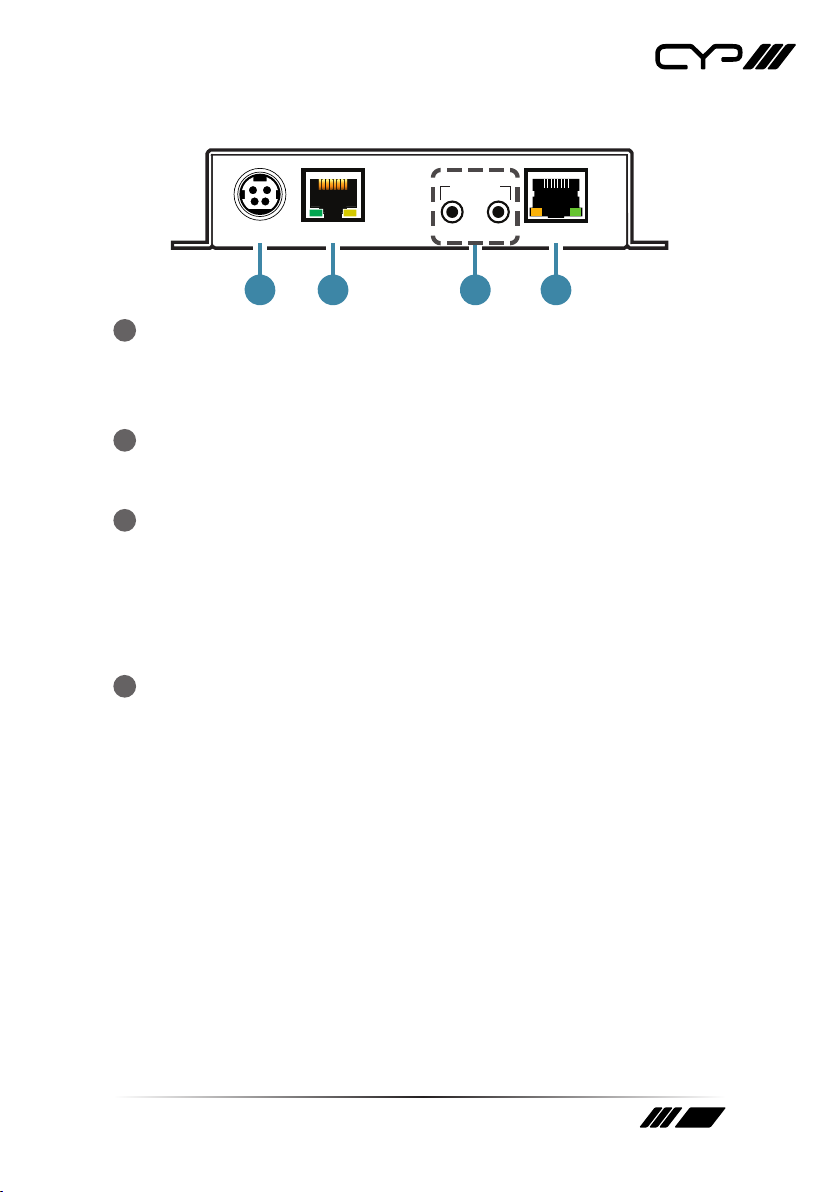

6.2 Rear Panel
IN OUT
AUDIO
LAN CAT6A/7
DC 24V
4321
1DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power. (Optional).
Note: This connection is not required if the unit is receiving PoC from a
compatible transceiver.
2LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to all LAN ports at
both ends of the HDBaseT connection.
3AUDIO IN Port: Connect to the analogue stereo output of a device
such as an audio player or PC.
Note: Audio is passed directly the Audio Out port on the unit at the other
end of the HDBaseT connection.
AUDIO OUT Port: Connect to powered speakers or an amplier for
analogue stereo audio output.
4CAT6A/7 Port: Connect to a compatible HDBaseT transceiver with a
single Cat.6A/7 cable for transmission of all data signals. Bi-directional
power via PoC is supported when connected to a compatible unit.
Note: The PoC function is designed to receive or transmit power between
compatible units only. Other brands are not compatible.

10
7. CONNECTION DIAGRAM
LAN RX LINK
TX POWER
321SELECT
PU-USB-AL-KIT
LAN RX LINK
TX POWER
321SELECT
PU-USB-AL-KIT
IN OUT
AUDIO
LAN CAT6A/7
DC 24V
IN OUT
AUDIO
LAN CAT6A/7
DC 24V
PC/Laptop
Webcam Network Router Powered Speakers
Power Supply
HDBaseT
USB
USB
LAN
LAN
