CYP PU-507RX-SCD User manual

PU-507RX-SCD
5-Play™ HDBaseT™ Receiver with integrated video scaling
& audio breakout (inc. PoE & single LAN, up to 100m) -
stereo audio only
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 06/11/2013 First release
v1.01 21/11/2013 Added RS-232 commands

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 IR Cable Pin Assignment.......................10
6.4 RS-232 Pin Denitions ...........................10
6.5 RS-232 Commands .................................11
6.5 Remote Control........................................12
6.6 OSD Menu..................................................14
6.7 Output Resolution Support.................16
7. Connection Diagram .......................... 17
8. Specications...................................... 18
8.1 Technical Specications ........................18
8.2 CAT5e/6/7 Cable Specication ...........19
9. Acronyms............................................. 19

6
1. INTRODUCTION
The PU-507RX-SCD Receiver allows uncompressed HDMI signals and
IP data to be received over a Single CAT5e/6/7 cable. With full 5-Play
convergence, this solution features RS-232, 2-way IR control functionality,
and LAN serving over the same CAT5e/6/7 cable for transmission
distances up to 100m. This receiver also features an on-board scaler
with audio breakout enabling the installer to maximise video resolution
support to the display whilst de-embedding stereo audio via an optical
connection within the zone.
2. APPLICATIONS
Extend the operating distance of an HDMI signal
Up-scale standard denition video to High-Denition TVs/displays
Lecture room/Showroom/Meeting room/Classroom display and control
Up-scale HDMI output to HDTV/PC resolutions
3. PACKAGE CONTENTS
CAT5e/6/7 to HDMI with LAN/IR/RS-232/Bidirectional PoE Receiver
1×IR Receiver
1×IR Blaster
24V/2.7 A DC Power Adaptor
Remote control (CR-128)
Operation Manual
4. SYSTEM REQUIREMENTS
HDBaseT compatible Transmitter (input) and output to display with an
HDMI input connection.

7
5. FEATURES
Supports all v1.3 HDMI resolutions
Supports uncompressed video/audio up to 10.2Gbps
Video scaling ensuring maximum compatibility and optimum video
resolution support.
Supports Audio breakout via Optical output: Note: This device
supports stereo audio input/output only.
Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,
1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP, & DVI compliant
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7;
80m - CAT5e)
Uncompressed video 1080p, 60Hz, 48bits
5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
Supports 3D signals
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with
cables of a dierent specication.
2. The PoE function is designed for powering compatible Transmitter units
only—non-PoE Transmitters will need their own power supply. Transmitters
from other brands may not be compatible.
3. DO NOT connect the LAN connection to the CAT5e/6/7 port. Doing so may
cause a power shutdown and may damage the device

8
6. OPERATION CONTROLS AND FUNCTIONS

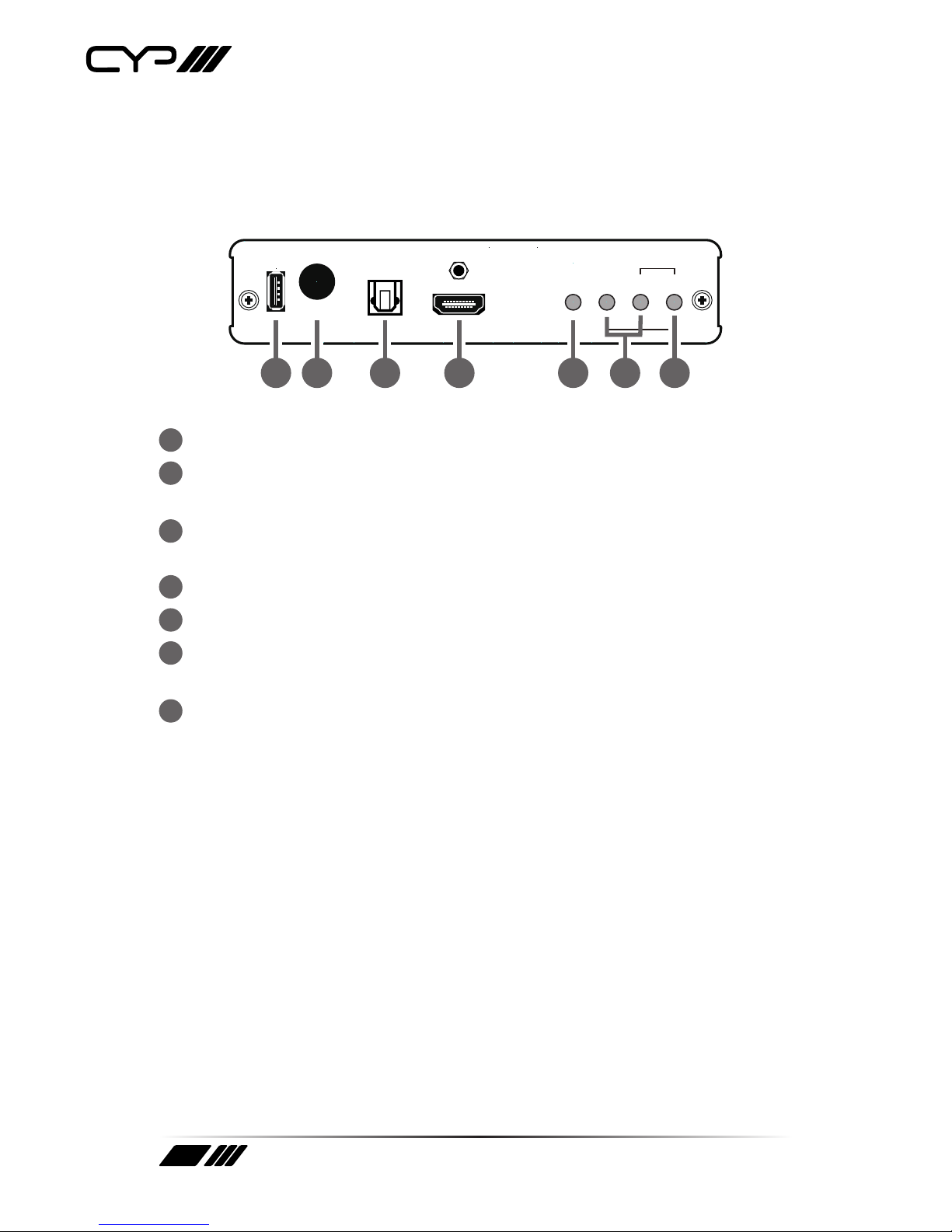

6.1 Front Panel
XGA
MENU ENTER
- +
720P
SERVICE HDMI OUT
OPTICAL OUT
2 3 4 5 6 71
1SERVICE: Reserved for manufacturer use only.
2IR Receiver window: Receives only the IR signal from the supplied
remote control.
3OPTICAL OUT: Connect to an amplier or active speakers with an
optical cable.
4HDMI OUT: Connect to an HDMI TV/Monitor
5MENU: Press this button to enter the On-Screen Display (OSD) menu.
6−/+: Use these buttons to navigate down and up in the on-screen
menu.
7ENTER: Press this button to conrm the selection.
Note:
Pressing '−' (MINUS) and ENTER simultaneously will immediately switch
the output resolution of the device to 720p60.
Pressing '+' (PLUS) and ENTER simultaneously will immediately switch the
output resolution of the device to XGA (1024×768).

9
6.2 Rear Panel
IR
Blaster
IR
Extender
CAT5e/6 IN
MODE LINK
LANRS232 OUT
DC 24V
POWER
21 3 4 5 6 7
1Power LED: This LED will illuminate when the device is connected to
an active power supply.
2DC 24V: Connect the 24V DC power supply to the unit and plug the
adaptor into an AC outlet. Only one unit requires powering if both the
Transmitter and Receiver are both PoE compatible.
3RS-232 OUT: Connect to the device that is to be controlled (via D-Sub
9 pin female cable) by RS-232 commands.
4LAN: Connect to an active network for LAN serving. When any
compatible LAN equipped receivers are connected, this allows the
network access (including internet access if available) to be shared
between any connected LAN equipped receivers. Connect any Ethernet
equipped device e.g. a Smart TV or games console to the LAN port of a
receiver for that device to share the network/internet access.
Warning: DO NOT connect the LAN connection to the CAT5e/6/7 port.
Doing so may cause a power shutdown and may damage the device.
5IR Blaster: Connect the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
6IR Extender: Connect to the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct line-of-
sight of the IR Extender.
7CAT5e/6 IN: Connect to the Transmitter unit with a Single CAT5e/6
cable for receiving all data signals.
MODE LED: This LED will illuminate when the power is connected.
Link LED: This LED will illuminate when connected to a Transmitter
unit that is connected to a source that is outputting a signal.

10
6.3 IR Cable Pin Assignment
3
1
3
2
2
1Power
IR Blaster Signal
NC
IR Signal
Power
Ground
IR Extender
IR Blaster
6.4 RS-232 Pin Denitions
Pin Dene TX / RX
1N/C
2TxD/RxD
3RxD/TxD
4NC
5GND
6NC
7NC
8NC
9NC
Baud Rate: 9600bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

11
6.5 RS-232 Commands
COMMAND DESCRIPTION
S OUTPUT 0~25 0=Native 12=1600×1200
1=640×480 13=1920×1080
2=800×600 16=1920×1200
3=1024×768 17=480p
5=1360×768 18=720p@60
6=1280×720 19=1080p@60
7=1280×800 20=1080i@60
8=1280×1024 22=576p
9=1440×900 23=720p@50
10=1400×1050 24=1080p@50
11=1680×1050 25=1080i@50
R OUTPUT Reports the numerical equivalent for the OUTPUT
setting (as listed above)
S SIZE 0~6 0=OVERSCAN 4=LETTER BOX
1=FULL 5=UNDER 2
2=BEST FIT 6=UNDER 1
3=PAN SCAN
R SIZE Reports the numerical equivalent for the SIZE
setting (as listed above)
S CONTRAST 0~60 Sets the numerical value for the
CONTRAST setting (0-60)
R CONTRAST Reports the numerical value for the
CONTRAST setting (0-60)
S BRIGHTNESS 0~60 Sets the numerical value for the
BRIGHTNESS setting (0~60)
R BRIGHTNESS Reports the numerical value for the
BRIGHTNESS setting (0~60)
S HUE 0~60 Sets the numerical value for the
setting (0~60)
R HUE Reports the numerical value for the
setting (0~60)

12
COMMAND DESCRIPTION
S SATURATION 0~60 Sets the numerical value for the
SATURATION setting (0~60)
R SATURATION Reports the numerical value for the
SATURATION setting (0~60)
S SHARPNESS 0~30 Sets the numerical value for the
SHARPNESS setting (0~30)
R SHARPNESS Reports the numerical value for the
SHARPNESS setting (0~30)
S NR 0~3 0=OFF 2=MIDDLE
1=LOW 3=HIGH
R NR Reports the numerical equivalent for the
NOISE REDUCTION setting (as listed above)
S AUDIO DELAY 0~3 0=OFF 2=110ms
1=40ms 3=150ms
R AUDIO DELAY Reports the numeric equivalent for AUDIO
DELAY setting (as listed above)
S AUDIO MUTE 0/1 0=ON 1=MUTE
R AUDIO MUTE Reports the numeric equivalent for AUDIO
MUTE setting (as listed above)
S KEY LOCK 0/1 0=ENABLE 1=DISABLE
R KEY LOCK Reports the numeric equivalent for KEY
LOCK setting (as listed above)
FW Checks the FIRMWARE version
S RESET 1 Sets the numerical equivalent for the RESET
setting (as left)
Note:
1. RS-232 commands will not execute unless followed with carriage return
and LF (Line Feed).
2. Commands are case-insensitive.
3. Resolutions 1~16 are RGB encoded and 17~25 are YUV encoded.
4. Digital audio supports LPCM 2CH only, please ensure the source input audio
is set to send LPCM 2CH audio in order to avoid unwanted audio noise.

13
6.5 Remote Control
1INPUT: Not functional
2EXIT: Press this button to exit the
menu or escape the current selection
under OSD.
3MENU:Press this button to exit the
menu or the current selection in the
on-screen menu.
4RESET: Press this button to return the
device to the factory default settings.
5AUTO ADJUST: Not functional.
6ENTER & ▲▼◄►: Press ENTER
to conrm the selection or use the
directional buttons to navigate the
on-screen menus.
CR-128
OK
INPUT
EXIT MENU
RESET AUTO
ADJUST
1
2
4
6
3
5

6.6 OSD Menu
1st Layer 2nd layer 3rd Layer
DISPLAY OUTPUT Native
640x480 60
800x600 60
1024x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720x480P 60
1280x720P 60
1920x1080I 60
1920x1080P 60
720x576P 50
1280x720P 50
1920x1080I 50
1920x1080P 50
COLOR SIZE OVER SCAN
FULL
ASPECT RATIO
PAN SCAN
LETTER BOX
UNDER 2
UNDER 1

1st Layer 2nd layer 3rd Layer
COLOR
(Continued)
MODE INFO INFO
ON
OFF
COLOR R
G
B
R OFFSET
G OFFSET
B OFFSET
CONTRAST 0~60
BRIGHTNESS 0~60
HUE 0~60
SATURATION 0~60
SHARPNESS 0~60
NR. OFF
LOW
MIDDLE
HIGH
AUDIO VOLUME 0~100
DELAY OFF
40mS
110mS
150mS
SOUND ON
MUTE
SETUP FACTORY RESET NO
YES
KEY LOCK OFF
ON

16
1st Layer 2nd layer 3rd Layer
INFORMATION INPUT
OUTPUT
REVISION
Note: Items in Bold are the default setting.
6.7 Output Resolution Support
INPUT RESOLUTION HDMI
480i/576i 
480p/576p 
720p@50/60 Hz 
1080i@50/60 Hz 
1080p@50/60 Hz 
VGA@60/72/75 Hz 
SVGA@56/60/72/75 Hz 
XGA@60/70/75 Hz 
SXGA@60/75 Hz 
UXGA@60 Hz 
1280×800@60 Hz 
1680×1050RB@60 Hz 
1920×1080@60 Hz 

17

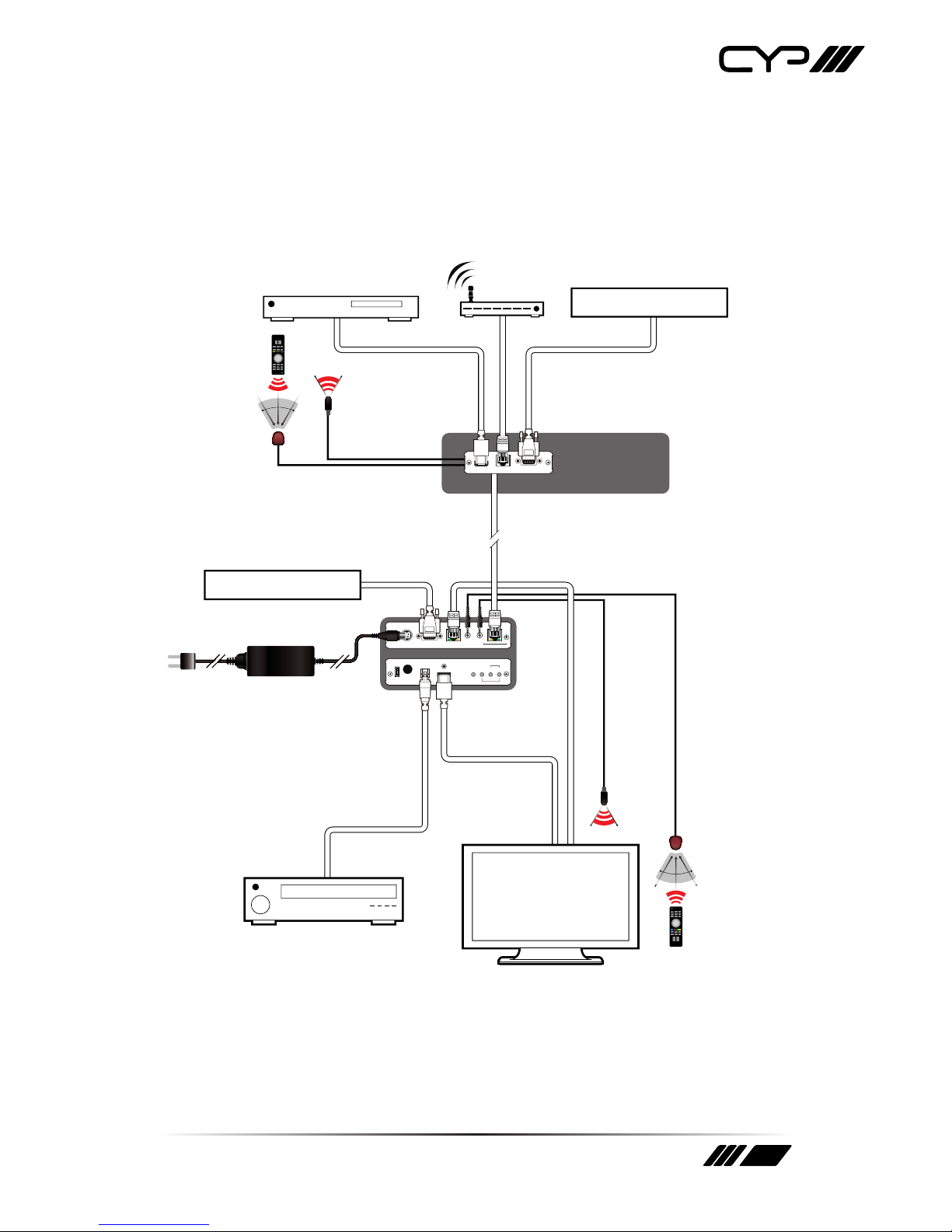

7. CONNECTION DIAGRAM
XGA
MENU ENTER
- +
720P
SERVICE HDMI OUT
OPTICAL OUT
IR
Blaster
IR
Extender
CAT5e/6 IN
MODE LINK
LANRS232 OUT
DC 24V
POWER
1.5m
60°
1.5m
60°
RS-232 In
LAN
HDMI In
HDMI to CAT5e/6 with LAN/IR/RS232
Transmitter
7m3m 3m
60°
m
m
m
7m3m 3m
60°
m
m
3m
Digital Audio
Output (Optical)
RS-232 Control System
RS-232 Device
Router with internet
connection
CAT 5e/6/7
Up to 100m
DVD Player
Smart TV
AV Receiver
HDMI
Output
LAN
LAN
RS-232
IR Blaster
IR Blaster
IR Extender
IR Extender
Compatible
Transmitter

18
8. SPECIFICATIONS
8.1 Technical Specications
Ethernet Speed 100 Mbps
Input Video Bandwidth 300MHz / 10.2Gbps
Output Video bandwidth 165MHz / 1.65Gbps
Input Ports 1×CAT5e/6/7,
1×IR Extender
Output Ports 1×HDMI, 1×IR Blaster, 1×Optical ,1×RS-232, 1×LAN
CAT5e/6/7 Output Cable
Distance
Up to 100 Meters
HDMI output Resolution HD: Up to 1080p@60Hz
PC: Up to WUXGA(RB)
Audio Sampling Rate Up to 48kHz / LCPM 2CH
CAT5e/6/7 Output
Resolution
HD: Up to 1080p@60Hz
PC: Up to WUXGA(RB)
IR Frequency 30~50kHz
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 145 (W) x 192 (D) x 30(H)/Jacks Excluded
145 (W) x 202.75 (D) x 30(H)/Jacks Included
Weight (g) 608
Chassis Material Aluminum
Color Black
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 14W

19
8.2 CAT5e/6/7 Cable Specication
Cable Type Range Pixel clock
rate
Video Data
Rate Supported Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz,
36 bits, 3D (data
rates lower than 5.3
Gbps or below 225
MHz TMDS clock).
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CAT7 Category 7 Cable
HDMI High-Definition Multimedia Interface
IR Infrared
WUXGA (RB) Widescreen Ultra Extended Graphics Array
(Reduced blanking)

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
v1.01
